Reference for tail light placement 56-61
Forum Index -> Beetle - Oval-Window - 1953-57 Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
hootowls
Samba Member


Joined: November 14, 2005
Posts: 63
Location: Lompoc, CA
hootowls is offline

PostPosted: Sun May 30, 2010 9:58 am    Post subject: Reference for tail light placement 56-61 Reply with quote

The following diagram is from "Der Motor Test," July 1958, showing the rear view drawing of a European bumper 58 sedan with relative dimensions for the location if the tail light housings. Note that "leer" means "empty" and the units are in millimeters. Thought the drawing might be useful for the ovals and the squares as this is common to both.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
OvalWindowBucket
Samba Member


Joined: April 23, 2003
Posts: 694
Location: Reviving my Microbus
OvalWindowBucket is offline

PostPosted: Sun May 30, 2010 10:56 pm    Post subject: Reply with quote

The height of my snowflakes is mismatched, thank you very much for this..
Back to top
View user's profile Send private message Gallery Classifieds Feedback
envycustoms
Samba Member


Joined: June 20, 2006
Posts: 324
Location: Oakland - Nor*Cal
envycustoms is offline

PostPosted: Mon May 31, 2010 10:55 pm    Post subject: Reply with quote

Image may have been reduced in size. Click image to view fullscreen.


heres a diff view on the subject Wink
_________________
56 SunRoof (o\U!U/o) "Hood Fellas"
Damn.. not another car on earlies!

www.EnvyCustoms.Tumblr.com
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Chip B. Premium Member
Samba Member


Joined: July 19, 2008
Posts: 750
Location: Utah
Chip B. is offline

PostPosted: Fri Jun 04, 2010 8:55 pm    Post subject: Reply with quote

I prefer the second one, otherwise my lights would end up way to high, the reference to the ground can only be used on a bug sitting at stock height with out any rear end sag. Good luck finding one of those, except on a fresh resto.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Volumex
Samba Member


Joined: October 11, 2007
Posts: 525
Location: Sarnia, ON
Volumex is offline

PostPosted: Fri Jun 04, 2010 9:46 pm    Post subject: Reply with quote

You can use the distance from the bottom of the popes nose to the centre of the snowflake - it is obviously 153mm (679-526) and independent of the height of the car.
Just need a stringline, spirit level & tape measure - and three hands.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Chip B. Premium Member
Samba Member


Joined: July 19, 2008
Posts: 750
Location: Utah
Chip B. is offline

PostPosted: Sat Jun 05, 2010 6:53 am    Post subject: Reply with quote

Good point, I'll work on the 3rd hand thing Laughing
Back to top
View user's profile Send private message Gallery Classifieds Feedback
RJoval
Samba Member


Joined: October 04, 2009
Posts: 4
Location: Australia
RJoval is offline

PostPosted: Sat Jun 05, 2010 2:27 pm    Post subject: Reply with quote

for those that think there tail lights are going to be to high using diagram one its simple,
measure the height of your number plate light off the ground because it is very rare that the holes in your bonnet have been filled and need redrilling, then subtract the difference from the height that is shown on the drawing, this is the difference then subtract that from all other height measurements and away you go.
Back to top
View user's profile Send private message Classifieds Feedback
AlteWagen
Troll


Joined: February 23, 2007
Posts: 7912

AlteWagen is offline

PostPosted: Sun Jun 06, 2010 10:31 am    Post subject: Reply with quote

Another related thread and specs.

http://www.thesamba.com/vw/forum/viewtopic.php?t=354891

Still no absolute proof.
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
TSLAVO
Samba Member


Joined: August 25, 2015
Posts: 136
Location: Asia
TSLAVO is offline

PostPosted: Thu Aug 31, 2017 8:18 pm    Post subject: Reply with quote

envycustoms wrote:
Image may have been reduced in size. Click image to view fullscreen.


heres a diff view on the subject Wink


Trying to get my 57 tail light position right. Couldn't get it right and found out my fender measurement joining rear apron is out. My apron is original. Could 57 fenders have different dimension?


Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Kjell Roar
Samba Member


Joined: December 08, 2008
Posts: 1278
Location: Norway
Kjell Roar is offline

PostPosted: Fri Sep 01, 2017 2:31 pm    Post subject: Re: Reference for tail light placement 56-61 Reply with quote

Might be aftermarket fenders.
_________________
I got a historic car, every scratch got a history...

My car, Aug. 4th, 1955 / an early 56: http://www.thesamba.com/vw/forum/album_page.php?pic_id=610438
Back to top
View user's profile Send private message Gallery Classifieds Feedback
AlteWagen
Troll


Joined: February 23, 2007
Posts: 7912

AlteWagen is offline

PostPosted: Fri Sep 01, 2017 5:52 pm    Post subject: Re: Reference for tail light placement 56-61 Reply with quote

Strange, I just measured two original fenders I have, the euro is off a 58 and the non ribbed is from a 60. Putting the hook from the tape measure and holding it flat against the curve of the fender I get 13.5 for both.


Image may have been reduced in size. Click image to view fullscreen.



Image may have been reduced in size. Click image to view fullscreen.

_________________
Grapes of Wrath $200 Engine Rebuild
Official Dual Carb Thread
Cylinder Head Quick Reference Sheet
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
TSLAVO
Samba Member


Joined: August 25, 2015
Posts: 136
Location: Asia
TSLAVO is offline

PostPosted: Sat Sep 02, 2017 9:05 am    Post subject: Re: Reference for tail light placement 56-61 Reply with quote

Possible my fenders are aftermarket. Thinking of my rear apron is very likely to be original to 57, measurement of fenders adjoining to apron should be correct.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
TSLAVO
Samba Member


Joined: August 25, 2015
Posts: 136
Location: Asia
TSLAVO is offline

PostPosted: Sat Sep 02, 2017 9:08 am    Post subject: Re: Reference for tail light placement 56-61 Reply with quote

AlteWagen wrote:
Strange, I just measured two original fenders I have, the euro is off a 58 and the non ribbed is from a 60. Putting the hook from the tape measure and holding it flat against the curve of the fender I get 13.5 for both.


Image may have been reduced in size. Click image to view fullscreen.



Image may have been reduced in size. Click image to view fullscreen.


Could you get 15" and 6 3/4" as per the picture? If not, what are yours?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Snort
Samba Member


Joined: April 02, 2005
Posts: 1936
Location: Seattle, WA
Snort is online now

PostPosted: Sat Sep 02, 2017 4:01 pm    Post subject: Re: Reference for tail light placement 56-61 Reply with quote

Here are some measurements from my 57 Bug original fender.

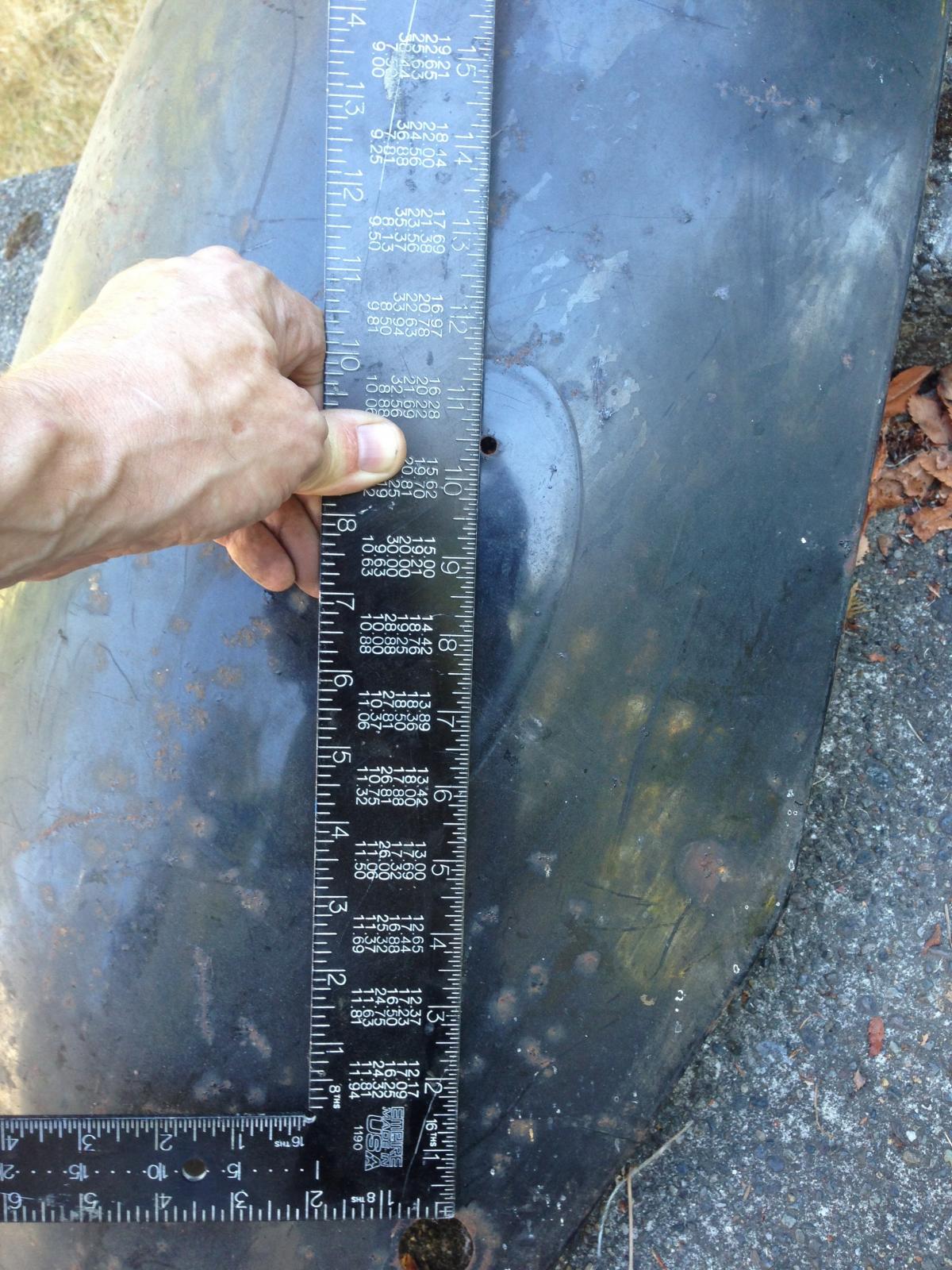

1. I measured 13 5/8 inches from the bottom to the bend
Image may have been reduced in size. Click image to view fullscreen.

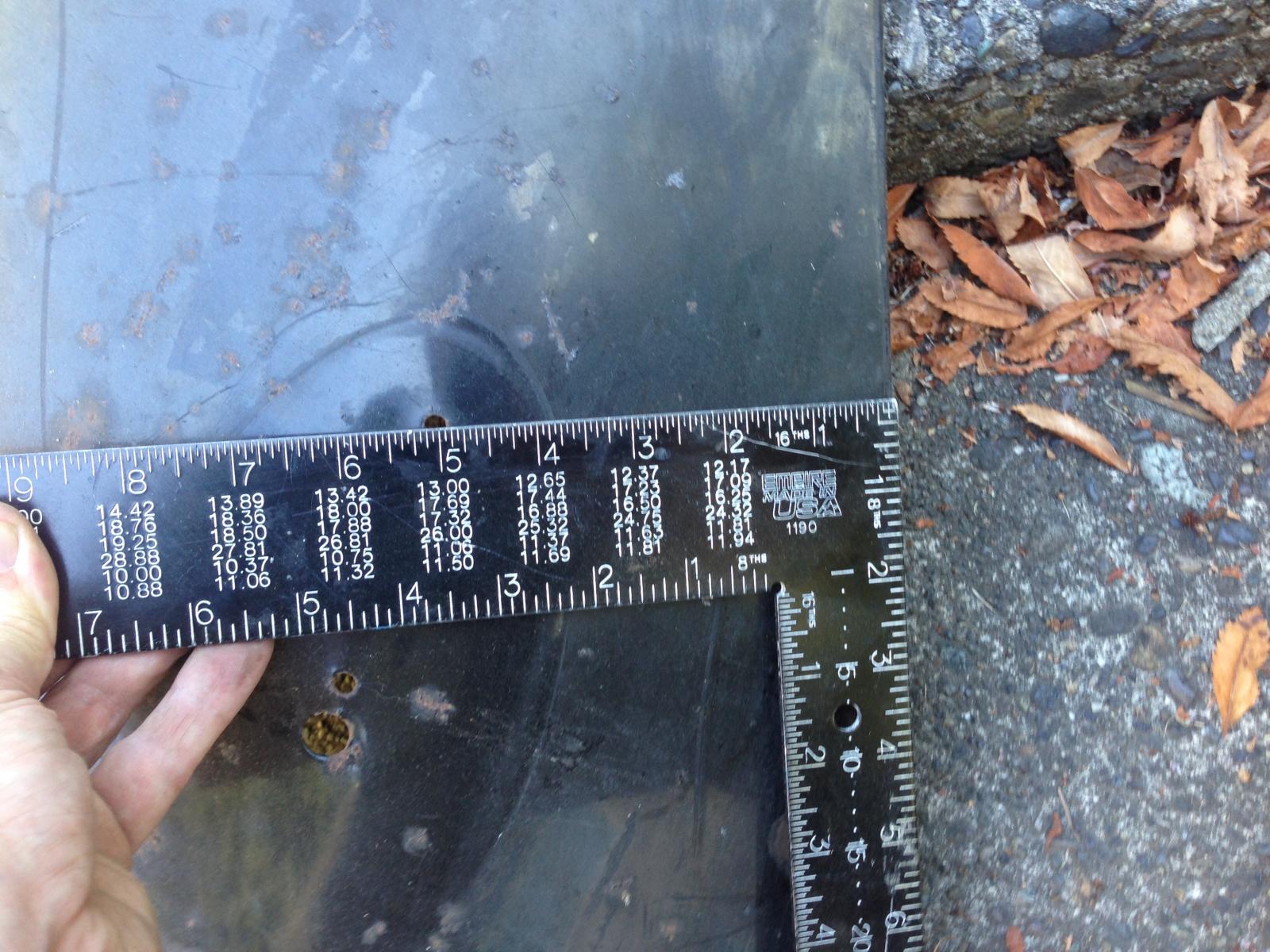

2. This one is an attempt to get a square alignment off the apron line but that line is not square so it's averaged.
Image may have been reduced in size. Click image to view fullscreen.


3. Edge of overrider support hole to wire hole.
Image may have been reduced in size. Click image to view fullscreen.


4. Edge of overrider support hole to top mounting hole.
Image may have been reduced in size. Click image to view fullscreen.

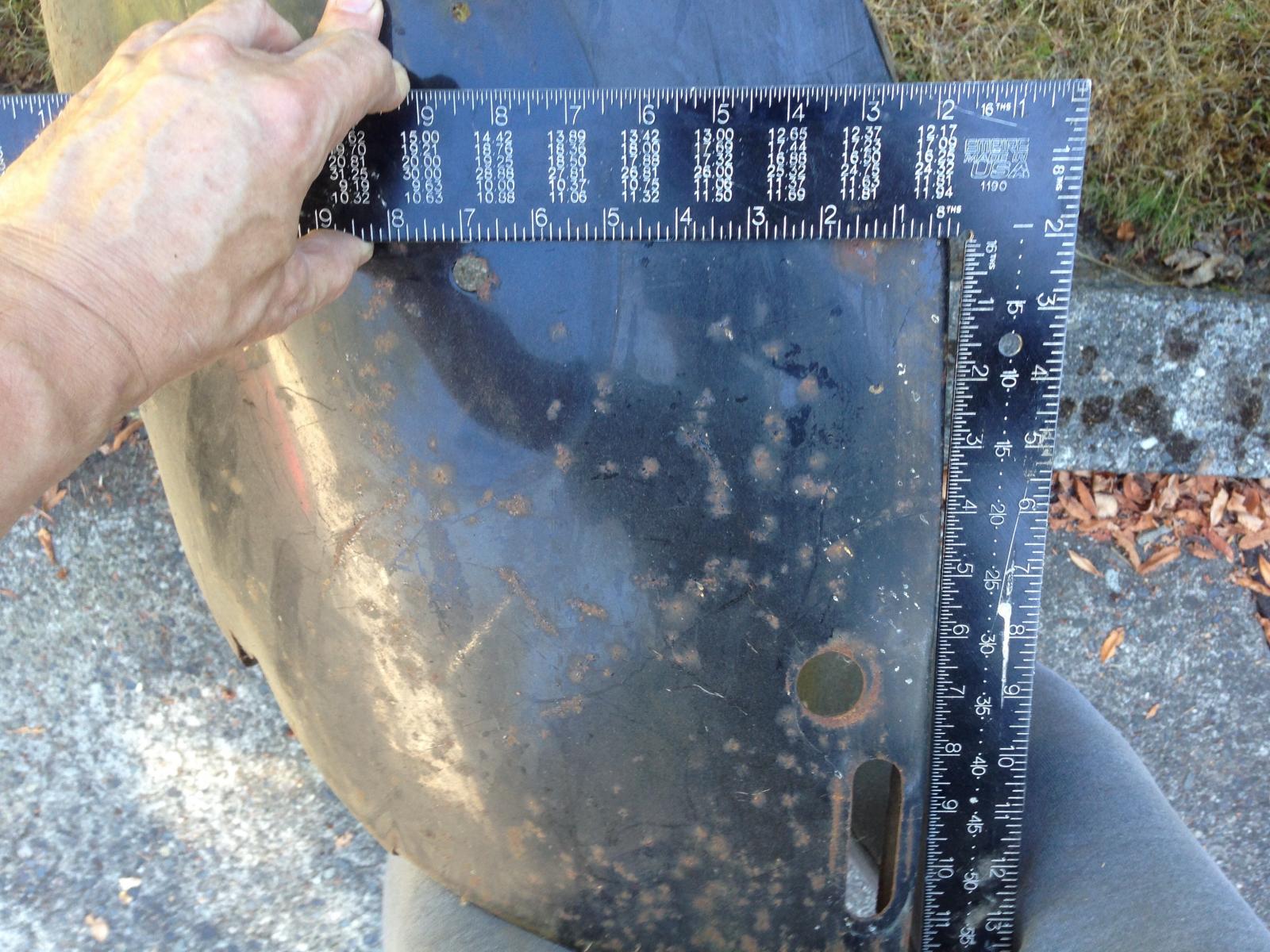

5. Square alignment from rear quarter panel line.
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
TSLAVO
Samba Member


Joined: August 25, 2015
Posts: 136
Location: Asia
TSLAVO is offline

PostPosted: Wed Sep 06, 2017 8:53 pm    Post subject: Re: Reference for tail light placement 56-61 Reply with quote

I finally found the problem after taking the fenders and fitted to body at body work shop. The bend on fenders do not fit perfectly to the body with some gaps. I measured the rear apron from bottom to where the bend should sit and get exactly 13 5/8 inches.

Thanks for everyone who respond to my post and i am happy to get the right position. The picture guide in this FAQ is pretty helpful.

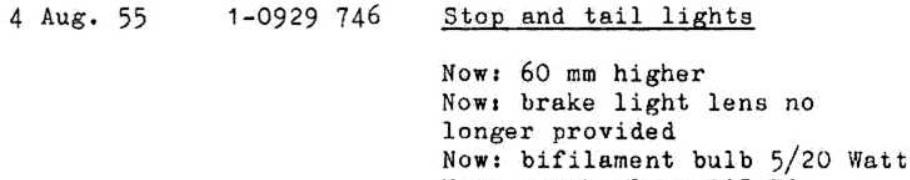

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
