34 Pict 3 Accelerator Pump Linkage

mnussbau

Picked up a used OG 34 pict 3 carb for $5, rebuilt it, and got a new Bosch SVDA to go with it. The carb has the generator style accel pump linkage. I haven't tried to install it but am anticipating it will hit the alternator.

I have an H30/31 (with the low profile-type accel pump linkage) that this carb will replace. Any reason I can't pull that linkage and put it on the 34 pict 3? Is it a direct replacement? If possible I'd like to avoid grinding the alternator body.
_________________
Mike
‘74 bug vert
Parts...

jzjames · Posted: Fri May 30, 2008 7:05 pm Post subject:

I dunno. The H30/31 fuel inj. pump link is probably engineered specifically for the fuel shot for that carb. I would get out my 4 1/2 in. grinder and carefully grind off a small amount at a time until the fuel inj. linkage does not interfere with the alt. casing. Problem will be solved.

Glenn · Posted: Fri May 30, 2008 7:07 pm Post subject:

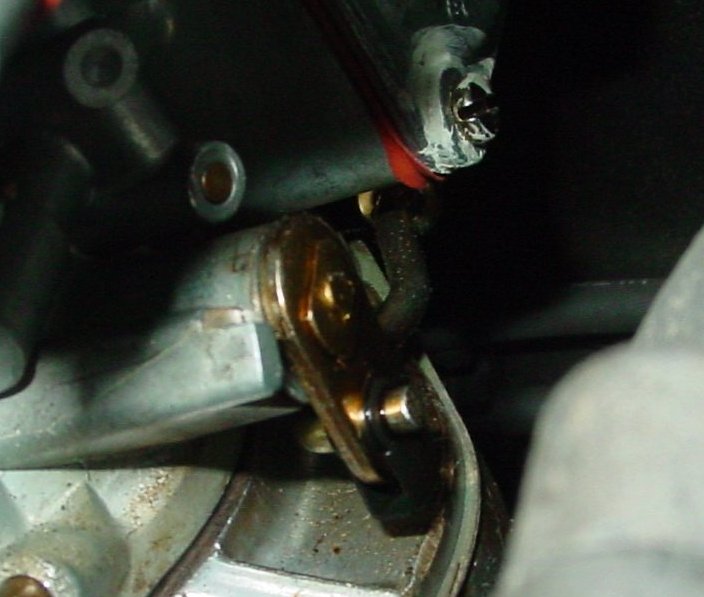

Or find the correct part.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Member #1009

#BlueSquare

עַם יִשְׂרָאֵל חַי

mnussbau · Posted: Fri May 30, 2008 7:37 pm Post subject:

I just now got a chance to look at the H30's linkage carefully. The attachment on the right side is not bolted on to the throttle shaft like the 34 pict's, instead it looks pressed on somehow. So I'd have to use the entire throttle shaft including the arm. Not sure I want to go mucking up an otherwise good carb. Confused

Crippler

DrDarby · Posted: Fri May 30, 2008 8:24 pm Post subject:

No, you cannot flip the linkage it is an entirely different beast.
_________________
Midwest Autosavers, Inc. Crystal Lake, IL

mnussbau · Posted: Sun Jun 01, 2008 4:22 pm Post subject:

Ok, so I installed the carb as is and ended up filing down the side of the alternator just a bit.
_________________
Mike
‘74 bug vert
Parts...

Crippler · Posted: Sun Jun 01, 2008 5:38 pm Post subject:

cool. i love using my dremel.
_________________
1973 VW bus

mnussbau · Posted: Sun Jun 01, 2008 6:38 pm Post subject:

I really thought this would be the job to prompt me to buy one, but alas, I found a "flat bastard" file in the basement. (Hey, wasn't he in an Austin Powers movie?!) Laughing

_________________
Mike
‘74 bug vert
Parts...

jzjames · Posted: Mon Jun 02, 2008 4:13 am Post subject:

make sure that accel pump lever does not touch the alt. casing at all when the carb is mounted. I had to grind quite a little bit off of mine to get the clearance,.. maybe almost 1/4" deep. Verify that the lever has not been bent, set the adjustment setting in the middle, and go from there.

gobeatle · Posted: Sun Jul 27, 2008 11:35 pm Post subject:

Can someone tell me how I might go about getting the correct linkage, shown in Glenn's post, if I have an alternator in the way of you 34-3 linkage. The alternator linkage setup doesn't seem very common.

gobeatle · Posted: Mon Jul 28, 2008 7:13 am Post subject:

Is it possable to file and notch the exsisting cam that hooks to the linkage to look and work like Glenn's post? I took it apart and it looks like it can be done that way. Is the correct linkage for an alternator setup shorter than what I have now. I really don't want to bend the cam to get it to go around the alternator.

gregthomas · Posted: Mon Jul 28, 2008 7:27 am Post subject:

Isn't the linkage on an H30/31 adjustable. If so, I think you could use it and then adjust it for the correct shot for your carb.
_________________
Checkout my church's website: http://www.ebcky.com
We offer podcasts of Sunday Sermons, articles and more!

gobeatle · Posted: Mon Jul 28, 2008 10:38 am Post subject:

Okay, thanks, that's good information. I'm wondering also about the cam attached to the shaft. There must be a cam specific for the alternator application or can I find that on another carberator, like a 30/31. Thanks for your help.

jzjames · Posted: Mon Jul 28, 2008 7:42 pm Post subject:

No. I dont think there is a cam you can put on your 34 pict 3 carb that will clear the alt. Get a diff. carb or start doing some judicious grinding. Shocked

mnussbau · Posted: Mon Jul 28, 2008 9:10 pm Post subject:

gobeatle · Posted: Mon Jul 28, 2008 10:04 pm Post subject:

Does everyone with an alternator and a 34-3 have their linkage and cam like what Glenn's pic shows. I took mine apart and couldn't get it to look like that. The cam had to be reversed and did not look like the photo. Did Solex make a spicific cam for an alternator 34-3 carb aplication?

volkenstein · Posted: Mon Jul 28, 2008 10:46 pm Post subject:

Gobeatle,
If it was an OE fitment, yes. VW changed the plates to suit. Since my car was originally generator equipped, I ground clearance into the alternator body.

I've done the same as you. Basically, you either pillage an alternator carby or fab your own. I found no-one (VW shops) that sold the plates seperately.

Volkenstein
_________________
71 RHD AS Super - "Klaus"...
Wisdom of youth, energy of old age...

keifernet · Posted: Tue Jul 29, 2008 8:52 am Post subject:

gobeatle · Posted: Tue Jul 29, 2008 9:12 am Post subject:

Ah, thanks Keith, thought you would never jump in. So you copied the alt. linkage setup when you fabricated your? I think I need to get one of those from you. Thanks for the info.
