PostPosted: Thu Sep 16, 2010 7:59 am    Post subject: CV Joint Orientation Information GKN Lobro Reply with quote

Due to conflicting information all over the web and this site as to which way to orient the CV Joint for installation I contacted the GKN Driveline factory to get the final word, at least for GKN Lobro CV Joints. Per the email I received with the drawing, the single line side goes to the shaft and the three line side goes to the flange. the center hub on the single line side also has a chamfer and the three line side of the center hub is flat cut with no chamfer.

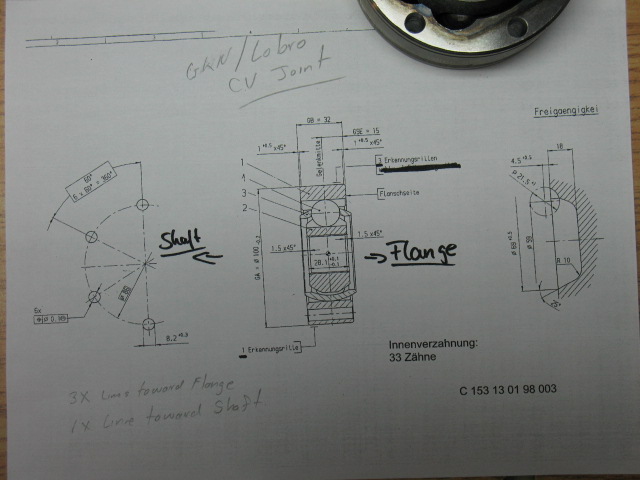

Below is the drawing and pictures of a GKN Lobro CV Joint from both sides.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Jalabert
Samba Member


Joined: December 06, 2005
Posts: 526
Location: On the coast in NZ, somewhere...
Jalabert is offline

PostPosted: Thu Sep 16, 2010 12:24 pm    Post subject: Reply with quote

That's awesome work. Maybe this could be merged with the thread with the link that aeromech put up showing how to reassemble a CV and made into a sticky...?
_________________
http://thickrubber.blogspot.com/ Writing, Surfing, and Exploring NZ's deep south by VW...

'73 westy, 1700 type 4 with 34icts
Back to top
View user's profile Send private message Classifieds Feedback
babysnakes
Samba Member


Joined: August 19, 2008
Posts: 6304
Location: The utility muffin research kitchen.
babysnakes is offline

PostPosted: Fri Oct 15, 2010 7:08 am    Post subject: Reply with quote

Thanks for posting this. I packed my new lobros last night, planning on mounting them today. This was my question.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Desertbusman
Samba Member


Joined: June 03, 2005
Posts: 14652
Location: Arizona
Desertbusman is offline

PostPosted: Tue Mar 15, 2011 5:49 pm    Post subject: Reply with quote

I've never seen a joint with 3 grooves on one side. And that single groove is opposite the flange. Most joints only have one groove. And depending on the source, that single groove sometimes is inside and sometimes is outside.
_________________
SGKent wrote:
There is no question in my mind from my experiences engine machining, building, racing, and with other engine builders that no one here can build a bus engine which is more reliable than I can.
Evil or Very Mad Evil or Very Mad Rolling Eyes Laughing Razz Laughing Shame on you Laughing Laughing Rolling Eyes Laughing Laughing SICKO B.S. Evil or Very Mad Evil or Very Mad Laughing Shocked Shocked Laughing Twisted Evil d'oh! Liar Liar Liar


71 Superbug
71 Westy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
busman78
Samba Member


Joined: August 17, 2004
Posts: 4012
Location: Oklahoma City, OK
busman78 is offline

PostPosted: Tue Mar 15, 2011 6:43 pm    Post subject: Reply with quote

These were Lobro's, as for other off brands I have no idea.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
SGKent Premium Member
Samba Member


Joined: October 30, 2007
Posts: 28855
Location: Nor Cal
SGKent is online now

PostPosted: Tue Mar 15, 2011 7:41 pm    Post subject: Reply with quote

The ones we had also show 3 and 1.
_________________
Godspeed to all who undertake a journey with a VW Bus.

*You can do it right the first time, or do it over, the choice is yours. It is a free country. As to brakes, steering, tires, axles etc. - you may only get one chance at doing those right.

* VW Buses and VW cars share many of the same systems but if you haven't owned a bus and maintained it for awhile, you really don't know how different it is.

Bus Engine Cooling Issues? https://kentcomputer.com/77VW/BusEngineCooling.pdf
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
curtis4085
Samba Member


Joined: July 22, 2011
Posts: 4798
Location: Colorado
curtis4085 is offline

PostPosted: Wed Nov 30, 2011 8:45 pm    Post subject: Reply with quote

So my Lobros came today in the mail so I figured this should be a fun messy project. Well have a few questions. I had to use a large round cylinder to help drive the CV joint onto the axle. One side went on pretty smooth and the other I had to give her a few hard taps to get her all the way seated back. Other thing to note is the one side that went on hard the circlip fit real nice and tight. The other easy side the circlip spins and seams lose I need to get some longer handled pliers to tighten it up. Where did I go wrong. ANy pointers?
_________________
Special Thanks to:
Headflow Masters - Vista, CA
www.headflowmasters.com
Back to top
View user's profile Send private message Gallery Classifieds Feedback
old DKP driver
Samba Member


Joined: March 30, 2005
Posts: 3802
Location: Los Gatos,Ca.
old DKP driver is offline

PostPosted: Wed Nov 30, 2011 9:01 pm    Post subject: cv joints Reply with quote

Way back when i was a tech i would put the new CV's up inside the shop heater in the winter time to warm them up before installing them. Very Happy

Curtis,
As for the loose circlip if you have up and down play even with the new style joints that have the "built in thrust surface" you may still be able to install one of the old washers to remove the excess play.

Or, if you are saying the Snap ring is just to loose take it off and bend it a little.
_________________
V.W.owner since 1967
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
curtis4085
Samba Member


Joined: July 22, 2011
Posts: 4798
Location: Colorado
curtis4085 is offline

PostPosted: Wed Nov 30, 2011 9:10 pm    Post subject: Re: cv joints Reply with quote

old DKP driver wrote:
Way back when i was a tech i would put the new CV's up inside the shop heater in the winter time to warm them up before installing them. Very Happy

Curtis,
As for the loose circlip if you have up and down play even with the new style joints that have the "built in thrust surface" you may still be able to install one of the old washers to remove the excess play.

Or, if you are saying the Snap ring is just to loose take it off and bend it a little.


not much or any play in joint to circlip. the circlip after install i could not squeeze tight. it spins in the grove. What do people use to pinch these thing together
_________________
Special Thanks to:
Headflow Masters - Vista, CA
www.headflowmasters.com
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Desertbusman
Samba Member


Joined: June 03, 2005
Posts: 14652
Location: Arizona
Desertbusman is offline

PostPosted: Wed Nov 30, 2011 9:19 pm    Post subject: Reply with quote

Pince it before putting it on or much better yet is a new one. Was the groove in good shape?
_________________
SGKent wrote:
There is no question in my mind from my experiences engine machining, building, racing, and with other engine builders that no one here can build a bus engine which is more reliable than I can.
Evil or Very Mad Evil or Very Mad Rolling Eyes Laughing Razz Laughing Shame on you Laughing Laughing Rolling Eyes Laughing Laughing SICKO B.S. Evil or Very Mad Evil or Very Mad Laughing Shocked Shocked Laughing Twisted Evil d'oh! Liar Liar Liar


71 Superbug
71 Westy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
curtis4085
Samba Member


Joined: July 22, 2011
Posts: 4798
Location: Colorado
curtis4085 is offline

PostPosted: Wed Nov 30, 2011 9:29 pm    Post subject: Reply with quote

Desertbusman wrote:
Pince it before putting it on or much better yet is a new one. Was the groove in good shape?


yep new..maybe I open it to far during installion. I will pull it off and try to tighten it up and reinstall. I had to call it a day. Way messy job. Thank god for rubbe gloves and shop towels. And I for got to change clothes into something I could toss. To excited to get the job going.
_________________
Special Thanks to:
Headflow Masters - Vista, CA
www.headflowmasters.com
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Desertbusman
Samba Member


Joined: June 03, 2005
Posts: 14652
Location: Arizona
Desertbusman is offline

PostPosted: Wed Nov 30, 2011 9:32 pm    Post subject: Reply with quote

I bet you learned the importance of taking a leak and turning off the phone before you started. Laughing
_________________
SGKent wrote:
There is no question in my mind from my experiences engine machining, building, racing, and with other engine builders that no one here can build a bus engine which is more reliable than I can.
Evil or Very Mad Evil or Very Mad Rolling Eyes Laughing Razz Laughing Shame on you Laughing Laughing Rolling Eyes Laughing Laughing SICKO B.S. Evil or Very Mad Evil or Very Mad Laughing Shocked Shocked Laughing Twisted Evil d'oh! Liar Liar Liar


71 Superbug
71 Westy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
curtis4085
Samba Member


Joined: July 22, 2011
Posts: 4798
Location: Colorado
curtis4085 is offline

PostPosted: Wed Nov 30, 2011 9:34 pm    Post subject: Reply with quote

Desertbusman wrote:
I bet you learned the importance of taking a leak and turning off the phone before you started. Laughing


so true. Learning all the way. And i have made similar boo boo when the with comes in the shop and breaks my stride.
_________________
Special Thanks to:
Headflow Masters - Vista, CA
www.headflowmasters.com
Back to top
View user's profile Send private message Gallery Classifieds Feedback
SGKent Premium Member
Samba Member


Joined: October 30, 2007
Posts: 28855
Location: Nor Cal
SGKent is online now

PostPosted: Wed Nov 30, 2011 9:38 pm    Post subject: Reply with quote

see section 5.2

http://www.ratwell.com/technical/FAQ/FAQContent.html

Image may have been reduced in size. Click image to view fullscreen.

_________________
Godspeed to all who undertake a journey with a VW Bus.

*You can do it right the first time, or do it over, the choice is yours. It is a free country. As to brakes, steering, tires, axles etc. - you may only get one chance at doing those right.

* VW Buses and VW cars share many of the same systems but if you haven't owned a bus and maintained it for awhile, you really don't know how different it is.

Bus Engine Cooling Issues? https://kentcomputer.com/77VW/BusEngineCooling.pdf
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
curtis4085
Samba Member


Joined: July 22, 2011
Posts: 4798
Location: Colorado
curtis4085 is offline

PostPosted: Wed Nov 30, 2011 10:03 pm    Post subject: Reply with quote

SGKent wrote:
see section 5.2

http://www.ratwell.com/technical/FAQ/FAQContent.html

Image may have been reduced in size. Click image to view fullscreen.


one of the first reads for sure. and many threads and bently. and you tube. It seems i may have done ok. I am so hard on myself, want perfection all the time. For it being my first axle rebuild it will insure my next is near perfect. I hope.
_________________
Special Thanks to:
Headflow Masters - Vista, CA
www.headflowmasters.com
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Brionp
Samba Member


Joined: March 18, 2009
Posts: 456

Brionp is offline

PostPosted: Wed Nov 30, 2011 10:28 pm    Post subject: Reply with quote

And while we are on the subject I just wanted to share this:
Image may have been reduced in size. Click image to view fullscreen.

For all the tool geeks out there. These are some old craftsmen snap ring pliers, or reverse pliers. They haven't been made for a while. But you can still find them on Ebay. And you would think they were custom made for the circlips. Some even have dimples on the tip that hold the clips that much better.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
porschpow
Samba Member


Joined: May 21, 2005
Posts: 1254
Location: Hamilton, NJ / Flanders, NJ
porschpow is offline

PostPosted: Mon Mar 12, 2012 5:21 am    Post subject: Reply with quote

Good stuff. Thank you very much for this. I will be putting new boots on my bus and while I am there I will repack the bearings. I am assuming I need to clean off the old grease before I repack it, correct?
_________________
-1973 Volkswagen Bus Westy (Weekender)
1.8 liter from 1.7(original)
-2011 Subaru Outback
-1986 Honda Magna
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
SGKent Premium Member
Samba Member


Joined: October 30, 2007
Posts: 28855
Location: Nor Cal
SGKent is online now

PostPosted: Mon Mar 12, 2012 7:37 am    Post subject: Reply with quote

porschpow wrote:
I am assuming I need to clean off the old grease before I repack it, correct?


yes. Dry and inspect too.
_________________
Godspeed to all who undertake a journey with a VW Bus.

*You can do it right the first time, or do it over, the choice is yours. It is a free country. As to brakes, steering, tires, axles etc. - you may only get one chance at doing those right.

* VW Buses and VW cars share many of the same systems but if you haven't owned a bus and maintained it for awhile, you really don't know how different it is.

Bus Engine Cooling Issues? https://kentcomputer.com/77VW/BusEngineCooling.pdf
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Durk
Samba Member


Joined: February 08, 2010
Posts: 14
Location: Kalispell, Montana
Durk is offline

PostPosted: Wed Nov 06, 2013 7:55 pm    Post subject: Reply with quote

This post started years ago because of conflicting information I saw about proper CV joint assembly. There is still conflicting information out there, but in my assembly I'm going with the orientation provided by the original poster who contacted the GNC Lobro factory directly. I had been following the Van Cafe writeup on CV joint assembly until it seemed to conflict with other information on orientations of the 3 main parts. Also, the Van Cafe article shows a Lobro joint with only one groove on the outer ball hub, and the ones I just received from them have 4 grooves total.

There seems to be no dispute that the chamfered edge of the ball cage goes in, or toward the axle. What seems to differ is which side of the inner ball hub goes in. It seems to me that the Van Cafe article is showing what I believe to be the wrong direction to install the inner ball hub, with the more rounded edge toward the axle. When I called Van Cafe I was told that the more rounded edge faces out, or away from the axle which is what the Lobro factory said. Also, Van Cafe said that it doesn't matter at all which side of the outer ball hub goes in or out. Like I said, I was following the Van Cafe writeup, but am glad I found this post because I think this is the correct way. Any comments?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Desertbusman
Samba Member


Joined: June 03, 2005
Posts: 14652
Location: Arizona
Desertbusman is offline

PostPosted: Wed Nov 06, 2013 10:08 pm    Post subject: Reply with quote

Durk wrote:
What seems to differ is which side of the inner ball hub goes in.
I.D. chamfer towards the shaft and flat end with no chamfer against the clip. And the sharpest edge of the clip towards the shaft end and not against the hub.

But I don't think any of the CV's on either my bug or bus have Lobros. At least I don't think any have 4 outer grooves.
_________________
SGKent wrote:
There is no question in my mind from my experiences engine machining, building, racing, and with other engine builders that no one here can build a bus engine which is more reliable than I can.
Evil or Very Mad Evil or Very Mad Rolling Eyes Laughing Razz Laughing Shame on you Laughing Laughing Rolling Eyes Laughing Laughing SICKO B.S. Evil or Very Mad Evil or Very Mad Laughing Shocked Shocked Laughing Twisted Evil d'oh! Liar Liar Liar


71 Superbug
71 Westy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Bay Window Bus All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2018, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
