PostPosted: Tue Feb 15, 2011 1:01 pm    Post subject: Twin Plug Dual distributor build Reply with quote

I've decided to run twin plugs on my 36'er. Obviously I'll need to get a hold of a dual dist. Since all the ones I've seen are too modern looking I've decide to make my own drive.
My plans are to make it out of 2 blocks of 6061 aluminum, use two modified "019" dizzy's to fit the drive. It will be a sidewinder style with one shaft driving the other off-set to one side, gear driven, with oil lubrication taken from the engine.

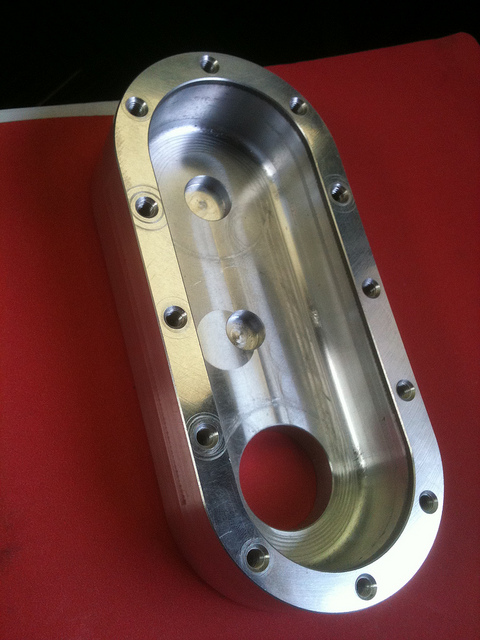

Day one.. Preliminary housing machining

Image may have been reduced in size. Click image to view fullscreen.

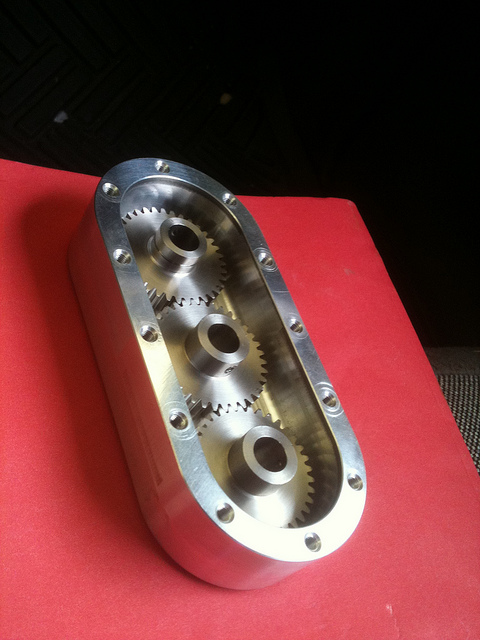

Here are the gears sized up in the housing

Image may have been reduced in size. Click image to view fullscreen.


Once the cover is done, i'll post an update. This is gonna be fun Very Happy
_________________
1957 Karmann Kabriolet "Franky"
1957 Allstate trailer


Last edited by Ninamashr on Sat Mar 05, 2011 7:19 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
grueni
Samba Member


Joined: November 03, 2008
Posts: 576
Location: Germany
grueni is offline

PostPosted: Tue Feb 15, 2011 1:08 pm    Post subject: Reply with quote

beautiful!
i will also go twin plug but dizziLESS. when i see this i wish go back to dizzi Wink
will watch this beauty with interrest.

i think you will not need the oiling from engine. do it like roots blowers, just its own oil. and it will drive "only" half engine speed. my spercharger drive 3,2 time engine speed with own chamber for oil.

have fun with it.
_________________
1956 oval 1192cc 36hp Supercharged 70HP at 3900RPM / 150NM at 2000RPM @ 13 psi

1960 1641cc Twin scroll turbocharged, intercooled @17 psi 318nm/3430rpm 160hp/4790rpm
with cb2280 cheater cam 222°@ 0.05"
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ninamashr
Samba Member


Joined: October 12, 2005
Posts: 1398
Location: City of Round Rock in the Great State of Texas
Ninamashr is offline

PostPosted: Tue Feb 15, 2011 1:41 pm    Post subject: Reply with quote

grueni wrote:

i think you will not need the oiling from engine. do it like roots blowers, just its own oil. and it will drive "only" half engine speed. my spercharger drive 3,2 time engine speed with own chamber for oil.

have fun with it.


So how fast would you estimate the dist shaft to rotate on the engine? The gears I am using recommend that I use use a lighter viscosity oil the faster they spin. I am also concerned with removing heat from the gears so I plan on having the oil exit and drop back down into the case.
_________________
1957 Karmann Kabriolet "Franky"
1957 Allstate trailer
Back to top
View user's profile Send private message Gallery Classifieds Feedback
gimmesomeshelter
Samba Member


Joined: May 08, 2004
Posts: 1407
Location: San Carlos, CA
gimmesomeshelter is offline

PostPosted: Tue Feb 15, 2011 2:13 pm    Post subject: Reply with quote

Very Happy

You might want to check with shieldsj. I believe he has a dual distributor setup.

Precission Matters makes a dual ignition setup for 356's. Here's a pic of the insides.

Image may have been reduced in size. Click image to view fullscreen.


Paul
_________________
My dog's vet has all my car money (http://sagecenters.com/)


Last edited by gimmesomeshelter on Tue Feb 15, 2011 2:24 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Glenn Premium Member
Mr. 010


Joined: December 25, 2001
Posts: 67913
Location: Long Island, New York, USA
Glenn is offline

PostPosted: Tue Feb 15, 2011 2:16 pm    Post subject: Reply with quote

Bosch made a dual distributor back in the 60's
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Cast Iron and Aluminum distributors rebuilt since 2000.
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
grueni
Samba Member


Joined: November 03, 2008
Posts: 576
Location: Germany
grueni is offline

PostPosted: Tue Feb 15, 2011 2:19 pm    Post subject: Reply with quote

you can do it this way. but the 1/2 rpm of engine speed of the dizzy with nearly no load will not make that much heat. the chamber for the 3 gears is big enough and via the rotating there will be oil all over.

just a question. why using 3 gears and not 2? space?
_________________
1956 oval 1192cc 36hp Supercharged 70HP at 3900RPM / 150NM at 2000RPM @ 13 psi

1960 1641cc Twin scroll turbocharged, intercooled @17 psi 318nm/3430rpm 160hp/4790rpm
with cb2280 cheater cam 222°@ 0.05"
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ninamashr
Samba Member


Joined: October 12, 2005
Posts: 1398
Location: City of Round Rock in the Great State of Texas
Ninamashr is offline

PostPosted: Tue Feb 15, 2011 2:29 pm    Post subject: Reply with quote

gimmesomeshelter wrote:
Very Happy
You might want to check with shieldsj. I believe he has a dual distributor setup.
Paul


I already spoke to Jim. His setup is very different than mine and I'm not at liberty to tell anyone how he made his. Very Happy
_________________
1957 Karmann Kabriolet "Franky"
1957 Allstate trailer


Last edited by Ninamashr on Tue Feb 15, 2011 2:51 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ninamashr
Samba Member


Joined: October 12, 2005
Posts: 1398
Location: City of Round Rock in the Great State of Texas
Ninamashr is offline

PostPosted: Tue Feb 15, 2011 2:36 pm    Post subject: Reply with quote

Glenn wrote:
Bosch made a dual distributor back in the 60's


I'd love to see a pic , BTW, I'll be cutting down two 019 dists, close your eyes Glenn. Laughing
_________________
1957 Karmann Kabriolet "Franky"
1957 Allstate trailer
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ninamashr
Samba Member


Joined: October 12, 2005
Posts: 1398
Location: City of Round Rock in the Great State of Texas
Ninamashr is offline

PostPosted: Tue Feb 15, 2011 2:50 pm    Post subject: Reply with quote

grueni wrote:
you can do it this way. but the 1/2 rpm of engine speed of the dizzy with nearly no load will not make that much heat. the chamber for the 3 gears is big enough and via the rotating there will be oil all over.

just a question. why using 3 gears and not 2? space?


So the dist shaft rotates at half the engine speed? If that's true then lubricating with some thin oil should work.
I am using 3 gears because I need both dist shafts to turn in the same direction. The center gear will turn the outside gear in the right direction.
_________________
1957 Karmann Kabriolet "Franky"
1957 Allstate trailer
Back to top
View user's profile Send private message Gallery Classifieds Feedback
earthquake
Samba Member


Joined: January 10, 2008
Posts: 3349
Location: SANDY VALLEY, NEVADA
earthquake is offline

PostPosted: Tue Feb 15, 2011 2:54 pm    Post subject: Reply with quote

Ninamashr
Have you thought just adapting a cap from a Nissan Nap-Z motor from the 80's they were twin plug? I think ford had a twin plug 2.3 in the ranger pickup that might have a cap to adapt as well.

Casey
_________________
74 CLASS 11 LOOK-A-LIKE
69 DUNE BUGGY
79 INTERNATIONAL SCOUT II
05 SCION XB SERIES RELEASE 2[#437]

Kelly J. Nolte 3/20/53 - 11/6/08
http://www.rememberingkelly.com/

DEATH TO CHINGERS!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ninamashr
Samba Member


Joined: October 12, 2005
Posts: 1398
Location: City of Round Rock in the Great State of Texas
Ninamashr is offline

PostPosted: Tue Feb 15, 2011 3:02 pm    Post subject: Reply with quote

Casey, I thought about that option, but, I preferred the vintage speed look of twin 019's on a 36er.
_________________
1957 Karmann Kabriolet "Franky"
1957 Allstate trailer
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ninamashr
Samba Member


Joined: October 12, 2005
Posts: 1398
Location: City of Round Rock in the Great State of Texas
Ninamashr is offline

PostPosted: Tue Feb 15, 2011 3:09 pm    Post subject: Reply with quote

gimmesomeshelter wrote:
Very Happy

Precission Matters makes a dual ignition setup for 356's. Here's a pic of the insides.

Image may have been reduced in size. Click image to view fullscreen.


Paul


That's an awesome setup for dual carbs, but, but I have one major problem. I am running 3 carbs and that setup would place one dizzy right underneath the throttle arm on the center carb causing interference, so I couldn't accelerate.
_________________
1957 Karmann Kabriolet "Franky"
1957 Allstate trailer
Back to top
View user's profile Send private message Gallery Classifieds Feedback
anmilsurp
Samba Member


Joined: May 12, 2010
Posts: 77
Location: Tukwila Washington
anmilsurp is offline

PostPosted: Tue Feb 15, 2011 5:43 pm    Post subject: Reply with quote

What's the number and parts supplier of the gears? Are they keyed or just set screw attached?
Back to top
View user's profile Send private message Classifieds Feedback
Low Bräu
Samba Member


Joined: December 12, 2003
Posts: 339
Location: Merritt Island, FL
Low Bräu is offline

PostPosted: Tue Feb 15, 2011 6:06 pm    Post subject: Reply with quote

Looks great but how much is this baby going to weigh? I don't know what your goal is with this engine but I can only assume you're trying to squeeze the most HP out of an engine that doesn't produce much power to begin with. Now you're turning three large gears in an oil bath to only to rotate a rotor that should spin with little to no resistance. I know the power loss is minimal but then so is the output of a 36hp motor. Free up hp by making things move with less resistance and less weight. Consider what porsche did with the 964 twin plug. They had a sealed bearing and a rubber drive belt. Just my thoughts. Keep the pics coming, your craftsmanship looks great!


Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Send e-mail Facebook Gallery Classifieds Feedback
Ninamashr
Samba Member


Joined: October 12, 2005
Posts: 1398
Location: City of Round Rock in the Great State of Texas
Ninamashr is offline

PostPosted: Tue Feb 15, 2011 7:49 pm    Post subject: Reply with quote

Low Bräu wrote:
Looks great but how much is this baby going to weigh? I don't know what your goal is with this engine but I can only assume you're trying to squeeze the most HP out of an engine that doesn't produce much power to begin with. Now you're turning three large gears in an oil bath to only to rotate a rotor that should spin with little to no resistance. I know the power loss is minimal but then so is the output of a 36hp motor. Free up hp by making things move with less resistance and less weight. Consider what porsche did with the 964 twin plug. They had a sealed bearing and a rubber drive belt. Just my thoughts. Keep the pics coming, your craftsmanship looks great!


I'm not sure how much it will weigh? I'll check once I am done, My guess is about 3 lbs? My goal is to have all my other components ready and tested before I start rebuilding an true oldspeed engine. I have other plans for better cooling, and a better intake system, etc;. I'll post those up in a month or so. What Porsche did with the 964 looks pretty reasonable but with any rubber timing belt you have the issue of the belt stretching so the timing will eventually be off. With properly lubricated gears I don't think that will be a problem plus with this setup I can adjust exactly when I want the spark to come on for the second plug in the cylinder. I'll be able to overlap the timing so the spark burns longer and more fuel gets used instead of being wasted. It's gonna involve some engineering, but, I knew that coming in.
_________________
1957 Karmann Kabriolet "Franky"
1957 Allstate trailer


Last edited by Ninamashr on Tue Feb 15, 2011 7:53 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ninamashr
Samba Member


Joined: October 12, 2005
Posts: 1398
Location: City of Round Rock in the Great State of Texas
Ninamashr is offline

PostPosted: Tue Feb 15, 2011 7:51 pm    Post subject: Reply with quote

anmilsurp wrote:
What's the number and parts supplier of the gears? Are they keyed or just set screw attached?



Anmil, The outside gears are going to be pinned, like the gear drive coupler on a normal dist, to their respective shafts, the center gear will spin on a pressed pin shaft and be held in place with an "E" clip and bronze bushings. I got the gears from SDPI (Stock Drive Products Inc) I'll post up the p/n's when I get in tomorrow.
_________________
1957 Karmann Kabriolet "Franky"
1957 Allstate trailer


Last edited by Ninamashr on Tue Feb 15, 2011 8:21 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Glenn Premium Member
Mr. 010


Joined: December 25, 2001
Posts: 67913
Location: Long Island, New York, USA
Glenn is offline

PostPosted: Tue Feb 15, 2011 7:57 pm    Post subject: Reply with quote

Ninamashr wrote:
Glenn wrote:
Bosch made a dual distributor back in the 60's


I'd love to see a pic , BTW, I'll be cutting down two 019 dists, close your eyes Glenn. Laughing


If you want i have a few bodies that are broken at the o-ring if you want.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Cast Iron and Aluminum distributors rebuilt since 2000.
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Ninamashr
Samba Member


Joined: October 12, 2005
Posts: 1398
Location: City of Round Rock in the Great State of Texas
Ninamashr is offline

PostPosted: Tue Feb 15, 2011 8:05 pm    Post subject: Reply with quote

Glenn wrote:
Ninamashr wrote:
Glenn wrote:
Bosch made a dual distributor back in the 60's


I'd love to see a pic , BTW, I'll be cutting down two 019 dists, close your eyes Glenn. Laughing


If you want i have a few bodies that are broken at the o-ring if you want.

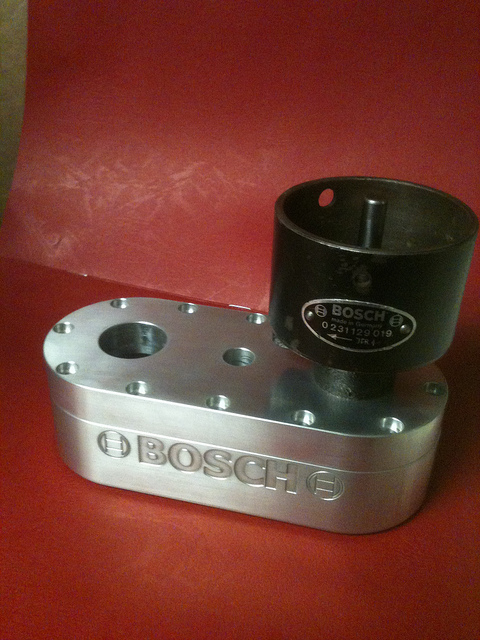

Thanks Glenn, that's not a bad idea, but, I'll still need the rest of the dizzy. Wink It felt kind of wierd cutting up 2 perfectly running 019's right above the O-ring groove. Shocked Here's a blank I made. It's the part that will pop into the case and will be welded to the bottom of the Dual Dist housing...

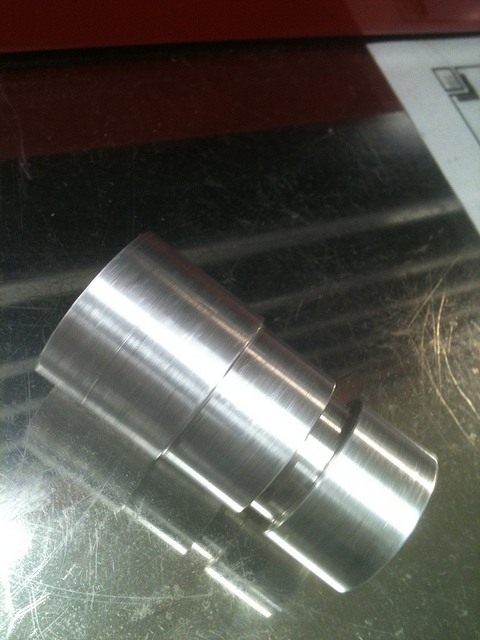

Image may have been reduced in size. Click image to view fullscreen.


Glenn You can probrably identify this part, it's whats left when you press out the advance plate off an old 009 dist. I will be using it to extend the drive shaft of the main drive dist.

Image may have been reduced in size. Click image to view fullscreen.

_________________
1957 Karmann Kabriolet "Franky"
1957 Allstate trailer
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ninamashr
Samba Member


Joined: October 12, 2005
Posts: 1398
Location: City of Round Rock in the Great State of Texas
Ninamashr is offline

PostPosted: Wed Feb 16, 2011 10:33 am    Post subject: Reply with quote

The lid is complete, time to move on to the base and extending the shaft

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
1957 Karmann Kabriolet "Franky"
1957 Allstate trailer
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Blauhaus
Samba Member


Joined: June 18, 2003
Posts: 140
Location: Jacksonville, FL
Blauhaus is offline

PostPosted: Wed Feb 16, 2011 10:50 am    Post subject: Reply with quote

Beautiful machine work and thinking. Tuned in to see your progress!
_________________
www.blau-haus.com

QUALITY CLOTHING. PRODUKTS. FÜR THE PEOPLE.

** WANTED **
Haines VW dealership (Sacramento) license frame
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vintage Speed All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10  Next
Page 1 of 10


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
