PostPosted: Thu Feb 17, 2011 4:01 pm    Post subject: Adding heated oxygen sensor to digijet Reply with quote

Hi everyone,

My loving and supportive wife just braved a hailstorm to pick up a digifant heated oxy sensor for me to install in my digijet equipped van. My plan is to tie the heater wire into the fuel pump circuit and just ground it to the engine block.

Are there any gotchas i should be concerned about? Suggestions on the place/method to tie into the +12V?

Thanks!
-Damon

<<<EDIT: just to put it on top, here is the wiring i've complete so far>>>

Here is the how to on how to wire in the 12V heater circuit:

After looking at the digifant wiring in the bentley (but not having a 86+ van to look at), it was pretty clear that piggy backing off the fuel pump relay was a good way to go. The purpose of the relay is to use a low power signal to flip an electro-magnetic switch that carries high power.

Image may have been reduced in size. Click image to view fullscreen.


In this case the ECU powers terminal 85, which connects terminals 30 and 87 to let the big power flow.

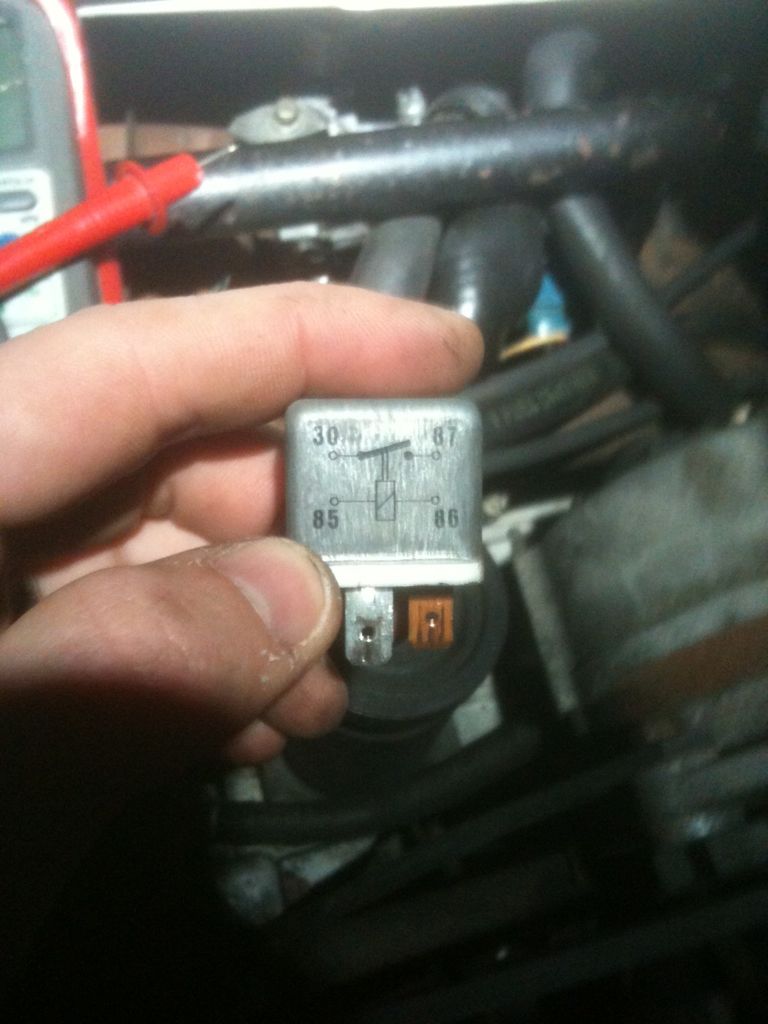

For those of you who may not know, the fuel pump relay is this one:

Image may have been reduced in size. Click image to view fullscreen.

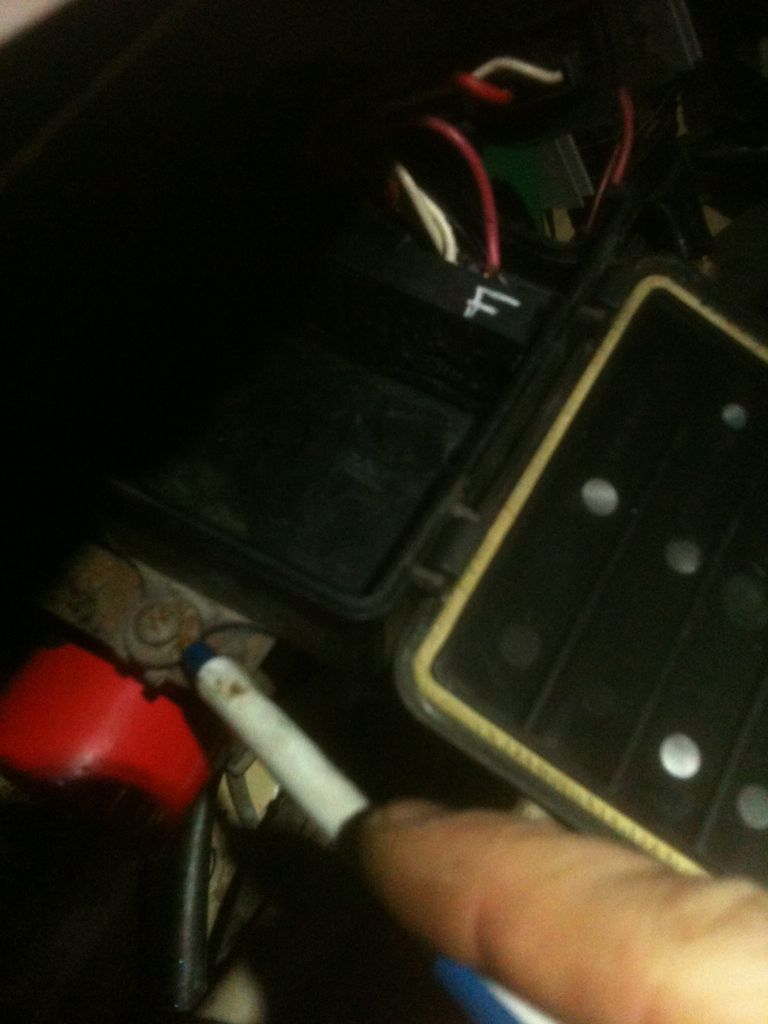

Part of the problem is, things are pretty stuffed in that little relay box above the coil. So i needed to figure out a way to hook a wire up in there. To make things easier, i removed the relay box with the single phillips screw. It just slides out from under a little post on the other side side (i wonder why VW felt the need to make this so easy to remove?):

Image may have been reduced in size. Click image to view fullscreen.

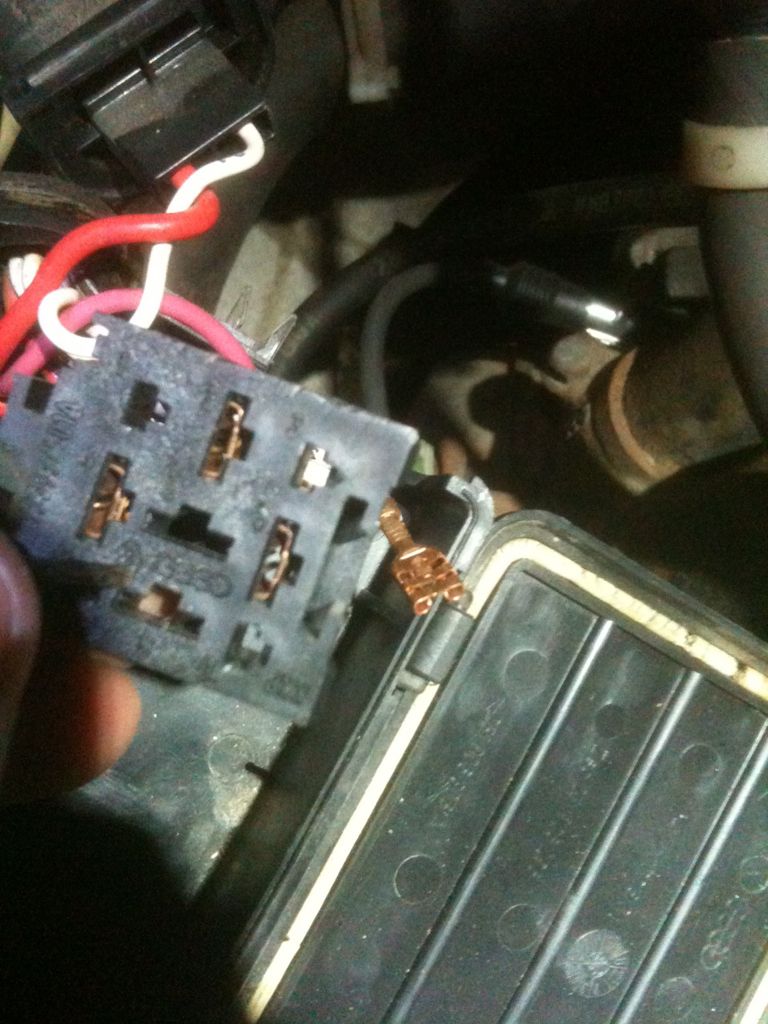

Then i removed the fuel pump terminal block by unhooking the little tabs top and bottom. The other relay terminal block is held down by tinnerman clips that would be a PIA to remove... :

Image may have been reduced in size. Click image to view fullscreen.

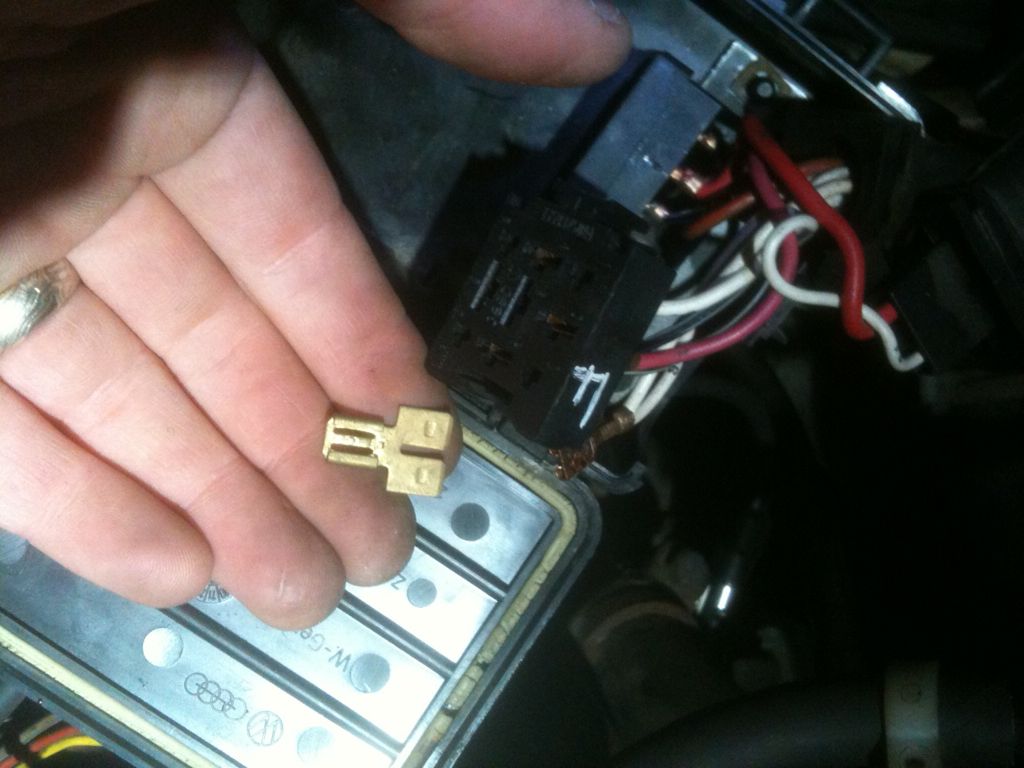

Remove the horizontally oriented spade terminal by sticking a small poker in the little access cutout above the hole for the spade. This will bend a little tab down letting you free the terminal:

Image may have been reduced in size. Click image to view fullscreen.


I did this because rummaging around in my parts box, i happened to have one of these:

Image may have been reduced in size. Click image to view fullscreen.


Now, admittedly, it would be better if it had the little retention hook like the one i just removed had, but mine didn't. No problem, because i just cut the little center web and fashioned one out that material.

So i happened to have an old fuel injector connector+wires sitting around, so i used that and crimped a female spade on to that, and then added a bit of heatshrink to the exposed original terminal 87 female spade:

Image may have been reduced in size. Click image to view fullscreen.


While it was a tight fit side-by-side, all together, it looked like this:

Image may have been reduced in size. Click image to view fullscreen.


Then it was just a matter of stuffing it all back together:

Image may have been reduced in size. Click image to view fullscreen.


and then route the power wire to where the O2 sensor wire is (back left of the engine - close to the ECU):

Image may have been reduced in size. Click image to view fullscreen.


Of course, it isn't that simple because for some reason, VW swapped the male and female spades between digijet and digifant, which makes it kind of hard to plug the ECU (left) and the O2 sensor (right) together:

Image may have been reduced in size. Click image to view fullscreen.


... and that is as far as i got. One gets tired working in the driveway at 10p.m. However, as i wanted, the circuit goes live when the van fires up and is running. My plan is to, just for now, get a little spade adapter to just stick the two female ends together and call it good... oh yeah, and struggle with the current O2 sensor to try and get it out of the exhaust (i currently smell like PB blaster).

So there ya go - i'll fill it out more if i get a chance to do more pictures and what not, but i have a big out of town weekend coming up, so not likely for a while.
_________________
'84 Westy (first owner).......but my daily driver has pedals
My "perspective" mantra:
A Volkswagen Vanagon is just a material thing,
As such, it is of the earth,
And if i need to, I can let my Van go.


Last edited by wbx on Fri Feb 18, 2011 12:22 am; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
garryv84
Samba Member


Joined: August 10, 2010
Posts: 276
Location: Los Angeles
garryv84 is offline

PostPosted: Thu Feb 17, 2011 5:25 pm    Post subject: Reply with quote

What is the benefit over one wire?
Back to top
View user's profile Send private message Classifieds Feedback
wbx
Samba Member


Joined: April 11, 2005
Posts: 1254
Location: Monterey, CA
wbx is offline

PostPosted: Thu Feb 17, 2011 5:32 pm    Post subject: Reply with quote

It goes closed loop sooner and works better during extended periods of idling (the oxygen sensor needs to be a certain temperature to function properly - something you can't always count on with the 1-wire system).

My main impetus for this is making sure the O2 sensor is giving feedback to the ECU for my emissions test - part of which is an extended idle test.

Under normal driving conditions, it doesn't really matter at all.
_________________
'84 Westy (first owner).......but my daily driver has pedals
My "perspective" mantra:
A Volkswagen Vanagon is just a material thing,
As such, it is of the earth,
And if i need to, I can let my Van go.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
camerahunter
Samba Member


Joined: July 23, 2009
Posts: 567
Location: Tacoma
camerahunter is offline

PostPosted: Thu Feb 17, 2011 6:00 pm    Post subject: Reply with quote

I'm no expert but the O2 sensor is plugged into the exhaust pipe, super duper hot almost immediately when running and it stays super duper hot long after the engine stops.

Perhaps a different approach is needed to get through emissions?
How about a little bit hotter coil and plugs?

Thank you,

David
_________________
1984 - Daily driver
Back to top
View user's profile Send private message Classifieds Feedback
wbx
Samba Member


Joined: April 11, 2005
Posts: 1254
Location: Monterey, CA
wbx is offline

PostPosted: Thu Feb 17, 2011 6:15 pm    Post subject: Reply with quote

Yeah, you'd certainly think so, but I have a little box that shows what the O2 sensor is doing real time, and with the 1 wire, it is surprisingly often when it goes open loop (no signal to the ECU). I think to O2 sensor needs to be about 250*C (almost 500F) to work, and i think our vans don't really maintain that in certain conditions.

Don't get me wrong - i'm not relying on this as a crutch for emissions. I've been working pretty hard lately on getting the engine fundamentals sound by addressing vacuum leaks, ignition components, and fuel delivery.. I just figure a new sensor wouldn't hurt, and while i'm at it, improve the system...

-Damon
_________________
'84 Westy (first owner).......but my daily driver has pedals
My "perspective" mantra:
A Volkswagen Vanagon is just a material thing,
As such, it is of the earth,
And if i need to, I can let my Van go.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ahwahnee
Samba Member


Joined: June 05, 2010
Posts: 9770
Location: Mt Lemmon, AZ
Ahwahnee is offline

PostPosted: Thu Feb 17, 2011 6:46 pm    Post subject: Reply with quote

You might search for an not-too-long-ago post by 10cLife on this subject.

As I recall he suggested taking power off of the coil and using a relay.

Probably several ways to skin this cat but when someone with experience says a relay is a good idea I usually think 'A relay is a good idea'.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
danfromsyr
Samba Member


Joined: March 01, 2004
Posts: 15119
Location: Syracuse, NY
danfromsyr is offline

PostPosted: Thu Feb 17, 2011 7:22 pm    Post subject: Reply with quote

for any of the jetta I4 swaps I do I use a +12v from an Ignition triggered relay. it's stock like this in many older cars,
can't say how anything 2000+ does it.
but in digifant Jetta & Eurovana it's just a IGN relayed supply.

sounds like a decent plan to improve an older system..
let us know some emperical values if you gather data.
_________________
Abscate wrote:
These are the reasons we have words like “wanker”
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
reluctantartist
Samba Member


Joined: August 13, 2006
Posts: 1927
Location: Bloomington, IN
reluctantartist is offline

PostPosted: Thu Feb 17, 2011 7:33 pm    Post subject: Reply with quote

A three wire might give a slight mpg improvement ..is that your main reason for doing this mod?
_________________
1982 Westy, 1974 412 Variant... Yes, Aircooled's are great! Oh and I do have modern computer controlled vehicles too, but I just don't care about them.
Back to top
View user's profile Send private message MSN Messenger Gallery Classifieds Feedback
Sir Sam
Samba Member


Joined: July 19, 2009
Posts: 1669
Location: Fort Collins Colorado!
Sir Sam is offline

PostPosted: Thu Feb 17, 2011 8:15 pm    Post subject: Reply with quote

reluctantartist wrote:
A three wire might give a slight mpg improvement ..is that your main reason for doing this mod?


No he has been having trouble passing an emissions test.
_________________
'91 Carat Westy

87' Syncro + '87 Westy conversion coming soon
Back to top
View user's profile Send private message Send e-mail Visit poster's website AIM Address Gallery Classifieds Feedback
wbx
Samba Member


Joined: April 11, 2005
Posts: 1254
Location: Monterey, CA
wbx is offline

PostPosted: Thu Feb 17, 2011 8:41 pm    Post subject: Reply with quote

Thanks for the input, dan. It sounds like adding a relay is recommended (vs just piggybacking off the fuel pump relay?). I haven't cracked open bentley or the engine bay today, so the exact approach is still TBD. The approach and tie-in points are the things I'm most interested in. Approach is suggested, but implementation might be up to my creativity (uh oh! Smile )

Regarding other points, I definitely do not expect an improvement in mpg (I've been hovering between 19 and 20 mpg since '84).

And I'll look for the 10C post.

Thanks for all the input!

Damon
_________________
'84 Westy (first owner).......but my daily driver has pedals
My "perspective" mantra:
A Volkswagen Vanagon is just a material thing,
As such, it is of the earth,
And if i need to, I can let my Van go.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
camerahunter
Samba Member


Joined: July 23, 2009
Posts: 567
Location: Tacoma
camerahunter is offline

PostPosted: Thu Feb 17, 2011 8:59 pm    Post subject: Reply with quote

Well, it sounds like you have a good plan going that will help all around.
For the smog maybe there needs to be a mod to the exhaust?
I can't remember which engine you have?
How about an extra pipe added to the exhaust to add a hose from the exhaust to th AFM or back to the intake?
It seems to me that giving it a little re-burn might help?
Just an idea, might not be a good one but an idea nonetheless.

Thank you,

David
_________________
1984 - Daily driver
Back to top
View user's profile Send private message Classifieds Feedback
wbx
Samba Member


Joined: April 11, 2005
Posts: 1254
Location: Monterey, CA
wbx is offline

PostPosted: Fri Feb 18, 2011 12:29 am    Post subject: Reply with quote

So i've added what i've done tonight by editing the first post.

I do have a question, though. Of course, after i did all the work, and came back in to make my post, i looked at the bentley again and in section 97.72, it seems the O2 sensor is NOT powered by the fuel pump relay, but rather by the main power relay (despite having the main power relay labeled "fuel pump relay".

Will this be a problem? Will i overload the fuel pump relay circuit? Personally, i like that the O2 heater only comes on while the van is running, and not while the key is on (sometimes i like to have the key on to listen to music, or whatever, and why have the O2 sensor going?). I think it should be fine since it is a 30A relay, but i just want a sanity check.
It wouldn't be too super bad to swap what i've done over...
_________________
'84 Westy (first owner).......but my daily driver has pedals
My "perspective" mantra:
A Volkswagen Vanagon is just a material thing,
As such, it is of the earth,
And if i need to, I can let my Van go.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ajdenette
Samba Member


Joined: February 15, 2009
Posts: 768
Location: Hope Valley RI
ajdenette is offline

PostPosted: Fri Feb 18, 2011 10:06 am    Post subject: Reply with quote

I ran into a similar problem with two femail conectors for the O2 sensor when doing a late night cat swap, look on your old O2 sensor and you might find the doble male conector there. otherwise hit the junk yard and look at similar vdubs.
_________________
1985 2wd Westy with 2000 Subaru 2.2 current driver
https://www.thesamba.com/vw/forum/viewtopic.php?t=685635
1986 Syncro Doka Project next in line
https://www.thesamba.com/vw/forum/viewtopic.php?t=732777
1990 Vanagon Syncro Base awaiting body work
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
camerahunter
Samba Member


Joined: July 23, 2009
Posts: 567
Location: Tacoma
camerahunter is offline

PostPosted: Fri Feb 18, 2011 10:12 am    Post subject: Reply with quote

Another thing that has crossed my mind is a new charcoal can. Maybe yours is not working? I know you have an engine swap in there, larger then the stock. Perhaps there is a difference between the stock 1.9L and 2.1L charcoal cans?
Still just ideas, maybe no real help but it's worth exactly what you paid for it . . .
_________________
1984 - Daily driver
Back to top
View user's profile Send private message Classifieds Feedback
wbx
Samba Member


Joined: April 11, 2005
Posts: 1254
Location: Monterey, CA
wbx is offline

PostPosted: Fri Feb 18, 2011 10:12 am    Post subject: Reply with quote

Oh yeah... I think I have seen those. Good suggestion! For now, though, I'll just make a little adapter until I'm confident this is working just fine.
_________________
'84 Westy (first owner).......but my daily driver has pedals
My "perspective" mantra:
A Volkswagen Vanagon is just a material thing,
As such, it is of the earth,
And if i need to, I can let my Van go.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
wbx
Samba Member


Joined: April 11, 2005
Posts: 1254
Location: Monterey, CA
wbx is offline

PostPosted: Fri Feb 18, 2011 10:21 am    Post subject: Reply with quote

camerahunter wrote:
Another thing that has crossed my mind is a new charcoal can. Maybe yours is not working? . . .


Certainly a possibility - do you know how to check those? I do not know if there is a difference between a 2.1 and 1.9 canister (i have the 1.9)
_________________
'84 Westy (first owner).......but my daily driver has pedals
My "perspective" mantra:
A Volkswagen Vanagon is just a material thing,
As such, it is of the earth,
And if i need to, I can let my Van go.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
camerahunter
Samba Member


Joined: July 23, 2009
Posts: 567
Location: Tacoma
camerahunter is offline

PostPosted: Fri Feb 18, 2011 10:41 am    Post subject: Reply with quote

I know your van is for the 1.9 but don't you have something else in there?

Thank you,

David
_________________
1984 - Daily driver
Back to top
View user's profile Send private message Classifieds Feedback
wbx
Samba Member


Joined: April 11, 2005
Posts: 1254
Location: Monterey, CA
wbx is offline

PostPosted: Fri Feb 18, 2011 10:48 am    Post subject: Reply with quote

Yeah, it is a 2.3 (94 bore, 82 stroke), big valve heads, slightly off-stock cam (unfortunately can't remember which one), S&S headers...

It has 1.9 cooling and EFI, but the 2.1 intake mainfold/runners/throttle body (which is a rebuilt unit running on sealed bearing).

That's about it...

-Damon
_________________
'84 Westy (first owner).......but my daily driver has pedals
My "perspective" mantra:
A Volkswagen Vanagon is just a material thing,
As such, it is of the earth,
And if i need to, I can let my Van go.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
camerahunter
Samba Member


Joined: July 23, 2009
Posts: 567
Location: Tacoma
camerahunter is offline

PostPosted: Fri Feb 18, 2011 11:48 pm    Post subject: Reply with quote

Ok, does it have the 1.9 computer? Maybe it needs more 2.1 stuff?
Have yo read though the oldvolkshome.com write up on how to switch a 1.9 t a 2.1?
Maybe there will be some help there?
It seems to me that you just have a too much fuel situation. Somehow you have to get that reduced or get more of it to burn before it leaves the exhaust.

Thank you,

David
_________________
1984 - Daily driver
Back to top
View user's profile Send private message Classifieds Feedback
wbx
Samba Member


Joined: April 11, 2005
Posts: 1254
Location: Monterey, CA
wbx is offline

PostPosted: Sat Feb 19, 2011 12:23 am    Post subject: Reply with quote

I has passed smog a couple times before with this setup, so I know there is nothing fundamentally wrong with what's goig on.

However, to keep this thread on topic (adding a 3 wire O2 sensor to a 1 wire van), I'll make a little update on my smog thread and discussion (thanks for that, everyone!) can move over there...
_________________
'84 Westy (first owner).......but my daily driver has pedals
My "perspective" mantra:
A Volkswagen Vanagon is just a material thing,
As such, it is of the earth,
And if i need to, I can let my Van go.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
