How did u guys mount urs to the tube frame cuz u cant drill the safety glass apparently.
Back to top
View user's profile Send private message Classifieds Feedback
DWP
Samba Member


Joined: September 11, 2007
Posts: 576
Location: Pa.
DWP is offline

PostPosted: Tue Jun 14, 2011 9:33 am    Post subject: Reply with quote

Windshield rubber
Half way down page
http://www.berrienbuggy.com/id80.htm
DWP
Back to top
View user's profile Send private message Gallery Classifieds Feedback
RDAY
Samba Member


Joined: March 27, 2011
Posts: 478
Location: NY
RDAY is offline

PostPosted: Wed Jun 15, 2011 7:33 am    Post subject: Reply with quote

but how do u guys attach the windshield frame to the tubular frame of the sand rail because i dont believe u can weld cuz the windshield frame is aluminum and the rail is steel.
Back to top
View user's profile Send private message Classifieds Feedback
DWP
Samba Member


Joined: September 11, 2007
Posts: 576
Location: Pa.
DWP is offline

PostPosted: Wed Jun 15, 2011 7:44 am    Post subject: Reply with quote

There is no "frame"
The rubber fits inside the roll bar, you can glue or screw in place.
The windshield glass goes in a groove in the rubber just like a standard windshield frame.
DWP
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bumblebeecaz
Samba Member


Joined: October 23, 2006
Posts: 265
Location: virginia
bumblebeecaz is offline

PostPosted: Wed Jun 15, 2011 10:32 am    Post subject: Reply with quote

i used 1/4 inch angle steel and welded in a frame to the inside of the tubing all the way around and then took it to a glass shop , and they cut and glued in the glass and used a narrow weatherstrip on the outside around the edge of the glass.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
EMPIImp69
Samba Member


Joined: April 17, 2006
Posts: 3258
Location: Dirty Jersey
EMPIImp69 is offline

PostPosted: Mon Nov 14, 2011 6:26 am    Post subject: Reply with quote

You guys have any pics of yours? I want a safety glass windshield for my rail. I'll just remove that top visor piece that's on there now.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
1969 Empi Imp #1325
1963 Ragtop Bug

Use this to balance your wide 5 steelies -->
http://www.thesamba.com/vw/classifieds/detail.php?id=1830990
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
JRinTX
Samba Member


Joined: May 27, 2008
Posts: 29
Location: Lumberton, Tx
JRinTX is offline

PostPosted: Mon Nov 14, 2011 11:58 am    Post subject: Reply with quote

Check out my gallery for pics of my sandrail with a safety glass windshield. I built a seperate frame for the glass and attached to my rail using billet aluminum clamps.
I have a drawing of my frame in the gallery also.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
EMPIImp69
Samba Member


Joined: April 17, 2006
Posts: 3258
Location: Dirty Jersey
EMPIImp69 is offline

PostPosted: Mon Nov 14, 2011 12:02 pm    Post subject: Reply with quote

Did you do the bends for the aluminum pipe and flat bar yourself? Did you have someone weld it up? It looks like a nice clean job. I already have 4 Dzus fasteners welded along my opening that I could fasten the windshield frame to.
_________________
1969 Empi Imp #1325
1963 Ragtop Bug

Use this to balance your wide 5 steelies -->
http://www.thesamba.com/vw/classifieds/detail.php?id=1830990
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Dan the workingstiff
Samba Member


Joined: July 03, 2006
Posts: 211
Location: Downriver, MI
Dan the workingstiff is offline

PostPosted: Mon Nov 14, 2011 5:30 pm    Post subject: Reply with quote

What we did was take 3/4 x3/4 aluminum angle and screwed it in place. For the upper bends or radius we put multiple relief cuts in until it fit nicely in only one surface of the angle not both sides. I'd guess you should be able to get it done under an hour. Worked great, I'll do it this way again next time also!
_________________
I wasn't scared, I had my fingers crossed.~Jack Jessee~

If your a plumber or proctologist you shouldn't bite your nails......
Back to top
View user's profile Send private message Classifieds Feedback
EMPIImp69
Samba Member


Joined: April 17, 2006
Posts: 3258
Location: Dirty Jersey
EMPIImp69 is offline

PostPosted: Tue Nov 15, 2011 6:46 am    Post subject: Reply with quote

Dan the workingstiff wrote:
What we did was take 3/4 x3/4 aluminum angle and screwed it in place. For the upper bends or radius we put multiple relief cuts in until it fit nicely in only one surface of the angle not both sides. I'd guess you should be able to get it done under an hour. Worked great, I'll do it this way again next time also!
Thanks Dan, this idea intrigues me. Do you have any pics? When you screwed the alum. angle down, you mean into the rail's tubing? Did you use the standard rubber to hold the glass in? thx
_________________
1969 Empi Imp #1325
1963 Ragtop Bug

Use this to balance your wide 5 steelies -->
http://www.thesamba.com/vw/classifieds/detail.php?id=1830990
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
JRinTX
Samba Member


Joined: May 27, 2008
Posts: 29
Location: Lumberton, Tx
JRinTX is offline

PostPosted: Tue Nov 15, 2011 12:14 pm    Post subject: Reply with quote

I ended up not using aluminum in order to save a few bucks. I used galvanized rigid conduit and bent it using a conduit bender. I used 1/8" x 1/2" flat bar and cold bent it using a larger diameter pipe as a die. Then fit everything together, welded and painted flat black. I had the glass cut and installed using a standard rubber gasket used for this purpose.
For welding reasons, galvanized was not a good choice. But it was cheap. Hope this all makes sense! lol
Back to top
View user's profile Send private message Gallery Classifieds Feedback
EMPIImp69
Samba Member


Joined: April 17, 2006
Posts: 3258
Location: Dirty Jersey
EMPIImp69 is offline

PostPosted: Wed Nov 16, 2011 10:42 am    Post subject: Reply with quote

This is something like what Im looking to do or have done..

Image may have been reduced in size. Click image to view fullscreen.

_________________
1969 Empi Imp #1325
1963 Ragtop Bug

Use this to balance your wide 5 steelies -->
http://www.thesamba.com/vw/classifieds/detail.php?id=1830990
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Newbie9096
Samba Member


Joined: February 02, 2015
Posts: 11
Location: Wisconsin
Newbie9096 is offline

PostPosted: Wed Feb 11, 2015 7:16 pm    Post subject: Reply with quote

JRinTX wrote:
Check out my gallery for pics of my sandrail with a safety glass windshield. I built a seperate frame for the glass and attached to my rail using billet aluminum clamps.
I have a drawing of my frame in the gallery also.


How did you hold the windshield fram on the sand rail. I see the 2 clamps on the bottom but what about the top since the glass is in the way of a clamp?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
hillmotorsports
Samba Member


Joined: December 27, 2014
Posts: 404
Location: Morrisburg, Ontario, Canada
hillmotorsports is offline

PostPosted: Sat Jul 02, 2016 7:05 am    Post subject: Re: sand rail windshield frame help... Reply with quote

With the Bug Pack 6049 gasket no longer available has anyone found an alternative other than a flange welded inside the tube?
_________________
Rosemarie and Paul Hill
Morrisburg, Ontario

(With way more projects than spare time!)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Vanapplebomb
Samba Member


Joined: November 03, 2010
Posts: 4184
Location: Holland, MI
Vanapplebomb is offline

PostPosted: Sat Jul 02, 2016 5:49 pm    Post subject: Reply with quote

DWP wrote:
Windshield rubber
Half way down page
http://www.berrienbuggy.com/id80.htm
DWP


This is the way to go. Any auto glass place can cut a sheet of safety glass and install it if you provide the rubber. Most shops use a Urethane based glue. Good stuff. No need for a frame of any kind. Just goes right on the tubing. Wink
_________________
1800 Type 4 Berrien 295

http://www.thesamba.com/vw/forum/viewtopic.php?t=487021
Back to top
View user's profile Send private message Gallery Classifieds Feedback
hillmotorsports
Samba Member


Joined: December 27, 2014
Posts: 404
Location: Morrisburg, Ontario, Canada
hillmotorsports is offline

PostPosted: Sun Jul 03, 2016 7:17 am    Post subject: Re: sand rail windshield frame help... Reply with quote

The berrien link didn't work but I did finally find the rubber on their site.
Could someone that is familiar with them tell me why the part is only available for store pickup when I try to order? An 8 hr drive each way seems a bit excessive for a small roll of rubber!
_________________
Rosemarie and Paul Hill
Morrisburg, Ontario

(With way more projects than spare time!)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
superpro56
Samba Member


Joined: July 25, 2012
Posts: 181
Location: Michigan
superpro56 is offline

PostPosted: Tue Jul 05, 2016 7:22 am    Post subject: Re: sand rail windshield frame help... Reply with quote

Berrien was sold a few years back to Acme, follow this link to the windshield rubber for tubular chassis:

http://acmecarco.com/store/index.php?main_page=product_info&cPath=65&products_id=3251
Back to top
View user's profile Send private message Gallery Classifieds Feedback
hillmotorsports
Samba Member


Joined: December 27, 2014
Posts: 404
Location: Morrisburg, Ontario, Canada
hillmotorsports is offline

PostPosted: Tue Jul 05, 2016 6:12 pm    Post subject: Re: sand rail windshield frame help... Reply with quote

Right on the money superpro56.
I spent some time chatting with John and John John at Acme this morning. You will notice that the part number for the tubular chassis windshield rubber includes BP6049 to let people know it is the same as the Bug Pack part. In fact the rubber molding is made by the same supplier that formerly made it for Bug Pack, using the same dies, so the product is identical in every respect.
Acme and an unidentified partner now own the dies and the rights to the molding, keep a minimum of 20 on the shelf.

And my problem with "store pickup only" seems to be a software issue that they are working to resolve.
My parts are on the way!
_________________
Rosemarie and Paul Hill
Morrisburg, Ontario

(With way more projects than spare time!)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mtnroads
Samba Member


Joined: December 06, 2006
Posts: 403
Location: Minkler, CA
mtnroads is offline

PostPosted: Tue Jul 05, 2016 7:40 pm    Post subject: Re: sand rail windshield frame help... Reply with quote

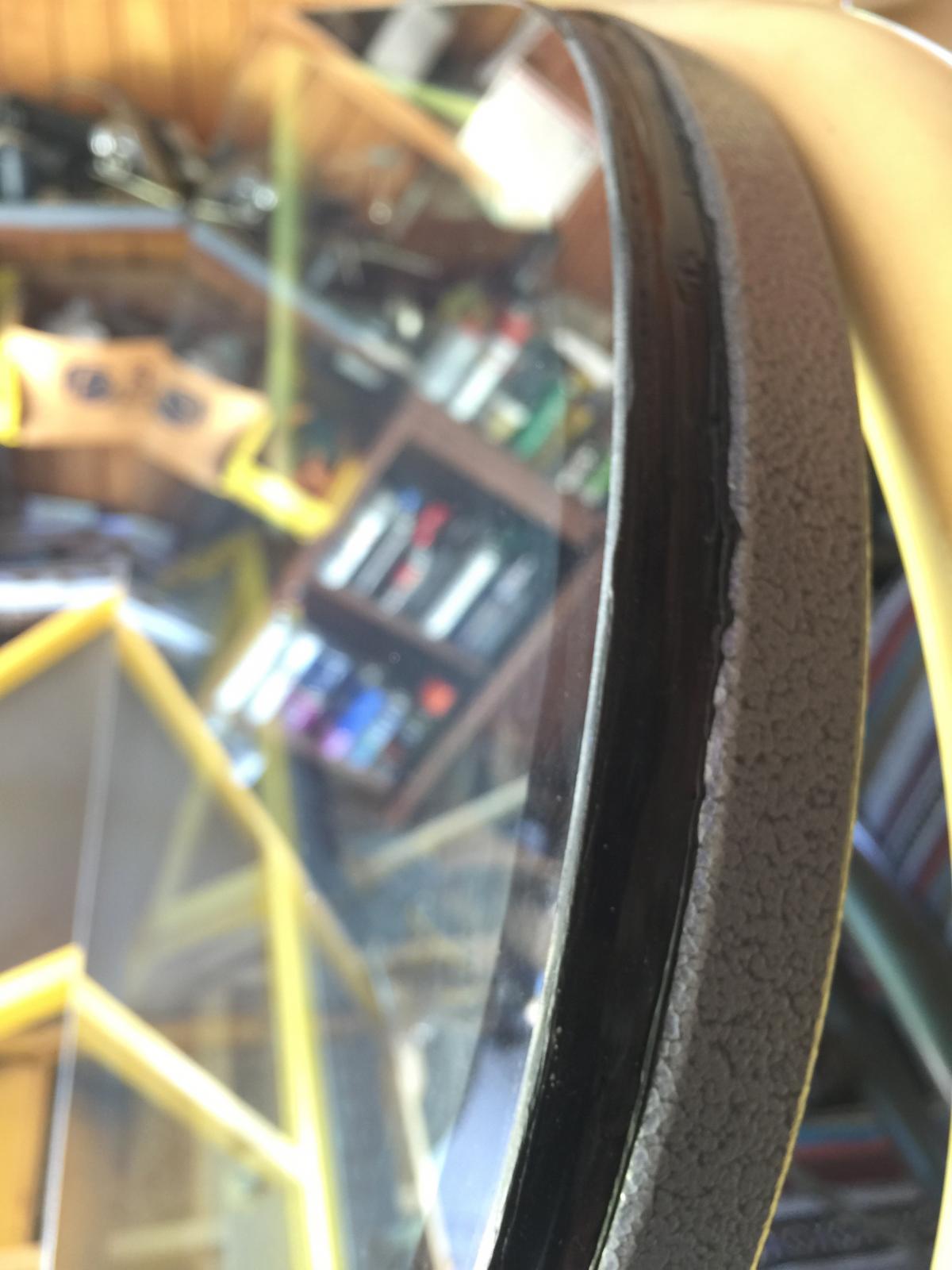

here are some pics of the windshield in my Burro. square frame with glass "glued" to front of frame.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

I was told that all modern cars have glued in windshields, this is now the industry standard mounting method.
_________________
pax
No Good Deed Goes Unpunished....
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
