 Posted: Sat Aug 27, 2011 7:10 pm Post subject: Part # for instrument light bulbs? |
 |
|
Been to NAPA, Advance Auto, Auto Zone, and O'Reily's, no one has the small bulbs I need for my speedo and fuel gauge.
Does anyone have a part # so I can at least try ordering over the internet? The bulbs I have don't say anything on them except "12V".
_________________
1967 VW Beetle
2276cc
MegaSquirt-extra v3.57
Check out my ongoing story. |
|
| Back to top |
|
 |
DHMaher
Samba Member
Joined: November 16, 2009
Posts: 787
Location: Portland, Oregon
|
|
| Back to top |
|
|
MinamiKotaro
Samba Member
Joined: July 18, 2008
Posts: 1039
Location: Somewhere in TN
|
| Posted: Sat Aug 27, 2011 7:35 pm Post subject: |
|
|
Thank you. Exactly what I needed.
_________________
1967 VW Beetle
2276cc
MegaSquirt-extra v3.57
Check out my ongoing story. |
|
| Back to top |
|
|
DHMaher
Samba Member
Joined: November 16, 2009
Posts: 787
Location: Portland, Oregon
|
| Posted: Sat Aug 27, 2011 7:40 pm Post subject: |
|
|
No problem. Where in TN are you? Used to live in Murfreesboro...
_________________
Daniel
"POs, you gotta love them, because killing them is illegal." -Unknown Samba Member
1967 Beetle - Java Green
See my ads |
|
| Back to top |
|
|
Eric&Barb
Samba Member
Joined: September 19, 2004
Posts: 25875
Location: Olympia Wash Rinse & Repeat
|
|
| Back to top |
|
|
MinamiKotaro
Samba Member
Joined: July 18, 2008
Posts: 1039
Location: Somewhere in TN
|
| Posted: Sat Aug 27, 2011 9:28 pm Post subject: |
|
|
| DHMaher wrote: |
| No problem. Where in TN are you? Used to live in Murfreesboro... |
Louisville, an afterthought between Maryville and Alcoa.
_________________
1967 VW Beetle
2276cc
MegaSquirt-extra v3.57
Check out my ongoing story. |
|
| Back to top |
|
|
glutamodo
The Android
Joined: July 13, 2004
Posts: 26524
Location: Douglas, WY
|
| Posted: Sat Aug 27, 2011 10:01 pm Post subject: |
|
|
I was looking at that other thread. I noticed the photo of Eiko 1274 bulbs, which are shown to be rated .12 amps at 14.4V. I got to thinking about that, and that seemed wrong to me. That's 1.73 Watts, and at 12V would be around 1.38 Watts. Thus, those would actually be dimmer than the original bulbs, which were rated 2 Watts at 12V. I also read somewhere that the 1274 has a slightly different base and glass size.
I did find that Eiko does make a 2W bulb with the BA7s base, part number A-1272, or 48006.
I have some old original bulbs around here, and I know the Philips brand has their part number on it, and I found one mixed with with all my OSRAMs.
Googling that Philips 12829 number I got some cross references, I'll just list all of them at once.
12V, 2W, BA7s Base.
Philips 12829
GE 2696
Osram 3898
Narva 101006
EIKO A-1272 48006
VW 17 722 2
BMW 07-11-9-978-279
General 71440 LTB7144
Ford E6HZ-13466-J
-Andy |
|
| Back to top |
|
|
DesignBuild
Samba Member
Joined: September 29, 2016
Posts: 401
Location: HOUSTON, TEXAS
|
| Posted: Wed Sep 25, 2024 2:49 pm Post subject: Re: Part # for instrument light bulbs? |
|
|

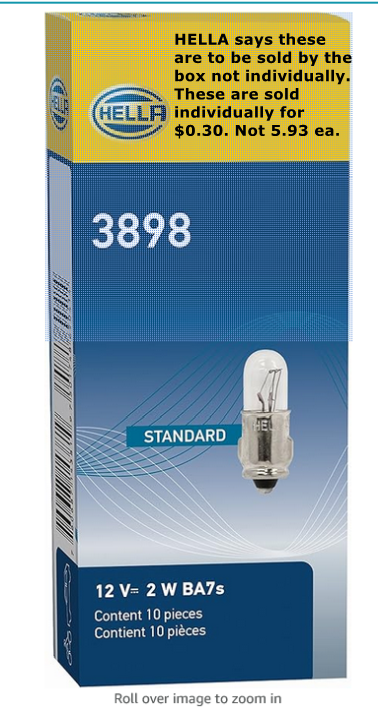

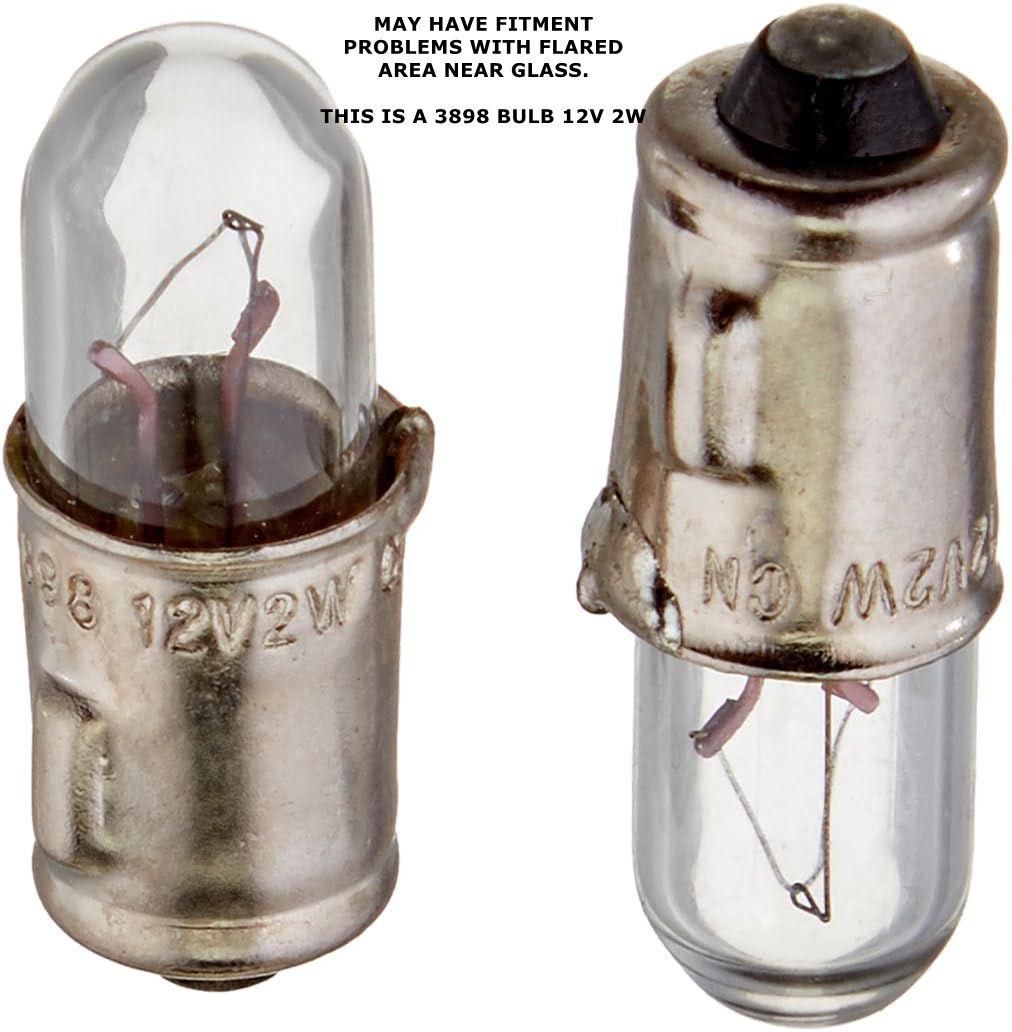

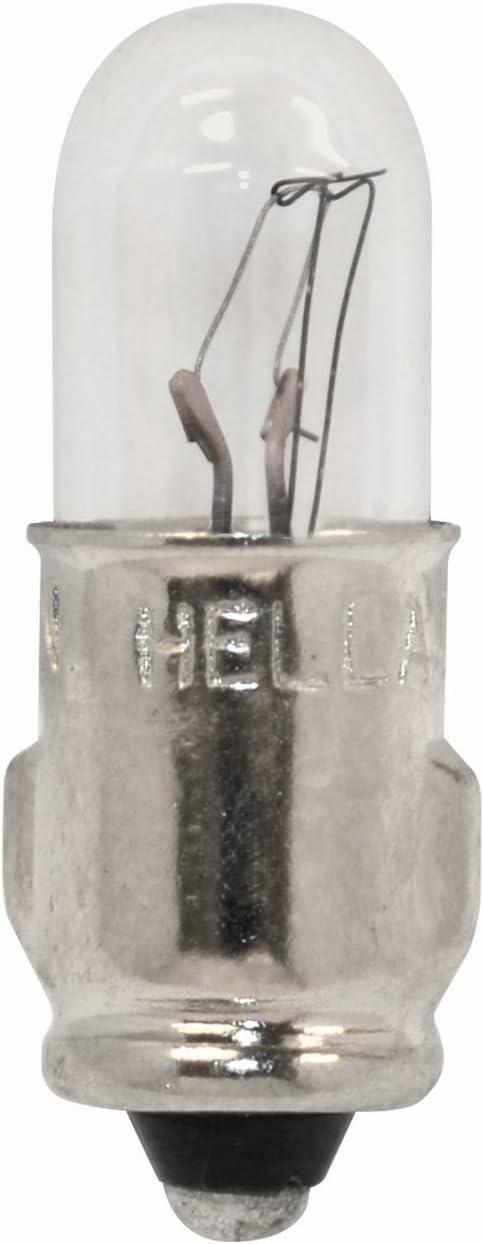

Hella uses 3898 for their part number.
|
|
| Back to top |
|
|
heimlich
VWNOS.com
Joined: November 20, 2016
Posts: 7461
Location: Houston, Texas
|
| Posted: Wed Sep 25, 2024 3:36 pm Post subject: Re: Part # for instrument light bulbs? |
|
|

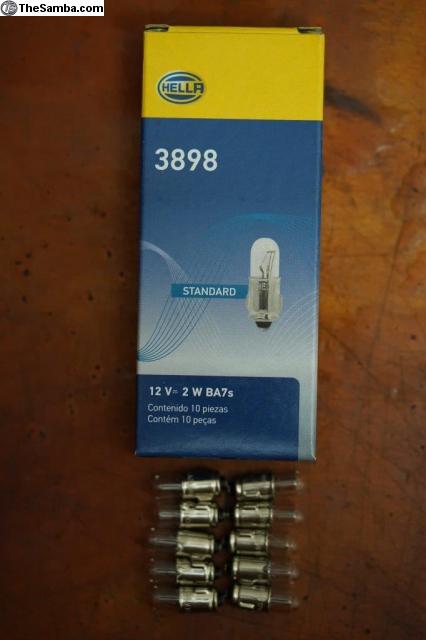

I sell those for $6 a box.
_________________
www.vwnos.com [email protected]
Classic Brands. Classic Quality.
Not all parts are made the same. NOS OE/OEM parts made mainly in West Germany, Early Germany, and Early Brazil are where VW produced the best quality parts and best fitting products.
5% Off your order with coupon code: 5%OFF
Restored Distributors Available (<--Click here) |
|
| Back to top |
|
|
OldSchoolVW's
Samba Member
Joined: July 03, 2020
Posts: 1396
Location: San Diego
|
| Posted: Wed Sep 25, 2024 4:09 pm Post subject: Re: Part # for instrument light bulbs? |
|
|
| heimlich wrote: |
I sell those for $6 a box.
|
If you're not interested in switching to LEDs, I'd swoop on this ^^^.
