PostPosted: Thu Nov 24, 2011 7:58 am    Post subject: Bumper End Caps-installation repair Reply with quote

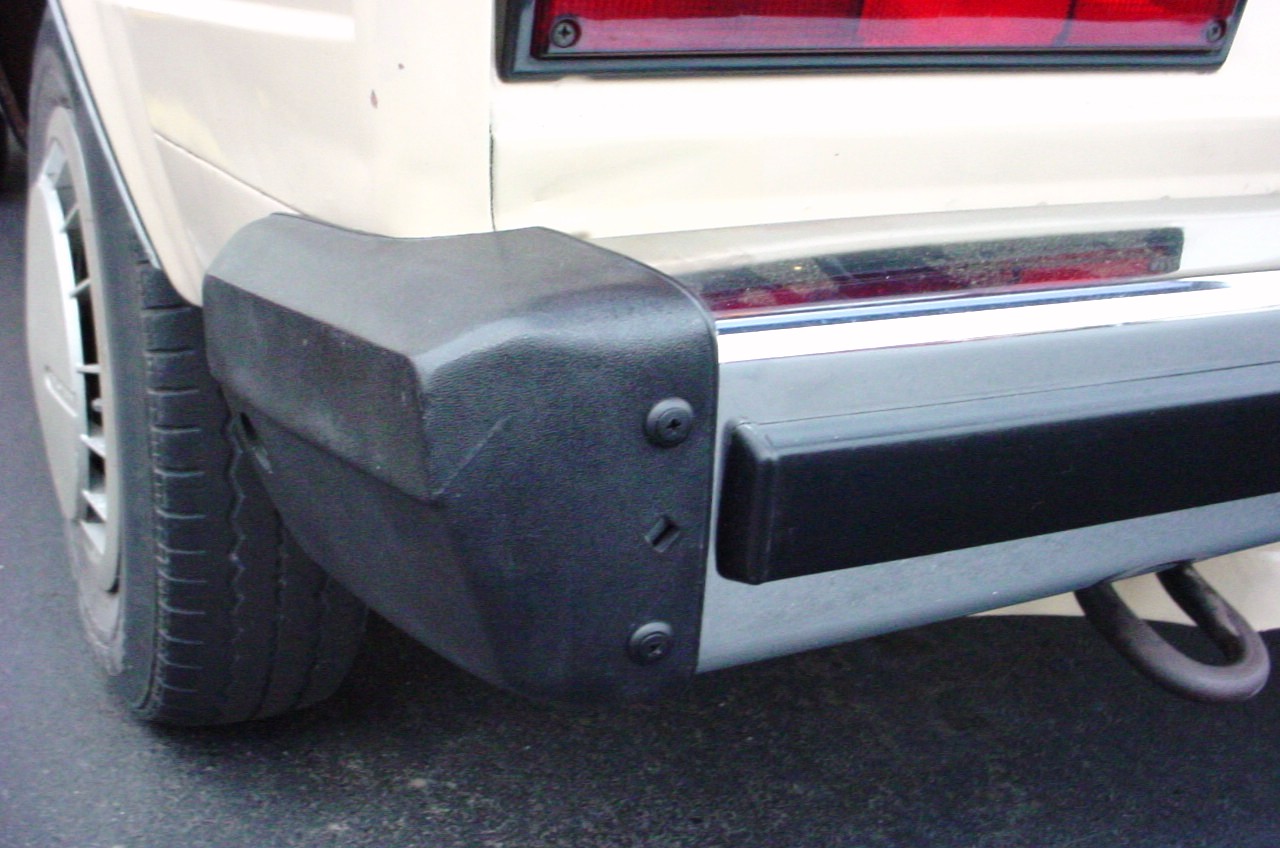

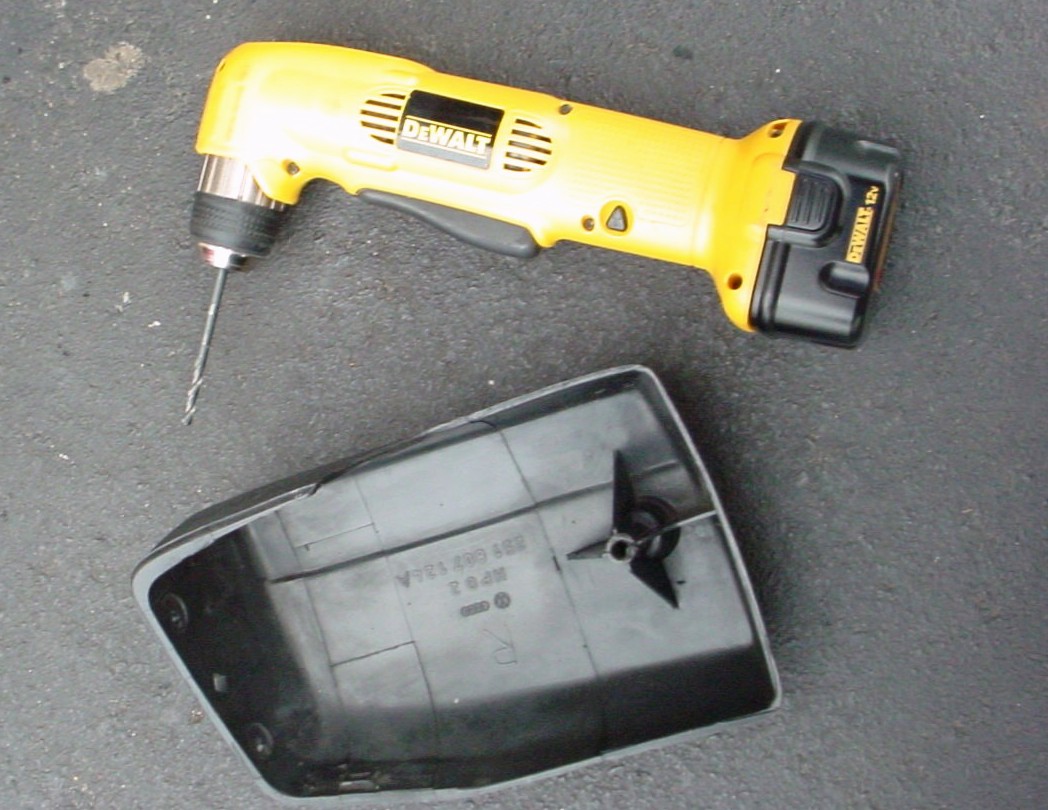

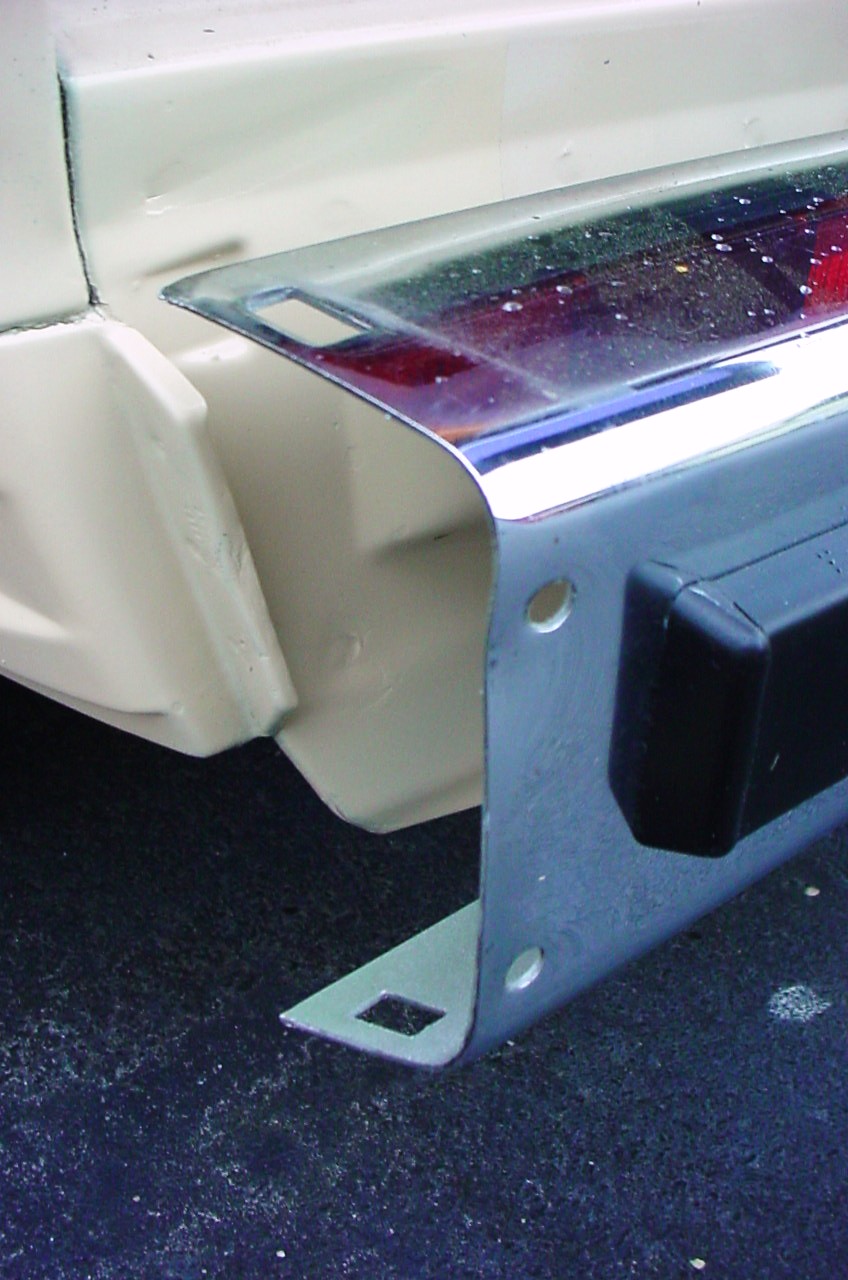

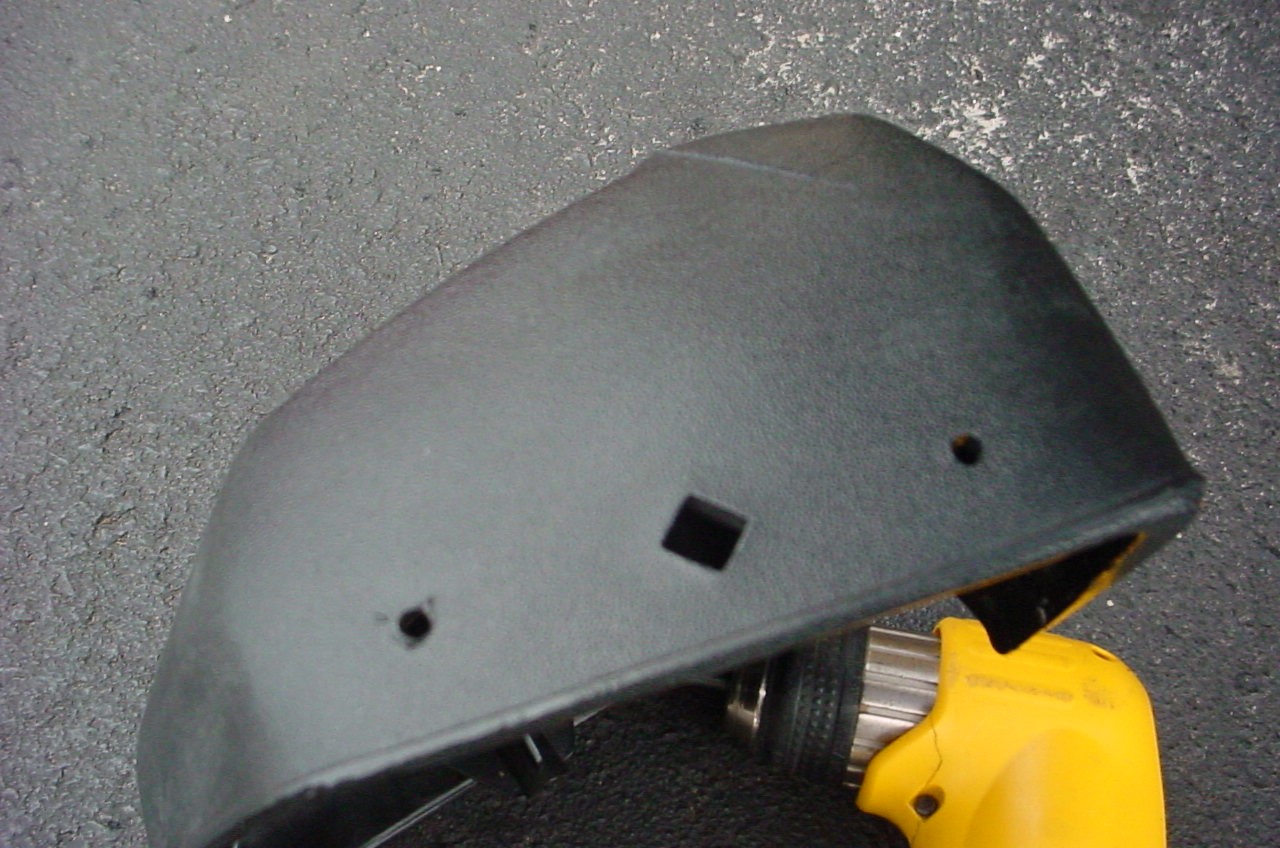

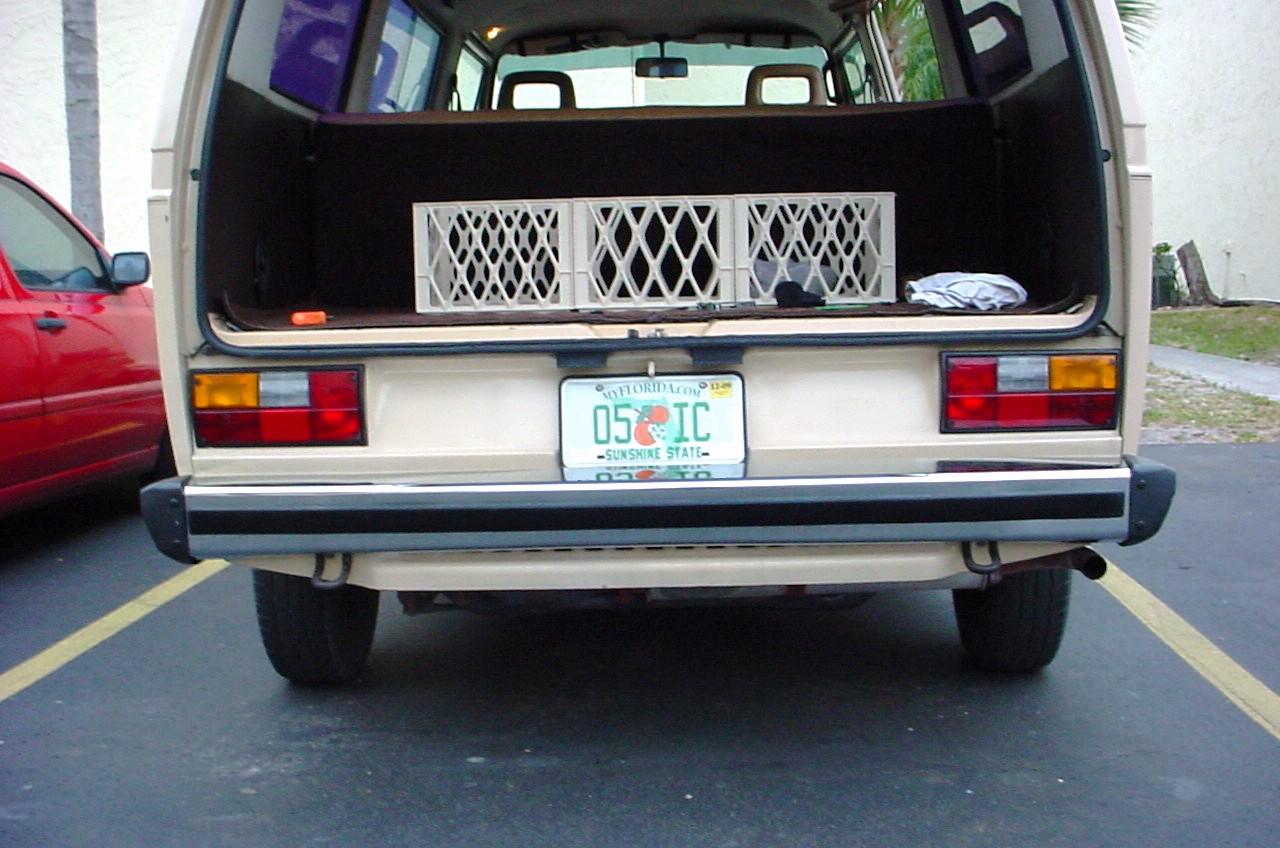

Bumper end caps very often have their inner mounting tabs broken off leaving you with a very loose piece ready to fall off. This repair involves drilling holes into the cap's "hole markings",
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

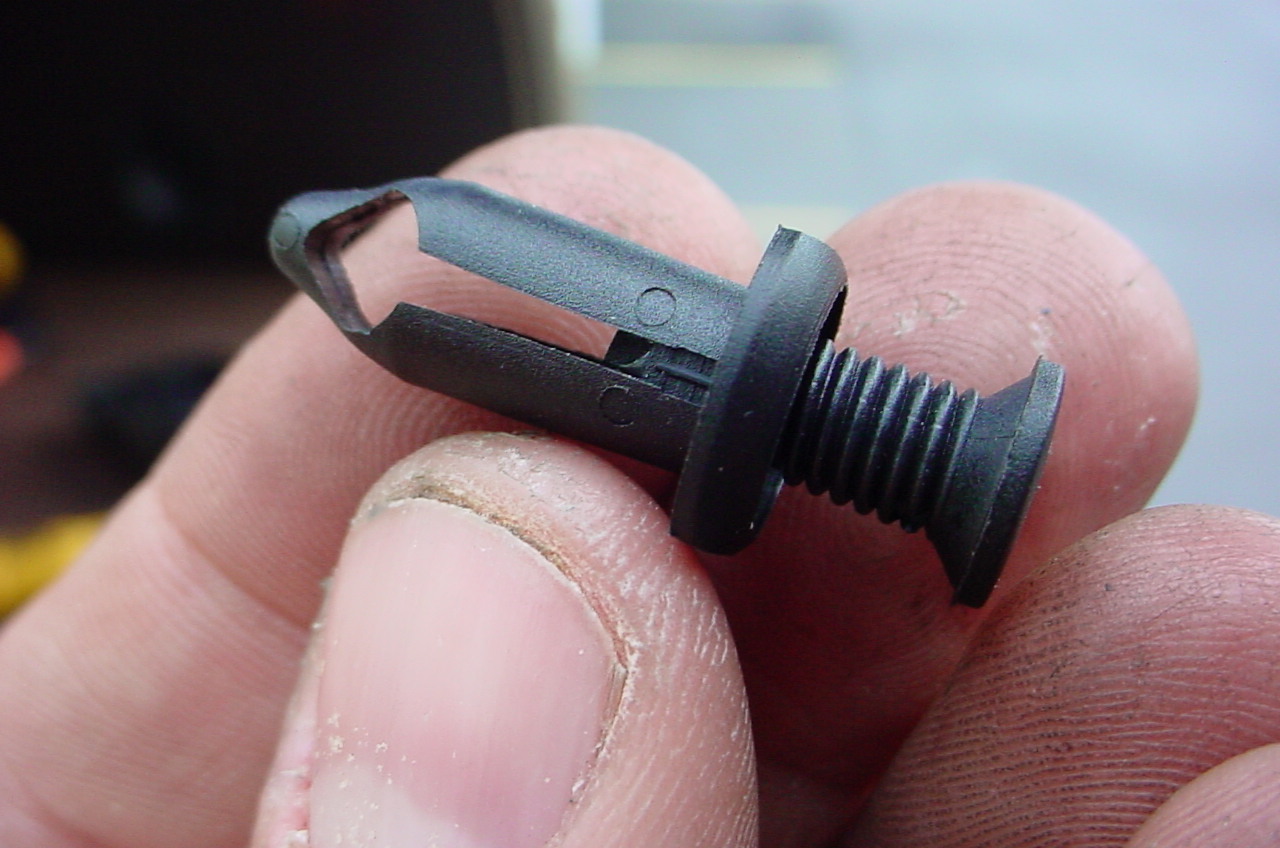

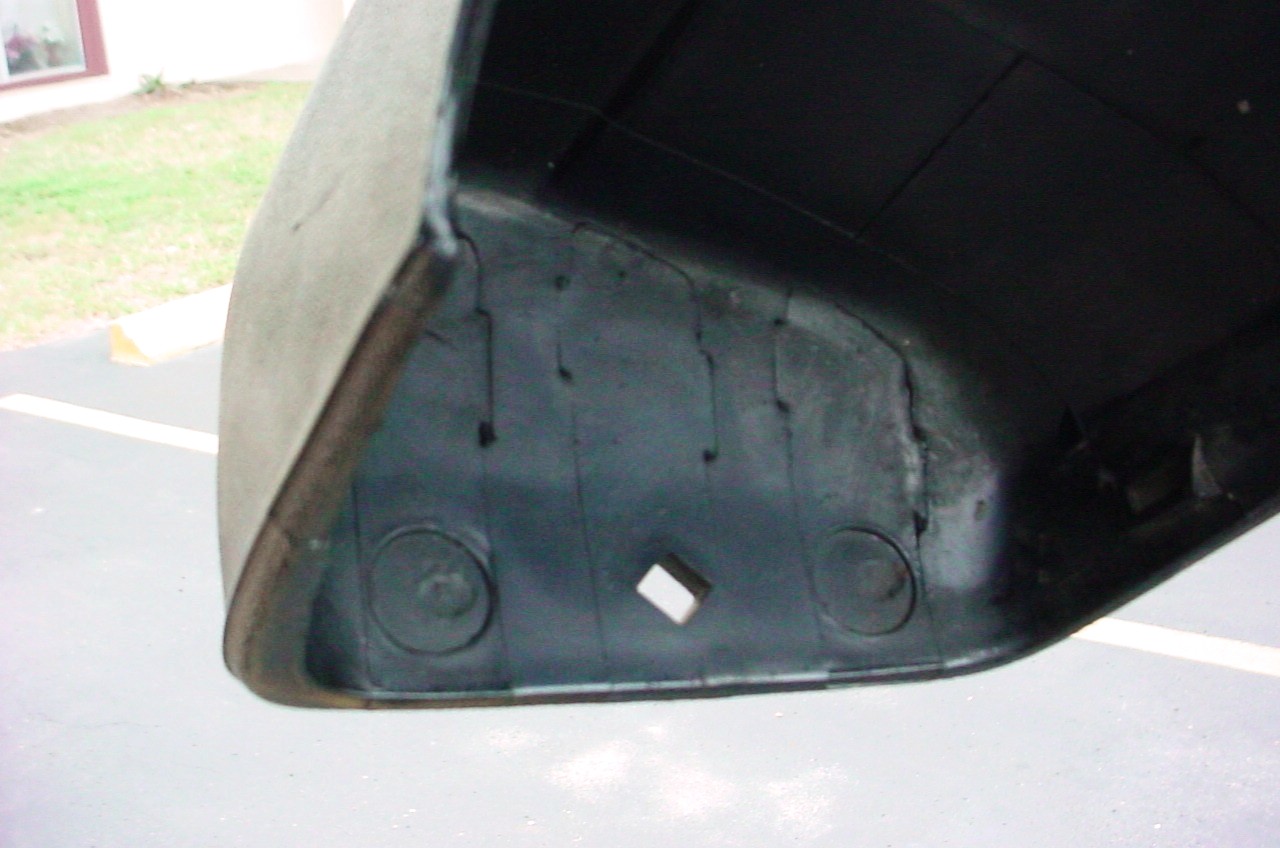

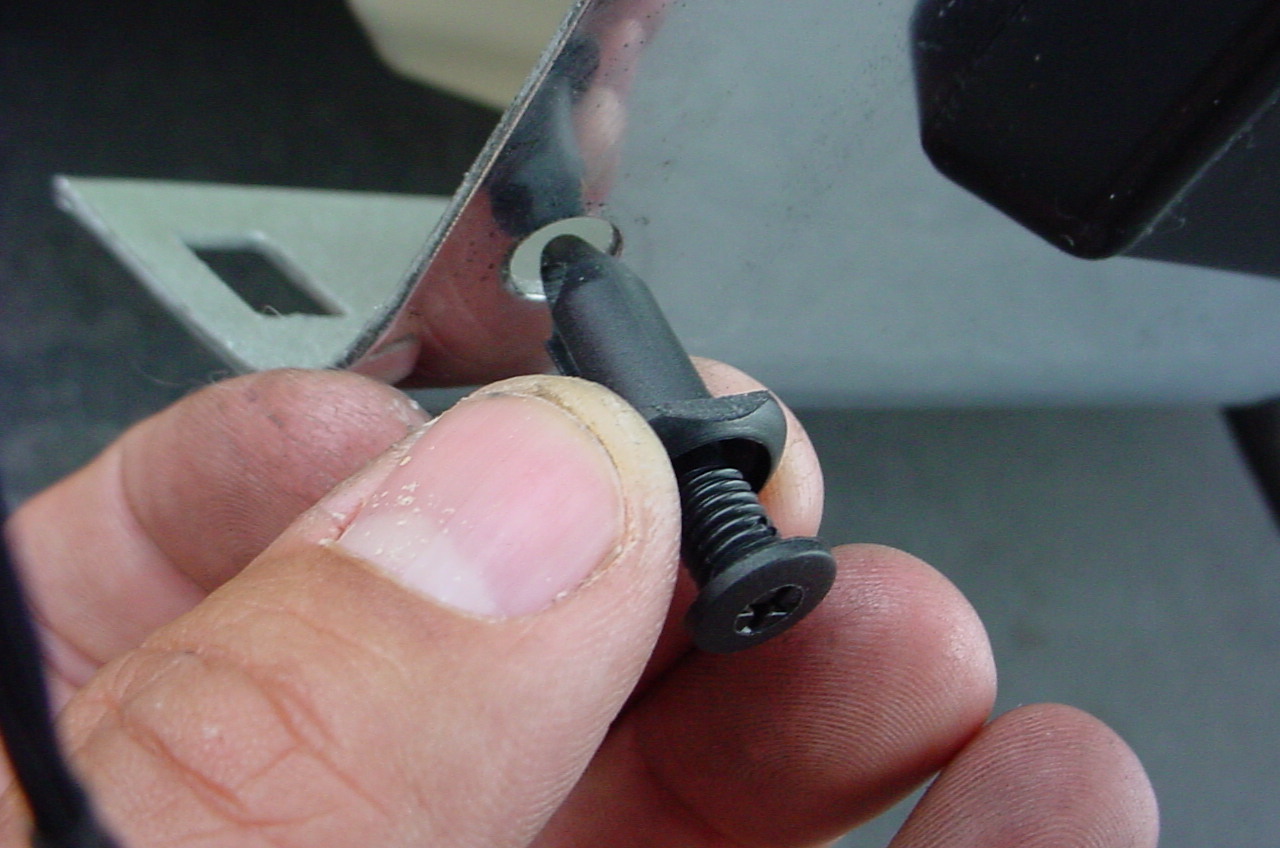

which line up perfectly with the bumper holes, then installing them with the hardware shown. No redrilling of the bumper holes was required.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

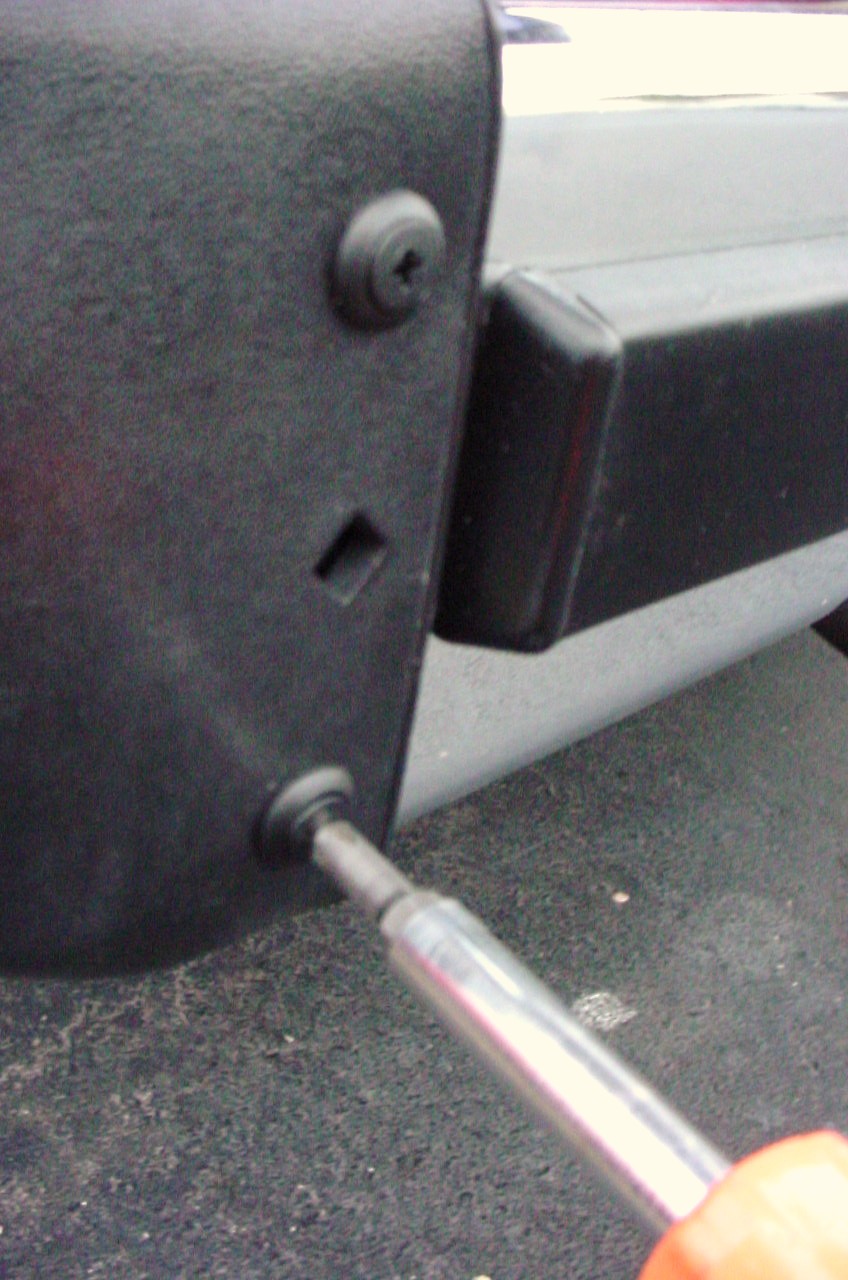

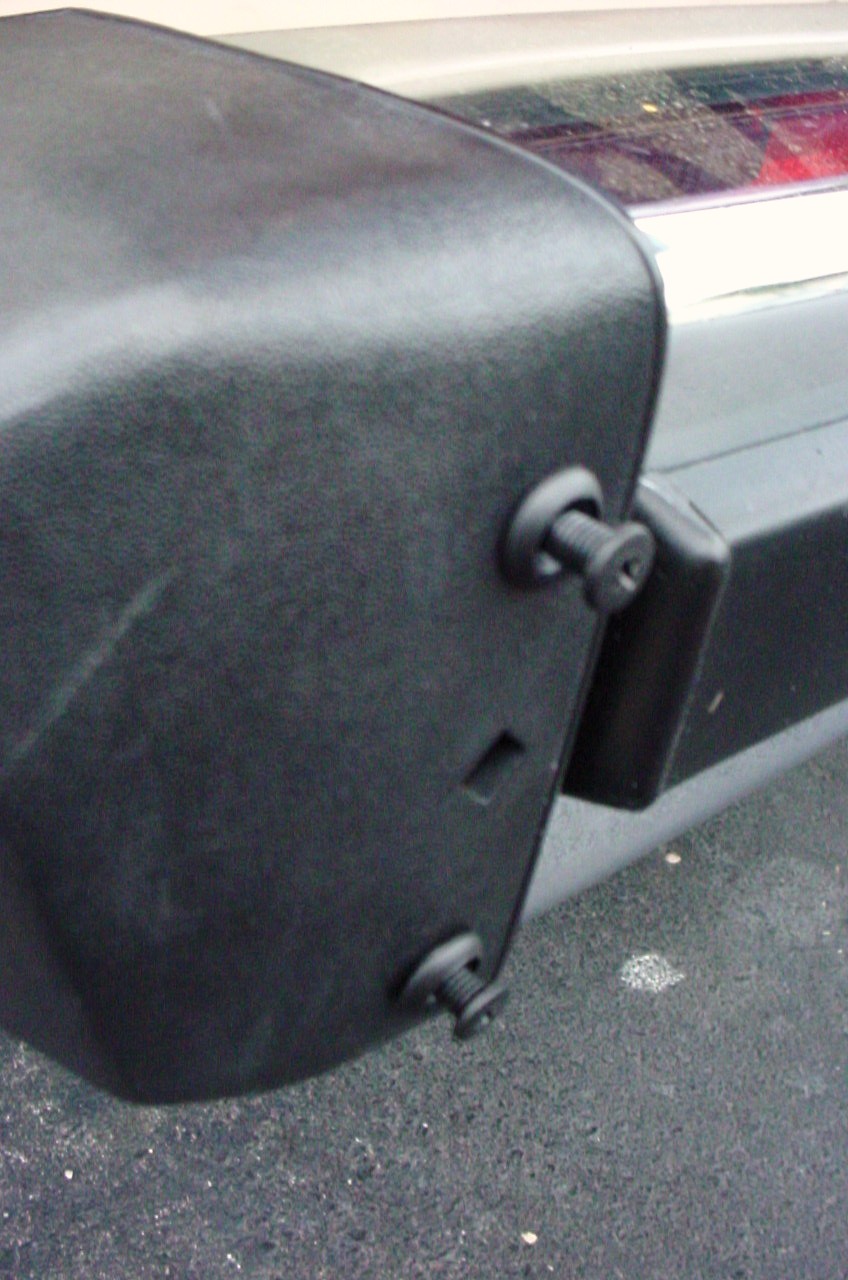

Using the side OEM screw further helps to stabilize the end cap.

Hope this helps, and Happy Thanksgiving!

-T25 Pilot
