PostPosted: Thu Dec 22, 2011 11:49 pm    Post subject: The "Breadbox" Build Reply with quote

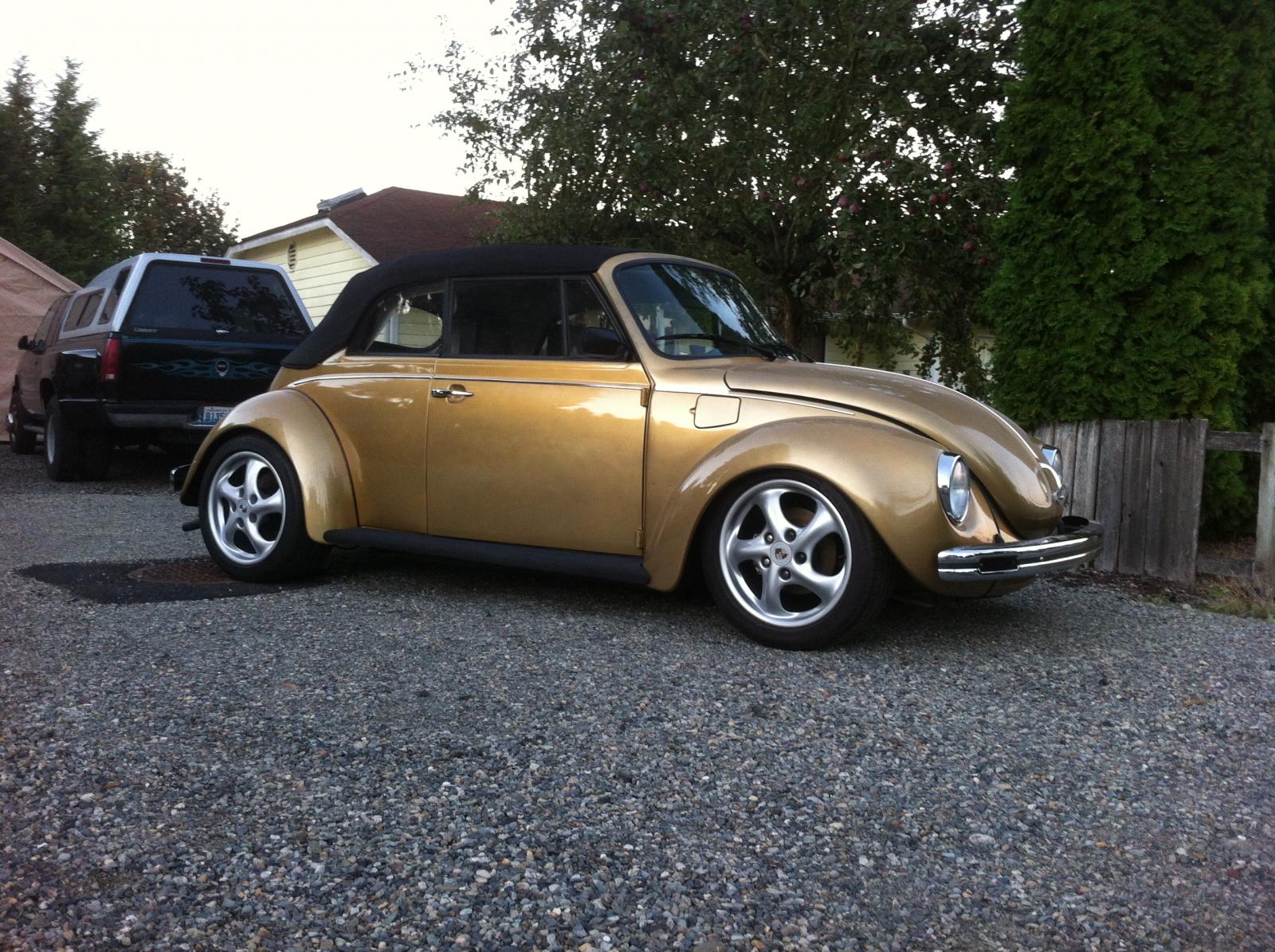

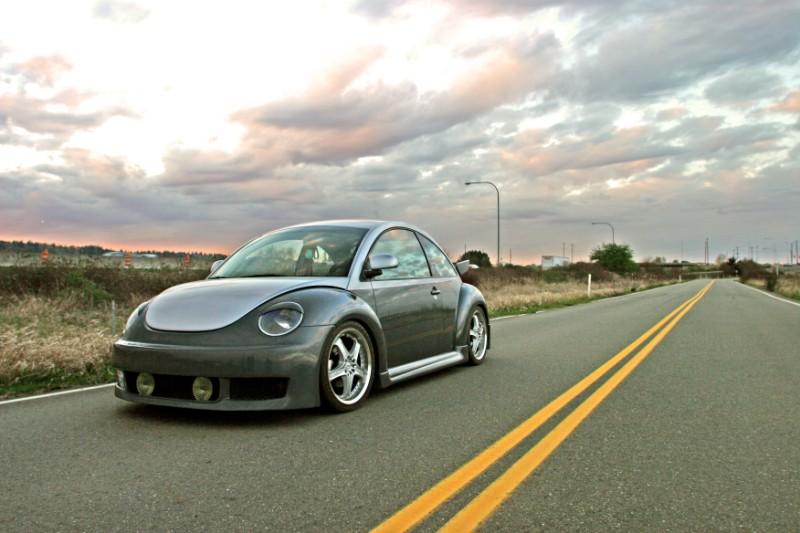

My first build thread on the Samba. So let me intoduce myself. I have been building cars for myself for years. Owned over a 100 so I have been busy. I'm sure some of you have seen them, maybe not. I do everything myself. So here are a few and then we will get started with my build.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


In Progress.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


There are more but this is enough.

This '80 vanagon I have had for 10+ years. It has been a good storage shed. I bought it for $150 from a guy that just needed it gone. Ran but had 40psi on one bank and 100psi on the other. Difficult to start. So it sat.
Fast forward to this summer. Time to get it going. Wanted something different so I opted for a vortec 4.3 V6. I found a motor with 73K on it. Also picked up the harness and ecu for a total of $225 out the door. Purchased a KEP adapter and a IMI hi-torque starter. I already had a set of Sanderson street rod headers so those went on also. I built my own powder coat oven years ago, so most everything gets it.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.



I modified the original harness myself, saving $500. And it runs.

Link


Suspension time

What a nasty mess. Hours of sand blasting. Then into the oven and then installed with all new parts. Koni adjustables and CIP 2" lowering springs.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


The front header was not repairable so I decided to change it out and also put in a new windshield. Still working on it.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


I have always hated the bumpy brown dash so that was stripped and powder coated. A 12 volt outlet also installed.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


These came a few weeks ago from treadepot.com.

Image may have been reduced in size. Click image to view fullscreen.


I powder coated these tonight. Still needs an orange pinstripe.

Image may have been reduced in size. Click image to view fullscreen.


And last but not least. I am also putting a porsche 996 gauge cluster in.
I have managed to get the speedo, volts and water temp working but still struggling with the fuel gauge. I will be putting in a classic instruments gps speedometer sender so that the gauge will be dead on.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Still a long ways to go. Decided to put rear discs on so that is one more thing to do.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Last edited by badassdubs on Fri Oct 20, 2017 1:50 pm; edited 3 times in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
syncrodoka
Samba Member


Joined: December 27, 2005
Posts: 11997
Location: Santa Cruz, CA
syncrodoka is offline

PostPosted: Thu Dec 22, 2011 11:55 pm    Post subject: Reply with quote

Very impressive build, thanks for sharing. Applause
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dobryan
Samba Member


Joined: March 24, 2006
Posts: 16450
Location: Brookeville, MD
dobryan is offline

PostPosted: Fri Dec 23, 2011 7:54 am    Post subject: Reply with quote

Love the 996 gauge cluster! (And the rest of the build). Very Happy Exclamation
_________________
Dave O
'87 Westy w/ 2002 Subaru EJ25 and Peloquin TBD

"To travel hopefully is a better thing than to arrive." Robert Louis Stevenson

MD>Canada>AK>WA>OR>CA>AZ>UT>WY>SD
https://www.thesamba.com/vw/forum/viewtopic.php?t=620646

Building a bus for travel in Europe (euroBus)
https://www.thesamba.com/vw/forum/viewtopic.php?t=695371

The Western Syncro build
https://www.thesamba.com/vw/forum/viewtopic.php?t=746794
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Zeitgeist 13
Samba Member


Joined: March 05, 2009
Posts: 12102
Location: Port Manteau
Zeitgeist 13 is offline

PostPosted: Fri Dec 23, 2011 8:06 am    Post subject: Reply with quote

mad skillz
_________________
Casey--

'89 Bluestar ALH w/12mm Waldo pump, PP764 and GT2052
'01 Weekender --> full camper
y u rune klassik?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vspecter
Samba Member


Joined: September 24, 2006
Posts: 84
Location: Trois-Rivières, Qc, Canada
vspecter is offline

PostPosted: Fri Dec 23, 2011 7:22 pm    Post subject: Reply with quote

We will need more pictures of your ride!! Awesome machine!
_________________
Westfalia 1985
Doka 1985 Sold

Roadtrip to from Québec to Utah: http://www.youtube.com/watch?v=DqCpcA7NLdE
Back to top
View user's profile Send private message Classifieds Feedback
purplepeopleeater
Samba Member


Joined: July 23, 2005
Posts: 3117
Location: E. Washington
purplepeopleeater is offline

PostPosted: Fri Dec 23, 2011 7:26 pm    Post subject: Reply with quote

Nice, you don't mess around on projects.

Where in washington are you?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dubbified
Samba Member


Joined: March 03, 2010
Posts: 1406
Location: Redmond, WA
dubbified is offline

PostPosted: Fri Dec 23, 2011 7:32 pm    Post subject: Reply with quote

oh man.. bawsssss! yea.. that's very.... Shocked
Back to top
View user's profile Send private message Gallery Classifieds Feedback
rubbachicken
Samba Member


Joined: October 05, 2004
Posts: 3058
Location: socal
rubbachicken is offline

PostPosted: Fri Dec 23, 2011 8:37 pm    Post subject: Reply with quote

very nice Cool
_________________
lucy our westy

lucy's BIG adventure

meet 'burni'


markswagen {mobile mechanic} san diego area all early VW's cared for.

619 201 0310 or 617 935 4182
Back to top
View user's profile Send private message Send e-mail Facebook Gallery Classifieds Feedback
Syncroincity
Samba Member


Joined: April 15, 2007
Posts: 1557
Location: New York City
Syncroincity is offline

PostPosted: Fri Dec 23, 2011 8:51 pm    Post subject: Reply with quote

Wow, excellent stuff! We need more madman-artisan input... Keep 'em coming! Smile
_________________
'86 Syncro CHC Top AAZ Turbodiesel
'04 Passat Variant 4Mo 5MT

Vanagon Build: http://www.thesamba.com/vw/forum/viewtopic.php?t=466866&highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Crankey
Samba Member


Joined: July 11, 2004
Posts: 2651

Crankey is offline

PostPosted: Fri Dec 23, 2011 11:02 pm    Post subject: Reply with quote

looks like you'll have some bread in that box ! Laughing

sweet work man, you in Wa. too, cool !
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
badassdubs
Samba Member


Joined: July 09, 2008
Posts: 209
Location: WA
badassdubs is offline

PostPosted: Fri Dec 23, 2011 11:31 pm    Post subject: Reply with quote

Thanks guys. Far be it from me to do anything normal. Very Happy I'll try to keep you entertained as much as I possibly can. Have been learning alot about the vanagon. This is my first one. Lots of good info here. The suspension was a PITA, but you guys already know that. Wink
Made a simple special tool for putting in the f & r lower suspension bushings. I get a pic up tomorrow. Here is the best way to get a ball joint out when you can't get to it with a press. Gotta be careful though. Finish it off with a die grinder on one side and it pops right out.

Image may have been reduced in size. Click image to view fullscreen.


The 996 cluster was given to me 8+ years ago. You can see it only has 12K on it. It is a canadian cluster, was changed out for a U.S. cluster when it was brought into the states. If you turn the right knob at the top of the cluster and hold it for 5 seconds it will automatcally switch the readout to MPH from KPH. How cool is that!!! I have a cordless drill hooked up to it in that pic spinning the sending unit as fast as it can. Yup 8 mph. I noticed that the analog speedo to the left is at 8 mph also. If my thinking is correct the analog also changes to MPH and I will have a 300 MPH speedo. Cool I just might need that. Laughing Yes I am in WA. I live in Monroe about 25 minutes N of Seattle.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Crankey
Samba Member


Joined: July 11, 2004
Posts: 2651

Crankey is offline

PostPosted: Sat Dec 24, 2011 1:00 am    Post subject: Reply with quote

very cool man. always good to learn of creative people nearby.

welcome here, hope you stick around.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
skinny66
Samba Member


Joined: December 20, 2011
Posts: 2
Location: 5280
skinny66 is offline

PostPosted: Sat Dec 24, 2011 1:24 am    Post subject: Reply with quote

That will be one trick ride !!
Keep us posted.

skinny
Back to top
View user's profile Send private message Classifieds Feedback
shadetreetim
Samba Member


Joined: January 10, 2011
Posts: 1994
Location: Riverside, California
shadetreetim is offline

PostPosted: Sat Dec 24, 2011 1:32 am    Post subject: Reply with quote

Sweet. Waiting for more pics.
_________________
Tim Potts

Doing my best every time I drive it to dispel the myth these Vanagons have to be slow!


'89 Vanagon Bluestar/Country Homes 1.8T & .77 4th
'74 Jeep CJ5
Back to top
View user's profile Send private message Gallery Classifieds Feedback
xoo00oox
Samba Member


Joined: February 11, 2010
Posts: 2671
Location: East Nassau, NY
xoo00oox is offline

PostPosted: Sat Dec 24, 2011 4:40 am    Post subject: Reply with quote

You've got a great combination of skills, imagination, and energy. Looking forward to watching your build.

Andrew-
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Mark
Samba Member


Joined: January 20, 2003
Posts: 1523
Location: Victoria, BC Canada
Mark is offline

PostPosted: Sat Dec 24, 2011 3:46 pm    Post subject: Reply with quote

Updates, keep them coming. Applause
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
badassdubs
Samba Member


Joined: July 09, 2008
Posts: 209
Location: WA
badassdubs is offline

PostPosted: Tue Dec 27, 2011 6:02 pm    Post subject: Reply with quote

Thanks again. Here is a simple tool I made to put in the front or rear control arm bushings. Be sure to use lots of spray silicone. For the front I was able to use my press but the rear doesn't have enough depth to use a press so I used a C-clamp. Start with a 2" O.D. piece of pipe. Then take a socket with a taper on it and pound it into the pipe with a BFH, creating a flare. Once that is done I took my cutoff wheel, you could use a hacksaw also, and cut a bunch of slots so that you can clamp it down with a hose clamp to meet the same dimensions as the control arm. I used a craftsman 1 7/16 3/4 drive socket for the taper. When using the C-clamp you can't get it all the way through because of the plate. Just take a bolt, run a nut up to the end of the threads. put it in the bushing. Hold the bolt with some vise grips and thump away. Don't be shy with the silicone.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


For the front lower ball joint I use a long extension with a 36mm K-D socket. Run the extension through the upper ball joint hole and put the socket on top of the ball joint and press it in. Make sure that you put a socket under the ball joint so that it can pressed all the way in.Worked for me.

Image may have been reduced in size. Click image to view fullscreen.


One question. Years ago I pulled all of the heater related items so that I could convert over to water cooled. I also pulled this vent that directs heated air back to the rear. I have never seen one in another van. Is this not so common a part? Does it work well? If not I will put in the rear heater instead.

Image may have been reduced in size. Click image to view fullscreen.

back to the rear
Back to top
View user's profile Send private message Gallery Classifieds Feedback
SteelB12
Samba Member


Joined: December 21, 2010
Posts: 591
Location: Central Virginia
SteelB12 is offline

PostPosted: Tue Dec 27, 2011 8:34 pm    Post subject: Reply with quote

That suspension looks sweet!
_________________
1987 Westy
Back to top
View user's profile Send private message Send e-mail Classifieds Feedback
levi
Samba Member


Joined: February 11, 2005
Posts: 5522
Location: Las Vegas
levi is offline

PostPosted: Tue Dec 27, 2011 9:25 pm    Post subject: Reply with quote

All of the diesels I see in Europe have that raised center.
Was your van originally diesel?
_________________
One of these days I'm gonna settle down,
but till I do I won't be hangin round.
Going down that long lonesome highway,
gonna see life my way

https://youtu.be/cSrL0BXsO40
Back to top
View user's profile Send private message Gallery Classifieds Feedback
badassdubs
Samba Member


Joined: July 09, 2008
Posts: 209
Location: WA
badassdubs is offline

PostPosted: Tue Dec 27, 2011 9:50 pm    Post subject: Reply with quote

levi wrote:
All of the diesels I see in Europe have that raised center.
Was your van originally diesel?


Mine was originally air cooled. I can't remember what engine the van had that I pulled this from. It was about 10 years ago.

A couple of shots of the fubar'd header panel. And the new one is in. Welding tomorrow.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
