Has anyone installed the pop out kit from cip1? How is the quality? My 57 doesn't have original pop outs so how hard will it be to install them? Thanks guys |
|
Back to top |
|
 |
Keith Samba Member

Joined: August 15, 2005 Posts: 3632 Location: Brodheadsville, PA
|
Posted: Thu Jan 12, 2012 9:22 pm Post subject: |
|
|
Good pictorial of an install of them here ( pages 17 and 18 )
http://www.thesamba.com/vw/forum/viewtopic.php?t=3...;start=320 _________________ Formerly known in the forums as "OVALTEEN"
"I firmly believe that some villagers from Botswana could probably build a better road than PennDot."- Splitty
"If you do anything to your car someone will hate on you for it. People absolutely love to complain and find fault with others. Don't let it bother you. Just live and have fun."- Lind
Last edited by Keith on Fri Jan 13, 2012 6:38 am; edited 2 times in total |
|
Back to top |
|
 |
drscope Samba Member

Joined: February 19, 2007 Posts: 15273 Location: Baltimore, Maryland USA
|
Posted: Fri Jan 13, 2012 8:53 am Post subject: |
|
|
I bought the ones from MidAmerica (maybe the same set) for my 64. I've been pretty pleased so far. _________________ Mother Nature is a Mean Evil Bitch! |
|
Back to top |
|
 |
jjrose110 Samba Member

Joined: April 19, 2011 Posts: 115 Location: Central PA
|
Posted: Fri Jan 13, 2012 11:34 am Post subject: |
|
|
drscope,
Do you remember the manufacturer? I bought a set from Mid-america also. But when they came, I googled the name on the box and I could have gotten them direct for around $30-$40 less.
I'm just drawing a blank on the site now..... |
|
Back to top |
|
 |
targetinspect Samba Member

Joined: January 10, 2011 Posts: 91
|
Posted: Fri Jan 13, 2012 1:07 pm Post subject: |
|
|
My ears are ringing... who is the vendor that supplies the ones on page 17 -18 with the sekurit logo? Would love to get my hands on a set of those... |
|
Back to top |
|
 |
Erik G Samba Member

Joined: October 16, 2002 Posts: 13475 Location: Tejas!
|
|
Back to top |
|
 |
AlteWagen Troll

Joined: February 23, 2007 Posts: 8632 Location: PNW
|
Posted: Fri Jan 13, 2012 1:18 pm Post subject: |
|
|
targetinspect wrote: |
My ears are ringing... who is the vendor that supplies the ones on page 17 -18 with the sekurit logo? Would love to get my hands on a set of those... |
Koch |
|
Back to top |
|
 |
jjrose110 Samba Member

Joined: April 19, 2011 Posts: 115 Location: Central PA
|
Posted: Fri Jan 13, 2012 1:23 pm Post subject: |
|
|
EIS.... That is them! Thanks Erik G.
Bdub475, you can do your own price shopping, but a few years ago they were what I would consider significantly cheaper.
Also, one of my hinges were not stamped into the correct "S" shape, so the screws would not go into the threaded bar. I called Mid America, and they referred me to EIS to get a replacement anyway.
So there might be some benefit getting them right from the source other than cost. |
|
Back to top |
|
 |
bdub475 Samba Member
Joined: April 05, 2009 Posts: 577 Location: Los Lunas, New Mexico
|
Posted: Fri Jan 13, 2012 9:03 pm Post subject: |
|
|
ok thank alot guys. i think the guy in the tread said that eis put their name on the glass if i read it right. ill try to pm him and see were he ordered his, thanks a lot again guys |
|
Back to top |
|
 |
drscope Samba Member

Joined: February 19, 2007 Posts: 15273 Location: Baltimore, Maryland USA
|
Posted: Sat Jan 14, 2012 10:17 am Post subject: |
|
|
jjrose110 wrote: |
drscope,
Do you remember the manufacturer? I bought a set from Mid-america also. But when they came, I googled the name on the box and I could have gotten them direct for around $30-$40 less.
I'm just drawing a blank on the site now..... |
I don't remember - it's been a few years. I'll go out and see if there is anything on the window latter. _________________ Mother Nature is a Mean Evil Bitch! |
|
Back to top |
|
 |
targetinspect Samba Member

Joined: January 10, 2011 Posts: 91
|
Posted: Sat Jan 14, 2012 2:09 pm Post subject: |
|
|
Yep, I had a set of EIS 1/4's on the 62. They have a bead blasted etched logo EIS that is rather large and quite impossible to remove, the latches are not right, the knobs, they come in black and you cannot replace them with the ivory, they don't fit. Koch's info and or website is? |
|
Back to top |
|
 |
flyertim Samba Member

Joined: September 17, 2009 Posts: 554 Location: medina, ohio
|
Posted: Sun Jan 15, 2012 7:48 am Post subject: |
|
|
targetinspect wrote: |
Yep, I had a set of EIS 1/4's on the 62. They have a bead blasted etched logo EIS that is rather large and quite impossible to remove, the latches are not right, the knobs, they come in black and you cannot replace them with the ivory, they don't fit. Koch's info and or website is? |
i thought i read in another thread somewhere on thesamba that eis etched their logo on the glass...which is why i didn't want them. i also understand that they do the same thing to their windshields.
i'm glad "targetinspect" chimed in confirming this as well as mention the other problems.
here's koch's contact info:
Tel: (661) 268-1341
Fax: (661) 268-7011
Email: [email protected]
website: www.kochs.com
(their steering wheel section is www.kochssteeringwheels.com)
the phone number will probably put you in touch with teresa...very knowledgeable and helpful. also, they have a banner on the samba. look at the top, right of any page on this website and click the "see all samba banner ads"...you'll find their info and the link there as well.
i stumbled upon an advertisement in the classifieds for their popouts several months ago (i did a search...couldn't find it) when they happened to have my steering wheel which was getting recast/restored. when teresa called me to let me know the steering wheel was finished and being shipped, i asked about the pop outs. she said they were out of stock but were expecting them soon...would i like to be added to the list? a month later i got the call they were in, so i ordered them. $450 + shipping ($12 to ohio).
i'm very satisfied with them! _________________ "Broadsword calling Dannyboy"
my '57 rebuild:
http://www.thesamba.com/vw/forum/viewtopic.php?t=369883 |
|
Back to top |
|
 |
flyertim Samba Member

Joined: September 17, 2009 Posts: 554 Location: medina, ohio
|
Posted: Sun Jan 15, 2012 8:00 am Post subject: pop out installation |
|
|
to benefit future searches of "pop outs", here's my instructions for installing them which has been copied and pasted from pages 17-18 of the "build thread" in my signature.
i recently purchased reproduction pop-out windows from koch’s. these are the later style with the ribbed trim for late ovals and early big-window beetles.
unfortunately, they did not include installation instructions. i didn’t find much help after searching through thesamba’s forums. so, i guess i will have to figure it out myself.
it’s a good thing this is me:
Link
so…what’s in the box?
first there’s the windows, which are preassembled with the rubber molding and chrome trim.
continuing clockwise in the photo below, also included are two threaded retaining strips, a bag of hardware, two latches (left and right), two plastic covers and two u-channel gaskets.
etched into the glass is a “sekurit” logo. I was relieved it didn’t say “koch’s” or some other incorrect manufacturer...i.e., i hear eis puts their name on their windshields.
unlike the earlier pop-out windows (which have a piano hinge along the front edge), these have an “s” shaped aluminum hinge.
looking from the top, i placed the threaded retaining strip next to the hinge…
…which slides into the hinge as shown below. the blue arrow points to the retaining strip.
red arrow points to the gap in the hinge which slides onto the flange of the window opening.
here’s another picture. the red arrow points to the gap in the hinge mentioned previously and the green arrow points to the flange of the window opening. this is where the outer quarter panel and the inner quarter panel are spot-welded together at the factory.
_________________ "Broadsword calling Dannyboy"
my '57 rebuild:
http://www.thesamba.com/vw/forum/viewtopic.php?t=369883 |
|
Back to top |
|
 |
flyertim Samba Member

Joined: September 17, 2009 Posts: 554 Location: medina, ohio
|
Posted: Sun Jan 15, 2012 8:04 am Post subject: pop out installation con't... |
|
|
i removed the hinge from the window…
…then i measured the distance between the outer edges of the chrome molding. looking at the bottom edge, i get 12 ½” (red arrow).
i wanted to see if the split in the molding was halfway between the outer edges (or, if the hinge is centered on the window). it isn’t…the split is at 6 ⅛” (white arrow)…not 6 ¼”.
so, the hinge is ⅛” from center, with the upper portion being shorter than the lower.
i taped masking paper into the window opening and traced the edge of the flange.
then i removed the paper and folded it in half…which gave me a centerline (red arrow).
i marked a parallel line ⅛” above this line (blue arrow) to locate the center of the aluminum hinge. the green arrow points to the mark i made on the flange.
here’s a view from the inside of the hinge placed on the flange.
makes sense?
the red arrows in the photo below point to the marks i made locating the holes i need to drill into the flange.
also notice that the window is placed into the opening. i double-checked everything to ensure the window fit into the opening and the hinge lined up with the threaded holes in the chrome trim.
getting the window to fit in the opening was a major pain in the butt. i smeared soapy water onto the gasket and carefully (hoping i wouldn’t break the glass) pushed it in place.
the gasket wants to fight you every step of the way. the front edge was the most difficult.
i wound up using a dull screwdriver (so i didn’t tear the gasket) to help coax the gasket to flare out.
i started at the top…
…slid the screwdriver around the front…
…and down towards the bottom.
_________________ "Broadsword calling Dannyboy"
my '57 rebuild:
http://www.thesamba.com/vw/forum/viewtopic.php?t=369883 |
|
Back to top |
|
 |
flyertim Samba Member

Joined: September 17, 2009 Posts: 554 Location: medina, ohio
|
Posted: Sun Jan 15, 2012 8:07 am Post subject: pop out installation con't... |
|
|
i measured the diameter of the screws from the retaining strip (which are 4mm x 070 thread). they are about .1575" in diameter, so i used a #21 drill bit (∅.1590”).
after i was satisfied the hinge was in the proper location, i drilled the holes i marked earlier into the flange.
i installed the retaining strip…elongating a few holes as necessary to ensure all the screws seated properly without binding.
a view of the screws from the inside…
then i installed the hinge to make sure everything fit.
i removed the hinge from the car and reinstalled it onto the window. then i slid the hinge onto the flange using a screwdriver to coax the gasket along the front edge as shown before.
when the holes in the hinge aligned with the holes in the flange, i taped the window onto the car with duct tape…(it would be better to have a friend, spouse, or those of you with alternative lifestyles, a significant other, hold the window in place).
then i installed the threaded strip onto the hinge to secure the window in place. this was really a bitch to install…those of you with three arms may find it a breeze. you have to hold the threaded strip into position, place/hold a screw into one of the holes and use the screwdriver to drive it home.
after the first one, the others aren’t so bad.
_________________ "Broadsword calling Dannyboy"
my '57 rebuild:
http://www.thesamba.com/vw/forum/viewtopic.php?t=369883 |
|
Back to top |
|
 |
flyertim Samba Member

Joined: September 17, 2009 Posts: 554 Location: medina, ohio
|
Posted: Sun Jan 15, 2012 8:12 am Post subject: pop out installation con't... |
|
|
the next thing to do is install the small bracket onto the aft end of the window. two 4mm x 070 countersunk screws secure it into position.
the latch is already assembled…just screw the one end onto the previously installed bracket.
note: there is a left and right latch…make sure you install the correct one…although, it’s hard to mix them up.
i pushed the window into the opening as far as it would go.
after taping the window in place, i folded up the latch and let it rest onto the inside of the quarter panel…i just let it sit where it naturally wanted to go. then i held it in position with tape.
i carefully opened and closed the window a few times to double-check that the latch was in the proper location.
then i marked the place i wanted to drill a hole (red arrow).
the sheet metal screws needed to secure the bracket to the quarter panel are not included in the kit.
so, i went to the hardware store to buy some self-tapping stainless steel sheet-metal screws. (say that three times fast).
i’m not sure what size screws i bought…i forgot to write it down. but, i measured the inside diameter of the screw which was about .098 in diameter, so i used a #40 drill bit to drill the hole.
then i installed a screw to cut the threads.
i installed the latch...
…then, after testing the window to ensure it opened and closed okay, i drilled and installed the other three screws.
here’s a picture of the window opened and the latch extended.
the latch closed:
_________________ "Broadsword calling Dannyboy"
my '57 rebuild:
http://www.thesamba.com/vw/forum/viewtopic.php?t=369883 |
|
Back to top |
|
 |
flyertim Samba Member

Joined: September 17, 2009 Posts: 554 Location: medina, ohio
|
Posted: Sun Jan 15, 2012 8:17 am Post subject: pop out installation con't... |
|
|
here’s a close-up of the cross-section of the gasket that was included with the kit. this covers the flange of the window opening.
starting at the bottom end of the hinge, i pressed the gasket onto the flange all around the window opening. as you can see, there’s plenty of material included with the kit.
another picture of the gasket installed…
i placed masking tape on the gasket to locate the top of the hinge. the red arrow points to the lower edge of the tape which is the trim line.
using wire cutters, i cut the gasket and pressed it back onto the flange as shown below.
next we need to remove the two screws as shown by the red arrows in the photo below.
the plastic cover is installed using two countersunk 4mm x 070 thread x 12mm long screws which were not included in the kit. stainless steel screws were available at the hardware store.
after playing with the windows, i couldn’t figure out the purpose of the set screw in the ivory knob (red arrow). if i screwed it all the way in, it locks the knob onto the shaft which prevents the knob from being turned…so you can’t open and close the window. is it a security thing?
_________________ "Broadsword calling Dannyboy"
my '57 rebuild:
http://www.thesamba.com/vw/forum/viewtopic.php?t=369883 |
|
Back to top |
|
 |
flyertim Samba Member

Joined: September 17, 2009 Posts: 554 Location: medina, ohio
|
Posted: Sun Jan 15, 2012 8:19 am Post subject: pop out installation con't... |
|
|

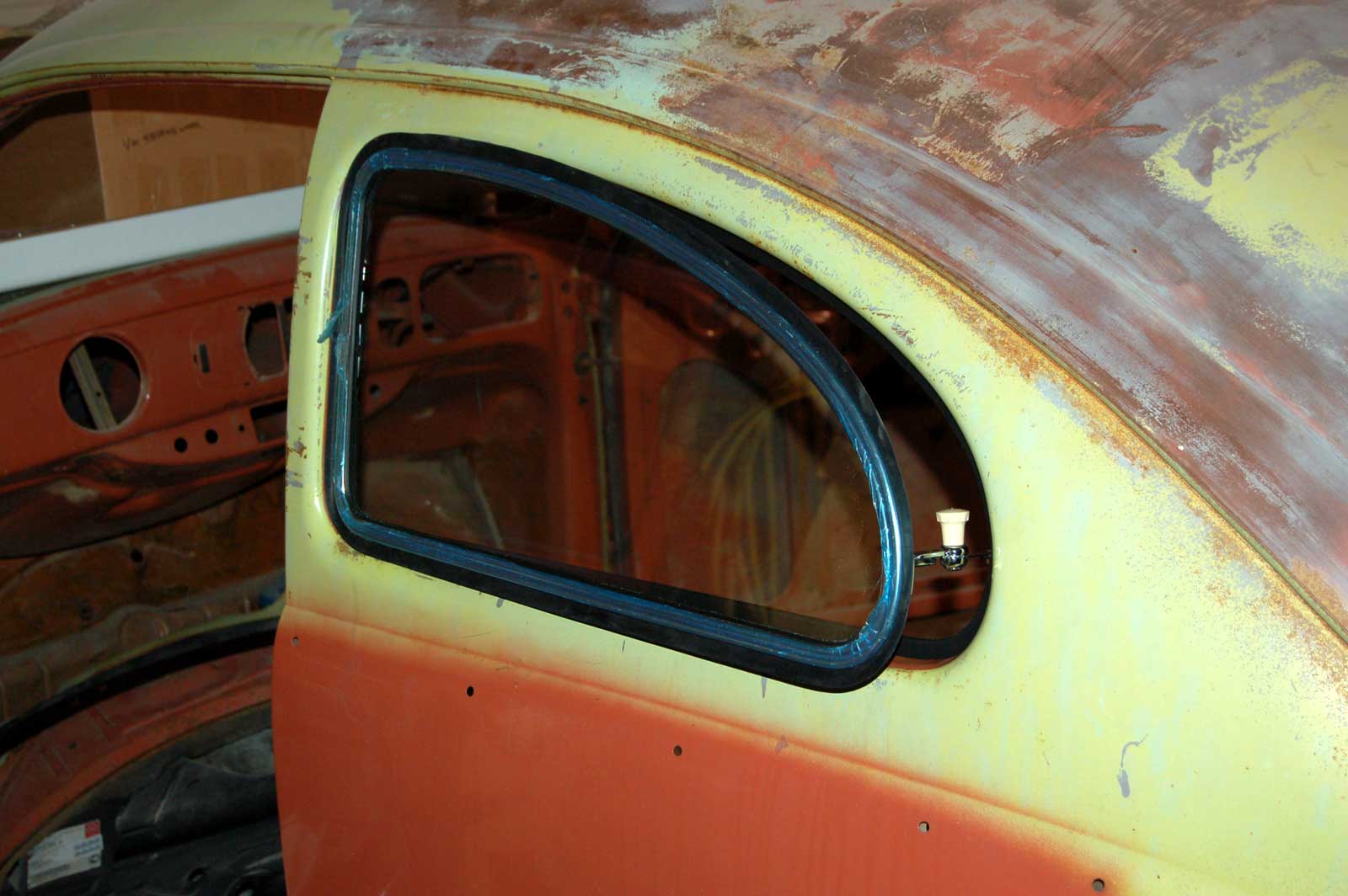

the finished installation...
another view…
repeat for the other side…we're done!
_________________ "Broadsword calling Dannyboy"
my '57 rebuild:
http://www.thesamba.com/vw/forum/viewtopic.php?t=369883 |
|
Back to top |
|
 |
flyertim Samba Member

Joined: September 17, 2009 Posts: 554 Location: medina, ohio
|
|
Back to top |
|
 |
tinlizard Samba Member
Joined: June 28, 2010 Posts: 74 Location: Murfreesboro, TN
|
Posted: Sun Jan 15, 2012 9:01 am Post subject: |
|
|
Excellent tutorial, Tim! |
|
