EA812
Samba Member


Joined: December 07, 2008
Posts: 1223
Location: North central, CT
EA812 is offline

PostPosted: Thu Jun 05, 2014 8:54 am    Post subject: Reply with quote

Way to go! See that wasn't to bad pulling that trans. As for the Bug Me video stuff I have even contacted him on a few questions. Rick has been a big help.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
sportin-wood
Samba Member


Joined: September 12, 2010
Posts: 1909
Location: Texas
sportin-wood is offline

PostPosted: Thu Jun 05, 2014 4:46 pm    Post subject: Reply with quote

EA812 wrote:
Way to go! See that wasn't to bad pulling that trans. As for the Bug Me video stuff I have even contacted him on a few questions. Rick has been a big help.


Thanks! I never thought about contacting Rick with questions. Any idea what his email address is? I'm not fixing this to be a show car by any means, but I'm thinking I'll be pressure washing and degreasing all of the nastier areas and spraying it with a protective paint.
_________________
.
Paused 66 project bug
.
"Relax, all right? My old man is a television repairman. He's got this ultimate set of tools. I can fix it." --- Jeff Spicoli
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
sportin-wood
Samba Member


Joined: September 12, 2010
Posts: 1909
Location: Texas
sportin-wood is offline

PostPosted: Sat Jun 07, 2014 6:23 pm    Post subject: Reply with quote

Out with the old...
Image may have been reduced in size. Click image to view fullscreen.


And in with the new (Ooohh....)...
Image may have been reduced in size. Click image to view fullscreen.


Now if only my seals ordered from Wolfsburg West would get here!!
_________________
.
Paused 66 project bug
.
"Relax, all right? My old man is a television repairman. He's got this ultimate set of tools. I can fix it." --- Jeff Spicoli
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
EA812
Samba Member


Joined: December 07, 2008
Posts: 1223
Location: North central, CT
EA812 is offline

PostPosted: Wed Jun 11, 2014 8:44 am    Post subject: Reply with quote

sportin-wood wrote:
EA812 wrote:
Way to go! See that wasn't to bad pulling that trans. As for the Bug Me video stuff I have even contacted him on a few questions. Rick has been a big help.


Thanks! I never thought about contacting Rick with questions. Any idea what his email address is? I'm not fixing this to be a show car by any means, but I'm thinking I'll be pressure washing and degreasing all of the nastier areas and spraying it with a protective paint.


I think I came up with the e-mail address from the Bug Me video web site. When u order from there u pretty much go through him. It's a small operation. I love the one video u can hear the guy next door mowing the lawn;)
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
NCdad
Samba Member


Joined: August 28, 2008
Posts: 1497
Location: South Carolina
NCdad is offline

PostPosted: Thu Jul 10, 2014 9:24 am    Post subject: Reply with quote

Still watchin this thread...

Thanks for the Axle bearing remover info!
_________________
ROBERT
My VWs & Projects - | - German Invasion VW Show - Sept 9, 2023 Shelby, NC
Back to top
View user's profile Send private message Visit poster's website Facebook Instagram Gallery Classifieds Feedback
sportin-wood
Samba Member


Joined: September 12, 2010
Posts: 1909
Location: Texas
sportin-wood is offline

PostPosted: Sun Jul 20, 2014 9:29 am    Post subject: Reply with quote

Finally had time for a little more progress. Installed the axles (getting that C-clip installed on each axle was a MO-FO!!), axle tubes, and axle boots.

Image may have been reduced in size. Click image to view fullscreen.

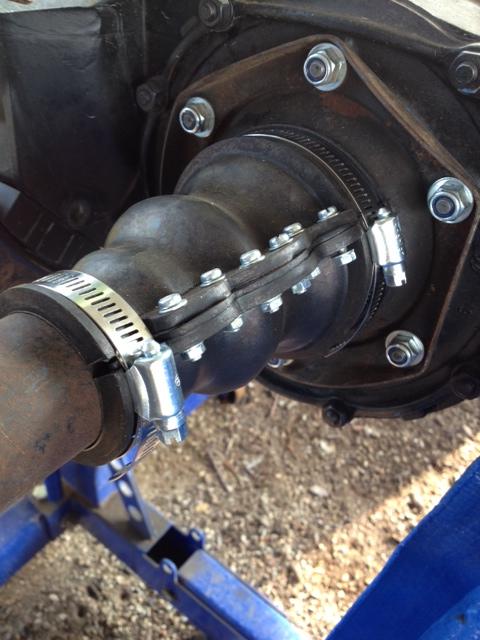

These are the Wolfsburg West axle boots, but I wasn't too crazy about the clamps they came with, so I opted for radiator hose clamps with the screw head facing semi-downward in case I ever need access from down below. I haven't tightened the smaller clamp yet as I want to wait until after the transmission is fully reinstalled.

Image may have been reduced in size. Click image to view fullscreen.

_________________
.
Paused 66 project bug
.
"Relax, all right? My old man is a television repairman. He's got this ultimate set of tools. I can fix it." --- Jeff Spicoli


Last edited by sportin-wood on Sun Jul 20, 2014 9:46 am; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
sportin-wood
Samba Member


Joined: September 12, 2010
Posts: 1909
Location: Texas
sportin-wood is offline

PostPosted: Sun Jul 20, 2014 9:33 am    Post subject: Reply with quote

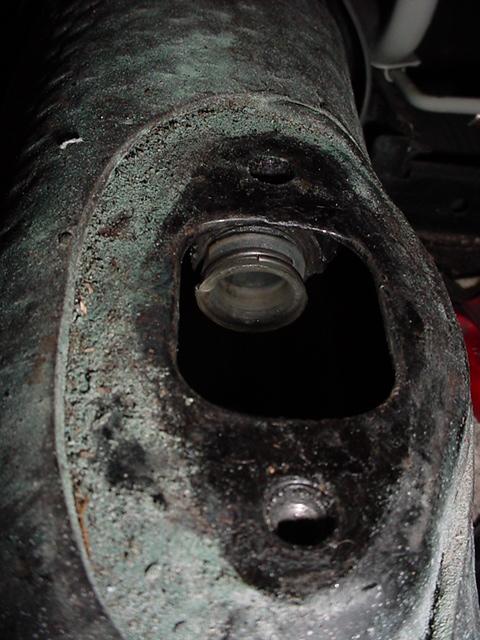

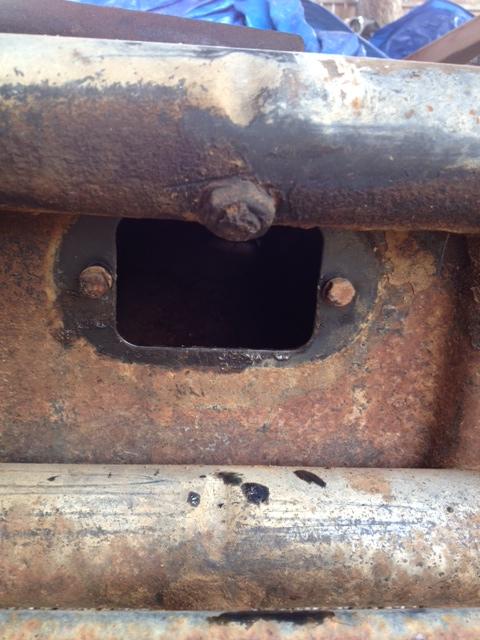

Next, I took on the task of replacing the shift rod bushing that I've read horror stories about. I hadn't even checked the condition of the existing bushing, but since I'm changing out most if not all seals, bushings, etc., I figured I'd change it out too....and it was a good thing because the one it had had disintegrated! So I started by removing the front access plate.

Image may have been reduced in size. Click image to view fullscreen.

_________________
.
Paused 66 project bug
.
"Relax, all right? My old man is a television repairman. He's got this ultimate set of tools. I can fix it." --- Jeff Spicoli


Last edited by sportin-wood on Sun Jul 20, 2014 10:42 am; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
sportin-wood
Samba Member


Joined: September 12, 2010
Posts: 1909
Location: Texas
sportin-wood is offline

PostPosted: Sun Jul 20, 2014 9:41 am    Post subject: Reply with quote

Getting the shift rod slid out the front access hole was a piece of cake. Once out, I inserted the new shift rod bushing that I was afraid was going to slip out of my hold and into the tunnel, but I was fortunate that it "snapped" right into place.

Image may have been reduced in size. Click image to view fullscreen.


Next step, I greased up the bushing liberally. I also took the shift rod and greased up the entire length of it. I slid it back through the front access hole, got it started in the bushing, and had to use a 4' 1'x1' piece of wood to push it through. The grease from the shift rod built up around the bushing, but I'm sure that won't be any kind of issue.

Image may have been reduced in size. Click image to view fullscreen.


I changed out the shift coupler, and all-in-all, this process was TONS easier than I had anticipated. *WHEW!*
_________________
.
Paused 66 project bug
.
"Relax, all right? My old man is a television repairman. He's got this ultimate set of tools. I can fix it." --- Jeff Spicoli
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
NCdad
Samba Member


Joined: August 28, 2008
Posts: 1497
Location: South Carolina
NCdad is offline

PostPosted: Sun Jul 20, 2014 9:51 am    Post subject: Reply with quote

Thanks for the photos!
_________________
ROBERT
My VWs & Projects - | - German Invasion VW Show - Sept 9, 2023 Shelby, NC
Back to top
View user's profile Send private message Visit poster's website Facebook Instagram Gallery Classifieds Feedback
sportin-wood
Samba Member


Joined: September 12, 2010
Posts: 1909
Location: Texas
sportin-wood is offline

PostPosted: Thu Sep 11, 2014 9:20 pm    Post subject: Reply with quote

Finally got my transmission put in place. Let me tell you - it's a pain in the ass to do by yourself! So, while I'm not doing a full detailed restoration, I am replacing most rubber parts and cables like e-brake cable, axle boots, Bowden tube, accelerator cable, etc. Hopefully this will keep me from having to make more frequent repairs in the future. Next step, rear brakes.

Image may have been reduced in size. Click image to view fullscreen.

_________________
.
Paused 66 project bug
.
"Relax, all right? My old man is a television repairman. He's got this ultimate set of tools. I can fix it." --- Jeff Spicoli
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
sportin-wood
Samba Member


Joined: September 12, 2010
Posts: 1909
Location: Texas
sportin-wood is offline

PostPosted: Sun Sep 21, 2014 8:44 pm    Post subject: Reply with quote

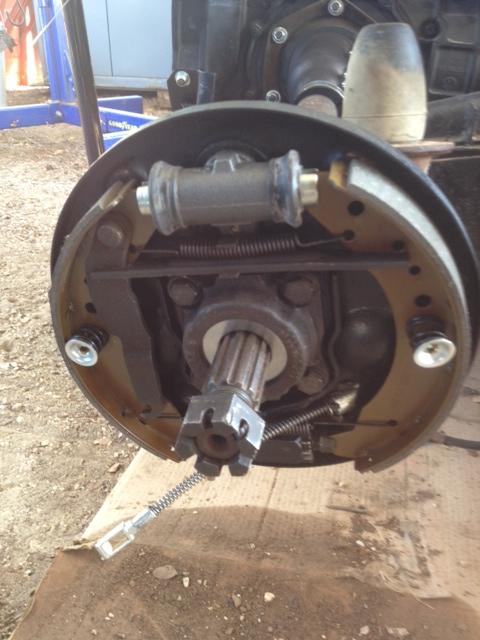

Getting the rear brakes, bearings, and seals done. Had a bonehead moment - was having trouble getting the new brake shoes to go in and couldn't understand what the problem was. Finally dug out the old set I hadn't thrown away and realized I was using the wider front brake shoes by mistake! Hey, it's my first time doing this stuff! Brick wall

Image may have been reduced in size. Click image to view fullscreen.

_________________
.
Paused 66 project bug
.
"Relax, all right? My old man is a television repairman. He's got this ultimate set of tools. I can fix it." --- Jeff Spicoli
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
sportin-wood
Samba Member


Joined: September 12, 2010
Posts: 1909
Location: Texas
sportin-wood is offline

PostPosted: Sat Nov 15, 2014 2:54 pm    Post subject: Reply with quote

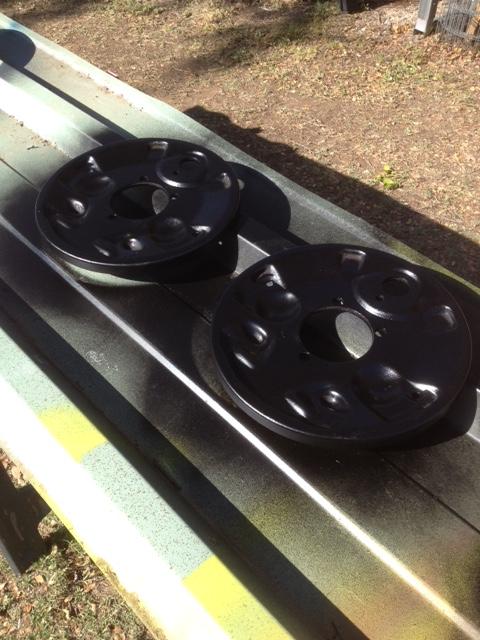

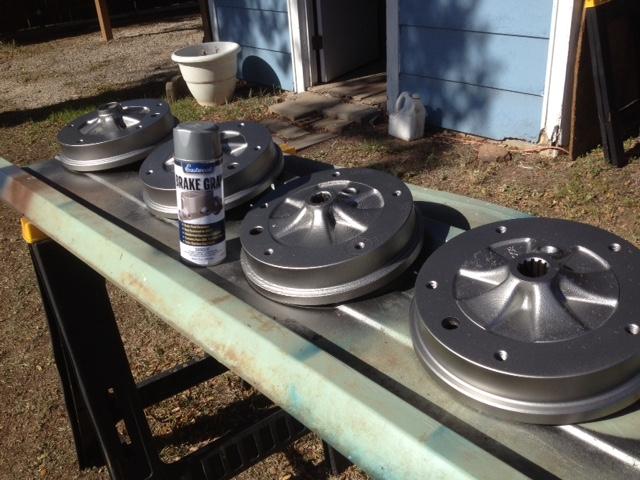

Not a lot of progress, but I did wire wheel my front brake backing plates and all 4 drums. I painted the drums with Eastwood's Brake Gray and the backing plates with Eastwood's satin black brake paint. Excellent products.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
.
Paused 66 project bug
.
"Relax, all right? My old man is a television repairman. He's got this ultimate set of tools. I can fix it." --- Jeff Spicoli
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
flyboy161
Samba Member


Joined: December 26, 2009
Posts: 2091
Location: Perry, GA
flyboy161 is offline

PostPosted: Fri Nov 28, 2014 7:57 am    Post subject: Reply with quote

Great job so far!
_________________
My father's 1970 Beetle-
http://www.thesamba.com/vw/forum/viewtopic.php?t=603879

The 1964...Diamond in the rough
http://www.thesamba.com/vw/forum/viewtopic.php?t=612776

My 1958 Morocco Bug-
http://www.thesamba.com/vw/forum/viewtopic.php?t=611483
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
sportin-wood
Samba Member


Joined: September 12, 2010
Posts: 1909
Location: Texas
sportin-wood is offline

PostPosted: Sun Dec 07, 2014 10:32 pm    Post subject: Reply with quote

flyboy161 wrote:
Great job so far!


Thanks flyboy!

My snail's pace continues. Been having a hellish time getting the tie rod ends separated from the spindles. Tried soaking with penetrating oil for days, that didn't work. Tried heat - that didn't work (all I did was manage to catch the rubber on fire.)

Image may have been reduced in size. Click image to view fullscreen.


Going to Harbor Freight to see if I can get something to help get these separated. Will update....
_________________
.
Paused 66 project bug
.
"Relax, all right? My old man is a television repairman. He's got this ultimate set of tools. I can fix it." --- Jeff Spicoli
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
EA812
Samba Member


Joined: December 07, 2008
Posts: 1223
Location: North central, CT
EA812 is offline

PostPosted: Mon Dec 08, 2014 10:59 am    Post subject: Reply with quote

they make a tie rod end separator but I think is $60.00 JCW had it for ten but I never jumped on it now they don't sell it. I've done it with a pickle fork that I got on loan from the local Autozone. I had to make a plate to keep it from slipping off but it worked.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
sportin-wood
Samba Member


Joined: September 12, 2010
Posts: 1909
Location: Texas
sportin-wood is offline

PostPosted: Mon Dec 08, 2014 9:46 pm    Post subject: Reply with quote

EA812 wrote:
they make a tie rod end separator but I think is $60.00 JCW had it for ten but I never jumped on it now they don't sell it. I've done it with a pickle fork that I got on loan from the local Autozone. I had to make a plate to keep it from slipping off but it worked.


Thanks for the suggestion

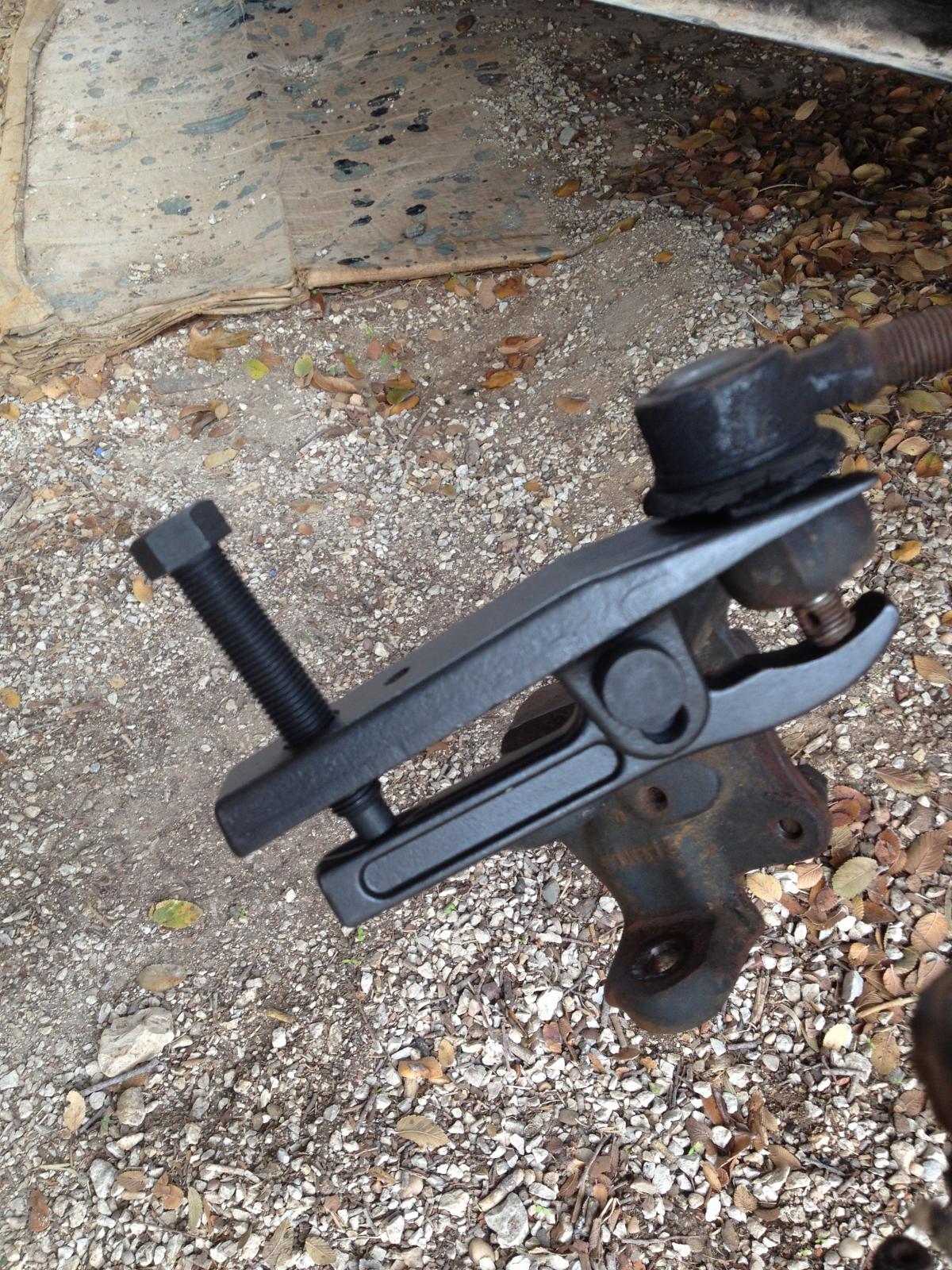

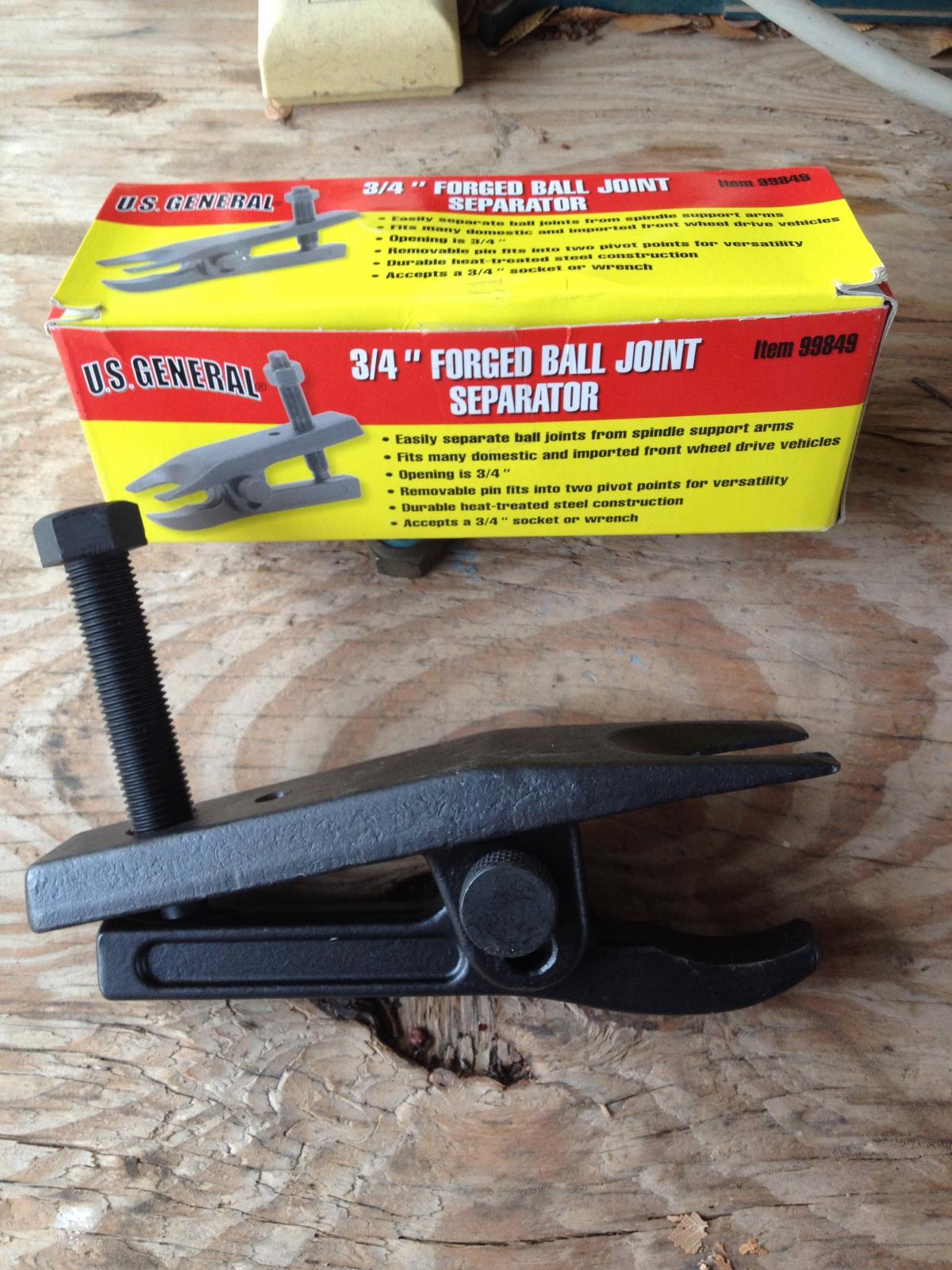

I ended up going to Harbor Freight and picked up this ball joint separator for $20

Image may have been reduced in size. Click image to view fullscreen.

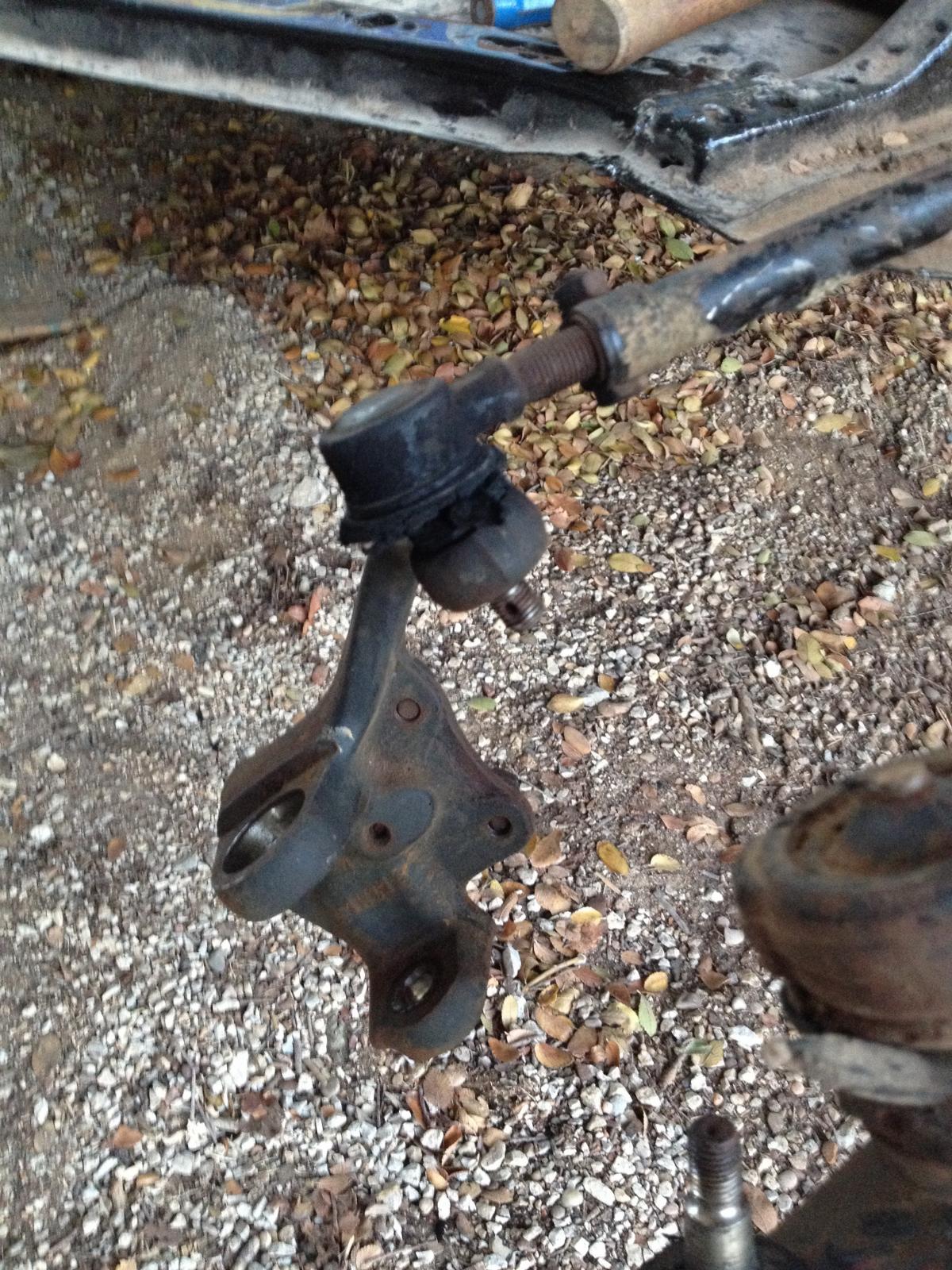

It fit perfectly on the tie rod ends.

Image may have been reduced in size. Click image to view fullscreen.


A few turns of a ratchet & a 3/4" socket.....

Image may have been reduced in size. Click image to view fullscreen.

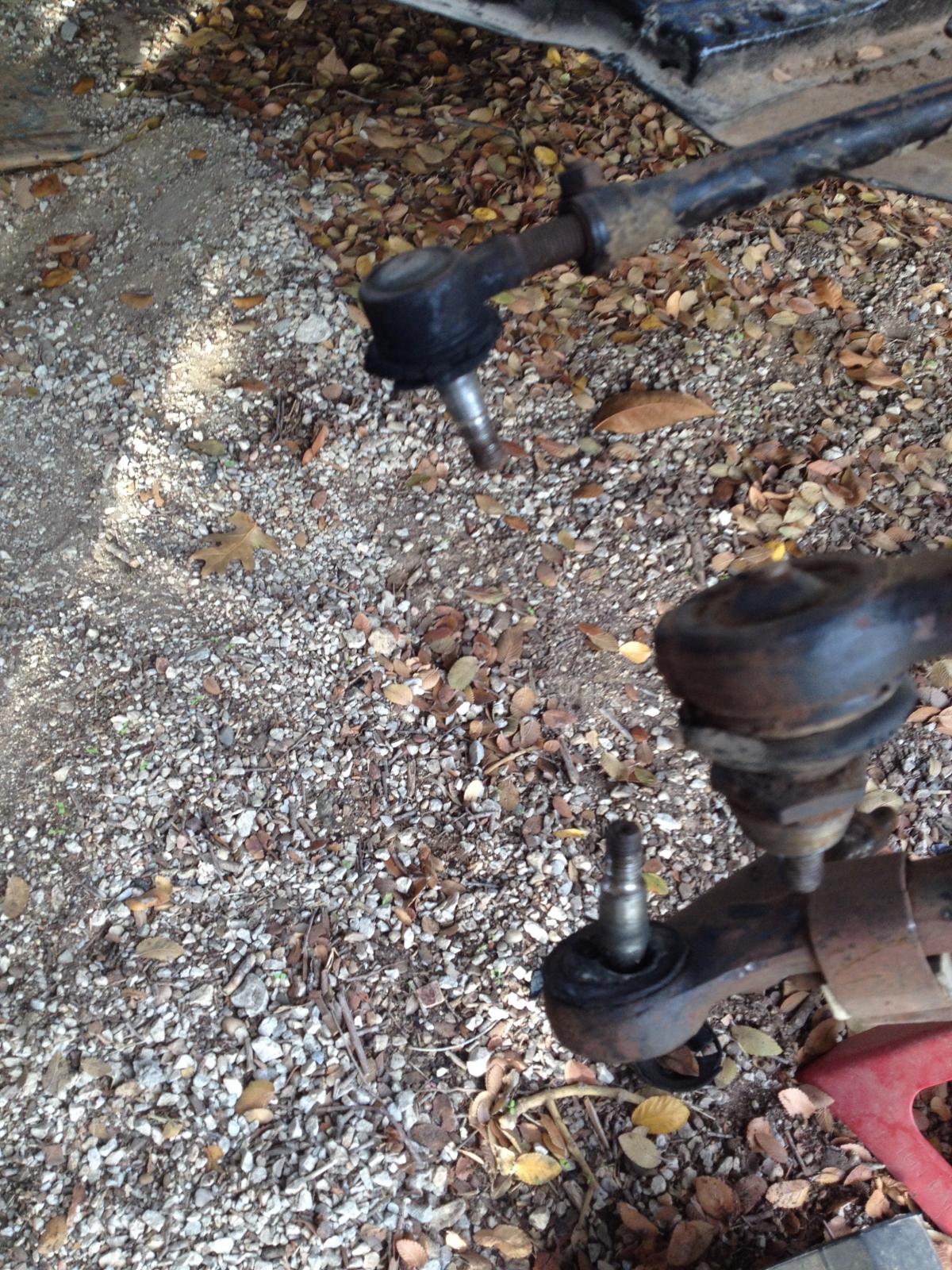

..., and "POP"! It popped right loose. It worked perfectly on all of the tie rod ends.

Image may have been reduced in size. Click image to view fullscreen.

_________________
.
Paused 66 project bug
.
"Relax, all right? My old man is a television repairman. He's got this ultimate set of tools. I can fix it." --- Jeff Spicoli
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
sportin-wood
Samba Member


Joined: September 12, 2010
Posts: 1909
Location: Texas
sportin-wood is offline

PostPosted: Mon Dec 08, 2014 9:53 pm    Post subject: Reply with quote

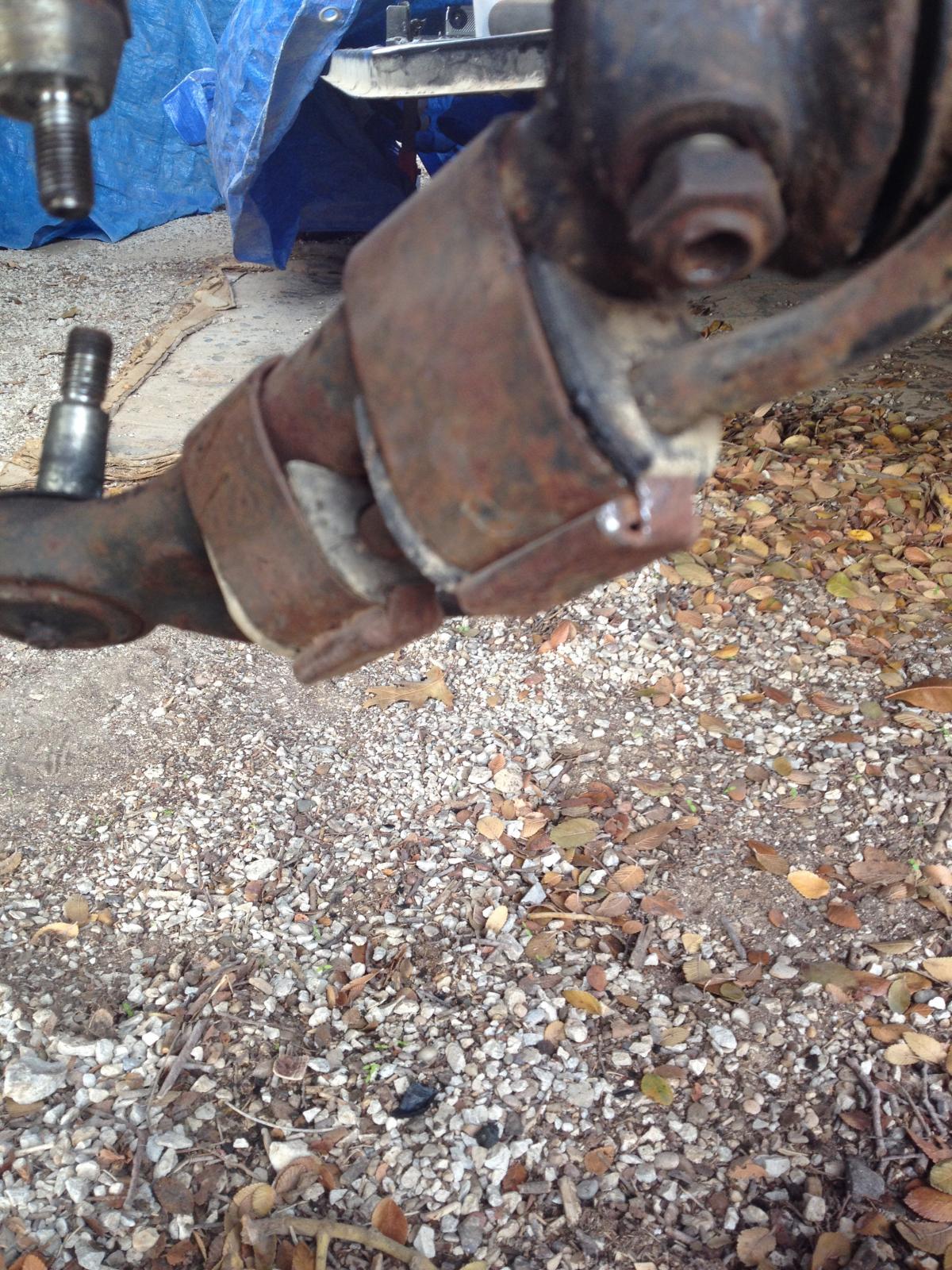

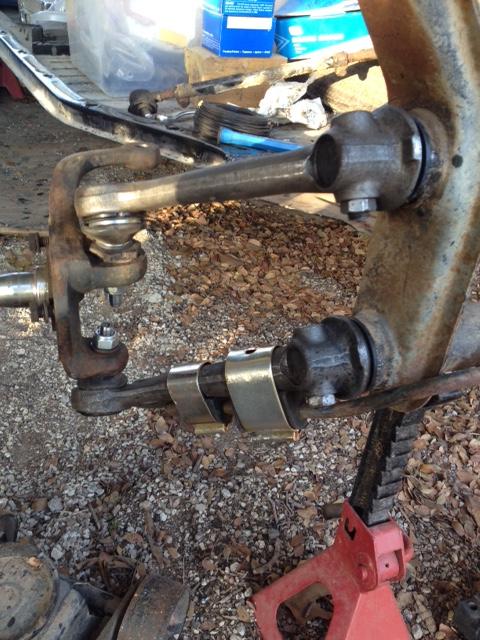

My next task will be to replace the sway bar bushings and get new ball joints pressed into the torsion arms.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


I know a few people will be wondering why, if I'm going through all of this trouble, am I not painting and detailing every single part of the undercarriage (like the beam and other related parts), and that is because my main objective is to make this a reliable daily driver, not a show car by any means. My goal is to have this car completed and running sometime in 2016, when my bug is 50 years old. Very Happy
_________________
.
Paused 66 project bug
.
"Relax, all right? My old man is a television repairman. He's got this ultimate set of tools. I can fix it." --- Jeff Spicoli
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
EA812
Samba Member


Joined: December 07, 2008
Posts: 1223
Location: North central, CT
EA812 is offline

PostPosted: Wed Dec 10, 2014 5:27 pm    Post subject: Reply with quote

sportin-wood wrote:
EA812 wrote:
they make a tie rod end separator but I think is $60.00 JCW had it for ten but I never jumped on it now they don't sell it. I've done it with a pickle fork that I got on loan from the local Autozone. I had to make a plate to keep it from slipping off but it worked.


Thanks for the suggestion

I ended up going to Harbor Freight and picked up this ball joint separator for $20

Image may have been reduced in size. Click image to view fullscreen.


It fit perfectly on the tie rod ends.

Image may have been reduced in size. Click image to view fullscreen.


A few turns of a ratchet & a 3/4" socket.....

Image may have been reduced in size. Click image to view fullscreen.


..., and "POP"! It popped right loose. It worked perfectly on all of the tie rod ends.

Image may have been reduced in size. Click image to view fullscreen.


That's great! I need to get one of those.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
sportin-wood
Samba Member


Joined: September 12, 2010
Posts: 1909
Location: Texas
sportin-wood is offline

PostPosted: Wed Dec 10, 2014 8:45 pm    Post subject: Reply with quote

EA812 wrote:
That's great! I need to get one of those.


I tell you what - it really was a life saver (and a knuckle saver as I had banged my hands up pretty good trying to force them off without any kind of specialty tool). I'm sure you can order one online for the same price if there isn't a HF near you.
_________________
.
Paused 66 project bug
.
"Relax, all right? My old man is a television repairman. He's got this ultimate set of tools. I can fix it." --- Jeff Spicoli
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
sportin-wood
Samba Member


Joined: September 12, 2010
Posts: 1909
Location: Texas
sportin-wood is offline

PostPosted: Sat Dec 13, 2014 4:01 pm    Post subject: Reply with quote

Moving along...took advantage of some decent weather and worked on the front end. Replaced the torsion arm seals, needle bearings, ball joints, and the biggest PITA of the day was replacing the stabilizer bar bushings. The old ones were cracking badly. Another Harbor Freight tool helped out BIG time - it was a giant pair of channel locks I picked up for about $5. It probably took me an hour and a half to change them out. I would recommend the upper torsion arms be removed if you're replacing these bushings. It gave me room to tap down in the bracket with a hammer to get it seated against the lower torsion bar while pinching on the bottom part of the bracket with channel locks in order to slide the retaining sleeve on.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Next will be the tie rod end replacing, mounting the shocks, installing new brakes, brake lines, master cylinder....man, I really need to get busy! Razz
_________________
.
Paused 66 project bug
.
"Relax, all right? My old man is a television repairman. He's got this ultimate set of tools. I can fix it." --- Jeff Spicoli
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Reader's Rides All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: Previous  1, 2, 3, 4, 5, 6, 7, 8, 9  Next
Page 6 of 9


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
