PostPosted: Fri Jul 06, 2012 9:07 pm    Post subject: Which body dolly is best? (pics) Reply with quote

I'm getting ready to remove the body on my '66 project. I've seen 2 kinds of body dollies I like. I'm wondering which would be best to copy. Any advnatage of one over the other? The major difference is the distance between the 4X4 posts that the body sits on - one is a little wider than the other, so one body pretty much sits on the posts even with the fender wells. Any opinions or advice is appreciated. (thanks to the guys whose dollies I'm posting pictures of as a reference!)

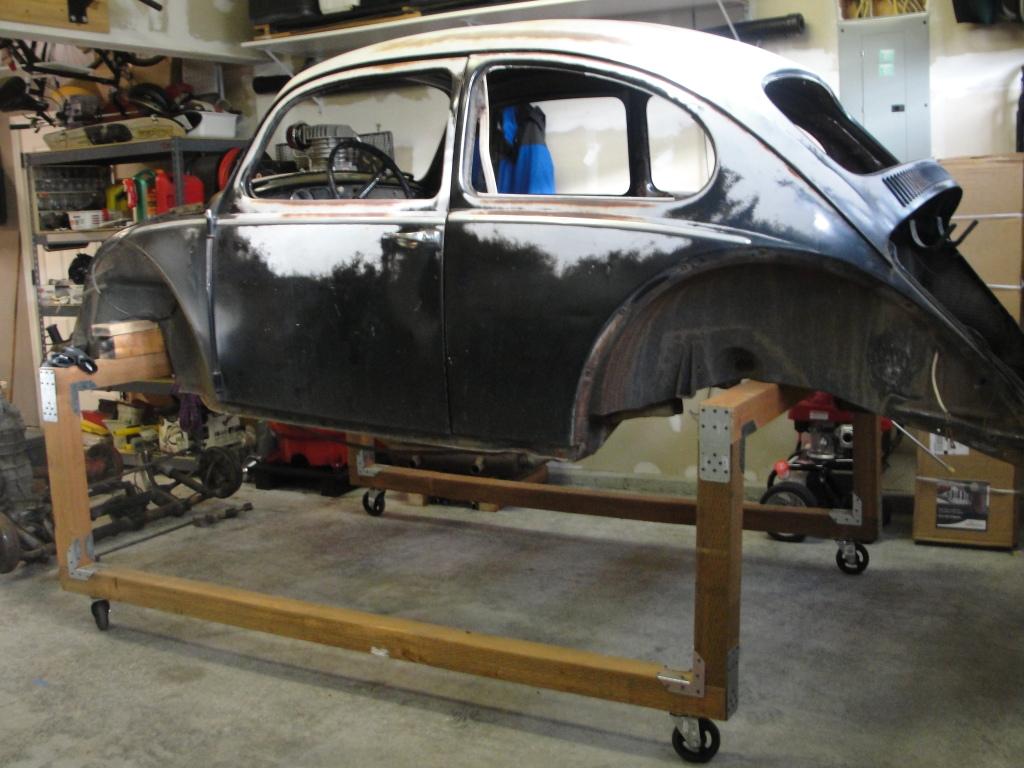

Body dolly A:
Image may have been reduced in size. Click image to view fullscreen.


Body dolly B:
Image may have been reduced in size. Click image to view fullscreen.

_________________
.
Click here to see my 66 project bug.
.
"Relax, all right? My old man is a television repairman, he's got this ultimate set of tools. I can fix it." --- Jeff Spicoli
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Cousin of a Porsche
Samba Member


Joined: May 17, 2007
Posts: 813
Location: Royal Palm Beach
Cousin of a Porsche is offline

PostPosted: Fri Jul 06, 2012 9:35 pm    Post subject: Reply with quote

I am the one that build the second one. They are pretty much the same. I builds mine so the body rested on the heater channels with the ability to move the body forward and backwards to get to all the metal under the channels. Also I had to keep it short so everything would fit in my garage. I will say I like the wooden reinforcement on the top one. I tried to use metal brackets and ended up using additional wood supports. One more thing, get the biggest wheels you can. Mine are from harbor freight, they work good but it is tough getting back in the garage because the little step at the garage door.
_________________
67 Bug w/2110
1980 911sc looks faster than it is!
I can't help it I am what I am.
Alte Schule Vintage and Performance VW club
BKC #022 (Well at least that is what the jacket says)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
sportin-wood
Samba Member


Joined: September 12, 2010
Posts: 1169
Location: Texas
sportin-wood is offline

PostPosted: Fri Jul 06, 2012 9:45 pm    Post subject: Reply with quote

Cool, thanks. Does your rolling pan fit underneath your dolly? I know those casters are rated for different weights. I'd better get something heavy duty, maybe rated between 750 to 1000 lbs to be safe?
_________________
.
Click here to see my 66 project bug.
.
"Relax, all right? My old man is a television repairman, he's got this ultimate set of tools. I can fix it." --- Jeff Spicoli
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
krusher
Samba Member


Joined: September 24, 2002
Posts: 7641
Location: wales,uk
krusher is offline

PostPosted: Sat Jul 07, 2012 2:24 am    Post subject: Reply with quote

dolly A will leave you room to weld in heater channels if you have to.
_________________
(06:31:07) RoachGhia: "i drink dick way too fast"
(06:54:29) BoomsVW: "i always feel free down there"
Back to top
View user's profile Send private message Send e-mail MSN Messenger Gallery Classifieds Feedback
sportin-wood
Samba Member


Joined: September 12, 2010
Posts: 1169
Location: Texas
sportin-wood is offline

PostPosted: Sat Jul 07, 2012 7:59 am    Post subject: Reply with quote

Luckily my heater channels don't need replacing. Any other thoughts out there?? Anyone?? Anxious
_________________
.
Click here to see my 66 project bug.
.
"Relax, all right? My old man is a television repairman, he's got this ultimate set of tools. I can fix it." --- Jeff Spicoli
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
schell '59
Samba Member


Joined: January 05, 2006
Posts: 1407
Location: RI
schell '59 is offline

PostPosted: Sat Jul 07, 2012 4:40 pm    Post subject: Reply with quote

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


i have a lift so no need to roll the body over the chassis...just lift it up,,roll it outta the way and place it on a roller cart.
_________________
WWW.401RESTOS.COM

see my "gallery" for more pics other than the website.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
66vwkaferresto
Samba Member


Joined: June 07, 2012
Posts: 24
Location: Auburn, WA
66vwkaferresto is offline

PostPosted: Mon Jul 09, 2012 11:01 pm    Post subject: Reply with quote

I opted for the longer version so that I would have access to my heater channels... I think either will serve your purpose.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
66vwkaferresto
Samba Member


Joined: June 07, 2012
Posts: 24
Location: Auburn, WA
66vwkaferresto is offline

PostPosted: Mon Jul 09, 2012 11:07 pm    Post subject: Reply with quote

If you decide the long version works here's a link to how I put mine together for a point of reference.

http://66vwkaferresto.com/2011/10/17/body-cart-construction/
Back to top
View user's profile Send private message Gallery Classifieds Feedback
sportin-wood
Samba Member


Joined: September 12, 2010
Posts: 1169
Location: Texas
sportin-wood is offline

PostPosted: Tue Jul 10, 2012 6:35 am    Post subject: Reply with quote

Cool, thanks for the link. That'll help. I'm also going with the longer version. Although it's going to be set on top of dirt (not by choice), so putting casters on the bottom won't help. Hopefully I get a concrete slab poured and I can then put casters on. Right now my work space is going to be my back yard, and I have one of those metal carports scheduled to be put up for my project.
_________________
.
Click here to see my 66 project bug.
.
"Relax, all right? My old man is a television repairman, he's got this ultimate set of tools. I can fix it." --- Jeff Spicoli
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
NCdad
Samba Member


Joined: August 28, 2008
Posts: 1440
Location: Shelby, NC
NCdad is offline

PostPosted: Tue Jul 10, 2012 6:49 am    Post subject: Reply with quote

post some pics when you can.
_________________
ROBERT
My VWs & Projects - | - German Invasion VW Show - Sept 09, 2017
Back to top
View user's profile Send private message Gallery Classifieds Feedback
66vwkaferresto
Samba Member


Joined: June 07, 2012
Posts: 24
Location: Auburn, WA
66vwkaferresto is offline

PostPosted: Tue Jul 10, 2012 2:04 pm    Post subject: Reply with quote

Even if it goes on dirt there is a solution... below is a link to Harbor Frieght and the 10" pneumatic caster they offer. Just shorten the upright 4x4's to adjust for the added height of the wheel and you are set.

http://www.harborfreight.com/10-inch-pneumatic-swivel-caster-38944.html

Good luck!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
legotech7
Samba Member


Joined: May 09, 2009
Posts: 518
Location: North Carolina
legotech7 is offline

PostPosted: Tue Jul 10, 2012 4:12 pm    Post subject: Reply with quote

I made this with my granddaughter, in about 20 min. Its the longer one so I can work on my heater channels and roll the pan under it. I added 2x4 gussets at each corner for strength and added safety . Not pictured.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
AZ65CalBug
Samba Member


Joined: December 08, 2001
Posts: 708
Location: Arizona
AZ65CalBug is offline

PostPosted: Tue Jul 10, 2012 4:17 pm    Post subject: Reply with quote

I've run one like this.. never had issues. Even moving it, it never felt like it was going to fold over.



The problem I had before with legotech7 design was if those tiny wheels got into a crack and I was pushing it, the dolly felt like it was going to fold..

I then added braces and larger tires. MAN! Is it nice!

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.




Image may have been reduced in size. Click image to view fullscreen.

_________________
My Current Project is at:
https://www.facebook.com/pages/1965-Cal-Bug/172194646214739
please like the page to get updates as they happen.
Back to top
View user's profile Send private message Visit poster's website AIM Address Yahoo Messenger MSN Messenger Facebook Gallery Classifieds Feedback
sportin-wood
Samba Member


Joined: September 12, 2010
Posts: 1169
Location: Texas
sportin-wood is offline

PostPosted: Tue Jul 10, 2012 7:06 pm    Post subject: Reply with quote

66vwkaferresto wrote:
Even if it goes on dirt there is a solution... below is a link to Harbor Frieght and the 10" pneumatic caster they offer. Just shorten the upright 4x4's to adjust for the added height of the wheel and you are set.

http://www.harborfreight.com/10-inch-pneumatic-swivel-caster-38944.html

Good luck!


I thought about the pneumatic tires, but my plans are to put a concrete slab within the carport frame so I can use my jack & jackstands for the chassis...but it's still something I might try - thanks.


az67calbug wrote:
I've run one like this.. never had issues. Even moving it, it never felt like it was going to fold over.


Thanks for the detailed pics & measurements. Looks very sturdy! I might have to "borrow" your idea! Wink
_________________
.
Click here to see my 66 project bug.
.
"Relax, all right? My old man is a television repairman, he's got this ultimate set of tools. I can fix it." --- Jeff Spicoli
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
legotech7
Samba Member


Joined: May 09, 2009
Posts: 518
Location: North Carolina
legotech7 is offline

PostPosted: Tue Jul 10, 2012 7:35 pm    Post subject: Reply with quote

Already put mine to the test. My garage floor has no cracks and I can do a 360 with it in my garage. But I agree I would much rather have the bigger wheels. Mine are 3 inches and work well...
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
AZ65CalBug
Samba Member


Joined: December 08, 2001
Posts: 708
Location: Arizona
AZ65CalBug is offline

PostPosted: Wed Jul 11, 2012 8:26 am    Post subject: Reply with quote

Man, I built our house and they said they would not put any expansion joints in.. But they did! I was so bummed. My neighbor doesn't have any and it's nice. That is one reason I went the 6" wheel. But yeah I can wheel it around even on the driveway with no problems.
_________________
My Current Project is at:
https://www.facebook.com/pages/1965-Cal-Bug/172194646214739
please like the page to get updates as they happen.
Back to top
View user's profile Send private message Visit poster's website AIM Address Yahoo Messenger MSN Messenger Facebook Gallery Classifieds Feedback
sportin-wood
Samba Member


Joined: September 12, 2010
Posts: 1169
Location: Texas
sportin-wood is offline

PostPosted: Wed Jul 11, 2012 9:46 am    Post subject: Reply with quote

I have an older house...the garage floors have BIG freaking cracks. Some are about 2 inches wide in places - shoddy work when pouring the floor, I guess.
_________________
.
Click here to see my 66 project bug.
.
"Relax, all right? My old man is a television repairman, he's got this ultimate set of tools. I can fix it." --- Jeff Spicoli
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
clarkster75
Samba Member


Joined: September 25, 2006
Posts: 115
Location: Lots of good clean livin' Utah
clarkster75 is offline

PostPosted: Sat Jul 12, 2014 10:24 pm    Post subject: Reply with quote

Can anyone give some measurements? One, the height needed to clear the pan. Two, width. Three, length to front/back of pan.
I think I would like to copy the one made of 4x4's that the black beetle is on but it looks a bit high.
I would hate to make it too high/too low and have to redo it.
Any info, thanks in advance.
Back to top
View user's profile Send private message Classifieds Feedback
legotech7
Samba Member


Joined: May 09, 2009
Posts: 518
Location: North Carolina
legotech7 is offline

PostPosted: Sun Jul 13, 2014 5:24 am    Post subject: Car Dolly Reply with quote

The one that you see with the black bug, is exactly like the one I made for mine. My granddaughter helped with mine. Worked out perfect. Can't recall the dimensions off hand.... But easy to build. you can build it High enough and wide enough to roll the pan underneath to save space while your working on your ride.......
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
fred69vert
Samba Member


Joined: August 17, 2007
Posts: 2208
Location: Home of the US Navy Atlantic Fleet, Norfolk, VA
fred69vert is offline

PostPosted: Mon Jul 14, 2014 10:01 am    Post subject: Reply with quote

66vwkaferresto wrote:
Even if it goes on dirt there is a solution... below is a link to Harbor Frieght and the 10" pneumatic caster they offer. Just shorten the upright 4x4's to adjust for the added height of the wheel and you are set.

http://www.harborfreight.com/10-inch-pneumatic-swivel-caster-38944.html

Good luck!


Just a note.....if your get these casters, put Slime in the tires. If you don't they WILL leak down (mine did) and you can't roll the dolly with flat tires.
_________________
I'm not losing my hair, it's just retired and relocating further south.

1969 VW convertible, "Heidi"
Back to top
View user's profile Send private message Gallery Classifieds Feedback
