Piston clearance for a stroker crank
Forum Index -> Performance/Engines/Transmissions Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
Gnarlyleech
Samba Member


Joined: April 23, 2012
Posts: 222
Location: Southwest Louisiana
Gnarlyleech is offline

PostPosted: Sat Jul 07, 2012 8:46 pm    Post subject: Piston clearance for a stroker crank Reply with quote

I need to cut away part of my piston to clear the crankshaft. What is the best way to do this? I guess I need to get a scale to keep the weight the same on all 4 piston.

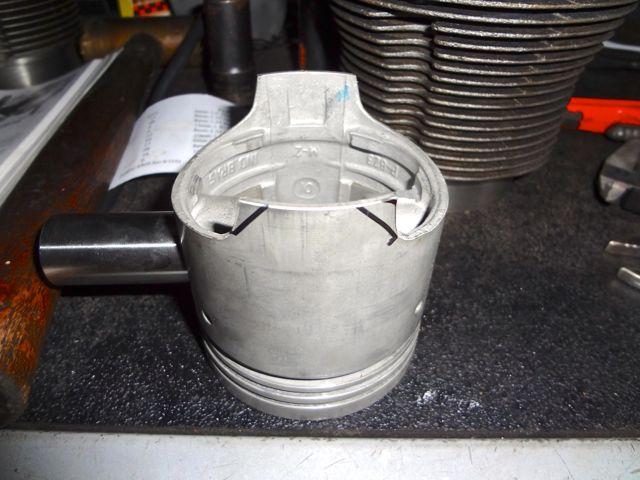

I marked the spot I need to cut.
Image may have been reduced in size. Click image to view fullscreen.

_________________
"Good judgment comes from experience and a lot of that comes from bad judgment"

My 1966 Beetle Project Thread http://www.thesamba.com/vw/forum/viewtopic.php?t=520182
Back to top
View user's profile Send private message Gallery Classifieds Feedback
MURZI
Samba Member


Joined: August 25, 2005
Posts: 5018
Location: Madisonville, La
MURZI is offline

PostPosted: Sat Jul 07, 2012 9:24 pm    Post subject: Reply with quote

What are you building?? Bore? Stroke?? Without proper pin height those pistons are gonna stick way out of the cylinders....
_________________
62 vert
2276
Timís welded heads
45 Dells
A1 sidewinder
Fk44 cam
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Gnarlyleech
Samba Member


Joined: April 23, 2012
Posts: 222
Location: Southwest Louisiana
Gnarlyleech is offline

PostPosted: Sat Jul 07, 2012 9:29 pm    Post subject: Reply with quote

Sorry for excluding the details.
1300 case
74mm crank
77mm P&C (stock 1300)

They do stick way out of the cylinders. I am setting my deck height with .100" of shims to get .040". I got all that under control now though. I am just wondering about cutting away part of the piston skirt for clearance at BDC. I searched but I have not found any pictures of this.
_________________
"Good judgment comes from experience and a lot of that comes from bad judgment"

My 1966 Beetle Project Thread http://www.thesamba.com/vw/forum/viewtopic.php?t=520182
Back to top
View user's profile Send private message Gallery Classifieds Feedback
[email protected]
Samba Member


Joined: August 03, 2002
Posts: 12661
Location: Salt Lake City, Utah
john@aircooled.net is offline

PostPosted: Sat Jul 07, 2012 10:21 pm    Post subject: Re: Piston clearance for a stroker crank Reply with quote

http://www.thesamba.com/vw/forum/viewtopic.php?t=472324
_________________
It's just advice, do whatever you want with it!

Please do NOT send me Private Messages through the Samba PM System (I will not see them). Send me an e-mail to john at aircooled dot net

"Like" our Facebook page at
http://www.facebook.com/vwpartsaircoolednet
and get a 5% off code for use on one order for VW Parts ON OUR PARTS STORE WEBSITE, vwparts.aircooled.net
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Gallery Classifieds Feedback
Gnarlyleech
Samba Member


Joined: April 23, 2012
Posts: 222
Location: Southwest Louisiana
Gnarlyleech is offline

PostPosted: Sat Jul 07, 2012 10:23 pm    Post subject: Reply with quote

Exactly what I was looking for John. Thanks
_________________
"Good judgment comes from experience and a lot of that comes from bad judgment"

My 1966 Beetle Project Thread http://www.thesamba.com/vw/forum/viewtopic.php?t=520182
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mark tucker
Samba Member


Joined: April 08, 2009
Posts: 21660
Location: SHALIMAR ,FLORIDA
mark tucker is offline

PostPosted: Sat Jul 07, 2012 10:28 pm    Post subject: Reply with quote

die grinder with a carbide bit for aluminum, or just a belt sander.be sure to not chamfer the edge as that can lead to a smoking motor,as it will "funnel "more oil than the oil rings can handle, the piston is slightly sharp there so it sheers off the oil from the cylinder, the clearance will let the proper amount stay on them.good luck and have fun.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bugguy076
Samba Member


Joined: December 11, 2007
Posts: 1068
Location: Dover, PA.
bugguy076 is offline

PostPosted: Sun Jul 08, 2012 3:45 am    Post subject: Reply with quote

Only remove what you have to. .050 clearance is enough. I agree, keep the edges sharp. Re-balance the weight of the pistons after they are trimmed.
Sounds like a fun little engine.
Back to top
View user's profile Send private message Classifieds Feedback
Gnarlyleech
Samba Member


Joined: April 23, 2012
Posts: 222
Location: Southwest Louisiana
Gnarlyleech is offline

PostPosted: Sat Aug 18, 2012 7:54 pm    Post subject: Reply with quote

Did this yesterday. I went to habor freight and bought a balance scale. I balanced all of them today and started assembly. It is coming together nicely so far.
Image may have been reduced in size. Click image to view fullscreen.

_________________
"Good judgment comes from experience and a lot of that comes from bad judgment"

My 1966 Beetle Project Thread http://www.thesamba.com/vw/forum/viewtopic.php?t=520182
Back to top
View user's profile Send private message Gallery Classifieds Feedback
