Cadillac radiator hose for '84 vanagon
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
rlamb
Samba Member


Joined: March 26, 2012
Posts: 211
Location: Sweet Home, OR
rlamb is offline

PostPosted: Fri Aug 24, 2012 11:49 pm    Post subject: Cadillac radiator hose for '84 vanagon Reply with quote

My radiator cracked in a bad spot,

Image may have been reduced in size. Click image to view fullscreen.

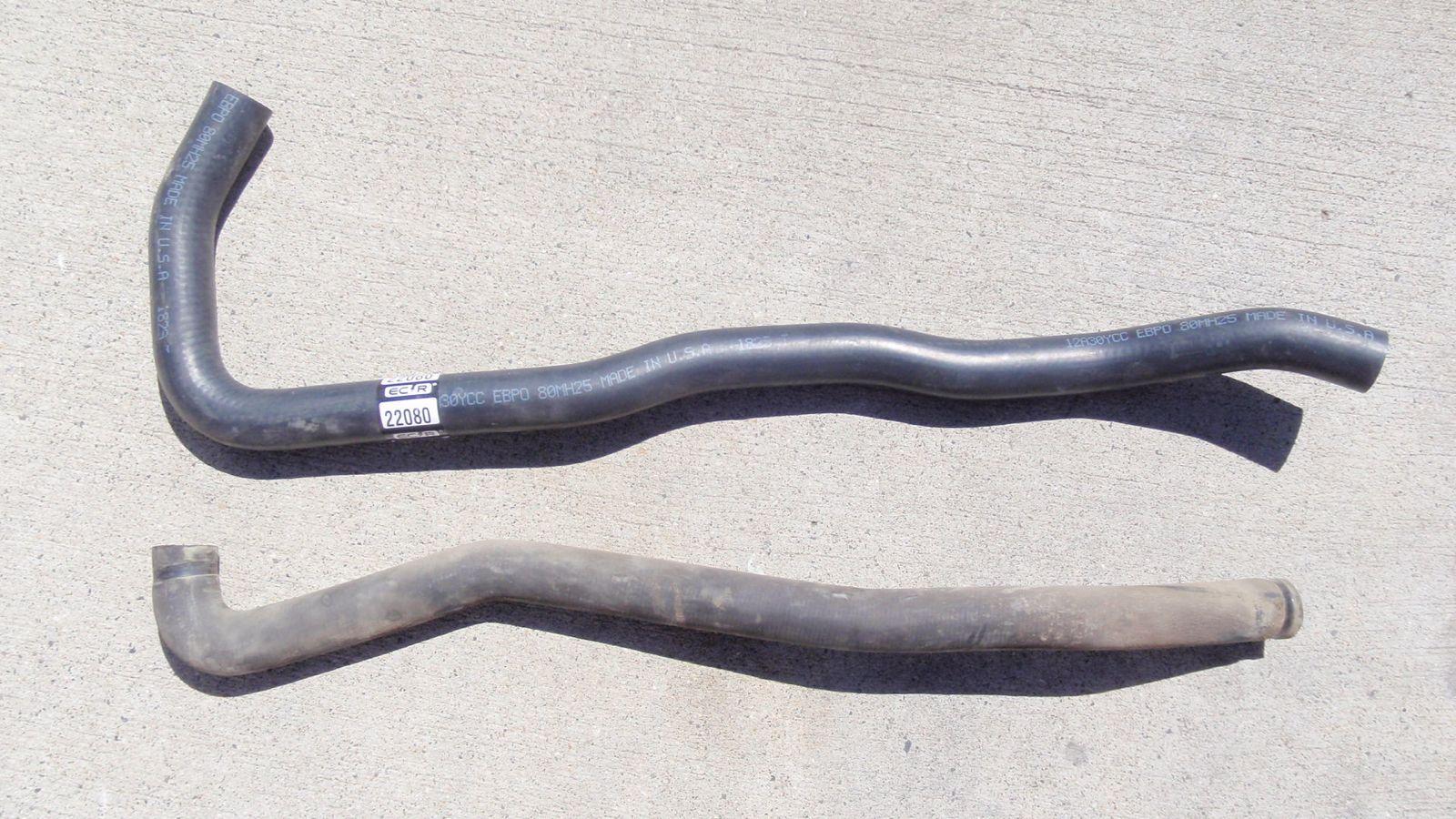

so I decided to replace all the coolant/heater hoses along with the radiator. I had a hard time finding the front radiator hoses online, so I took them out and brought them into an oreiley parts store. The straight one is easy to replace. I forget the diameter (1 5/8" or 1 1/2" ?), but any auto shop will have a straight piece that'll work if you trim it. For the other radiator hose with the 90 degree elbow, the guy in the shop found me this for 20 bones (pictured above stock hose - Gates hose # 22080 - intended for a 90's cadillac):

Image may have been reduced in size. Click image to view fullscreen.

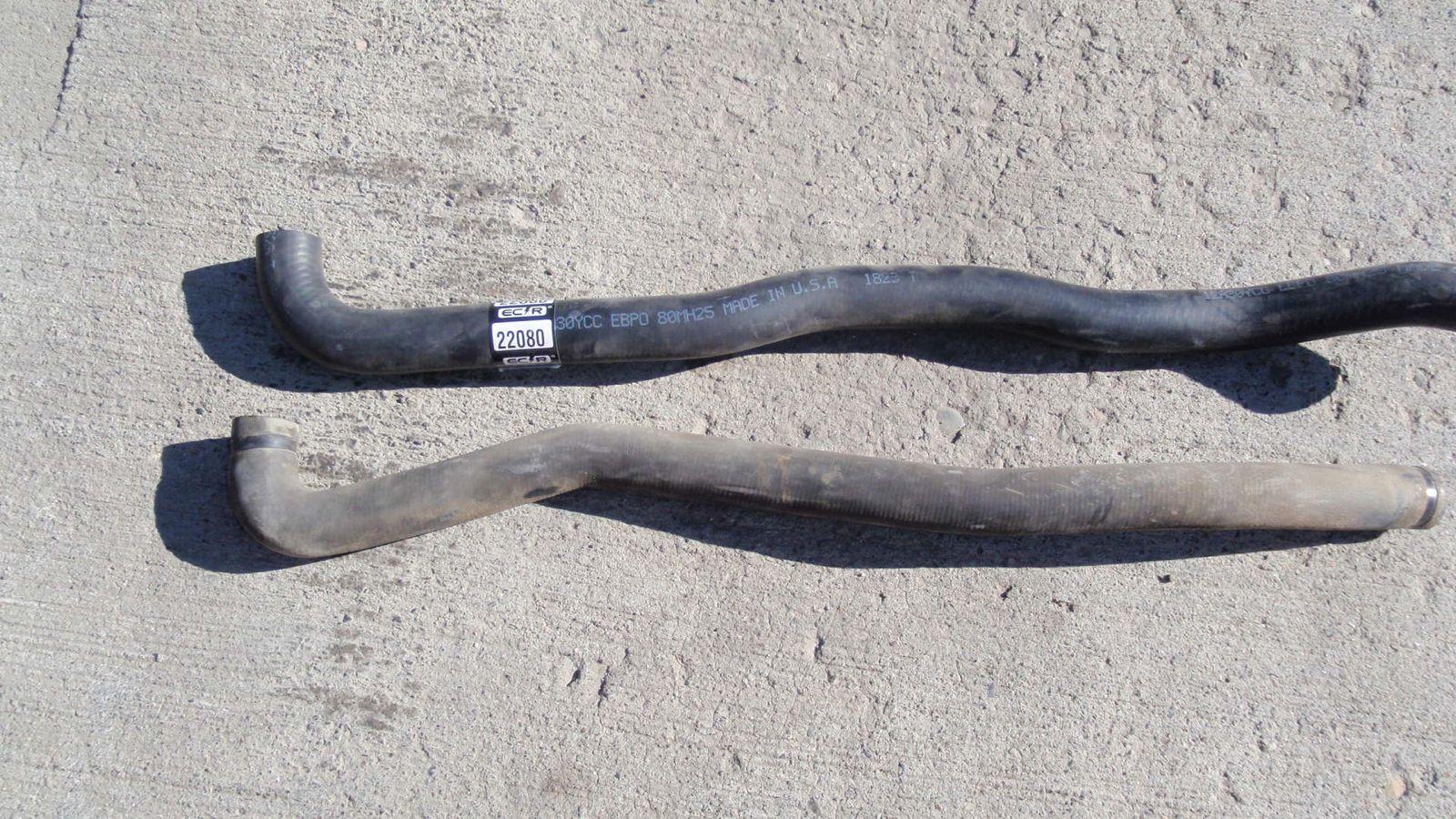

It looked close enough, so I trimmed it....

Image may have been reduced in size. Click image to view fullscreen.


and it looked even closer. So, I put it in...

Image may have been reduced in size. Click image to view fullscreen.


and vuala! The new straight hose is in background. I also removed the wire upper supports for the spare tire because my 205/75 r14 spare on an alloy rim wouldn't fit inflated. I bolted in the clamshell, and the spare fits with this hose in place. The hose does touch the spare, but is not pinched in any way to affect the coolant flow. I have the spare strapped to the clamshell. It's all burped and running nicely now.

This hose can be found online for less than $15 online I think, and same with the straight hose. The heater hose was $1.29 a foot, and I went though 35' after buying 40'. I also replaced the other hoses, thermostat/gaskets, pressure cap, fuel lines, fuel filters, and resealed and painted the gas tank (thank you kayakwesty for the tutorial!!). It's been a productive week....

And speaking of burping coolant, I found this to make life easier (with patience).

Image may have been reduced in size. Click image to view fullscreen.

_________________
1984 Westfalia - Ford Cologne 2.8L conversion
2003 Passat GLX Wagon (4Motion)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
T3 Pilot
Samba Member


Joined: January 10, 2011
Posts: 1507
Location: Deep South of the Great White North
T3 Pilot is offline

PostPosted: Sat Aug 25, 2012 6:41 am    Post subject: Reply with quote

I like your McGyver style.

The rad fill via funnel and hose is what I do as well to eliminate any air bleeding problems.
_________________
1988 Vanagon

The most important part in every vehicle is the nut behind the wheel......
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ahwahnee
Samba Member


Joined: June 05, 2010
Posts: 9770
Location: Mt Lemmon, AZ
Ahwahnee is offline

PostPosted: Sat Aug 25, 2012 7:10 am    Post subject: Reply with quote

Good tip on the hose.

What fitting did you use here?...

Image may have been reduced in size. Click image to view fullscreen.


...or did you just jam the tubing in there?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
rlamb
Samba Member


Joined: March 26, 2012
Posts: 211
Location: Sweet Home, OR
rlamb is offline

PostPosted: Sat Aug 25, 2012 7:38 am    Post subject: Reply with quote

There's no way the tubing would fit. I do science stuff for a living and have a ton of connectors at work. I used a 1/4" elbow like this (a good hardware or plumbing store might have one): http://www.aquaticeco.com/subcategories/3673/Elbows-1-41-2-Barb-x-Barb

It takes a while to fill the radiator like this, but it's really easy (easier than getting to my expansion tank while the engine is running) .

Image may have been reduced in size. Click image to view fullscreen.

_________________
1984 Westfalia - Ford Cologne 2.8L conversion
2003 Passat GLX Wagon (4Motion)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
msinabottle
Samba Member


Joined: September 20, 2005
Posts: 3492
Location: Denver Area, Colorado
msinabottle is offline

PostPosted: Sat Aug 25, 2012 3:44 pm    Post subject: Thank You! Reply with quote

Thank you for a very useful parts hack! I need to notch my radiator bleed screw--other car aficionadoes had someone make a 'button bleed' replacement for theirs, you just pushed the button and the air spurted out.

Best!
_________________
'Winston,' '84 1.9 WBX Westy
Vanagon Poet Laureate: "I have suffered in
many ways, but never, never, never in silence."
