What later VW emblem fits a square headlight grille? FOUND!
Page: 1, 2, 3, 4  Next
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
r39o
Samba Polizei


Joined: May 18, 2005
Posts: 9800
Location: San Diego
r39o is offline

PostPosted: Fri Oct 19, 2012 11:21 am    Post subject: What later VW emblem fits a square headlight grille? FOUND! Reply with quote

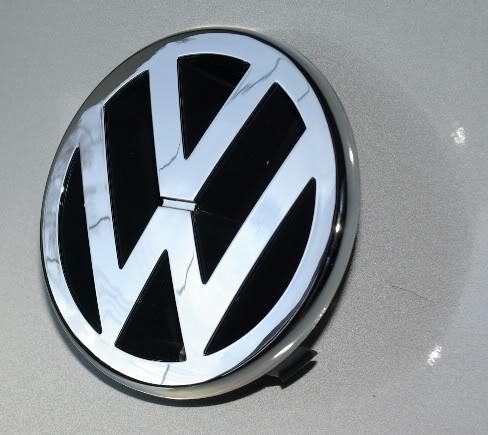

Is there a VW emblem from another (newer) model that fits or can be adapted to fit the square head lamp grill?

The emblem in question is 125mm chromed 251 853 601 and seems to be about $30. I just checked and they are not extinct any more as I thought when I began this, but now an curious if an alternative is available. One might harvest from a wreck, for example for little or no money, so when this part goes extinct again, that the bling can still be shown.

Image may have been reduced in size. Click image to view fullscreen.

_________________
"Use the SEARCH, Luke" But first visit the Vanagon FAQ!

1990 Multivan EJ 22, Rancho trans 0.82 4th, Small Car front AC, CLKs w/ 215/65-16, homemade big brakes 303mm, Konis, Recaros, etc....

Click to see my ads for Cup holders, Subaru clutch fix and CLK wheels (no wheels currently)


Last edited by r39o on Wed Oct 24, 2012 2:55 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
j_dirge
Samba Member


Joined: August 08, 2007
Posts: 4641
Location: Twain Harte, CA
j_dirge is offline

PostPosted: Fri Oct 19, 2012 11:53 am    Post subject: Re: What later VW emblem fits a square head light grill? Reply with quote

r39o wrote:
Is there a VW emblem from another (newer) model that fits or can be adapted to fit the square head lamp grill?

I thought one of the vendors had SA VW emblems.. and they come in a couple different trims?
_________________
-89 GL Westy, SVX.. finally.

-57 pan f/g buggy with a 67 pancake Type 3 "S"
"Jimi Hendrix owned one. Richard Nixon did not"
-Grand Tour, Season 1, episodes 4 and 5

danfromsyr wrote:
those are straight line runs with light weight race cars for only 1/4mile at a time..
not pushing a loaded brick up a mountain pass with a family of 4+ inside expecting to have an event free vacation..
Back to top
View user's profile Send private message Gallery Classifieds Feedback
j_dirge
Samba Member


Joined: August 08, 2007
Posts: 4641
Location: Twain Harte, CA
j_dirge is offline

PostPosted: Fri Oct 19, 2012 11:55 am    Post subject: Reply with quote

VC has some..
http://www.van-cafe.com/home/van/page_979_164/front_grill_emblem_big.html
_________________
-89 GL Westy, SVX.. finally.

-57 pan f/g buggy with a 67 pancake Type 3 "S"
"Jimi Hendrix owned one. Richard Nixon did not"
-Grand Tour, Season 1, episodes 4 and 5

danfromsyr wrote:
those are straight line runs with light weight race cars for only 1/4mile at a time..
not pushing a loaded brick up a mountain pass with a family of 4+ inside expecting to have an event free vacation..
Back to top
View user's profile Send private message Gallery Classifieds Feedback
syncrodoka
Samba Member


Joined: December 27, 2005
Posts: 11997
Location: Santa Cruz, CA
syncrodoka is offline

PostPosted: Fri Oct 19, 2012 3:24 pm    Post subject: Reply with quote

MK4 jetta/golf for the big emblem grills '88+. They need to be tweaked slightly for mounting though.
They are domed not squared off on the edges like ours so they look more modern.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
r39o
Samba Polizei


Joined: May 18, 2005
Posts: 9800
Location: San Diego
r39o is offline

PostPosted: Fri Oct 19, 2012 9:42 pm    Post subject: Re: What later VW emblem fits a square head light grill? Reply with quote

j_dirge wrote:
r39o wrote:
Is there a VW emblem from another (newer) model that fits or can be adapted to fit the square head lamp grill?

I thought one of the vendors had SA VW emblems.. and they come in a couple different trims?

Other than black and chrome?

j_dirge wrote:
VC has some..
http://www.van-cafe.com/home/van/page_979_164/front_grill_emblem_big.html

Yes, those are the black and chrome ones.

I can always paint my faded chrome one black.....

syncrodoka wrote:
MK4 jetta/golf for the big emblem grills '88+. They need to be tweaked slightly for mounting though.
They are domed not squared off on the edges like ours so they look more modern.

That is the idea.

My wife had our last A4 Jetta today, so I could not look.

I looked at our A5 and it is too big (over 5 inches or more than 125+ mm) and too sloped.

I will look at the A4 one over the weekend.

Did you do this mod already?

If so, got pix or instructions?
_________________
"Use the SEARCH, Luke" But first visit the Vanagon FAQ!

1990 Multivan EJ 22, Rancho trans 0.82 4th, Small Car front AC, CLKs w/ 215/65-16, homemade big brakes 303mm, Konis, Recaros, etc....

Click to see my ads for Cup holders, Subaru clutch fix and CLK wheels (no wheels currently)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
syncrodoka
Samba Member


Joined: December 27, 2005
Posts: 11997
Location: Santa Cruz, CA
syncrodoka is offline

PostPosted: Fri Oct 19, 2012 9:54 pm    Post subject: Reply with quote

I have wanted to find a modern grill emblem version that will fit on a SA grill but the later grill version is the only option that I have found that was workable.

I have SA grills on all 3 of my vans. VC does have colored SA grill emblems but they are smaller than yours http://www.van-cafe.com/home/van/page_1740_164/south_african_grill_emblems.html
Back to top
View user's profile Send private message Gallery Classifieds Feedback
r39o
Samba Polizei


Joined: May 18, 2005
Posts: 9800
Location: San Diego
r39o is offline

PostPosted: Fri Oct 19, 2012 10:18 pm    Post subject: Reply with quote

1J5853601 and 1J5853601C seem to be the A4 Golf and Jetta front emblems.

Cost is not cheap either at $36 or $52 for them.

It is unclear which is which actually in the catalog.....
_________________
"Use the SEARCH, Luke" But first visit the Vanagon FAQ!

1990 Multivan EJ 22, Rancho trans 0.82 4th, Small Car front AC, CLKs w/ 215/65-16, homemade big brakes 303mm, Konis, Recaros, etc....

Click to see my ads for Cup holders, Subaru clutch fix and CLK wheels (no wheels currently)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kamzcab86
Samba Moderator


Joined: July 26, 2008
Posts: 7877
Location: Arizona
kamzcab86 is offline

PostPosted: Fri Oct 19, 2012 10:59 pm    Post subject: Reply with quote

r39o wrote:
1J5853601 and 1J5853601C seem to be the A4 Golf and Jetta front emblems.

It is unclear which is which actually in the catalog.....


1J5853601 = front grille

1J5853601C = rear hatch/trunk
_________________
~Kamz Anxious
1986 Cabriolet: www.Cabby-Info.com
Blue Vanagon 1990 Vanagon Westfalia: Old Blue's Blog
2016 Golf GTI S
"Real knowledge is to know the extent of one's ignorance." - 孔子
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
r39o
Samba Polizei


Joined: May 18, 2005
Posts: 9800
Location: San Diego
r39o is offline

PostPosted: Fri Oct 19, 2012 11:04 pm    Post subject: Reply with quote

kamzcab86 wrote:
r39o wrote:
1J5853601 and 1J5853601C seem to be the A4 Golf and Jetta front emblems.

It is unclear which is which actually in the catalog.....


1J5853601 = front grille

1J5853601C = rear hatch/trunk

You are right, I looked again and the C part number is for the rear on the sedan and estate Jettas.

I now see there is a 1J5853601 and a 1J5853601A which are constructed differently.

Both the Vanagon and the A4 Jetta front are listed as 125 mm and the rear of the two look the same.

Now I will have to post pictures......

This is looking promising as the A4 emblem can be had for about $15 shipped.

I may even have some factory campaign replacements I sort of recall, somewhere, maybe.....Free is good, too! Trick is to find them...
_________________
"Use the SEARCH, Luke" But first visit the Vanagon FAQ!

1990 Multivan EJ 22, Rancho trans 0.82 4th, Small Car front AC, CLKs w/ 215/65-16, homemade big brakes 303mm, Konis, Recaros, etc....

Click to see my ads for Cup holders, Subaru clutch fix and CLK wheels (no wheels currently)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
r39o
Samba Polizei


Joined: May 18, 2005
Posts: 9800
Location: San Diego
r39o is offline

PostPosted: Sun Oct 21, 2012 12:34 pm    Post subject: TOP Reply with quote

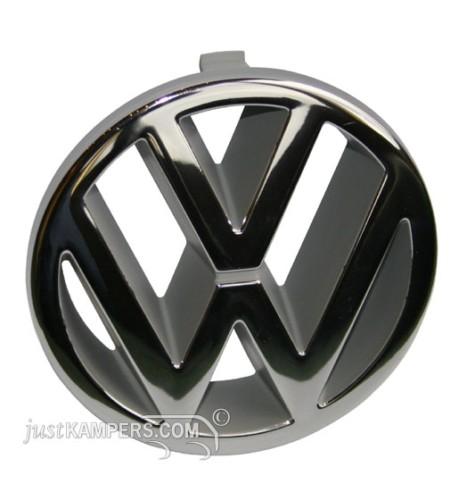

Vanagon top
Image may have been reduced in size. Click image to view fullscreen.

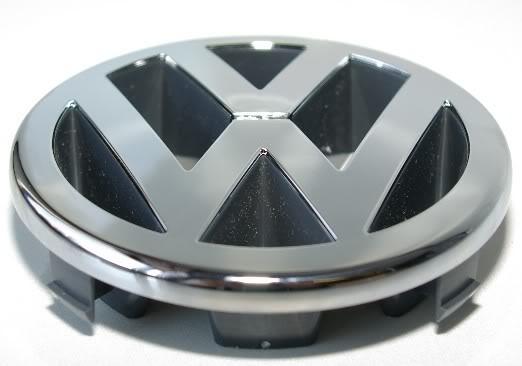

A4 Jetta top
Image may have been reduced in size. Click image to view fullscreen.

_________________
"Use the SEARCH, Luke" But first visit the Vanagon FAQ!

1990 Multivan EJ 22, Rancho trans 0.82 4th, Small Car front AC, CLKs w/ 215/65-16, homemade big brakes 303mm, Konis, Recaros, etc....

Click to see my ads for Cup holders, Subaru clutch fix and CLK wheels (no wheels currently)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
r39o
Samba Polizei


Joined: May 18, 2005
Posts: 9800
Location: San Diego
r39o is offline

PostPosted: Sun Oct 21, 2012 12:36 pm    Post subject: Bottom Reply with quote

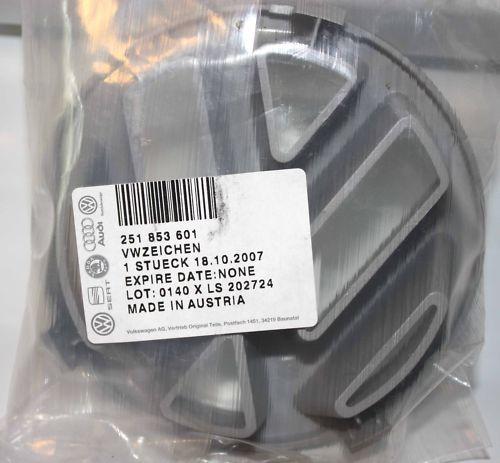

vanagon bottom
Image may have been reduced in size. Click image to view fullscreen.

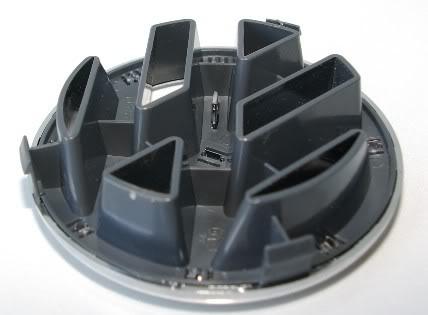

A4 Jetta bottom
Image may have been reduced in size. Click image to view fullscreen.

_________________
"Use the SEARCH, Luke" But first visit the Vanagon FAQ!

1990 Multivan EJ 22, Rancho trans 0.82 4th, Small Car front AC, CLKs w/ 215/65-16, homemade big brakes 303mm, Konis, Recaros, etc....

Click to see my ads for Cup holders, Subaru clutch fix and CLK wheels (no wheels currently)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
r39o
Samba Polizei


Joined: May 18, 2005
Posts: 9800
Location: San Diego
r39o is offline

PostPosted: Sun Oct 21, 2012 12:37 pm    Post subject: Back Reply with quote

Vanagon back
Image may have been reduced in size. Click image to view fullscreen.


A4 Jetta back
Image may have been reduced in size. Click image to view fullscreen.

_________________
"Use the SEARCH, Luke" But first visit the Vanagon FAQ!

1990 Multivan EJ 22, Rancho trans 0.82 4th, Small Car front AC, CLKs w/ 215/65-16, homemade big brakes 303mm, Konis, Recaros, etc....

Click to see my ads for Cup holders, Subaru clutch fix and CLK wheels (no wheels currently)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
r39o
Samba Polizei


Joined: May 18, 2005
Posts: 9800
Location: San Diego
r39o is offline

PostPosted: Tue Oct 23, 2012 10:50 am    Post subject: Reply with quote

I ordered a new Jetta iV emblem after doing some eye ball comparisons.

Should be here before Friday.

I dd this even though my spare grill has an almost perfect emblem on it.....
_________________
"Use the SEARCH, Luke" But first visit the Vanagon FAQ!

1990 Multivan EJ 22, Rancho trans 0.82 4th, Small Car front AC, CLKs w/ 215/65-16, homemade big brakes 303mm, Konis, Recaros, etc....

Click to see my ads for Cup holders, Subaru clutch fix and CLK wheels (no wheels currently)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
r39o
Samba Polizei


Joined: May 18, 2005
Posts: 9800
Location: San Diego
r39o is offline

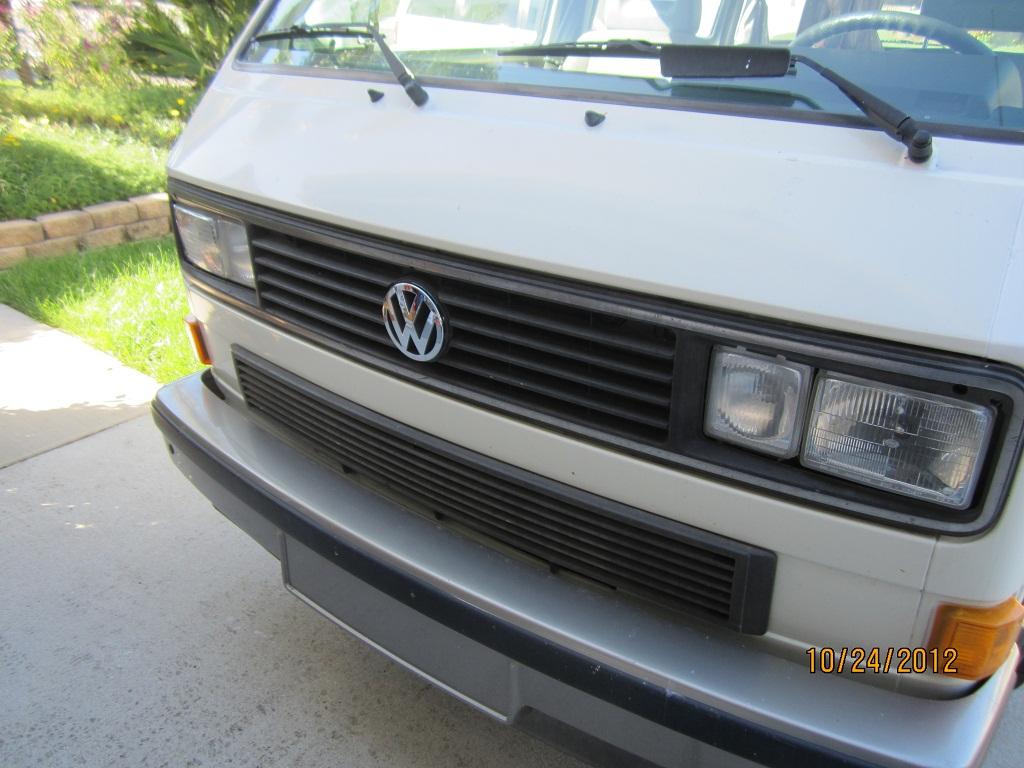

PostPosted: Wed Oct 24, 2012 2:53 pm    Post subject: DONE! Reply with quote

Image may have been reduced in size. Click image to view fullscreen.

_________________
"Use the SEARCH, Luke" But first visit the Vanagon FAQ!

1990 Multivan EJ 22, Rancho trans 0.82 4th, Small Car front AC, CLKs w/ 215/65-16, homemade big brakes 303mm, Konis, Recaros, etc....

Click to see my ads for Cup holders, Subaru clutch fix and CLK wheels (no wheels currently)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
tclark
Samba Member


Joined: November 21, 2005
Posts: 926

tclark is offline

PostPosted: Wed Oct 24, 2012 4:08 pm    Post subject: Reply with quote

I was bit confused what is the vw part# from the a4 jetta emblem that you used for the vanagon front grille
_________________
89 Westy with TDI AHU 1.9 manual lots of mods
85 GL 1.9, auto (for sold)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
r39o
Samba Polizei


Joined: May 18, 2005
Posts: 9800
Location: San Diego
r39o is offline

PostPosted: Wed Oct 24, 2012 5:01 pm    Post subject: Reply with quote

tclark wrote:
I was bit confused what is the vw part# from the a4 jetta emblem that you used for the vanagon front grille

1J5853601 = front grille
_________________
"Use the SEARCH, Luke" But first visit the Vanagon FAQ!

1990 Multivan EJ 22, Rancho trans 0.82 4th, Small Car front AC, CLKs w/ 215/65-16, homemade big brakes 303mm, Konis, Recaros, etc....

Click to see my ads for Cup holders, Subaru clutch fix and CLK wheels (no wheels currently)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kuleinc
Samba Member


Joined: August 10, 2007
Posts: 1604
Location: East Bay Area, California
kuleinc is offline

PostPosted: Wed Oct 24, 2012 6:13 pm    Post subject: Reply with quote

Did it just pop in, or were modifications necessary?
_________________
Check out our Our youtube channel: Https://www.youtube.com/channel/UC-EbskIxNm6SYzsq4ugG81A
http://www.thesamba.com/vw/forum/viewtopic.php?t=496946 1987 VW Vanagon Westfalia with 1.8T
Back to top
View user's profile Send private message Classifieds Feedback
shadetreetim
Samba Member


Joined: January 10, 2011
Posts: 1994
Location: Riverside, California
shadetreetim is offline

PostPosted: Wed Oct 24, 2012 6:16 pm    Post subject: Reply with quote

Ok Walt. You convinced me. Laughing I ordered one off fleabay just now. Wink I had painted mine silver a while back. The chrome one should be just the ticket. Cheap too.

Although the last time I spent money on aesthetics, the mechanicals got jealous. Shocked

Hello, AAA, is that you? Get the truck ready... D'Oh d'oh!
_________________
Tim Potts

Doing my best every time I drive it to dispel the myth these Vanagons have to be slow!


'89 Vanagon Bluestar/Country Homes 1.8T & .77 4th
'74 Jeep CJ5
Back to top
View user's profile Send private message Gallery Classifieds Feedback
insyncro
Banned


Joined: March 07, 2002
Posts: 15086
Location: New York
insyncro is offline

PostPosted: Wed Oct 24, 2012 6:25 pm    Post subject: Reply with quote

FYI, Chris Turner posted this to the Vanagon email list server in 2001.
Many had this emblem in place soon after.
Run a fine tooth saw behind the snap hooks to make some more room for them to hook into the late Vanagon grill.

The eBay cheapie copies will tarnish within months and the chrome looses its look quick.
Dealer quality emblems are much better and yes twice the cost.

Enjoy.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
r39o
Samba Polizei


Joined: May 18, 2005
Posts: 9800
Location: San Diego
r39o is offline

PostPosted: Wed Oct 24, 2012 7:51 pm    Post subject: Reply with quote

kuleinc wrote:
Did it just pop in, or were modifications necessary?

syncrodoka wrote:
They need to be tweaked slightly for mounting though.

insyncro wrote:
Run a fine tooth saw behind the snap hooks to make some more room for them to hook into the late Vanagon grill.

While test fitting mine just popped in. So I left it. This was before the file was mentioned. I did measure with a caliper and it was the same so I left it alone. I may look closer some other time. For now it stays...
_________________
"Use the SEARCH, Luke" But first visit the Vanagon FAQ!

1990 Multivan EJ 22, Rancho trans 0.82 4th, Small Car front AC, CLKs w/ 215/65-16, homemade big brakes 303mm, Konis, Recaros, etc....

Click to see my ads for Cup holders, Subaru clutch fix and CLK wheels (no wheels currently)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3, 4  Next
Page 1 of 4


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
