ChilliConCarnage
Samba Member


Joined: September 12, 2011
Posts: 156
Location: PNW
ChilliConCarnage is offline

PostPosted: Thu Sep 25, 2014 5:10 am    Post subject: Reply with quote

Merian wrote:
Wow! How old were the tires when they failed catastrophically?

If less than 6 yrs., I think you should notify NHTSA, US DOT, CPSC... not to get $$ but to alert them to safety hazards.


Manufacture date code on the tires = 2009
_________________
Now:
86 Westy
00 GTI VR6
03 Passat V6 4Motion

Sold:
62 T2 Double Door panel
72 T2 7-passenger
98 Jetta
97 Passat VR6
87 Audi 5000
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Merian
Samba Member


Joined: January 04, 2014
Posts: 5212
Location: Orygun
Merian is offline

PostPosted: Wed Sep 24, 2014 10:39 pm    Post subject: Reply with quote

Wow! How old were the tires when they failed catastrophically?

If less than 6 yrs., I think you should notify NHTSA, US DOT, CPSC... not to get $$ but to alert them to safety hazards.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ChilliConCarnage
Samba Member


Joined: September 12, 2011
Posts: 156
Location: PNW
ChilliConCarnage is offline

PostPosted: Wed Sep 24, 2014 6:50 pm    Post subject: Reply with quote

I found a pretty good deal on Craigslist for some deep cycle batteries (Dynasty UPS12-490MR 140ah), so I picked up a couple; one for the van and one for my solar-powered shed.

I took the FullRiver 60ah battery that was installed in the little cabinet next to the rear bench and replaced it with this new bigger battery (but still have the other FullRiver 60ah under the driver's seat). I found that mounting it on it's end and removing the interior dividing wall left the most useful amount of space next to the battery.

Battery sized: 13.57L x 6.80W x 10.81H

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


This combination of 140ah + 60ah along with the 140W solar panel worked really well on a recent week-long trip to Tofino. We were able to run the fridge, lights, charge two large smartphones, watch movies on a 19 inch 12V TV from a small PC (running directly off of 12V), run the AquaCube on-demand hot-water heater, and charge a few other items (bike lights, GPS, etc.) and never go below 12.4V. The weather was not exactly ideal, as it alternated between foggy/cloudy and sunny. Note that I also hooked up a small portable 20W panel to follow the sun throughout the day, but I probably didn't even need it.

Image may have been reduced in size. Click image to view fullscreen.

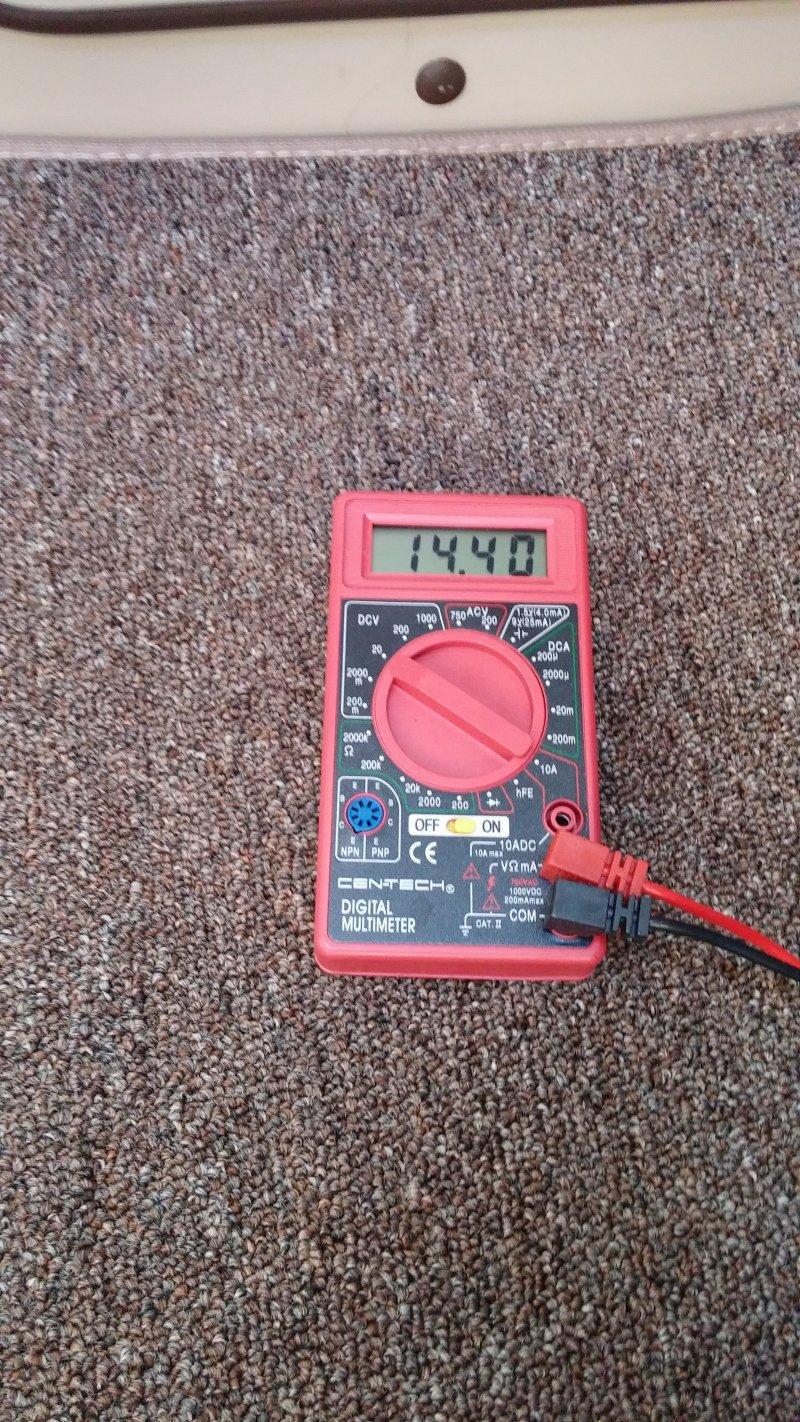

(voltage reading while running the Aquacube in full sunlight)
_________________
Now:
86 Westy
00 GTI VR6
03 Passat V6 4Motion

Sold:
62 T2 Double Door panel
72 T2 7-passenger
98 Jetta
97 Passat VR6
87 Audi 5000


Last edited by ChilliConCarnage on Thu Sep 25, 2014 5:33 am; edited 2 times in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ChilliConCarnage
Samba Member


Joined: September 12, 2011
Posts: 156
Location: PNW
ChilliConCarnage is offline

PostPosted: Wed Sep 24, 2014 6:43 pm    Post subject: Reply with quote

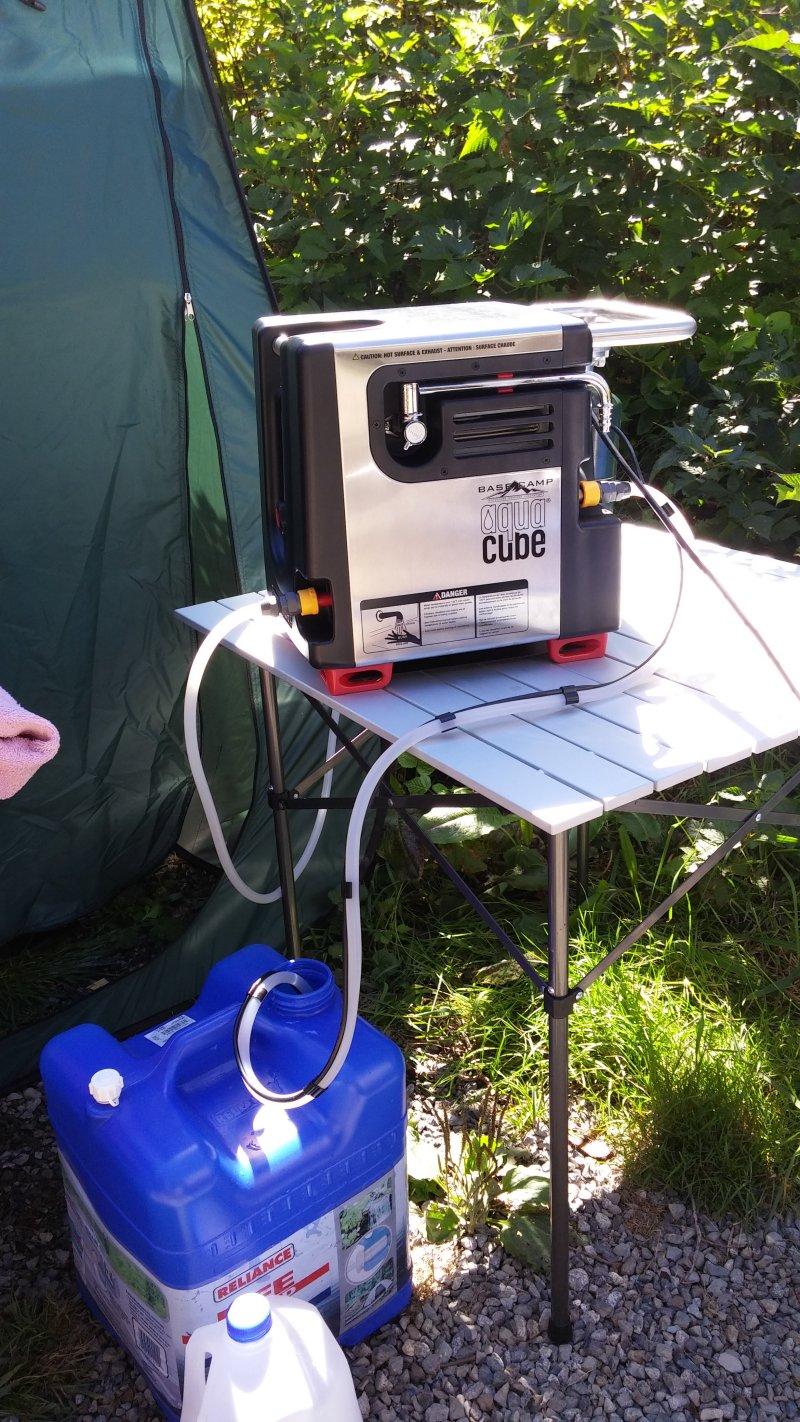

Here's another luxury item I can whole-heartedly recommend: The Mr. Heater Basecamp Aquacube on-demand hot water heater.

http://www.amazon.com/Basecamp-Heater-Aquacube-Digital-Shower/dp/B007PAP4WM

Before we got the Aquacube, we tried a few different ways to keep fresh during extended camp trips: wet wipes, cold water quickie showers, lots of deodorant! None were ideal.

What a difference the Aquacube makes. Being able to wake up every morning and take a nice hot shower feels so decadent!

Image may have been reduced in size. Click image to view fullscreen.


It's super easy to use. One green propane cannister lasted more than a dozen showers with propane left after that. We also bought a 7 gallon jug with water filter from REI to hold the water. 7 gallons is good for 1 luxurious shower, 2 short showers, or 3 real quickies.

We also bought a Trekker shelter at Cabelas (http://www.cabelas.com/product/Trekker-Fold-A-Privy/746435.uts?)
. While it worked out wonderfully, and packed up nice and small, I am dubious about it's durability. The zippers seemed fairly cheap, and the material is very thin. I hope it lasts; it works so well as a shower.

Image may have been reduced in size. Click image to view fullscreen.


Finally, we bought a "Portable Shower Deck" at Camping World. ( http://www.campingworld.com/shopping/item/portable-shower-deck/70098 ) . I could have built something like it for much cheaper, but it also worked well, and it's very light and fairly compact.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Now:
86 Westy
00 GTI VR6
03 Passat V6 4Motion

Sold:
62 T2 Double Door panel
72 T2 7-passenger
98 Jetta
97 Passat VR6
87 Audi 5000
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ChilliConCarnage
Samba Member


Joined: September 12, 2011
Posts: 156
Location: PNW
ChilliConCarnage is offline

PostPosted: Wed Sep 24, 2014 6:33 pm    Post subject: Reply with quote

Two other upgrades that we did that I can highly recommend:

1) Jack Bombay's pop-top shocks.

2) Headlight relay kit form a vendor here on the Samba (forgot the name...)

I can't believe how much easier it is to work with the pop-top with the shock installed. With the additional weight of the solar panel on top, it was almost a two person job to pop the top. Now it's an easy 1 person affair instead.
_________________
Now:
86 Westy
00 GTI VR6
03 Passat V6 4Motion

Sold:
62 T2 Double Door panel
72 T2 7-passenger
98 Jetta
97 Passat VR6
87 Audi 5000
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ChilliConCarnage
Samba Member


Joined: September 12, 2011
Posts: 156
Location: PNW
ChilliConCarnage is offline

PostPosted: Wed Sep 24, 2014 6:29 pm    Post subject: Tent and Brakes Reply with quote

While we were waiting for the tires to be shipped from Van Cafe, the fine folks at NorthWesty let us borrow a set of tires and wheels. Kirk and the guys there have always taken good care of us.

So it's no surprise that we bought their Big Brake kit and a their own branded Sunbrella 3-window tent from them:

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

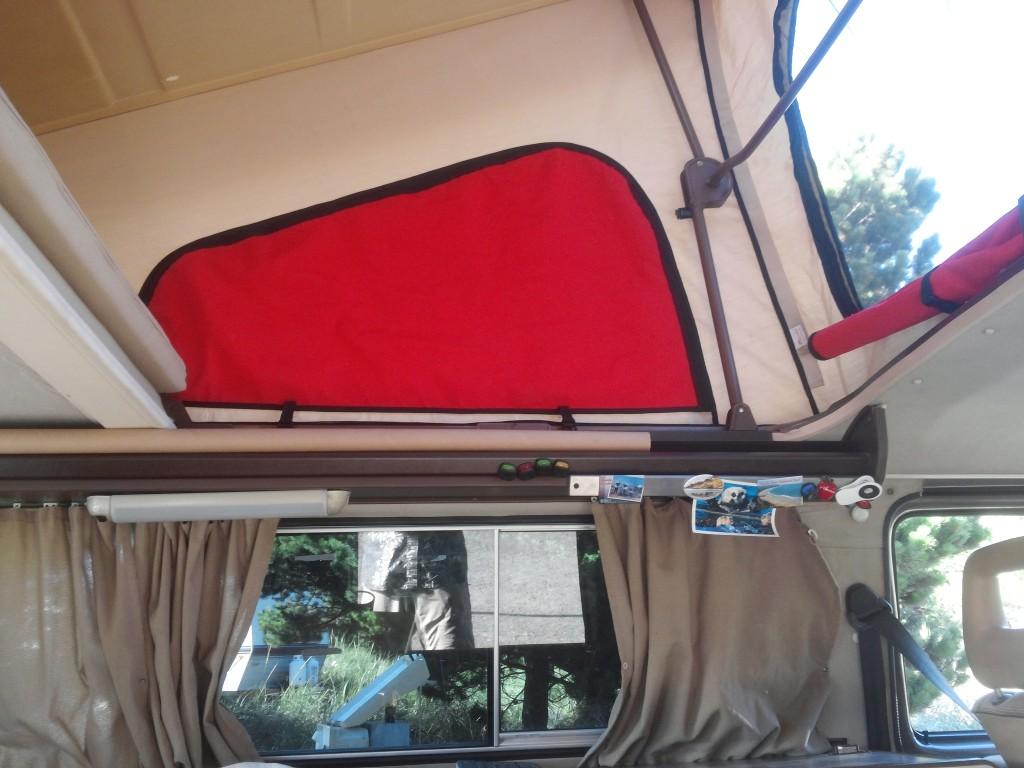

The tent appears to be of fairly high quality - it's significantly thicker than the original material. The zippers feel like they're good quality. There's also a smart strap system to hold the window material in place when they're open (as you can see in the pix above). While it appears in one of those pictures above that the fit is somewhat loose, it actually looks fine in person. We experienced no flapping in the wind or any other problems since we got it.

Having three windows (as opposed to our original 1 window tent) is very convenient - you can choose which windows to open depending on how much air you want and the direction of the wind.

We really like the contrasting color as well.

I'd read here that some people were concerned that the heavier Sunbrella material might keep more moisture in, but that hasn't been the case for us. We usually keep one of the three windows open at least a little bit for ventilation (particularly important when we use the propane stove or our Little Buddy propane heater), so that may help.

Our old tent had a few stains in it, but was still totally serviceable, so this was a "luxury" upgrade. But I am very glad we did it - it turned out to be functionally superior, and the van looks so much nicer now when the top is popped.
_________________
Now:
86 Westy
00 GTI VR6
03 Passat V6 4Motion

Sold:
62 T2 Double Door panel
72 T2 7-passenger
98 Jetta
97 Passat VR6
87 Audi 5000


Last edited by ChilliConCarnage on Thu Sep 25, 2014 5:28 am; edited 2 times in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ChilliConCarnage
Samba Member


Joined: September 12, 2011
Posts: 156
Location: PNW
ChilliConCarnage is offline

PostPosted: Wed Sep 24, 2014 6:25 pm    Post subject: Torn Tires Reply with quote

Nokian WRC Van tires.

On a camping trip this past summer my wife happened to notice a horrible rip on the the inside of both front tires:

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


I've been very dilligent in keeping up the tire pressure, so it appeared to me that this was a defect. We had loved the tires up to this point, and wanted to see if Nokian would stand behind them, so we had the local dealer (The Tire Factory) contact them. Unfortunately, I didn't have the original receipt, and Nokian declined any warranty on them.

Coincidentally, when we went to NorthWesty in Renton, there were 3 other vans there with the exact same tires. None of them exhibited the same problem, so I'm assuming we got a bad batch.

We ended up getting two more of the same tires from Van Cafe.
_________________
Now:
86 Westy
00 GTI VR6
03 Passat V6 4Motion

Sold:
62 T2 Double Door panel
72 T2 7-passenger
98 Jetta
97 Passat VR6
87 Audi 5000
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ChilliConCarnage
Samba Member


Joined: September 12, 2011
Posts: 156
Location: PNW
ChilliConCarnage is offline

PostPosted: Wed Sep 24, 2014 6:18 pm    Post subject: Reply with quote

Center console:

Image may have been reduced in size. Click image to view fullscreen.


Both my wife and I love easily accessible cup holders! And the drawer is obviously a super-convenient place to hold stuff that you need to get at quickly.

There is a thin piece of wood inside bridging the interior that has two holes in it for mounting. I drilled into the floor (above the spare tire), through the carpet and attached two bolts through these holes.

Note that while the console feels very secure the way that I mounted it, the wood where the mounting holes provided seem somewhat thin, and I'm afraid that it could break and the console could become detached in a front-end collision. At some point I'm going to have to figure out a way to strengthen them.
_________________
Now:
86 Westy
00 GTI VR6
03 Passat V6 4Motion

Sold:
62 T2 Double Door panel
72 T2 7-passenger
98 Jetta
97 Passat VR6
87 Audi 5000


Last edited by ChilliConCarnage on Thu Sep 25, 2014 5:16 am; edited 2 times in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ChilliConCarnage
Samba Member


Joined: September 12, 2011
Posts: 156
Location: PNW
ChilliConCarnage is offline

PostPosted: Wed Sep 24, 2014 6:15 pm    Post subject: Re: Great write up Reply with quote

MacDude wrote:
Any further updates? Love to know if you ever went back and upgraded the audio to match your GTI.


I have not gone back to do anything to the sound system, but I have done a ton more upgrades, so I'll update now....
_________________
Now:
86 Westy
00 GTI VR6
03 Passat V6 4Motion

Sold:
62 T2 Double Door panel
72 T2 7-passenger
98 Jetta
97 Passat VR6
87 Audi 5000
Back to top
View user's profile Send private message Gallery Classifieds Feedback
MacDude
Samba Member


Joined: July 26, 2014
Posts: 101
Location: Bonny Doon
MacDude is offline

PostPosted: Wed Sep 24, 2014 9:20 am    Post subject: Great write up Reply with quote

Any further updates? Love to know if you ever went back and upgraded the audio to match your GTI.
_________________
'84 Wolfsburg Westfalia
'90 White Multivan (currently not running)
Back to top
View user's profile Send private message Facebook Twitter Gallery Classifieds Feedback
ChilliConCarnage
Samba Member


Joined: September 12, 2011
Posts: 156
Location: PNW
ChilliConCarnage is offline

PostPosted: Sat Dec 08, 2012 7:12 pm    Post subject: Hoses Reply with quote

Just got these from GoWesty, so they'll be the next thing to install:

Image may have been reduced in size. Click image to view fullscreen.

_________________
Now:
86 Westy
00 GTI VR6
03 Passat V6 4Motion

Sold:
62 T2 Double Door panel
72 T2 7-passenger
98 Jetta
97 Passat VR6
87 Audi 5000
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ChilliConCarnage
Samba Member


Joined: September 12, 2011
Posts: 156
Location: PNW
ChilliConCarnage is offline

PostPosted: Sat Dec 08, 2012 6:40 pm    Post subject: Windshield wipers Reply with quote

Almost forgot: I bought new windshield wipers, blades and hardware. The paint was peeling from the original wipers, so these look so much better.


Image may have been reduced in size. Click image to view fullscreen.

_________________
Now:
86 Westy
00 GTI VR6
03 Passat V6 4Motion

Sold:
62 T2 Double Door panel
72 T2 7-passenger
98 Jetta
97 Passat VR6
87 Audi 5000
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ChilliConCarnage
Samba Member


Joined: September 12, 2011
Posts: 156
Location: PNW
ChilliConCarnage is offline

PostPosted: Sat Dec 08, 2012 6:39 pm    Post subject: Tracer MPPT Solar Charge Controller Reply with quote

Finally, I installed an additional solar charge controller. The old 10amp controller will be used to plug in two small portable panels (a 20W and 5W). The new controller is a 20amp Tracer 2215-RN MPPT model. The MPPT is more efficient than the normal PWM type, and it's hooked up to the permanently mounted 145W roof panel. (http://www.amazon.com/Tracer-Controller-Regulators-Display-Regulator/dp/B008R6TG2W/ref=pd_cp_hi_1). I ordered it with the optional MT5 remote panel monitor to keep an eye on the actual charging stats from the panel. I was going to purchase the Morningstar MPPT controller and remote display, but the Tracer was almost half the price. Only time will tell if it's as good.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
Now:
86 Westy
00 GTI VR6
03 Passat V6 4Motion

Sold:
62 T2 Double Door panel
72 T2 7-passenger
98 Jetta
97 Passat VR6
87 Audi 5000
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ChilliConCarnage
Samba Member


Joined: September 12, 2011
Posts: 156
Location: PNW
ChilliConCarnage is offline

PostPosted: Sat Dec 08, 2012 6:37 pm    Post subject: Laminate from Go Westy Reply with quote

Next, I bought some of the color-matched laminate from GoWesty (http://www.gowesty.com/ec_view_details.php?id=4336&category_id=&category_parent_id=) and covered the vitrifrigo fridge door with it. Additionally, I made a panel to cover the inverter and Car PC under it. It's a shade lighter and brighter than the rest of the laminate in the van, but I guess that's to be expected.


Image may have been reduced in size. Click image to view fullscreen.

_________________
Now:
86 Westy
00 GTI VR6
03 Passat V6 4Motion

Sold:
62 T2 Double Door panel
72 T2 7-passenger
98 Jetta
97 Passat VR6
87 Audi 5000


Last edited by ChilliConCarnage on Sat Dec 08, 2012 6:42 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ChilliConCarnage
Samba Member


Joined: September 12, 2011
Posts: 156
Location: PNW
ChilliConCarnage is offline

PostPosted: Sat Dec 08, 2012 6:36 pm    Post subject: Rear View Camera Reply with quote

I picked up a rear vew camera from DP Video. Since I already had a head unit with a screen, it made for an easy install. It's hooked up to a relay that is triggered by the amplifier turn on wire fro the head unit. It works even in very low light (notice the lens surrounded by IR LEDs).

Since we live in the city, we're often having to parallel park on busy and packed city streets, so this camera will be very useful. Also, we have a very long bike rack (up to 4 bike capacity!), so this will allow us to keep an eye on the bikes as well.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
Now:
86 Westy
00 GTI VR6
03 Passat V6 4Motion

Sold:
62 T2 Double Door panel
72 T2 7-passenger
98 Jetta
97 Passat VR6
87 Audi 5000


Last edited by ChilliConCarnage on Sat Dec 08, 2012 6:45 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ChilliConCarnage
Samba Member


Joined: September 12, 2011
Posts: 156
Location: PNW
ChilliConCarnage is offline

PostPosted: Sat Dec 08, 2012 6:34 pm    Post subject: Reply with quote

Next, I installed a Car PC into the van. It's running Windows 8 with a 60GB SSD. I bought a Mini-Box M2-ATX-HV 12V regulated power suuply board so I could run the PC directly off the house batteries. This saves power over
having to run it through an inverter. (http://www.mini-box.com/M2-ATX-HV-140w-Intelligent-Automotive-DC-DC-Power-Supply_2). It sits under the fridge, and the low power AMD-E350 CPU runs very cool. A remote keyboard with touchpad let me control it.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
Now:
86 Westy
00 GTI VR6
03 Passat V6 4Motion

Sold:
62 T2 Double Door panel
72 T2 7-passenger
98 Jetta
97 Passat VR6
87 Audi 5000
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ChilliConCarnage
Samba Member


Joined: September 12, 2011
Posts: 156
Location: PNW
ChilliConCarnage is offline

PostPosted: Sat Dec 08, 2012 6:32 pm    Post subject: Updates Reply with quote

Since my last posting, I've made a couple of updates.

First, I attended the Westy Meet down in Marymoor and was very inspired by all of the nice Westies there. In particular, there was a white 91 owned by Steve who had some really nice LED lighting on his Fiamma awning and in the cabin. I'd already planned on purchasing the cery same lights from Amazon that he has, and now I know how I'm going to install them.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
Now:
86 Westy
00 GTI VR6
03 Passat V6 4Motion

Sold:
62 T2 Double Door panel
72 T2 7-passenger
98 Jetta
97 Passat VR6
87 Audi 5000
Back to top
View user's profile Send private message Gallery Classifieds Feedback
insyncro
Banned


Joined: March 07, 2002
Posts: 15086
Location: New York
insyncro is offline

PostPosted: Sun Nov 04, 2012 1:25 pm    Post subject: Reply with quote

Great post.
Good lookin van, enjoy.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
goshanego
Samba Member


Joined: March 17, 2009
Posts: 11
Location: Maryland
goshanego is offline

PostPosted: Sun Nov 04, 2012 1:17 pm    Post subject: Reply with quote

Nice work. Nice Van. Just a quick thought. I have used a heat buddy inside our house (much bigger than van of course) during a power outage and it made my wife and I feel sick (loopy) - personally I would not use one of those in such a small space. Maybe save up and get a propex from Karl. Just one unsolicited opinion. Happy & safe travels.
_________________
Current ride: 1985 Wolfsburg weekender and Salsa Fargo!

Previous rides:
1987 Syncro Van
1984 Rabbit Truck Diesel
1983 Rabbit Truck Diesel
1996 Passat TDI
2002 Golf TDI
Too many bikes to list!!!
Back to top
View user's profile Send private message Classifieds Feedback
shadetreetim
Samba Member


Joined: January 10, 2011
Posts: 1994
Location: Riverside, California
shadetreetim is offline

PostPosted: Sun Nov 04, 2012 11:23 am    Post subject: Reply with quote

Nicely written post. Cool upgrades. Reading it makes me want to go camping. Thanks for sharing.
_________________
Tim Potts

Doing my best every time I drive it to dispel the myth these Vanagons have to be slow!


'89 Vanagon Bluestar/Country Homes 1.8T & .77 4th
'74 Jeep CJ5
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
