PostPosted: Thu Nov 22, 2012 4:15 am    Post subject: POST pics of your ROUND fog/driving light mounting position Reply with quote

I have done a search and found a couple of topics on this, however the pics are scattered all over the place. Thought it would be better to combine all the pics in one place.

So i have a carat model vanagon with with fiberglass bumper. There are no holes to mount, so it is up to me where I want to mount them. It seems that most put them over the lower grill just on the inside of the edge. I have seen a couple photos where they are mounted in the blank space between the edge of the grill and the side marker (this is where I am leaning to mount).

I am going to be buying the ROUND lights, either fog or driving, not quite sure yet. Still looking at brands as well. Hella, Cibie and so on.

Thanks fellow Sambanistas!
Back to top
View user's profile Send private message Classifieds Feedback
taigagreen
Samba Member


Joined: October 29, 2005
Posts: 390
Location: Norway
taigagreen is offline

PostPosted: Thu Nov 22, 2012 4:19 am    Post subject: Reply with quote

Get one of those steel plates with mounting tabs to mount behind your license plate.
_________________
88 Westfalia Club Joker syncro AAZ i/c
89 syncro doka DJ
98 Sharan 110 hp TDi
84 Transporter single cab 1.9 WBX
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Timwhy
Samba Member


Joined: January 01, 2009
Posts: 3727
Location: Maine
Timwhy is offline

PostPosted: Thu Nov 22, 2012 4:47 am    Post subject: Reply with quote

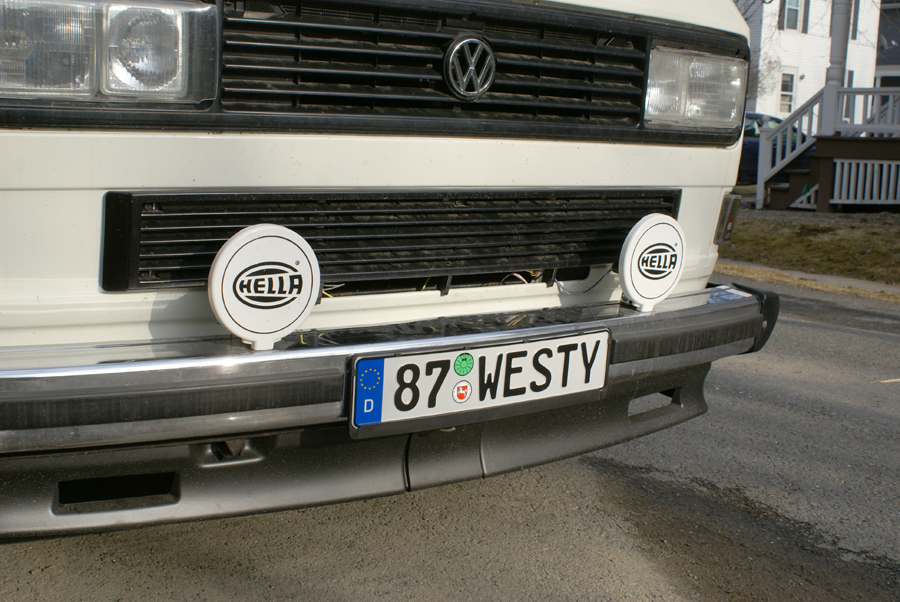

Read this thread.

http://www.thesamba.com/vw/forum/viewtopic.php?t=3...ht+bracket

Image may have been reduced in size. Click image to view fullscreen.

_________________
'15 Audi A3 Quattro
'09 VW Tiguan (dead)
'87 VW Westy
'91 Tin Top
'90 Cabby
What the Westy wants the Westy GETS


http://www.thesamba.com/vw/forum/album_search.php?search_author=Timwhy&show_results=summary

http://www.youtube.com/user/TIMWHY2?feature=mhee


Last edited by Timwhy on Thu Nov 22, 2012 4:55 am; edited 1 time in total
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
1621
Samba Member


Joined: May 15, 2006
Posts: 2174

1621 is offline

PostPosted: Thu Nov 22, 2012 4:51 am    Post subject: Reply with quote

Not on a fiberglass bumper, nor is it round with the rectangular headlights, but they are round driving lights. I had some simple mounting brackets made up to mount to the body beneath the bumper. There should be four sets of holes in a triangular pattern designed specifically for mounting driving lights. I used the inner set of holes, though the outer sets should put the lights where you want them. I would also recommend mounting directly to the body to prevent the light beam from "bouncing" in front of you as the bumper flexes and vibrates while underway.

Image may have been reduced in size. Click image to view fullscreen.

_________________
'85 Westy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
wyomingresident
Samba Member


Joined: April 22, 2007
Posts: 246
Location: Jackson Hole
wyomingresident is offline

PostPosted: Thu Nov 22, 2012 9:30 am    Post subject: Reply with quote

/Watching this thread.

I've been contemplating fog lights, but want to get my bumpers figured out first. Moare pics would be great!
_________________
Don't tell fish stories where the people know you; but particularly, don't tell them where they know the fish.
Mark Twain
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
shadetreetim
Samba Member


Joined: January 10, 2011
Posts: 1994
Location: Riverside, California
shadetreetim is offline

PostPosted: Thu Nov 22, 2012 11:01 am    Post subject: Reply with quote

I put these on a year ago. Drilled the hole next to the stiffening brace on the backside of the bumper (obvious with the bumper off). I used 1/4" thick dense rubber washers between the paint and the light bracket. They are very sturdy, even while driving down washboard roads. I have never had to readjust them.

The way I've got these Hella's adjusted, they do a good job filling in the area between the bumper and the reach of the low beams.

FWIW, I wired them to a 944 Porsche switch (off eBay), wired in series through a relay triggered by the ignition switch. I typically always leave them on for daytime running lights, and low beam enhancement.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Tim Potts

Doing my best every time I drive it to dispel the myth these Vanagons have to be slow!


'89 Vanagon Bluestar/Country Homes 1.8T & .77 4th
'10 Wrangler 3.8 6SP Manual
'12 Ford E350
'12 Tiguan 2.0T 6SP Tiptronic - Lady Shadetree's
Back to top
View user's profile Send private message Gallery Classifieds Feedback
joseph928
Samba Member


Joined: September 22, 2011
Posts: 2114
Location: flagstaff az.
joseph928 is offline

PostPosted: Thu Nov 22, 2012 11:47 am    Post subject: Driving Lights Reply with quote

Blue Bay Bus Just a different way to mount .
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.

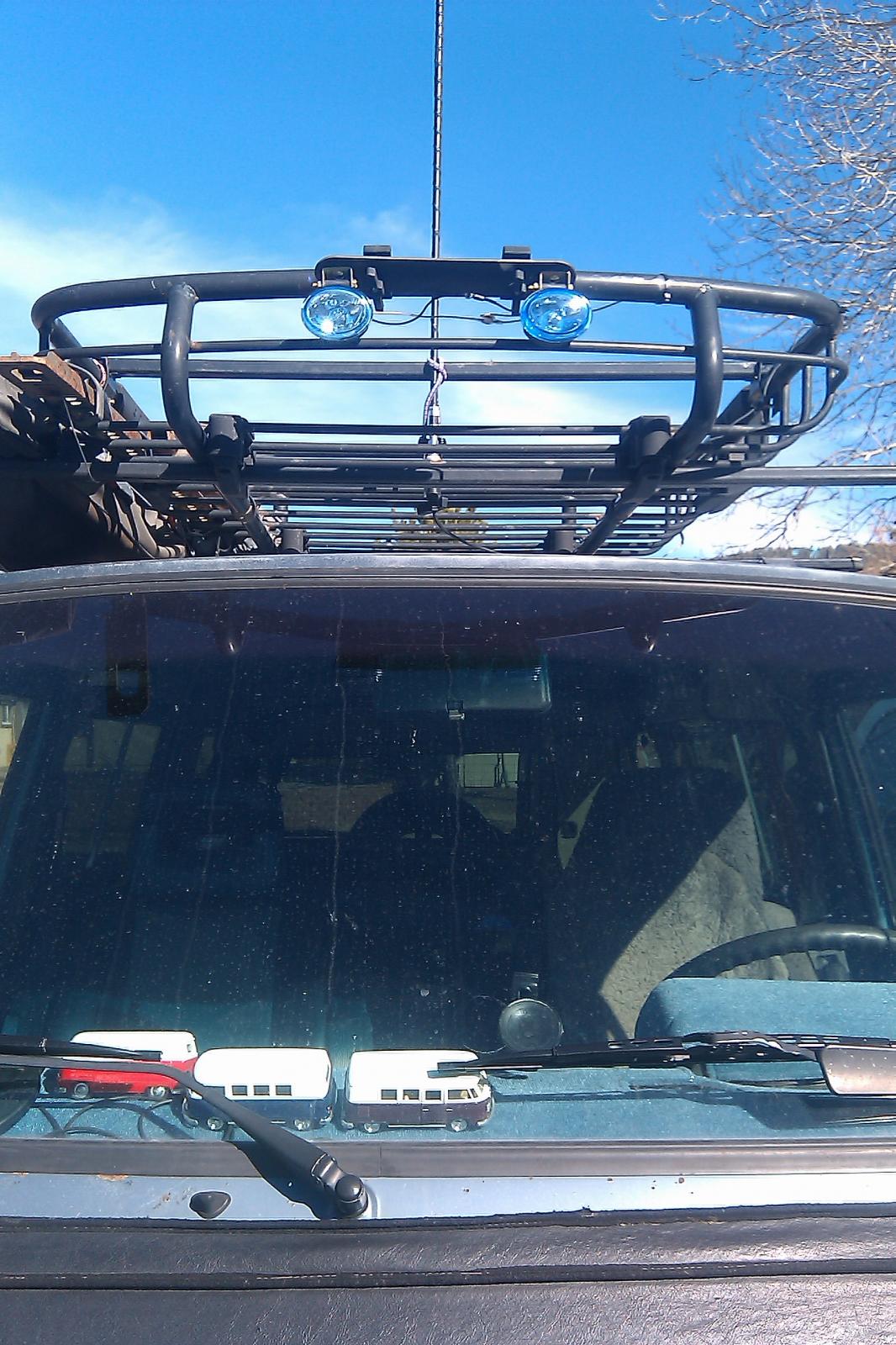

I put these up high for off road use. Used a Yakima driving light mount, no holes just clamp on. The Yakima mount works great on a Thule basket. Very Happy I know someday I'll run the wires through the Thule basket tubes. Wink Had to go bigger or go home! And redo the wires to. Cool
_________________
1987 syncro westy tin top sun roof , GW2.3, rear locker, decoupler, Gary Lee tire rack & winch mount, lift, south african grill, big brakes , rhein alloy ,15 BFG AT, Fiamma 10 foot awning ,140 watt rear 85 watt front solar , mppt, truckfridge, automatic fire extinguishing system, tencent oil cooler, And a RMW SS exhaust! - 1971 bug convertible 1776 engine- 2010 Subaru turbo - 1993 Toyota 4x4 truck - 1999 Harley 95 CI, big bore, Andrews cams . Also 80-84- vans. Stock 65 sunroof bug.


Last edited by joseph928 on Mon Jan 21, 2013 9:00 pm; edited 2 times in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
trailnewt
Samba Member


Joined: February 17, 2008
Posts: 248
Location: Northern California
trailnewt is offline

PostPosted: Thu Nov 22, 2012 8:06 pm    Post subject: Reply with quote

Hella 3000's used as cornering beam.

Image may have been reduced in size. Click image to view fullscreen.



Image may have been reduced in size. Click image to view fullscreen.


Brent
_________________
'87 Syncro Westy TDI
Too many bicycles
Maybe an old unicycle around here somewhere
Back to top
View user's profile Send private message Gallery Classifieds Feedback
zuffenhausen1
Samba Member


Joined: November 17, 2009
Posts: 11
Location: Washington State
zuffenhausen1 is offline

PostPosted: Fri Nov 23, 2012 11:20 am    Post subject: Anyone use Hella 4000 series? Reply with quote

I see most people use the Hella 500 series but I am intrigued to see what the big-daddy 4000 series would look like on a T3??
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Wolfphotos
Samba Member


Joined: July 31, 2010
Posts: 117
Location: Toronto Ontario
Wolfphotos is offline

PostPosted: Sat Nov 24, 2012 5:25 am    Post subject: Reply with quote

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
taigagreen
Samba Member


Joined: October 29, 2005
Posts: 390
Location: Norway
taigagreen is offline

PostPosted: Sat Nov 24, 2012 9:09 am    Post subject: Reply with quote

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
88 Westfalia Club Joker syncro AAZ i/c
89 syncro doka DJ
98 Sharan 110 hp TDi
84 Transporter single cab 1.9 WBX
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
IrideWheelies
Samba Member


Joined: July 09, 2009
Posts: 386
Location: Olympia, WA
IrideWheelies is offline

PostPosted: Sat Nov 24, 2012 10:43 am    Post subject: Reply with quote

Hella 700s on GoWesty steel bumper

Image may have been reduced in size. Click image to view fullscreen.

_________________
89' Dove Blue Syncro Hightop
Back to top
View user's profile Send private message Gallery Classifieds Feedback
smaurer
Samba Member


Joined: October 07, 2004
Posts: 26
Location: Denver, CO
smaurer is offline

PostPosted: Mon Jan 21, 2013 7:09 pm    Post subject: Picked up some.... Reply with quote

discontinued Hella 155's driving lights and was considering mounting them up high on the face of the cargo/luggage area. Only one guy mounting high out of all these posts. Anything I should consider? I'll make a move on the SA grill and lights at a later date. I also picked up the wiring upgrade kit too for the stock bulbs. For now I just want a good flood light to light up prospective (unorganized) camping sites out in the woods of CO and elsewhere.
_________________
83.5 Westfalia with a "Left Laner" 2.2 Conversion
Back to top
View user's profile Send private message Gallery Classifieds Feedback
IdahoDoug
Samba Member


Joined: June 12, 2010
Posts: 10052
Location: N. Idaho
IdahoDoug is offline

PostPosted: Mon Jan 21, 2013 7:19 pm    Post subject: Reply with quote

Up high puts them closer to your eye line, vs down low at bumper. Closer to the eye level equals more light blowback in foul weather - precisely when many folks need/want more lighting. But for slow, searching activity as you describe, it may be perfect. Get fog beam pattern for lots of lateral throw to search with, vs two blobs of light with driving beam pattern that may not let you accomplish that as well.

DougM
_________________
1987 2WD Wolfsburg Vanagon Weekender "Mango", two fully locked 80 Series LandCruisers. 2016 Subaru Outback boxer. 1990 Audi 90 Quattro 20V with rear locking differential. 1988 Mitsubishi Van w/ dual spinny seats, mid engine and solid axle.1990 burgundy parts Vanagon. 1984 Porsche 944, 1992 Lexus LS400, 1988 Toyota Supra 5 speed targa project in pieces, 2002 BMW 325iX
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ragnarhairybreeks
Samba Member


Joined: October 26, 2009
Posts: 1651
Location: Sidney B.C. Canada
ragnarhairybreeks is offline

PostPosted: Mon Jan 21, 2013 8:36 pm    Post subject: Reply with quote

Wasn't planning it, but did a bit of night time driving on logging roads this last weekend. I found that my centre aimed aux lights would have been more useful angled slightly outwards to each side. They're Japanese Cibies, 55W, nice light.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


alistair
_________________
'86 7 passenger syncro, converted to westy pop top, project still in progress
'82 westy, diesel converted to gas in '94, now gone...
https://shufti.blog/
Old address still works...
http://shufti.wordpress.com
Back to top
View user's profile Send private message Gallery Classifieds Feedback
geo_tonz
Samba Member


Joined: August 01, 2012
Posts: 1465
Location: Courtenay, BC, CANADA
geo_tonz is offline

PostPosted: Mon Jan 21, 2013 9:41 pm    Post subject: Reply with quote

Check out these sweet home made SA style grills for fogs:
http://www.thesamba.com/vw/forum/viewtopic.php?t=504430&highlight=grill
_________________
VW Logo PUBLIC VANAGON REGISTRY: http://goo.gl/forms/QIiFT0zKhM
---------------------------------------------------
Red Vanagon "Ron Burgundy": 1991 Vanagon Multivan (Weekender) 2.1L Auto - Driver/Camper
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Gallery Classifieds Feedback
campism
Samba Member


Joined: September 07, 2007
Posts: 3860
Location: Richmond VA
campism is offline

PostPosted: Tue Jan 22, 2013 6:34 am    Post subject: Reply with quote

ragnarhairybreeks wrote:

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


That right there is a post worth 2,000 words.
_________________
'87 Westy in Wolfram Grey Metallic
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bluefirefly
Samba Member


Joined: March 16, 2011
Posts: 438
Location: Calgary, Ab
bluefirefly is offline

PostPosted: Tue Jan 22, 2013 12:46 pm    Post subject: Reply with quote

Cannot post pictures right now, but follow the link.
Quad H4 round light on a 86 Syncro with Quad auxiliary light on GW modified bumper.
Everything with 100W bulbs, better than HID in LO and HI (I check with our truck and friend's Acura).

http://famillysyncro.wordpress.com/2012/11/21/2267/

Edit, this might works:

http://famillysyncro.wordpress.com/2012/11/21/2267/#jp-carousel-2277
_________________
86 Syncro Tintop G60
work in progress ...as always!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
4x4BNB
Samba Member


Joined: January 08, 2012
Posts: 274
Location: PNW
4x4BNB is offline

PostPosted: Fri Aug 29, 2014 10:03 am    Post subject: IPF's Reply with quote

[img]
Image may have been reduced in size. Click image to view fullscreen.
[/img]
Back to top
View user's profile Send private message Gallery Classifieds Feedback
LemonCove
Samba Member


Joined: July 29, 2010
Posts: 324
Location: Henderson, NV
LemonCove is offline

PostPosted: Mon Feb 16, 2015 10:00 am    Post subject: Reply with quote

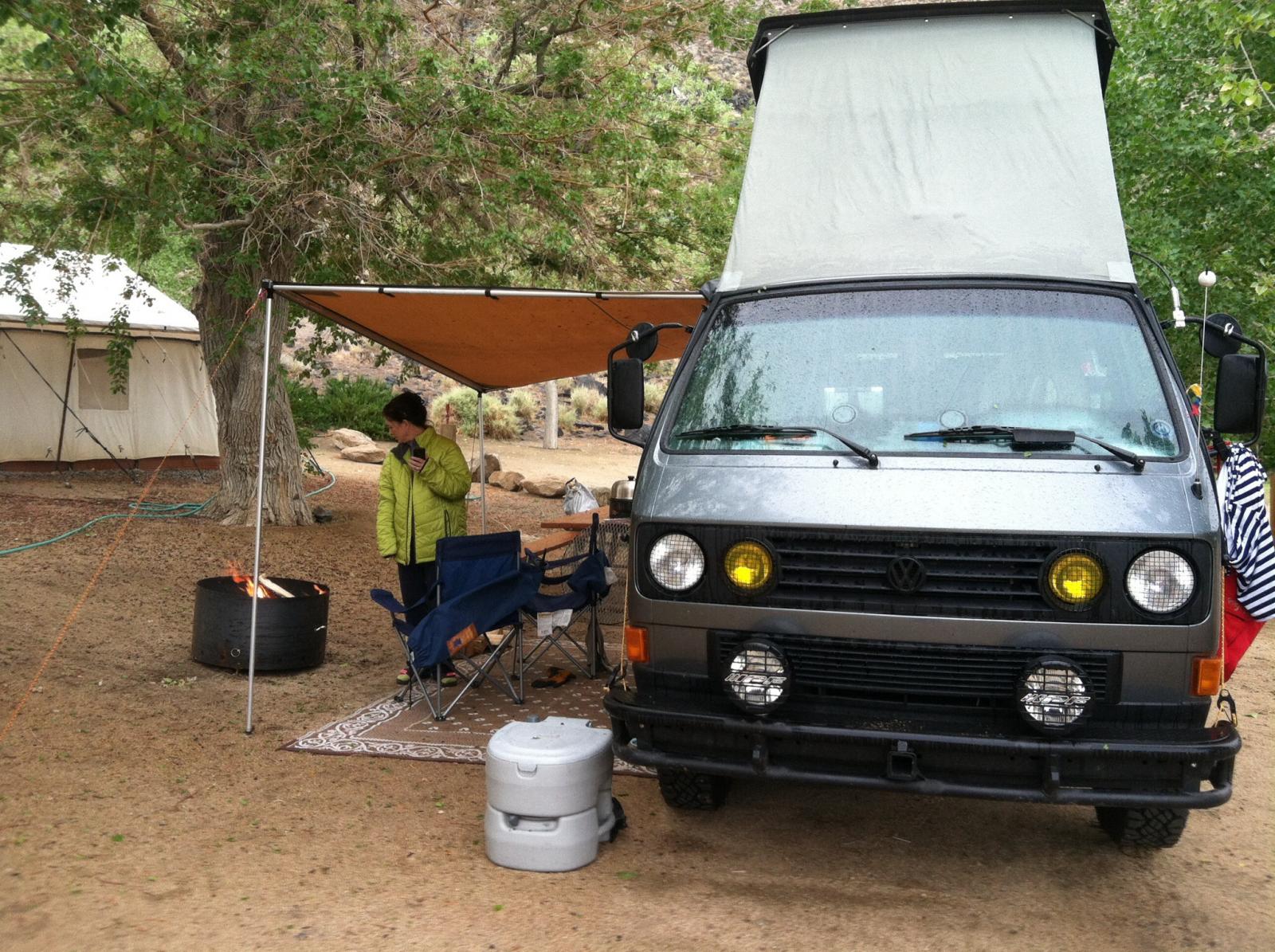

Just stumbled across this thread . . . . .

Image may have been reduced in size. Click image to view fullscreen.


Nope, I don't drive with all lights on, but makes for a good photo. Cibié “Tango Plus” Driving and Fog Lights, with Hella Rectangular E4 conversion.
_________________
'88 Bostig Westy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3  Next
Page 1 of 3


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
