PostPosted: Sat Jan 19, 2013 7:21 pm    Post subject: dis-ix compu-fire ignition help timing Reply with quote

hey every one i have a 1776 dp motor with dual hpmx 40s and i am trying to time my motor, i seen online that with the stock igniton you can just do it with the test light; is it posible to do it with my compu-fire set up?


http://www.compufire.com/index.php?option=com_cont...p;Itemid=9

thanks
joe
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Glenn Premium Member
Mr. 010


Joined: December 25, 2001
Posts: 62702
Location: Long Island, New York, USA
Glenn is offline

PostPosted: Sat Jan 19, 2013 7:45 pm    Post subject: Reply with quote

That system uses a Bosch 009, you you should time it 32* BTDC @ 3500rpm.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

iRide4Sue.org Please Donate to fight Cancer. $27,000 raised in 2017, hoping for the same in 2018
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Dale M.
Samba Member


Joined: April 12, 2006
Posts: 16738
Location: Just a tiny bit west of Yosemite Valley
Dale M. is offline

PostPosted: Sat Jan 19, 2013 8:15 pm    Post subject: Reply with quote

Yes you can just use a test light to static time it..... You probable need to find which wire (probably black one) triggers the coil (like points) and attach test light to it and to ground... Set crank pulley at 7 BTDC and rotate dist body till lamp comes on.... But as Glenn suggested 28-32 degrees above 3000 RPM....

From Compufire website...

Q: How do I time the engine?
A: Front cylinder must be TDC on compression. The RED wire from the module is connected to the positive side of the battery. Turn the module all the way to the LEFT ( retard ), Make sure the LED is out and slowly move the module to the right until LED comes on .


http://www.compufire.com/index.php?option=com_cont...;Itemid=32

Dale
_________________
Lives his life vicariously through his own self...
1970 "Kellison Sand Piper Roadster" For Street & Show.

mcmscott wrote:

...... and not keyboard jockeys that just have high post counts


All suggestions and advice are purely my own opinion. You are free to ignore them if you wish ...
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bajajoe16
Samba Member


Joined: August 03, 2011
Posts: 78
Location: eatonville
bajajoe16 is offline

PostPosted: Sat Jan 19, 2013 8:46 pm    Post subject: Reply with quote

how do you tell whenits on tdc on the compression stroke i have a dagree wheel but cant really tell
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Glenn Premium Member
Mr. 010


Joined: December 25, 2001
Posts: 62702
Location: Long Island, New York, USA
Glenn is offline

PostPosted: Sat Jan 19, 2013 9:00 pm    Post subject: Reply with quote

Read this: Finding #1 TDC
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

iRide4Sue.org Please Donate to fight Cancer. $27,000 raised in 2017, hoping for the same in 2018
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
slalombuggy
Samba Member


Joined: July 17, 2010
Posts: 6371
Location: Canada 306
slalombuggy is offline

PostPosted: Sat Jan 19, 2013 9:26 pm    Post subject: Reply with quote

No you can't time the DIS-X system statically. There's detailed instructions on how to line up the dot on the sensor wheel and distributor body to get it close enough to fire. Make sure you get the wheel oriented right as the system has a built in retard of 2* for the #3 cylinder. If you're 009 is in good shape you should be able to see it with the timing light.

DO NOT turn the engine over even by hand, with the ignition powered up. IT WILL FIRE THE ENGINE like they say it will down to 1 rpm. I know, I tried it.

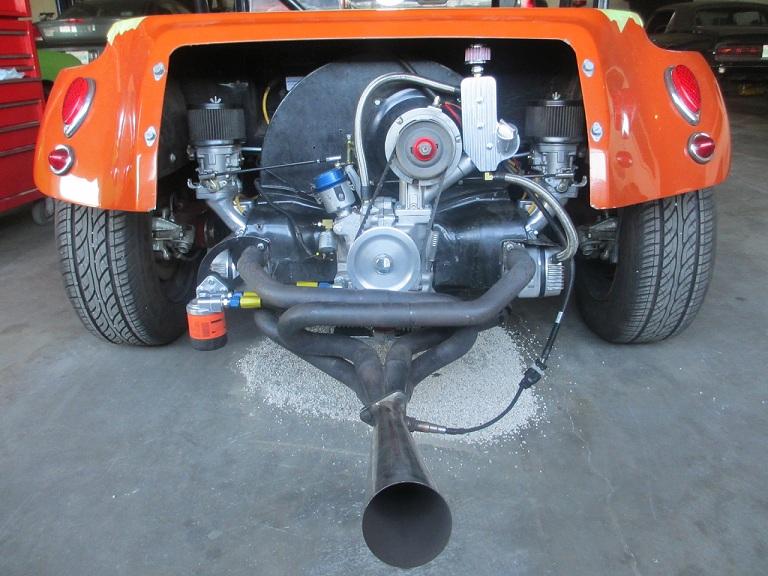

I mounted the coil pack out of sight on my buggy

Image may have been reduced in size. Click image to view fullscreen.


brad
_________________
Cams for sale https://www.thesamba.com/vw/classifieds/search.php?username=slalombuggy


1962 Canadian Buggy 121.253mph - Bonneville 2012

1957 LSR Buggy - Rowan's Rocket - goal -150mph
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bajajoe16
Samba Member


Joined: August 03, 2011
Posts: 78
Location: eatonville
bajajoe16 is offline

PostPosted: Sat Jan 19, 2013 9:34 pm    Post subject: Reply with quote

how do you tell if your 009 is trashed i have been having probloms with this motor for the last 6 months ans dont know if its the carbs or what
Back to top
View user's profile Send private message Gallery Classifieds Feedback
slalombuggy
Samba Member


Joined: July 17, 2010
Posts: 6371
Location: Canada 306
slalombuggy is offline

PostPosted: Sat Jan 19, 2013 10:31 pm    Post subject: Reply with quote

You need to check the distributor with he motor running. Making sure it advances correctly and that the timing is stable. Do you ever oil your distibutor. Under the rotor is a small felt pad in the shaft. a couple drops of 5w30 every once in a while keeps the advance freed up. I also spray some oil down under the point plate to keep the weights freed up My 009 is over 20 years old and still works like new.

brad
_________________
Cams for sale https://www.thesamba.com/vw/classifieds/search.php?username=slalombuggy


1962 Canadian Buggy 121.253mph - Bonneville 2012

1957 LSR Buggy - Rowan's Rocket - goal -150mph
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bajajoe16
Samba Member


Joined: August 03, 2011
Posts: 78
Location: eatonville
bajajoe16 is offline

PostPosted: Sun Jan 20, 2013 10:32 am    Post subject: Reply with quote

all right all try oiling it and how can i tell my rpms with out a tach i havent had a chance to but the adapter for the system
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Glenn Premium Member
Mr. 010


Joined: December 25, 2001
Posts: 62702
Location: Long Island, New York, USA
Glenn is offline

PostPosted: Sun Jan 20, 2013 10:34 am    Post subject: Reply with quote

Most modern timing lights have a tach built in.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

iRide4Sue.org Please Donate to fight Cancer. $27,000 raised in 2017, hoping for the same in 2018
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
slalombuggy
Samba Member


Joined: July 17, 2010
Posts: 6371
Location: Canada 306
slalombuggy is offline

PostPosted: Sun Jan 20, 2013 10:35 am    Post subject: Reply with quote

If you have a timing light with a built in tach you can see the rpm, rememberto divide the number shown by half, as each cylinder fires twice per cycle.

brad
_________________
Cams for sale https://www.thesamba.com/vw/classifieds/search.php?username=slalombuggy


1962 Canadian Buggy 121.253mph - Bonneville 2012

1957 LSR Buggy - Rowan's Rocket - goal -150mph
Back to top
View user's profile Send private message Gallery Classifieds Feedback
