PostPosted: Sun Feb 03, 2013 3:04 pm    Post subject: 70 camper rust repair Reply with quote

Bill dropped his 70 off for rust repairs and I got a start on it today. Its got a lot of the normal rust and quite a few dents that need to be fixed. I didn't get a chance to take a pic of the whole bus but will before I finish. Today I started to cut up the left dogleg and floor.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Looks like a small fender bender that previous owner tried to repair.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

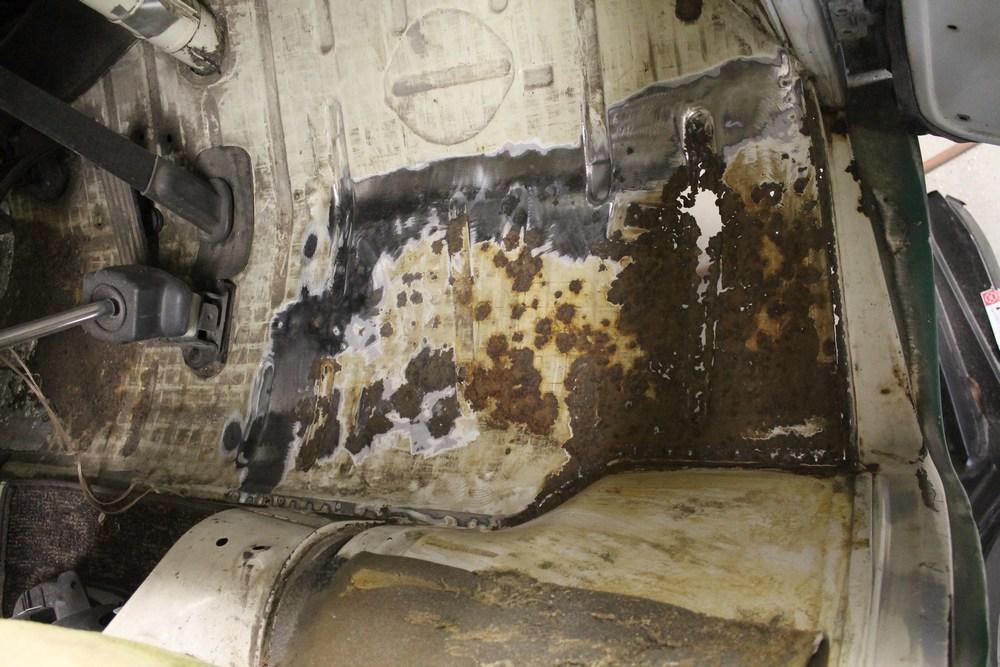

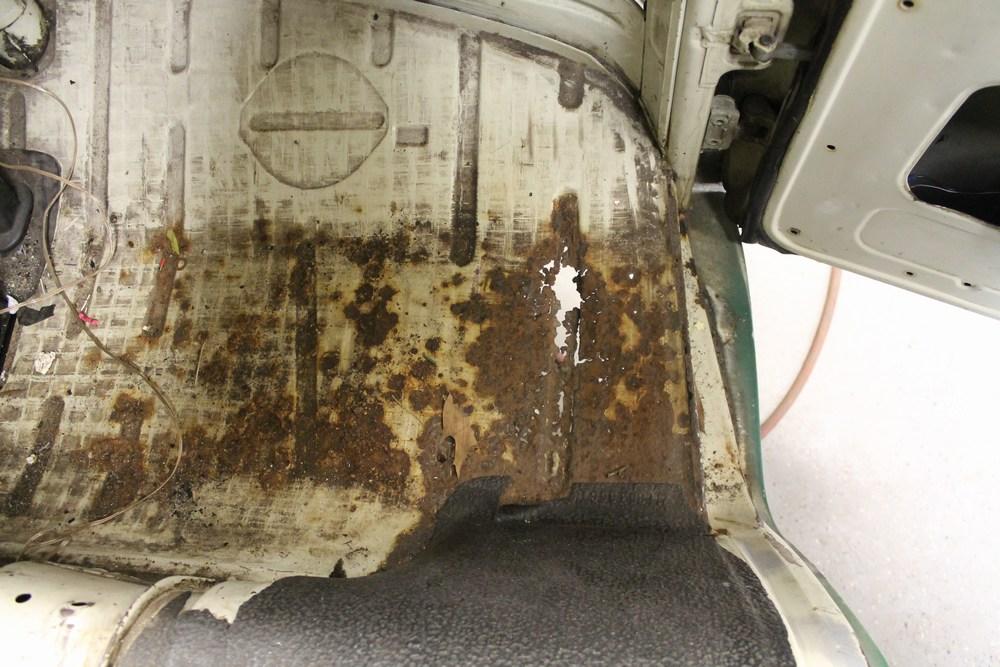

Some of the normal rust.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

The floor I got cleaned up and removed in one piece to use as a template for the new panel.
_________________
Check out Air Kooled Addict on facebook.com and instagram.

Also checkout my other Threads.
http://www.thesamba.com/vw/forum/viewtopic.php?t=543445&highlight=wrstp
http://www.thesamba.com/vw/forum/viewtopic.php?t=525589&highlight=wrstp
http://www.thesamba.com/vw/forum/viewtopic.php?t=472913&highlight=
http://www.thesamba.com/vw/forum/viewtopic.php?t=523640&highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
wrstp
Samba Member


Joined: August 29, 2007
Posts: 206

wrstp is offline

PostPosted: Sun Feb 03, 2013 3:27 pm    Post subject: Reply with quote

Once the floor was removed I started to cut out the rust in the wheel well.
I used some 1/2" tape to mark my cut line just above the rust.
Image may have been reduced in size. Click image to view fullscreen.

Once the piece was removed I used it as a template to make a new panel from 20 gauge metal. I first made a few marks where the shape needs to be and used some tubing to roll the metal over.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

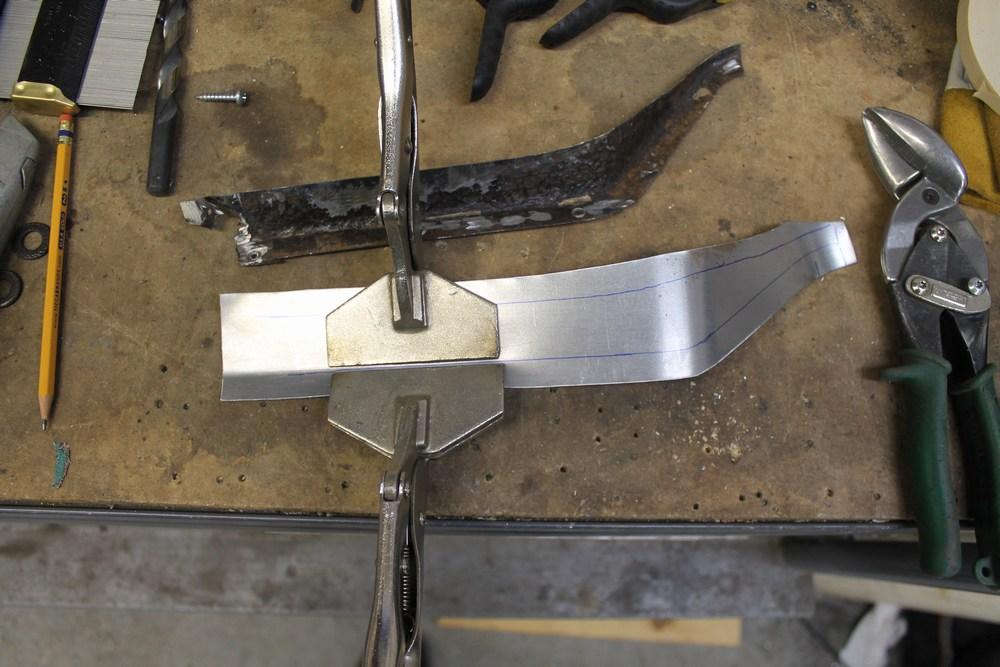

I traced the rusted piece and used the 1/2" tape to transfer the lip that holds the floor.
Image may have been reduced in size. Click image to view fullscreen.

I don't have a bead roll with a tipping die at home so out comes the duckbills.
Image may have been reduced in size. Click image to view fullscreen.

I used my small duckbills around the rolled areas. Doing this tends to flatten out the shape so a little shaping with the shrinker/stretcher is needed.
Image may have been reduced in size. Click image to view fullscreen.

Again not having a beadroll to make the steps on the end I had to resort to hand tools. I saw this chisel trick on a metal shaping site and it worked great. Make sure your chisel is blunt and take your time working both sides. A little smoothing with the hammer and dolly and the panel is ready for fitting.
Image may have been reduced in size. Click image to view fullscreen.

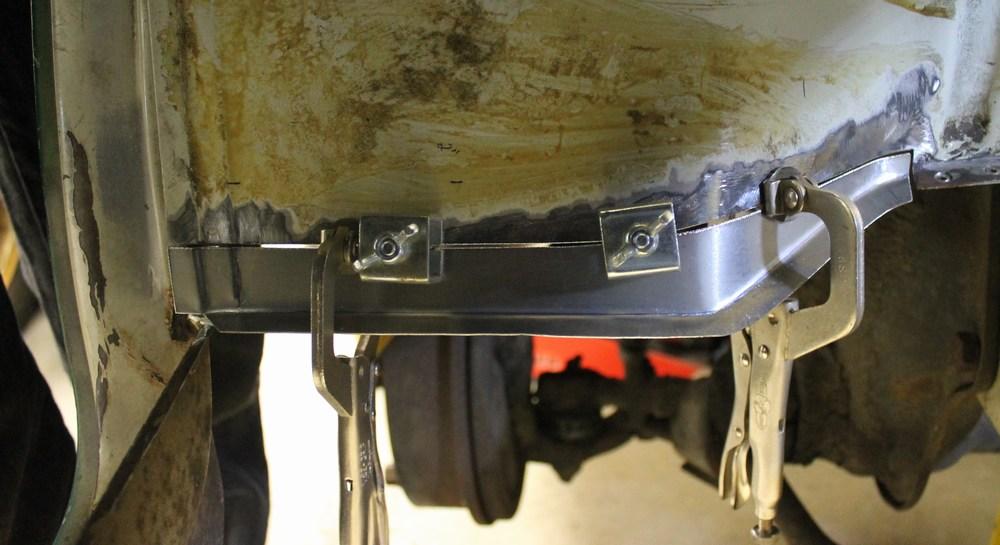

After some fitting the panel is ready to weld. I made some reference marks before cutting to get the height right and double checked with the straight edge.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Taking my time welding and grinding a couple times during the welding for a rust free wheel well ready for the floor.
_________________
Check out Air Kooled Addict on facebook.com and instagram.

Also checkout my other Threads.
http://www.thesamba.com/vw/forum/viewtopic.php?t=543445&highlight=wrstp
http://www.thesamba.com/vw/forum/viewtopic.php?t=525589&highlight=wrstp
http://www.thesamba.com/vw/forum/viewtopic.php?t=472913&highlight=
http://www.thesamba.com/vw/forum/viewtopic.php?t=523640&highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
[email protected]
Samba Peckerhead


Joined: January 01, 2007
Posts: 9969
Location: sticksville, ct.
skills@eurocarsplus is offline

PostPosted: Sun Feb 03, 2013 4:07 pm    Post subject: Reply with quote

looks good buddy! but, i got to tell ya, after your last thread, once people know what you can do it appears you are only a rock star once.

i stopped posting stuff about rust repair. now, i just answer a bunch of PM's or emails asking what to do.....

don't know, guess i am just getting bitter in my old age...

again, killer work. and i know what it takes to do it right
_________________
gprudenciop wrote:

my reason for switching to subaru is my german car was turning chinese so i said fuck it and went japanese.......
[email protected] wrote:
most VW enthusiasts are stuck in 80's price land.

Jake Raby wrote:
Thanks for the correction. I used to be a nice guy, then I ruined it by exposing myself to the public.

Brian wrote:
Also the fact that people are agreeing with Skills, it's a turn of events for samba history
Back to top
View user's profile Send private message Gallery Classifieds Feedback
wrstp
Samba Member


Joined: August 29, 2007
Posts: 206

wrstp is offline

PostPosted: Sun Feb 03, 2013 4:36 pm    Post subject: Reply with quote

[email protected] wrote:
looks good buddy! but, i got to tell ya, after your last thread, once people know what you can do it appears you are only a rock star once.

i stopped posting stuff about rust repair. now, i just answer a bunch of PM's or emails asking what to do.....

don't know, guess i am just getting bitter in my old age...

again, killer work. and i know what it takes to do it right


Skills its not about being a "rockstar" its about giving back to a great community the only way I know how and that's repairing rust. I have taken from this site for many years and learned a lot so posting some pics and a few tricks I have learned over the years is just a small thank you to all who share there knowledge. This includes you so thanks for all you and many others do for v-dubs.
_________________
Check out Air Kooled Addict on facebook.com and instagram.

Also checkout my other Threads.
http://www.thesamba.com/vw/forum/viewtopic.php?t=543445&highlight=wrstp
http://www.thesamba.com/vw/forum/viewtopic.php?t=525589&highlight=wrstp
http://www.thesamba.com/vw/forum/viewtopic.php?t=472913&highlight=
http://www.thesamba.com/vw/forum/viewtopic.php?t=523640&highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
taylorb1
Samba Member


Joined: July 22, 2012
Posts: 718
Location: Canton, Georgia
taylorb1 is offline

PostPosted: Sun Feb 03, 2013 4:44 pm    Post subject: Reply with quote

If EVERYONE used the search functions, got there info from the Bently, and stopped with 1 rust repair post...... There would be no more posting on the samba.
_________________
It's not dented, it's just been environmentally streamlined!

76 STD Bug-Sold
71 Transporter Converted To Camper.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
levi20AE
Samba Member


Joined: June 24, 2005
Posts: 483
Location: Las Vegas, NV
levi20AE is offline

PostPosted: Sun Feb 03, 2013 4:49 pm    Post subject: Reply with quote

Keep it up! Love the tips and creative metal work.
_________________
1973 Campmobile http://www.thesamba.com/vw/forum/viewtopic.php?t=524511&postdays=0&postorder=asc&start=0
20th AE VW GTI - 369hp 340tq @ 26 PSI
1982 Rabbit Pickup - German AAZ 1.9TD - daily with lots of MPGs
Back to top
View user's profile Send private message Instagram Classifieds Feedback
Yondermtn
Samba Member


Joined: November 21, 2007
Posts: 561
Location: Illinois
Yondermtn is offline

PostPosted: Sun Feb 03, 2013 6:04 pm    Post subject: Reply with quote

Looking forward to following this thread as I did the previous rust repair thread.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Joey
Samba Member


Joined: August 12, 2005
Posts: 4997
Location: Halifax, Nova Scotia, Canada
Joey is offline

PostPosted: Sun Feb 03, 2013 6:20 pm    Post subject: Reply with quote

Yondermtn wrote:
Looking forward to following this thread as I did the previous rust repair thread.


Me too! Please keep the pics and info coming!
_________________
Joey

'74 Bus - '79 Panel - '56 Beetle - '65 Beetle - '60 Kombi

vintagevdubbers.ca
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Colonel_Mustard
Samba Member


Joined: May 02, 2010
Posts: 399
Location: Newfoundland
Colonel_Mustard is offline

PostPosted: Mon Feb 04, 2013 7:06 pm    Post subject: Reply with quote

Thanks for starting another thread. Will be following this one closely as well.
_________________
1984 VW Rabbit GTI
1977 VW Type 2 Westfalia
1972 VW Super Beetle
Back to top
View user's profile Send private message Classifieds Feedback
Vince Waldon
Samba Member


Joined: November 07, 2010
Posts: 452
Location: Edmonton, Alberta
Vince Waldon is offline

PostPosted: Mon Feb 04, 2013 7:30 pm    Post subject: Reply with quote

Beautiful beautiful beautiful welding.

By comparison, I weep at the stuff I'm subjecting my poor bus to. Crying or Very sad Very Happy
Back to top
View user's profile Send private message Classifieds Feedback
Amskeptic
Samba Member


Joined: October 18, 2002
Posts: 8148
Location: All Across The Country
Amskeptic is offline

PostPosted: Mon Feb 04, 2013 8:31 pm    Post subject: Reply with quote

[email protected] wrote:
looks good buddy! but, i got to tell ya, after your last thread, once people know what you can do it appears you are only a rock star once.
guess i am just getting bitter in my old age...


This is true for everyone. Makes you move up to the next level, which is to do good work for the intrinsic satisfaction, not the accolades.
SharkJumpedOldRockStar
_________________
www.itinerant-air-cooled.com
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
notchboy
Samba Member


Joined: April 27, 2002
Posts: 17313
Location: Seattle WA
notchboy is offline

PostPosted: Mon Feb 04, 2013 11:26 pm    Post subject: Reply with quote

Amskeptic wrote:
[email protected] wrote:
looks good buddy! but, i got to tell ya, after your last thread, once people know what you can do it appears you are only a rock star once.
guess i am just getting bitter in my old age...


This is true for everyone. Makes you move up to the next level, which is to do good work for the intrinsic satisfaction, not the accolades.
SharkJumpedOldRockStar



If that actually happened then there really would be any posting after awhile Laughing


Very nice work mr poster!
_________________
t3kg wrote:

OK, this thread is over. You win.

Jason "notchboy" Weigel
1964 1500 S
1964 T34 S Convertible
1974 Westfalia Hardtop Campmobile
1977 Westfalia Camper pop-top
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
BusterBrown
Samba Member


Joined: December 15, 2009
Posts: 1388
Location: Arizona
BusterBrown is offline

PostPosted: Mon Feb 04, 2013 11:44 pm    Post subject: Reply with quote

wrstp wrote:
[email protected] wrote:
looks good buddy! but, i got to tell ya, after your last thread, once people know what you can do it appears you are only a rock star once.

i stopped posting stuff about rust repair. now, i just answer a bunch of PM's or emails asking what to do.....

don't know, guess i am just getting bitter in my old age...

again, killer work. and i know what it takes to do it right


Skills its not about being a "rockstar" its about giving back to a great community the only way I know how and that's repairing rust. I have taken from this site for many years and learned a lot so posting some pics and a few tricks I have learned over the years is just a small thank you to all who share there knowledge. This includes you so thanks for all you and many others do for v-dubs.


Right on bus buddies. Thank you all VERY MUCH! One can never get enough education from the Genius Masters. We can always learn MORE. Cool
_________________
1978 Sage Green Westfalia

Life is short. Can I have some of yours?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
barefootwestie
Samba Member


Joined: September 19, 2005
Posts: 1517
Location: Johns Island, SC
barefootwestie is offline

PostPosted: Tue Feb 05, 2013 7:23 am    Post subject: Reply with quote

I have got to get me a shrinker/stretcher and learn how to use it.
_________________
My Bus Restoration Blog
http://myvwbus.tangerinemoons.com/

1973 Westfalia
"Getting better....one repair at a time."

Other VW's owned through the years, in no particular order:
'67 Beetle,
'67 Ghia Hardtop,
'72 Ghia Convertible,
'72 Westfalia
Back to top
View user's profile Send private message Visit poster's website Facebook Twitter Gallery Classifieds Feedback
wrstp
Samba Member


Joined: August 29, 2007
Posts: 206

wrstp is offline

PostPosted: Tue Feb 05, 2013 12:15 pm    Post subject: Reply with quote

barefootwestie wrote:
I have got to get me a shrinker/stretcher and learn how to use it.


Barefoot here is the set I have from eastwood. I made my own adjustable stand on wheels. There is lots of info on the web on how to use them as they can come in handy.

http://www.eastwood.com/shrinker-stretcher-combo-set-two-bodiestwo-jaws.html
_________________
Check out Air Kooled Addict on facebook.com and instagram.

Also checkout my other Threads.
http://www.thesamba.com/vw/forum/viewtopic.php?t=543445&highlight=wrstp
http://www.thesamba.com/vw/forum/viewtopic.php?t=525589&highlight=wrstp
http://www.thesamba.com/vw/forum/viewtopic.php?t=472913&highlight=
http://www.thesamba.com/vw/forum/viewtopic.php?t=523640&highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
barefootwestie
Samba Member


Joined: September 19, 2005
Posts: 1517
Location: Johns Island, SC
barefootwestie is offline

PostPosted: Tue Feb 05, 2013 12:20 pm    Post subject: Reply with quote

Thanks for that info. Would love to be able to learn how to create some of the pieces you are doing. I have some repairs in the exact same location.
_________________
My Bus Restoration Blog
http://myvwbus.tangerinemoons.com/

1973 Westfalia
"Getting better....one repair at a time."

Other VW's owned through the years, in no particular order:
'67 Beetle,
'67 Ghia Hardtop,
'72 Ghia Convertible,
'72 Westfalia
Back to top
View user's profile Send private message Visit poster's website Facebook Twitter Gallery Classifieds Feedback
wrstp
Samba Member


Joined: August 29, 2007
Posts: 206

wrstp is offline

PostPosted: Tue Feb 05, 2013 6:08 pm    Post subject: Reply with quote

I removed the dogleg to make easy access to the b-pillar inner panel and splash area today. The inner b-pillar was pretty crusty so out comes the cut off wheel.
Image may have been reduced in size. Click image to view fullscreen.

I made a nice template on a previous bus to make things quicker and it fits pretty good. I fit the panel behind the b-pillar and mark it for the step.
Image may have been reduced in size. Click image to view fullscreen.

Once marked I used 1/4" tape to transfer the line over.
Image may have been reduced in size. Click image to view fullscreen.

One of the few times I use my steppers.
Image may have been reduced in size. Click image to view fullscreen.

I didn't get it welded in but prepped the areas for welding. I also thought I would pass on my double sided roloc I use to clean the lip of the b-pillar.
I like to take two 3" rolocs and remove the plastic thread from one and drill a hole.
Image may have been reduced in size. Click image to view fullscreen.

The hole needs to be just big enough to fit over the 2nd plastic thread.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

A 2" rubber roloc pad is needed to use this but works nice for those blind lips.

I also started to make the floor panel I cut out earlier and should be ready to start putting it back together in the next couple days.
_________________
Check out Air Kooled Addict on facebook.com and instagram.

Also checkout my other Threads.
http://www.thesamba.com/vw/forum/viewtopic.php?t=543445&highlight=wrstp
http://www.thesamba.com/vw/forum/viewtopic.php?t=525589&highlight=wrstp
http://www.thesamba.com/vw/forum/viewtopic.php?t=472913&highlight=
http://www.thesamba.com/vw/forum/viewtopic.php?t=523640&highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
CoastalAirCooledVW
Samba Member


Joined: September 02, 2012
Posts: 1891
Location: Mckinleyville, CA (Humboldt County)
CoastalAirCooledVW is offline

PostPosted: Tue Feb 05, 2013 8:00 pm    Post subject: Reply with quote

wrstp wrote:


Image may have been reduced in size. Click image to view fullscreen.


Forgive my metal working ignorance but what is at the top of the panel you made shown here? Looks like something to hold up the panel...
_________________
1966 Velvet Green Standard
Back to top
View user's profile Send private message Send e-mail Classifieds Feedback
Dynamite_Goat
Samba Member


Joined: March 24, 2007
Posts: 113
Location: San Diego
Dynamite_Goat is offline

PostPosted: Tue Feb 05, 2013 8:18 pm    Post subject: Reply with quote

It's a Cleco - a small spring-loaded clamp.

http://www.righttoolusa.com/p/25-Pc-1-8-Cleco-Fast...PAodsngAVQ

Beautiful work, by the way. I really enjoy watching how others tackle these repairs.
Back to top
View user's profile Send private message Classifieds Feedback
Shahn
Samba Member


Joined: June 13, 2009
Posts: 177
Location: SF Bay Area
Shahn is offline

PostPosted: Tue Feb 05, 2013 8:37 pm    Post subject: Reply with quote

Thank you for taking the time to post this. It's very helpful to see the various stages of this process. And I just plain love to see a bus rehabilitated. You are doing Dog's work. Wink
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Bay Window Bus All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3, 4, 5, 6, 7  Next
Page 1 of 7


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2016, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
