1974 bus key code
Forum Index -> Bay Window Bus Share: Facebook Twitter
This topic is locked: you cannot edit posts or make replies.
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
sooonice
Samba Member


Joined: July 04, 2008
Posts: 65
Location: Alberta, Canada
sooonice is offline

PostPosted: Tue Mar 12, 2013 10:55 am    Post subject: 1974 bus key code Reply with quote

So it's getting Warmer each day and I wanted to do some work on my bus, but guess what? Where's the key? I lost it!

So I found a locksmith that can make me a key by the OEM code but I'm having a hard time finding it.

I don't want to pull the ignition switch, as I really don't want to drill anything.

I had two different keys, which opened drivers door, hatch, sliding door and ignition switch. The pass door only locked from inside.

So now my goal is to find a key code that is different from my driver door because chances are it should open the ignition.

I pulled the hatch latch lock, but there is no key code there.... Only a serial number, how is that possible?
_________________
1974 Campmobile 1700cc single carb.
Back to top
View user's profile Send private message Classifieds Feedback
Bala
Samba Member


Joined: December 04, 2003
Posts: 2578
Location: Austin, TX
Bala is offline

PostPosted: Tue Mar 12, 2013 11:01 am    Post subject: Reply with quote

What is the number from the hatch, are you sure it's a serial number?
I would pull the passenger's side handle and use that code. It should be easy to spot.
_________________
1976 Westy

1966 Beetle
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Boesen
Samba Member


Joined: April 12, 2011
Posts: 470
Location: Iowa
Boesen is offline

PostPosted: Tue Mar 12, 2013 11:16 am    Post subject: Reply with quote

I will let the locksmiths here on Samba do specific explanations. But from memory they were R or L coded keys. Does the number from the hatch lock have either letter in it?

Notice code on this key as an example of code on your hatch lock
Image may have been reduced in size. Click image to view fullscreen.

_________________
1979 Westfalia Deluxe http://www.thesamba.com/vw/forum/viewtopic.php?t=474334&highlight=iowa
Back to top
View user's profile Send private message Gallery Classifieds Feedback
white74westy
Samba Member


Joined: May 02, 2011
Posts: 557

white74westy is offline

PostPosted: Tue Mar 12, 2013 11:32 am    Post subject: Reply with quote

Get with Steelerbus (that's his username) and check out his posts. He is a locksmith by trade. His posts will show you exactly where to look for the codes specific to your bus.

Hope that helps!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
SGKent Premium Member
Samba Member


Joined: October 30, 2007
Posts: 31249
Location: Nor Cal
SGKent is offline

PostPosted: Tue Mar 12, 2013 12:05 pm    Post subject: Reply with quote

Quote:
I had two different keys, which opened drivers door, hatch, sliding door and ignition switch.


your choices are pull the driver's door handle and read the lock code on the inside of the handle or pull the hatch lock and read the code on the tang. Give that to one of the locksmiths here. I used Gabe at Gabe's lock and key. You can also send him the passenger lock if you want it tumbled to match.
_________________
Godspeed to all who undertake a journey in a VW Bus.

*You can do it right the first time, or do it over, the choice is yours. It is a free country. As to brakes, steering, tires, axles etc. - you may only get one chance at doing those right.

Bringing back to life, and maintaining a 45 - 50 year old transporter takes a real commitment, and cash. The quality of replacement parts leaves much to be desired, and getting worse.

1971 (sold)
1977
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
sooonice
Samba Member


Joined: July 04, 2008
Posts: 65
Location: Alberta, Canada
sooonice is offline

PostPosted: Tue Mar 12, 2013 12:17 pm    Post subject: Reply with quote

Forgot to mention I had two different keys which operated the ignition, drivers door, sliding door and latch but I'm pretty sure the passenger side one didn't have a matching key.

I'm thinking if I can find two different numbers between all the locks I can try my luck for the ignition switch.

Image may have been reduced in size. Click image to view fullscreen.


There is an R in the code but its at the end and doesn't follow the pattern.

$$$ also my sliding door lock is stuck because the previous owner stripped the Phillips head really bad, haven't figured out how to take that one out yet.


Cheers.
_________________
1974 Campmobile 1700cc single carb.
Back to top
View user's profile Send private message Classifieds Feedback
busdaddy
Samba Member


Joined: February 12, 2004
Posts: 42627
Location: Surrey B.C. Canada, Land of the giant flying moose!
busdaddy is offline

PostPosted: Tue Mar 12, 2013 12:21 pm    Post subject: Reply with quote

That's the part number for the handle, the code is stamped into the side of the rounded part the end of which is closest in your pic.
_________________
Rust NEVER sleeps and stock never goes out of style.

Wanted, OG paint 1971 Niagara blue decklid.

Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
sooonice
Samba Member


Joined: July 04, 2008
Posts: 65
Location: Alberta, Canada
sooonice is offline

PostPosted: Tue Mar 12, 2013 2:44 pm    Post subject: Reply with quote

Thanks bus daddy!

Got the code R066 ... The first two numbers aren't there, or I can't make them out. I tried sanding it and steelwooling lightly to clear it up with no luck.

I wonder if they can make a code from the last 4 digits....

So far none of my handles match. And I think that means the hatch lock is the same as the if ignition.

I'll keep diggin.
_________________
1974 Campmobile 1700cc single carb.
Back to top
View user's profile Send private message Classifieds Feedback
busdaddy
Samba Member


Joined: February 12, 2004
Posts: 42627
Location: Surrey B.C. Canada, Land of the giant flying moose!
busdaddy is offline

PostPosted: Tue Mar 12, 2013 3:09 pm    Post subject: Reply with quote

It might not be a bad idea to dig them all out and sent them to Steelersbus for some rehabilitation and matching up.
_________________
Rust NEVER sleeps and stock never goes out of style.

Wanted, OG paint 1971 Niagara blue decklid.

Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
SteelersBus
Samba Member


Joined: March 17, 2004
Posts: 860
Location: Pennsylvania
SteelersBus is offline

PostPosted: Wed Mar 13, 2013 7:05 pm    Post subject: Reply with quote

Thanks for the shout out guys!

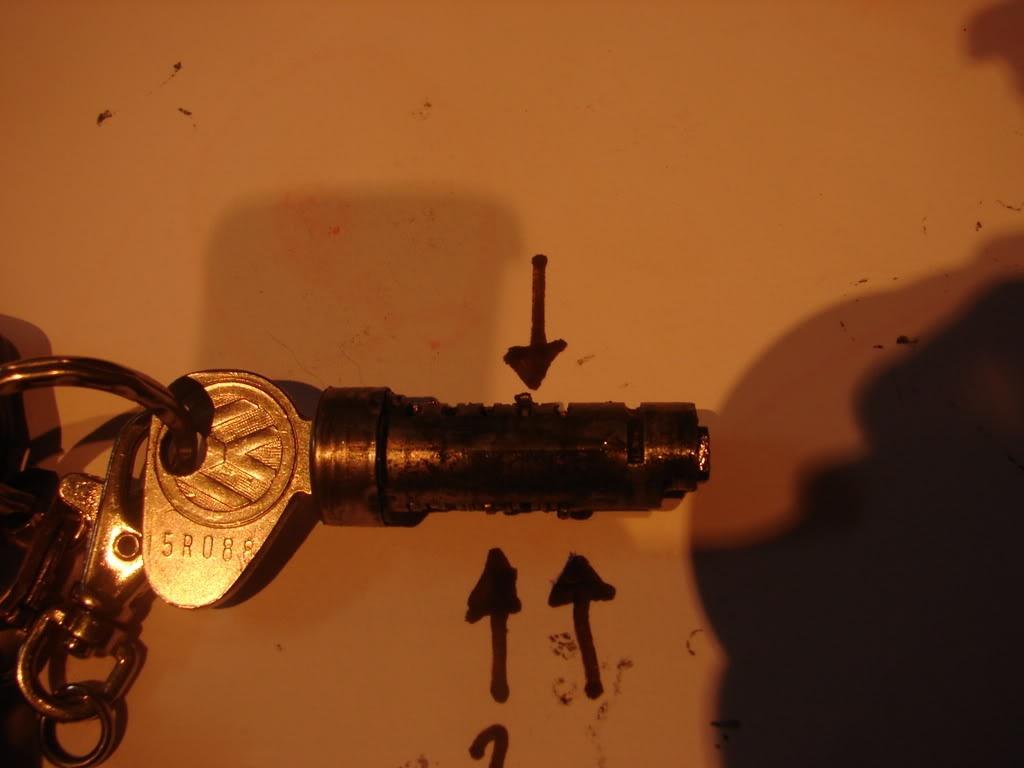

Here are some pictures...

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


I have both generic keys and VW emblem style(original replica)

I can take care of any needs ya have. Thanks! Justin
_________________
Volkswagen Locksmith
Keys by Code, Locks & Keys Supplied,
Key all your Locks to one Key.
http://www.baughmanlock.com

Granny Grose's Buses 13
May 31 - June 3, 2018
Millmont, PA
https://www.facebook.com/groups/333391253346965/
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
WM971252
Samba Member


Joined: September 10, 2004
Posts: 1734
Location: Franklin CT
WM971252 is offline

PostPosted: Thu Mar 14, 2013 6:35 am    Post subject: Reply with quote

sooonice wrote:
Thanks bus daddy!

Got the code R066 ... The first two numbers aren't there, or I can't make them out. I tried sanding it and steelwooling lightly to clear it up with no luck.

I wonder if they can make a code from the last 4 digits....

So far none of my handles match. And I think that means the hatch lock is the same as the if ignition.

I'll keep diggin.


Try rubbing the area with a Sharpe then rub it off quickly. It should leave the black in the numbers. I have had to use a jewelers loop to see them better but then again I am getting old....
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
