Project Quattro-Syncro. 1.8t, 5speed, AWD, ABS,EDL
Page: 1, 2, 3 ... 16, 17, 18  Next
Jump to:
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
xoo00oox
Samba Member


Joined: February 11, 2010
Posts: 2034
Location: East Nassau, NY
xoo00oox is online now

PostPosted: Thu Aug 29, 2013 7:05 pm    Post subject: Project Quattro-Syncro. 1.8t, 5speed, AWD, ABS,EDL Reply with quote

I have had a Syncro van sitting in my lot for many years, parked because of a broken transmission like many others out there waiting for the day the affordable syncro trans will come along.
I'm hoping to make it happen by attempting to use the very affordable, available, and reliable 01A transmission and front diff used in the Audi and B5 4motion Passat.
The engine I'll be using is the AEB 1.8t used in the Audi A4 and B5 Passats.

The wheel base of the Vanagon is 96.7", the Audi A4 is 103.0". The A4's with Tiptronic transmission had a driveshaft that was four inches shorter because the manual trans was shorter. If I use the shorter driveshaft, that will bring my front CV to rear CV length down to 99" or just 2.3" of the vanagon length. I believe the CV's will allow for that difference.
I'll first focus on making it drivable, then look into adding the ABS brake system from the Audi as well. The reason I want the brake system is more for the traction control than the antilock breaking. With this Quattro system, the brakes can grab a wheel that has lost traction so the wheel opposite it can drive or as Audi puts it, EDL (electronic diff lock).

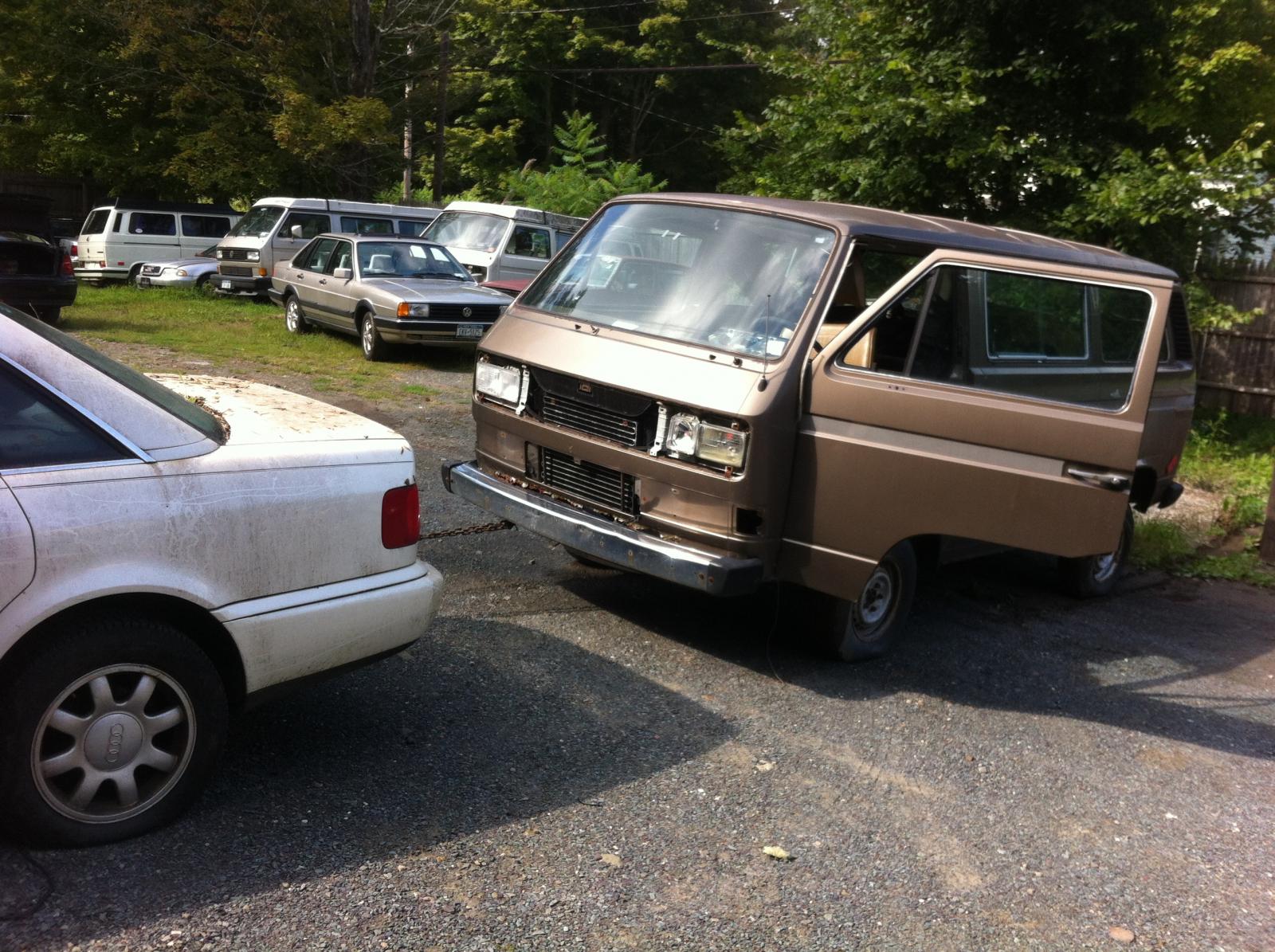

Here is the Syncro being towed in the shop by our trusty "lot pusher" A6

Image may have been reduced in size. Click image to view fullscreen.

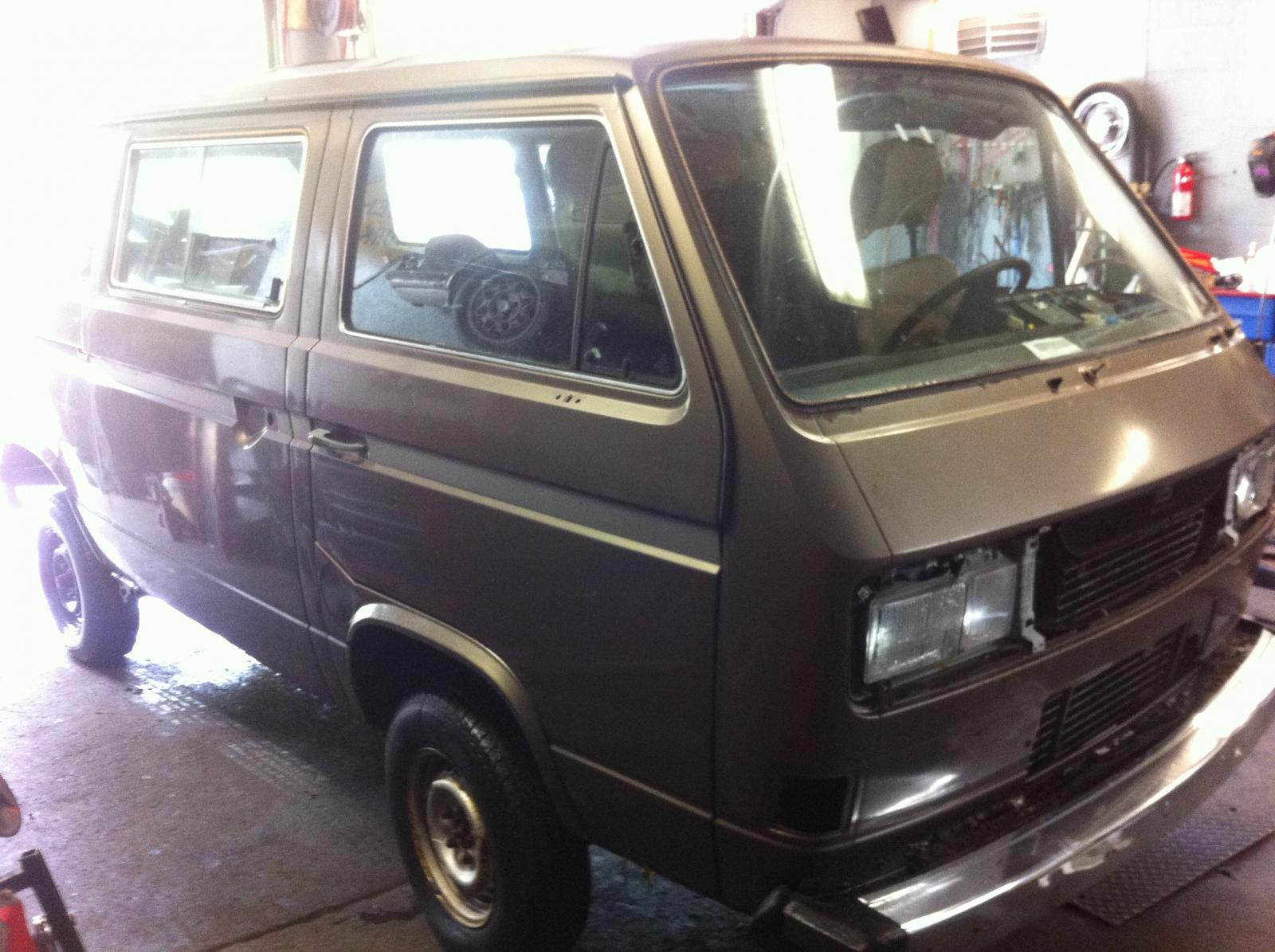

This poor syncro has seen better days.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

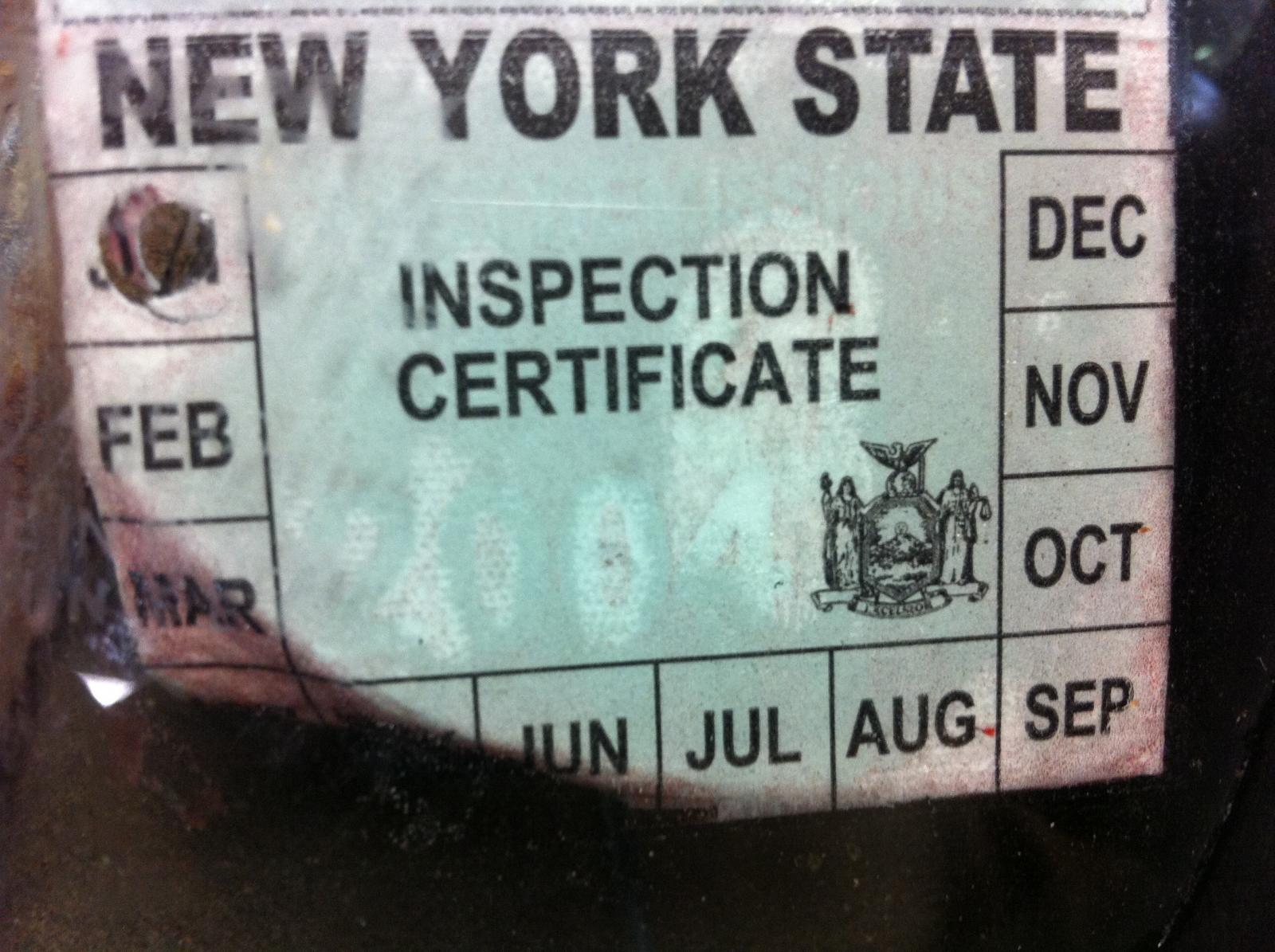

That's a 2001 inspection sticker, last time on the road was 12-13 years ago.

Image may have been reduced in size. Click image to view fullscreen.



Andrew-


Last edited by xoo00oox on Fri Aug 30, 2013 2:52 am; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Syncroincity
Samba Member


Joined: April 15, 2007
Posts: 1557
Location: New York City
Syncroincity is offline

PostPosted: Thu Aug 29, 2013 7:23 pm    Post subject: Reply with quote

Image may have been reduced in size. Click image to view fullscreen.



I was gonna say something about the spelling, but I just got the joke... Laughing
_________________
'86 Syncro CHC Top AAZ Turbodiesel
'04 Passat Variant 4Mo 5MT

Vanagon Build: http://www.thesamba.com/vw/forum/viewtopic.php?t=466866&highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
shadetreetim
Samba Member


Joined: January 10, 2011
Posts: 1994
Location: Riverside, California
shadetreetim is offline

PostPosted: Thu Aug 29, 2013 7:36 pm    Post subject: Reply with quote

Geez, you sure know how to make a guy jealous.
_________________
Tim Potts

Doing my best every time I drive it to dispel the myth these Vanagons have to be slow!


'89 Vanagon Bluestar/Country Homes 1.8T & .77 4th
'10 Wrangler 3.8 6SP Manual
'12 Ford E350
'12 Tiguan 2.0T 6SP Tiptronic - Lady Shadetree's
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Zeitgeist 13
Samba Member


Joined: March 05, 2009
Posts: 9470
Location: Port Manteau
Zeitgeist 13 is offline

PostPosted: Thu Aug 29, 2013 8:11 pm    Post subject: Reply with quote

I'm as useless as testicles in a bra, but I'm all over this thread.
_________________
Casey--
Seven VW vans from T1 through T4 since 1985
Volkswagens powered by Volkswagen
Respect the marque
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Vanagon Nut
Samba Member


Joined: February 08, 2008
Posts: 8267
Location: Sunshine Coast B.C.
Vanagon Nut is offline

PostPosted: Thu Aug 29, 2013 8:50 pm    Post subject: Reply with quote

Zeitgeist 13 wrote:
I'm as useless as testicles in a bra, .....


ha. Reminds me of an old joke, which I won't tell, b/c it involves the pope. The punch line is "viola solo".

Andrew, this post made my day.

I know you know what you're doing, but for me to envision things.....

In terms of the CV's, could one ballpark by measuring the angle at CV's on a lifted Syncro, and its' CV lifespan, against the 2+" difference? (or is it more like 1+" per set of axles?) ..... if that makes sense.

Way to rock the VW thing man.

Neil.
_________________
1981 Westy air cooled to 15 ABA swap: http://tinyurl.com/y9n4xob8

50 ABA Swap in to '88 Westy: http://tinyurl.com/yap5hpwt

Vanagon VAG GAS engine swap Google Group:
https://tinyurl.com/2f24rmh

VE7TBN
Back to top
View user's profile Send private message Gallery Classifieds Feedback
hans j
Samba Member


Joined: May 06, 2006
Posts: 2539
Location: Salt Lake City UT
hans j is offline

PostPosted: Thu Aug 29, 2013 9:15 pm    Post subject: Reply with quote

Why not just have a propshaft shortened/lengthened to the exact length? All they do is cut out a section and weld it back together. That's what I am doing for my CV conversion. I'll be using a B6 propshaft with the center CV joint and carrier bearing, it's much lighter than the u-joint driveshafts.

Definitely looking forward to the conversion!
_________________
1986 Canadian Syncro Westy TDI - 1989 Syncro Single Cab - 2001 Audi S4 - 1981 VW Caddy ABA - 1980 VW Caddy EV - 1973 VW T-181
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
shadetreetim
Samba Member


Joined: January 10, 2011
Posts: 1994
Location: Riverside, California
shadetreetim is offline

PostPosted: Thu Aug 29, 2013 10:01 pm    Post subject: Reply with quote

Will you be using the Quattro rear diff in the front of the Syncro?
_________________
Tim Potts

Doing my best every time I drive it to dispel the myth these Vanagons have to be slow!


'89 Vanagon Bluestar/Country Homes 1.8T & .77 4th
'10 Wrangler 3.8 6SP Manual
'12 Ford E350
'12 Tiguan 2.0T 6SP Tiptronic - Lady Shadetree's
Back to top
View user's profile Send private message Gallery Classifieds Feedback
xoo00oox
Samba Member


Joined: February 11, 2010
Posts: 2034
Location: East Nassau, NY
xoo00oox is online now

PostPosted: Fri Aug 30, 2013 2:32 am    Post subject: Reply with quote

'nut-
Looking at my blue van with the 2wd version of the same transmission, there is plenty of room to move the axles back a couple inches.

Hans-
I know that is an option, I always try to use stock parts when I can. I'm hoping if I plan ahead I won't need the expense or have to rely on someone else to get it done. Thanks for suggestion.

'Tim-
Yes, the Audi rear diff will be my new front diff.

Andrew-
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
chojinchef
Samba Member


Joined: February 17, 2011
Posts: 1535
Location: Central Massachusetts
chojinchef is offline

PostPosted: Fri Aug 30, 2013 6:18 am    Post subject: Reply with quote

Popcorn Popcorn Popcorn Popcorn Popcorn Popcorn

Gonna need lots of it for this thread.

LP
_________________
Its a mistress; an expensive, whiney, needy bitch of a mistress. She is a chunky, dirty girl with bad skin, little motivation and yet she always makes me smile. She sure has been around before shacking up with me. She has a direct line to my wallet, plays with my emotions, is consistantly jovial yet with a sarcastic and sardonic side, is consistant in her inconsistancy, and every once in a while gives me a great ride and a fantastic memory.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
danfromsyr
Samba Member


Joined: March 01, 2004
Posts: 12432
Location: Syracuse, NY
danfromsyr is offline

PostPosted: Fri Aug 30, 2013 7:14 am    Post subject: Reply with quote

This I have to see.. there's not alot of room up front and I'm curious to the fitment of the Trans with the Syncro fuel tank.

xoo00oox wrote:
Yes, the Audi rear diff will be my new front diff.

Andrew-



*subscribed
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
insyncro
Banned


Joined: March 07, 2002
Posts: 15087
Location: New York
insyncro is offline

PostPosted: Fri Aug 30, 2013 7:17 am    Post subject: Reply with quote

Spacing the driveline for more wiggle room is not a huge issue...as long as everything is equally spaced.

Looking forward to your project Andrew.

Will this need to retain 14" wheels and stock tire diameter as well?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dixoncj
Samba Member


Joined: June 17, 2004
Posts: 1066
Location: Charleston, SC
dixoncj is offline

PostPosted: Fri Aug 30, 2013 7:26 am    Post subject: Reply with quote

Image may have been reduced in size. Click image to view fullscreen.


Could be a magical project.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
rs4-380
Samba Member


Joined: August 13, 2006
Posts: 449
Location: Maine
rs4-380 is offline

PostPosted: Fri Aug 30, 2013 12:33 pm    Post subject: Reply with quote

so are you going to spin the engine backwards?
_________________
Dave
87 EJ25 Syncro GL
Back to top
View user's profile Send private message Gallery Classifieds Feedback
xoo00oox
Samba Member


Joined: February 11, 2010
Posts: 2034
Location: East Nassau, NY
xoo00oox is online now

PostPosted: Fri Aug 30, 2013 12:49 pm    Post subject: Reply with quote

rs4-380 wrote:
so are you going to spin the engine backwards?



yes, engine running backward.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
xoo00oox
Samba Member


Joined: February 11, 2010
Posts: 2034
Location: East Nassau, NY
xoo00oox is online now

PostPosted: Fri Aug 30, 2013 4:37 pm    Post subject: Reply with quote

I was able to spend a few hours today on my syncro. I actually have very little syncro experience, almost all the vans that come here are 2wd. I had never dropped the front sub-frame from one before. It is really neat that in just a few hours even with very rusty hardware you can drop this down like this.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.




here is the Audi rear diff compared to the syncro front diff

Image may have been reduced in size. Click image to view fullscreen.

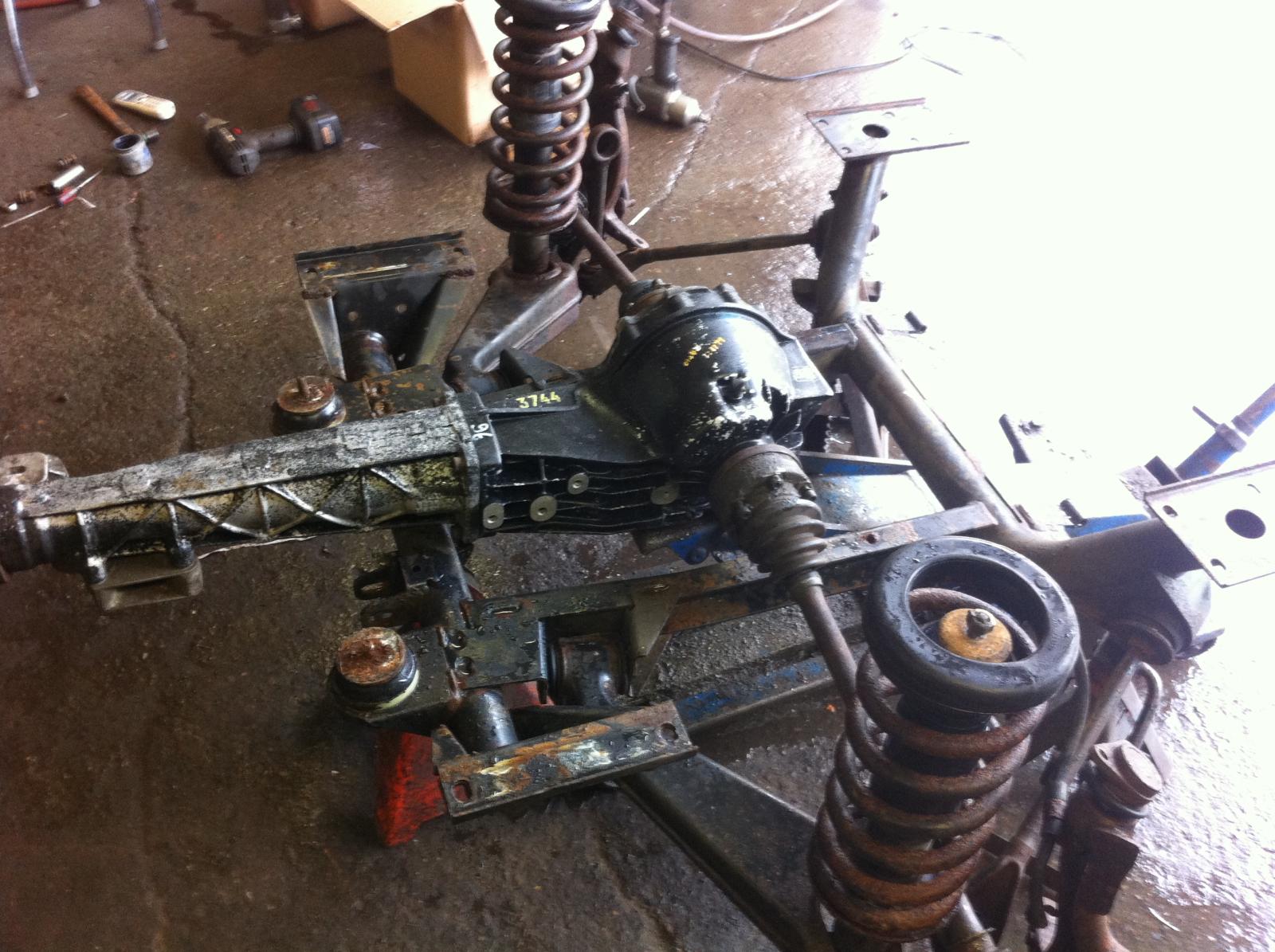

and here is the Audi diff in place on the Syncro sub-frame

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.



The axles just bolt right on! I measure the distance between the left and right CV flanges, there is only 1/4" difference in that the Audi diff is narrower. This is all very good news.


The next step is to pull the springs off the struts and wheel this back under my van and bolt the frame back up. by having the springs remove, I can still bolt the top of the struts on to the body to locate the suspension correctly and be able to easily move the suspension up and down as well as steer the spindles left and right to check for and see if I have all the axial movement I need from the CV joints.

Andrew-
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
ute
Samba Member


Joined: November 04, 2009
Posts: 318
Location: Downers Grove, IL
ute is offline

PostPosted: Fri Aug 30, 2013 8:16 pm    Post subject: Reply with quote

This is totally rad!
Back to top
View user's profile Send private message Twitter Instagram Gallery Classifieds Feedback
dobryan
Samba Member


Joined: March 24, 2006
Posts: 11220
Location: Brookeville, MD
dobryan is offline

PostPosted: Fri Aug 30, 2013 8:37 pm    Post subject: Reply with quote

Popcorn I love that you think of doing something and then just dive right in and make it happen. Looking forward to the results. Very Happy
_________________
Dave O
'87 Westy w/ 2002 Subaru EJ25 and Peloquin TBD

"To travel hopefully is a better thing than to arrive." Robert Louis Stevenson

Join the Vanagon Rescue Squad on the VanAlert app.
http://vanalert.com/

MD>Canada>AK>WA>OR>CA>AZ>UT>WY>SD
https://www.thesamba.com/vw/forum/viewtopic.php?t=620646

Building a bus for travel in Europe
https://www.thesamba.com/vw/forum/viewtopic.php?t=695371
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Zeitgeist 13
Samba Member


Joined: March 05, 2009
Posts: 9470
Location: Port Manteau
Zeitgeist 13 is offline

PostPosted: Fri Aug 30, 2013 8:42 pm    Post subject: Reply with quote

This thread is moving too fast. Slow it down
_________________
Casey--
Seven VW vans from T1 through T4 since 1985
Volkswagens powered by Volkswagen
Respect the marque
Back to top
View user's profile Send private message Gallery Classifieds Feedback
IdahoDoug
Samba Member


Joined: June 12, 2010
Posts: 9673
Location: N. Idaho
IdahoDoug is offline

PostPosted: Fri Aug 30, 2013 9:13 pm    Post subject: Reply with quote

Yeah, slow it down some - I'm dizzy! Based on the pace of this thread, someone with a vinyl sign cutter needs to already start making a Quattro nose sticker in the Syncro font, 'cause by the time you make it and mail it, he'll be driving this thing! Heh.

So will it be a "SynQuatt", or a "Quancro"? Either way, one of those front to rear Audi emblem fades along the lower doors would look great.

DougM
_________________
1987 2WD Wolfsburg Vanagon Weekender "Mango", two fully locked 80 Series LandCruisers. 2016 Subaru Outback boxer. 1990 Audi 90 Quattro 20V with rear locking differential. 1988 Mitsubishi Van w/ dual spinny seats, mid engine and solid axle.1990 burgundy parts Vanagon. 1984 Porsche 944, 1992 Lexus LS400, 1988 Toyota Supra 5 speed targa project in pieces.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kirsplat
Samba Member


Joined: April 30, 2008
Posts: 412
Location: Seattle
kirsplat is offline

PostPosted: Fri Aug 30, 2013 9:34 pm    Post subject: Reply with quote

I'd just call it SQuatt Very Happy

What an awesome project you've started here...
I'm really looking forward to watching this come alive!
_________________
86 Syncro|EJ253|Carat
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3 ... 16, 17, 18  Next
Jump to:
Page 1 of 18


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
