re breather hose and after market air cleaners?
Forum Index -> Beetle - 1958-1967 Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
cbath
Samba Member


Joined: March 02, 2014
Posts: 22
Location: United States
cbath is offline

PostPosted: Fri Apr 04, 2014 1:29 pm    Post subject: re breather hose and after market air cleaners? Reply with quote

So what are people doing with the oil filler breather hose if and when they switch to an after market air filter?

seeing as most after market air filters dont have a port for this hose, I am just sort of curious.

I have a 66 with a 1600 DP engine in it. The larger oil filled air cleaners wont fit under the deck lid and I feel like the smaller 66 and earlier air cleaners might restrict too much air flow for the bigger motor.

the previous owner put a little plug over the breather hose port on the oil filler which redirected all of the case gasses out of the little down tube that comes off the filler cap.

Just curious if there is a work around here that still allows me to use the rebreather set up.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
glutamodo Premium Member
The Android


Joined: July 13, 2004
Posts: 26579
Location: Douglas, WY
glutamodo is offline

PostPosted: Fri Apr 04, 2014 1:52 pm    Post subject: Reply with quote

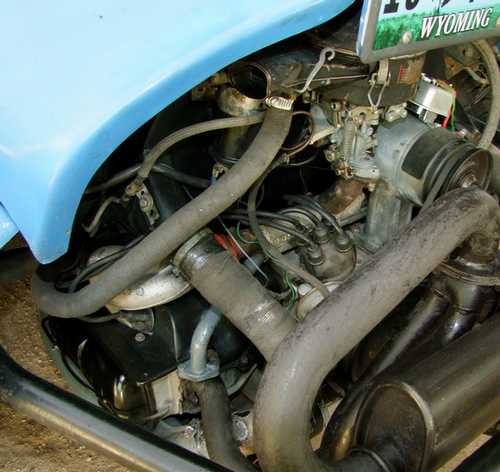

I've run my 61 Baja with 1200 and 1300 air cleaners for 20 years now - always with either 1585 or 1641cc dual ports, and 34PICT-3 and 30PICT-1 carbs, never had a problem. Currently running a 66 air cleaner. And I happen to have a heater box with a preheat fitting and I use it. And I have the crankcase vent hooked up to it as well.

Image may have been reduced in size. Click image to view fullscreen.


-Andy
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
DrKeck
Samba Member


Joined: November 10, 2013
Posts: 309
Location: Texas
DrKeck is offline

PostPosted: Fri Apr 04, 2014 2:18 pm    Post subject: Reply with quote

you make something work for it (plastic pipe and rubber hose) or just say screw the environment and leave it plugged lol

Image may have been reduced in size. Click image to view fullscreen.

_________________
1966 Beetle
1600cc 50bhp
Daily Driver
Back to top
View user's profile Send private message Gallery Classifieds Feedback
cbath
Samba Member


Joined: March 02, 2014
Posts: 22
Location: United States
cbath is offline

PostPosted: Fri Apr 04, 2014 4:50 pm    Post subject: Reply with quote

I have a 40 HP oil filled air cleaner, but it looks like the 66 air cleaner has a little bit larger of an air intake. I'd like to get my hands on one but I'm guessing it might take me a little while to find one of those.

Even better than that, I saw this image in one of the air cleaner threads of what looks to be an air cleaner made specifically to fit larger engines under 66 and older deck lids, now one of those would be nice as I could use my larger preheat set up. I believe this is the Part number 113 129 613Q.


Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.


Now one of these would be sweet! anyone got one of these??
Back to top
View user's profile Send private message Gallery Classifieds Feedback
glutamodo Premium Member
The Android


Joined: July 13, 2004
Posts: 26579
Location: Douglas, WY
glutamodo is offline

PostPosted: Fri Apr 04, 2014 5:18 pm    Post subject: Reply with quote

I think you'll probably have to look outside the USA to find one of those, unfortunately.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
