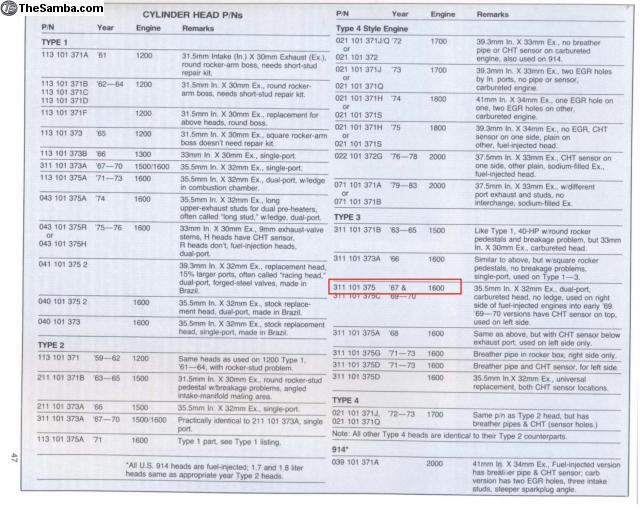

VW Cylinder Head Quick Reference Sheet
Page: 1, 2, 3, 4, 5, 6  Next
Forum Index -> Performance/Engines/Transmissions Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
AlteWagen
Troll


Joined: February 23, 2007
Posts: 7877

AlteWagen is offline

PostPosted: Wed Jun 17, 2020 7:43 pm    Post subject: Re: VW Cylinder Head Quick Reference Sheet Reply with quote

MitchS046 wrote:
what does CFM stand for all I know it is about the flow rate but what is high and what is low?


It is a measure of how much air can flow through a given restriction over a period of time, cubic feet per minute

Low in this case would be stock flow as a baseline (heads at top of chart)

The general thought is the HP possibility is related to the amount of max flow (200 cfm could possibly get 200HP with all things being perfect).
_________________
Grapes of Wrath $200 Engine Rebuild
Official Dual Carb Thread
Cylinder Head Quick Reference Sheet
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
MitchS046
Samba Member


Joined: March 02, 2020
Posts: 81
Location: zitterd de gekste
MitchS046 is offline

PostPosted: Wed Jun 17, 2020 3:00 pm    Post subject: Re: VW Cylinder Head Quick Reference Sheet Reply with quote

what does CFM stand for all I know it is about the flow rate but what is high and what is low?
_________________
the lower the altitude the higher the attitude,

-Aaron Kaufman
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
slalombuggy
Samba Member


Joined: July 17, 2010
Posts: 8406
Location: 30 minutes from nowhere
slalombuggy is offline

PostPosted: Wed Jun 17, 2020 10:56 am    Post subject: Re: VW Cylinder Head Quick Reference Sheet Reply with quote

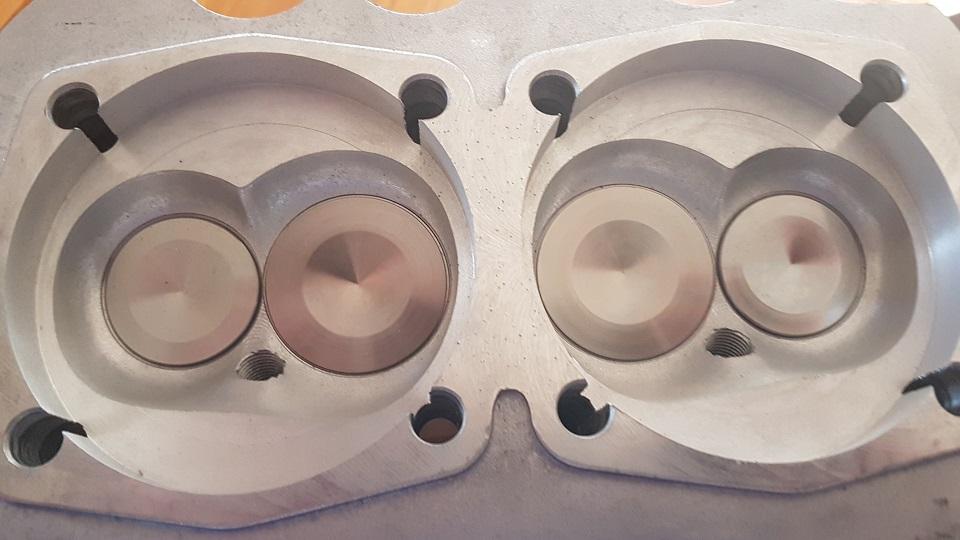

My new Ultra Wedgies from CB have the same step.

Image may have been reduced in size. Click image to view fullscreen.


brad
_________________
Lucky Monkey Landspeed Racing
Proving that you can spends ridiculous sums of money to go slow
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Mrblue01
Samba Member


Joined: January 09, 2009
Posts: 18
Location: Westland, MI
Mrblue01 is offline

PostPosted: Wed Jun 17, 2020 10:22 am    Post subject: Re: VW Cylinder Head Quick Reference Sheet Reply with quote

57BLITZ wrote:
AlteWagen wrote:
Thanks for the pics! Can you post some of the rocker area?

Thank you AlteWagen for this informative thread!

Bonus... detail photo of C.N.C. reworked chamber option... heads are opened for 94mm...

Image may have been reduced in size. Click image to view fullscreen.


I am wondering why CB heads like yours have a shallow (0.010"?) step on the deck surface? I have a set of SuprPro's that are the same. I am trying to get max compression ratio and this is working against me. Anyone know?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
57BLITZ
Samba Member


Joined: June 12, 2012
Posts: 2335
Location: DEEK - U.S.A.
57BLITZ is offline

PostPosted: Tue Jun 16, 2020 6:03 pm    Post subject: Re: VW Cylinder Head Quick Reference Sheet Reply with quote

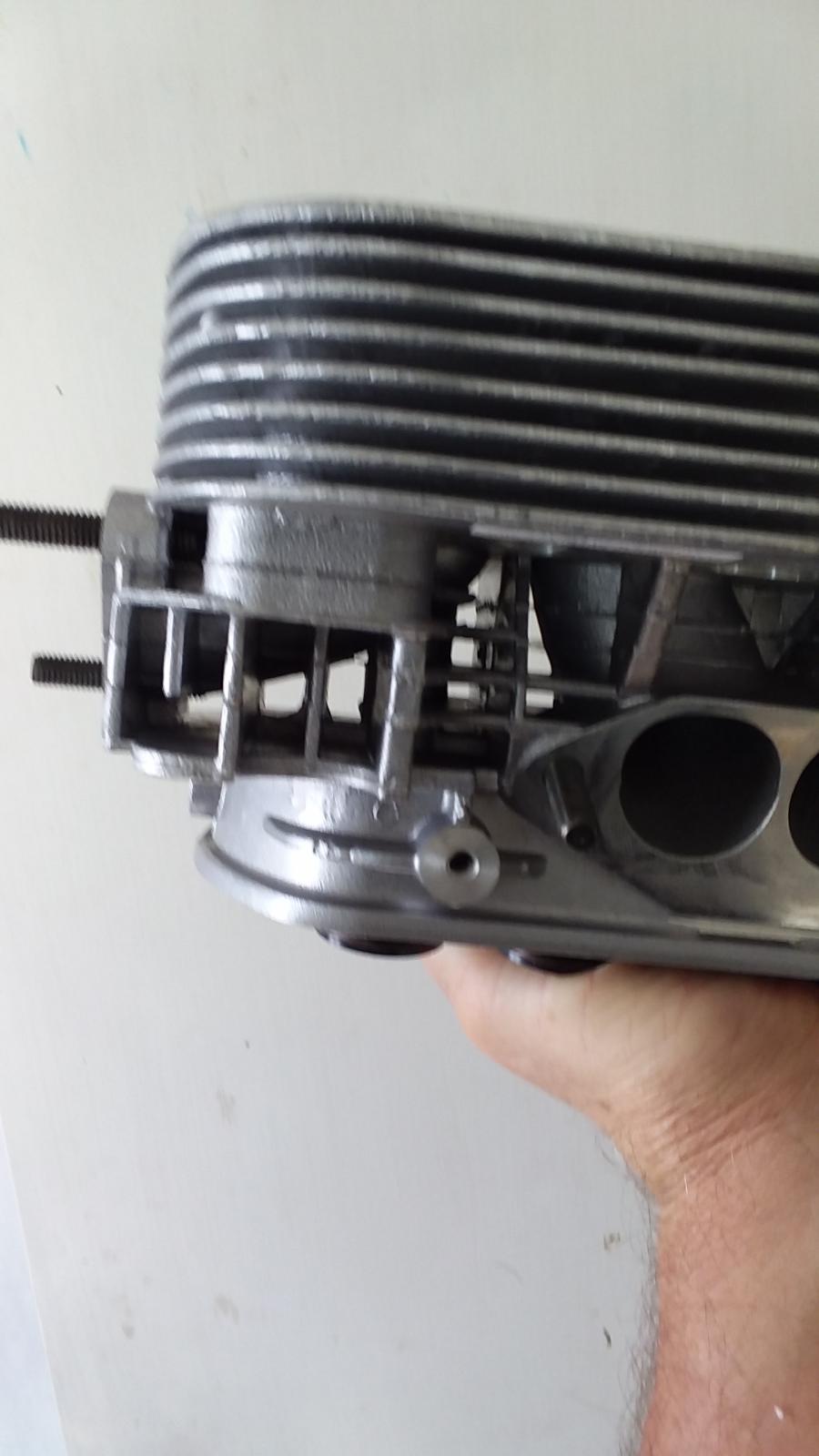

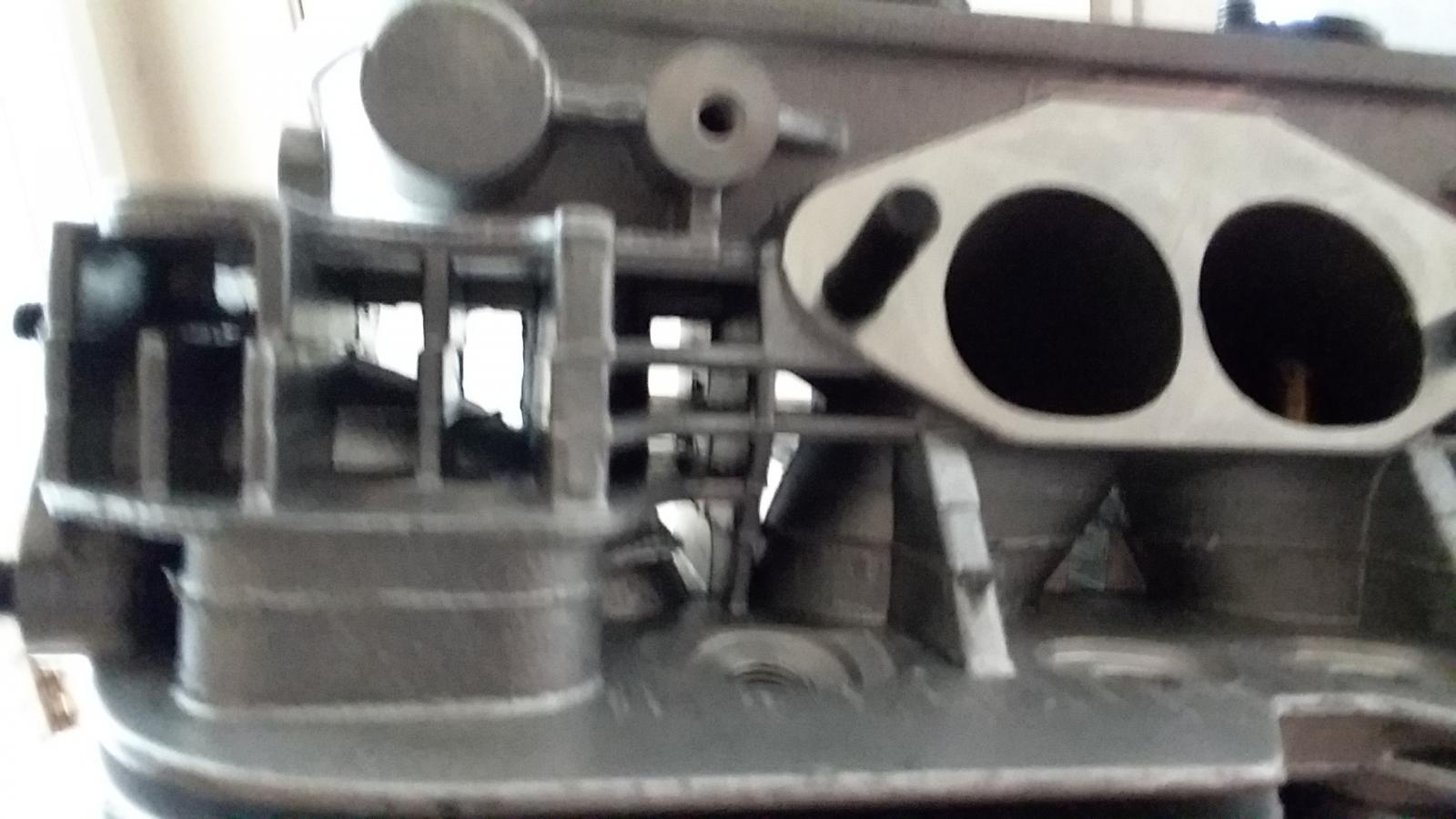

AlteWagen wrote:

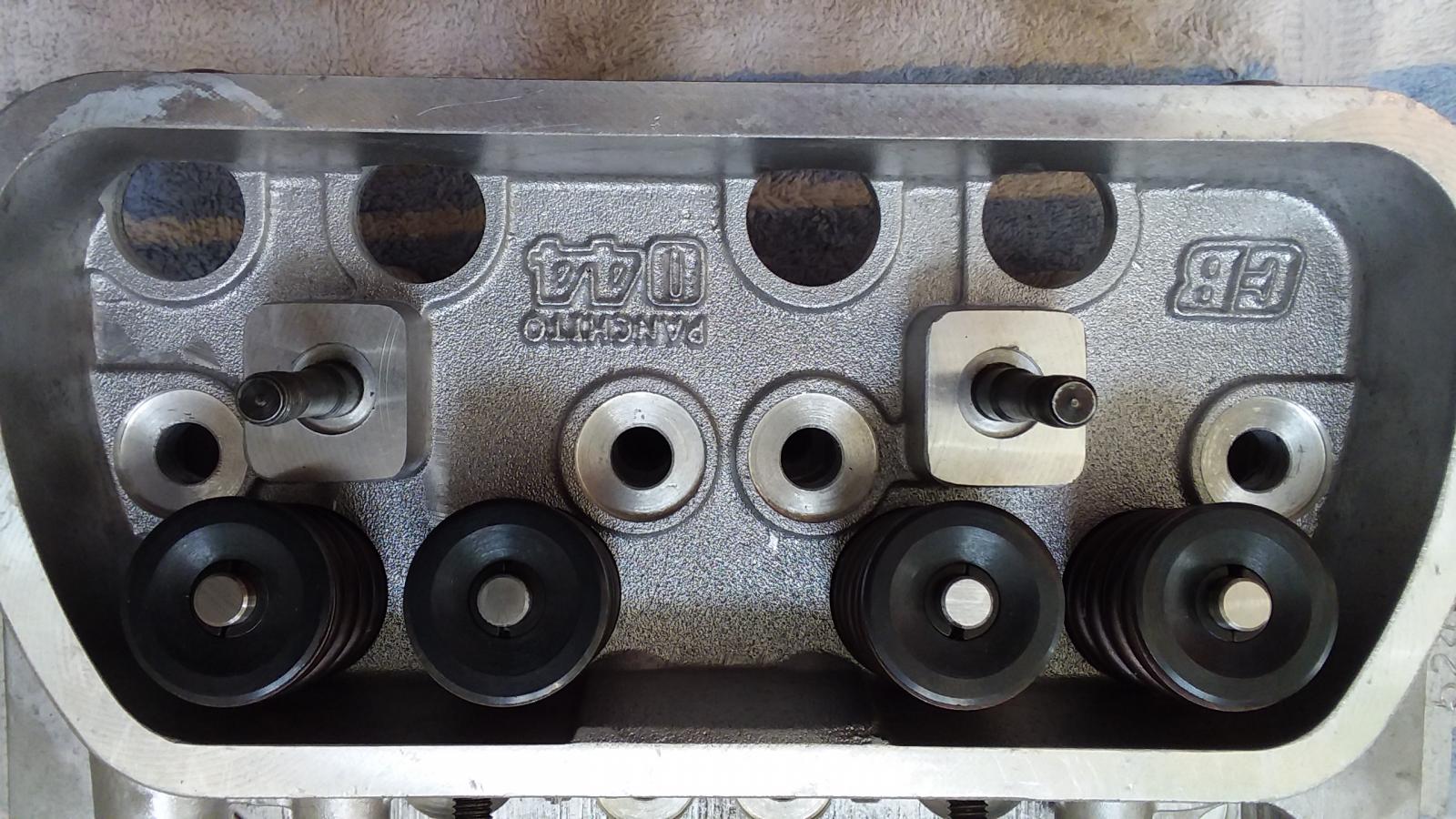

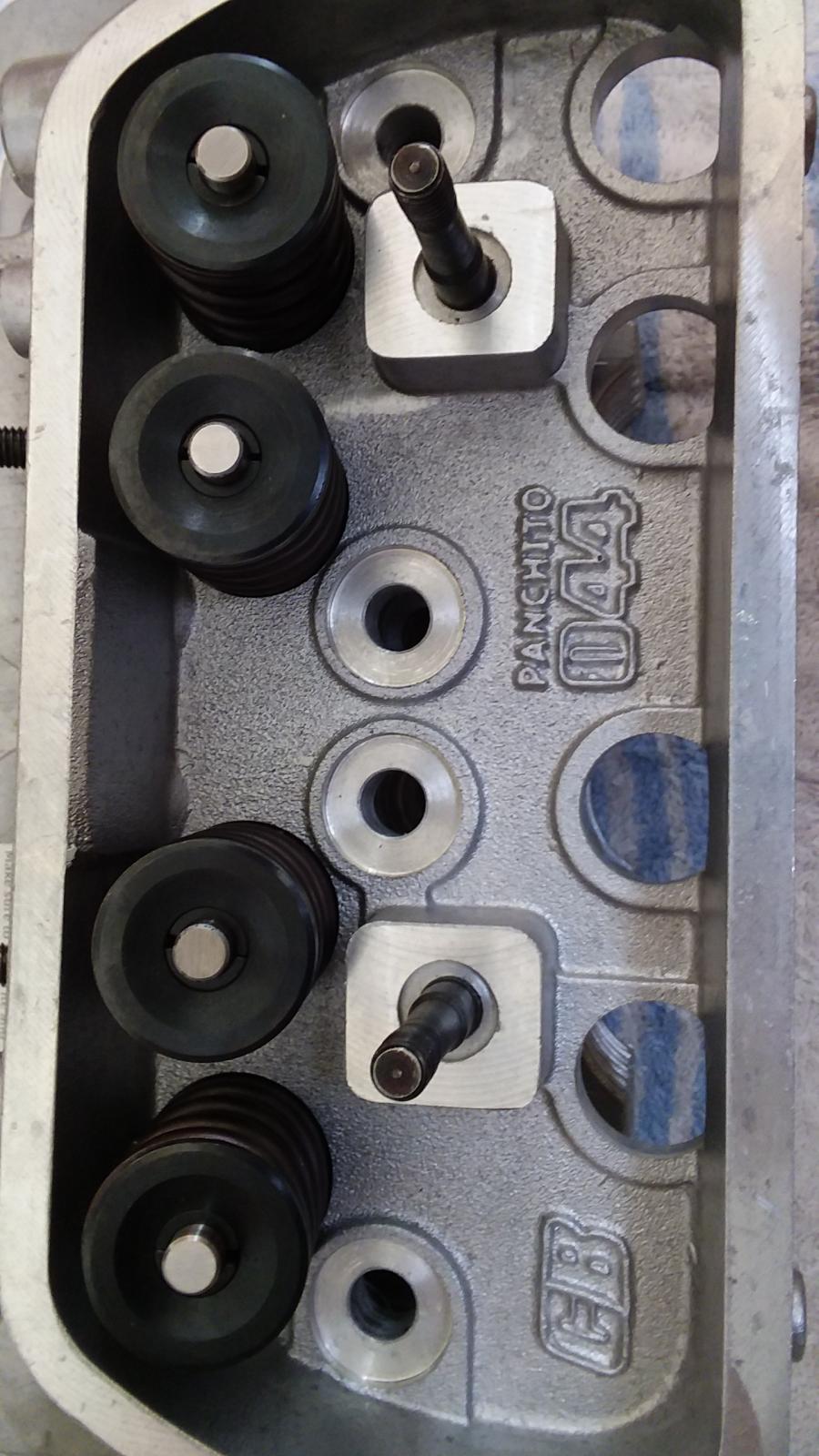

Thanks for the pics! Can you post some of the rocker area?

Thank you AlteWagen for this informative thread!


Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

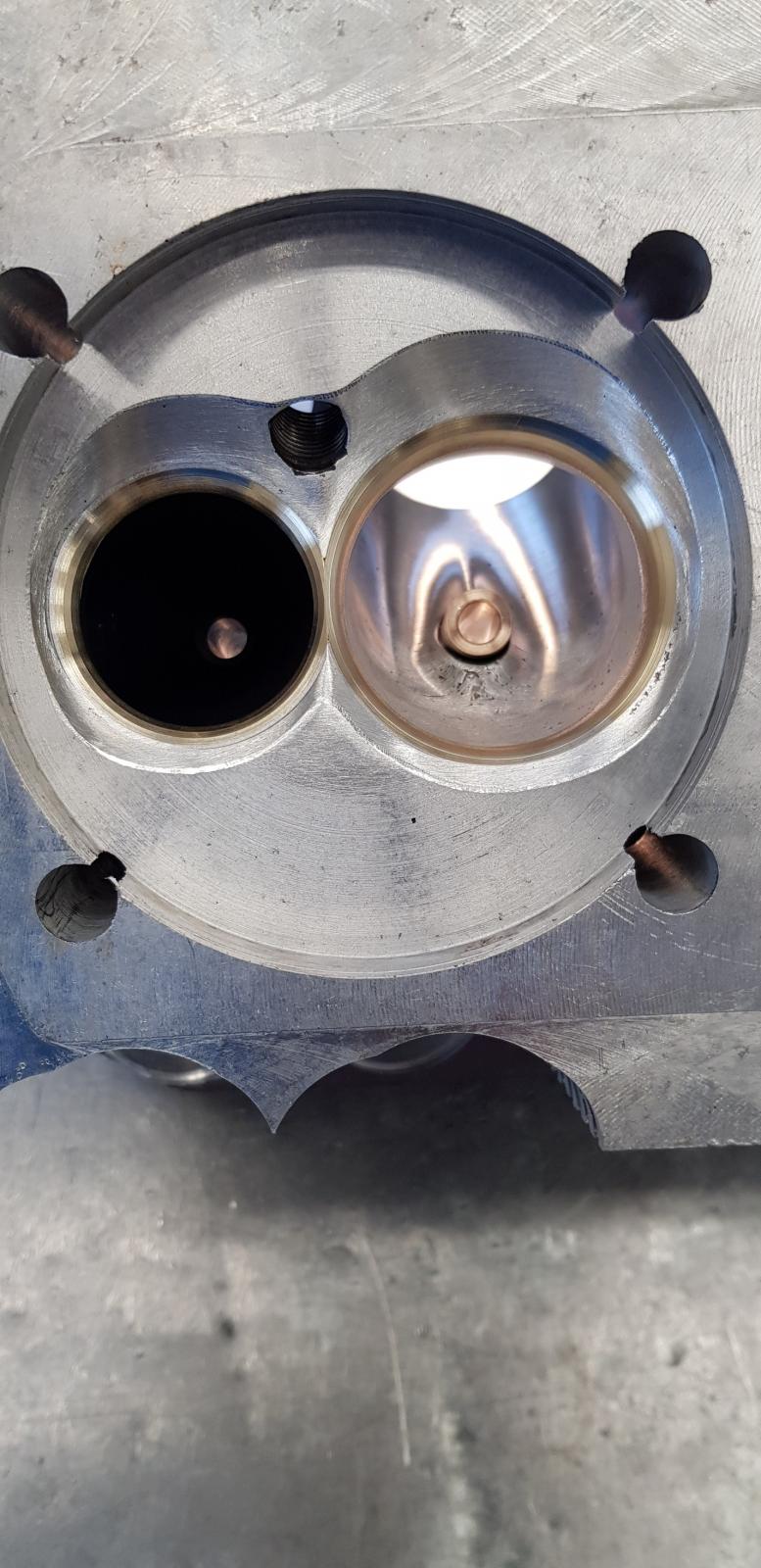

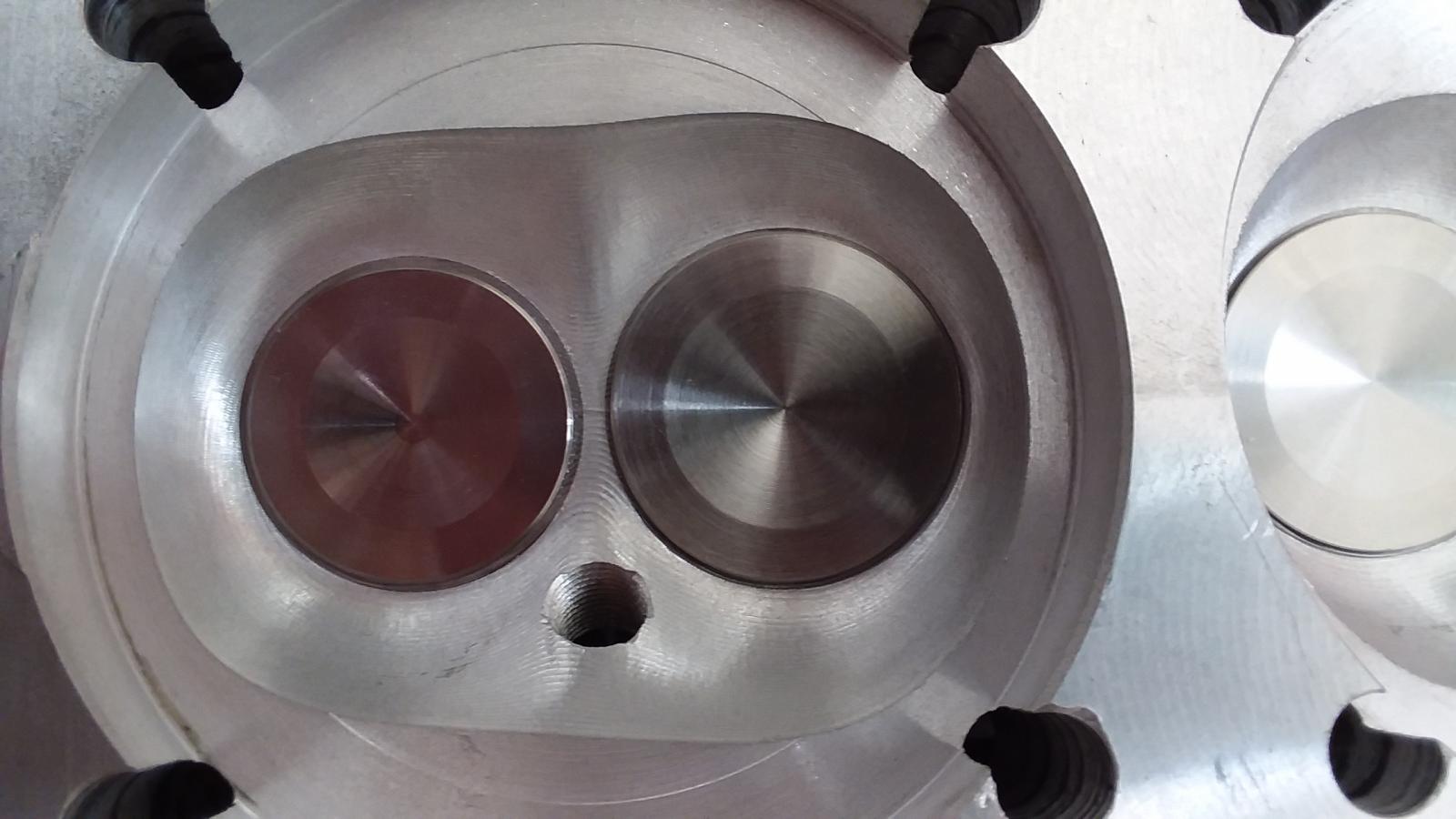

Bonus... detail photo of C.N.C. reworked chamber option... heads are opened for 94mm...

Image may have been reduced in size. Click image to view fullscreen.

_________________
Jesucristo es mi Seņor y Salvador!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
AlteWagen
Troll


Joined: February 23, 2007
Posts: 7877

AlteWagen is offline

PostPosted: Tue Jun 16, 2020 5:35 pm    Post subject: Re: VW Cylinder Head Quick Reference Sheet Reply with quote

Thanks for the pics! Can you post some of the rocker area?
_________________
Grapes of Wrath $200 Engine Rebuild
Official Dual Carb Thread
Cylinder Head Quick Reference Sheet
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
57BLITZ
Samba Member


Joined: June 12, 2012
Posts: 2335
Location: DEEK - U.S.A.
57BLITZ is offline

PostPosted: Tue Jun 16, 2020 3:37 pm    Post subject: Re: VW Cylinder Head Quick Reference Sheet Reply with quote

AlteWagen wrote:
Is it just me or does it look like CBs Panchito casting?

AlteWagen wrote:
Some more info on the redesigned Autolinea 043

https://blog.bbt4vw.com/2018/05/25/friday-product-update-194/

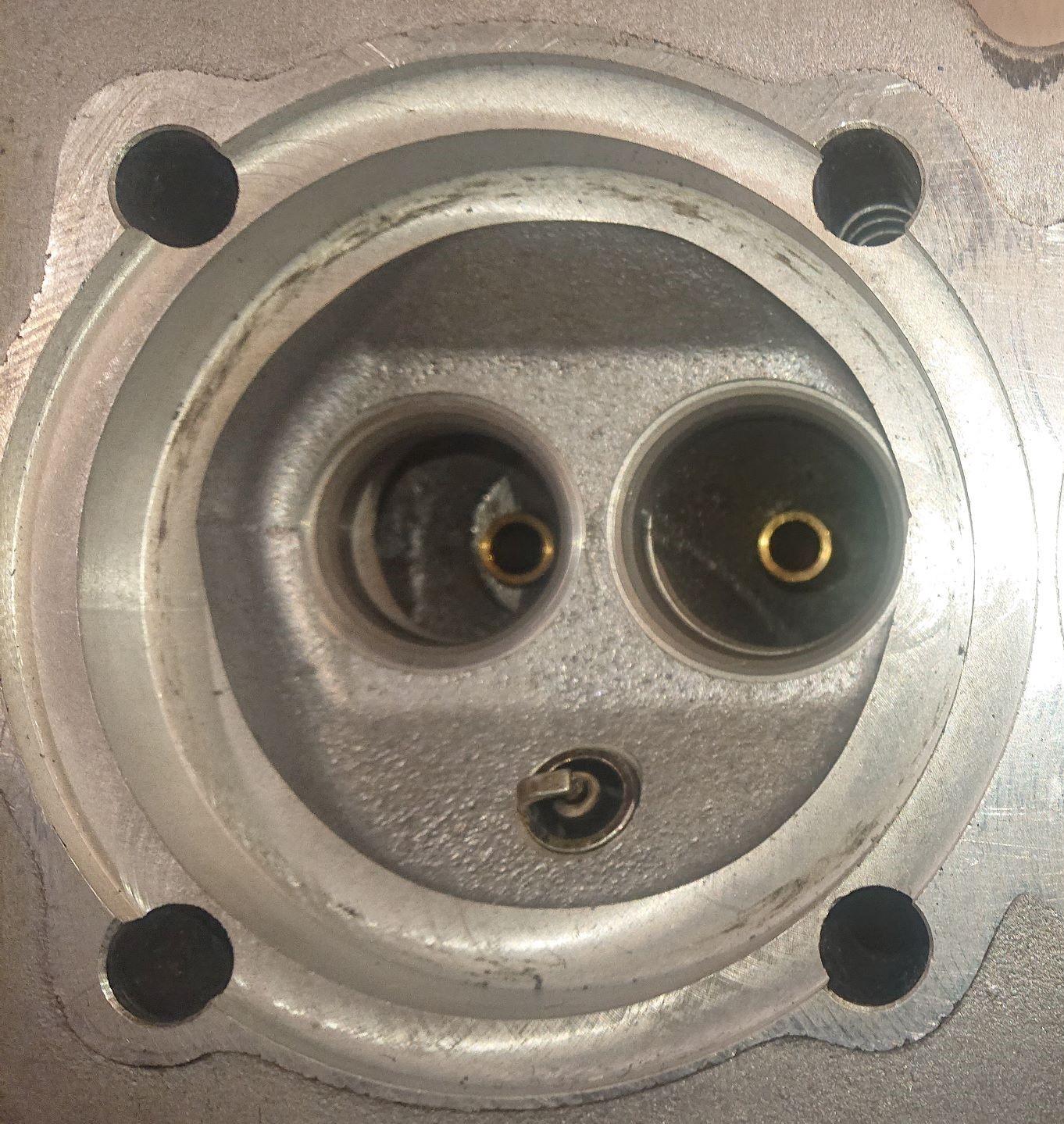

Comparing the photos in the link to the Panchito head I have in my hands . . . looks to be a different casting . . . many differences!
Between the intake port and the exhaust port on the Panchito head . . . 9 holes for air-flow!

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Jesucristo es mi Seņor y Salvador!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
AlteWagen
Troll


Joined: February 23, 2007
Posts: 7877

AlteWagen is offline

PostPosted: Tue Jun 16, 2020 2:36 pm    Post subject: Re: VW Cylinder Head Quick Reference Sheet Reply with quote

Some more info on the redesigned Autolinea 043

https://blog.bbt4vw.com/2018/05/25/friday-product-update-194/
_________________
Grapes of Wrath $200 Engine Rebuild
Official Dual Carb Thread
Cylinder Head Quick Reference Sheet
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
AlteWagen
Troll


Joined: February 23, 2007
Posts: 7877

AlteWagen is offline

PostPosted: Mon Feb 17, 2020 4:41 pm    Post subject: Re: VW Cylinder Head Quick Reference Sheet Reply with quote

Looks like Autolinea has a new casting for their 043 clone. Anyone get a close look at them yet?


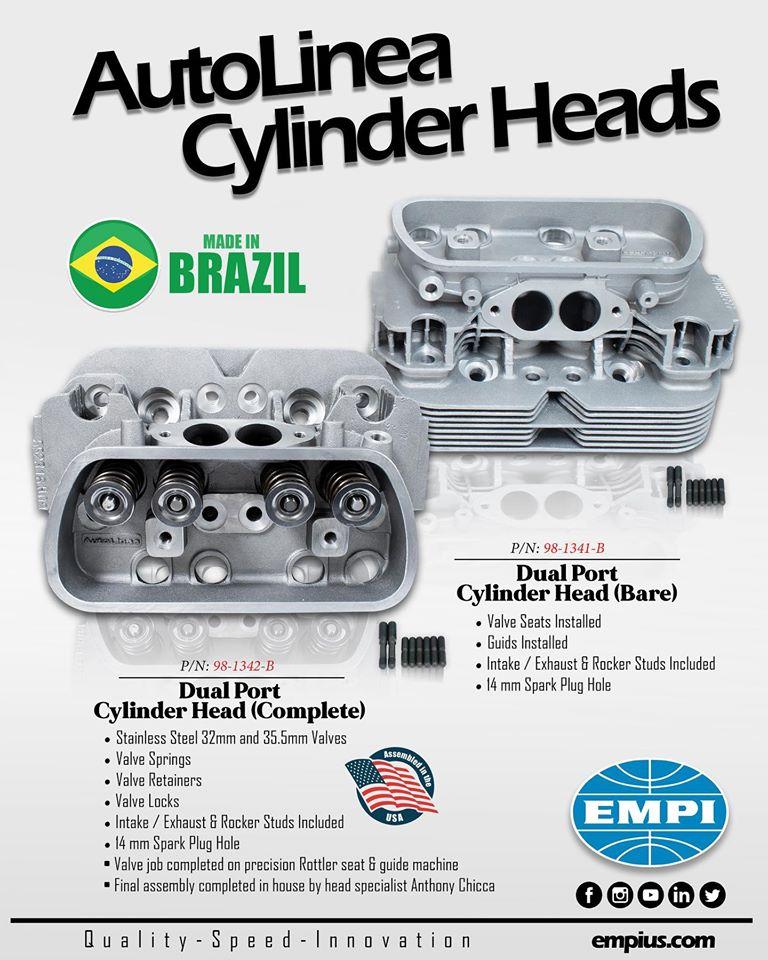

Image may have been reduced in size. Click image to view fullscreen.






Is it just me or does it look like CBs Panchito casting?
_________________
Grapes of Wrath $200 Engine Rebuild
Official Dual Carb Thread
Cylinder Head Quick Reference Sheet
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
AlteWagen
Troll


Joined: February 23, 2007
Posts: 7877

AlteWagen is offline

PostPosted: Sat Sep 28, 2019 5:52 pm    Post subject: Re: VW Cylinder Head Quick Reference Sheet Reply with quote

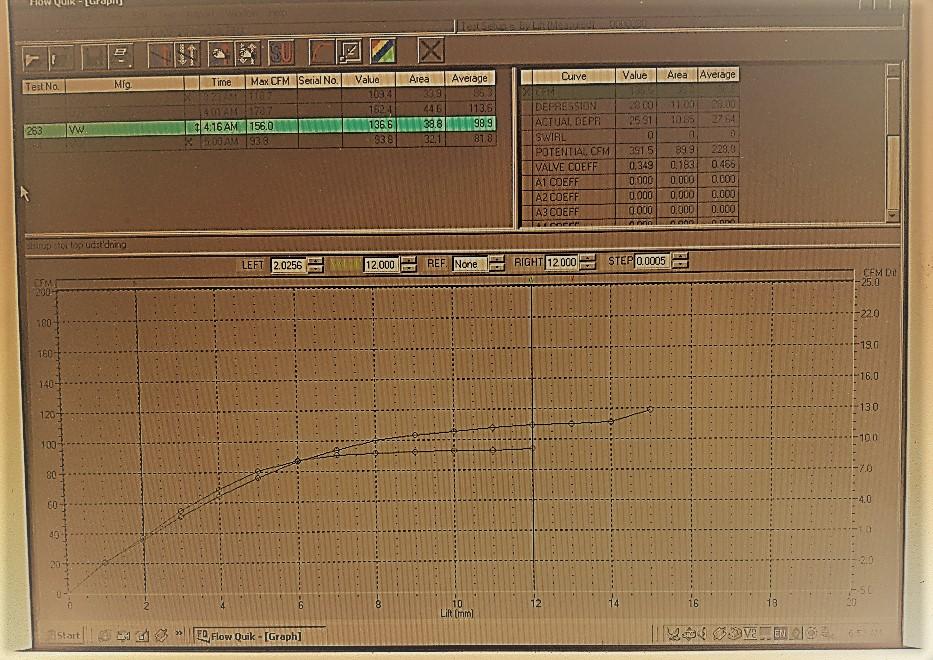

Outflow CB Strip Dominators? 279cfm, wonder what pressure they are using

Image may have been reduced in size. Click image to view fullscreen.

_________________
Grapes of Wrath $200 Engine Rebuild
Official Dual Carb Thread
Cylinder Head Quick Reference Sheet
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
Jebchevelle
Samba Member


Joined: May 25, 2019
Posts: 34
Location: colorado
Jebchevelle is offline

PostPosted: Fri Sep 13, 2019 6:34 pm    Post subject: Re: VW Cylinder Head Quick Reference Sheet Reply with quote

[email protected] wrote:
Jebchevelle wrote:
AlteWagen wrote:
I was only able to get one number for the L3 head from John at AC.net. I asked Johnny who was our rep from AA if they had any numbers for any of their heads and he said no.

I think that the improved flow over a stock head when comparing the L3 is due to the combustion chamber shape. All of the ports Ive measured as cast were SMALLER than a stock head.

I too would love to see out of the box flow numbers for the 500 series.


I just purchased a set and am in no hurry maybe I could find a place to flow bench them? maybe painter's grinders in denver? I was gonna have them redo my stock heads but since the price was a wash I purchased the new heads setup as I figured I would need them. might have wasted my money time will tell, my heads need exhaust stud repairs and machine work pus the one head has a warped rail where the valve cover sits and leaks oil without a tone of sealer. was told $300 plus to fix them and put on hi rev springs. So new heads it is. I got mine with the 35.5mm intake and 32mm exhaust so may be no better then stock.


It wouldn't be a bad idea to flow test them but you will have a few hurdles to overcome to accomplish that. One, you will need a fixture as most race shops aren't equipped to flow a VW head. I had to build my own fixture. Two, you need to recreate how all the other companies flow tested their heads as close as possible otherwise your results won't mean much. Three, you need to have another head in hand as a "test" that has published flow numbers so as to qualify the bench that you are using. Flow testing a VW head is no simple 10 min in and out of the shop job. You need to make sure your test is accurate otherwise you may be heaping undue praise or undue slander on the company whose heads you are testing. I spent many thousands of dollars and over a year and a half of time flow testing my heads before I felt comfortable publishing the results. I also bought multiple competitors heads that had published flow numbers so I could make 100% sure that the results I got on my heads were accurate.

That is why I thought about painter's grinders they are the local vw experts here. I have no clue who else could or would do it.
Back to top
View user's profile Send private message Classifieds Feedback
[email protected]
Samba Member


Joined: August 15, 2002
Posts: 4079
Location: Brew City
roy@mofoco.com is offline

PostPosted: Fri Sep 13, 2019 7:02 am    Post subject: Re: VW Cylinder Head Quick Reference Sheet Reply with quote

Jebchevelle wrote:
AlteWagen wrote:
I was only able to get one number for the L3 head from John at AC.net. I asked Johnny who was our rep from AA if they had any numbers for any of their heads and he said no.

I think that the improved flow over a stock head when comparing the L3 is due to the combustion chamber shape. All of the ports Ive measured as cast were SMALLER than a stock head.

I too would love to see out of the box flow numbers for the 500 series.


I just purchased a set and am in no hurry maybe I could find a place to flow bench them? maybe painter's grinders in denver? I was gonna have them redo my stock heads but since the price was a wash I purchased the new heads setup as I figured I would need them. might have wasted my money time will tell, my heads need exhaust stud repairs and machine work pus the one head has a warped rail where the valve cover sits and leaks oil without a tone of sealer. was told $300 plus to fix them and put on hi rev springs. So new heads it is. I got mine with the 35.5mm intake and 32mm exhaust so may be no better then stock.


It wouldn't be a bad idea to flow test them but you will have a few hurdles to overcome to accomplish that. One, you will need a fixture as most race shops aren't equipped to flow a VW head. I had to build my own fixture. Two, you need to recreate how all the other companies flow tested their heads as close as possible otherwise your results won't mean much. Three, you need to have another head in hand as a "test" that has published flow numbers so as to qualify the bench that you are using. Flow testing a VW head is no simple 10 min in and out of the shop job. You need to make sure your test is accurate otherwise you may be heaping undue praise or undue slander on the company whose heads you are testing. I spent many thousands of dollars and over a year and a half of time flow testing my heads before I felt comfortable publishing the results. I also bought multiple competitors heads that had published flow numbers so I could make 100% sure that the results I got on my heads were accurate.
_________________
Please "LIKE" us on facebook to see what we are working on.

https://www.facebook.com/mofoco?ref=ts&fref=ts

www.mofoco.com

Cylinder Head Reference Sheet
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
AlteWagen
Troll


Joined: February 23, 2007
Posts: 7877

AlteWagen is offline

PostPosted: Thu Sep 12, 2019 11:42 pm    Post subject: Re: VW Cylinder Head Quick Reference Sheet Reply with quote

If you got them flowed that would be great if you shared the results. The 35x32 500 is basically the "L3" that had 121cfm. The 500 with 40x35 had 132cfm which was equal to the factory 041 head.

All potential steps above stock. I think the most important thing in a build regardless of size is setting a tight deck height along with improved chamber shape. You are already half way there with the AA casting. The 60cc chamber will allow tight deck on most builds, on smaller cc engines you will usually need to fly cut to bring the compression up.
_________________
Grapes of Wrath $200 Engine Rebuild
Official Dual Carb Thread
Cylinder Head Quick Reference Sheet
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
Jebchevelle
Samba Member


Joined: May 25, 2019
Posts: 34
Location: colorado
Jebchevelle is offline

PostPosted: Thu Sep 12, 2019 9:22 pm    Post subject: Re: VW Cylinder Head Quick Reference Sheet Reply with quote

AlteWagen wrote:
I was only able to get one number for the L3 head from John at AC.net. I asked Johnny who was our rep from AA if they had any numbers for any of their heads and he said no.

I think that the improved flow over a stock head when comparing the L3 is due to the combustion chamber shape. All of the ports Ive measured as cast were SMALLER than a stock head.

I too would love to see out of the box flow numbers for the 500 series.


I just purchased a set and am in no hurry maybe I could find a place to flow bench them? maybe painter's grinders in denver? I was gonna have them redo my stock heads but since the price was a wash I purchased the new heads setup as I figured I would need them. might have wasted my money time will tell, my heads need exhaust stud repairs and machine work pus the one head has a warped rail where the valve cover sits and leaks oil without a tone of sealer. was told $300 plus to fix them and put on hi rev springs. So new heads it is. I got mine with the 35.5mm intake and 32mm exhaust so may be no better then stock.
Back to top
View user's profile Send private message Classifieds Feedback
AlteWagen
Troll


Joined: February 23, 2007
Posts: 7877

AlteWagen is offline

PostPosted: Thu Sep 12, 2019 12:12 pm    Post subject: Re: VW Cylinder Head Quick Reference Sheet Reply with quote

I was only able to get one number for the L3 head from John at AC.net. I asked Johnny who was our rep from AA if they had any numbers for any of their heads and he said no.

I think that the improved flow over a stock head when comparing the L3 is due to the combustion chamber shape. All of the ports Ive measured as cast were SMALLER than a stock head.

I too would love to see out of the box flow numbers for the 500 series.
_________________
Grapes of Wrath $200 Engine Rebuild
Official Dual Carb Thread
Cylinder Head Quick Reference Sheet
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
Jebchevelle
Samba Member


Joined: May 25, 2019
Posts: 34
Location: colorado
Jebchevelle is offline

PostPosted: Thu Sep 12, 2019 3:47 am    Post subject: Re: VW Cylinder Head Quick Reference Sheet Reply with quote

Has anyone ever gotten the flow numbers on the AA performance 500 series heads?
Back to top
View user's profile Send private message Classifieds Feedback
mark tucker
Samba Member


Joined: April 08, 2009
Posts: 21813
Location: SHALIMAR ,FLORIDA
mark tucker is offline

PostPosted: Sun Feb 03, 2019 12:53 pm    Post subject: Re: VW Cylinder Head Quick Reference Sheet Reply with quote

AlteWagen wrote:
Very interesting!

https://www.thesamba.com/vw/classifieds/detail.php?id=2227764

I wonder how the straight shot of the type 4 port will affect performance. Anyone ever see anything like this?

I have written the company to see if they will offer a 4 in/WBX spacing which I think will make an ultimate type I build with appropriate dome on the piston.

Hopefully they will respond with some flow data.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Have to say I love the cooling fins all the way to the exhaust flange, no doubt better cooling than any currently on the market.

I would really like to see a complete upright engine and see what the fitment of the tins/shroud would be with the top mounted plugs.
just becasue it's a straight shot dosent mean it's necessarily aimed where it should be...or shaper properly....to me heads like this are a waste of aluminum,design,and machine time.and more. but this thread isant about a pissing contest. and why are the chambers offset on those empi heads above? Shocked
Back to top
View user's profile Send private message Gallery Classifieds Feedback
[email protected]
Samba Member


Joined: August 15, 2002
Posts: 4079
Location: Brew City
roy@mofoco.com is offline

PostPosted: Mon Nov 19, 2018 2:48 pm    Post subject: Re: VW Cylinder Head Quick Reference Sheet Reply with quote

AlteWagen wrote:
Apologize for the rant.


I will continue to provide data as I receive it.

Happy Holidays


No worries, hope you have a good holiday as well!!

BTW....in case you missed it, I have gone over our seat dropping issue of the late 90's in my posts before. We had two batches of heads that were dropping seats like crazy. We came to find out that the people in charge of putting the heads together decided that they didn't need to measure the holes anymore before installing the seats. It definitely had nothing to do with airflow through the casting. Shortly after the failures began and we pinpointed the problem, all the people involved no longer worked here. We have had no such issues in the last 20 years.
_________________
Please "LIKE" us on facebook to see what we are working on.

https://www.facebook.com/mofoco?ref=ts&fref=ts

www.mofoco.com

Cylinder Head Reference Sheet
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
AlteWagen
Troll


Joined: February 23, 2007
Posts: 7877

AlteWagen is offline

PostPosted: Mon Nov 19, 2018 2:34 pm    Post subject: Re: VW Cylinder Head Quick Reference Sheet Reply with quote

Apologize for the rant.


I will continue to provide data as I receive it.

Happy Holidays
_________________
Grapes of Wrath $200 Engine Rebuild
Official Dual Carb Thread
Cylinder Head Quick Reference Sheet
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
[email protected]
Samba Member


Joined: August 15, 2002
Posts: 4079
Location: Brew City
roy@mofoco.com is offline

PostPosted: Mon Nov 19, 2018 12:15 pm    Post subject: Re: VW Cylinder Head Quick Reference Sheet Reply with quote

AlteWagen wrote:
Now that these heads are available it gives me better options for my oxy boxer 4 in build. Having the advanced chamber shape, allows for a custom set of domed KB pistons for even better squish/combustion resulting in even cooler running engine. By the time I finish the short block and transmission maybe more 4in bore heads will be available (CB?) that may be a bit more economical but when has an oxyboxer build been economical?

The only reason I saw your post was because I was looking for more pics of the heads and google images routed me back to that billet head thread. Since your posts are usually pushing product or combative I normally just scroll past them but when you post in my thread I do take notice especially when it seems like you are attacking a competitor.

To be honest I was kind of surprised at your comment since every mofoco head Ive seen has very little flow through as delivered. I stopped using mofoco heads on customer builds in the late 90s due to dropped seat issues. I am sure now that the issue was lack of flow through due to casting flash as the same problems are known with autolinea GO1 heads also related to plugged castings.

Image may have been reduced in size. Click image to view fullscreen.


Your hate for me and my company flows deep I see. Pushing product or combative? I guess you haven't read many of my posts then. I would estimate probably less than 5% of my posts fall under that category. Most of my posts are just answering questions people have and helping the community.

You also must have missed the extensive testing I did over the last year on my heads. We now hand clear certain passages(exactly like those billet heads) so there is proper airflow in the correct areas. I tested my head casting vs 4 other well know name brand heads and my heads cooled 15% better than all of them. I used heads as close as I could in valve size, port volume, and chamber volume and built one engine and switched the heads. I also did it all in one day so the air temp, pressure, etc, was as close as possible.

The reason I made the comments I did on the billet heads was absolutely praising them and at the same time poking fun at all the people who just parrot the line(if there isn't enough airflow, the heads will overheat) without having a clue what they are talking about. What do I mean? Just like the billet heads, you can't compare my heads and the flow through to standard head castings as the increased fin surface area changes the cooling equation. So you see, you can't praise the billet heads and their design while simultaneously bashing my heads. You either like them both and agree with the design or you hate them both and disagree with the design.

Good luck on your build, sounds pretty cool!!!
_________________
Please "LIKE" us on facebook to see what we are working on.

https://www.facebook.com/mofoco?ref=ts&fref=ts

www.mofoco.com

Cylinder Head Reference Sheet
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Performance/Engines/Transmissions All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3, 4, 5, 6  Next
Page 1 of 6


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
