Headliner material for interior of pop-top
Page: 1, 2  Next
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
outdoornate65
Samba Member


Joined: September 29, 2012
Posts: 161
Location: SE burbs of Denver, Colorado
outdoornate65 is offline

PostPosted: Tue Nov 12, 2013 2:58 am    Post subject: Headliner material for interior of pop-top Reply with quote

I plan to do a spruce-up of my pop-top this winter including new exterior paint and a new canvas tent. While the top is off for paint, I wanted to address the inside if the fiberglass.

Looking for feedback from those who might have used a fabric headliner to do this project in the past.

I was thinking I could use spray adhesive and a nice tan cloth headliner material. Figure it would absorb some sound and provide a cozy feel to the interior of the bus.

Thoughts?

Thanks,

Nate
Back to top
View user's profile Send private message Gallery Classifieds Feedback
FNGRUVN
Samba Member


Joined: October 27, 2007
Posts: 2237
Location: Fort Collins, CO
FNGRUVN is offline

PostPosted: Tue Nov 12, 2013 8:15 am    Post subject: Reply with quote

They sell a foamed-backed velvet material for van conversions and such. I know they have it at JoAnn's fabic, but I bought mine at a van conversion shop. It's stretchy so it will conform to all the grooves and bumps. Make sure you use professional quality spray adhesive.
I have some pictures of my install in my gallery pics.
_________________
"Democracy is two wolves and a lamb voting on what to have for lunch. Liberty is a well-armed lamb contesting the vote." - Benjamin Franklin
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ragnarhairybreeks
Samba Member


Joined: October 26, 2009
Posts: 1724
Location: Sidney B.C. Canada
ragnarhairybreeks is offline

PostPosted: Tue Nov 12, 2013 8:31 am    Post subject: Reply with quote

have a look online at boat hull liner fabric. I've seen it installed in a high top (samba member simonslp,glued fabric over insulation) and in a stock pop top.

an example of the fabric : http://www.sailrite.com/HullBlanket-Headliner-Hull-Liner-Carpet-Type-Silver-Grey-M66

I used, believe it or not, thin indoor/outdoor carpet on my pop top. Did not have the same 2 way stretch as the hull liner stuff, but it worked fairly well.

http://shufti.wordpress.com/2013/07/01/vanagon-pop-top-canvas-swap/

alistair
_________________
'86 7 passenger syncro, converted to westy pop top, project still in progress
'82 westy, diesel converted to gas in '94, now gone...
https://shufti.blog/
Old address still works...
http://shufti.wordpress.com
Back to top
View user's profile Send private message Gallery Classifieds Feedback
outdoornate65
Samba Member


Joined: September 29, 2012
Posts: 161
Location: SE burbs of Denver, Colorado
outdoornate65 is offline

PostPosted: Tue Nov 12, 2013 4:55 pm    Post subject: Reply with quote

FNGRUVN wrote:
They sell a foamed-backed velvet material for van conversions and such. I know they have it at JoAnn's fabic, but I bought mine at a van conversion shop. It's stretchy so it will conform to all the grooves and bumps. Make sure you use professional quality spray adhesive.
I have some pictures of my install in my gallery pics.


Thanks Man. I did a Google search last night and indeed Joann's carries headliner material.

I looked at your photo gallery...you've got some mad skills. Nice stable of vans you've got there.

Thanks again,

Nate
_________________
1984 Westfalia Wolfsburg "Nana"
Back to top
View user's profile Send private message Gallery Classifieds Feedback
oldhuldy67
Samba Member


Joined: November 25, 2008
Posts: 506
Location: somewhere with a southern exposure
oldhuldy67 is offline

PostPosted: Tue Nov 12, 2013 9:20 pm    Post subject: Reply with quote

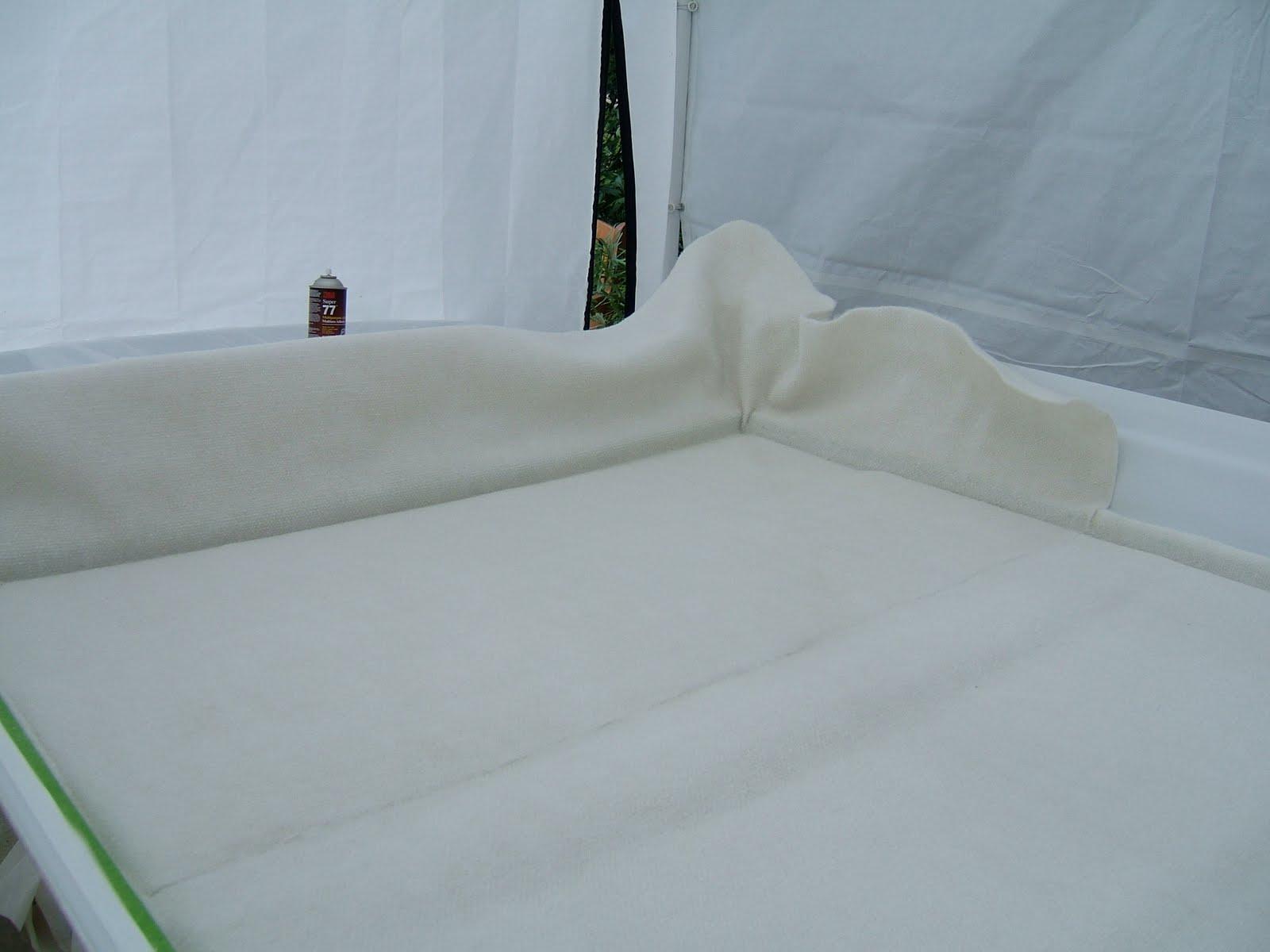

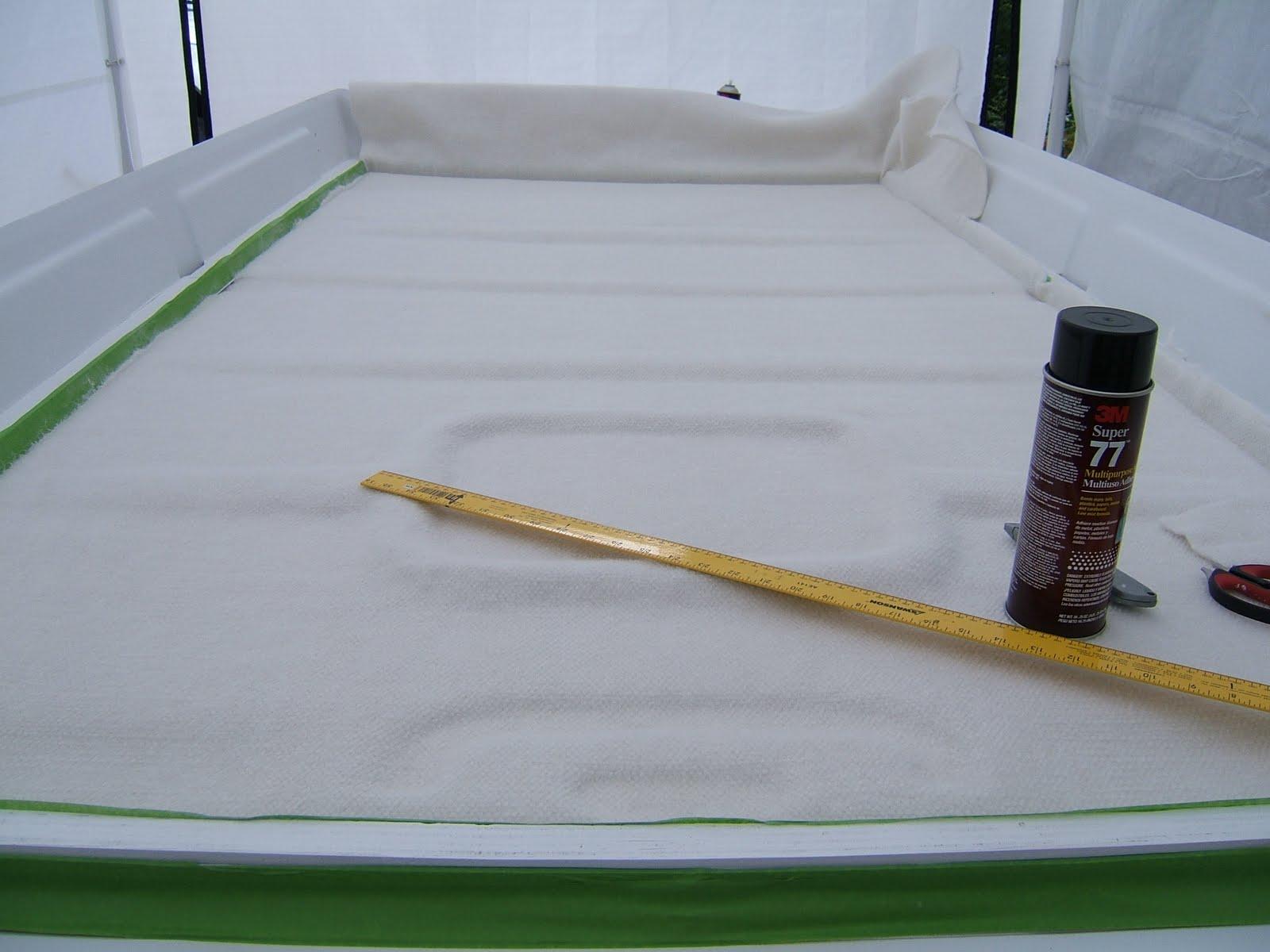

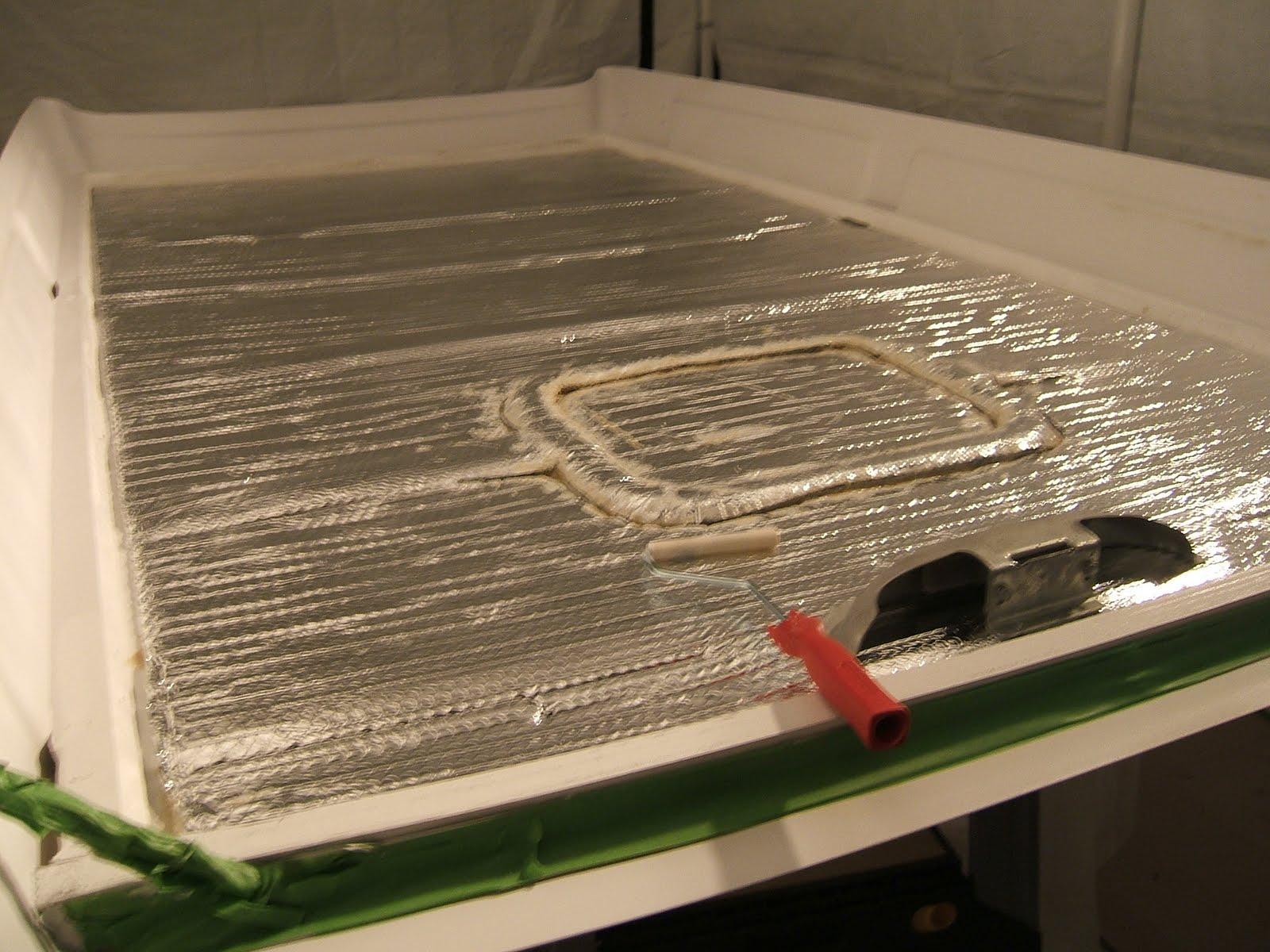

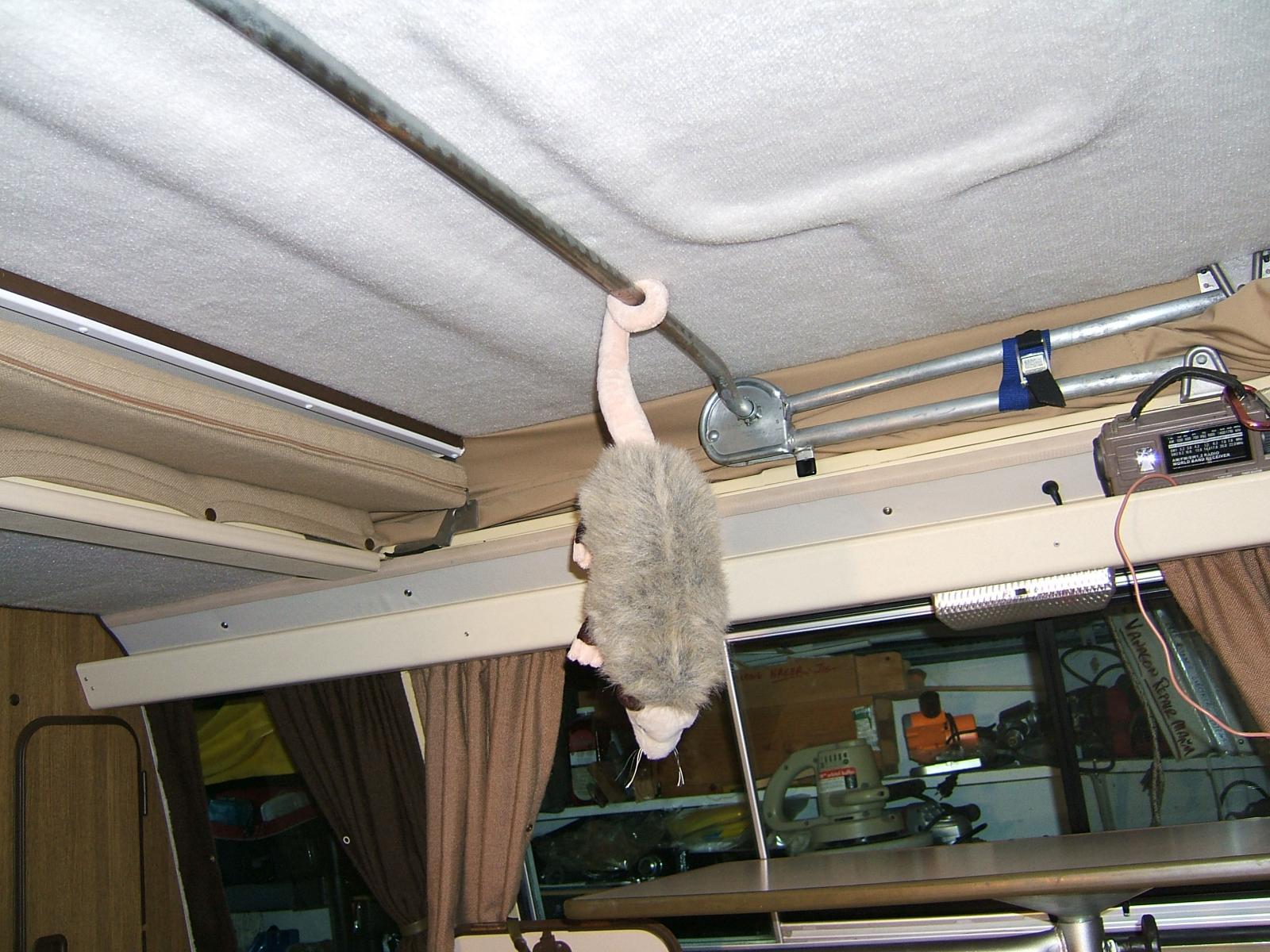

I did this to my poptop..
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

The headliner I bought online from a boat supply store..off white, it's mold and mildew resistant polyester, the mylar NASA (bubble) insulation I got form HD or Lowes, 4' width., cleaned the surface of the top with lacquer thinner, gluedup the mylar insulation with polyurethane adhesive, applied 3M90 liberally to both surfaces and glued the headliner on. The latch hardware fits over this, sealed the bolts with RTV, snug but fits back on. The foldout upper bunk just clears but no problem, really. Should help keep cooler in summer, hold the heat in winter and gives the top much needed insulation and sound abatement...you don't have to go this far, this is what OCD will make you do..the possum likes it.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
ThankYouJerry
Samba Member


Joined: September 01, 2012
Posts: 2271
Location: Shakedown Street
ThankYouJerry is offline

PostPosted: Tue Nov 12, 2013 11:22 pm    Post subject: Reply with quote

Here is a GoWesty library tech article about pop-top restoration: http://www.gowesty.com/library_article.php?id=1364
_________________
1990 Multivan - "Ohana"
1.8T, Auto w/3.27 R&P + Peloquin TBD
Back to top
View user's profile Send private message Gallery Classifieds Feedback
JEL91Westy
Samba Member


Joined: December 04, 2020
Posts: 79
Location: Central PA
JEL91Westy is offline

PostPosted: Fri Jan 29, 2021 9:57 am    Post subject: Re: Headliner material for interior of pop-top Reply with quote

Oldhuldy67
I am considering the same approach and wonder how this has held up, and if you would do anything differently.

Why not use the super90 adhesive to adhere the foam to the fiberglass?
_________________
91 Westy
85 911
Back to top
View user's profile Send private message Gallery Classifieds Feedback
oldhuldy67
Samba Member


Joined: November 25, 2008
Posts: 506
Location: somewhere with a southern exposure
oldhuldy67 is offline

PostPosted: Sun Jan 31, 2021 9:55 am    Post subject: Re: Headliner material for interior of pop-top Reply with quote

JEL91WESTY that would have been a better choice, but it has held up well.
Sorry for the delay. All the best to you and your build.
_________________
Currently:1980 Westy Westfalia Poptop (a total stock-look rebuild with all my favorite camping mods)
1967 stock Sunroof Beetle
Formerly:
1978 Westy Campmobile, the"EM50 Urban Assault Vehicle" code named "The Pickle"
1973 Squareback (sold on a lark)
1973 Super Beetle (crashed..walked away without a scratch)
1972 Standard Beetle (lost in a relationship..)
1966 Beetle (the Black Beauty, my Dad's)
1964 Beetle (the Beige Bug, my beginning beater, also my Dad's) Thanks, Dad.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Bulli Klinik
Samba Member


Joined: January 16, 2005
Posts: 1868
Location: Bulli Klinik, Colorado Springs
Bulli Klinik is offline

PostPosted: Sun Jan 31, 2021 12:05 pm    Post subject: Re: Headliner material for interior of pop-top Reply with quote

What did you find was a good technique for removing the flocking?

Thanks.
_________________
I've never met a Bus I didn't like.
Mike K
Bulli Klinik
Colorado Springs
Back to top
View user's profile Send private message AIM Address Gallery Classifieds Feedback
OzzieJo
Samba Member


Joined: December 27, 2015
Posts: 231
Location: NSW, Australia
OzzieJo is offline

PostPosted: Sun Jan 31, 2021 6:28 pm    Post subject: Re: Headliner material for interior of pop-top Reply with quote

Bulli Klinik wrote:
What did you find was a good technique for removing the flocking?

Thanks.


I found that a large blade type scraper was best, for the more stubborn areas I soaked these with acetone for about 5 mins and then used the blade to scrape of the sludge. I covered this on page 3 of my build log

https://www.thesamba.com/vw/forum/viewtopic.php?t=...p;start=40

I finally got around to re-covering the inside of the pop top about 2 weeks ago, for this I used a good quality marine grade headliner. You donít want to use anything too thick otherwise it will could the pop top latch and the bolts that hold down skylight, lift arms etc will be too short. The marine headliner offered a good balance for thickness/insulation, and tolerance to a potential moist environment.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Bulli Klinik
Samba Member


Joined: January 16, 2005
Posts: 1868
Location: Bulli Klinik, Colorado Springs
Bulli Klinik is offline

PostPosted: Tue Feb 02, 2021 12:58 pm    Post subject: Re: Headliner material for interior of pop-top Reply with quote

Thanks for the reply. I'm about to dive into my pop-top. I can't stand that flocking material. I was thinking of installing a preforated headliner material used in early Buses, Beetles, etc...
_________________
I've never met a Bus I didn't like.
Mike K
Bulli Klinik
Colorado Springs
Back to top
View user's profile Send private message AIM Address Gallery Classifieds Feedback
Franklinstower
Samba Member


Joined: September 21, 2006
Posts: 1724
Location: PNW
Franklinstower is offline

PostPosted: Tue Feb 02, 2021 2:22 pm    Post subject: Re: Headliner material for interior of pop-top Reply with quote

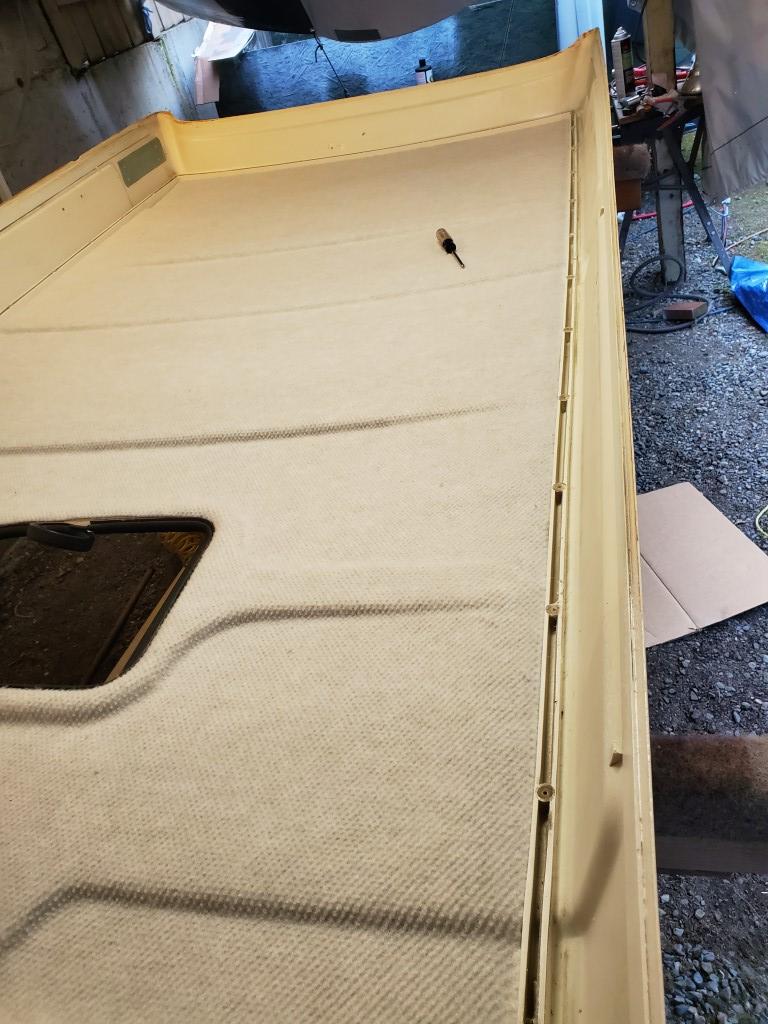

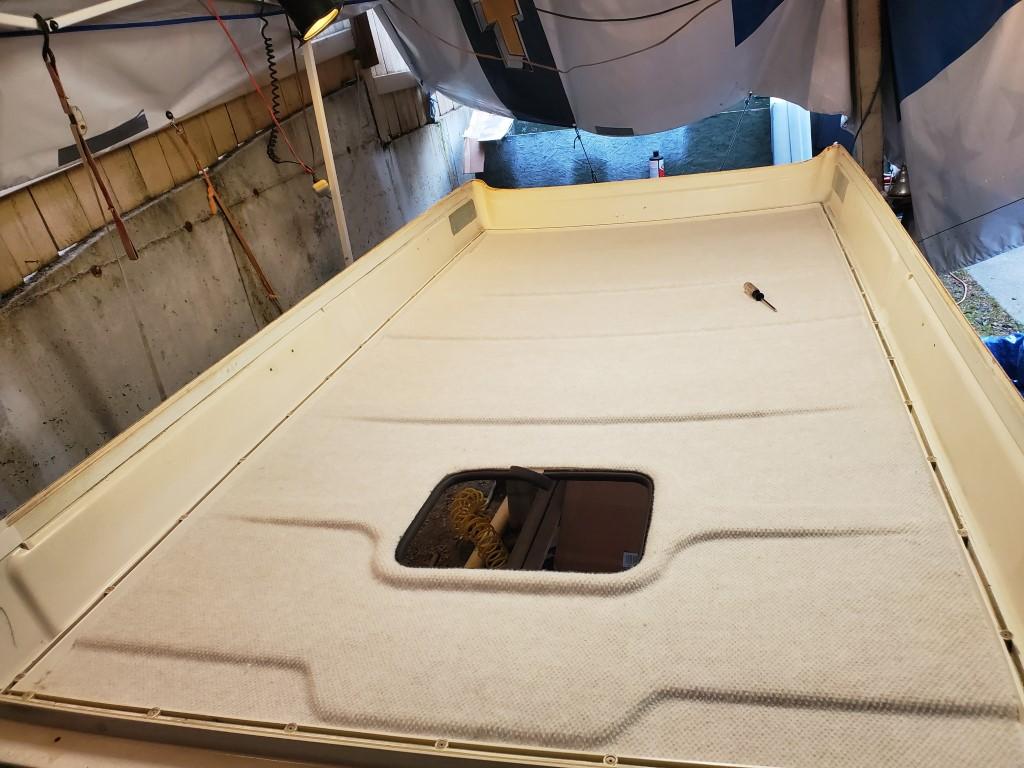

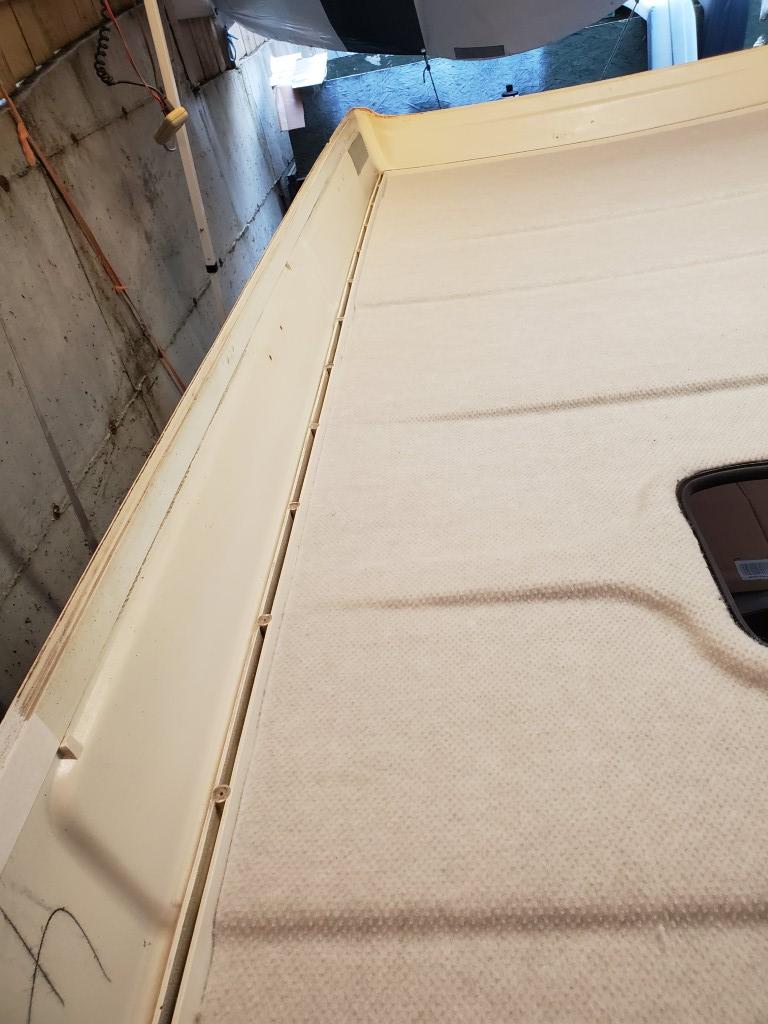

I also couldn't stand the flocking, no matter how much I cleaned it, it still got moldy after every winter. so this summer I attacked the pop top. cleaned, 3 coats or pre-kote, 5 coats of brightside. removed old flocking with a 1/2 gallon of acetone, used a marine contact adhesive for the polypropylene hull liner material. I purchased mine through Albright Supply - Can't recommend them enough, great people, good products, price and shipping. Polypro hull liner is mold and mildew resistant. I am sure the through cleaning and multi layers of paint are helping with condensation too. a couple of tips, don't get any paint or primer on the top where you are going to spray adhesive, the adhesive and paint don't mix and the paint will lift. Heat a punch with a torch to make your bolt penetrations, don't try to drill the material.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Heated brass tube used for penetrations:

Image may have been reduced in size. Click image to view fullscreen.

_________________
'89 Westy - EJ25/22 Frank 4.44 5mt
'75 Miami Blue Sunroof FI Bug - rescued!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dobryan Premium Member
Samba Member


Joined: March 24, 2006
Posts: 15191
Location: Brookeville, MD
dobryan is offline

PostPosted: Tue Feb 02, 2021 3:10 pm    Post subject: Re: Headliner material for interior of pop-top Reply with quote

FWIW I have always found that 3M Super90 does not like hot environments. Every time I have used it in a car or the bus it eventually failed. YMMV.
_________________
Dave O
'87 Westy w/ 2002 Subaru EJ25 and Peloquin TBD

"To travel hopefully is a better thing than to arrive." Robert Louis Stevenson

MD>Canada>AK>WA>OR>CA>AZ>UT>WY>SD
https://www.thesamba.com/vw/forum/viewtopic.php?t=620646

Building a bus for travel in Europe (euroBus)
https://www.thesamba.com/vw/forum/viewtopic.php?t=695371

The Western Syncro build
https://www.thesamba.com/vw/forum/viewtopic.php?t=746794
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Merian
Samba Member


Joined: January 04, 2014
Posts: 5212
Location: Orygun
Merian is offline

PostPosted: Tue Feb 02, 2021 3:13 pm    Post subject: Re: Headliner material for interior of pop-top Reply with quote

Leather
_________________
....
Back to top
View user's profile Send private message Gallery Classifieds Feedback
oldhuldy67
Samba Member


Joined: November 25, 2008
Posts: 506
Location: somewhere with a southern exposure
oldhuldy67 is offline

PostPosted: Tue Feb 02, 2021 4:43 pm    Post subject: Re: Headliner material for interior of pop-top Reply with quote

Franklinstower
GREAT job..
_________________
Currently:1980 Westy Westfalia Poptop (a total stock-look rebuild with all my favorite camping mods)
1967 stock Sunroof Beetle
Formerly:
1978 Westy Campmobile, the"EM50 Urban Assault Vehicle" code named "The Pickle"
1973 Squareback (sold on a lark)
1973 Super Beetle (crashed..walked away without a scratch)
1972 Standard Beetle (lost in a relationship..)
1966 Beetle (the Black Beauty, my Dad's)
1964 Beetle (the Beige Bug, my beginning beater, also my Dad's) Thanks, Dad.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
puchfinnland
Samba Member


Joined: December 26, 2005
Posts: 241
Location: Deale Maryland
puchfinnland is offline

PostPosted: Tue Feb 02, 2021 6:15 pm    Post subject: Re: Headliner material for interior of pop-top Reply with quote

all written up here w link to where to buy and colors, I use spray 90, no failures if done properly

https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
ABYC marine master technician , EX European auto technician, new business- EASTCOASTWEST , custom work on campers, only systems, no mechanical
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
JEL91Westy
Samba Member


Joined: December 04, 2020
Posts: 79
Location: Central PA
JEL91Westy is offline

PostPosted: Tue Feb 02, 2021 7:21 pm    Post subject: Re: Headliner material for interior of pop-top Reply with quote

So what is the key to getting the Super 90 to hold up to the heat?

OP - what marine contact adhesive did you use?
_________________
91 Westy
85 911
Back to top
View user's profile Send private message Gallery Classifieds Feedback
outwesty
Samba Member


Joined: June 06, 2006
Posts: 1067
Location: Tahoe City
outwesty is offline

PostPosted: Tue Feb 02, 2021 8:36 pm    Post subject: Re: Headliner material for interior of pop-top Reply with quote

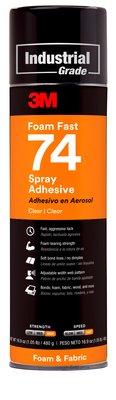

I've found 3M 74 foam fast to hold up the best on interior stuff. The only problem I have had is that it is so strong you will tear the carpet before the bond breaks if you ever have to lift a section up for some reason. That looks great Puch finnland

Image may have been reduced in size. Click image to view fullscreen.

_________________
www.outwesty.com Vanagon / Syncro & DeLorean Repair in Tahoe City, CA
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Franklinstower
Samba Member


Joined: September 21, 2006
Posts: 1724
Location: PNW
Franklinstower is offline

PostPosted: Tue Feb 02, 2021 8:51 pm    Post subject: Re: Headliner material for interior of pop-top Reply with quote

I think I used 3m Super Trim Adhesive as recommended by the hull liner suplier.
_________________
'89 Westy - EJ25/22 Frank 4.44 5mt
'75 Miami Blue Sunroof FI Bug - rescued!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
GreggK
Samba Member


Joined: May 17, 2008
Posts: 821
Location: Colorado/Philidelphia
GreggK is offline

PostPosted: Wed Feb 03, 2021 4:06 pm    Post subject: Re: Headliner material for interior of pop-top Reply with quote

I used the gel like paint stripper to remove my flocking. I brushed it on kind of heavy, went away for a little at it all was pretty much bubbled up. I used a plastic spackle blade with no effort to remove the mess. I'd say that did about 95% of the roof. Some small spots took another coat of stripper and some more effort. Afterwards I used acetone to wipe it down.
_________________
'86 2wd Poptop transplant
FAS TDi engine swap. Peloquin LSD
https://www.thesamba.com/vw/forum/viewtopic.php?t=692188&highlight=slow+but+steady
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
