 Posted: Thu Mar 20, 2014 6:08 pm Post subject: Glassing on a Manx Dash |
 |
|
3/20
Well Spring showed up here on the OBX and we had sunny and 60F weather. Since I am waiting on parts for Brian's chassis I decided to glass the dash on Paul's yellow Manx.
I started by grinding/sanding the edge fair. (not bad just a little glue from PO.
I then sanded the inside edge of the hood so the glass would bond better.
The dash tends to be a little off square out of the mold so you can grind/sand it to match the hood. If it is close you do not need to worry about it since it will be covered by the windshield seal.
I took some welding clamps and clamped the sides of the hood/dash together. (Do this about mid way on the side) I used a piece of wood to protect the outside of the gel coat.
You will/may not be able to get the top corners to match since (I believe) the dash mold was made from the ABS dash that went under the hood. You can see that the hood has an almost square corner and the dash is rounded.

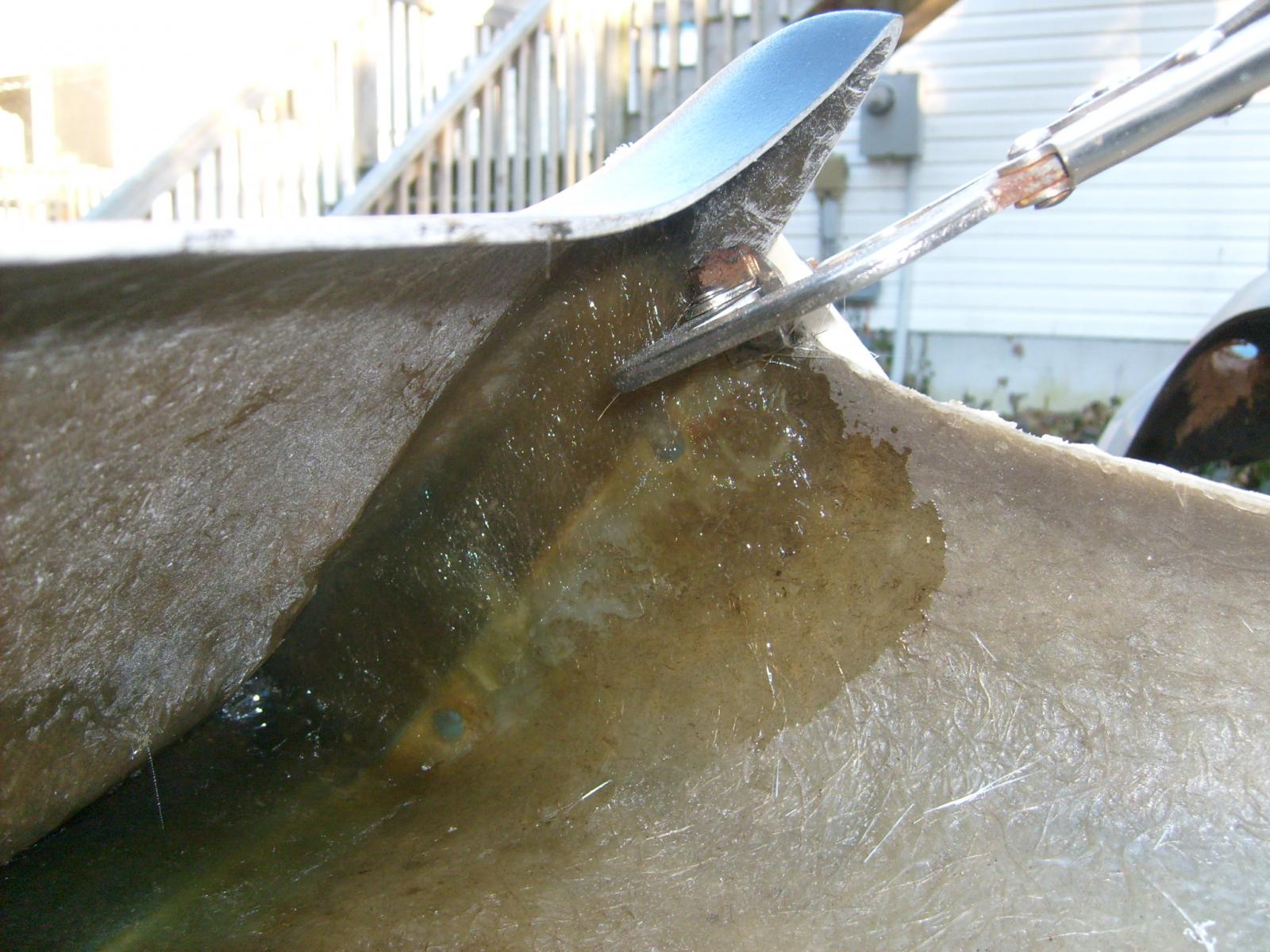

I then took some screws with fender washers and ran them through the holes the the PO put on the hood edge. I used these to "pinch" the dash and hood together. (Saw this in another post)
This helps to get the dash and hood lined up and flat.
I then taped the joint and holes to keep resin from coming through.
Next on to the glassing. You want to glass between the fender washers. I put 3 layers of 2 oz mat. down.
You really want to get it layered up on the corners and the sides. There is a lot of pressure after the clamps come off and you want it to hold up.
After the resin cures, the next step is to remove the screws.
You want to move the clamps up to the top edge of the hood/dash.
This allows the hood and dash to keep that inward curve that the dash has.
Tape up the holes and joint and glass over the areas. Use 2-3 layers.
Again, really lay it up in the corners and the sides.
After the resin cures, remove the tape and clean up the joint with acetone.
Not the best pictures, but they show the corners and how they do not match perfectly.
Again, this is not a big deal since the windshield frame and seal will cover this area.
I will remove the clamps in the morning, I want to make sure the resin has cured completely.
Vince
_________________
LOOKING FOR VINTAGE MEYERS MANX STUFF!!!
