| Author |
Message |
Dean1
Samba Member
Joined: March 25, 2004
Posts: 339
|
 Posted: Tue May 27, 2014 8:49 am Post subject: 1967 Bug Tool Kit |
 |
|
| I would like to see what a '67 Bug/sedan/convertible tool kit looks like. I am not sure about the screwdriver handle and hubcap puller. Thanks for any photos. |
|
| Back to top |
|
 |
KTPhil
Samba Member
Joined: April 06, 2006
Posts: 35468
Location: Conejo Valley, CA
|
| Posted: Tue May 27, 2014 9:08 am Post subject: |
|
|

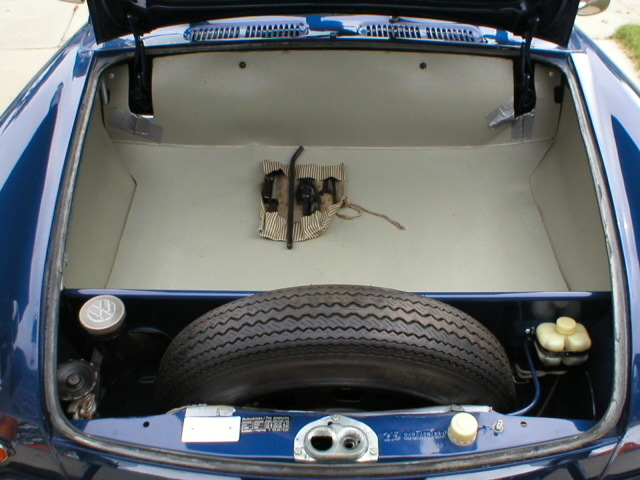

Gallery has Bus and Squareback kits, though you can't see your details; I'm not sure if the Bugs were different.
Bus:
Square:
|
|
| Back to top |
|
|
Eric&Barb
Samba Member
Joined: September 19, 2004
Posts: 25511
Location: Olympia Wash Rinse & Repeat
|
| Posted: Tue May 27, 2014 12:40 pm Post subject: |
|
|

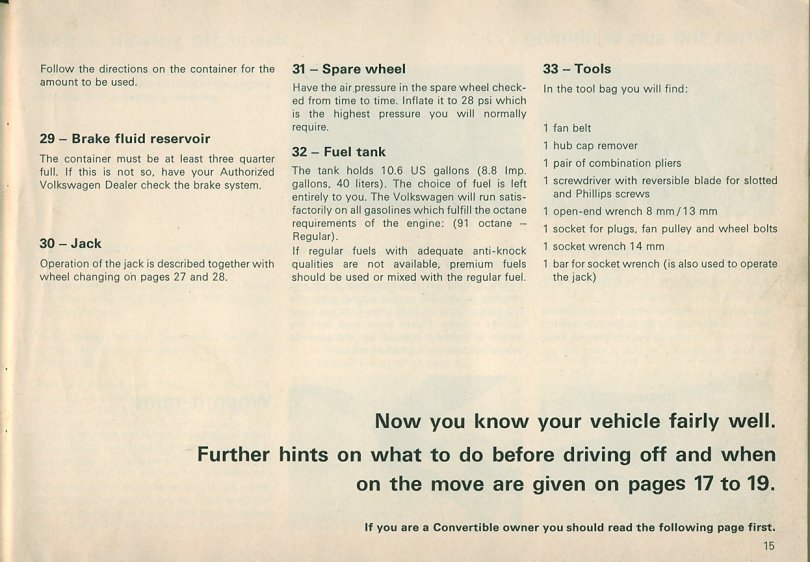

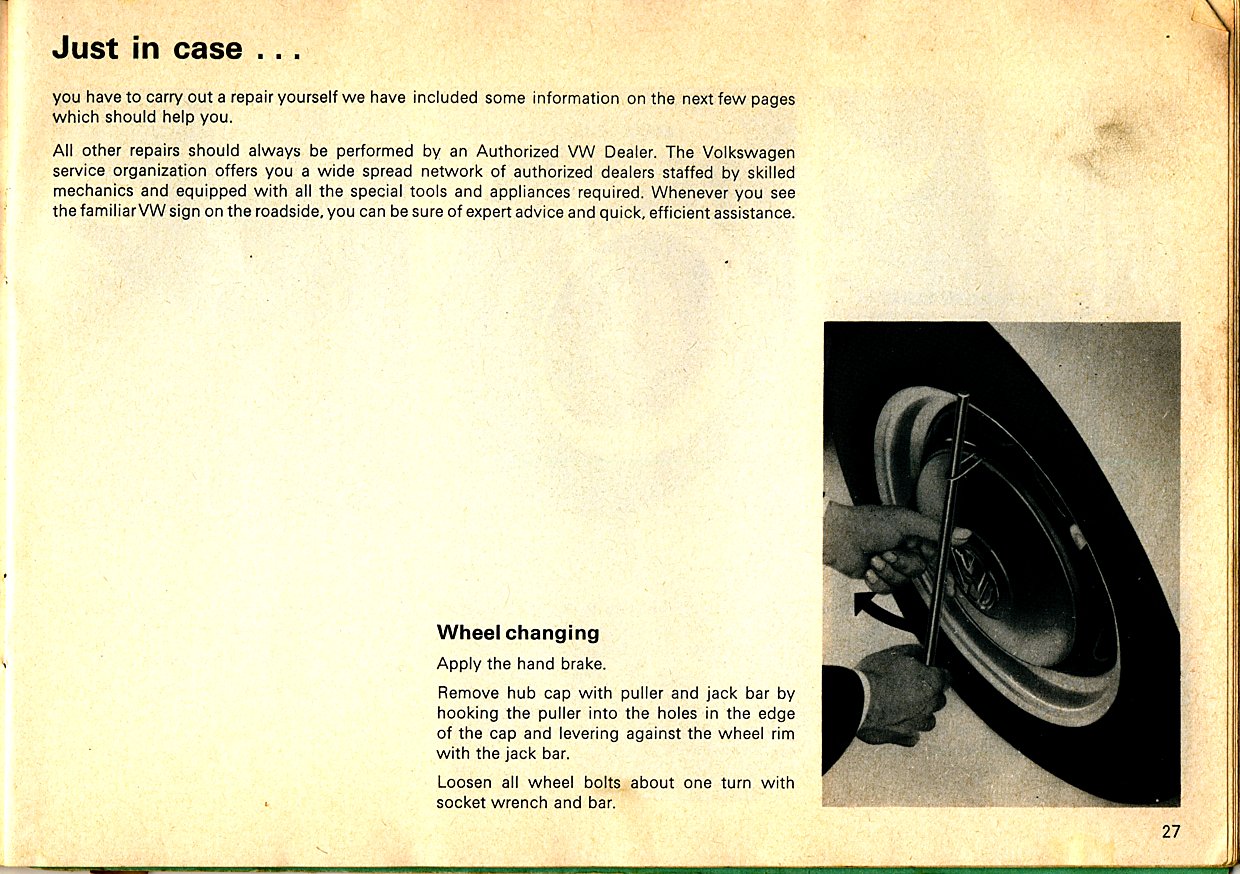

Have you tried the "Owners Manuals" thru the "Technical" button at upper right?
_________________
In Stereo, Where Available! |
|
| Back to top |
|
|
Dean1
Samba Member
Joined: March 25, 2004
Posts: 339
|
| Posted: Tue May 27, 2014 9:03 pm Post subject: |
|
|
| The original owner's manual doesn't show much in the way of details. Hard to see if the screwdriver has a wooden or plastic handle. Thanks for any help. |
|
| Back to top |
|
|
veedubcrazy
Samba Member
Joined: February 14, 2005
Posts: 2158
Location: La Porte, Tx.
|
| Posted: Wed May 28, 2014 6:08 am Post subject: |
|
|

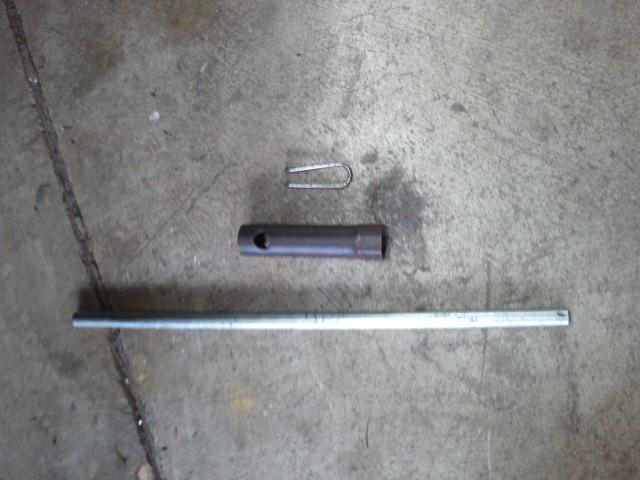

I too, was in a search for an original/copy tool set for my '67. The one that came with the sedan had long since vanished but in restoring it, I had found what I believe to be part of the original set. The "U" shaped clip, metal part of the screwdriver and the 13mm socket was found to be in the "black hole" under the hood. Those parts of the original set are now placed with what I think is a copy of what had came with the sedan so long ago. Good luck...
_________________
1967 Deluxe Sedan
1971 Squareback - "The Silver Surfer" |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71083
Location: Phoenix 602
|
|
| Back to top |
|
|
Dean1
Samba Member
Joined: March 25, 2004
Posts: 339
|
| Posted: Wed May 28, 2014 9:47 pm Post subject: |
|
|
| Yep, that helps. Black plastic screwdriver handle it is. I guess VW went to the smaller U-shaped hubcap puller prior to '67. |
|
| Back to top |
|
|
Eric&Barb
Samba Member
Joined: September 19, 2004
Posts: 25511
Location: Olympia Wash Rinse & Repeat
|
| Posted: Thu May 29, 2014 1:52 am Post subject: |
|
|
| Dean1 wrote: |
| Yep, that helps. Black plastic screwdriver handle it is. I guess VW went to the smaller U-shaped hubcap puller prior to '67. |
Would seem so...
_________________
In Stereo, Where Available! |
|
| Back to top |
|
|
KTPhil
Samba Member
Joined: April 06, 2006
Posts: 35468
Location: Conejo Valley, CA
|
|
| Back to top |
|
|
webberjames95
Snorkelstang Finder
Joined: January 18, 2011
Posts: 1110
Location: Pullman, Washington
|
| Posted: Fri May 30, 2014 4:08 pm Post subject: |
|
|

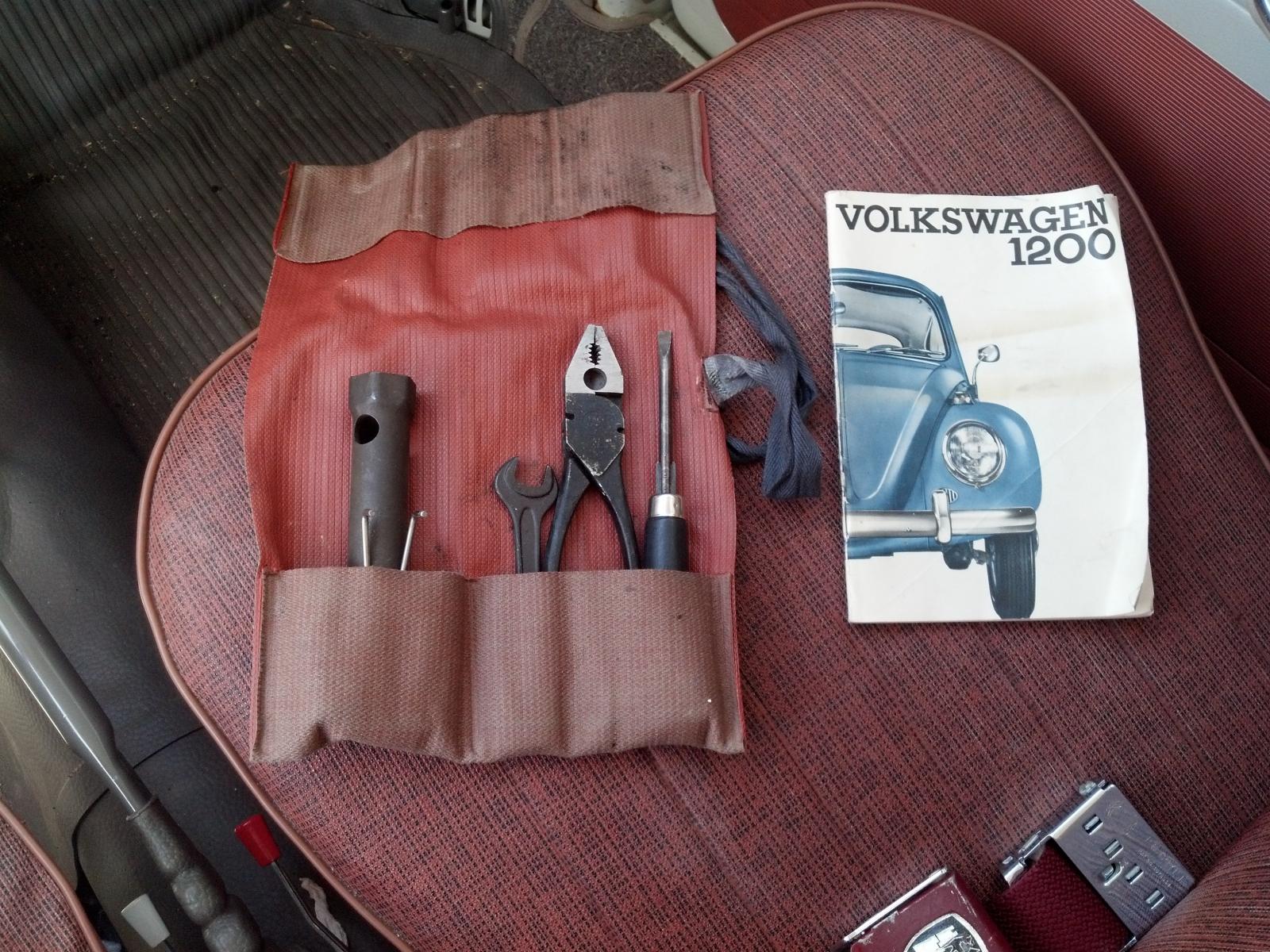

I believe the leather roll up one Everett posted is correct for 67. Here is what I have. VW logos on it all.
Sorry crappy pics:
You could always check 1967beetle.com for what is correct. Good resource
_________________
1967 Bug:
Olga: the Cal look car lost in the PNW SOLD
1984 Vanagon:
Berty the Vanagon
1973 Bus
Amber the Bus Sold
INSTAGRAM @jwebber95 |
|
| Back to top |
|
|
Dean1
Samba Member
Joined: March 25, 2004
Posts: 339
|
| Posted: Tue Jun 03, 2014 8:55 am Post subject: |
|
|
| Would the 13/8mm wrench be a Hazet brand (V-10) for a '67? |
|
| Back to top |
|
|
iowegian
Samba Curmudgeon
Joined: February 16, 2005
Posts: 9926
Location: Somewhere between Dubuque and Keokuk
|
| Posted: Tue Jun 03, 2014 9:37 am Post subject: |
|
|
| Dean1 wrote: |
| Would the 13/8mm wrench be a Hazet brand (V-10) for a '67? |
Most likely. I think it was in '66. I believe I have the original kit that came with the car. |
|
| Back to top |
|
|
1-4-3-2
Samba Member
Joined: May 01, 2006
Posts: 104
Location: Rhode Island
|
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71083
Location: Phoenix 602
|
|
| Back to top |
|
|
1-4-3-2
Samba Member
Joined: May 01, 2006
Posts: 104
Location: Rhode Island
|
|
| Back to top |
|
|
Dean1
Samba Member
Joined: March 25, 2004
Posts: 339
|
| Posted: Wed Jun 04, 2014 10:36 pm Post subject: |
|
|
| Thanks for posting those photos. They really helped out.. |
|
| Back to top |
|
|
aircooled
Samba Member
Joined: December 02, 2003
Posts: 1294
Location: Heartland, Neb
|
| Posted: Thu Jun 05, 2014 6:03 pm Post subject: |
|
|
My tool kit is like that and the wrench has Made in West Germany on one side and the word Heyco on the other.
_________________
67 Sun Roof / Born Sept 66 / Second Owner
67 Convertible / Born Aug 66 / Second Owner
Member of 67 Posse
Omaha Volkswagen Club
Neb VVWCA Chapter Rep
Volkswagen Club of Nebraska |
|
| Back to top |
|
|
Damian Gomez
Samba Member
Joined: September 17, 2013
Posts: 246
Location: Turlock Ca.
|
|
| Back to top |
|
|
Eric&Barb
Samba Member
Joined: September 19, 2004
Posts: 25511
Location: Olympia Wash Rinse & Repeat
|
| Posted: Thu Jun 05, 2014 7:12 pm Post subject: |
|
|
WW description:
Our tool kits are identical to the original kits supplied with each VW in the mid'50's through the mid'60's, right down to the wood handled screwdriver and properly stitched storage bag.
_________________
In Stereo, Where Available! |
|
| Back to top |
|
|
|
