 Posted: Fri Aug 15, 2014 8:57 pm Post subject: Upgrade to dual master cylinder |
 |
|
I was asked to show how I changed my single circuit master cylinder to a dual circuit master cylinder
I am posting this " step by step " record on how I did this to my 66 bug
" this is not an instructional thread " DO NOT TRY THIS AT HOME... " Entertainment only..
remember
.ANY brake work should ALWAYS be done by PROFESSIONAL experts in PROFESSIONAL establishments professionally
This is how the single circuit master looks with the gas tank removed
Pink tape...old single circuit master cylinder
Green tape...old front hard ( metal ) lines
Orange tape...single brake warning light switch
Red tape...old rear brake hard line

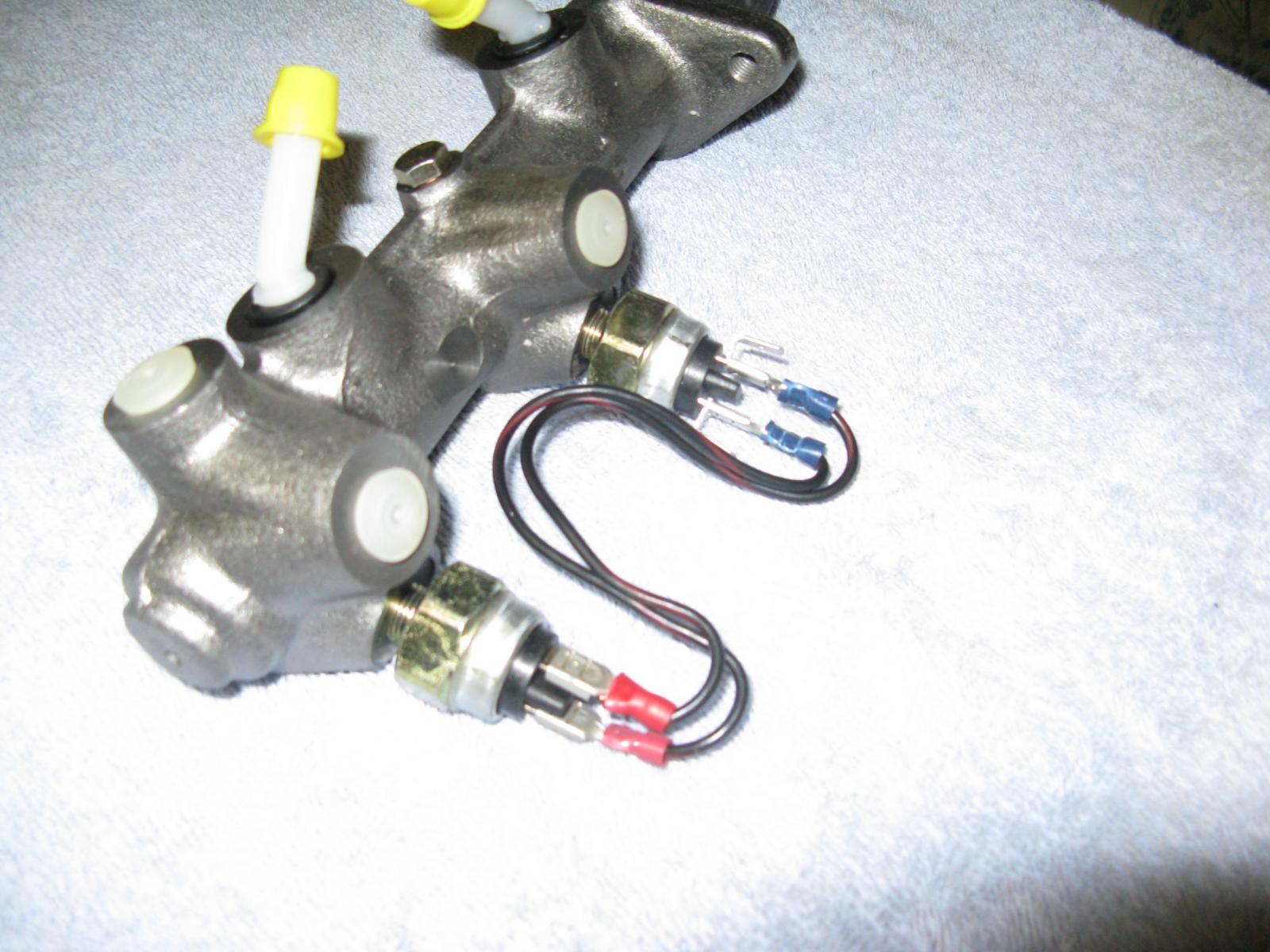

The dual circuit master needs a second brake light circuit
I used the BLUE piggyback clips on the first switch and ran wires to the second switch with RED connectors

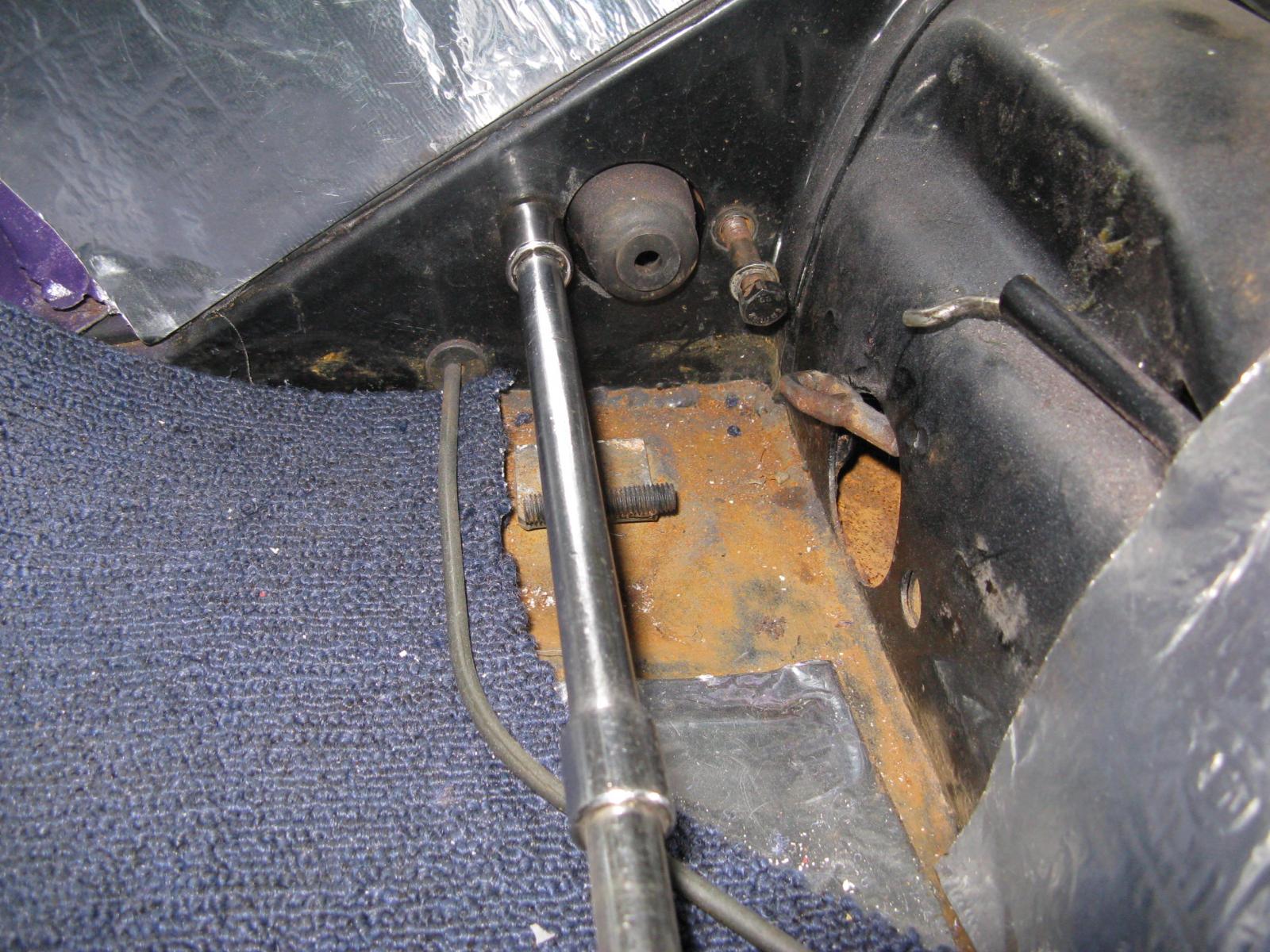

The single circuit master was removed by taking out the two bolts behind the brake pedal
I was VERY careful to not loose the round spacers that go around the bolts
I removed the old master AND the FRONT hard lines ( I thought it would be easier to order new 67 front hard lines and bend them into place

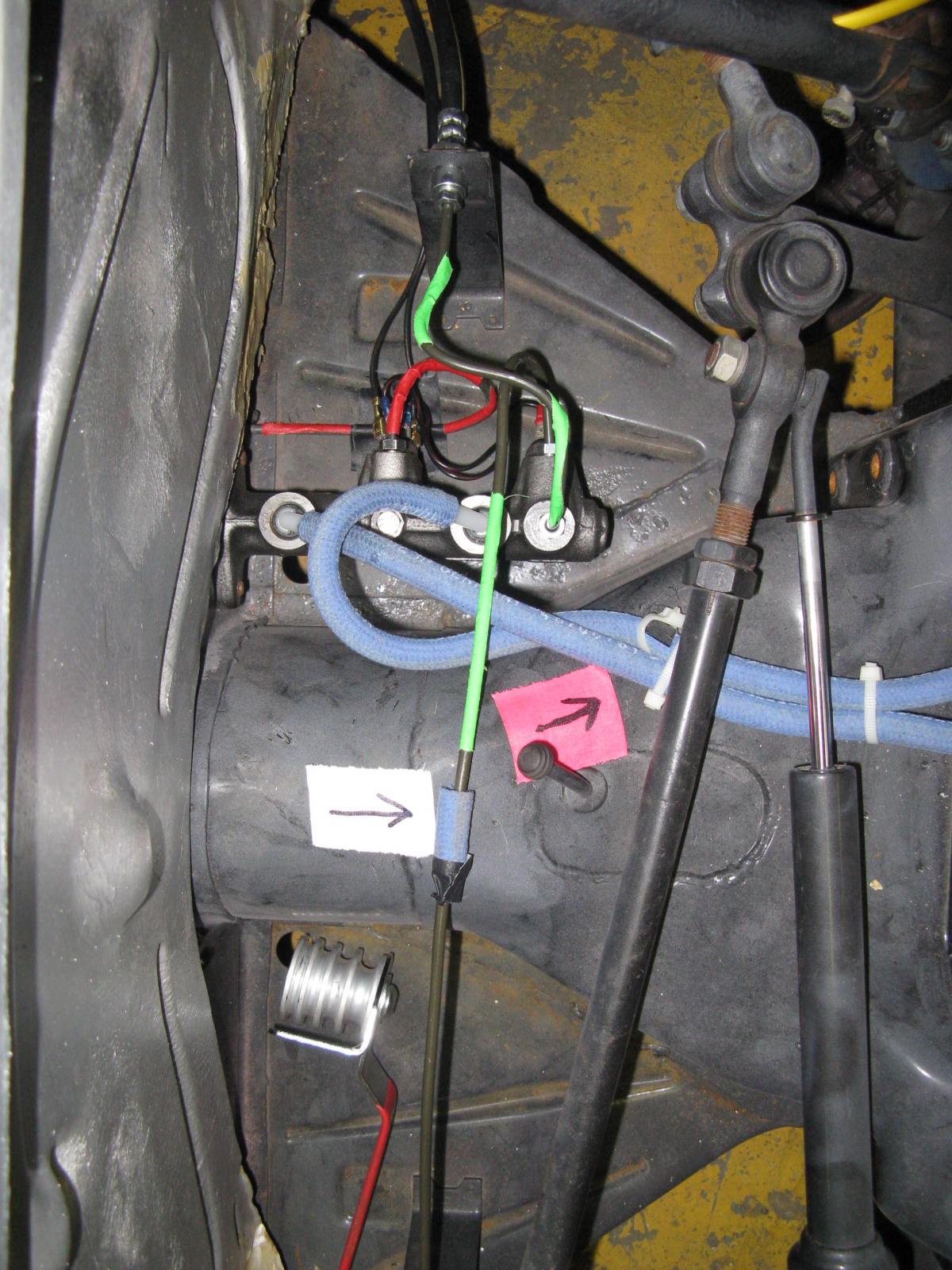

Dual circuit master bolted in place wher the old one came out ( no modifications )
Green tape ...two new 67 hard lines bent to fit
Red tape ...the old rear brake hard line attached to the new master WARNING...I had a lot of trouble getting this connection to fit I didn't want to cross thread the threads and RUIN the new master . I was VERY careful here
Two original brake light wires attached to the brake light switch on the blue piggyback clips
White arrow points to where I put a piece of blue tubing on the hardline where it crosses the tunnel
Pink arrow points to where I attached the blue brake fluid supply lines to an existing clip on the tunnel with tye wraps to keep them away from the steering
Shiny tool with red handle is a tubing bender
There are many ways I could have done the next step ..This is the easiest one to have cuz i wanted ease of checking and filling
I changed the small 66 brake fluid supply out for a dual circuit 67 style by enlarging the existing hole in the front clip and making a hold strap out of 20 guage sheet metal { 1/2 inch wide x 11 1/2 long }
The blue tubing is not affected by brake fluid
GEE I HOPE I DID THIS RIGHT
remember
ALL brake work should be done by a qualified PROFESSIONAL in a PROFESSIONAL establishment Professionally
_________________
63 two fold rag
66 sedan delivery Type 6
http://www.thesamba.com/vw/forum/viewtopic.php?t=569619&highlight=sedan+delivery
Last edited by grandpa pete on Sat Aug 16, 2014 7:12 am; edited 3 times in total |
|
| Back to top |
|
 |
Bobnotch
Samba Member
Joined: July 06, 2003
Posts: 22431
Location: Kimball, Mi
|
| Posted: Sat Aug 16, 2014 6:56 am Post subject: Re: Upgrade to dual master cylinder |
|
|
Looks good Gpa.  A little tip for you, for when you decide to re-install the pedal cluster. Either drill 2 holes in the end of the hook for the clutch cable end, and add some mechanics wire to bridge the gap (prefered method), or use a bread tie to tie the cable end to the hook. That way you won't have the cable fall off the hook when re-installing the pedal cluster. I'm only mentioning it, as I know you like to work alone (as do I).  I hope this helps.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
| Tram wrote: |
| "Friends are God's way of apologizing for relatives." |
| Tram wrote: |
| People keep confusing "restored" and "restroyed". |
|
|
| Back to top |
|
|
grandpa pete
Samba Member
Joined: July 06, 2008
Posts: 6426
Location: St. Petersburg, FL
|
|
| Back to top |
|
|
pwmcguire
Samba Member
Joined: January 30, 2011
Posts: 1108
Location: Kennesaw GA
|
| Posted: Sat Aug 16, 2014 7:23 am Post subject: |
|
|
That is exactly the way I did it. I had a master cylinder go bad and when I checked the reservoir one side was empty, very simple
|
|
| Back to top |
|
|
dcarlson12
Samba Member
Joined: May 04, 2014
Posts: 71
Location: Surrey, BC, Canada
|
| Posted: Sat Aug 16, 2014 10:11 am Post subject: |
|
|
Just wondering if the old washer reservoir will still fit in the space when the new, 67, reservoir is installed.
Thks for posting the procedure. |
|
| Back to top |
|
|
Eric&Barb
Samba Member
Joined: September 19, 2004
Posts: 24764
Location: Olympia Wash Rinse & Repeat
|
| Posted: Sat Aug 16, 2014 11:22 am Post subject: |
|
|
Apply some grease, anti-seize or silicon grease to all the threaded brake line ends. Work the nuts on the ends of the brake lines back a bit and grease up the brake line where the nuts seat around. This will help to keep moisture away from the nuts and rust away for as long as possible. So nice to go back for repairs many years later and not have to fight rusted nuts from each cylinder or twist up the brake lines due to the nuts rusted to them.
Brake lines only seal at the very tip of the lines so wipe off any excess grease or anti-seize from there to keep from getting into the system, or use only the silicon grease which should be used on any rebuilt brake cylinder on the inside to lube up the pistons seals and cylinder bores.
_________________
In Stereo, Where Available! |
|
| Back to top |
|
|
grandpa pete
Samba Member
Joined: July 06, 2008
Posts: 6426
Location: St. Petersburg, FL
|
|
| Back to top |
|
|
grandpa pete
Samba Member
Joined: July 06, 2008
Posts: 6426
Location: St. Petersburg, FL
|
|
| Back to top |
|
|
Eric&Barb
Samba Member
Joined: September 19, 2004
Posts: 24764
Location: Olympia Wash Rinse & Repeat
|
| Posted: Sun Sep 14, 2014 9:52 pm Post subject: |
|
|
There is very little pressure there, so does not need clamps. The rubber plugs that hold and seal the brake lines pipes or reservoir type mounted directly to the dual MC are only snapped into place.
_________________
In Stereo, Where Available! |
|
| Back to top |
|
|
Benfish
Samba Member
Joined: July 27, 2012
Posts: 113
Location: NPR Florida
|
| Posted: Mon Sep 15, 2014 7:54 am Post subject: |
|
|
Thanks for the thread Grandpa. I will be doing this upgrade when I get my bug back from Tom. Still waiting patiently.
_________________
1966 Sea Blue Sedan |
|
| Back to top |
|
|
bigdog1962
Samba Member
Joined: August 11, 2010
Posts: 1586
Location: Augusta, Georgia
|
| Posted: Mon Sep 15, 2014 5:13 pm Post subject: |
|
|
Timely for me too!
Thanks Grandpa |
|
| Back to top |
|
|
pwmcguire
Samba Member
Joined: January 30, 2011
Posts: 1108
Location: Kennesaw GA
|
| Posted: Mon Sep 15, 2014 5:26 pm Post subject: |
|
|
| grandpa pete wrote: |
| pwmcguire ; did you use hose clamps where the blue hose joined the copper lines out of the fluid reservoir ? |
Yes because it was not a tight fit at all. |
|
| Back to top |
|
|
grandpa pete
Samba Member
Joined: July 06, 2008
Posts: 6426
Location: St. Petersburg, FL
|
|
| Back to top |
|
|
texstardetail
Samba Member
Joined: May 24, 2009
Posts: 91
Location: Georgetown, Texas
|
| Posted: Fri Oct 10, 2014 6:35 pm Post subject: |
|
|
| Great write-up. Thanks |
|
| Back to top |
|
|
Aynthm
Samba Member
Joined: July 07, 2010
Posts: 1315
Location: Beaverton, Oregon
|
| Posted: Sat Oct 11, 2014 2:06 am Post subject: |
|
|
| THANKS SO MUCH! |
|
| Back to top |
|
|
VOLKSWAGNUT
Fastest VW Belt Changer
Joined: October 14, 2007
Posts: 11056
Location: Flippin' a Belt........ .... Off-n-On ... NC USA
|
| Posted: Sat Oct 11, 2014 5:09 am Post subject: |
|
|
Use the master mounted reservoir... no hoses required.
.
_________________
aka Ken {o\!/o}
Its your vehicle- stop askin' for approval-do what YOU like for cryin' out loud
Better to roll em' how you want and wear em' out-than lettin' em' rot out
Its about the going not the showing
Rebuilt to drive not decorate
WANTED: Local Eatin' Joints, Triple D for TheSamba contributions here http://www.thesamba.com/vw/forum/viewtopic.php?t=570510
Search "VOLKSWAGNUT" on YouTube since you cant watch a "certain" BELT change video round here
Usually and often edited |
|
| Back to top |
|
|
grandpa pete
Samba Member
Joined: July 06, 2008
Posts: 6426
Location: St. Petersburg, FL
|
|
| Back to top |
|
|
VOLKSWAGNUT
Fastest VW Belt Changer
Joined: October 14, 2007
Posts: 11056
Location: Flippin' a Belt........ .... Off-n-On ... NC USA
|
| Posted: Sat Oct 11, 2014 9:13 am Post subject: |
|
|
| grandpa pete wrote: |
| VOLKSWAGNUT wrote: |
Use the master mounted reservoir... no hoses required.
. |
Already explained that there were several ways to do the reservoir.....I chose the easiest way for the old guy to check AND refill |
Yeah ok..  , but I call BS on the whole old guy excuse though....
.
_________________
aka Ken {o\!/o}
Its your vehicle- stop askin' for approval-do what YOU like for cryin' out loud
Better to roll em' how you want and wear em' out-than lettin' em' rot out
Its about the going not the showing
Rebuilt to drive not decorate
WANTED: Local Eatin' Joints, Triple D for TheSamba contributions here http://www.thesamba.com/vw/forum/viewtopic.php?t=570510
Search "VOLKSWAGNUT" on YouTube since you cant watch a "certain" BELT change video round here
Usually and often edited |
|
| Back to top |
|
|
grandpa pete
Samba Member
Joined: July 06, 2008
Posts: 6426
Location: St. Petersburg, FL
|
|
| Back to top |
|
|
pwmcguire
Samba Member
Joined: January 30, 2011
Posts: 1108
Location: Kennesaw GA
|
| Posted: Sat Oct 11, 2014 12:58 pm Post subject: |
|
|
| grandpa pete wrote: |
Good Boston Irish stock !!
Dad made 84
His Dad did 95
Got to think long term |
Same here, dad lived till he was 88
Irish too. |
|
