anyone know what goes here?

[sblu]

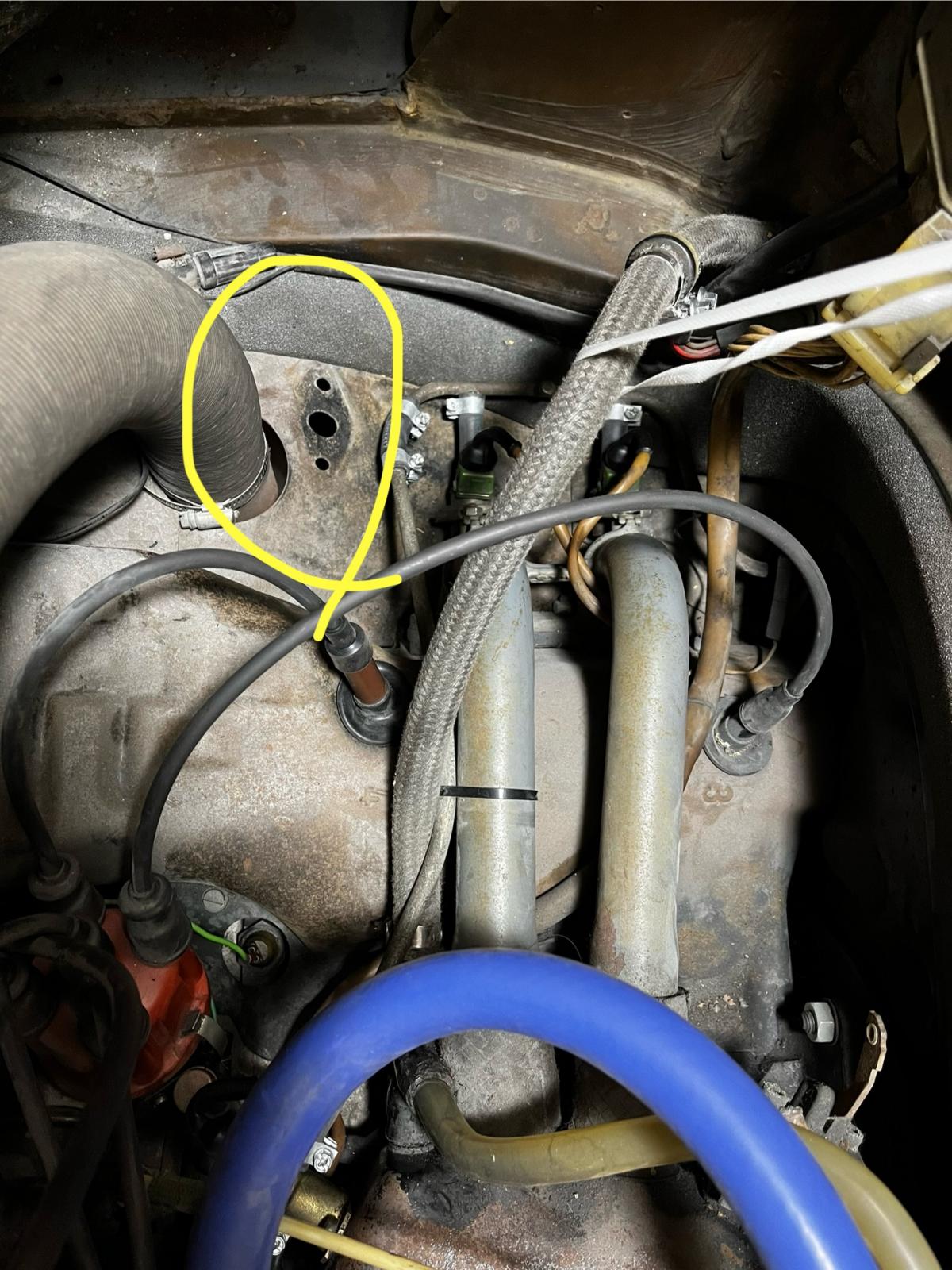

see photo.
what goes here? I can't remember, its been a long while putting the bus together...
thanks!

_________________
1978 Westfalia Champagne Edition Project

[busdaddy]

EGR system.
_________________
Rust NEVER sleeps and stock never goes out of style.

Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!

Слава Україні!

[sblu]

thanks bus daddy. I can swear I don't think i remove that...i believe it didnt come with any do i need it?
_________________
1978 Westfalia Champagne Edition Project

[SGKent]

they cam with it, and it lowers combustion temps at cruise, but good ones are hard to find right now. Maybe start watching for the parts at good prices and collect them. The exhaust system has to have the port for it too.

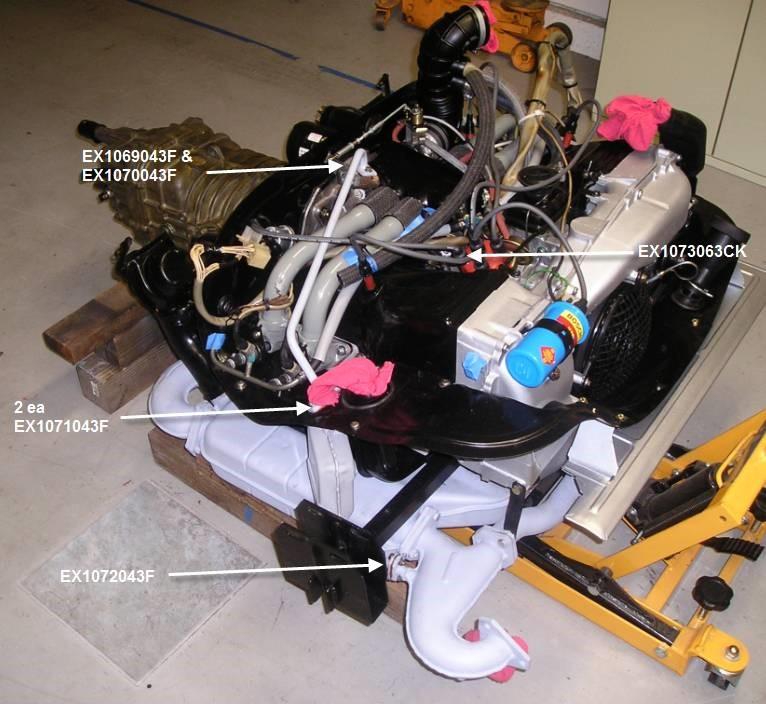

Here is a photo showing the gasket numbers I used to sell quality reproduced ones of. But the photo shows the main parts and how they hook up.

_________________
"Most people don't know what they're doing, and a lot of them are really good at it." - George Carlin

[sblu]

can anyone find me a 'good one'; I need the whole assembly it seems, also looks like will need the gaskets as well!
_________________
1978 Westfalia Champagne Edition Project

[dodger tom]

there are four components:

you have an egr valve (of uncertain functionality), but need the connecting rod to the throttle. didn’t find a rod, but found both rod and valve on this site. you might contact avery’s aircooled or the bus co. for just the rod.

new filters are readily available. just google.

the pipe from the filter to the valve probably needs to be used. took me two minutes to find egr pipes on this site. also, avery’s or bus co.

steve kent used to sell gaskets, but i think you can find new gaskets. google away.

then there are fasteners. i used stainless nuts and bolts from my local hardware store. 5 mm, i think.

you can do this.
_________________
1978 Champaign Edition 2 Westfalia
Would never find the time to keep up another classic air-cooled.

[sblu]

Thanks all. I took a look at Bentley and then my setup again. the EGR Valve has been closed off, LOL. So not my imagination, it wasn't there to begin with!

_________________
1978 Westfalia Champagne Edition Project

[airschooled]

I would still remove and block off that valve. They have internal parts that can create a vacuum leak even when the pipe is disconnected/plugged.

Robbie
