How do I make the rear side marker lights blink?

[tjet]

I want to modify the wiring to the rear side marker lights so they blink when the turn signal is on. They also need to illuminate normally as a side marker when the lights are on.

Is there a way to do this?

Cheers

[crazyvwvanman]

It is simple enough to make them do that but not both things at the same time.

Mark

[Zeitgeist 13]

I believe you need to use LED bulbs in the side markers, and then attach the negative lead to the positive post on the rear turn signal. From memory, that's how I wired it on my van.

I got the idea from Dan.
_________________
Casey--

'89 Bluestar ALH
'01 Weekender --> full camper
NEAT, no ICE.

[T3 Pilot]

LMGTFY
http://www.thesamba.com/vw/forum/viewtopic.php?t=444581&view=previous
_________________
1988 Vanagon

The most important part in every vehicle is the nut behind the wheel......

[Terry Kay]

Ahh--I do believe your going to need a dual filament bulb in each side marker light to get this to work and then wired to the corresponding signal wire, without back feeding through the rest of the lighting system.
_________________
T.K.

[Zeitgeist 13]

I guarantee it works as described on my van. Side marker lights function as normal, and then flash intermittently (opposite the rear lights) when that side's turn signal is engaged.
_________________
Casey--

'89 Bluestar ALH
'01 Weekender --> full camper
NEAT, no ICE.

[Ahwahnee]

[Zeitgeist 13]

Here's where I got the idea:

[eplater]

x2 on the LED mod. Works perfectly as described. About a 30 minute job and simple. My next project will be to add amber LED blinkers/ markers to the lower end of my LT truck mirrors.
_________________
'90 Syncro Westy EJ22 w/ decoupler & rear locker

'12 Touareg TDI

'08 RS4 Cabriolet

[insyncro]

Wire them through a powered brake controller.

[syncrodoka]

[fxr]

The LED solution above is the easiest method by far. It's the same principle used on motorbikes for turn signal reminder bleepers, where the -ve of the bleeper is fed to the +ve side of the brake light bulb. Thus the bleeper goes silent when the brakes are on, so saving the rider's sanity at long stop lights.
_________________
Jim Crowther
1984 1.9l EJ22 Westy Wolfsburg Edition
Vespa GTS 300

[tjet]

[Wildthings]

Just take the ground wire from the side marker light and connect it to the hot side of the turn signal light. The marker light will glow normally when the running lights are on, but will go off each time the turn signal flashes.

[Zeitgeist 13]

Sorta, except you don't use the chassis ground on the side marker at all. Grounding for the LED comes solely from the positive side of the rear turn signal.
_________________
Casey--

'89 Bluestar ALH
'01 Weekender --> full camper
NEAT, no ICE.

[tjet]

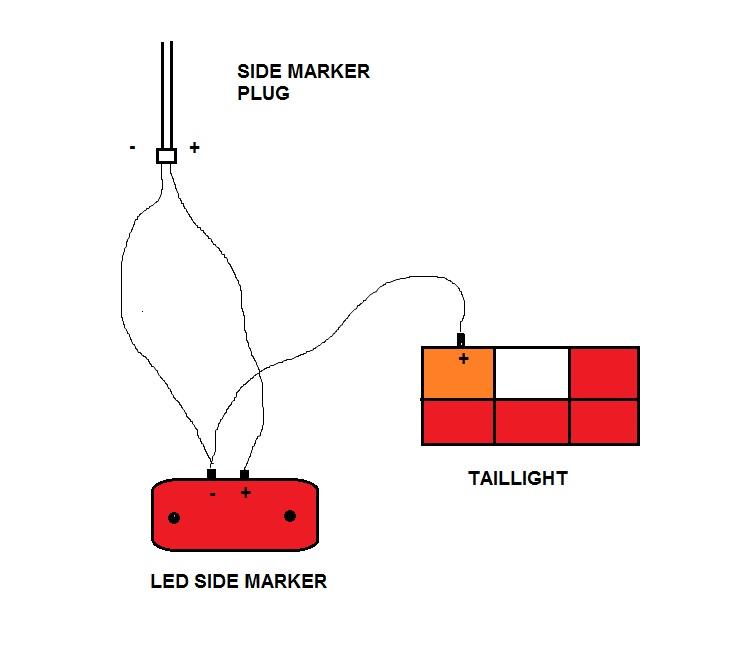

So this, right?

[Zeitgeist 13]

Yes
_________________
Casey--

'89 Bluestar ALH
'01 Weekender --> full camper
NEAT, no ICE.

[danfromsyr]

love seeing more vans with this essential (IMNSHO) update.. I don't even consider it a mod.
and kinda cool to see me quoted above..

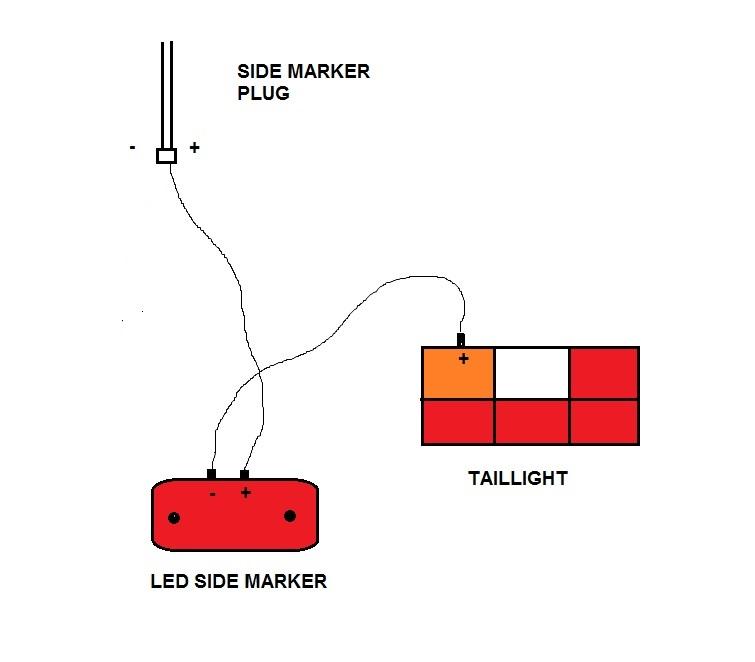

disconnect/don't use the oem side light -Neg wire it'll pop your turn fuse the way you have it drawn

[Zeitgeist 13]

I used that exact LED assembly (without the rubber seal), but drilled an aftermarket reflector and then glued to light to the assembly. This makes the dome stick out so you can see the light fore/aft and from the side. Highly visible.
_________________
Casey--

'89 Bluestar ALH
'01 Weekender --> full camper
NEAT, no ICE.

[syncrodoka]

I used the stock hardware, just a wiring mod.
I do have a red LED bulb in the side marker assembly but that just happened to be installed prior.
