Westy Sink / Stove Dimensions
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
tjet Premium Member
Samba Member


Joined: June 10, 2014
Posts: 2393
Location: LaGuardia
tjet is offline

PostPosted: Thu Apr 09, 2020 5:28 pm    Post subject: Westy Sink / Stove Dimensions Reply with quote

Does someone have the dims of an original Westfalia sink stove unit (height x width x depth)? I'm thinking about building a custom sink & stove cabinet for my tintop, and I'd like to keep it about the same size.

Thanks
_________________
rusty lifted '87 syncro tintop
clean original '85 tintop
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
kamzcab86
Samba Moderator


Joined: July 26, 2008
Posts: 6804
Location: Arizona
kamzcab86 is offline

PostPosted: Thu Apr 09, 2020 5:51 pm    Post subject: Re: Westy Sink / Stove Dimensions Reply with quote

https://www.thesamba.com/vw/forum/viewtopic.php?t=414383 🍺
_________________
~Kamz Anxious
1986 Cabriolet: www.Cabby-Info.com
Blue Vanagon 1990 Vanagon Westfalia: Old Blue's Blog
2016 Golf GTI S
"I fear the day that technology will surpass our human interaction; the world will have a generation of idiots." ~Albert Einstein
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
tjet Premium Member
Samba Member


Joined: June 10, 2014
Posts: 2393
Location: LaGuardia
tjet is offline

PostPosted: Thu Apr 09, 2020 5:57 pm    Post subject: Re: Westy Sink / Stove Dimensions Reply with quote

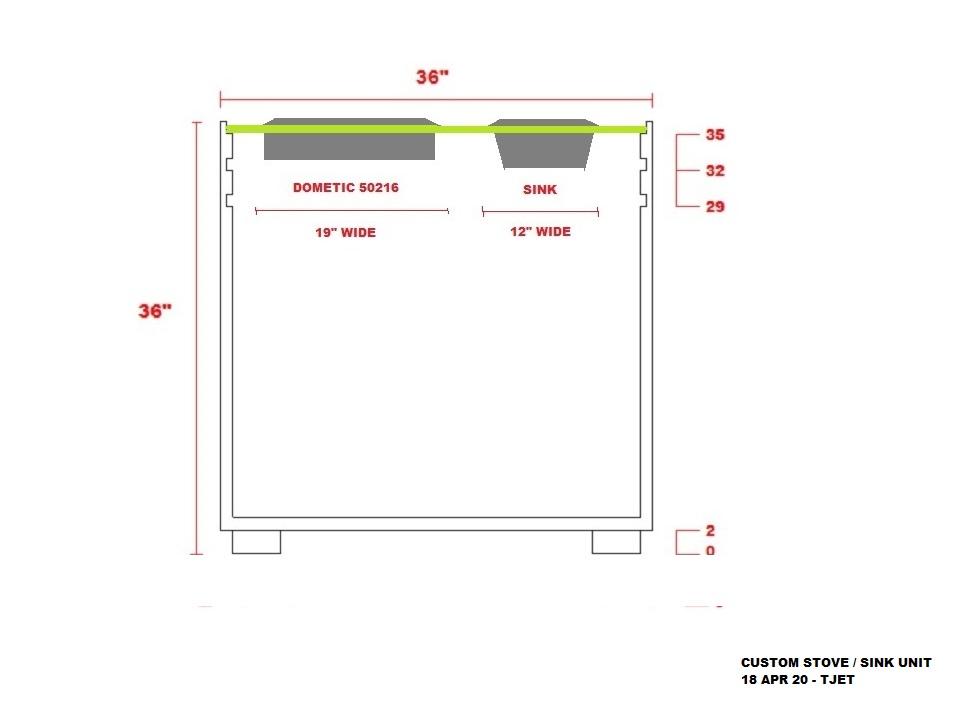

That's perfect Kam.

Question: on the width, is the 35.5" the max you can have it before it hits the deployed bed?

Also, for folks who own a Westy, what would you change on the stove/sink cabinet? Height, depth, move space for a different fridge, etc?

Image may have been reduced in size. Click image to view fullscreen.

_________________
rusty lifted '87 syncro tintop
clean original '85 tintop
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
kamzcab86
Samba Moderator


Joined: July 26, 2008
Posts: 6804
Location: Arizona
kamzcab86 is offline

PostPosted: Thu Apr 09, 2020 6:35 pm    Post subject: Re: Westy Sink / Stove Dimensions Reply with quote

tjet wrote:

Question: on the width, is the 35.5" the max you can have it before it hits the deployed bed?


Pretty much.

tjet wrote:
Also, for folks who own a Westy, what would you change on the stove/sink cabinet? Height, depth, move space for a different fridge, etc?


The Westy kitchen is fine for me. But if I were starting from scratch I'd make the sink a little larger and have a corner drain to allow for a proper-size drawer, change the stove grate style, and put an adjustable shelf in the cabinet. As for the fridge, for me, I'd put a drawer above a Truckfridge.
_________________
~Kamz Anxious
1986 Cabriolet: www.Cabby-Info.com
Blue Vanagon 1990 Vanagon Westfalia: Old Blue's Blog
2016 Golf GTI S
"I fear the day that technology will surpass our human interaction; the world will have a generation of idiots." ~Albert Einstein
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
tjet Premium Member
Samba Member


Joined: June 10, 2014
Posts: 2393
Location: LaGuardia
tjet is offline

PostPosted: Thu Apr 09, 2020 6:47 pm    Post subject: Re: Westy Sink / Stove Dimensions Reply with quote

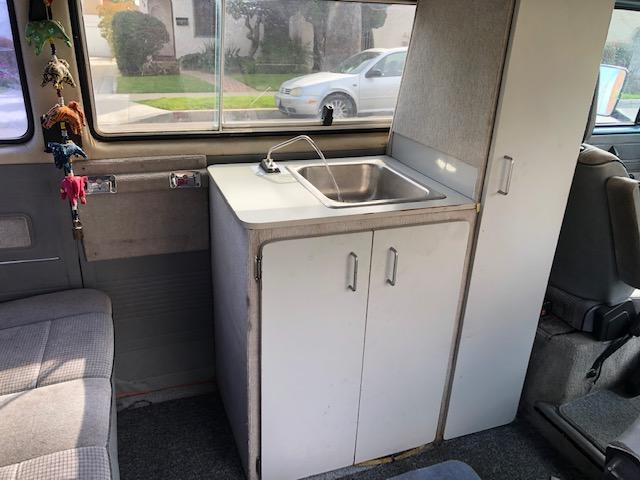

So a sink like this one vs the Westy round one?

Image may have been reduced in size. Click image to view fullscreen.

_________________
rusty lifted '87 syncro tintop
clean original '85 tintop


Last edited by tjet on Thu Apr 09, 2020 6:52 pm; edited 1 time in total
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
dobryan
Samba Member


Joined: March 24, 2006
Posts: 11819
Location: Brookeville, MD
dobryan is offline

PostPosted: Thu Apr 09, 2020 6:51 pm    Post subject: Re: Westy Sink / Stove Dimensions Reply with quote

I’d put a drawer below a truckfridge. btdt. If you put a tf65 up high it will fit flush to the cabinet since it is above the ridge on the floor.
_________________
Dave O
'87 Westy w/ 2002 Subaru EJ25 and Peloquin TBD

"To travel hopefully is a better thing than to arrive." Robert Louis Stevenson

Join the Vanagon Rescue Squad on the VanAlert app.
http://vanalert.com/

MD>Canada>AK>WA>OR>CA>AZ>UT>WY>SD
https://www.thesamba.com/vw/forum/viewtopic.php?t=620646

Building a bus for travel in Europe
https://www.thesamba.com/vw/forum/viewtopic.php?t=695371
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Jeffrey Lee
Samba Member


Joined: February 04, 2014
Posts: 1284
Location: Wisconsin
Jeffrey Lee is offline

PostPosted: Thu Apr 09, 2020 7:06 pm    Post subject: Re: Westy Sink / Stove Dimensions Reply with quote

tjet wrote:
Question: on the width, is the 35.5" the max you can have it before it hits the deployed bed?

Image may have been reduced in size. Click image to view fullscreen.


Technically, the deployed bed and the fridge cabinet don't interfere with one another, so the cabinet could be longer. But if the bed were any longer, or the fridge located further rearward, the bed would prevent the fridge door from opening/closing.

Which really complicates drinking beer in bed ...
_________________
Camp Westfalia
Camping Tips • Newsletter • Cool Campervan Apparel
www.CampWestfalia.com
Back to top
View user's profile Send private message Visit poster's website Facebook Gallery Classifieds Feedback
maco70
Samba Member


Joined: March 16, 2011
Posts: 389
Location: Montréal, Québec
maco70 is offline

PostPosted: Fri Apr 10, 2020 8:20 am    Post subject: Re: Westy Sink / Stove Dimensions Reply with quote

I’d would like a higher than 2.75 inches for the top, then I would have ease to put a soap dispenser.

The soap dispenser reservoir then would be under the sink, and the arm would goes in the sink, as we see often in a house kitchen.

An idea - hope it helps.
_________________
Martin from Montréal

1986 Vanagon GL full camper westfalia
(brown/tan interior)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Timwhy
Samba Member


Joined: January 01, 2009
Posts: 3652
Location: Maine
Timwhy is offline

PostPosted: Fri Apr 10, 2020 9:38 am    Post subject: Re: Westy Sink / Stove Dimensions Reply with quote

maco70 wrote:
I’d would like a higher than 2.75 inches for the top, then I would have ease to put a soap dispenser.

The soap dispenser reservoir then would be under the sink, and the arm would goes in the sink, as we see often in a house kitchen.

An idea - hope it helps.

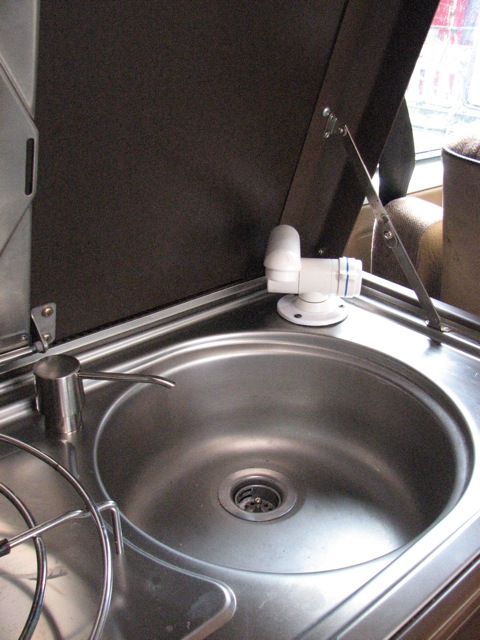

Here's one.
Member 1621 his install.

https://www.thesamba.com/vw/forum/viewtopic.php?t=...=soap+1621
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
'15 Audi A3 Quattro
'09 VW Tiguan (dead)
'87 VW Westy
'91 Tin Top
'90 Cabby
What the Westy wants the Westy GETS


http://www.thesamba.com/vw/forum/album_search.php?search_author=Timwhy&show_results=summary

http://www.youtube.com/user/TIMWHY2?feature=mhee
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
izzydog
Samba Member


Joined: April 28, 2005
Posts: 581

izzydog is offline

PostPosted: Fri Apr 10, 2020 11:16 am    Post subject: Re: Westy Sink / Stove Dimensions Reply with quote

Ever tried to wash your face in that sink? It's like camping out in the Barbie Camper. Who's head can actually fit in there? LOL

Part of that problem is the stove/sink lid - it's in the way. If I were rebuilding the stove/sink, I think would have a lid that could work with a hinge and also be detachable. Maybe even use the detached lid as a table.

A larger sink would be nice. You could fit one in by only using one larger burner for the stove. I rarely ever use two burners at once and a larger burner would get the job done faster and take up half the space.

There are some really nice sink/burner combos out there. Some also have lids that are much less bulky than the Westy one.

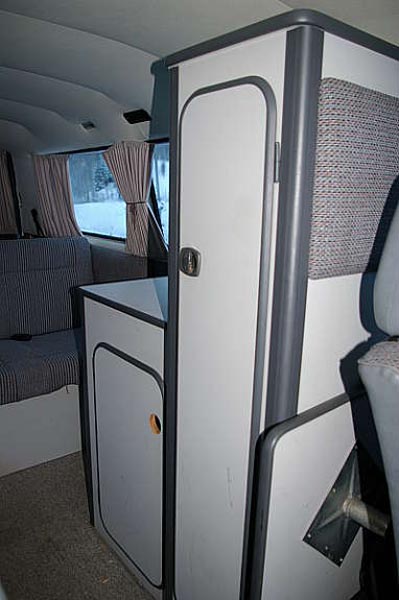

I put a drawer underneath my TF49 mostly because it's rectangular shaped and not oval shaped like the sink drawer. I thought that if those two shapes were side by side (drawer at the top of fridge) it would look odd.

Image may have been reduced in size. Click image to view fullscreen.
[/img]
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
tjet Premium Member
Samba Member


Joined: June 10, 2014
Posts: 2393
Location: LaGuardia
tjet is offline

PostPosted: Fri Apr 10, 2020 1:56 pm    Post subject: Re: Westy Sink / Stove Dimensions Reply with quote

maco70 wrote:
I’d would like a higher than 2.75 inches for the top, then I would have ease to put a soap dispenser.

The soap dispenser reservoir then would be under the sink, and the arm would goes in the sink, as we see often in a house kitchen.

An idea - hope it helps.


Good info. I'm going to put that into consideration. Thanks

izzydog wrote:
Ever tried to wash your face in that sink? It's like camping out in the Barbie Camper. Who's head can actually fit in there? LOL

Part of that problem is the stove/sink lid - it's in the way. If I were rebuilding the stove/sink, I think would have a lid that could work with a hinge and also be detachable. Maybe even use the detached lid as a table.

A larger sink would be nice. You could fit one in by only using one larger burner for the stove. I rarely ever use two burners at once and a larger burner would get the job done faster and take up half the space.

There are some really nice sink/burner combos out there. Some also have lids that are much less bulky than the Westy one.

I put a drawer underneath my TF49 mostly because it's rectangular shaped and not oval shaped like the sink drawer. I thought that if those two shapes were side by side (drawer at the top of fridge) it would look odd.


Good point. I just bought this sink in the classifieds. It's out of a Country Homes van. Measures 11-3/4 x 12-3/4. 5" deep.

Image may have been reduced in size. Click image to view fullscreen.


Thanks for the input on the Truckfridge and cooking burner use. Those two subjects will be on another post.
_________________
rusty lifted '87 syncro tintop
clean original '85 tintop
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
kamzcab86
Samba Moderator


Joined: July 26, 2008
Posts: 6804
Location: Arizona
kamzcab86 is offline

PostPosted: Fri Apr 10, 2020 4:07 pm    Post subject: Re: Westy Sink / Stove Dimensions Reply with quote

izzydog wrote:
Ever tried to wash your face in that sink? It's like camping out in the Barbie Camper. Who's head can actually fit in there? LOL


For me, it's plates. Just barely smaller than the sink; if one is set in the sink by itself, let an hour of cussing begin.😂

izzydog wrote:
I put a drawer underneath my TF49 mostly because it's rectangular shaped and not oval shaped like the sink drawer.


That looks really nice.👍
_________________
~Kamz Anxious
1986 Cabriolet: www.Cabby-Info.com
Blue Vanagon 1990 Vanagon Westfalia: Old Blue's Blog
2016 Golf GTI S
"I fear the day that technology will surpass our human interaction; the world will have a generation of idiots." ~Albert Einstein
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
jimf909 Premium Member
Samba Member


Joined: April 03, 2014
Posts: 4377
Location: Seattle
jimf909 is offline

PostPosted: Fri Apr 10, 2020 7:23 pm    Post subject: Re: Westy Sink / Stove Dimensions Reply with quote

Quote:
Also, for folks who own a Westy, what would you change on the stove/sink cabinet? Height, depth, move space for a different fridge, etc?


On the Westy kitchen I'd probably make it 6" taller for a better working heiht and to provide more storage.

I'd make much better use of the storage space using drawers and pullouts that allow for more use of the space. There are too many vacant spaces in a Westy cabinet.

I really like having front-loading fridge v. a top-loader.

The square sink makes sense.

I like the cover over the sink/stove but also see great designs that make a flat workspace with covers that remove from the stove and sink.

There are some great ideas floating around in the kitchen threads.

Nacho has awesome cabinets. Superb design and execution and three(!) burner stove.

http://www.drivenachodrive.com/about-nacho/virtual-cabinets-for-a-real-world-nacho-bus/
Image may have been reduced in size. Click image to view fullscreen.


http://www.drivenachodrive.com/about-nacho/installing-custom-cabinets-in-nacho-vanagon/
Image may have been reduced in size. Click image to view fullscreen.


I'm looking forward to seeing what you build!
_________________
Current: 1990 Westy Camper - Bostig RG4, 2wd, manual trans w/Peloquin, NAHT high-top, Flash Silver, seam rust, bondo, etc., etc.

Past: 1985 Westy Camper - 1.9 wbx, 2wd, manual trans, Merian Brown, (sold after 17 years to Northwesty who converted it to a Syncro).
Back to top
View user's profile Send private message Gallery Classifieds Feedback
tjet Premium Member
Samba Member


Joined: June 10, 2014
Posts: 2393
Location: LaGuardia
tjet is offline

PostPosted: Fri Apr 10, 2020 7:44 pm    Post subject: Re: Westy Sink / Stove Dimensions Reply with quote

Dang, that's really nice...

Image may have been reduced in size. Click image to view fullscreen.


This is more my speed

Image may have been reduced in size. Click image to view fullscreen.

_________________
rusty lifted '87 syncro tintop
clean original '85 tintop
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Timwhy
Samba Member


Joined: January 01, 2009
Posts: 3652
Location: Maine
Timwhy is offline

PostPosted: Sat Apr 11, 2020 2:20 am    Post subject: Re: Westy Sink / Stove Dimensions Reply with quote

tjet wrote:

This is more my speed

Image may have been reduced in size. Click image to view fullscreen.



I would love to have one of these in my Tintop as well

Image may have been reduced in size. Click image to view fullscreen.

_________________
'15 Audi A3 Quattro
'09 VW Tiguan (dead)
'87 VW Westy
'91 Tin Top
'90 Cabby
What the Westy wants the Westy GETS


http://www.thesamba.com/vw/forum/album_search.php?search_author=Timwhy&show_results=summary

http://www.youtube.com/user/TIMWHY2?feature=mhee
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
tjet Premium Member
Samba Member


Joined: June 10, 2014
Posts: 2393
Location: LaGuardia
tjet is offline

PostPosted: Sat Apr 18, 2020 2:15 am    Post subject: Re: Westy Sink / Stove Dimensions Reply with quote

So I've been pondering over the overall size of my custom sink / stove cabinet for my tintop passenger van. I've been scratching my head on the stove height because of my current "low" ceiling. I came up with the idea to make it adjustable from aprox 28" to 36" by sliding out the counter top & putting it in lower grooves.

The unit itself will be 34" high by 36" wide. Eventually, after I install a poptop or highroof, I can raise the unit 2 more inches with blocks to a total height of 36", which incidentally, is the most common stove height in the US. The 34 & 36" heights would be flush with the counter. The width measurement is approximate, dependent on z-bed clearance.

I'm still working on the details for the Truckfridge placement, drawers, and a recessed folding leaf on the aft side.

The side panel facing the sliding door will have a removable screen to fill in the adjustable height gap.

I will make a mock up first to see if I like or hate it.

Image may have been reduced in size. Click image to view fullscreen.


https://www.dometic.com/en-us/us/products/food-and...ifications
_________________
rusty lifted '87 syncro tintop
clean original '85 tintop
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page 1 of 1


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
