What is the tow capacity of a Vanagon?
Page: 1, 2, 3  Next
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
joe cool
Samba Member


Joined: August 20, 2006
Posts: 1237
Location: Yolo County CA
joe cool is offline

PostPosted: Thu Oct 12, 2017 9:49 pm    Post subject: What is the tow capacity of a Vanagon? Reply with quote

We have a tent trailer, around 2000 pounds with a tongue weight around 250 pounds, electric brakes with an electronic brake controller. Can a Vanagon handle this or would that be a bad idea?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jimf909 Premium Member
Samba Member


Joined: April 03, 2014
Posts: 5816
Location: Seattle
jimf909 is offline

PostPosted: Thu Oct 12, 2017 10:43 pm    Post subject: Re: What is the tow capacity of a Vanagon? Reply with quote

Apparently about 2,000 lbs...

https://www.thesamba.com/vw/forum/viewtopic.php?t=297337
_________________
Abscate wrote:

Do not get killed, do not kill others.


Current: 1990 Westy Camper - Bostig RG4, 2wd, manual trans w/Peloquin, NAHT high-top, Flash Silver, seam rust, bondo, etc., etc.

Past: 1985 Westy Camper - 1.9 wbx, 2wd, manual trans, Merian Brown, (sold after 17 years to Northwesty who converted it to a Syncro).
Back to top
View user's profile Send private message Gallery Classifieds Feedback
SSWesty
Samba Member


Joined: August 20, 2008
Posts: 712
Location: Bellevue
SSWesty is offline

PostPosted: Thu Oct 12, 2017 11:56 pm    Post subject: Re: What is the tow capacity of a Vanagon? Reply with quote

Based on the towing I've done over the past 35 years I'd say 1,000 pounds is not much of a problem for these vans with a stock engine. Sure you may have to downshift on the hills but you'll get there. Folks have towed 6,000 pounds with these vans and commonly exceed the gross vehicle weight ratings just running around with accessories and gear on westfalias. I think you'll hear all kinds of numbers and experiences. So of course you can tow 2,000 pounds and yes you will be downshifting more often and stressing the tranny. The big question is how well your setup will stop in an emergency situation, which really comes back your equipment. Tires, suspension, shocks, brakes and brake controller. You may just have to try it to get your best answer.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Waldi
Samba Member


Joined: February 28, 2014
Posts: 1752
Location: Germany
Waldi is offline

PostPosted: Fri Oct 13, 2017 12:37 am    Post subject: Re: What is the tow capacity of a Vanagon? Reply with quote

2wd up to 2000kg
4wd up to 2500kg

Vans with German plates alowed 4500kg total van + trailer.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
clift_d
Samba Member


Joined: December 02, 2012
Posts: 235
Location: Hackney innit, UK
clift_d is offline

PostPosted: Fri Oct 13, 2017 2:15 am    Post subject: Re: What is the tow capacity of a Vanagon? Reply with quote

Waldi wrote:
2wd up to 2000kg
4wd up to 2500kg

Vans with German plates alowed 4500kg total van + trailer.


Strictly speaking, I believe those EU weights were only for turbo diesel vans and only if the they had a 'Special Certificate' from VW for uprated towing, otherwise it was 1500kg for 2WD and 2000kg for 4WD / Syncro. Also these are only for braked trailers - unbraked trailers were strictly maximum 600kg.

I'm not sure what the rated towing capacity was on US Vanagons.
_________________
1988 LHD T25 1.6TD Westfalia Club Joker syncro
Back to top
View user's profile Send private message Classifieds Feedback
dobryan Premium Member
Samba Member


Joined: March 24, 2006
Posts: 14282
Location: Brookeville, MD
dobryan is offline

PostPosted: Fri Oct 13, 2017 4:42 am    Post subject: Re: What is the tow capacity of a Vanagon? Reply with quote

I would say that a Vanagon 'may' be able to handle it. It is at the upper limit (or maybe over) but at least you have electric brakes for the trailer. I would be concerned about keeping under control in an evasive maneuver situation. Others have towed as much and more.... YMMV.
_________________
Dave O
'87 Westy w/ 2002 Subaru EJ25 and Peloquin TBD

"To travel hopefully is a better thing than to arrive." Robert Louis Stevenson

MD>Canada>AK>WA>OR>CA>AZ>UT>WY>SD
https://www.thesamba.com/vw/forum/viewtopic.php?t=620646

Building a bus for travel in Europe (euroBus)
https://www.thesamba.com/vw/forum/viewtopic.php?t=695371

The West Coast Westy
https://www.thesamba.com/vw/forum/viewtopic.php?t=746794
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Abscate Premium Member
Samba Member


Joined: October 05, 2014
Posts: 17992
Location: NYC/Upstate/ROW
Abscate is offline

PostPosted: Fri Oct 13, 2017 4:52 am    Post subject: Re: What is the tow capacity of a Vanagon? Reply with quote

I think you can get more than 2000 tows into a Vanagon, unless they are halluxes.
_________________
.ssS!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
danfromsyr
Samba Member


Joined: March 01, 2004
Posts: 14255
Location: Syracuse, NY
danfromsyr is offline

PostPosted: Fri Oct 13, 2017 5:51 am    Post subject: Re: What is the tow capacity of a Vanagon? Reply with quote

I always say just how far and how much is expected..
local 50 miles of flattish 2ndry roads (meaning 65mph max) sure
300+ miles of hilly interstate at 70mph+ nope.. not for all that long..

it can do it, but what do you expect it to do it for and how long is the key.
_________________
Abscate wrote:
These are the reasons we have words like “wanker”
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
joe cool
Samba Member


Joined: August 20, 2006
Posts: 1237
Location: Yolo County CA
joe cool is offline

PostPosted: Fri Oct 13, 2017 7:45 am    Post subject: Re: What is the tow capacity of a Vanagon? Reply with quote

Thanks for the replies. It does not sound like there is consensus on this.
Braking is not a concern for me, the electric trailer brakes work great. Transmission, on the other hand, is a concern. I imagine Vanagon transmissions are probably quite pricey. Is this the weak link?
(We are currently towing the trailer with a 2003 Toyota Highlander. It has just enough muscle but the front wheel drive only makes for poor traction on loose surfaces. I would love an excuse to replace it with another bus, but maybe that is a bad idea?)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
davevickery
Samba Member


Joined: July 16, 2005
Posts: 2887
Location: Fort Collins, CO
davevickery is offline

PostPosted: Fri Oct 13, 2017 7:52 am    Post subject: Re: What is the tow capacity of a Vanagon? Reply with quote

I'm surprised by the responses. My gut reaction is 2000 lbs is too much. The eye bolt tow bar for one is not rated for that. I think it is a class 3 rating, 100 lb tongue and 1000 or 1500 lb total. But even with a heavy duty frame hitch I think you would run into problems not having enough power to get up hills.

I towed a completely full 5x8 enclosed trailer from my house to a storage yard about 15 miles away and it was pitiful trying to get up inclines. It is one thing using it for short trips, but a travel trailer implies more miles on winding roads. I think the strain on the engine and transmission and the lack of driveablity would make it unpleasant for regular use.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Abscate Premium Member
Samba Member


Joined: October 05, 2014
Posts: 17992
Location: NYC/Upstate/ROW
Abscate is offline

PostPosted: Fri Oct 13, 2017 11:03 am    Post subject: Re: What is the tow capacity of a Vanagon? Reply with quote

joe cool wrote:
We have a tent trailer, around 2000 pounds with a tongue weight around 250 pounds, electric brakes with an electronic brake controller. Can a Vanagon handle this or would that be a bad idea?


Year, engine, manual or automatic?


Describe how you will be towing it - distance, time, and terrain before the advisability can be determined.
_________________
.ssS!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
MarkWard
Samba Member


Joined: February 09, 2005
Posts: 15081
Location: Retired South Florida
MarkWard is offline

PostPosted: Fri Oct 13, 2017 11:39 am    Post subject: Re: What is the tow capacity of a Vanagon? Reply with quote

2000 KG would cover my race car and trailer. I'll need to try that at some point.
_________________
Adios
Back to top
View user's profile Send private message Gallery Classifieds Feedback
E1
Samba Member


Joined: January 21, 2013
Posts: 4994
Location: Westfalia, Earth
E1 is offline

PostPosted: Fri Oct 13, 2017 11:42 am    Post subject: Re: What is the tow capacity of a Vanagon? Reply with quote

That's what I want to hear, Mark!!! Cool
_________________
1984 Westy-Ferrari firing at 33% capacity
I drive by the seat of my pants but then get behind on my steering
Thank You Bob Lazier, Forever Golden
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
bobbyblack Premium Member
Samba Member


Joined: May 21, 2015
Posts: 3484
Location: United States, Iowa
bobbyblack is offline

PostPosted: Fri Oct 13, 2017 11:44 am    Post subject: Re: What is the tow capacity of a Vanagon? Reply with quote

I dunno, but mine did fine with this, what's yer guess?

Image may have been reduced in size. Click image to view fullscreen.

_________________
'87 Westy 'Flossie','86 Westy 'R1','86 tintop GL - Subi2.2 'J2','83.5 stock tintop L 'ZoomBus','74 Karmann Ghia, '63 Notch
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
E1
Samba Member


Joined: January 21, 2013
Posts: 4994
Location: Westfalia, Earth
E1 is offline

PostPosted: Fri Oct 13, 2017 11:46 am    Post subject: Re: What is the tow capacity of a Vanagon? Reply with quote

469 bhp in the gray one? Wink
_________________
1984 Westy-Ferrari firing at 33% capacity
I drive by the seat of my pants but then get behind on my steering
Thank You Bob Lazier, Forever Golden
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
bobbyblack Premium Member
Samba Member


Joined: May 21, 2015
Posts: 3484
Location: United States, Iowa
bobbyblack is offline

PostPosted: Fri Oct 13, 2017 12:00 pm    Post subject: Re: What is the tow capacity of a Vanagon? Reply with quote

Have not yet put it on my Dyno... I keep one in my basement, so it'll just be a quick drive-in-drive-out thing Wink
_________________
'87 Westy 'Flossie','86 Westy 'R1','86 tintop GL - Subi2.2 'J2','83.5 stock tintop L 'ZoomBus','74 Karmann Ghia, '63 Notch
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
SSWesty
Samba Member


Joined: August 20, 2008
Posts: 712
Location: Bellevue
SSWesty is offline

PostPosted: Fri Oct 13, 2017 12:04 pm    Post subject: Re: What is the tow capacity of a Vanagon? Reply with quote

If you are thinking about getting a vanagon for the purposes of towing that trailer I would choose a different tow vehicle. As for replacing the transmissions it just depends on your perspective. In general you can have one rebuild for $1,500-2,500 if you pull the transmission. My sister's 06 Ford mini van lost the torque converter and that is estimated to be a $2,700-4,000 job. I'd rather throw money at the vanagon than an 06 ford mini van. Vanagon transmissions hold up best with the stock engines and no towing duty. They just aren't that "strong" for heavy duty service. This is all hypothetical so maybe you tow a 2k trailer and rebuild the tranny in the next 25,000 miles instead of getting 50,000 out of it. Again it will do it but I think it would be a comprised situation in an emergency and you'll have a new set of issues to work through. I would buy something else for towing that trailer.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Sodo
Samba Member


Joined: July 06, 2007
Posts: 7147
Location: Western WA
Sodo is offline

PostPosted: Fri Oct 13, 2017 12:21 pm    Post subject: Re: What is the tow capacity of a Vanagon? Reply with quote

If you have a NEW transmission with all new VW-quality gears, bearings, shafts cases etc. you can probably can go to 2000 lbs. If not in the mountains, and if not "far" such as on a multiday trip. And if you don't have a big engine, pushing the trans harder than it was designed for.

Here's towing about 1200 lbs back in 2010, and I remember the gut-feel like it was about "the limit". This was a 125 miles tow. Knowing what I know NOW, I would limit this to a short careful trip. I'd do 125 miles, but perhaps more carefully. Back then I thought 3rd gear was being careful, even if it was 5,000 RPM.

Image may have been reduced in size. Click image to view fullscreen.


The reality is that your trans probably has a few old parts in it. At ~30 years old, it could have been rebuilt once or twice already. And perhaps ALL old parts. And was it rebuilt to meet a price point like $1095 and 90 day warranty? Or was it rebuilt for original quality? These two rebuild levels are appx $4-5000 difference in cost. When rebuilt to $5000, you don't forget that choice...... Wink
_________________


'07 EJ25 with '12 longblock, (Peloquin TDB on the shelf), locker, transaxle oil cooler/filtration system. LiFePO
....KTMs, GasGas, and a Stumpjumper
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jismay
Samba Member


Joined: February 02, 2010
Posts: 219
Location: Norco, CA
jismay is offline

PostPosted: Fri Oct 13, 2017 1:39 pm    Post subject: Re: What is the tow capacity of a Vanagon? Reply with quote

I've towed ~1300 lbs of trailer + motorcycles behind my 1980 aircooled Vanagon. Did SoCal to Flagstaff,AZ and then on to the Grand Canyon before heading for home again. Maybe 1500 miles all told.

It was not fast, but it could generally keep up 55MPH except in places like Cajon pass,etc where I'd be going slower anyways. Certainly going up Cajon where I'm going 35-40 in 2nd gear anyways the trailer did not really slow me down any.

I do not use the tow-hook attachments for towing however, I use a Rocky Mountain Westy bumper which is a very stout piece.
_________________
1970 Squareback with 1915cc dual 40idf
1979 Beetle Convertible
1980 Vanagon Westfalia
1989 VW Cabriolet
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
dobryan Premium Member
Samba Member


Joined: March 24, 2006
Posts: 14282
Location: Brookeville, MD
dobryan is offline

PostPosted: Fri Oct 13, 2017 2:14 pm    Post subject: Re: What is the tow capacity of a Vanagon? Reply with quote

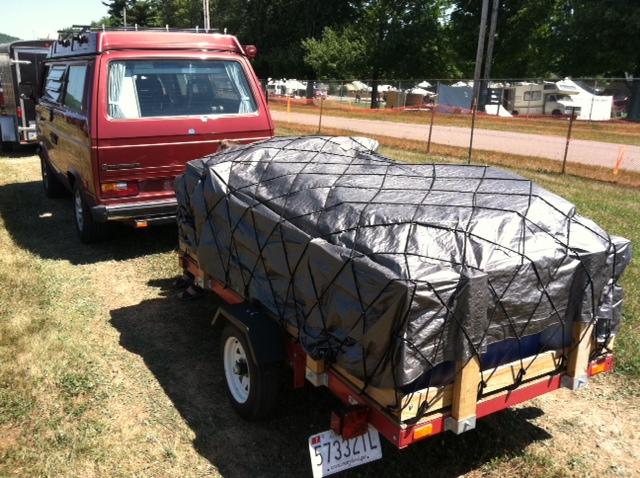

I tow this every summer for 250 miles each way to go camping. More than 1000 lbs with our yurt and supplies. No elec brakes. Very conservative on down grades due to no elec brakes.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Dave O
'87 Westy w/ 2002 Subaru EJ25 and Peloquin TBD

"To travel hopefully is a better thing than to arrive." Robert Louis Stevenson

MD>Canada>AK>WA>OR>CA>AZ>UT>WY>SD
https://www.thesamba.com/vw/forum/viewtopic.php?t=620646

Building a bus for travel in Europe (euroBus)
https://www.thesamba.com/vw/forum/viewtopic.php?t=695371

The West Coast Westy
https://www.thesamba.com/vw/forum/viewtopic.php?t=746794
Back to top
View user's profile Send private message Gallery Classifieds Feedback
