PostPosted: Sat Feb 16, 2019 6:34 pm    Post subject: Dellorto 36 float level Reply with quote

Can someone tell me where the correct float level would be in the bowl of the carburetor. I know that the level should be set at 6mm on the lid. I'm questioning my method for adjusting the float or maybe the needle valve is bad. My fuel pressure is 2.5-3psi. Or maybe someone could explain exactly how to adjust floats. I do have the dellorto tech book but it seems there are some discrepancies in wording
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Danwvw
Samba Member


Joined: July 31, 2012
Posts: 8884
Location: Oregon Coast
Danwvw is offline

PostPosted: Sat Feb 16, 2019 8:15 pm    Post subject: Re: Dellorto 36 float level Reply with quote

It would be good to clean the carb and set the float via the instructions in the drawing but check it with no gas by turning the carb upside down and back right side up a few times making sure by blowing on a small hose you can attach that the valve is opening and closing every time. Make sure it does not hit the sides and that the float valve needle is centered within the fingers that move it and not wedged to the side You can also punch a hole in the gasket the carb top gasket and drop in your calipers as a dip stick to measure the gas level once it's installed and operational. It will have about 26-29mm or so of gas from the bottom of the float bowl. Generally though a problem with sticking needle valves result with getting gas in the motor oil after setting with a full tank of gas overnight. A leaking needle valve can also cause hydrolock and the engine won't crank over until the gas is cleared by turning the engine over slowly and gently with a wrench.

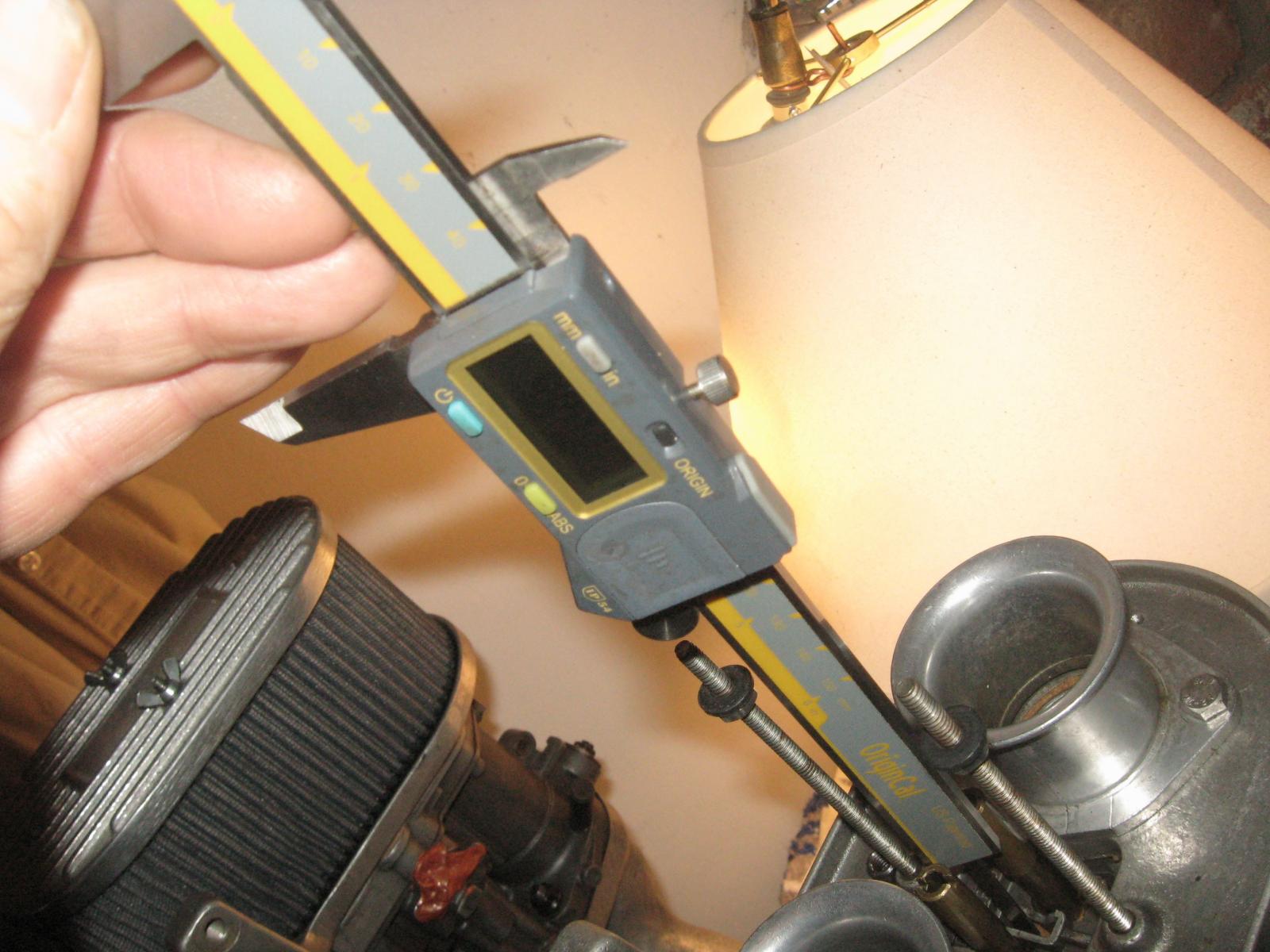

Image may have been reduced in size. Click image to view fullscreen.

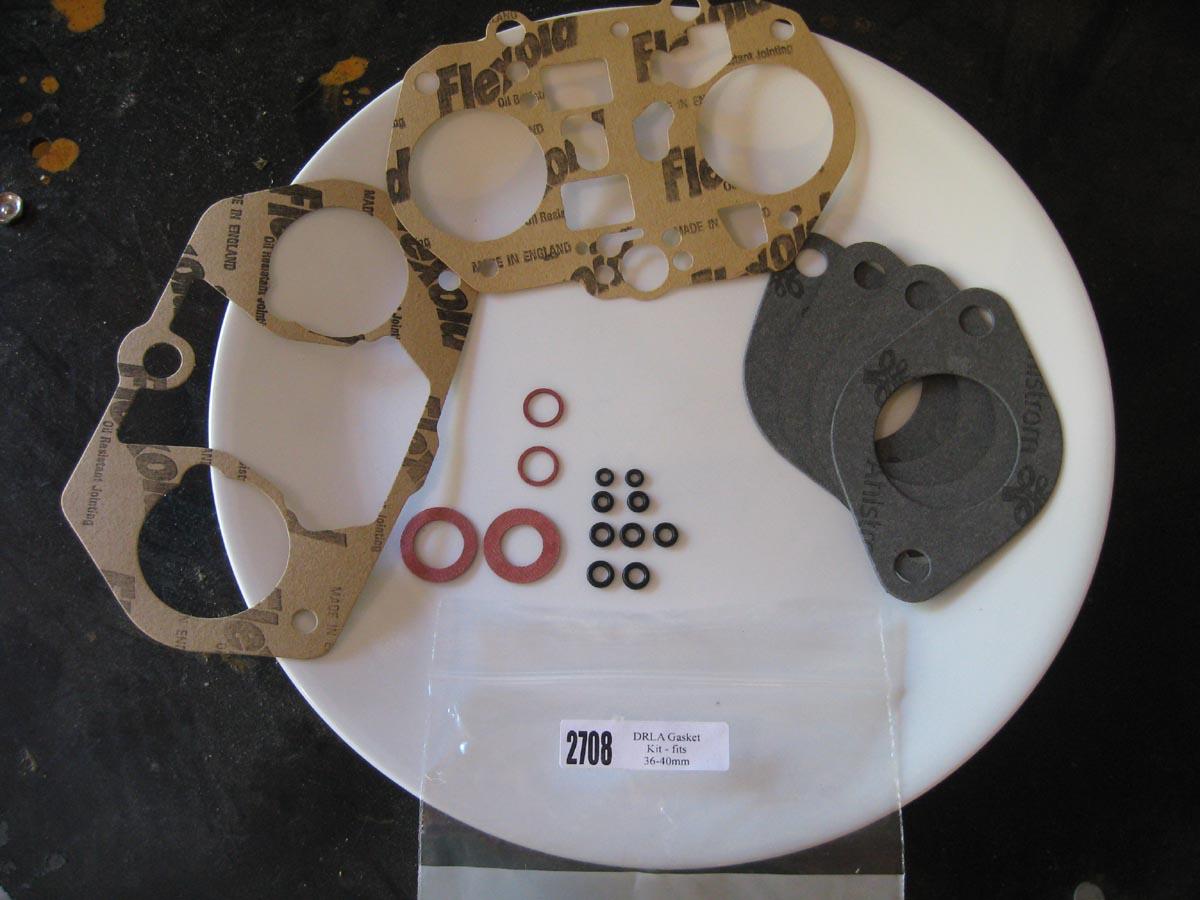

Image may have been reduced in size. Click image to view fullscreen.


The float cross member is there so make sure your not hitting it which will cause high readings.
Image may have been reduced in size. Click image to view fullscreen.

_________________
1960 Beetle And 1679cc DP W-100 & Dual Zeniths!


Last edited by Danwvw on Sat Feb 16, 2019 8:59 pm; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Facebook Twitter Gallery Classifieds Feedback
Type 5 Joe
Banned


Joined: January 18, 2003
Posts: 1795
Location: Oregon
Type 5 Joe is offline

PostPosted: Sat Feb 16, 2019 8:51 pm    Post subject: Re: Dellorto 36 float level Reply with quote

The floats bend upwards over time... Especially in dunebuggies, bajas, and sandrails.

They all slowly bend upward with use.

I set them slightly down in the bowl from horizontal as shown in the diagram.

When they get serviced a year or two later, they will rest slightly above horizontal... Again I set them down just a bit.
_________________
If you would like to contact me, just email through one of my ads on here...

I don't use the P.M. service on here.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
modok
Samba Member


Joined: October 30, 2009
Posts: 25692
Location: Colorado Springs
modok is online now

PostPosted: Sat Feb 16, 2019 11:18 pm    Post subject: Re: Dellorto 36 float level Reply with quote

even with the step top in the emulsion tube
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Danwvw
Samba Member


Joined: July 31, 2012
Posts: 8884
Location: Oregon Coast
Danwvw is offline

PostPosted: Sun Feb 17, 2019 12:57 pm    Post subject: Re: Dellorto 36 float level Reply with quote

What Here? That would be about 25mm of standing fuel if measured to the bowl bottom with the floats installed and the carb top on.
Image may have been reduced in size. Click image to view fullscreen.

_________________
1960 Beetle And 1679cc DP W-100 & Dual Zeniths!
Back to top
View user's profile Send private message Send e-mail Facebook Twitter Gallery Classifieds Feedback
modok
Samba Member


Joined: October 30, 2009
Posts: 25692
Location: Colorado Springs
modok is online now

PostPosted: Sun Feb 17, 2019 2:07 pm    Post subject: Re: Dellorto 36 float level Reply with quote

Well, maybe not exactly
maybe as high as the bottom edge of the big holes, but certainly no higher than that, depending on what your doing.
I rather be low than too high, too high you get a lot of spillage in turns and bumps.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Danwvw
Samba Member


Joined: July 31, 2012
Posts: 8884
Location: Oregon Coast
Danwvw is offline

PostPosted: Sun Feb 17, 2019 2:55 pm    Post subject: Re: Dellorto 36 float level Reply with quote

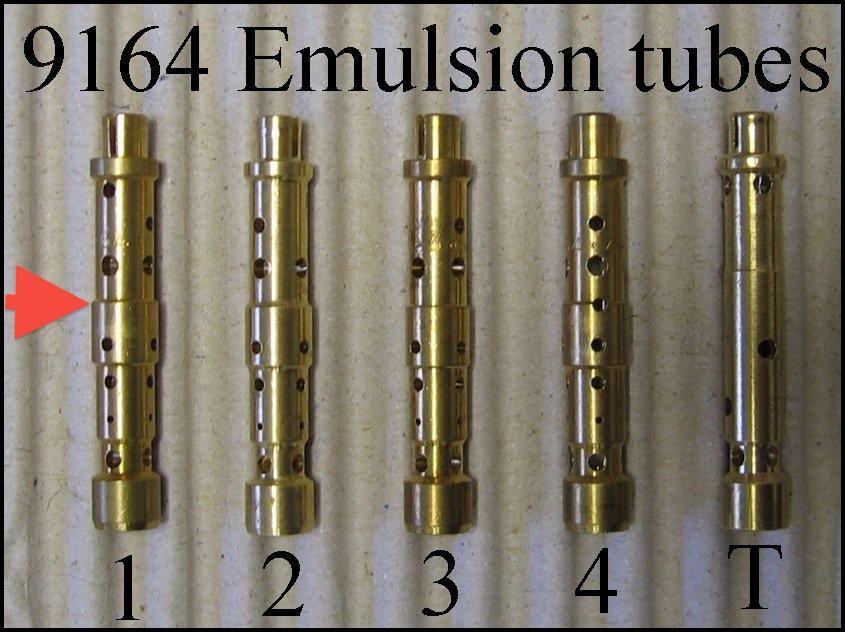

Found this: https://www.highpowermedia.com/blog/3971/the-emulsion-tube

Image may have been reduced in size. Click image to view fullscreen.

_________________
1960 Beetle And 1679cc DP W-100 & Dual Zeniths!
Back to top
View user's profile Send private message Send e-mail Facebook Twitter Gallery Classifieds Feedback
modok
Samba Member


Joined: October 30, 2009
Posts: 25692
Location: Colorado Springs
modok is online now

PostPosted: Sun Feb 17, 2019 7:54 pm    Post subject: Re: Dellorto 36 float level Reply with quote

LOL, that's clearly not drawn to scale

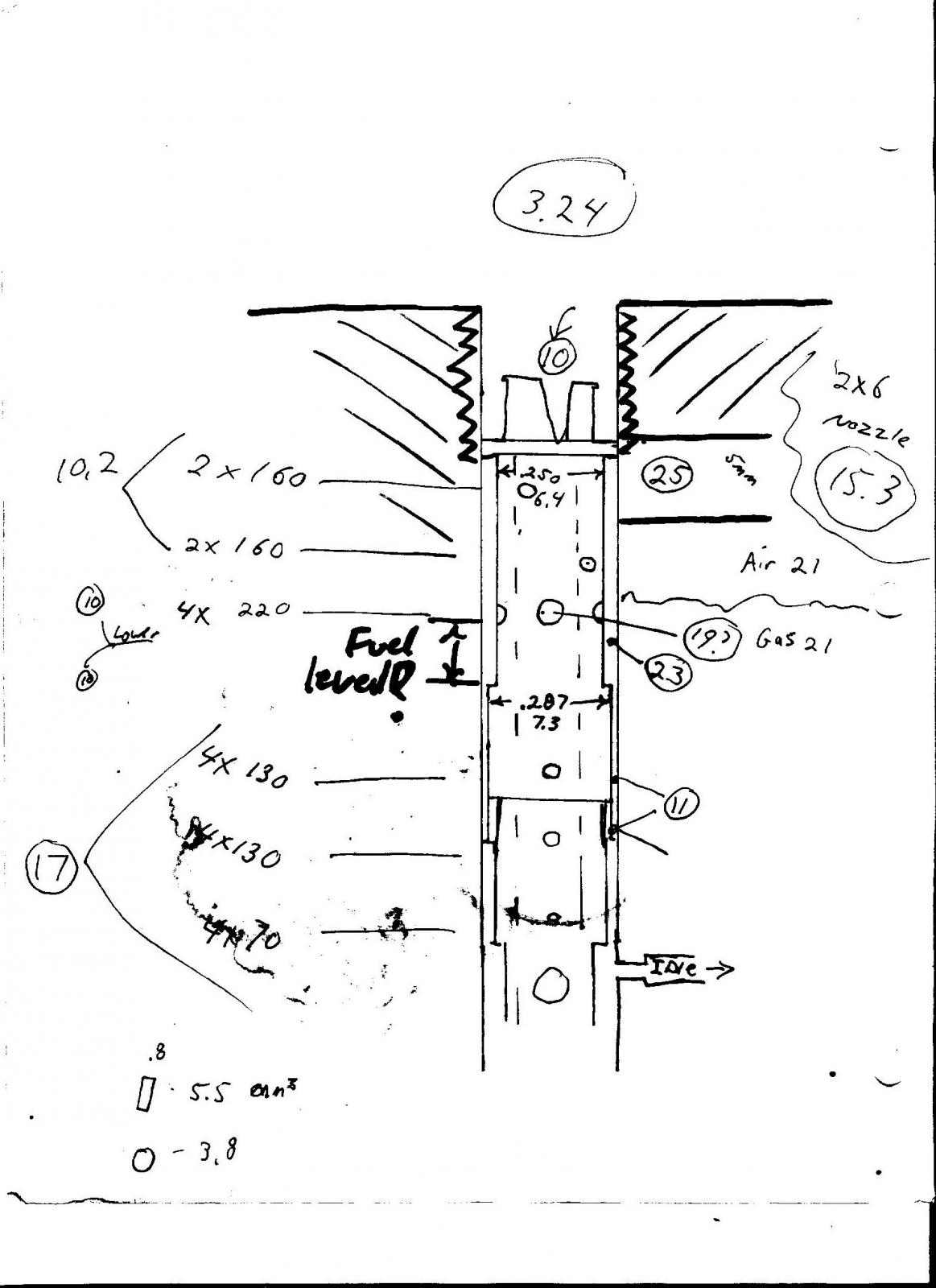

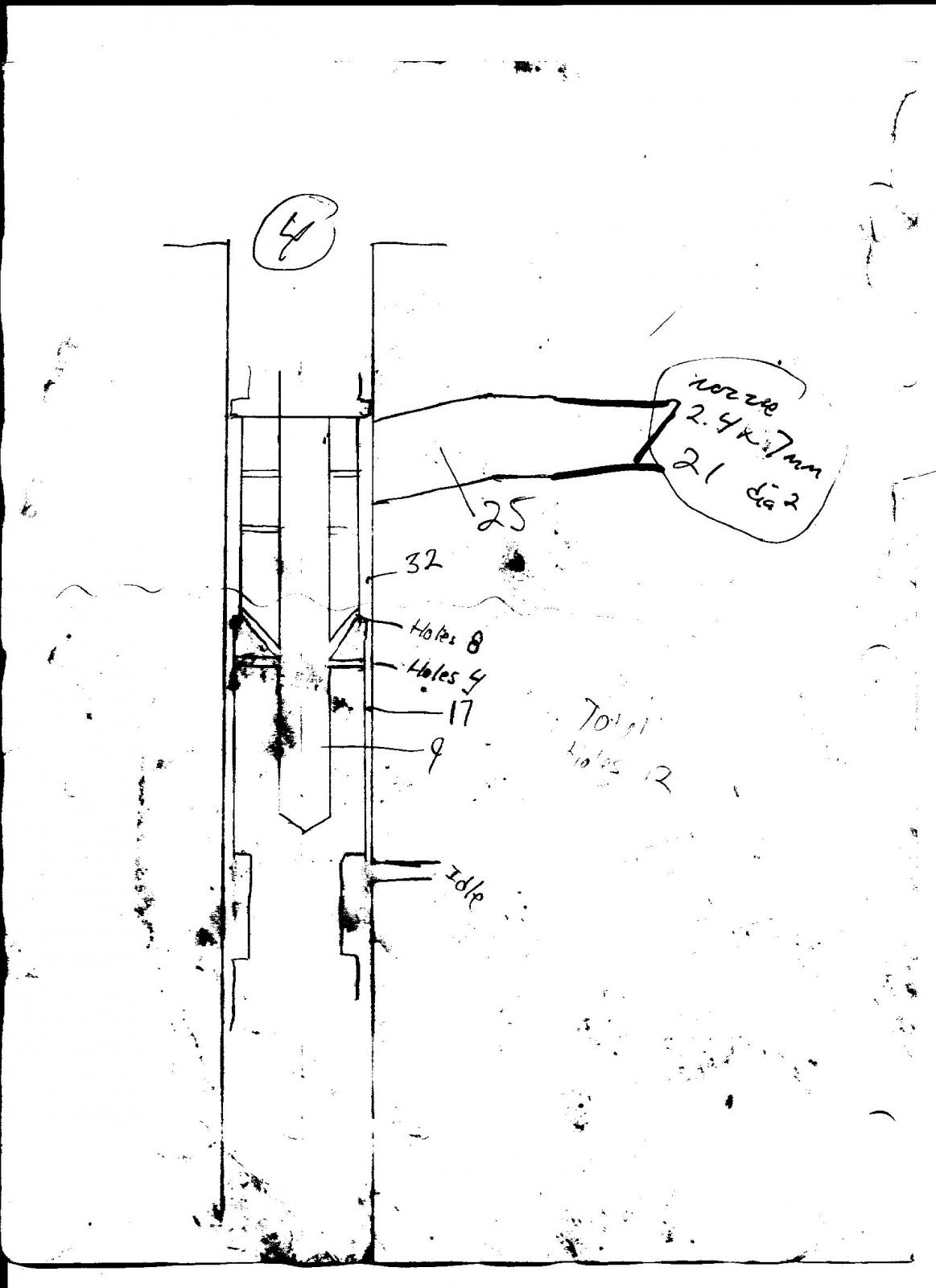

this is what it actually looks like
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


I made those a long time ago, I did learn some interesting things doing all those measurements.

For instance, my areas are noted in round mm diameter squared, but I think weber's aux vent size is equivalent hole size. Meaning a 4.5 nozzle has the same exit area as a 4.5mm hole. Both carburetors have 5mm ports leading to the aux vent, but notice the nozzle size of the dellorto aux vent is clearly much smaller than 4.5, in weber terms it would be perhaps 3.8 or 4.0
Dellorto clearly had plans for larger aux vents and alternative emulsion tubes, but they were never made Crying or Very sad

Anyway, after actually looking at it I think just below the four big holes must be right for the fuel level. DRLA has quite a strange emulsion tube, I never will know why it is the way it is, but, seems to work so I guess it's magic Wink
Back to top
View user's profile Send private message Gallery Classifieds Feedback
arpbus
Samba Member


Joined: November 05, 2011
Posts: 17

arpbus is offline

PostPosted: Thu Feb 21, 2019 7:08 pm    Post subject: Re: Dellorto 36 float level Reply with quote

Image may have been reduced in size. Click image to view fullscreen.

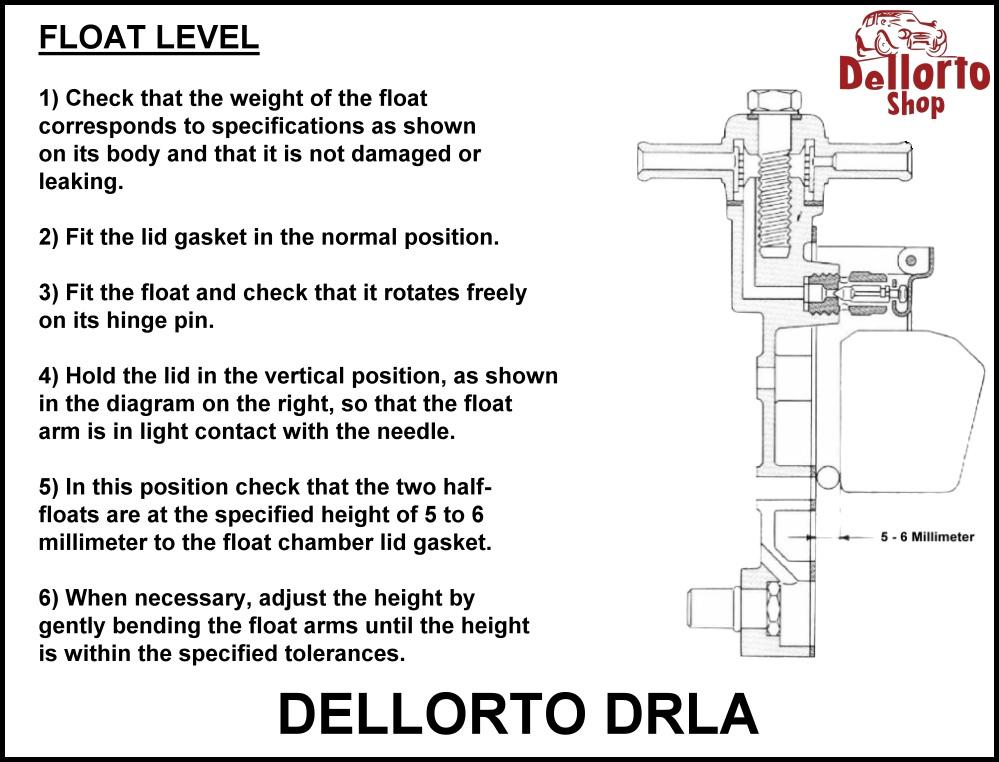

Thanks for your posts. Very helpful. These were the best instructions I could find. The instructions found in the CB performance book do not make any sense to me at all. They say nothing about holding it vertical which is super important and the details about pressure points of float arm and needle are foggy at best
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Danwvw
Samba Member


Joined: July 31, 2012
Posts: 8884
Location: Oregon Coast
Danwvw is offline

PostPosted: Thu Feb 21, 2019 7:17 pm    Post subject: Re: Dellorto 36 float level Reply with quote

Interesting, Makes since to check it that way, I always blow on an attached hose and check the 5.5mm where it shuts off. It should be where the top of the float is parallel with the top of the carb.
_________________
1960 Beetle And 1679cc DP W-100 & Dual Zeniths!
Back to top
View user's profile Send private message Send e-mail Facebook Twitter Gallery Classifieds Feedback
Type 5 Joe
Banned


Joined: January 18, 2003
Posts: 1795
Location: Oregon
Type 5 Joe is offline

PostPosted: Thu Feb 21, 2019 7:46 pm    Post subject: Re: Dellorto 36 float level Reply with quote

Like I stated before... Set slightly less that parallel with the lid.

Expect to see them above parallel with the lid the next time you service the carbs.

They slowly bend upwards over time. The fuel pressure moving them up and down against the stop + bouncing around causes them to tweak upwards over time.

Start down a little and you'll be fine.
_________________
If you would like to contact me, just email through one of my ads on here...

I don't use the P.M. service on here.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
modok
Samba Member


Joined: October 30, 2009
Posts: 25692
Location: Colorado Springs
modok is online now

PostPosted: Thu Feb 21, 2019 10:25 pm    Post subject: Re: Dellorto 36 float level Reply with quote

Type 5 Joe wrote:
Like I stated before... Set slightly less that parallel with the lid.


that's pretty much the universal law of float setting.
And.....it's pretty much right too! Most of the time.
The floats are also marked with a weight in grams.
Not much excuse for not checking that, now that small scales only cost like 10$
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Type 5 Joe
Banned


Joined: January 18, 2003
Posts: 1795
Location: Oregon
Type 5 Joe is offline

PostPosted: Thu Feb 21, 2019 10:49 pm    Post subject: Re: Dellorto 36 float level Reply with quote

Dellorto floats are made of cellular foam inside....

They are all the same, and if they are cracked or sugaring they need to be replaced.

Usually they are good and I have seen little variance in the couple hundred or so sets I have dealt with.

Almost all the carbs I have seen that have been run and not maintained have floats set extremely High. I'm sure its from years of use and not re-setting them.
_________________
If you would like to contact me, just email through one of my ads on here...

I don't use the P.M. service on here.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
74 Thing
Samba Member


Joined: September 02, 2004
Posts: 7008

74 Thing is offline

PostPosted: Fri Feb 22, 2019 7:26 am    Post subject: Re: Dellorto 36 float level Reply with quote

I like to use an allen wrench as a gap checker tool for the float (5.5mm)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Matthew Tolbert
Samba Member


Joined: March 27, 2004
Posts: 692
Location: Georgia
Matthew Tolbert is offline

PostPosted: Wed May 01, 2019 6:05 pm    Post subject: Re: Dellorto 36 float level Reply with quote

I need some help with my fuel levels on my 36mm dellortos... I think. I feel like they are too high due to tuning issues Iím having but I am not 100% certain my method isnít flawed. Everyone always speaks of how to set the float heights and Iíve set them to the recommended 6mm/13mm. What I am doing until I find a better way is simply I start the engine and let it idle for a few minutes until I know the bowls are filled. Ive done the following with the engine still running and off. I then pull the main stack out and wipe the fuel off of it and then just place it back in the hole without threading it in like a dipstick and when I pull it back out the wet fuel line is right above the holes it is supposed to be below from what I have read and understand. If I thread it in it is way above the holes actually at the top of the emulsion tubes. Am I way off base here or do I have other issues I need to address like possibly fuel pressure?
_________________
Matthew Tolbert
1958 ragtop
1961 doublecab
1965 Notchback S
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
modok
Samba Member


Joined: October 30, 2009
Posts: 25692
Location: Colorado Springs
modok is online now

PostPosted: Wed May 01, 2019 6:18 pm    Post subject: Re: Dellorto 36 float level Reply with quote

I don't really know, I'm guessing, and I could be wrong.
The only official specifications are the float level 5-6mm, and
some specification of 20-22mm which the meaning of is not clear.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Matthew Tolbert
Samba Member


Joined: March 27, 2004
Posts: 692
Location: Georgia
Matthew Tolbert is offline

PostPosted: Wed May 01, 2019 6:35 pm    Post subject: Re: Dellorto 36 float level Reply with quote

Lol Modok your first sentence is exactly where I am at this moment except it reads more like I have no clue, Iím definitely guessing and Iím sure Iím wrong. I just hope I can find a simple definitive answer to measuring fuel levels. It would at least get it out of my head as a possible issue.
_________________
Matthew Tolbert
1958 ragtop
1961 doublecab
1965 Notchback S
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Matthew Tolbert
Samba Member


Joined: March 27, 2004
Posts: 692
Location: Georgia
Matthew Tolbert is offline

PostPosted: Wed May 01, 2019 6:38 pm    Post subject: Re: Dellorto 36 float level Reply with quote

Danwvw wrote:
What Here? That would be about 25mm of standing fuel if measured to the bowl bottom with the floats installed and the carb top on.
Image may have been reduced in size. Click image to view fullscreen.


Looking at this picture where the red arrow is the wet line is above those holes not below. And that is just placing the jet stack in not threading it.
_________________
Matthew Tolbert
1958 ragtop
1961 doublecab
1965 Notchback S
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
modok
Samba Member


Joined: October 30, 2009
Posts: 25692
Location: Colorado Springs
modok is online now

PostPosted: Wed May 01, 2019 6:44 pm    Post subject: Re: Dellorto 36 float level Reply with quote

I have an idea.
We know that the float height is 5-6mm, so all we need to do is float the float, and see how many MM of iceberg is above water.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Alstrup
Samba Member


Joined: July 12, 2007
Posts: 6539
Location: Videbaek Denmark
Alstrup is offline

PostPosted: Thu May 02, 2019 12:39 pm    Post subject: Re: Dellorto 36 float level Reply with quote

I agree with the general setting.
However, I have lately come across a series of 36 Dells that would not work properly with the normal 5-6 mm float stop. They bucked and jerked and spit at me and I was like,,,, Hmmmmm! Shocked Tried up and down with the jets to figure out where I had gone wrong. Improved it some, but nowhere near good enough. Then I thought OK, here is something unusual, so I looked into it some more. Everything looked right. But since it wanted huge jets for a slight improvement I thought that I would lower the float height to 4 mm and see how it liked that. Sure enough, now it responded to my jetting abhout as normal. Ultimately I set them at 3,5 mm and the engine goes waaarp just off idle (?) The float level is VERY close to the discharge hole, but for what ever reason these carbs want that.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
