Hello! Log in or Register   |  Help  |  Donate  |  Buy Shirts See all banner ads | Advertise on TheSamba.com
TheSamba.com

Building a strong gearbox with 95% OEM parts
Page: Previous  1, 2, 3  Next
Forum Index -> Performance/Engines/Transmissions Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
EVfun
Samba Member


Joined: April 01, 2012
Posts: 5208
Location: Seattle
EVfun is offline

PostPosted: Sat Jul 18, 2020 1:55 pm    Post subject: Re: Building a strong gearbox with 95% OEM parts Reply with quote

Interesting information. Speaking of parts swapping I have a question about a swingaxle transaxle I have. I didn't check the 1st or 2nd gear ratios but did check 3rd and 4th and the final drive ratios. Third is 1.32 and forth is 0.93, with a 4.375 final drive. What parts did someone have to combine to use a 40 horse 3rd and late type 4th and 4.375 R&P?
_________________
Wildthings wrote:
As a general rule, cheap parts are the most expensive parts you can buy.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
[email protected]
Samba Member


Joined: May 17, 2003
Posts: 4853
Location: Harmony, PA
gkeeton@zbzoom.net is offline

PostPosted: Sun Jul 19, 2020 6:48 am    Post subject: Re: Building a strong gearbox with 95% OEM parts Reply with quote

EVfun wrote:
Interesting information. Speaking of parts swapping I have a question about a swingaxle transaxle I have. I didn't check the 1st or 2nd gear ratios but did check 3rd and 4th and the final drive ratios. Third is 1.32 and forth is 0.93, with a 4.375 final drive. What parts did someone have to combine to use a 40 horse 3rd and late type 4th and 4.375 R&P?


Iím not sure what an AM transaxle like the one ngobet is working on over in Switzerland, but ones Iíve found in the US from the Canadian market had a 4.37 r&p with 3.78/2.06/1.26/.93 gearing. A 1.32 could have simply been substituted from that OEM configuration. Or you could have taken a late Split Bus splined 4.37, a 1.32 3rd, and combined it with the later gear stack. You would need to turn down the 002 hub some, and open up the inside of the early 1.32 gear. Iíve also seen the 002 hub turned down completely to clear a non-modified 113 year. ngobet posted a pick of the work on the gear, maybe they can post a pic of the hub? I always thought the sliders associated with each gear drive tooth needed to be used with the early/late gears, but the late 002/091 slider will work with both.
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
benozoval56
Samba Member


Joined: April 13, 2022
Posts: 28
Location: Seacombe Gardens
benozoval56 is offline

PostPosted: Sat Jul 02, 2022 5:17 am    Post subject: Re: Building a strong gearbox with 95% OEM parts Reply with quote

Found this post as Iím in the process of doing similar.

Iím starting with an AT code IRS gearbox that Iím converting to SA.

I already have a Rhino HD case, super diff, steel HD side plate with the reinforcement half rings for the axle tubes, 15T side gears, HD clutch forkÖ.

I picked up coarse tooth 3rd & 4th gears but they are keyed when I needed splined Crying or Very sad

A couple of questions if I may?

How strong are the fine tooth gears? Do I really need the coarse tooth gears and if so what gearbox am I looking for to source please?

What other upgrades for strength & reliability am I needing?

I have the 3.875 R&P from the AT gearbox so what 4th gear ratio would be best/better than the stock (fine tooth) 0.93?

Cheers all Very Happy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
benozoval56
Samba Member


Joined: April 13, 2022
Posts: 28
Location: Seacombe Gardens
benozoval56 is offline

PostPosted: Sat Jul 02, 2022 5:31 am    Post subject: Re: Building a strong gearbox with 95% OEM parts Reply with quote

Ohio Tom wrote:
a few things to add:

1. there is another option to put 113 gears on a late model main shaft.
You can cut the hub down and bore the gear out to provide clearance needed.
I have a stack of cut down hubs just for that purpose.

This Iím interested in should I decide to change 3rd & 4th gearsÖ

Not sure why you think super diff's don't load all the spider gears?
Most quality superdiffs do just fine and make it much stronger.
I do add oil holes to keep them lubed up for one wheel burnouts..


Do you have any pictures of how/where you add the extra oil holes?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
KEGZ
Samba Member


Joined: October 11, 2021
Posts: 288
Location: Whales Vagina
KEGZ is offline

PostPosted: Sat Jul 02, 2022 6:13 am    Post subject: Re: Building a strong gearbox with 95% OEM parts Reply with quote

benozoval56 wrote:
Found this post as Iím in the process of doing similar.


Just be forewarned, with 95% OEM and 10% aftermarket, you might wind up with extra parts. Wink
Back to top
View user's profile Send private message Gallery Classifieds Feedback
[email protected]
Samba Member


Joined: May 17, 2003
Posts: 4853
Location: Harmony, PA
gkeeton@zbzoom.net is offline

PostPosted: Sat Jul 02, 2022 6:54 am    Post subject: Re: Building a strong gearbox with 95% OEM parts Reply with quote

benozoval56 wrote:
Found this post as Iím in the process of doing similar.

Iím starting with an AT code IRS gearbox that Iím converting to SA.

I already have a Rhino HD case, super diff, steel HD side plate with the reinforcement half rings for the axle tubes, 15T side gears, HD clutch forkÖ.

I picked up coarse tooth 3rd & 4th gears but they are keyed when I needed splined Crying or Very sad

A couple of questions if I may?

How strong are the fine tooth gears? Do I really need the coarse tooth gears and if so what gearbox am I looking for to source please?

What other upgrades for strength & reliability am I needing?

I have the 3.875 R&P from the AT gearbox so what 4th gear ratio would be best/better than the stock (fine tooth) 0.93?

Cheers all Very Happy


The durability of the fine tooth gears is debatable. While some run them with turbos, others break them. Abuse is what breaks them. They are fragile in a sense that, as soon as a tooth chips, the surrounding teeth can deteriorate quickly. Ultimately the coarse tooth gears are stronger.

You can turn the splined hub, and bore the keyed gears to use the splined shaft. You also need a thicker stop washer for the gear hub.

https://weddleindustries.com/sites/weddleindustries.com/files/downloads/8A-CONE-SW105-INST.pdf

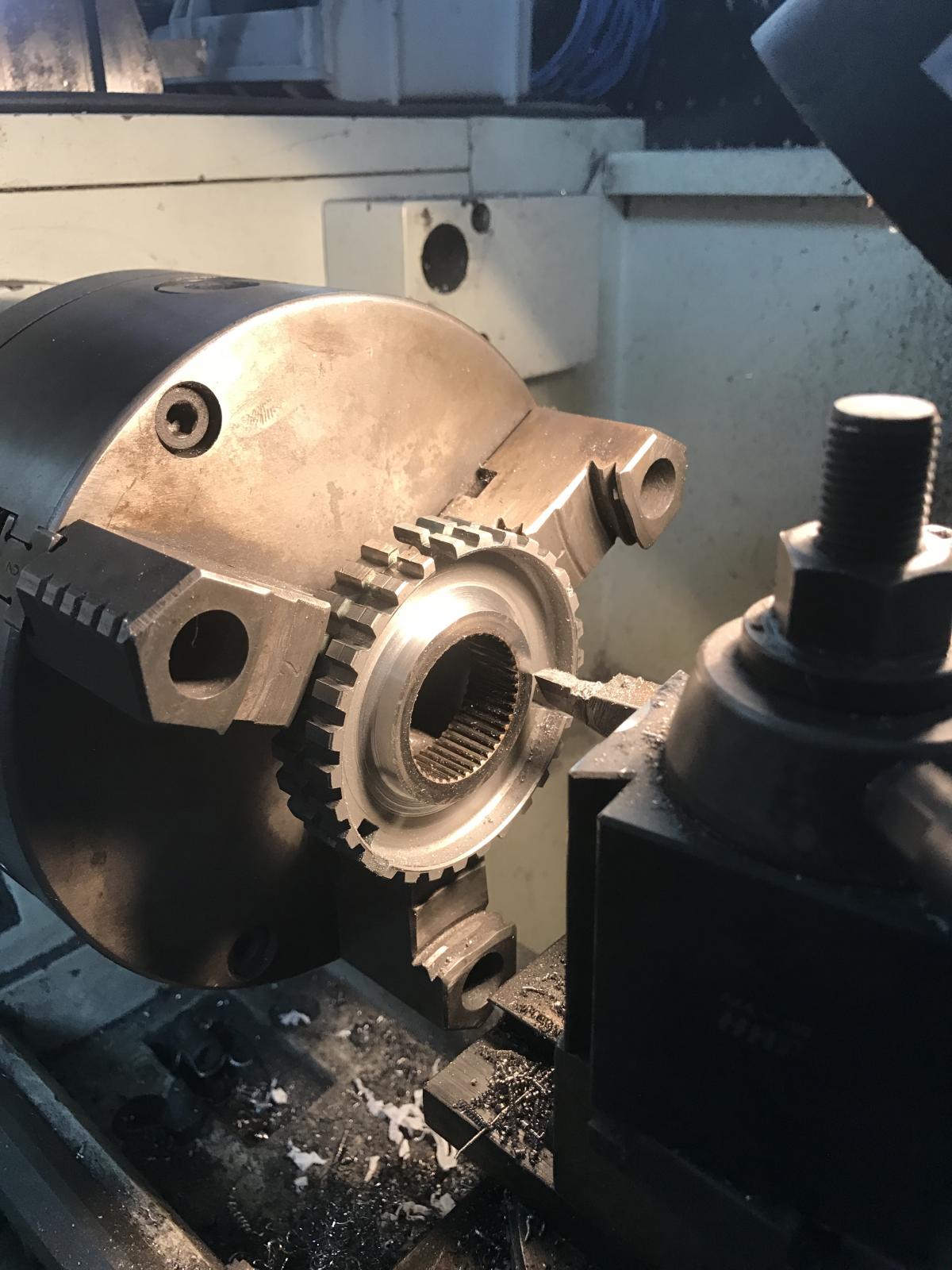

Hereís a pic from Jpaullís post where Mcmscott is turning down the hub.

Image may have been reduced in size. Click image to view fullscreen.


Iíve also talked with a few builders that simply turned down the spined hub to fully clear the bore of the keyed gears without modifying the gears.

You can also get the splined mainshaft where the splines have been ground down, and a keyway cut to use the factory earlier keyed hub. You would also need to get an earlier gear carrier that would use an earlier 113 mainshaft bearing.

Image may have been reduced in size. Click image to view fullscreen.


My new favorite 3rd/4th gear combo in a personal car is an aftermarket 1.35 with a stock .89. You could get real close with an early stock 1.32, and .89. Just be careful in that you need an engine large enough to pull the 3.88/.89 combo, and this can slow the fan speed down if you highway cruise with large diameter tires.

benozoval56 wrote:
Do you have any pictures of how/where you add the extra oil holes?


This thread has some info about enlarging the oil holes in a super diff.

https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0

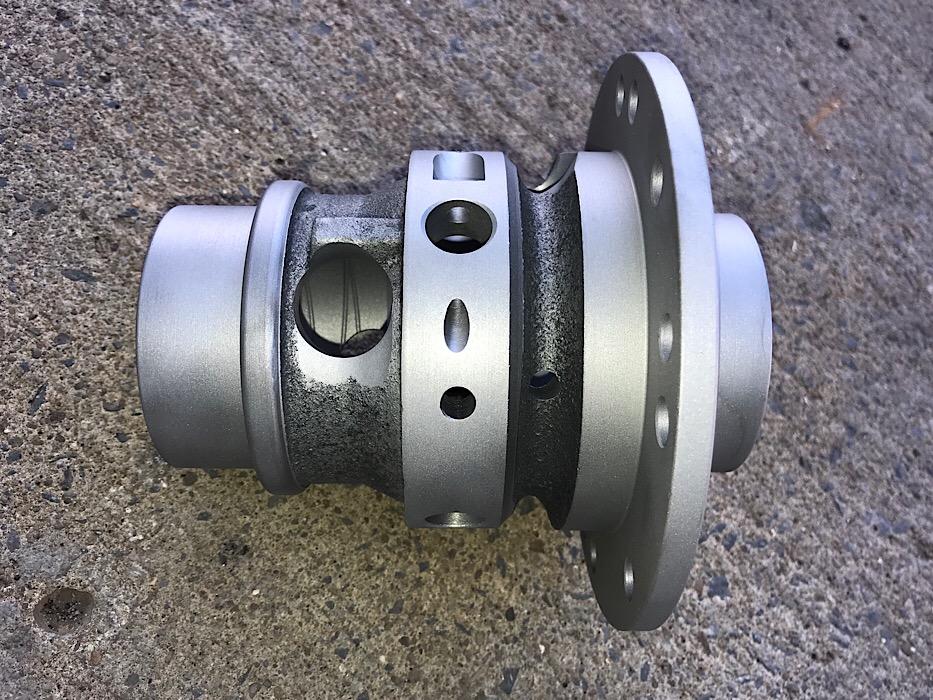

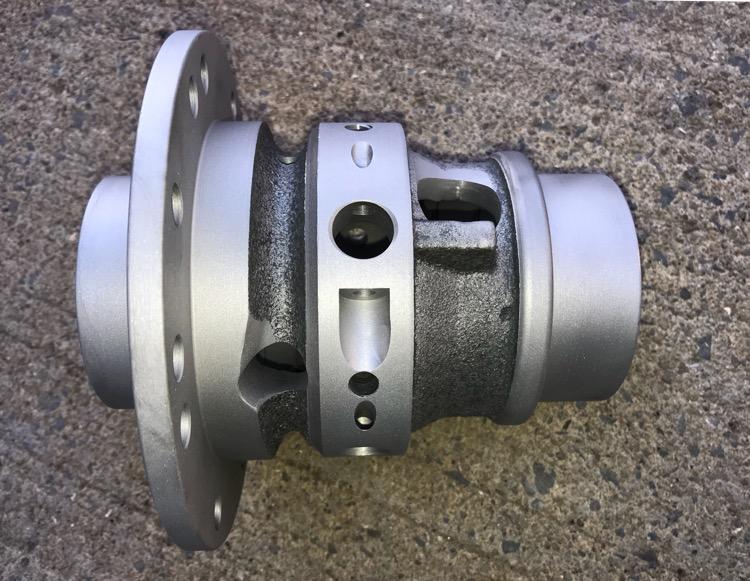

This is what I ended up with on my last personal build.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


KEGZ wrote:
Just be forewarned, with 95% OEM and 10% aftermarket, you might wind up with extra parts. Wink


The stuff Iím using comes from as many as 3 Type 1 transaxles, and up to 2 Type 2 transaxles, so you end up with quite a bit of extra parts....
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
benozoval56
Samba Member


Joined: April 13, 2022
Posts: 28
Location: Seacombe Gardens
benozoval56 is offline

PostPosted: Sat Jul 02, 2022 7:48 pm    Post subject: Re: Building a strong gearbox with 95% OEM parts Reply with quote

KEGZ wrote:
benozoval56 wrote:
Found this post as Iím in the process of doing similar.


Just be forewarned, with 95% OEM and 10% aftermarket, you might wind up with extra parts. Wink


Laughing
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Clatter
Samba Member


Joined: September 24, 2003
Posts: 7240
Location: Santa Cruz
Clatter is offline

PostPosted: Sat Jul 02, 2022 8:20 pm    Post subject: Re: Building a strong gearbox with 95% OEM parts Reply with quote

This is a great thread.

Next is for the details of doing all this,
And it'll get long and off-track for sure! Very Happy

Like,
What drill bits are hard enough to drill holes in the hubs?

Some 3-4 hubs just drill like butter.
Others are so hard that homeowner drill bits don't stand a chance of even starting.
None of these even had a prayer.

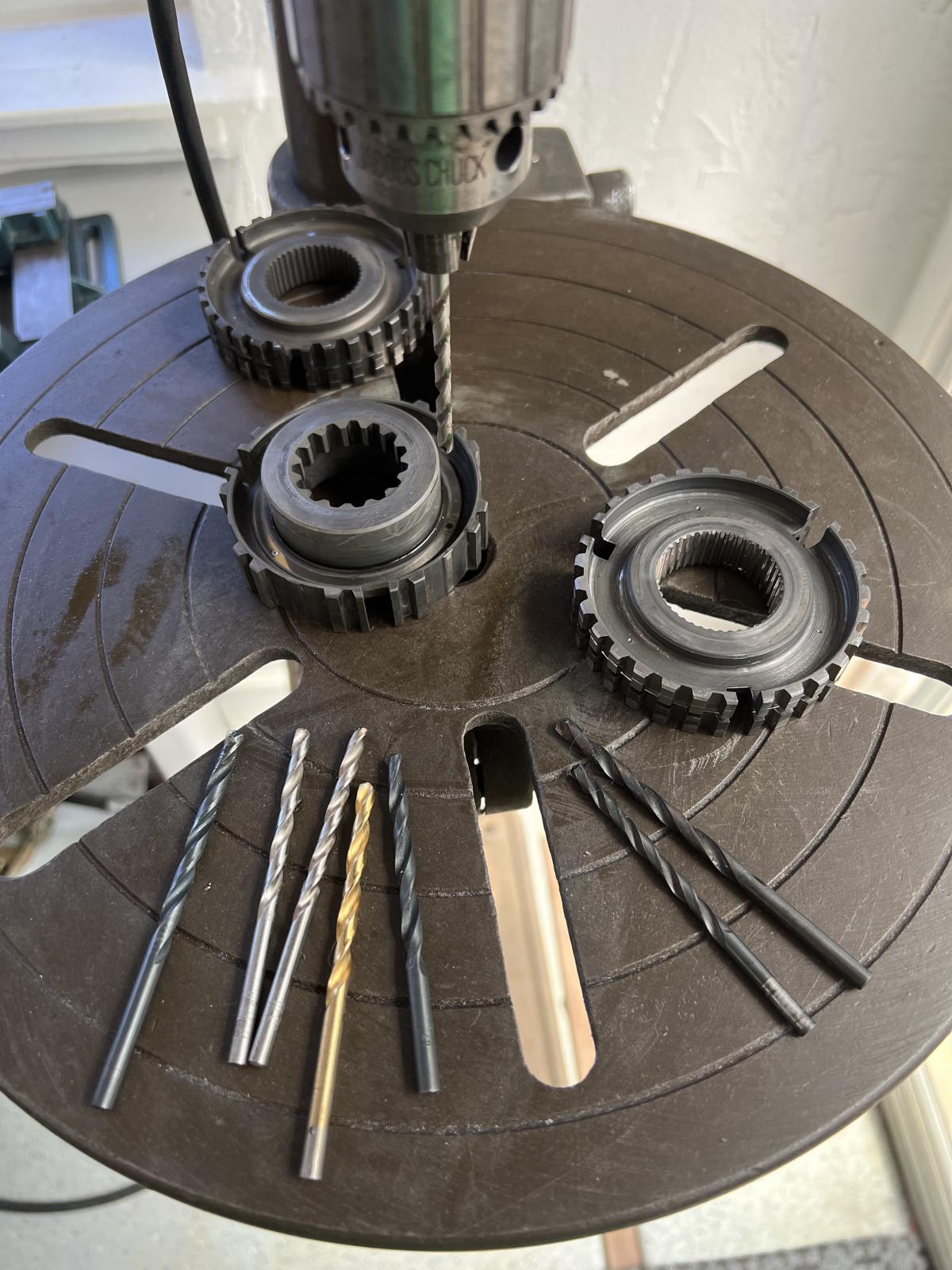

Image may have been reduced in size. Click image to view fullscreen.

_________________
Bus Motor Build

Whatís That Noise?!?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
[email protected]
Samba Member


Joined: May 17, 2003
Posts: 4853
Location: Harmony, PA
gkeeton@zbzoom.net is offline

PostPosted: Sat Jul 02, 2022 8:49 pm    Post subject: Re: Building a strong gearbox with 95% OEM parts Reply with quote

Clatter wrote:
This is a great thread.

Next is for the details of doing all this,
And it'll get long and off-track for sure! Very Happy

Like,
What drill bits are hard enough to drill holes in the hubs?

Some 3-4 hubs just drill like butter.
Others are so hard that homeowner drill bits don't stand a chance of even starting.
None of these even had a prayer.


Iíve had luck with the Cobalt bits. I usually drill a small hole, then open it up slightly with a single flute carbide countersink.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
benozoval56
Samba Member


Joined: April 13, 2022
Posts: 28
Location: Seacombe Gardens
benozoval56 is offline

PostPosted: Sun Jul 03, 2022 12:53 am    Post subject: Re: Building a strong gearbox with 95% OEM parts Reply with quote

[email protected] wrote:


The durability of the fine tooth gears is debatable. While some run them with turbos, others break them. Abuse is what breaks them. They are fragile in a sense that, as soon as a tooth chips, the surrounding teeth can deteriorate quickly. Ultimately the coarse tooth gears are stronger.

You can turn the splined hub, and bore the keyed gears to use the splined shaft. You also need a thicker stop washer for the gear hub.

Iíve also talked with a few builders that simply turned down the spined hub to fully clear the bore of the keyed gears without modifying the gears.

You can also get the splined mainshaft where the splines have been ground down, and a keyway cut to use the factory earlier keyed hub. You would also need to get an earlier gear carrier that would use an earlier 113 mainshaft bearing.

My new favorite 3rd/4th gear combo in a personal car is an aftermarket 1.35 with a stock .89. You could get real close with an early stock 1.32, and .89. Just be careful in that you need an engine large enough to pull the 3.88/.89 combo, and this can slow the fan speed down if you highway cruise with large diameter tires.



I've machined down the hub to suit 002 gears but for early 113 mainshaft from an AC code gearbox but will likely need to do same for the carrier on the AT "Super beetle" mainshaft as its thicker.

It gives me 1.26/0.82 3rd/4th ratios with coarse teeth so should suffice (actually forgot I had these 002 gears) Rolling Eyes

also building a solid 2276cc so should have enough HP to drive through these gear ratios well enough Very Happy


[email protected] wrote:

benozoval56 wrote:
Do you have any pictures of how/where you add the extra oil holes?


This thread has some info about enlarging the oil holes in a super diff.


This is great information and that thread alone is very informative!! Very Happy

Hand packing the 1st gear bearing is a clever/smart solution for sure, makes perfect sense..

I've also got the Berg "Poor Mans Posi" to add to this so should be a good/strong set up once complete.

Cool
Back to top
View user's profile Send private message Gallery Classifieds Feedback
benozoval56
Samba Member


Joined: April 13, 2022
Posts: 28
Location: Seacombe Gardens
benozoval56 is offline

PostPosted: Sun Jul 03, 2022 12:58 am    Post subject: Re: Building a strong gearbox with 95% OEM parts Reply with quote

Ohio Tom wrote:
a few things to add:

1. there is another option to put 113 gears on a late model main shaft.
You can cut the hub down and bore the gear out to provide clearance needed.
I have a stack of cut down hubs just for that purpose.



I'm hoping/planning on doing this or using 002 gears but I need to change the pinion bearing/carrier from late (screw style) to early (4 bolt style) to suit the Rhino case Question
Back to top
View user's profile Send private message Gallery Classifieds Feedback
benozoval56
Samba Member


Joined: April 13, 2022
Posts: 28
Location: Seacombe Gardens
benozoval56 is offline

PostPosted: Sun Jul 03, 2022 1:15 am    Post subject: Re: Building a strong gearbox with 95% OEM parts Reply with quote

Clatter wrote:
This is a great thread.

Next is for the details of doing all this,
And it'll get long and off-track for sure! Very Happy

Like,
What drill bits are hard enough to drill holes in the hubs?



Is there more info on this mod please? Question
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ian Godfrey
Samba Member


Joined: September 25, 2006
Posts: 1085
Location: Melbourne Australia
Ian Godfrey is offline

PostPosted: Sun Jul 03, 2022 2:48 am    Post subject: Re: Building a strong gearbox with 95% OEM parts Reply with quote

I haven't had much luck drilling them with HSS but had good success with a carbide drill in a drill press. What was odd to me is the carbide drill had to be run at high speed Shocked
Back to top
View user's profile Send private message Gallery Classifieds Feedback
[email protected]
Samba Member


Joined: May 17, 2003
Posts: 4853
Location: Harmony, PA
gkeeton@zbzoom.net is offline

PostPosted: Sun Jul 03, 2022 9:10 am    Post subject: Re: Building a strong gearbox with 95% OEM parts Reply with quote

benozoval56 wrote:
It gives me 1.26/0.82 3rd/4th ratios with coarse teeth so should suffice (actually forgot I had these 002 gears) Rolling Eyes

also building a solid 2276cc so should have enough HP to drive through these gear ratios well enough Very Happy


A 2276 should have enough power to use the taller gear. Keep in mind the rpm drop from 3rd-4th will be there irregardless of hp. More hp will help accelerate the vehicle though. Also keep in mind your cruising rpm. If youíre wanting to run a tire around 26 inches, your cooling fan may not be spinning fast enough to overcome the heat produced.

benozoval56 wrote:
Hand packing the 1st gear bearing is a clever/smart solution for sure, makes perfect sense..

I've also got the Berg "Poor Mans Posi" to add to this so should be a good/strong set up once complete.

Cool


While Ray Vallero has forgotten more about VW stuff than most know, the overwhelming majority of builders Iíve spoken with only use the hand packed bearings in a race application. The added friction of the rollers running beside each other is not something you want for a prolonged drive in a street car. Some of the early 60ís transaxles used a metal caged bearing with 28 rollers compared to the more common 24. Weddle also has new metal caged bearings with 26 rollers. The OEM style metal caged ones are more than adequate in most instances.

Also, be careful with the poor manís posi. Applying preload to the spider gears is also a race only application, and will destroy everything in short order in a street car. You can use the shims to tighten the tolerances, but imo you need .005-.006 backlash for lubrication for street use.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
b-man
Samba Member


Joined: May 20, 2008
Posts: 463
Location: So Cal
b-man is offline

PostPosted: Mon Jul 04, 2022 12:10 pm    Post subject: Re: Building a strong gearbox with 95% OEM parts Reply with quote

You could consider using a Ď61 -Ď67 Type II 1.22:1 third gear instead of the 1.26:1 to lessen the spread between 3rd and 4th.

VW went from the 1.32/0.89 combo they used in the 1960 buses to the 1.22/0.82 combo in 1961. Might be a lot more useful when you need a slightly taller 3rd gear in certain instances at higher speeds when 4th gear canít be used.
_________________
1956 Dove Blue Panel
1966 Velvet Green Single Cab
1957 L41 Black Oval Window Beetle
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mcmscott
Samba Member


Joined: March 12, 2010
Posts: 4804
Location: sanger ca
mcmscott is offline

PostPosted: Mon Jul 04, 2022 1:32 pm    Post subject: Re: Building a strong gearbox with 95% OEM parts Reply with quote

b-man wrote:
You could consider using a Ď61 -Ď67 Type II 1.22:1 third gear instead of the 1.26:1 to lessen the spread between 3rd and 4th.

VW went from the 1.32/0.89 combo they used in the 1960 buses to the 1.22/0.82 combo in 1961. Might be a lot more useful when you need a slightly taller 3rd gear in certain instances at higher speeds when 4th gear canít be used.



I try to do this any time I use a .89 4th, they are getting hard to find tho
_________________
There are no stupid questions, only stupid people,

68 Ghia
67 T-1
65 Notch
02 Mexican beetle
74 Thing
15 Long travel rail
07 Nomad
05 f-250
Back to top
View user's profile Send private message Gallery Classifieds Feedback
benozoval56
Samba Member


Joined: April 13, 2022
Posts: 28
Location: Seacombe Gardens
benozoval56 is offline

PostPosted: Mon Jul 11, 2022 3:39 am    Post subject: Re: Building a strong gearbox with 95% OEM parts Reply with quote

Clatter wrote:
This is a great thread.

Next is for the details of doing all this,
And it'll get long and off-track for sure! Very Happy

Like,
What drill bits are hard enough to drill holes in the hubs?

Some 3-4 hubs just drill like butter.
Others are so hard that homeowner drill bits don't stand a chance of even starting.
None of these even had a prayer.
Image may have been reduced in size. Click image to view fullscreen.


what size holes am I drilling here please?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Clatter
Samba Member


Joined: September 24, 2003
Posts: 7240
Location: Santa Cruz
Clatter is offline

PostPosted: Mon Jul 11, 2022 12:08 pm    Post subject: Re: Building a strong gearbox with 95% OEM parts Reply with quote

[email protected] wrote:


You can turn the splined hub, and bore the keyed gears to use the splined shaft. You also need a thicker stop washer for the gear hub.

https://weddleindustries.com/sites/weddleindustries.com/files/downloads/8A-CONE-SW105-INST.pdf

Hereís a pic from Jpaullís post where Mcmscott is turning down the hub.

Image may have been reduced in size. Click image to view fullscreen.


.


Checking the Weddle site right now,
They seem to be out of the regular early 3-4 cones:
https://weddleindustries.com/products/8A-CONE/8A-CONE

They do have this cone with the later-style teeth.
Seems an adaptor cone?? Think
https://weddleindustries.com/products/8A-CONE-LATE/8A-CONE-LATE

If you trim down the hub/gear,
could you use this different cone instead of the early cone and thick washer?
This when running a late 4th and late slider..
_________________
Bus Motor Build

Whatís That Noise?!?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Clatter
Samba Member


Joined: September 24, 2003
Posts: 7240
Location: Santa Cruz
Clatter is offline

PostPosted: Mon Jul 11, 2022 12:14 pm    Post subject: Re: Building a strong gearbox with 95% OEM parts Reply with quote

benozoval56 wrote:
Clatter wrote:
This is a great thread.

Next is for the details of doing all this,
And it'll get long and off-track for sure! Very Happy

Like,
What drill bits are hard enough to drill holes in the hubs?

Some 3-4 hubs just drill like butter.
Others are so hard that homeowner drill bits don't stand a chance of even starting.
None of these even had a prayer.
Image may have been reduced in size. Click image to view fullscreen.


what size holes am I drilling here please?


ngobet wrote:

Drill 3mm holes in the hub. .


Just have to read the thead.. Wink
_________________
Bus Motor Build

Whatís That Noise?!?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
[email protected]
Samba Member


Joined: May 17, 2003
Posts: 4853
Location: Harmony, PA
gkeeton@zbzoom.net is offline

PostPosted: Mon Jul 11, 2022 3:04 pm    Post subject: Re: Building a strong gearbox with 95% OEM parts Reply with quote

Clatter wrote:
Checking the Weddle site right now,
They seem to be out of the regular early 3-4 cones:
https://weddleindustries.com/products/8A-CONE/8A-CONE

They do have this cone with the later-style teeth.
Seems an adaptor cone?? Think
https://weddleindustries.com/products/8A-CONE-LATE/8A-CONE-LATE

If you trim down the hub/gear,
could you use this different cone instead of the early cone and thick washer?
This when running a late 4th and late slider..


The early cones have been out of stock for quite some time, and unless Weddle decides to start making them, they are pretty much nla.

I have yet to need to use the later hubs that donít use the washer. Thatís something I would run by Scott. Itís my understanding they are a direct replacement for the early hub with the washer, so I would imagine you still will have excess endplay to take up if using a late splined slider hub. You may need to trial assemble the shaft to find out how much endplay you have. You still need to weld the late style washerless cone for the 113 gears. You could get some shim stock and cut out a small spacer washer to set your endplay to press the hub up against before welding.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Performance/Engines/Transmissions All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: Previous  1, 2, 3  Next
Page 2 of 3


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
