PostPosted: Thu Jul 09, 2020 8:48 am    Post subject: Building a strong gearbox with 95% OEM parts Reply with quote

After breaking a few pro-street and such gearboxes and reading many threads on the internet about VW gearboxes, I have to say that It is possible to build a really strong transmission using 95% VW parts, 10% aftermarket parts and a few mods.

So here is a guide to help people willing to build a strong gearbox, addressing those main concern:

    weak 1st gear
    idler gears end play
    differential strength
    keep ring and pinion in place



First, you want to use the most recent gearbox you can find, they got improved a lot by the factory. Here, everything will mostly be an early 72 AT gearbox. Buy the Bentley manual about the gearbox you will be modifying. After disassembly, you should understand the terminology for each part and end up seeing this:
Image may have been reduced in size. Click image to view fullscreen.


The mainshaft is in the top of the picture and it is the early version. I will start by swapping this to use the "superbeetle" mainshaft, which actually came in every gearbox from around mid 73. At least in Europe. This superbeetle mainshaft carries 9 teeth for the first gear and the consequence is that each tooth is wider and stronger. 1st has a ratio of 3.78 instead of 3.80.

To do this swap, you need the superbeetle mainshaft, including first gear idler and second gear idler. Then you have to decide which 3rd and 4th gear to use. Beetle gearboxes use either the early 113 style gears or the 002 gears.

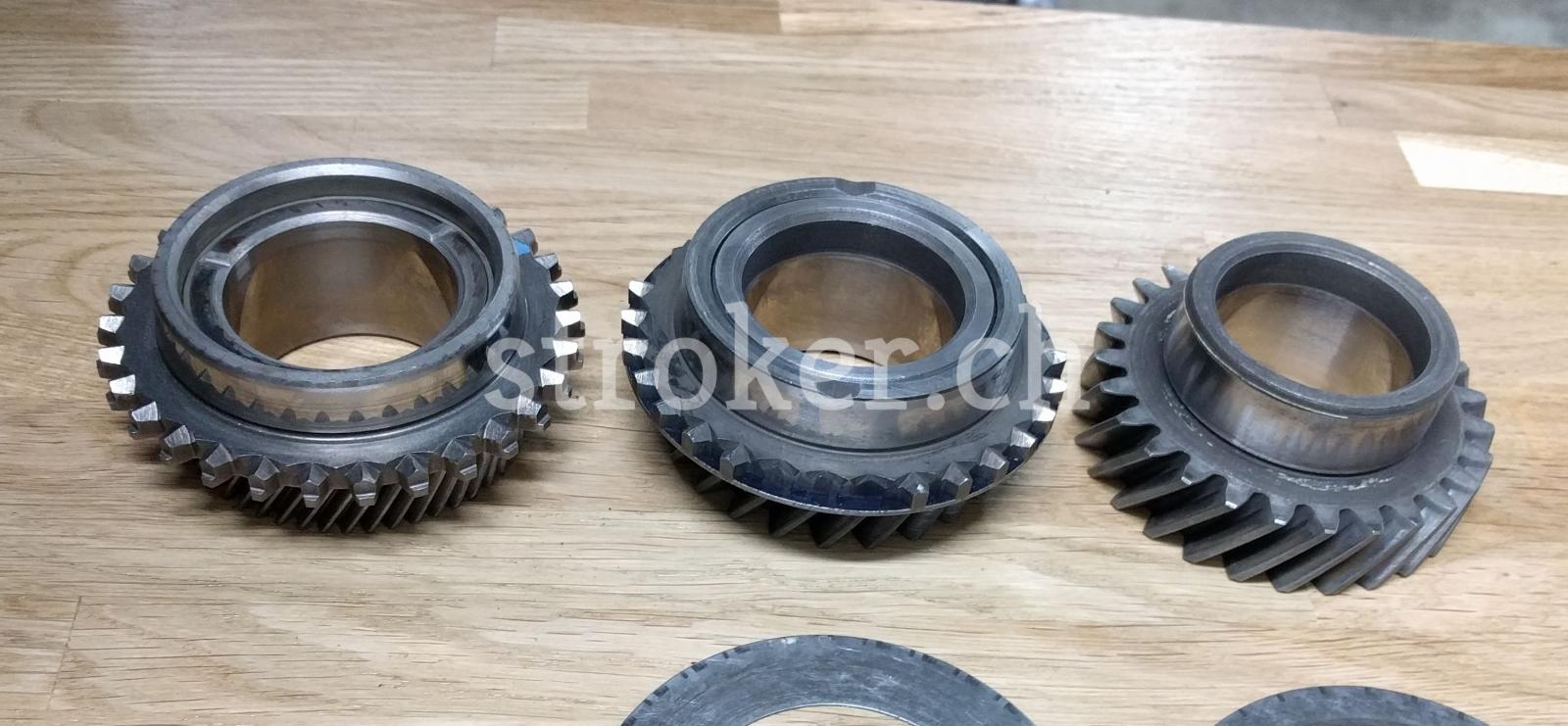

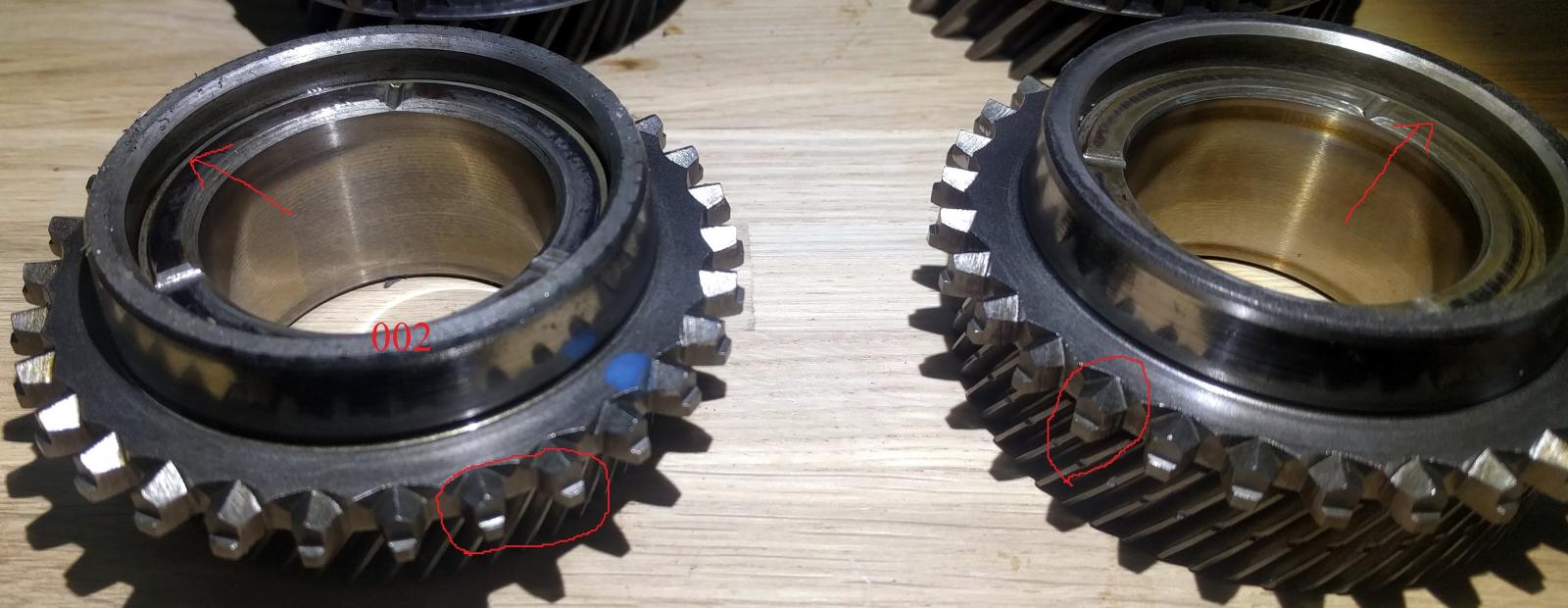

Here is a picture to see the difference. Left is a 002 idler gear, middle is a 113 gear as well as on the right, where you see a 113 idler with synchro cone removed. The 002 gears are the factory evolution for 113 gears. The synchro cone is brazed on the gear at the factory. 002 gears have a recess under the cone where they touch the slider hub and carry 3 notches to improve the lubrification.
Image may have been reduced in size. Click image to view fullscreen.



Here is a close-up. The red arrow on the right is pointing to the recess.
Image may have been reduced in size. Click image to view fullscreen.


Since the slider hub on the superbeetle mainshaft is splined instead of keyed, you can modify the 113 gears to use them or stick to the 002 gears which came in the gearbox with the superbeetle mainshaft. (The other option would be to modify the mainshaft to use a woodruf key, but I don't like this because splined is superior).

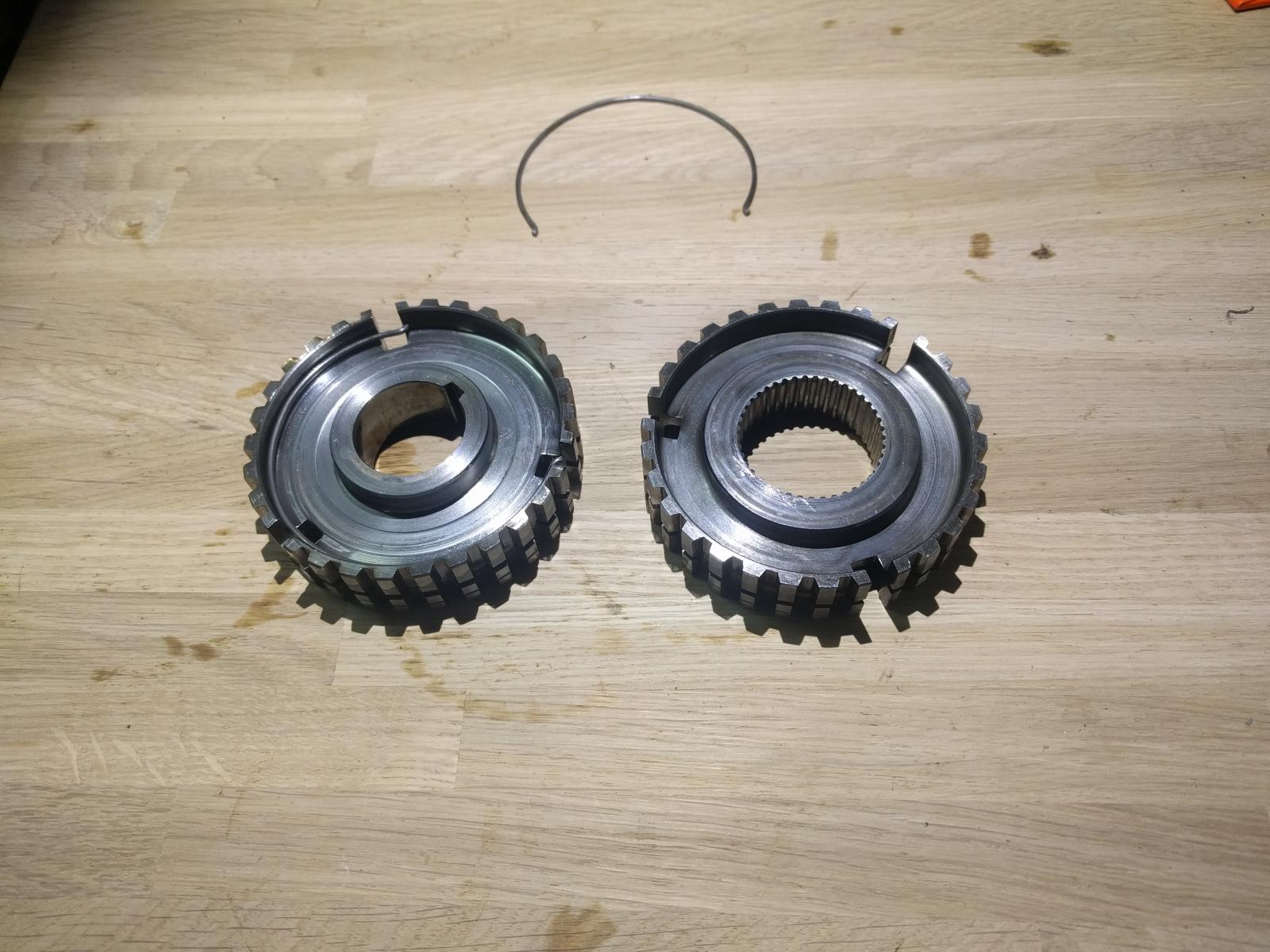

Right side you see the keyed slider hub and splined on the left.
Image may have been reduced in size. Click image to view fullscreen.


Weddle manufacture a washer to modify the 113 gears. You will have to separate the synchro cone, remove the original washer and replace it with the weddle one (thicker) and press the synchro cone on the gear. Then, as for every 113 style idler gear, you will have to tig weld the synchro cone to the gear. Weddle provides detailed instruction when you order the washer.

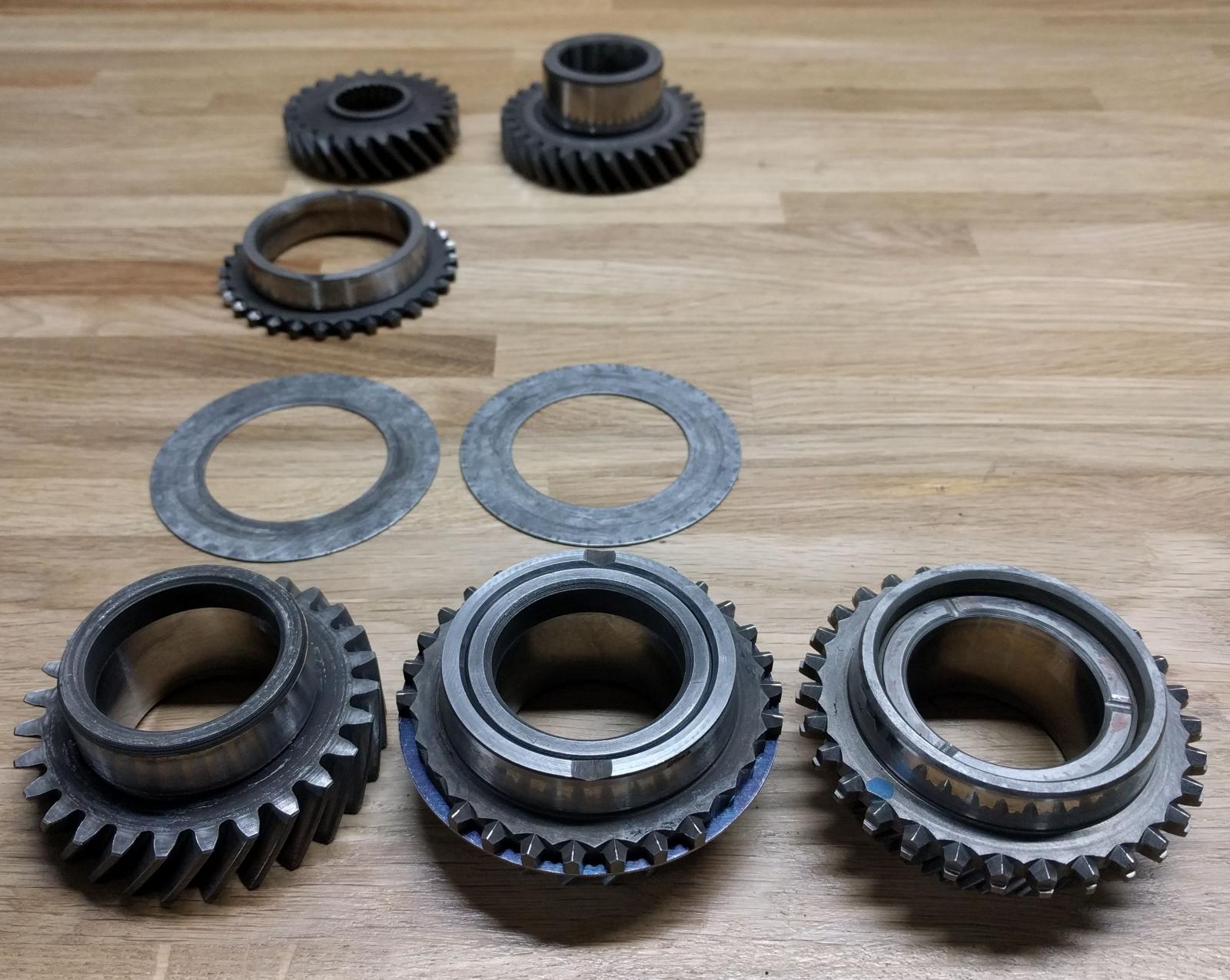

On the left you see a disassembled 113 gear. The 113 gear in the middle has the thicker weddle washer ant the right one is a 002 style.
Image may have been reduced in size. Click image to view fullscreen.

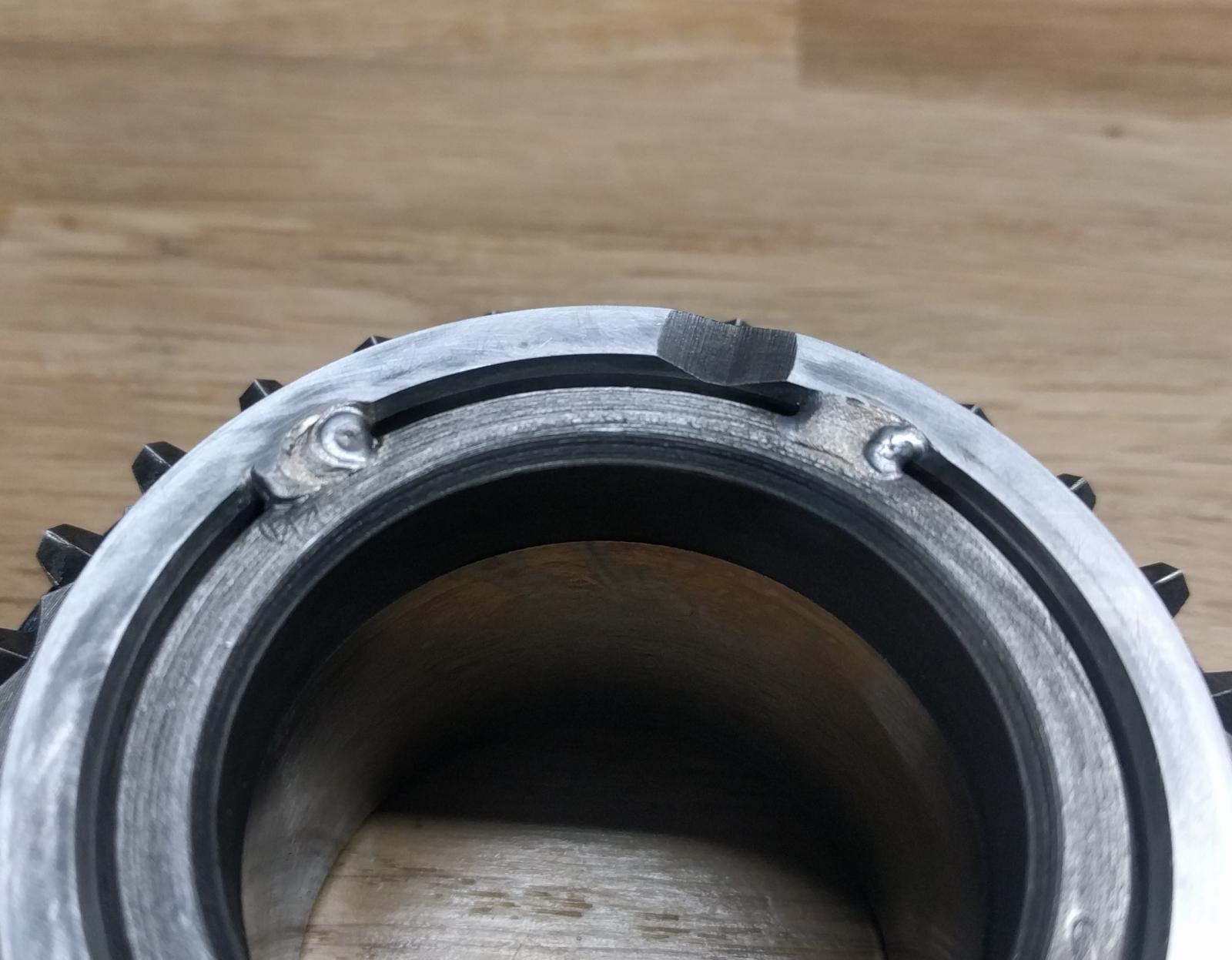

Then, you should tig weld the synchro cone
Image may have been reduced in size. Click image to view fullscreen.

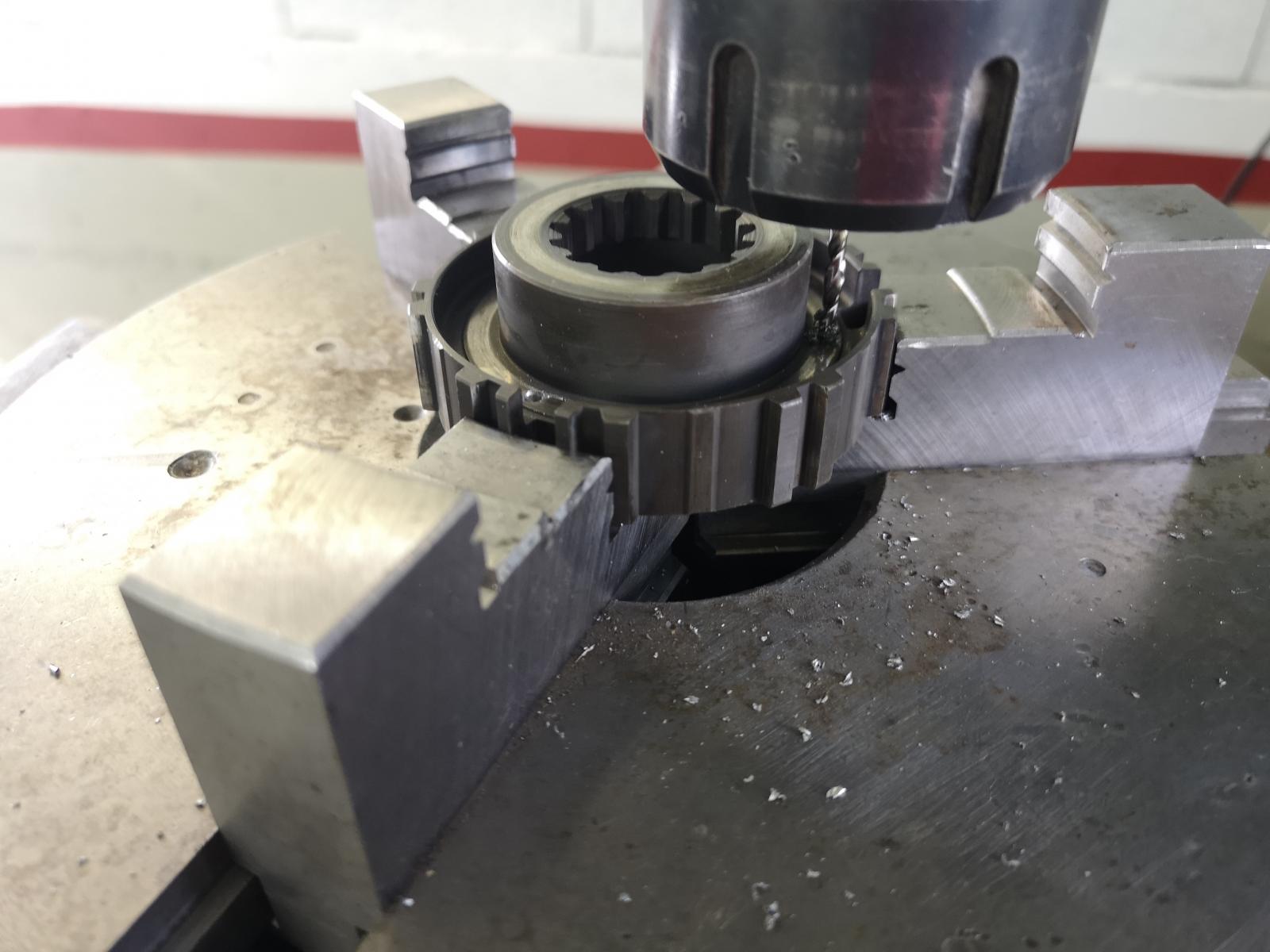

and then machine the inside to clear the hub. The slider hub also has to be machined.
Image may have been reduced in size. Click image to view fullscreen.



However, for this particular gearbox, which was for my convertible, I decided to use 002 gears with fine teeth, because they run quieter. They don't break because of the torque but rather because you break something else in the gearbox and debris get in the gear, ending up breaking the fine teeth. I have around 230nm of torque in this car, not too agressive driving.


For the differential, my order of preference is: 11t/17t oem diff (that is 11 teeth on the spider gears, 17 on the side gears) < 4 spider gears 11t/17t super diff < 10t/15t oem diff < Quaife torque biaising diff. This is what we have easily available in europe. I don't really like the super diff because most of the time, the torque ends up being split between 3 spider gears (at most) and they have poor oiling. The earlier 10 teeth/ 15 teeth differential is really impressive after a few modifications. And the quaife is always good, after all Audi Quattro started winning in group B 30 years ago because of it.

This is the 10 teeth / 15 teeth sidegears internal for swingaxle gearbox
Image may have been reduced in size. Click image to view fullscreen.

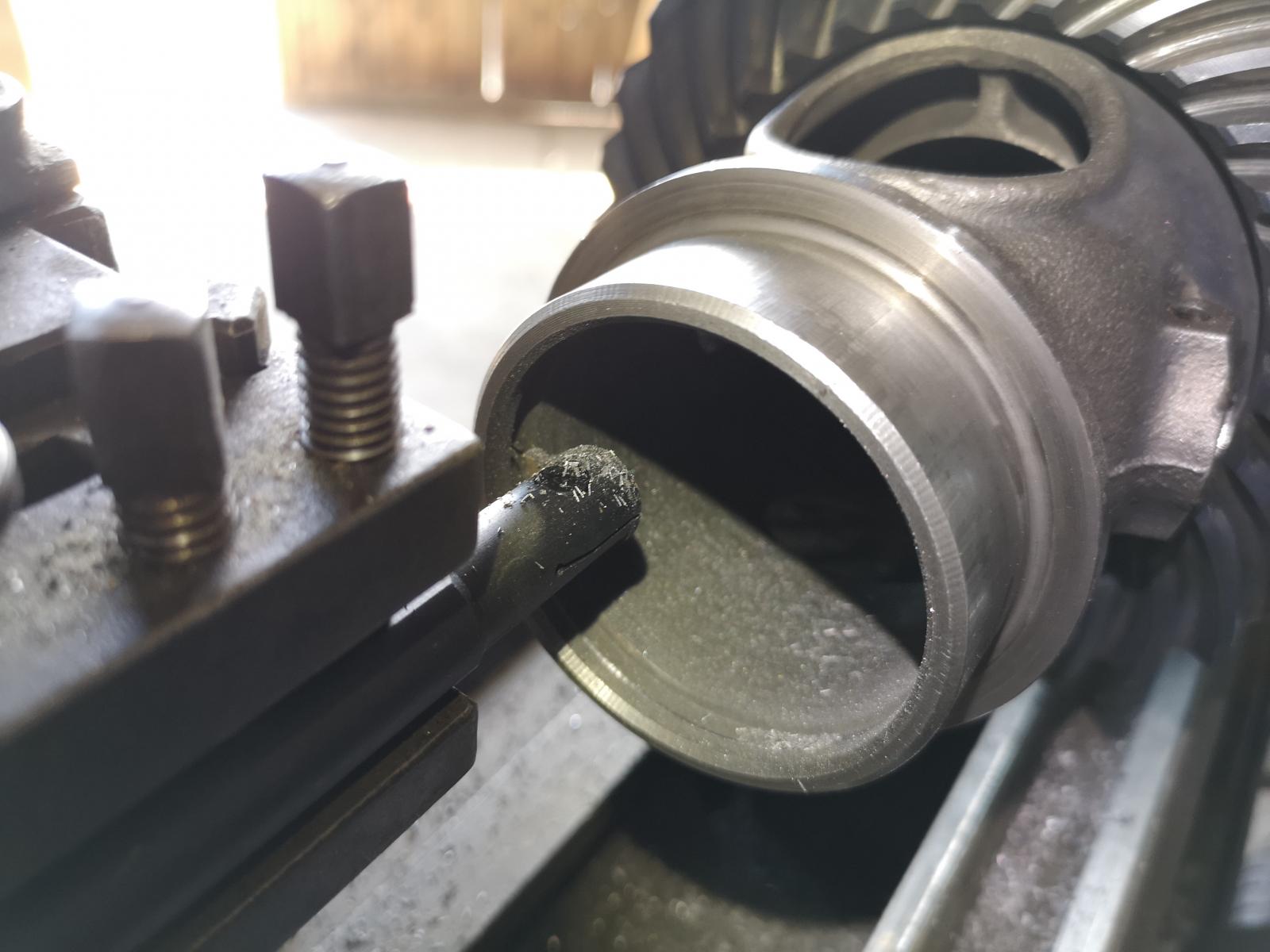

So if you decide to use a 10t/15t diff, you need to modify it to take 2 snap rings to keep the side gears. This modification is already made on the superdif. Buy 4 new snap rings.

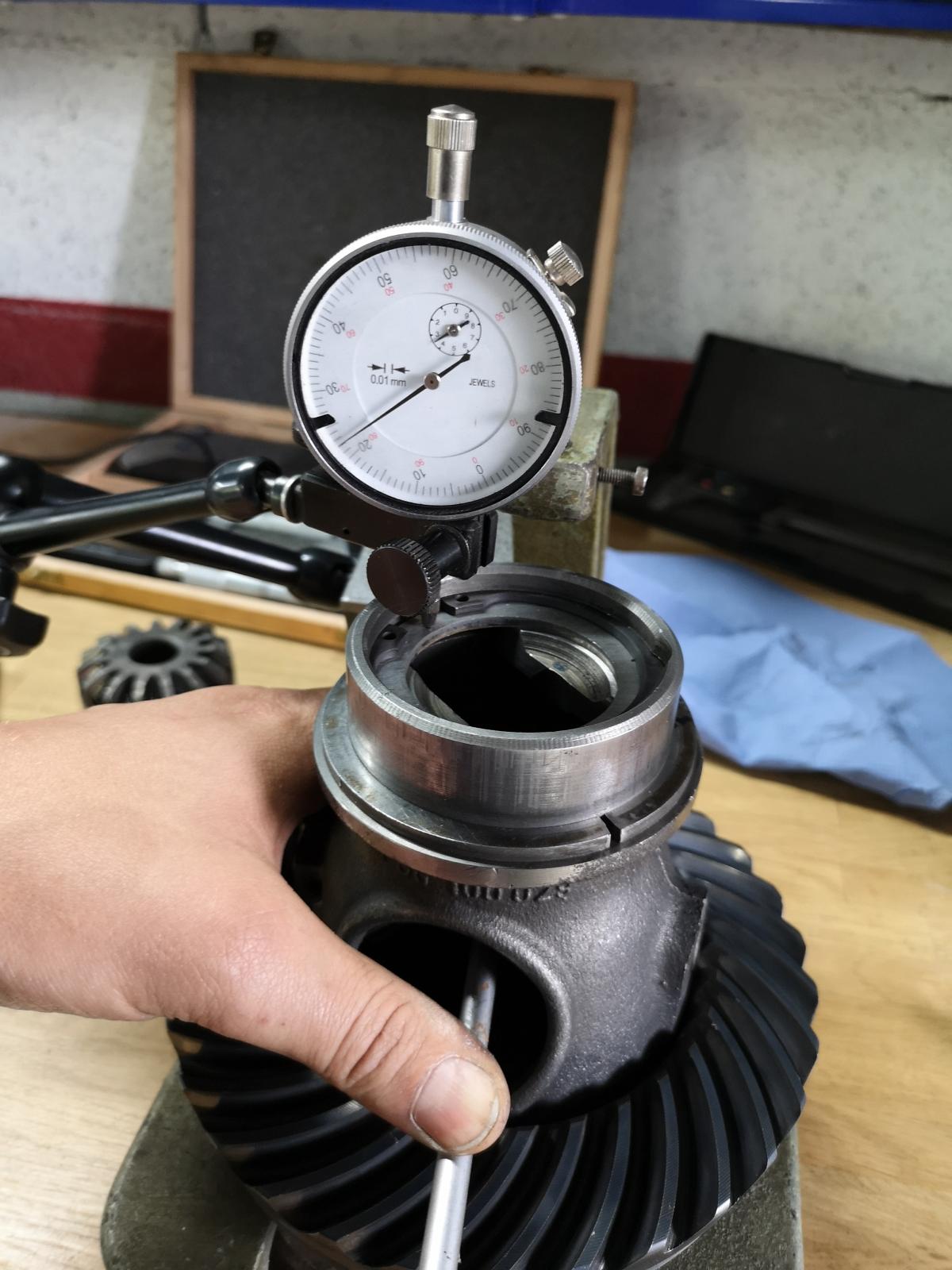

Start by taking the thiner sidegear thrust washer that you have and measure with a single snap ring how much play you have by prying on the sidegear from the inside of the diff.
Image may have been reduced in size. Click image to view fullscreen.


Using this measured play and the thickness from the second snap ring, you can machine the groove in the diff to meet the specification from the bentley.
Image may have been reduced in size. Click image to view fullscreen.


Then do the other side and you have the strongest non-locking diff for vw beetle Wink
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
Chickensoup
Samba Member


Joined: January 06, 2018
Posts: 5361
Location: Good Hope, GA
Chickensoup is offline

PostPosted: Thu Jul 09, 2020 8:55 am    Post subject: Re: Building a strong gearbox with 95% OEM parts Reply with quote

Amazing write up sir! Bravo Very Happy
_________________
-'85 c10 5.3 LS, 222 cam, long tubes, x pipe, 3 inch spin tech's
-'05 B5.5 TDI Wagon 17in sport rims ;EGR + BSM + ASV Delete, Stage-2 Tune, straight pipe
'65 Tourist Delivery Build
'66 RIP
'69 RIP
Hosea 4:6 "My people are destroyed for lack of knowledge"
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Lingwendil
Samba Member


Joined: February 25, 2009
Posts: 3972
Location: Antioch, California, a block from the hood
Lingwendil is offline

PostPosted: Thu Jul 09, 2020 9:54 am    Post subject: Re: Building a strong gearbox with 95% OEM parts Reply with quote

Transaxles have always been voodoo/black art to me, but one of these days I want to tackle one. Very clear description and nice pics!
_________________
73 super beetle thread http://www.thesamba.com/vw/forum/viewtopic.php?t=649622 Back on the Road!

Modify your Kadrons for SVDA http://www.thesamba.com/vw/forum/viewtopic.php?p=8115884#8115884

Cast iron VJU4BR8 SVDA reference thread- https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0

Need replacement filters for original Kadron aircleaners? WIX #42087 is a perfect fit, as is Napa Gold #2087!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Ohio Tom
Samba Member


Joined: February 09, 2006
Posts: 1654
Location: Marshallville Ohio
Ohio Tom is offline

PostPosted: Thu Jul 09, 2020 9:59 am    Post subject: Re: Building a strong gearbox with 95% OEM parts Reply with quote

a few things to add:

1. there is another option to put 113 gears on a late model main shaft.
You can cut the hub down and bore the gear out to provide clearance needed.
I have a stack of cut down hubs just for that purpose.

2. A few spot welds on the gear is not enough for any real HP. It will break the welds you have pictured.

3. I like to weld up the whole thing and then grind it back down to get the proper thrust measurement. Taking care not to overheat and distort the whole thing. ONce done, you will likely have to hone the bore so it will fit on the idler bearing.

4. 95% + 10% = 105%.. LOL..


5. The 10/15 tooth combination is stronger.

Not sure why you think super diff's don't load all the spider gears?
Most quality superdiffs do just fine and make it much stronger.
I do add oil holes to keep them lubed up for one wheel burnouts..
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ohio Tom
Samba Member


Joined: February 09, 2006
Posts: 1654
Location: Marshallville Ohio
Ohio Tom is offline

PostPosted: Thu Jul 09, 2020 10:03 am    Post subject: Re: Building a strong gearbox with 95% OEM parts Reply with quote

Also, to swap to a late model mainshaft (splined) you need a different intermediate housing bearing. And maybe the whole housing...
The shaft diameter is different. They make an adaptor bearing, but many times the housing takes a flanged bearing and an adaptor bearing is just not available for the splined mainshaft.

Mcmscott can verify my sentiments...
Or attack me..
Either one...
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ngobet
Samba Member


Joined: September 04, 2007
Posts: 96
Location: Switzerland / California
ngobet is offline

PostPosted: Thu Jul 09, 2020 10:39 am    Post subject: Re: Building a strong gearbox with 95% OEM parts Reply with quote

Let's move to end play. First you need to improve lubrification on the thrust surface of the 1st/ 2nd idler gear. This is the only performance mod from the blue gene berg book that you want to make.
Drill 3mm holes in the hub. The material is very hard, I use a short centering drill bit and then cut the hole. That will bring oil to the other side.
Image may have been reduced in size. Click image to view fullscreen.

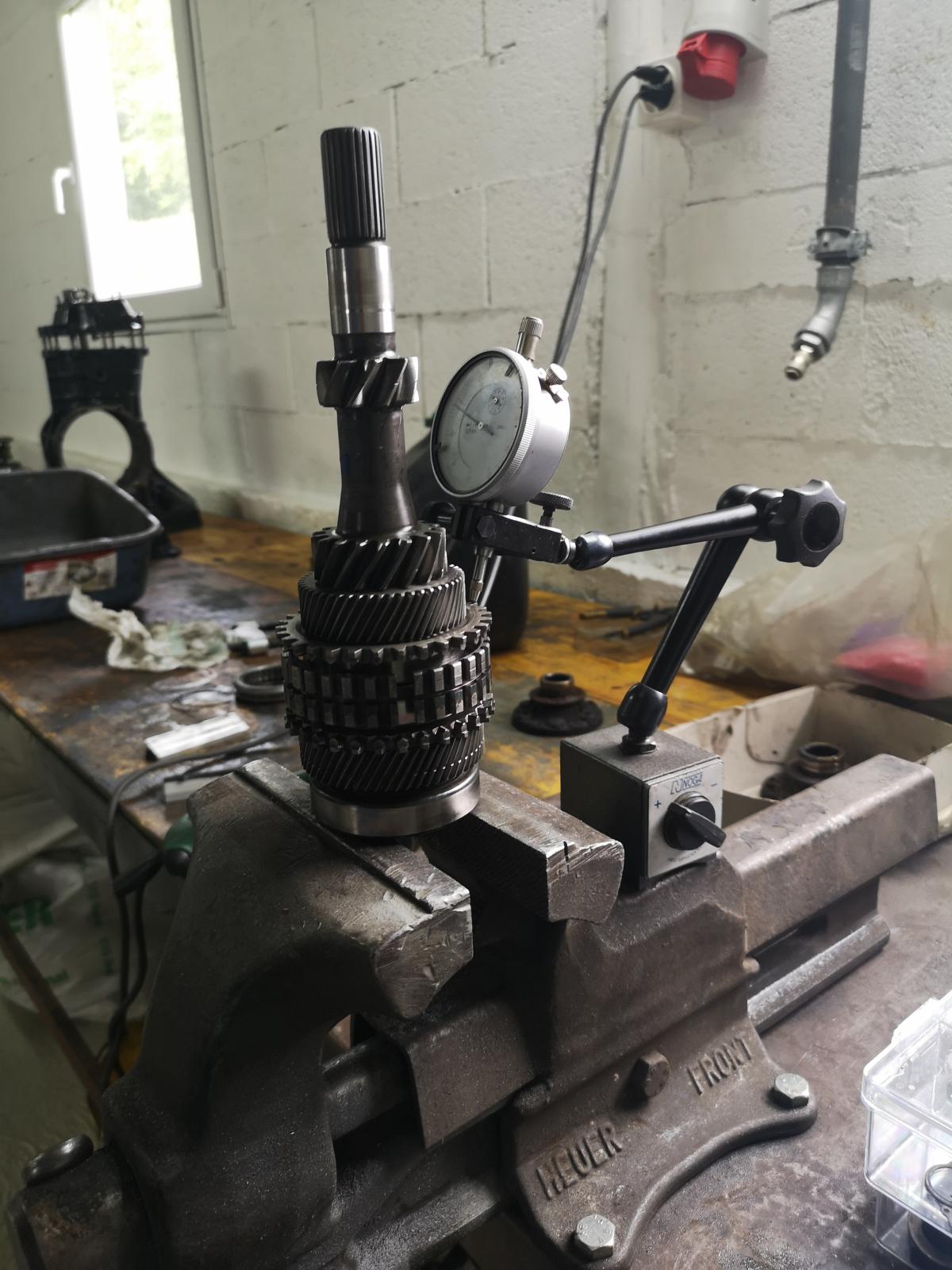

When this is done, mount idler gears without synchros and the hub on the pinion shaft. Mount the pinion shaft in a press and use 3rd gear to push down on the stack. Measure the end play on each gear and adjust to reach 0.15mm of play (0.006). First gear is adjusted with a washer and second with different thickness of snap ring. You don't wanna run a lower end play. Don't bother removing the adjustment washer and maching the hub and gear to reach the desired endplay.
Image may have been reduced in size. Click image to view fullscreen.


3rd and 4th don't have an adjustment from the factory. However, since the new splined slider hub (to match the superbeetle mainshaft) is secured axially only by 2 circlips, it can move on the mainshaft. The consequence is that the 4th gear always ends up with a tighter end play than the 3rd, because torque pushes the hub towards the front of the gearbox.

There is a trick to fix that using 091 circlips, which are thicker. By consequence, you need to machine the hub to clear them, but you can decide where it stops on the 4th gear side.

Start by mounting the hub and gears on the mainshaft. Push the hub towards the front circlip. Measure how much total play you have on 3rd and 4th.
Image may have been reduced in size. Click image to view fullscreen.


The dark circlip is the 002 version, thinner than the 091. On this picture, you can see that the hub was machined to position it correctly.
Image may have been reduced in size. Click image to view fullscreen.


The next picture is after removing the circlip, when the hub is push against the front 091 circlip (top). When machining the hub, measure the difference of thickness of the circlip (usually 002 is 1.49mm, 091 is 2.47mm). 4th gear will have around 0.25mm play and 3rd 0.50mm play (see...). You will then machine around 0.80mm off the hub (MEASURE YOURSELF ON YOUR PARTS) to split the endplay between the 2 gears, and both gears will end with 0.37mm.
Image may have been reduced in size. Click image to view fullscreen.


Now all your idler gears are well oiled and have sufficient endplay.

Don't do the handpacking of the needle bearing as suggested by Berg. It brings too much heat in the gear. Look for the early caged needle bearing, there is more room for oil.
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
nsracing
Samba Member


Joined: November 16, 2003
Posts: 9283
Location: Northern Virginia
nsracing is offline

PostPosted: Thu Jul 09, 2020 6:52 pm    Post subject: Re: Building a strong gearbox with 95% OEM parts Reply with quote

I like it! Very Happy
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Casting Timmy
Samba Member


Joined: August 04, 2012
Posts: 1221
Location: Kansas City, Kansas
Casting Timmy is offline

PostPosted: Fri Jul 10, 2020 5:42 am    Post subject: Re: Building a strong gearbox with 95% OEM parts Reply with quote

Nice write up on it all.

On first and second I usually go for .010" and then .008" clearance as first gear has a tendency to burn up without enough clearance.

I also like to clip third on the pinion shaft as tight as I can, it keeps the shims and other parts from getting hammered and losing end clearance on those gears. Seen some really bad local boxes where even the small pinion nut was bashed and had damage, 1st gear was mushroomed so bad I threw the rest of the shaft away.

I do like your use of fine tooth gears, besides being quieter they are more efficient. Used those in a couple light car applications with stock motors so they could keep a hair more of that tiny power going to the wheels.
_________________
T1 IRS Rebuild Book on Lulu.com
http://www.lulu.com/shop/tim-marshall/t1-irs-transaxle-book/paperback/product-24055997.html
As seen in Volks America Issue 14 Page 11 (Full page review)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ngobet
Samba Member


Joined: September 04, 2007
Posts: 96
Location: Switzerland / California
ngobet is offline

PostPosted: Wed Jul 15, 2020 8:09 am    Post subject: Re: Building a strong gearbox with 95% OEM parts Reply with quote

thanks for the comments.

Is it useful for the others? is it too detailed? or maybe difficult to see what I am doing?
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
Lingwendil
Samba Member


Joined: February 25, 2009
Posts: 3972
Location: Antioch, California, a block from the hood
Lingwendil is offline

PostPosted: Wed Jul 15, 2020 9:05 am    Post subject: Re: Building a strong gearbox with 95% OEM parts Reply with quote

Whatever you do, don't stop!

I love these sorts of posts.
_________________
73 super beetle thread http://www.thesamba.com/vw/forum/viewtopic.php?t=649622 Back on the Road!

Modify your Kadrons for SVDA http://www.thesamba.com/vw/forum/viewtopic.php?p=8115884#8115884

Cast iron VJU4BR8 SVDA reference thread- https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0

Need replacement filters for original Kadron aircleaners? WIX #42087 is a perfect fit, as is Napa Gold #2087!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
jfdestree
Samba Member


Joined: March 02, 2007
Posts: 104
Location: Belgium.
jfdestree is offline

PostPosted: Wed Jul 15, 2020 12:56 pm    Post subject: Re: Building a strong gearbox with 95% OEM parts Reply with quote

ngobet wrote:
thanks for the comments.

Is it useful for the others? is it too detailed? or maybe difficult to see what I am doing?


Most of us are speechless, because there is nothing to say when it is perfectly done Very Happy Very Happy
Thanks to share and keep it coming!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
ngobet
Samba Member


Joined: September 04, 2007
Posts: 96
Location: Switzerland / California
ngobet is offline

PostPosted: Wed Jul 15, 2020 1:10 pm    Post subject: Re: Building a strong gearbox with 95% OEM parts Reply with quote

ok nice to read!

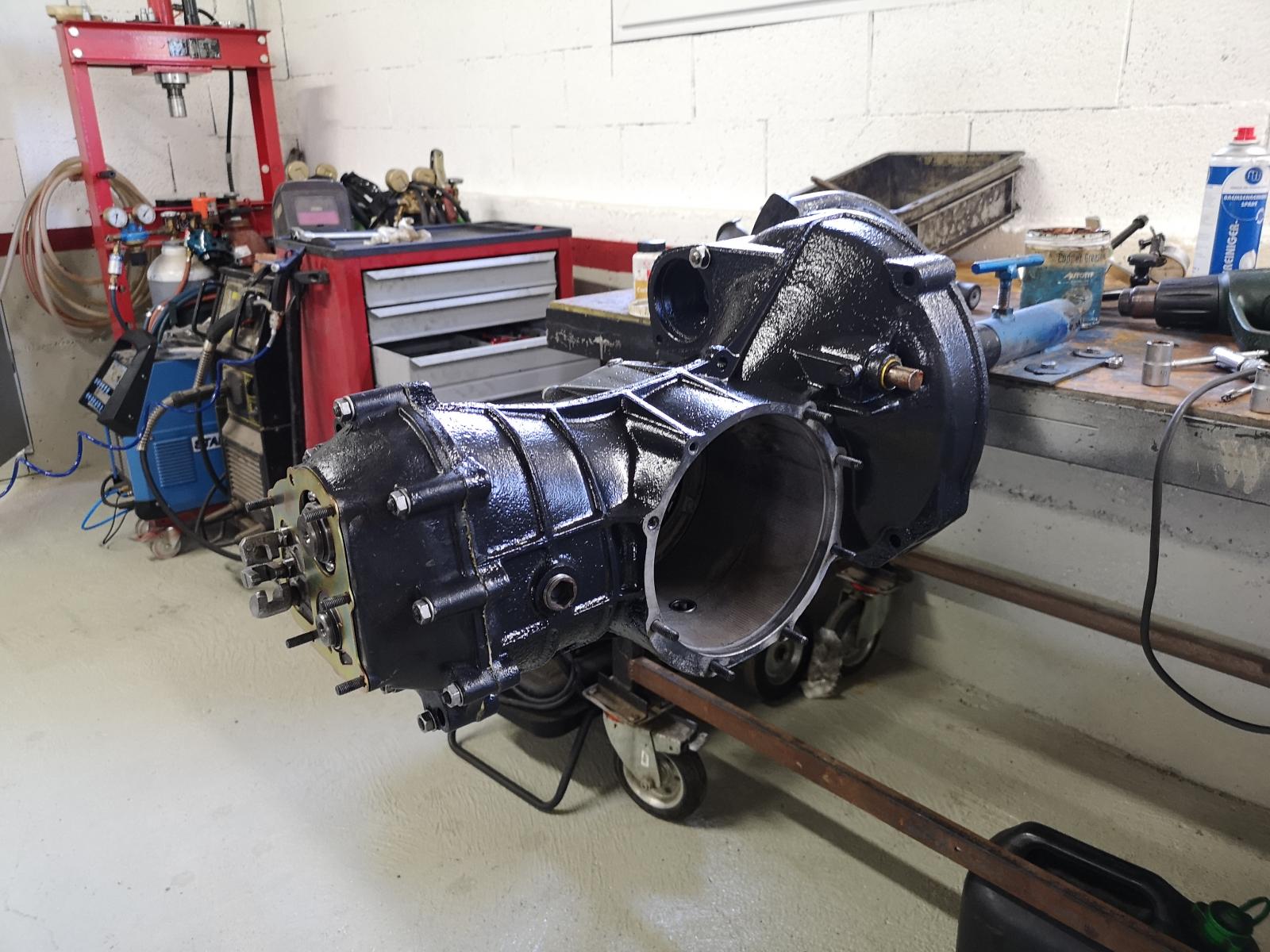

Let's move on to the case. The later ones, with the single large nut to hold the pinion bearing, are more rigid in my opinion. Here on the picture with a chromoly pinion nut from Weddle.
Image may have been reduced in size. Click image to view fullscreen.

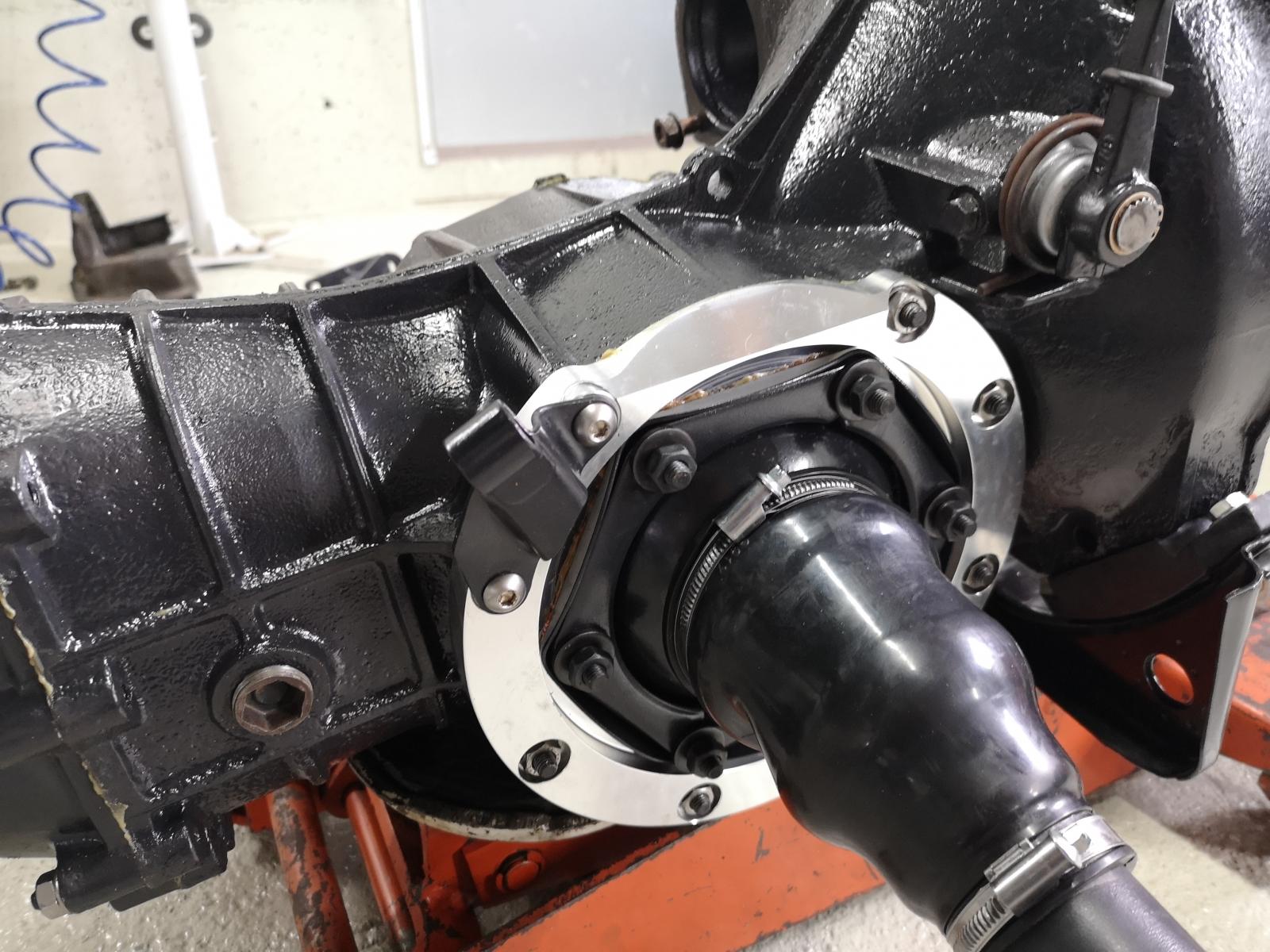

You want to use ONE billet sidecover on the left side. Weddle has a very high quality one.

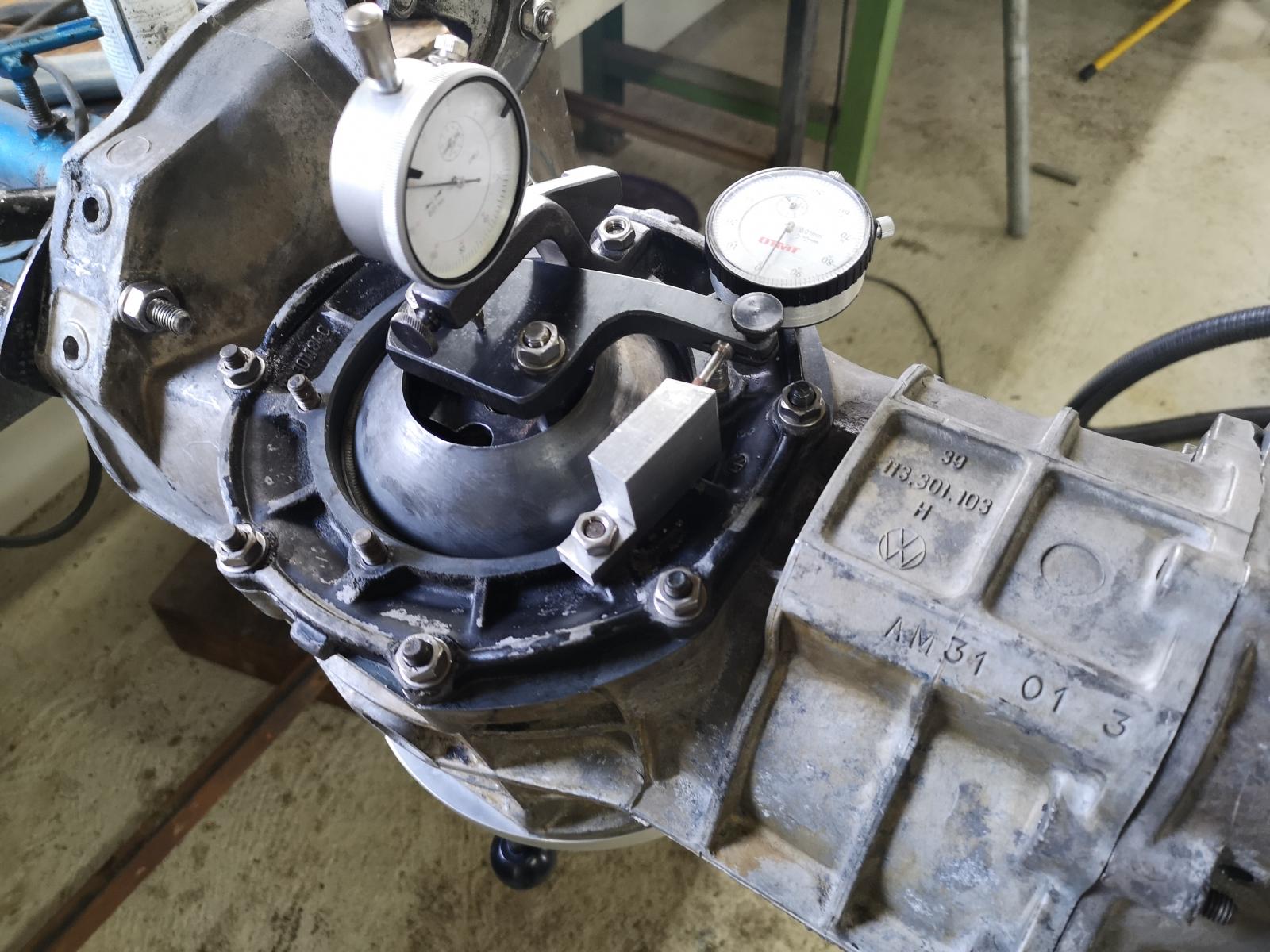

The bentley has all the information to set the ring and pinion, make sure you understand everything before getting started. This is one of those things that takes some thinking. and you will need to source or build a bunch of tools. Bearing preload should be set to .010". Backlash should be set between .030" and .060", the first for track and later the number you want for street and durability.
Image may have been reduced in size. Click image to view fullscreen.


After doing this, you should check the pattern. In Europe, I buy "Tuschierpaste blau" off ebay to do this. It isn't described in the bentley, but do it, there is no harm in double checking.
Image may have been reduced in size. Click image to view fullscreen.


For swingaxle gearboxes, you will also need flange stiffeners. These are the thick black plates behind the 6 nuts holding the axle tubes.
Image may have been reduced in size. Click image to view fullscreen.


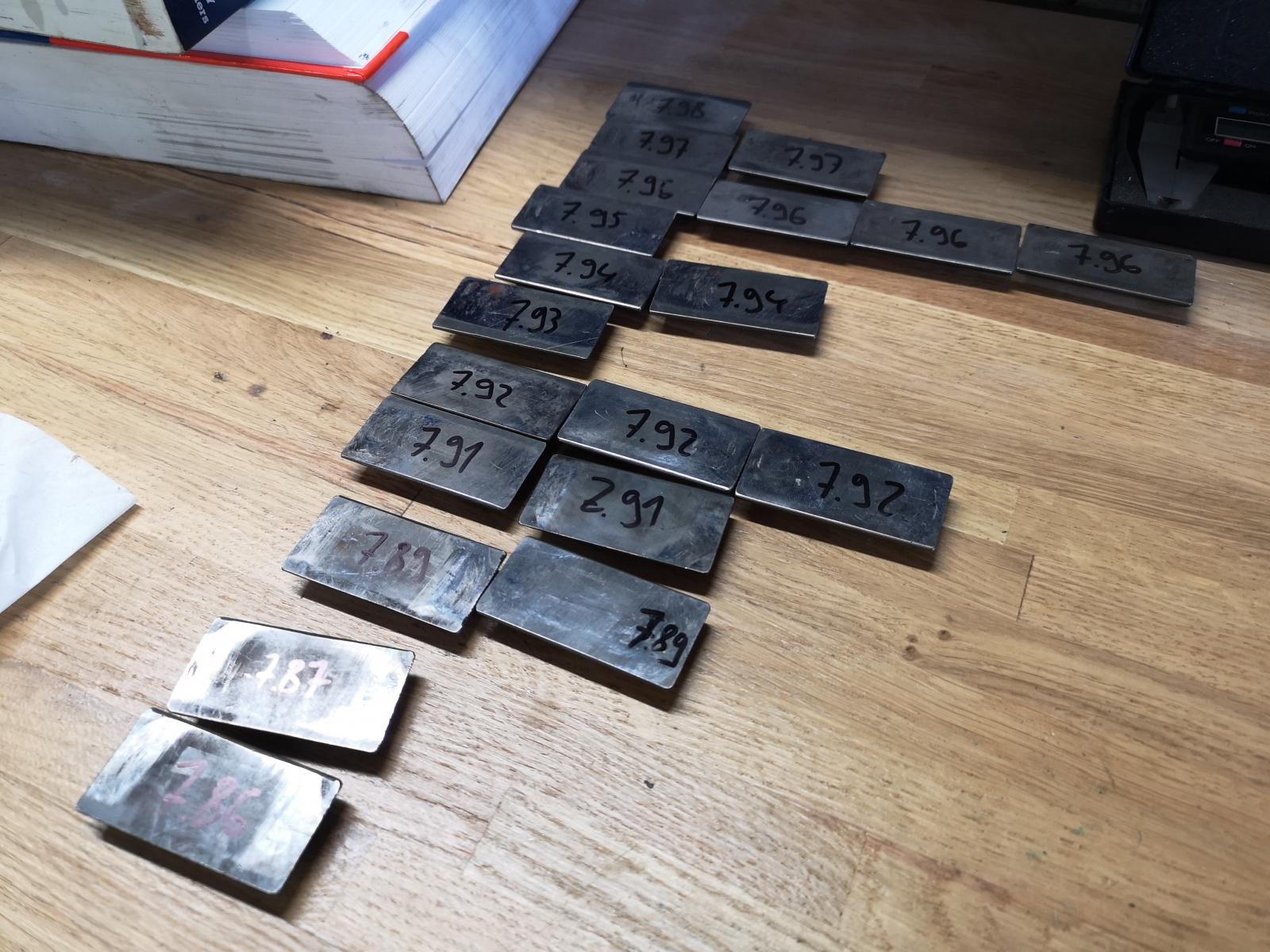

The problem with swingaxle gearboxes is that you cannot buy some parts in new. This is the case for fulcrum plates, which vary a lot in size. I keep as many as I can, measure them for wear (uneven thickness) and to sort them. You will break drive axle if there is too much play there.
Image may have been reduced in size. Click image to view fullscreen.


With the 10t/15t diff, you can break stock axles further.
Image may have been reduced in size. Click image to view fullscreen.


Having switched to the later intermediate housing to accommodate the superbeetle mainshaft, we need to install a steel thrust plate for the mainshaft bearing. Otherwise it pounds into the case.
This is the yellow plated plate in the front of the gearbox.
Image may have been reduced in size. Click image to view fullscreen.

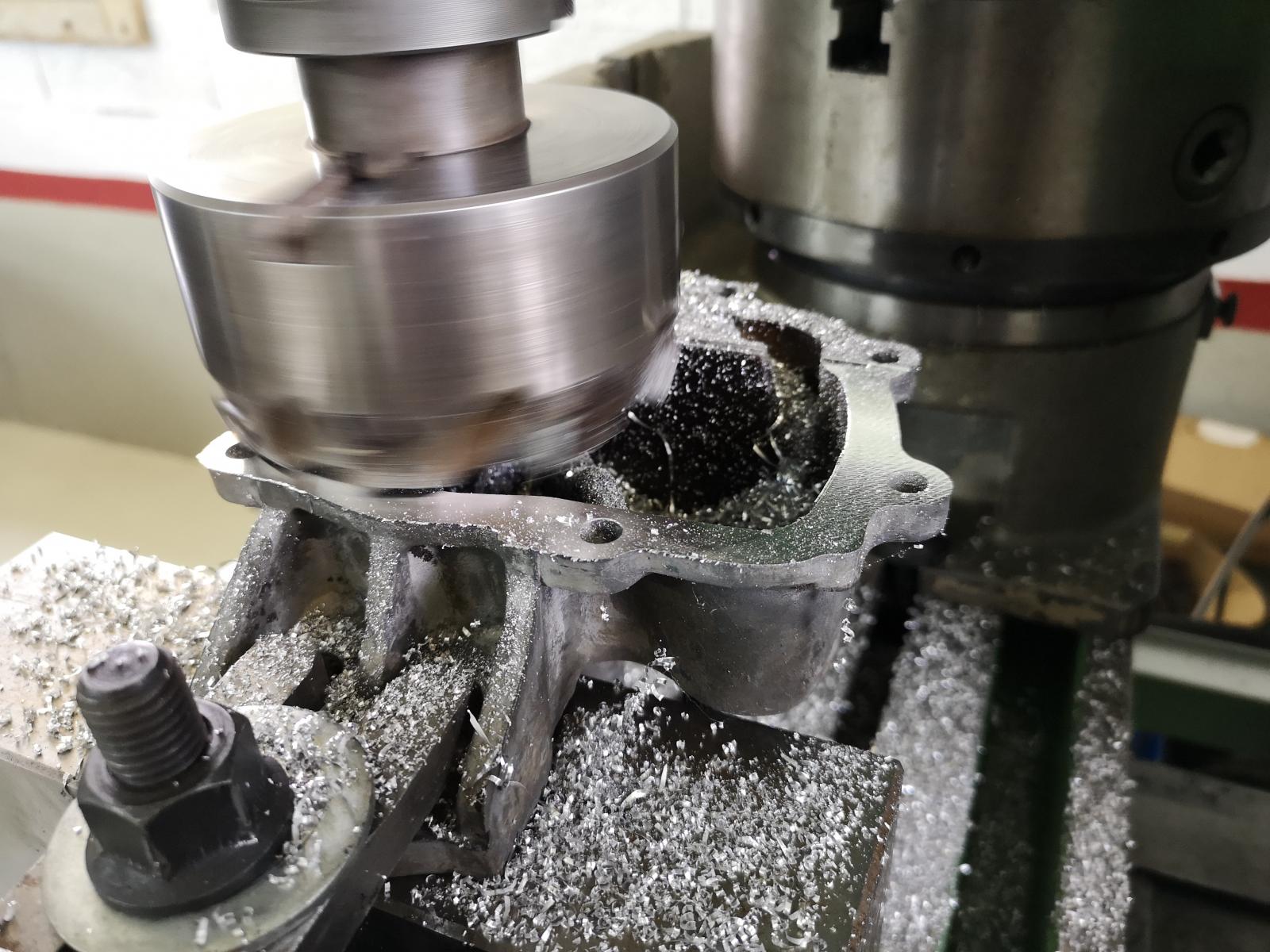

Let's machine 1mm off the nose to compensate for the thickness of the plate.
Image may have been reduced in size. Click image to view fullscreen.


You should also make sure that the 1-2 and 3-4 shifting forks don't have any play. This is mandatory to have smooth shifting. Reverse is usually ok because it is guided by a longer bore. Machine some bushings and press them in there to fix any play.
Image may have been reduced in size. Click image to view fullscreen.


Also make sure that you take care the clutch shaft. Either buy the HD version, or weld the original one. From the factory it only has 2 spot weld on the ends and they break,
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
Casting Timmy
Samba Member


Joined: August 04, 2012
Posts: 1221
Location: Kansas City, Kansas
Casting Timmy is offline

PostPosted: Wed Jul 15, 2020 6:50 pm    Post subject: Re: Building a strong gearbox with 95% OEM parts Reply with quote

Might double check your numbers on backlash.....030Ē and .060Ē is way too much. I do a minimum backlash of .006Ē, but most of the time start used ring and pinions off at .007-.008Ē to see how they pattern. I try to make it match the pattern it was running before most of the time.

You might check GMís gear marking compound out. Weddle sells it in baby tubes or you can get some offline. Itís nice in that you can leave it on as it dissolves in use.

Nice write up. My guess is your more used to metric and missed a zero.
_________________
T1 IRS Rebuild Book on Lulu.com
http://www.lulu.com/shop/tim-marshall/t1-irs-transaxle-book/paperback/product-24055997.html
As seen in Volks America Issue 14 Page 11 (Full page review)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Chickensoup
Samba Member


Joined: January 06, 2018
Posts: 5361
Location: Good Hope, GA
Chickensoup is offline

PostPosted: Wed Jul 15, 2020 7:42 pm    Post subject: Re: Building a strong gearbox with 95% OEM parts Reply with quote

stop it!!!! your making me want to get my mill back up and running Very Happy

no really tho, keep posting! and thank you for taking the time to write all this up. let the novice transmission builders multiply Smile
_________________
-'85 c10 5.3 LS, 222 cam, long tubes, x pipe, 3 inch spin tech's
-'05 B5.5 TDI Wagon 17in sport rims ;EGR + BSM + ASV Delete, Stage-2 Tune, straight pipe
'65 Tourist Delivery Build
'66 RIP
'69 RIP
Hosea 4:6 "My people are destroyed for lack of knowledge"
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
ngobet
Samba Member


Joined: September 04, 2007
Posts: 96
Location: Switzerland / California
ngobet is offline

PostPosted: Thu Jul 16, 2020 12:31 am    Post subject: Re: Building a strong gearbox with 95% OEM parts Reply with quote

Casting Timmy wrote:
Might double check your numbers on backlash.....030Ē and .060Ē is way too much. I do a minimum backlash of .006Ē, but most of the time start used ring and pinions off at .007-.008Ē to see how they pattern. I try to make it match the pattern it was running before most of the time.

You might check GMís gear marking compound out. Weddle sells it in baby tubes or you can get some offline. Itís nice in that you can leave it on as it dissolves in use.

Nice write up. My guess is your more used to metric and missed a zero.


yes you guessed right, I made a mistake converting. The black gearbox from the picture got .006'' of backlash
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
[email protected]
Samba Member


Joined: May 17, 2003
Posts: 4853
Location: Harmony, PA
gkeeton@zbzoom.net is offline

PostPosted: Thu Jul 16, 2020 5:09 pm    Post subject: Re: Building a strong gearbox with 95% OEM parts Reply with quote

Very nice write up. I did a similar build a couple years ago with the difference of an 091 1st idler, 1.35 3rd, 0.89 4th, and a Super Diff. Which axles did you end up going with?

Ohio Tom wrote:
a few things to add:

1. there is another option to put 113 gears on a late model main shaft.
You can cut the hub down and bore the gear out to provide clearance needed.
I have a stack of cut down hubs just for that purpose.

2. A few spot welds on the gear is not enough for any real HP. It will break the welds you have pictured.

3. I like to weld up the whole thing and then grind it back down to get the proper thrust measurement. Taking care not to overheat and distort the whole thing. ONce done, you will likely have to hone the bore so it will fit on the idler bearing.

4. 95% + 10% = 105%.. LOL..


5. The 10/15 tooth combination is stronger.

Not sure why you think super diff's don't load all the spider gears?
Most quality superdiffs do just fine and make it much stronger.
I do add oil holes to keep them lubed up for one wheel burnouts..


Like drilling the 1-2 hub for additional oil holes, itís a good idea to do on an 002 3/4 hub using 113 gears since they will be using the outer diameter of the hub for the thrust.

Iím in the Super Diff camp as well. 15 tooth S/A side gears arenít real common in the US, so Iíve not experimented any comparing them to the more common 17 tooth ones. I have seen the difference in strength between the 15-17 combos of the IRS transaxles in stock two spider form. I have also replaced 15/10 tooth stock IRS diffs, and even the stock two spider 091 diffs, with four gear super diffs that solved breakage issues.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Albertoprop17
Samba Member


Joined: March 15, 2016
Posts: 193
Location: Valencia (Spain)
Albertoprop17 is offline

PostPosted: Sat Jul 18, 2020 1:20 am    Post subject: Re: Building a strong gearbox with 95% OEM parts Reply with quote

How many holes do you drill into the 1st/2nd hub?

Which is better, 113 style 3rd/4th with welded synchro cone or 002 style ones?

It will be very cool to see some videos of how do you set the end play of the gears in the shafts, I'm not able to imagine it yet (I've never dissasembled a gearbox)

How much torque will the gearbox hold with these mods?
_________________
'54 vintage speed beetle slow project

Visit my workshop site and leave a like:

https://www.facebook.com/talleresalacreu/
Back to top
View user's profile Send private message Send e-mail Visit poster's website Instagram Gallery Classifieds Feedback
ngobet
Samba Member


Joined: September 04, 2007
Posts: 96
Location: Switzerland / California
ngobet is offline

PostPosted: Sat Jul 18, 2020 2:30 am    Post subject: Re: Building a strong gearbox with 95% OEM parts Reply with quote

[email protected] wrote:
Very nice write up. I did a similar build a couple years ago with the difference of an 091 1st idler, 1.35 3rd, 0.89 4th, and a Super Diff. Which axles did you end up going with?

Ohio Tom wrote:
a few things to add:

1. there is another option to put 113 gears on a late model main shaft.
You can cut the hub down and bore the gear out to provide clearance needed.
I have a stack of cut down hubs just for that purpose.

2. A few spot welds on the gear is not enough for any real HP. It will break the welds you have pictured.

3. I like to weld up the whole thing and then grind it back down to get the proper thrust measurement. Taking care not to overheat and distort the whole thing. ONce done, you will likely have to hone the bore so it will fit on the idler bearing.

4. 95% + 10% = 105%.. LOL..


5. The 10/15 tooth combination is stronger.

Not sure why you think super diff's don't load all the spider gears?
Most quality superdiffs do just fine and make it much stronger.
I do add oil holes to keep them lubed up for one wheel burnouts..


Like drilling the 1-2 hub for additional oil holes, itís a good idea to do on an 002 3/4 hub using 113 gears since they will be using the outer diameter of the hub for the thrust.

Iím in the Super Diff camp as well. 15 tooth S/A side gears arenít real common in the US, so Iíve not experimented any comparing them to the more common 17 tooth ones. I have seen the difference in strength between the 15-17 combos of the IRS transaxles in stock two spider form. I have also replaced 15/10 tooth stock IRS diffs, and even the stock two spider 091 diffs, with four gear super diffs that solved breakage issues.


Super diff will work for sure. I like the 10/15 teeth diff because we can find it in Europe and oiling is way better that the super diff, it is basically a factory diff with beefed up internals.

I have seen 2 super diff blow up, and then I saw a post from Paul (aka Gears, Pablo) saying that the 10/15 teeth diff is great so I started using those and have never broken one.


Last edited by ngobet on Sat Jul 18, 2020 3:02 am; edited 1 time in total
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
ngobet
Samba Member


Joined: September 04, 2007
Posts: 96
Location: Switzerland / California
ngobet is offline

PostPosted: Sat Jul 18, 2020 2:49 am    Post subject: Re: Building a strong gearbox with 95% OEM parts Reply with quote

Albertoprop17 wrote:
How many holes do you drill into the 1st/2nd hub?

Which is better, 113 style 3rd/4th with welded synchro cone or 002 style ones?

It will be very cool to see some videos of how do you set the end play of the gears in the shafts, I'm not able to imagine it yet (I've never dissasembled a gearbox)

How much torque will the gearbox hold with these mods?


3 holes, like Berg described.

I personally never have reached the limit of coarse tooth gears, welded 113 or 002. Maybe drag guys know? First gears do break quite quickly, and that is the reason for the swith to the superbeetle mainshaft, and synchro cones have to be welded, then You should be good for a hot street transmission.

About the torque, this gearbox takes 230nm of torque (170 ft-lb). I have the original axles, they will break on a sticky road with hard launch. But otherwise, you can do occasionally a short one wheel burnout and drive each gear hard without breaking anything.

Besides a few circlips, the thrust plate and sidecover, I only used factory parts. So you only need to source a later 2 side cover gearbox, another one post 73 for the mainshaft. And of course, you need to source the gears with desired ratio and style from these gearbox or others.
If you can do the assembly and mods yourself, the budget is under $1000. Of course, if you had to make a living out of it, I guess that it would cost more than a pro street.
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
[email protected]
Samba Member


Joined: May 17, 2003
Posts: 4853
Location: Harmony, PA
gkeeton@zbzoom.net is offline

PostPosted: Sat Jul 18, 2020 7:25 am    Post subject: Re: Building a strong gearbox with 95% OEM parts Reply with quote

ngobet wrote:
Besides a few circlips, the thrust plate and sidecover, I only used factory parts. So you only need to source a later 2 side cover gearbox, another one post 73 for the mainshaft. And of course, you need to source the gears with desired ratio and style from these gearbox or others.
If you can do the assembly and mods yourself, the budget is under $1000. Of course, if you had to make a living out of it, I guess that it would cost more than a pro street.


This is the good part of such a build, and the bad part of such a build. Itís good to be able select components from various transaxles that can be interchanged to use the best factory parts, or create gearing combinations that were never factory offered. The bad thing is, you have to have all of the core transaxles to draw from with the selected parts that are in useable condition, or buy individual components from resellers. If your components are factory poor wear items, finding useable used replacements can be a challenge. If/when they are found, they may bring a premium price if needing to be purchased individually. There are many higher end replacements for common parts being reproduced as need increases, but the cost can add up quickly.

I had components from four Type 1 transaxles, ranging in years from the early 60ís to late 70ís, and a slider/gear from an 091 Type 2 transaxle. If youíre lucky enough to find a bulk buy of a shop/rebuilder, you may be able to keep the core cost low. Type 1 cores local to me in 2020 are in the $75-$200 range, and Type 2 cores in the $450-$600 range. Thatís $750-$1400 worth of cores to be purchased to ďpossiblyĒ find everything you need. I had to go through numerous cores to find a 3.78 mainshaft that had gear teeth in excellent shape, and fit the 3/4 hub, and mainshaft bearing properly. Sure, all the mainshafts I was coming across would have ďworkedĒ for a stock rebuild, but for outright performance, youíre looking for the best of the best premium components. Not counting any core costs, I recall having around $1600 in parts. With the exception of the reverse idler shaft bearings, that included all other new OEM bearings from INA, FAG, or SKF. The OEM VW 091 gear, and Weddle slider/reverse gear were new, as well as a Weddle 1.35 002 3rd. I also had additional costs of a super diff, and performance swing axles. Some sources I found for a similar build, drum to drum, were in the $3000-$3200 range. Your build would easily surpass $2500 as a ready to install unit. While some may see that as outrageous, itís comparable to an engine build that has additional labor hours for part modification/fitting.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Performance/Engines/Transmissions All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3  Next
Page 1 of 3


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
