Left trans axel!
Forum Index -> Beetle - Late Model/Super - 1968-up Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
glennj3cub
Samba Member


Joined: August 05, 2020
Posts: 262
Location: South Carolina
glennj3cub is offline

PostPosted: Mon Sep 14, 2020 12:13 pm    Post subject: Left trans axel! Reply with quote

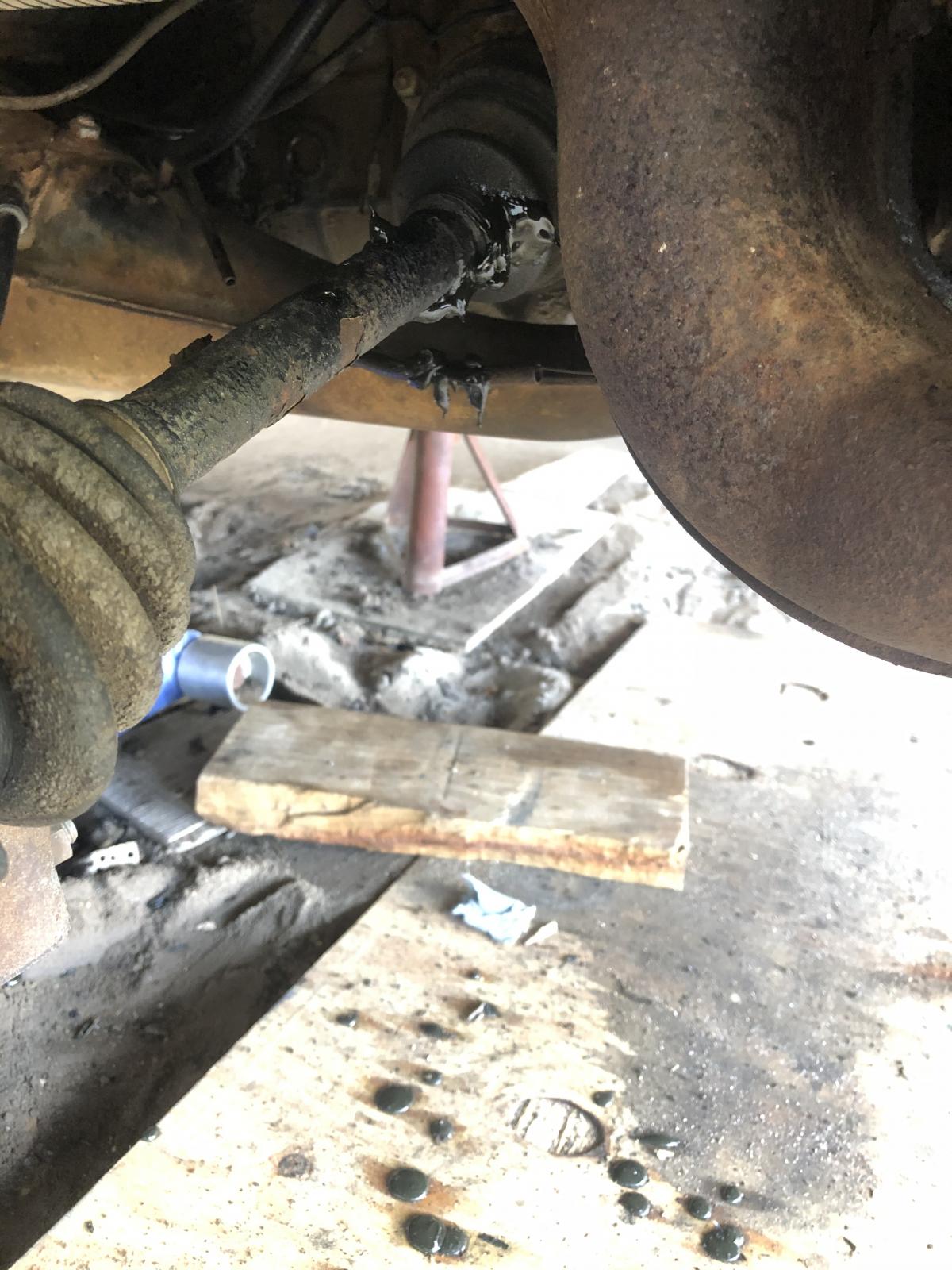

I attempted to loosen some of the bolts but had no wheels on yet. I know have brake drums in place so I can lock them down. Any advice on how to get them off? Will it require heat?
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Matt Wilson
Samba Member


Joined: November 14, 2005
Posts: 2404
Location: Colorado
Matt Wilson is offline

PostPosted: Mon Sep 14, 2020 1:19 pm    Post subject: Re: Left trans axel! Reply with quote

You probably need a 12pt "triple square" tool to loosen the CV bolts. These should be torqued to 25 ft-lbs. You *should* be able to loosen them by holding the the brake drum with one hand. Be sure to scrape and clean out all the bolt socket heads first.
_________________
1972 Standard Beetle
1969 Baja Beetle
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
gt1953
Samba Member


Joined: May 08, 2002
Posts: 13782
Location: White Mountains Arizona
gt1953 is offline

PostPosted: Mon Sep 14, 2020 1:37 pm    Post subject: Re: Left trans axel! Reply with quote

Do make sure yo clean out the 12 point holes other wise you will be a stripping. So when i replaced mine I used the local FLAPS with lifetime warranty. That was several years ago and they are working fine. When fail will not have to purchase another cause of lifetime warranty.

https://www.oreillyauto.com/detail/b/masterpro-cv-...&pos=1
_________________
Volkswagen: We tune what we drive.
Numbers Matching VW's are getting harder to find. Source out the most Stock vehicle and keep that way. You will be glad you did.

72 type 1
72 Squareback
({59 Euro bug, 62, 63, 67, 68, 69, 73 type ones 68 & 69 type two, 68 Ghia all sold})
Back to top
View user's profile Send private message Gallery Classifieds Feedback
glennj3cub
Samba Member


Joined: August 05, 2020
Posts: 262
Location: South Carolina
glennj3cub is offline

PostPosted: Mon Sep 14, 2020 3:18 pm    Post subject: Re: Left trans axel! Reply with quote

Yes I cleaned them out and ordered the 12 pt but felt like it might strip so I stopped, besides I couldnít hold them from turning without the drum. Maybe next time.
Those are pretty cheap at OíREILLY!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
gt1953
Samba Member


Joined: May 08, 2002
Posts: 13782
Location: White Mountains Arizona
gt1953 is offline

PostPosted: Tue Sep 15, 2020 6:49 am    Post subject: Re: Left trans axel! Reply with quote

I have those on a couple of my cars. Some will tell you those half shafts are not good well they are fine for me.
_________________
Volkswagen: We tune what we drive.
Numbers Matching VW's are getting harder to find. Source out the most Stock vehicle and keep that way. You will be glad you did.

72 type 1
72 Squareback
({59 Euro bug, 62, 63, 67, 68, 69, 73 type ones 68 & 69 type two, 68 Ghia all sold})
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Lost69Convertible
Samba Member


Joined: July 29, 2020
Posts: 413
Location: Rhode Island
Lost69Convertible is offline

PostPosted: Tue Sep 15, 2020 8:43 am    Post subject: Re: Left trans axel! Reply with quote

The CV bolts thread into hubs at the transmission and at the wheel. The bolt threads extend through the hub and protrude by an eighth inch or more on the back side. Spray WD-40 or your preferred penetrating oil on these threads. Spray the heads of the bolts too. Do this for two or three days, let it work it there.

And when you get a bolt to turn, stop at 1/4 turn. Apply more penetrating oil. And work the bolt back and forth 1/4 turn, CCW and CW, until it frees up more.
_________________
1956 Beetle Ragtop: My Father's car
1969 Beetle Convertible: My first car. I loved it, I lost it, and I never got over it.
1979 Super Beetle Convertible
Back to top
View user's profile Send private message Gallery Classifieds Feedback
glennj3cub
Samba Member


Joined: August 05, 2020
Posts: 262
Location: South Carolina
glennj3cub is offline

PostPosted: Tue Sep 15, 2020 7:54 pm    Post subject: Re: Left trans axel! Reply with quote

Thank you, working it now!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
glennj3cub
Samba Member


Joined: August 05, 2020
Posts: 262
Location: South Carolina
glennj3cub is offline

PostPosted: Tue Sep 22, 2020 4:52 pm    Post subject: Re: Left trans axel! Reply with quote

73 Super Beetle.
The bolts came out relatively easy. One bolt on each side had a broken head leaving just the stud inside of the threads. I turned them out by hand!
I assume I canít buy those bolts anyplace local??
The new axels came with 2 tubes of grease. I cleaned out the old grease. I assume I just pack the bearings with this fresh grease & bolt back up to transmission & wheel? 25 ft lbs??
Back to top
View user's profile Send private message Gallery Classifieds Feedback
61SNRF
Samba Member


Joined: March 29, 2009
Posts: 4655
Location: Whittier 90602
61SNRF is offline

PostPosted: Tue Sep 22, 2020 6:27 pm    Post subject: Re: Left trans axel! Reply with quote

You might be able to find them locally if you have a good hardware store nearby that stocks a variety of 10.9 grade metric Allen bolts.

Nothing VW specific about them, 8mm x 1.25 x 50mm shouldered socket head bolt.

Here also is the first hit on a Goggle search, plenty out there by mail order...
https://www.jbugs.com/product/113501229D.html?gcli...l0QAvD_BwE

Note most replacements will not have the original 12 point square drive recess but instead a 6mm or 8mm Allen head so you may need to buy a new driver as well.

Yeah, 24-25 ft lbs sounds about right. You need to lock the wheels some way so you can use both hands to hold the socket firmly and 90 degrees into the recess without it slipping out. One good way is have a helper hold the brake pedal down for each one as you rotate the wheel to access the next.
Start by tightening the screw on the bottom then rotate wheel 180 degrees then tighten opposite one, then alternate in a star pattern same way you would a clutch pressure plate or 6 bolt wheel.

Not uncommon for them to come loose and/or snap off so best practice is to check them for tightness every time you change oil or adjust brakes.
_________________
-Bruce

An ounce of prevention is worth a pound of cure.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
glennj3cub
Samba Member


Joined: August 05, 2020
Posts: 262
Location: South Carolina
glennj3cub is offline

PostPosted: Tue Sep 22, 2020 7:54 pm    Post subject: Re: Left trans axel! Reply with quote

Thank you 61. I ordered a dozen! I usually work alone so Iím up & down, pulling& releasing the parking brake between turning the wheels!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
grandpa red
Samba Member


Joined: November 23, 2018
Posts: 520
Location: Hollister,Ca.
grandpa red is offline

PostPosted: Wed Sep 23, 2020 3:26 am    Post subject: Re: Left trans axel! Reply with quote

When you put the tool in the bolt head tap it with a hammer to make sure its in.
Easy to strip the tool if not.
_________________
'72 Beetle
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
VW_Jimbo Premium Member
Samba Member


Joined: May 22, 2016
Posts: 9549
Location: Huntington Beach, CA
VW_Jimbo is offline

PostPosted: Wed Sep 23, 2020 8:41 am    Post subject: Re: Left trans axel! Reply with quote

grandpa red wrote:
When you put the tool in the bolt head tap it with a hammer to make sure its in.
Easy to strip the tool if not.


And use the tire as the other wrench! I actually have always stuck the tool in the bolt and turned the tire, while holding onto the tool, of course. Super easy!
_________________
Jimbo

There is never enough time to do it right the first time, but all the time necessary the second time!
nshaddox wrote:
Plus I tend to prefer these impossible projects that take way too much time. Thereís no thrill in easy projects. Challenges are fun.

67rustavenger wrote:
GFY's Xevin and VW_Jimbo! Smile
Back to top
View user's profile Send private message Gallery Classifieds Feedback
glennj3cub
Samba Member


Joined: August 05, 2020
Posts: 262
Location: South Carolina
glennj3cub is offline

PostPosted: Wed Sep 23, 2020 4:56 pm    Post subject: Re: Left trans axel! Reply with quote

I know these large roller bearings can do OK with a little scoring but I think these need replacing?
73 Super Beetle outside bearing.
The grease was pretty dry on both outside ones. I havenít gotten the Px bearing out yet..
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
johnnyvw164
Samba Member


Joined: July 27, 2020
Posts: 556
Location: South of Raleigh
johnnyvw164 is offline

PostPosted: Wed Sep 23, 2020 6:41 pm    Post subject: Re: Left trans axel! Reply with quote

Those are the CV joints...and they're badly worn. Replace them...probably easier and not any more expensive to just get assembled axles
Back to top
View user's profile Send private message Gallery Classifieds Feedback
grandpa red
Samba Member


Joined: November 23, 2018
Posts: 520
Location: Hollister,Ca.
grandpa red is offline

PostPosted: Thu Sep 24, 2020 5:01 am    Post subject: Re: Left trans axel! Reply with quote

glennj3cub wrote:
I know these large roller bearings can do OK with a little scoring but I think these need replacing?
73 Super Beetle outside bearing.
The grease was pretty dry on both outside ones. I havenít gotten the Px bearing out yet..
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

I agree replace!
