PostPosted: Sat Oct 09, 2021 6:41 am    Post subject: Buggeee's 1984 Puma GTS Reply with quote

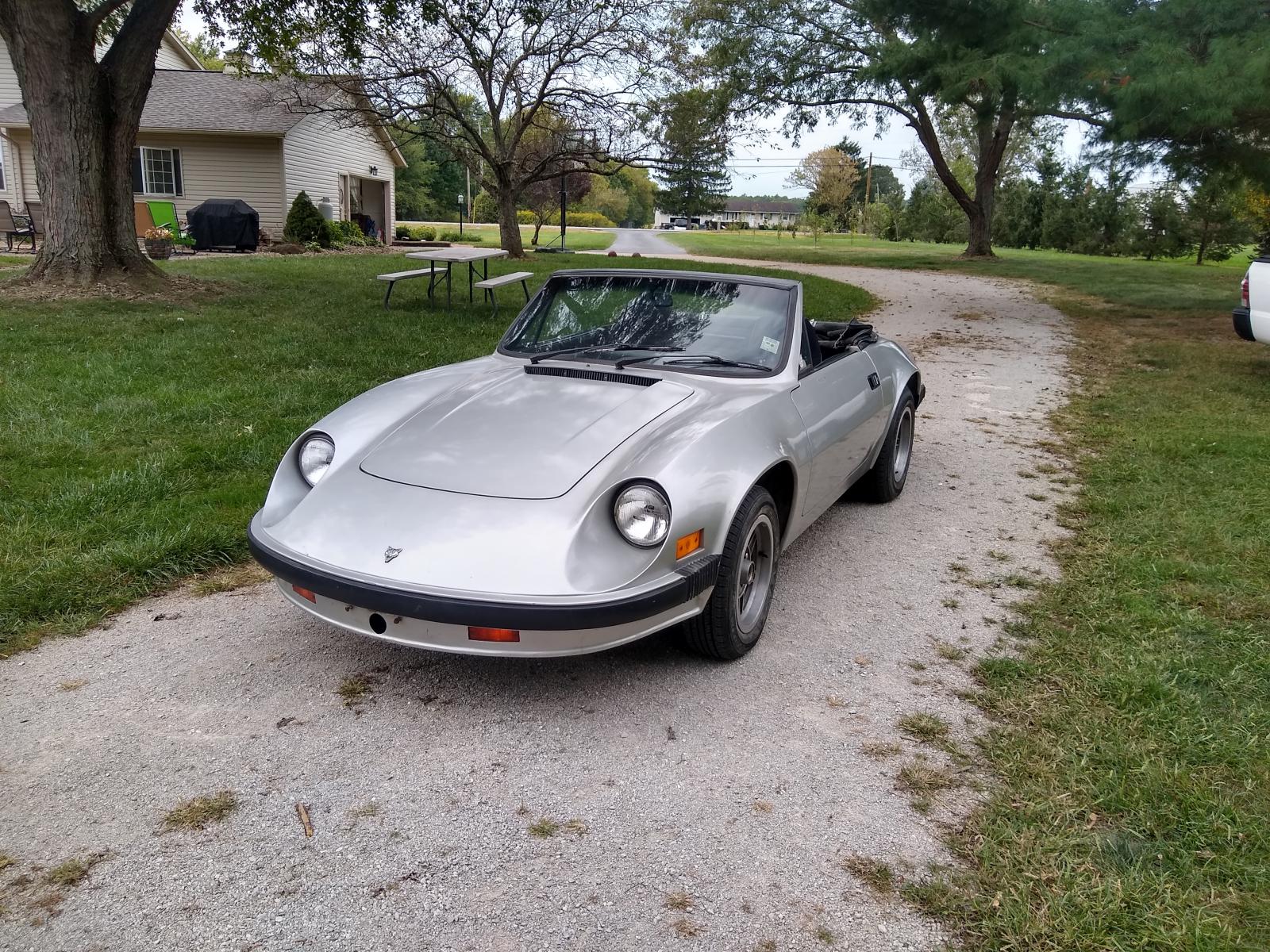

Well, it's not like I needed something to do but I find myself scouting ground in another Samba forum nonetheless. My buddy Joey was sitting on this 1984 Puma GTS and decided his kiddos were better worthy of his time (the right decision every time). On a lark, and involving a series of transactions that lend proof to the devine nature of the order of our universe, I said goodbye to the MGB that none of you would care to wash any more than I would, and said hello to my Brazilian crush. Here she is as found.

Image may have been reduced in size. Click image to view fullscreen.


Waking her from sleep took not much more than a kiss on the cheek and a quick field tuning of the dual carbs. The cloud of smoke eventually cleared, we found usable idle and hit the road together on life's long adventure.

Image may have been reduced in size. Click image to view fullscreen.


She pulled eagerly at sustained highway speeds but smelled terribly of mouse pee and began to gather high temperatures, and corresponding lower oil pressure, at the half hour mark.

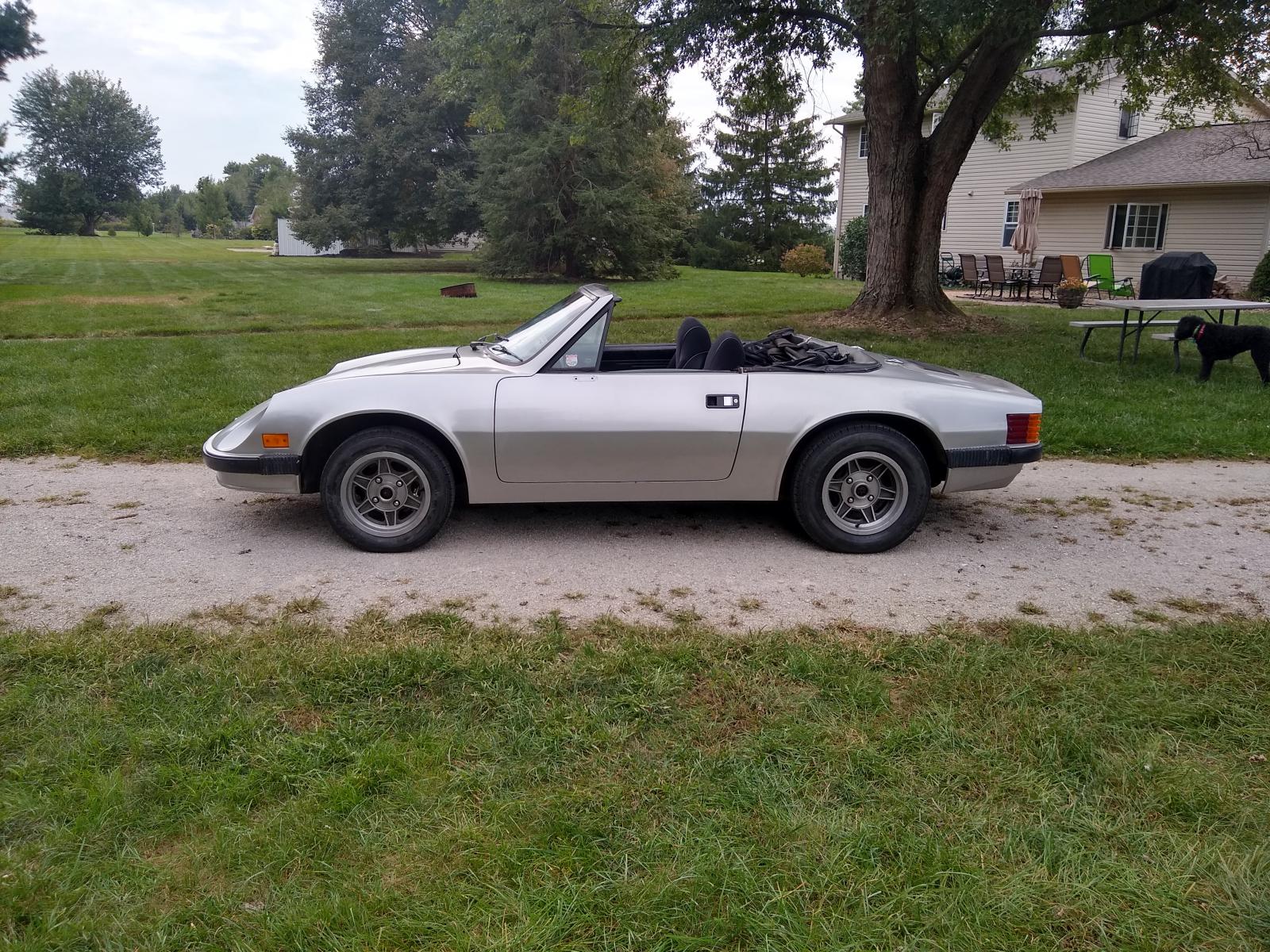

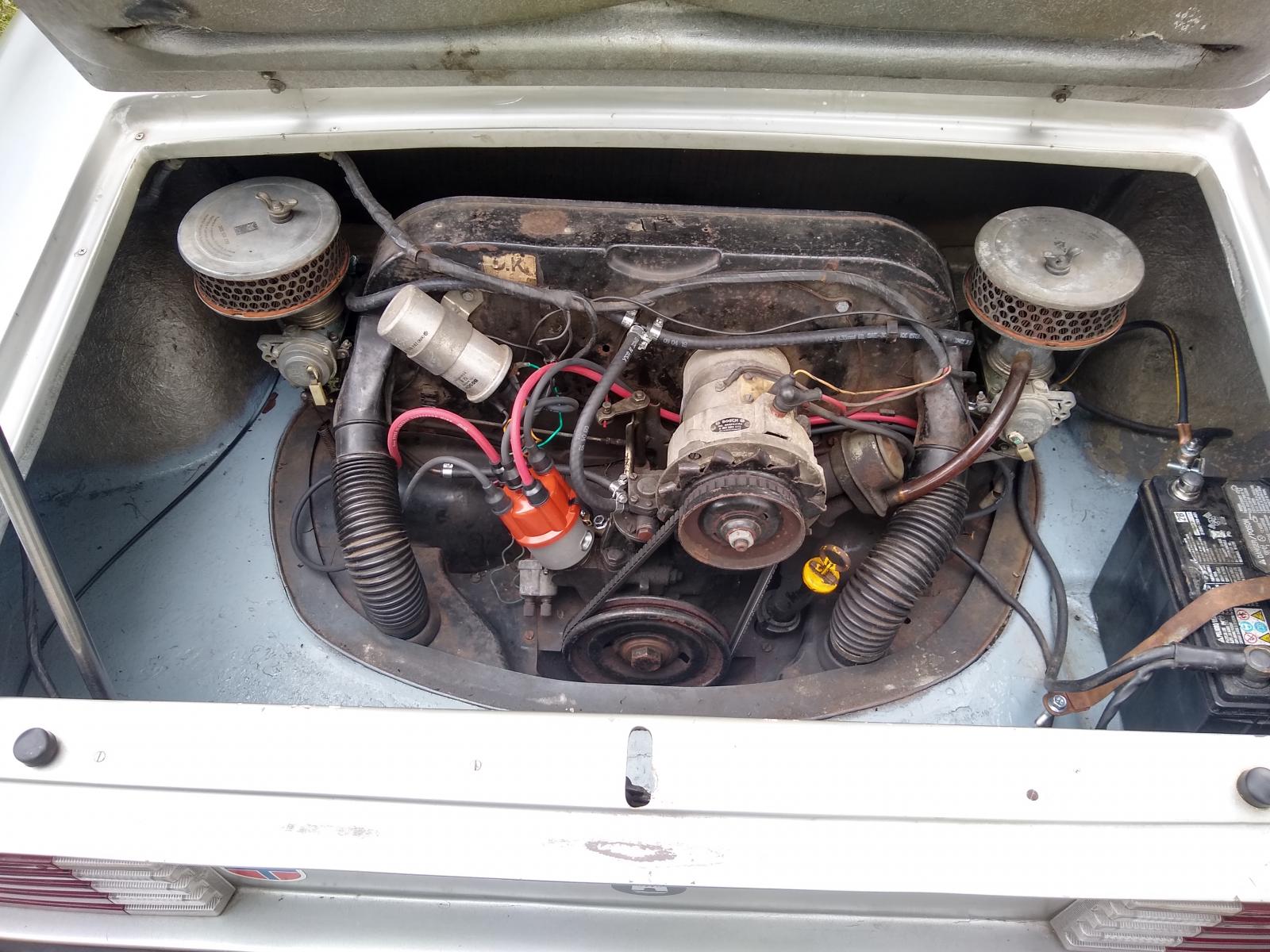

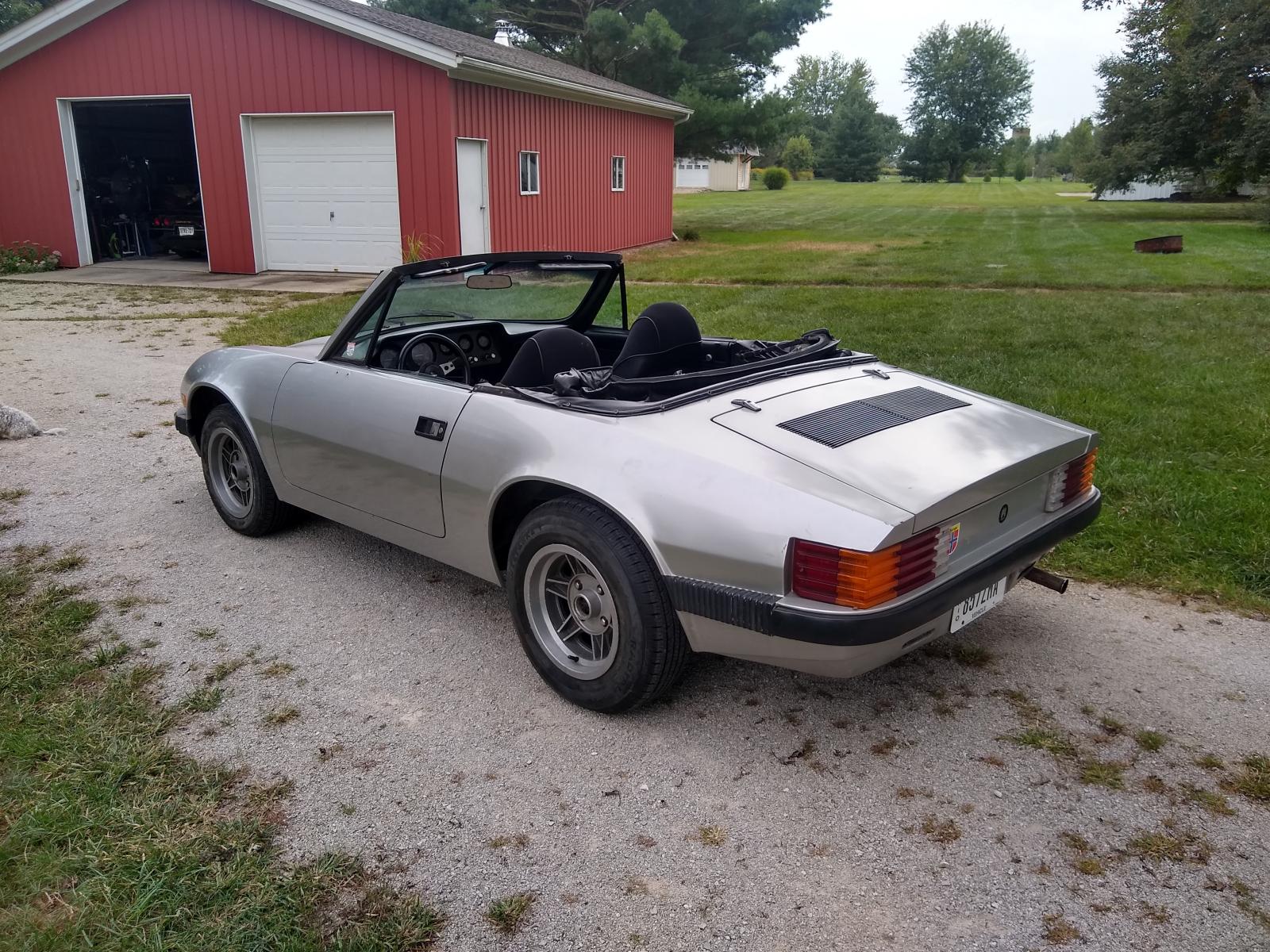

Back home on the farm, we got to know each other better, removed the PO's fender mirrors, and had a bath.


Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

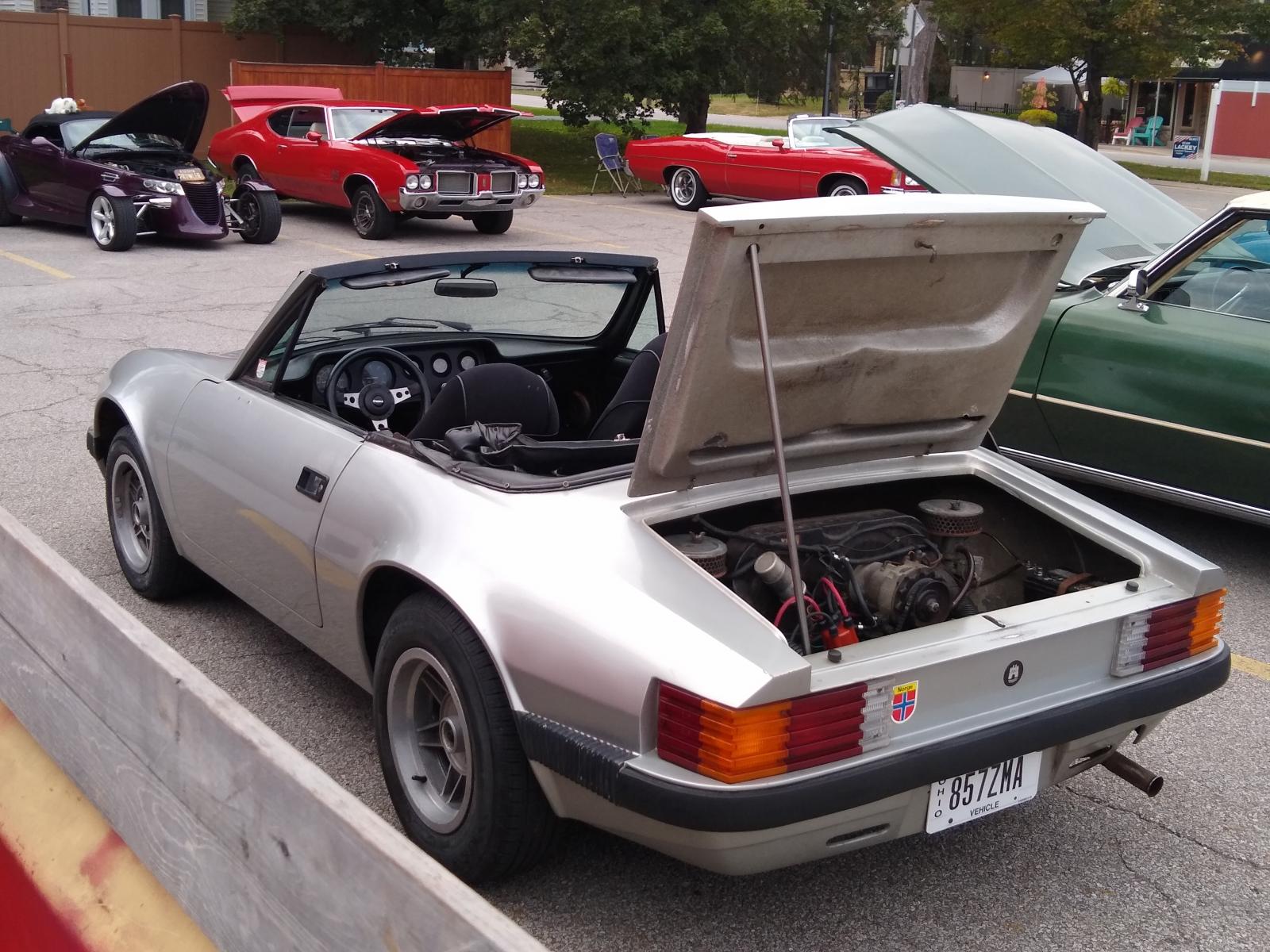

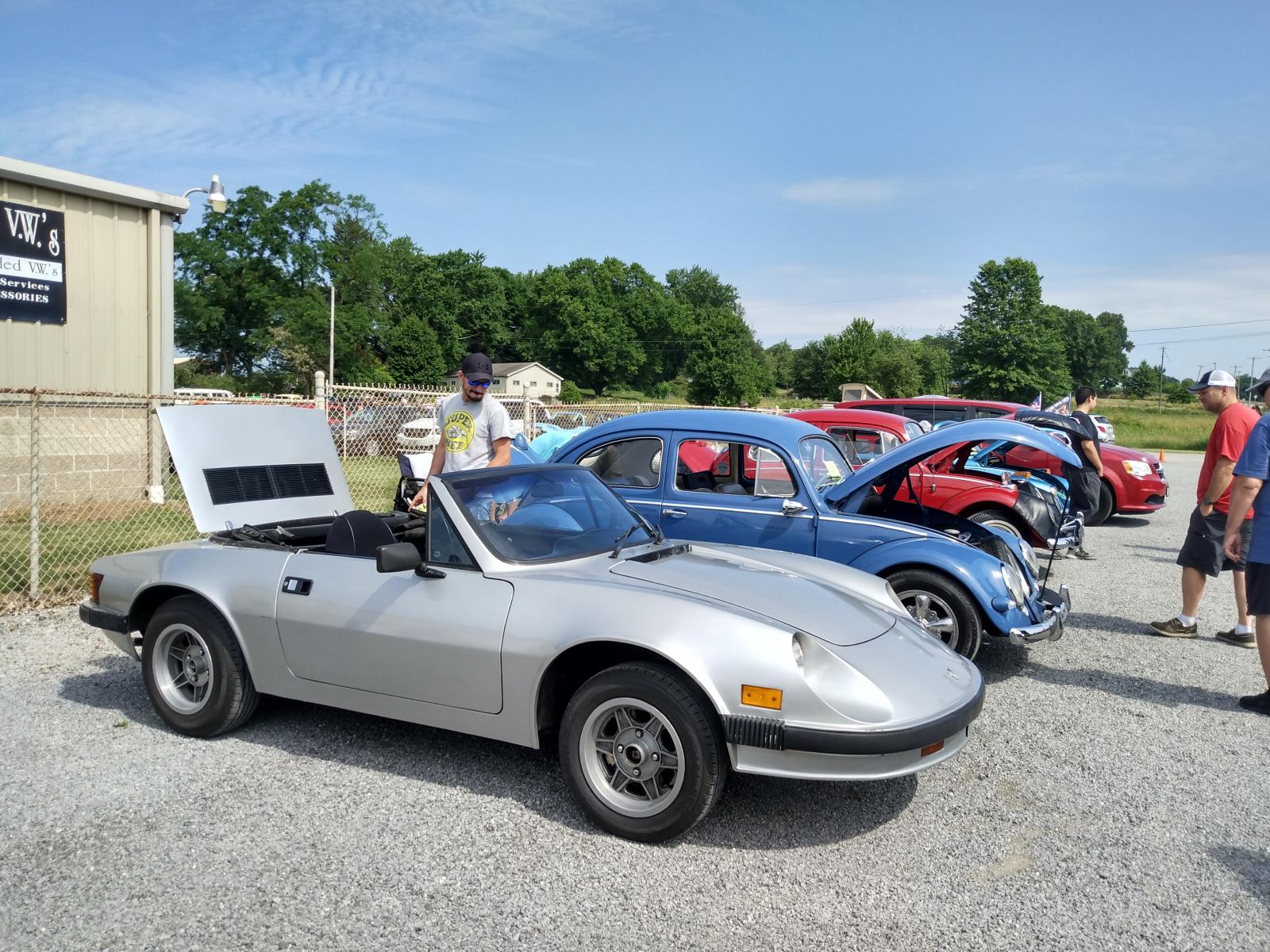

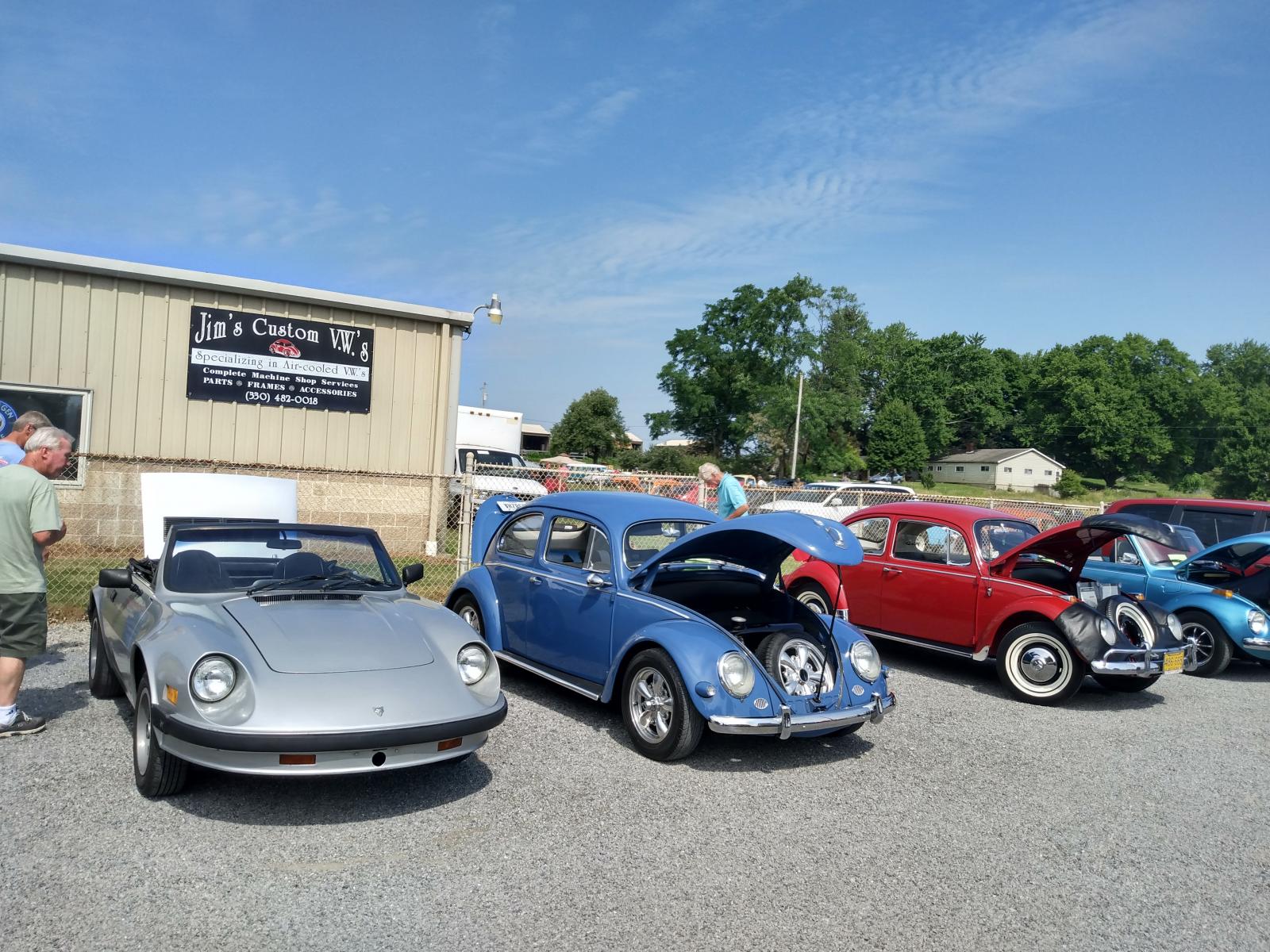

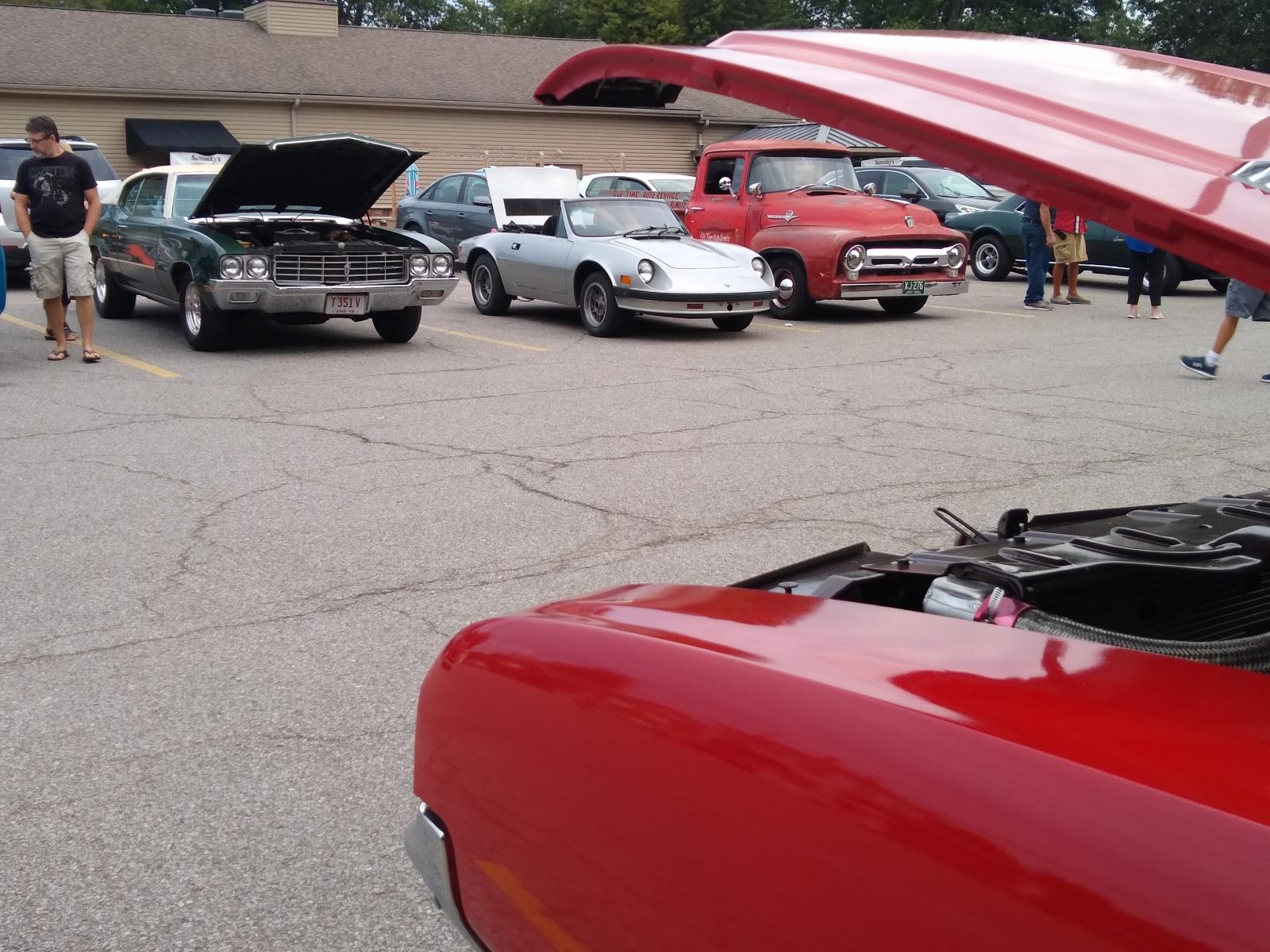

Then we were off to a quick local cruise-in to announce our engagement to the outside world. Back-firing, occasionally sputtering and getting hot at the half hour, she enjoyed her first night on the town in many years (the inspection sticker in the window reads 1991)

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
1966 Sportsmobile Camper https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0
72 Super Duper http://www.thesamba.com/vw/forum/viewtopic.php?t=672387
(adopted out) 61 Turkis Pile https://www.thesamba.com/vw/forum/viewtopic.php?t=728764
84 Puma GTS https://www.thesamba.com/vw/forum/viewtopic.php?t=760470&start=0
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Buggeee
Samba Member


Joined: December 22, 2016
Posts: 3596
Location: Stuck in Ohio
Buggeee is offline

PostPosted: Sat Oct 09, 2021 5:39 pm    Post subject: Re: Buggeee's 1984 Puma GTS Reply with quote

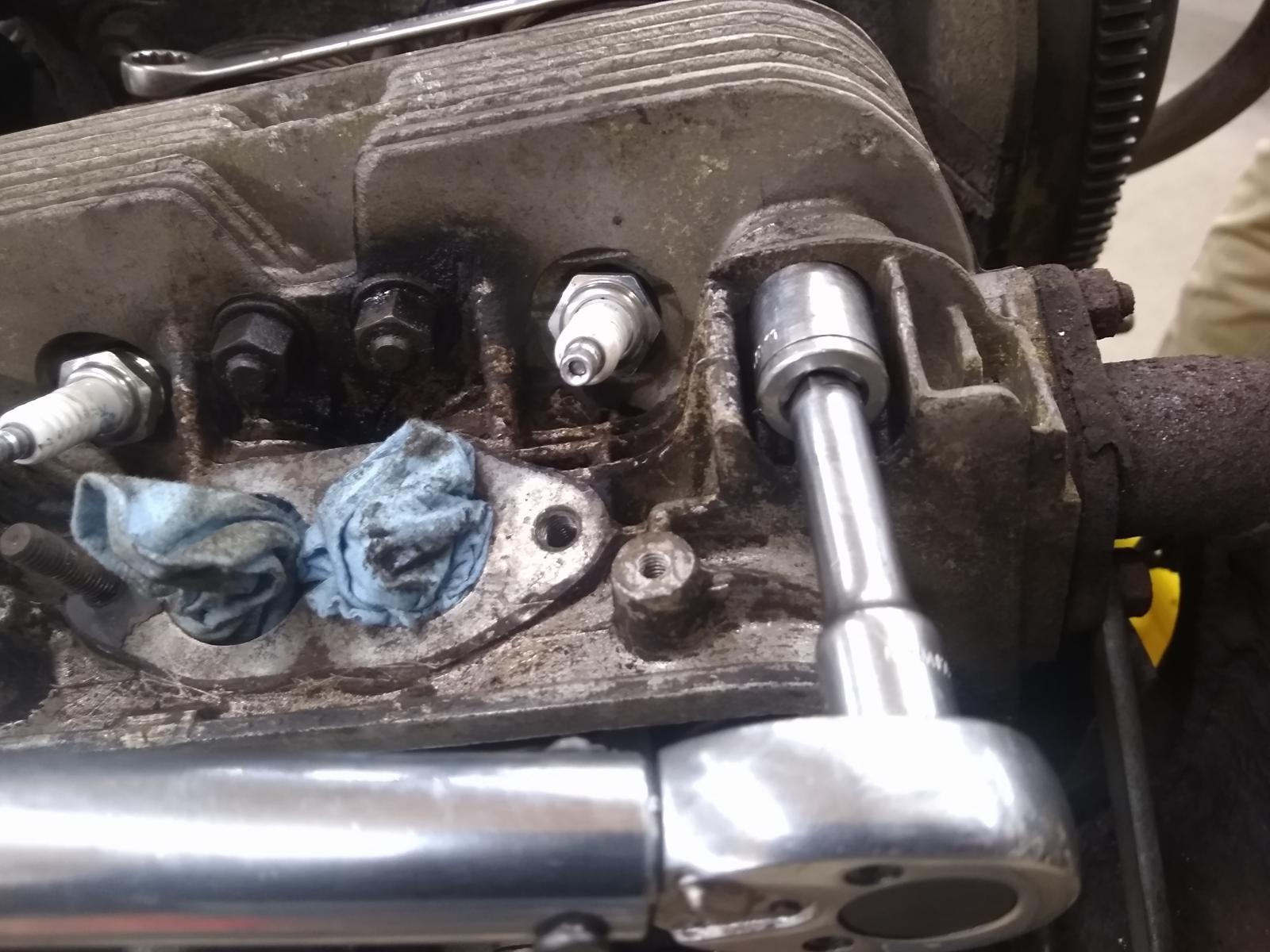

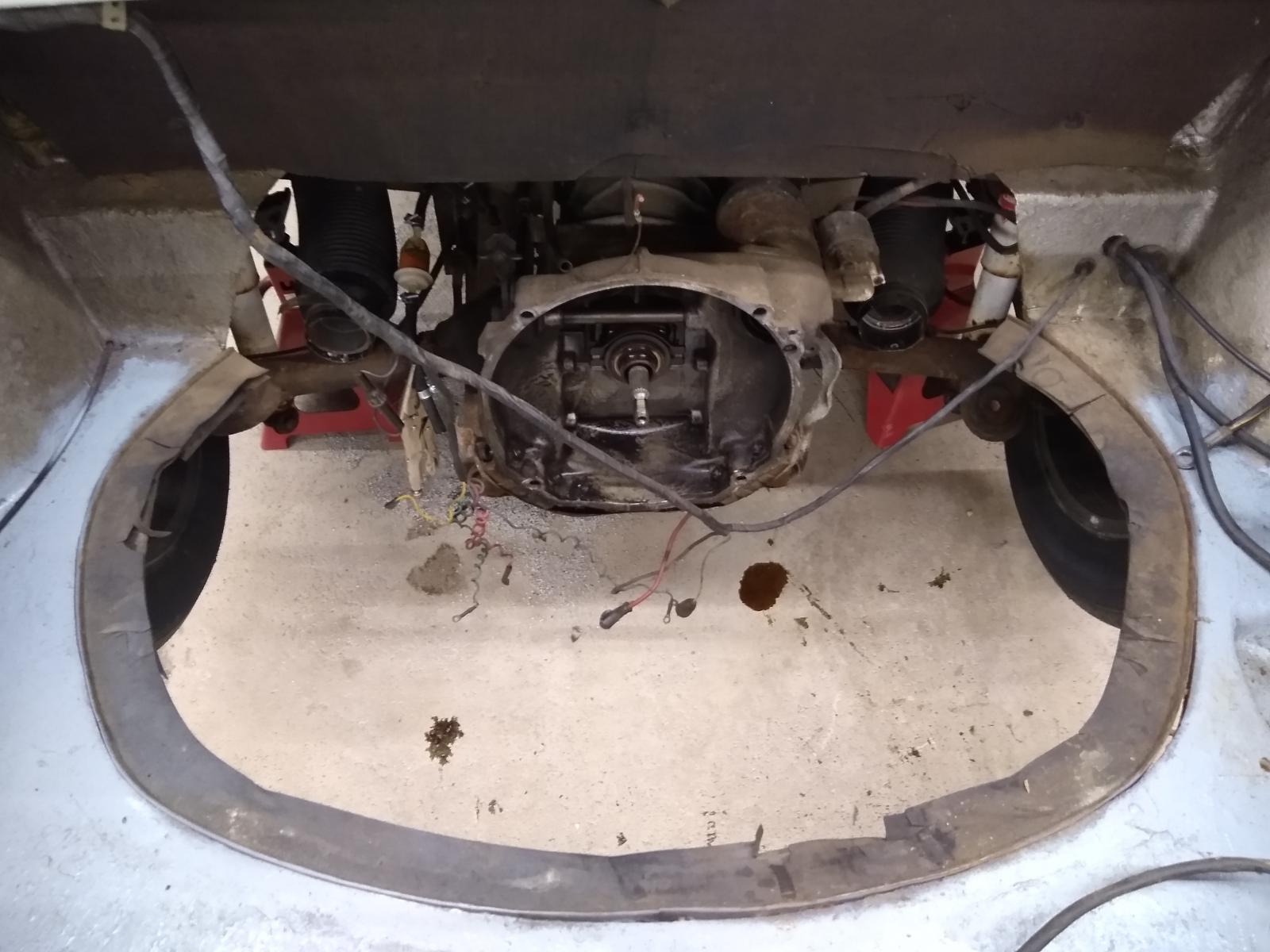

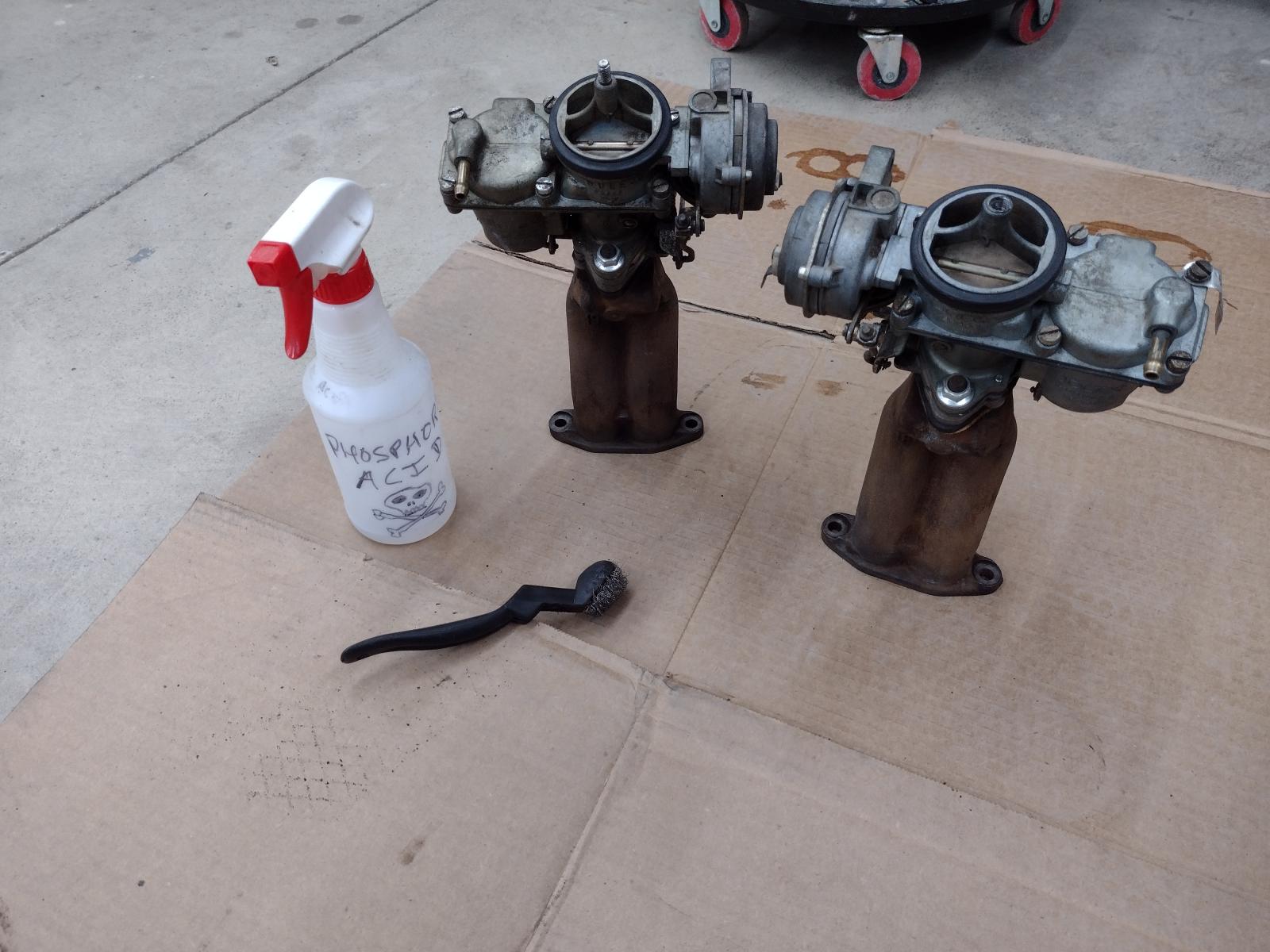

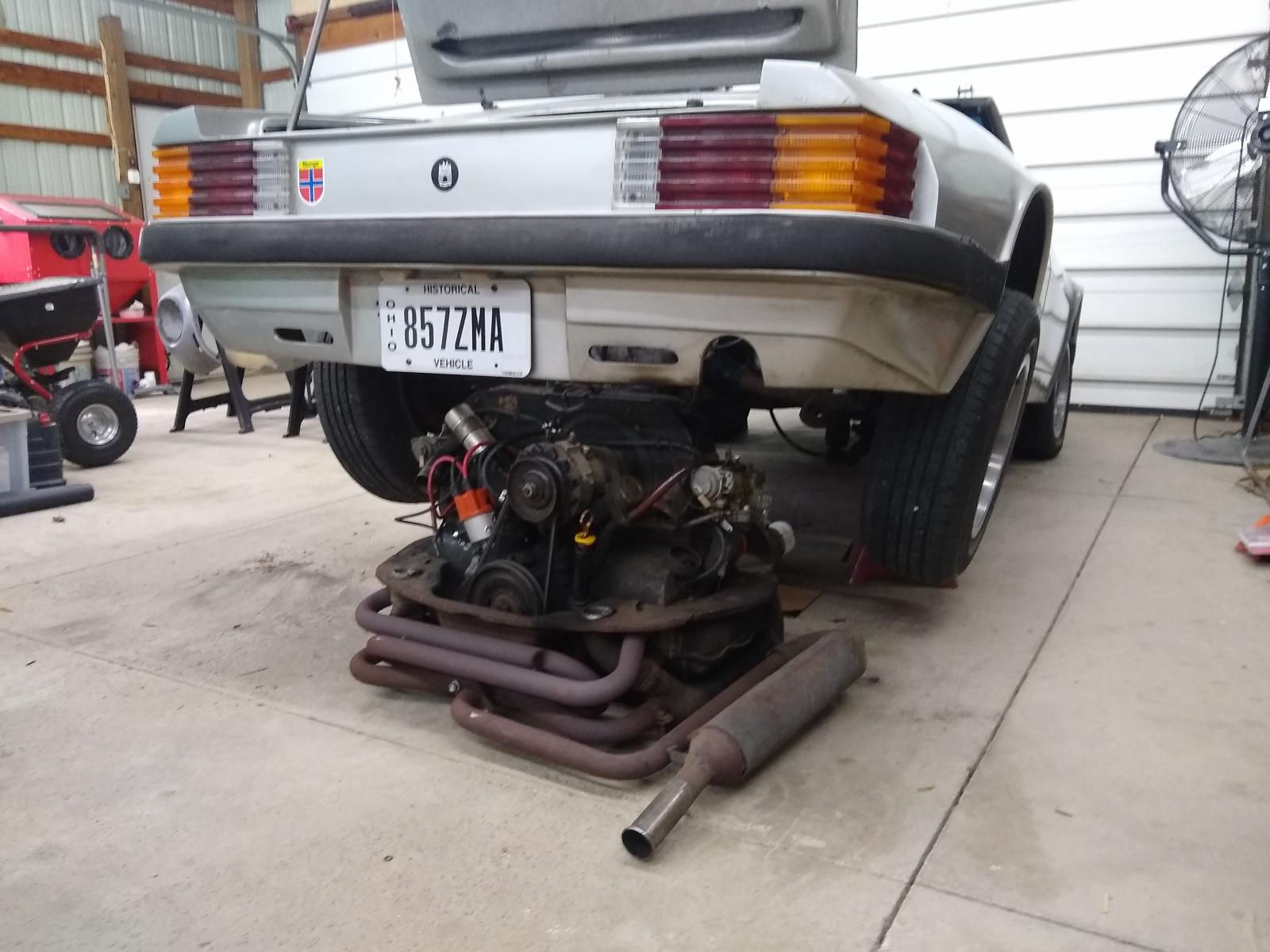

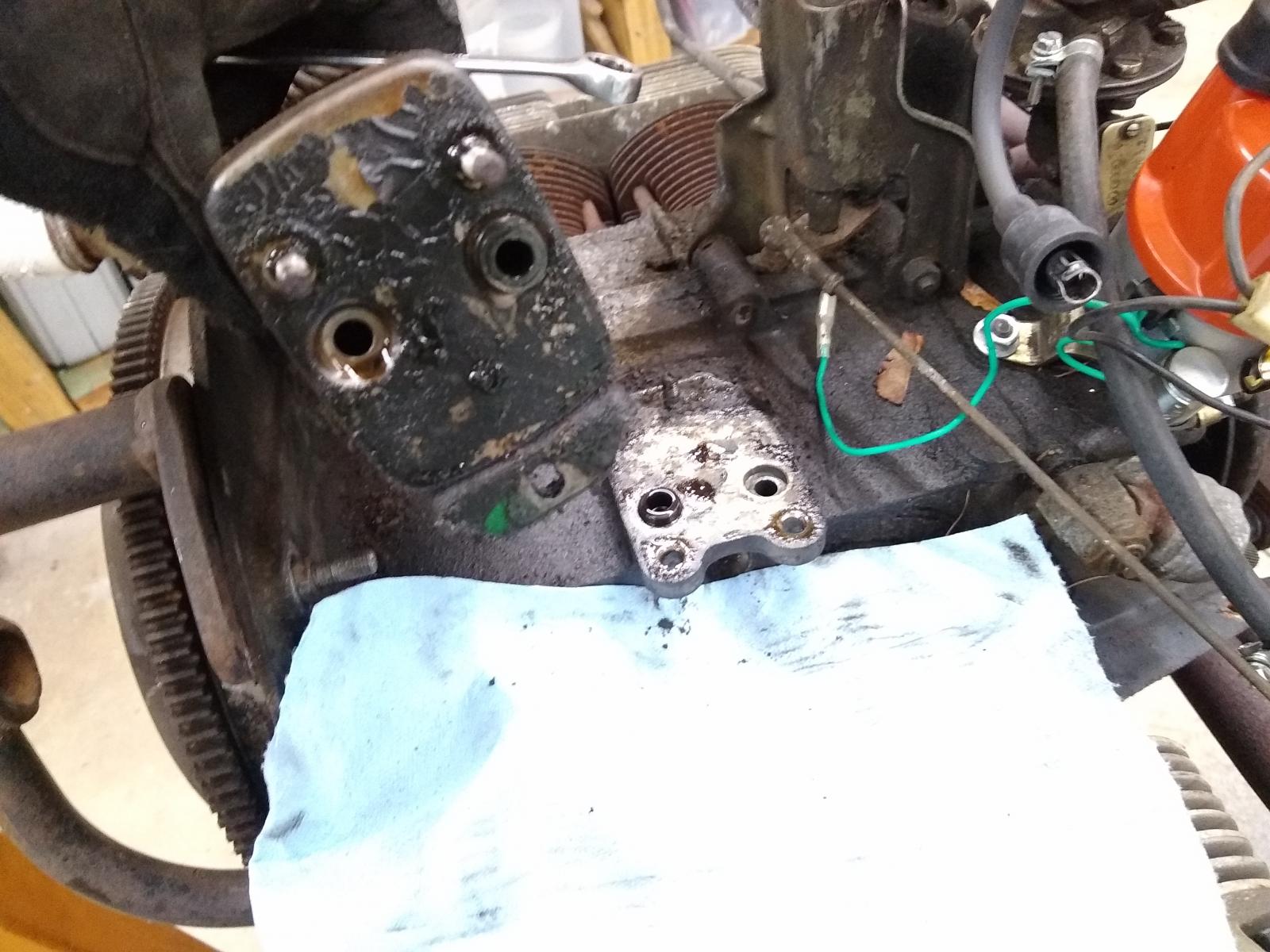

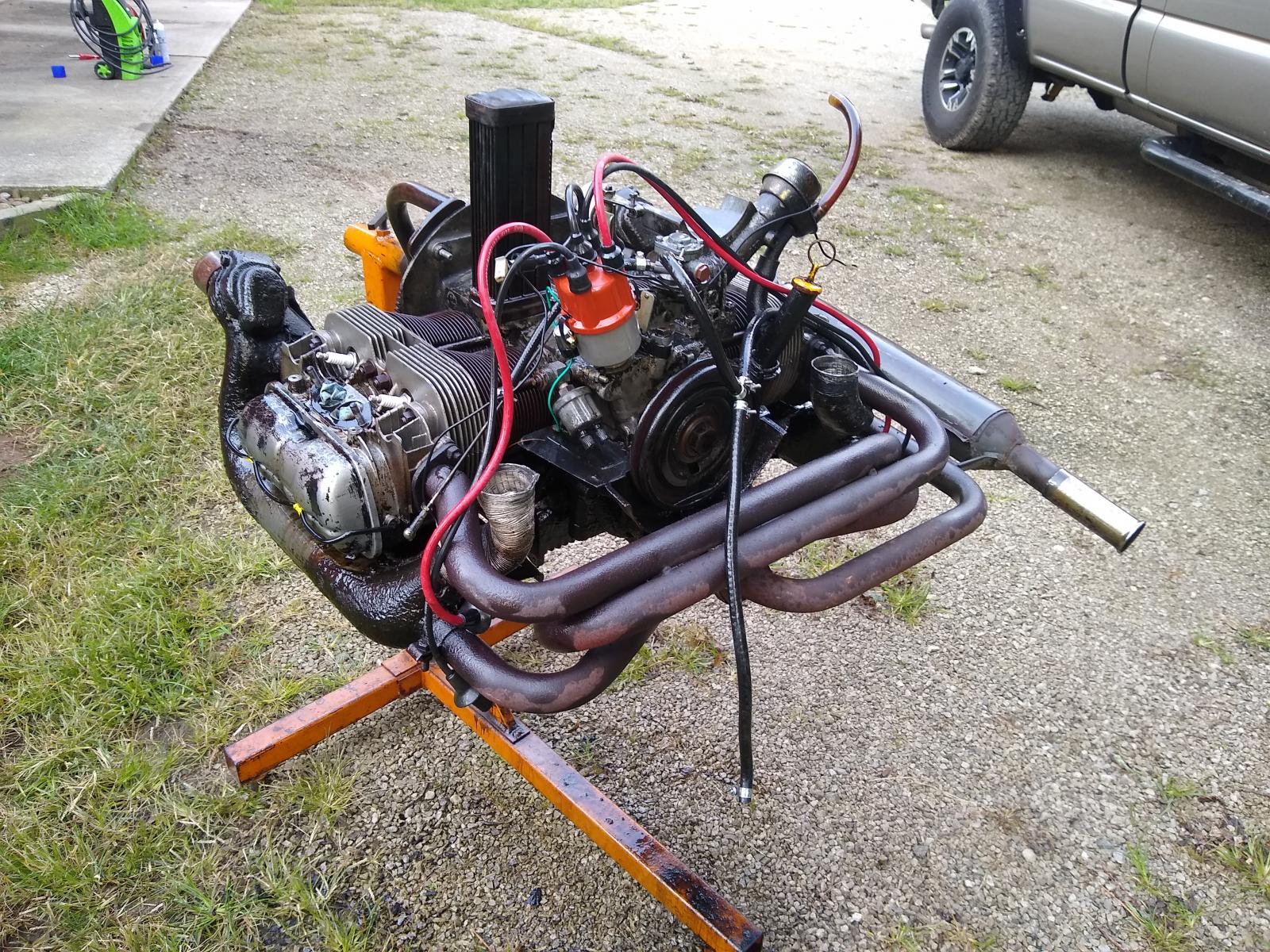

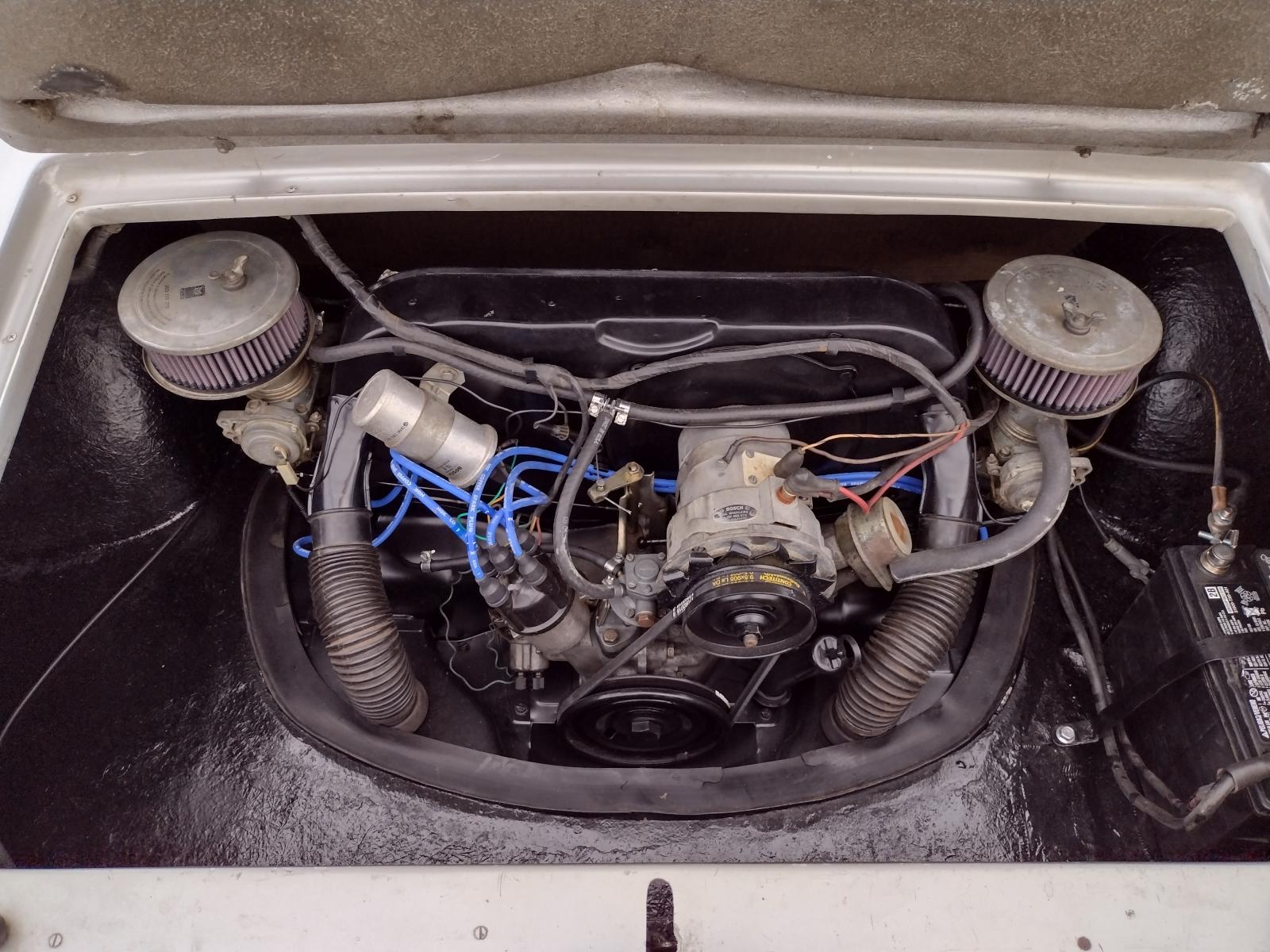

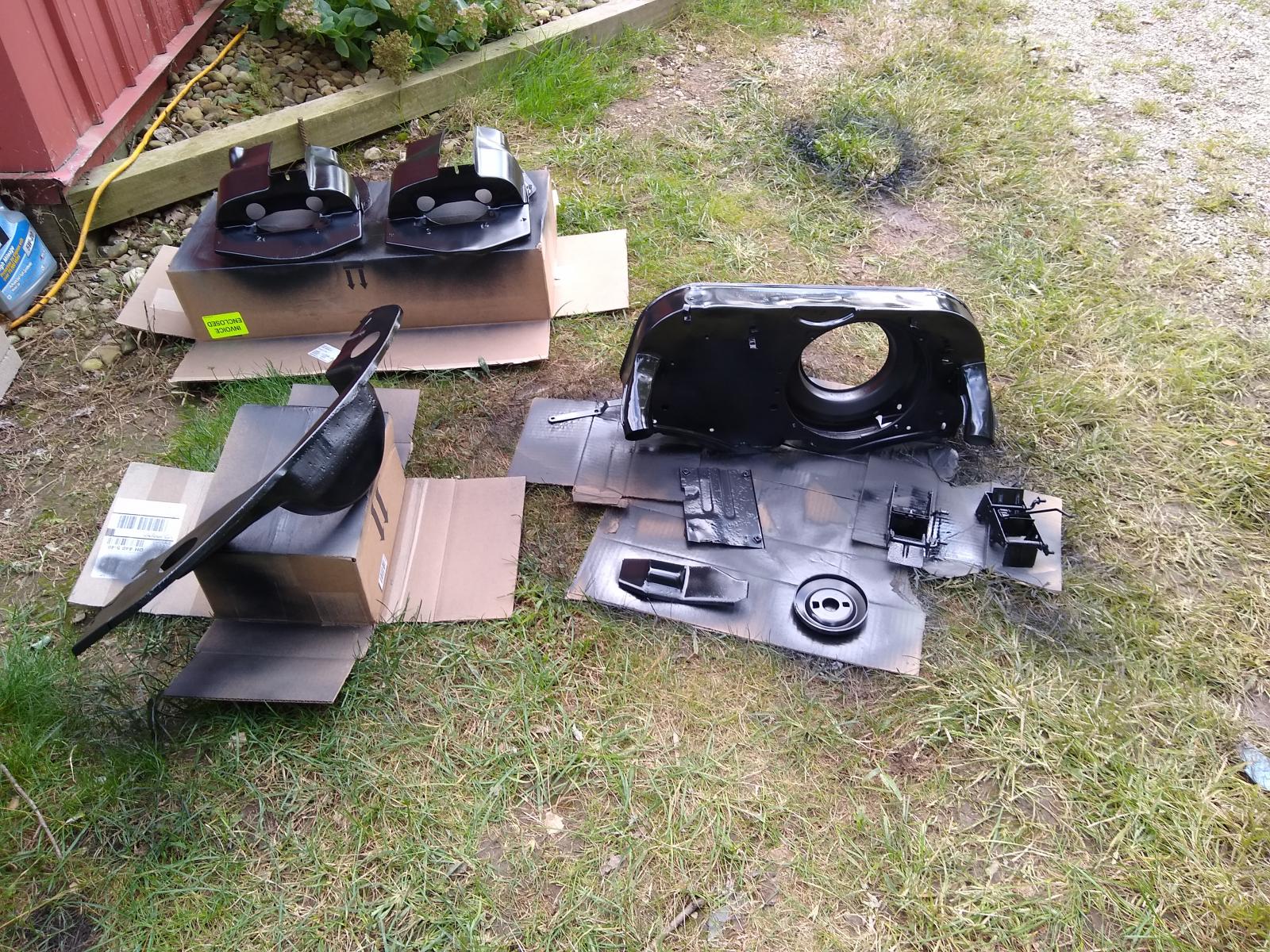

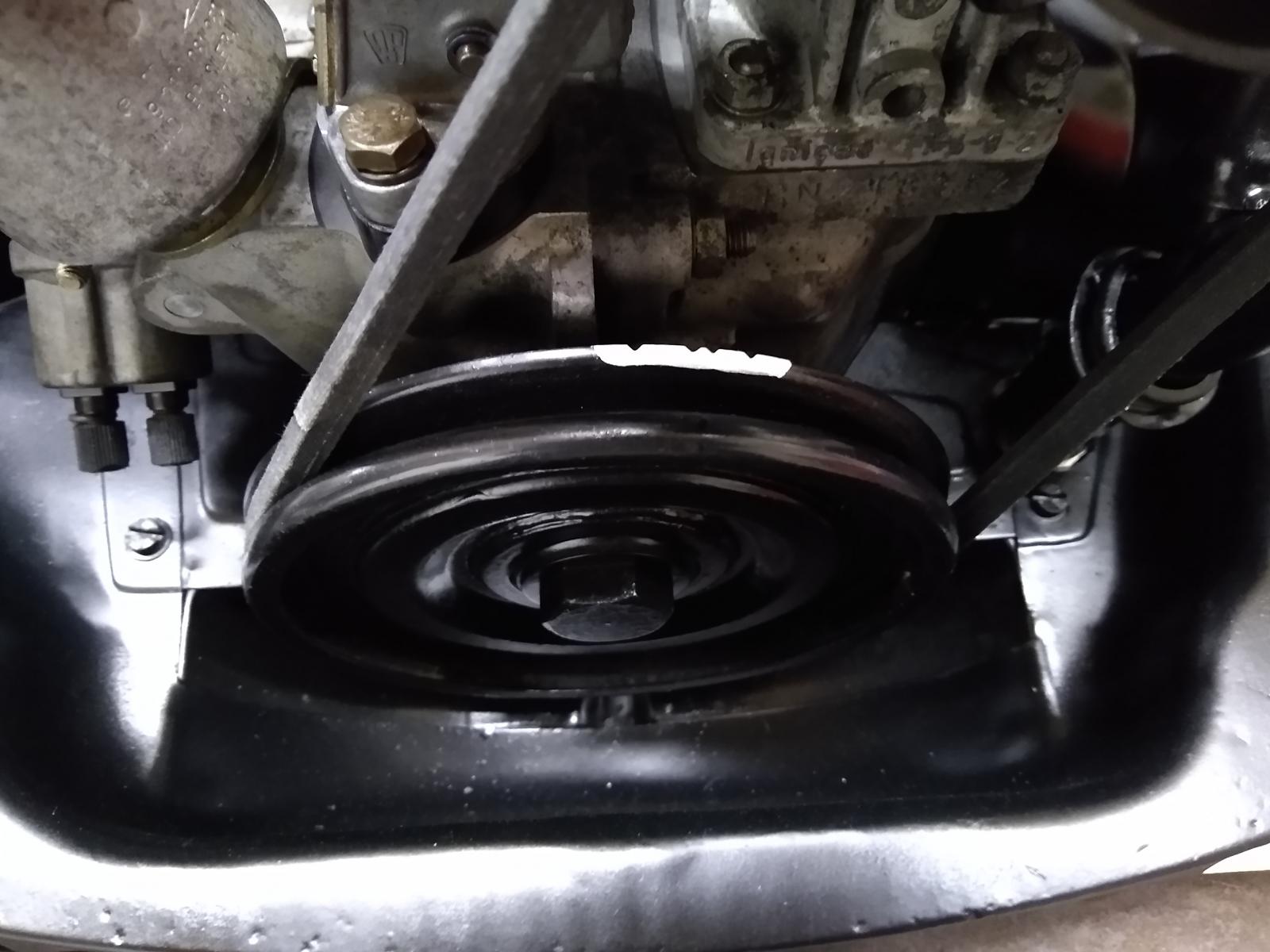

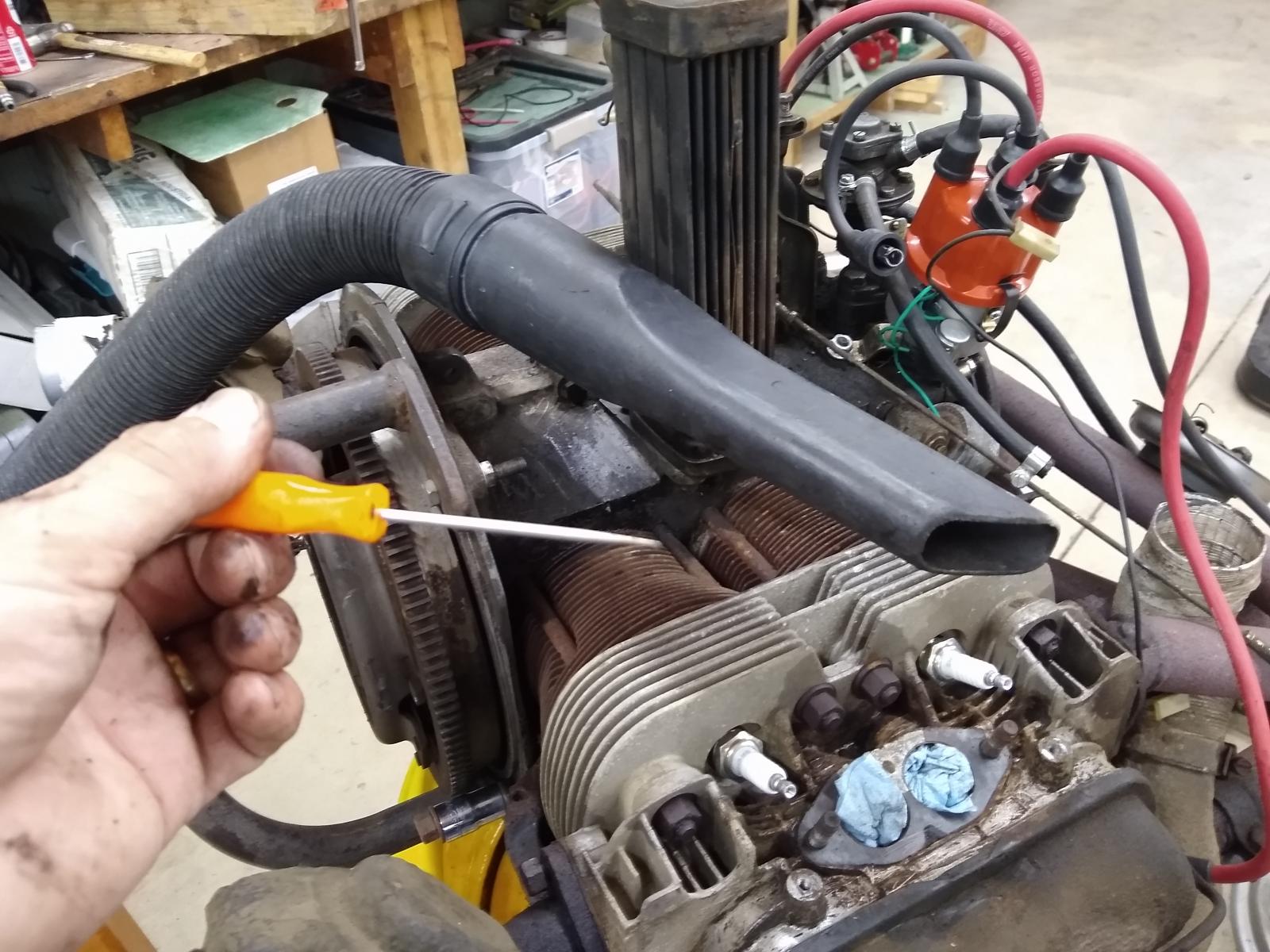

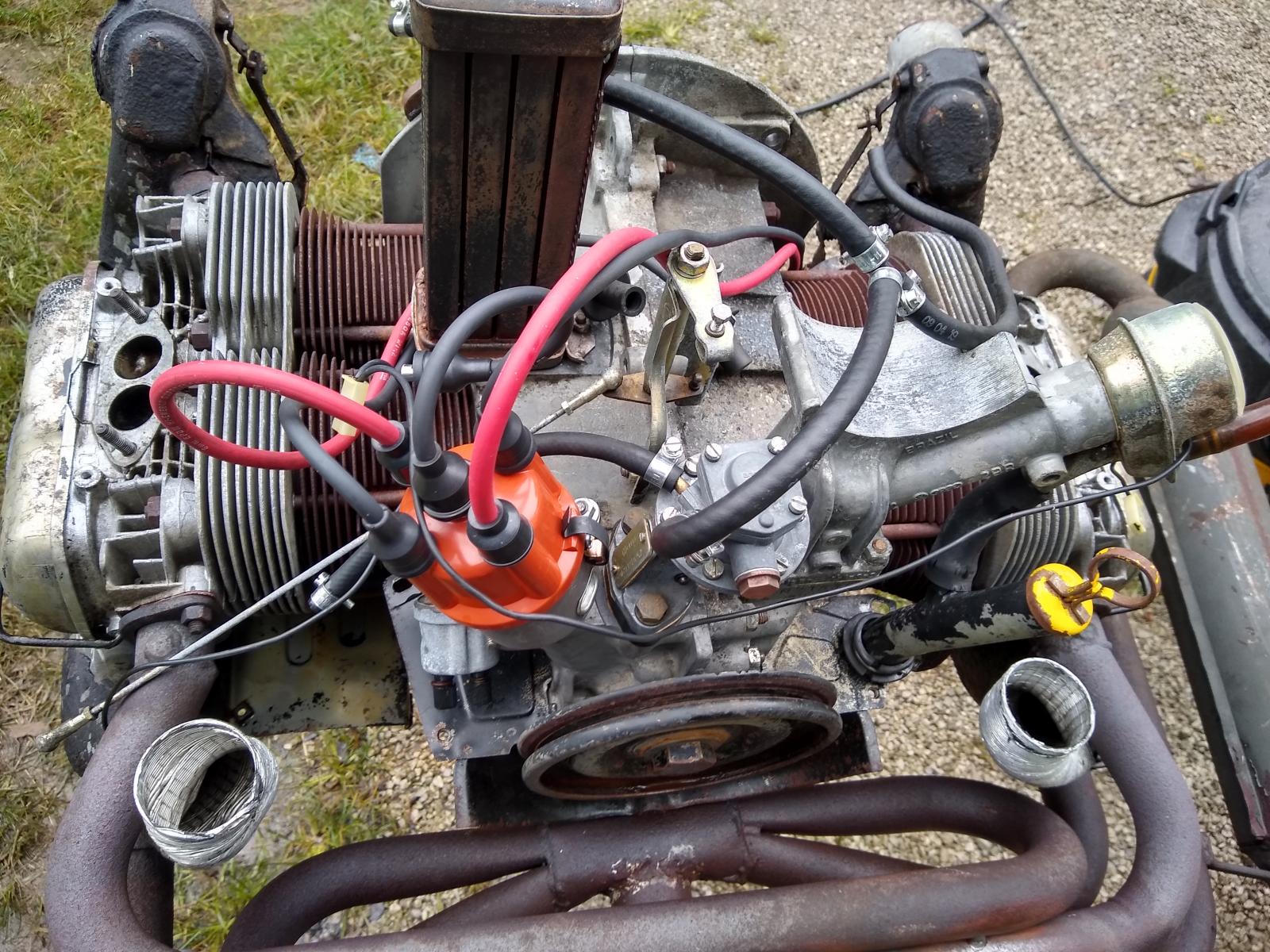

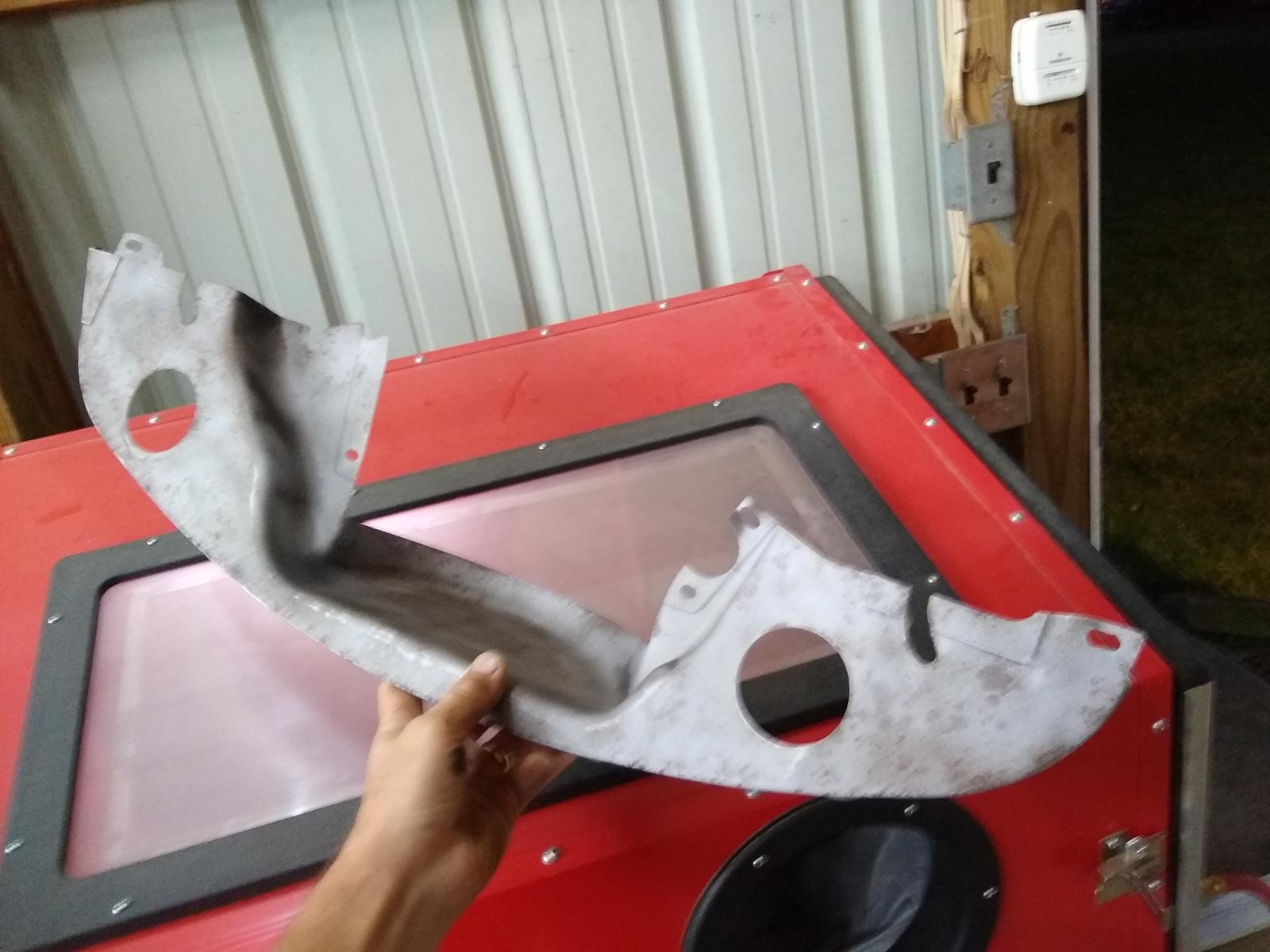

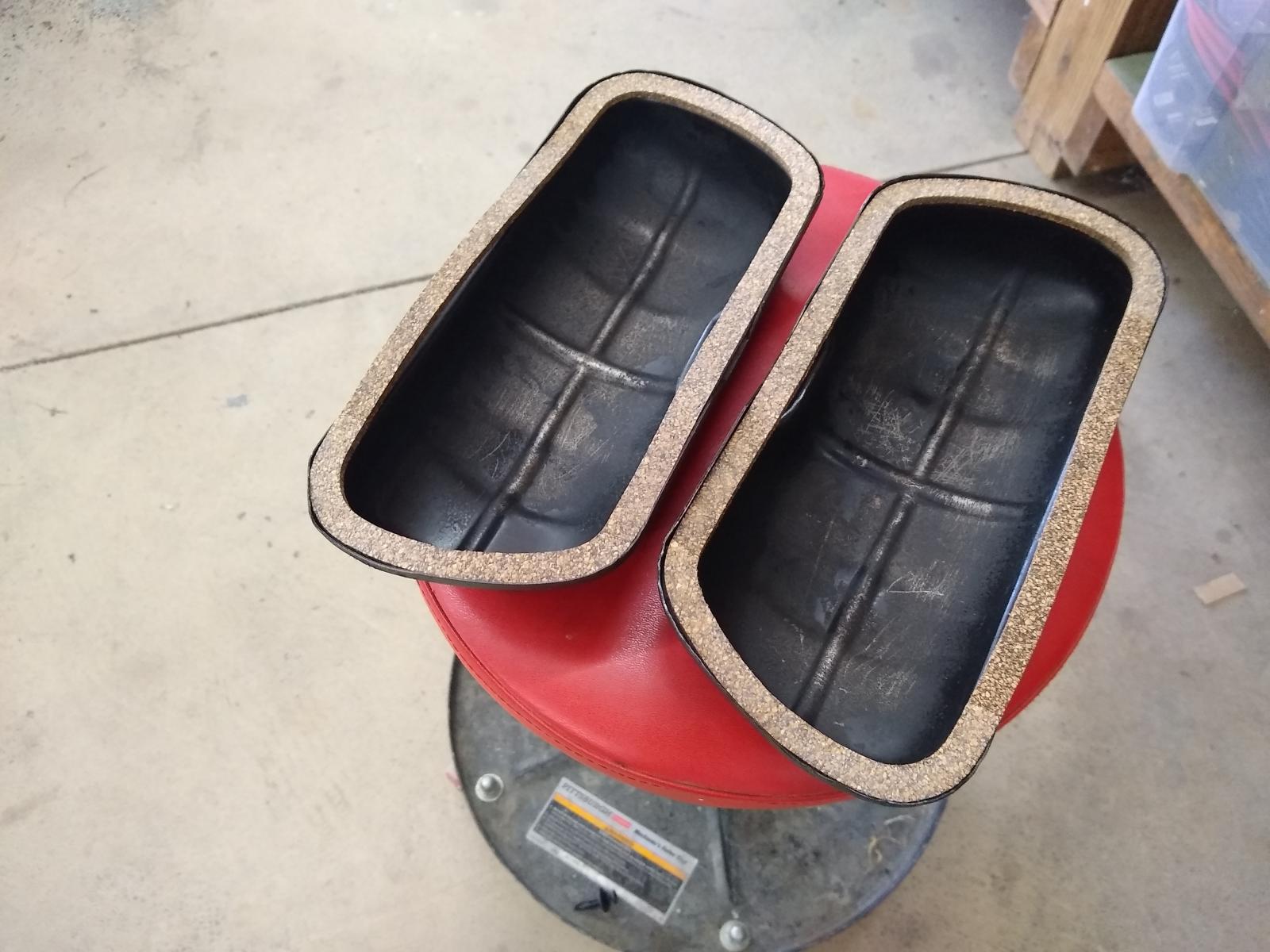

Well I have found that the shortest path to vetting a new air-cooled arrival is to drop the engine, strip the tins, clean out the debris, torque the heads, adjust the valves, power wash the thick insulating sludge from the case and heads, reassemble with fresh plugs, wires, points, condenser and then set the dwell, timing and tune the carbs. Fresh valve cover gaskets. Adjust the thermostat. Here when cleaning the carbs, I found a plugged jet. Also the intake manifolds here are cast iron, so I painted those. The oil cooler needed some fresh gaskets.

Chasing gremlins for weeks is a waste of time. Just drop it and get to it.

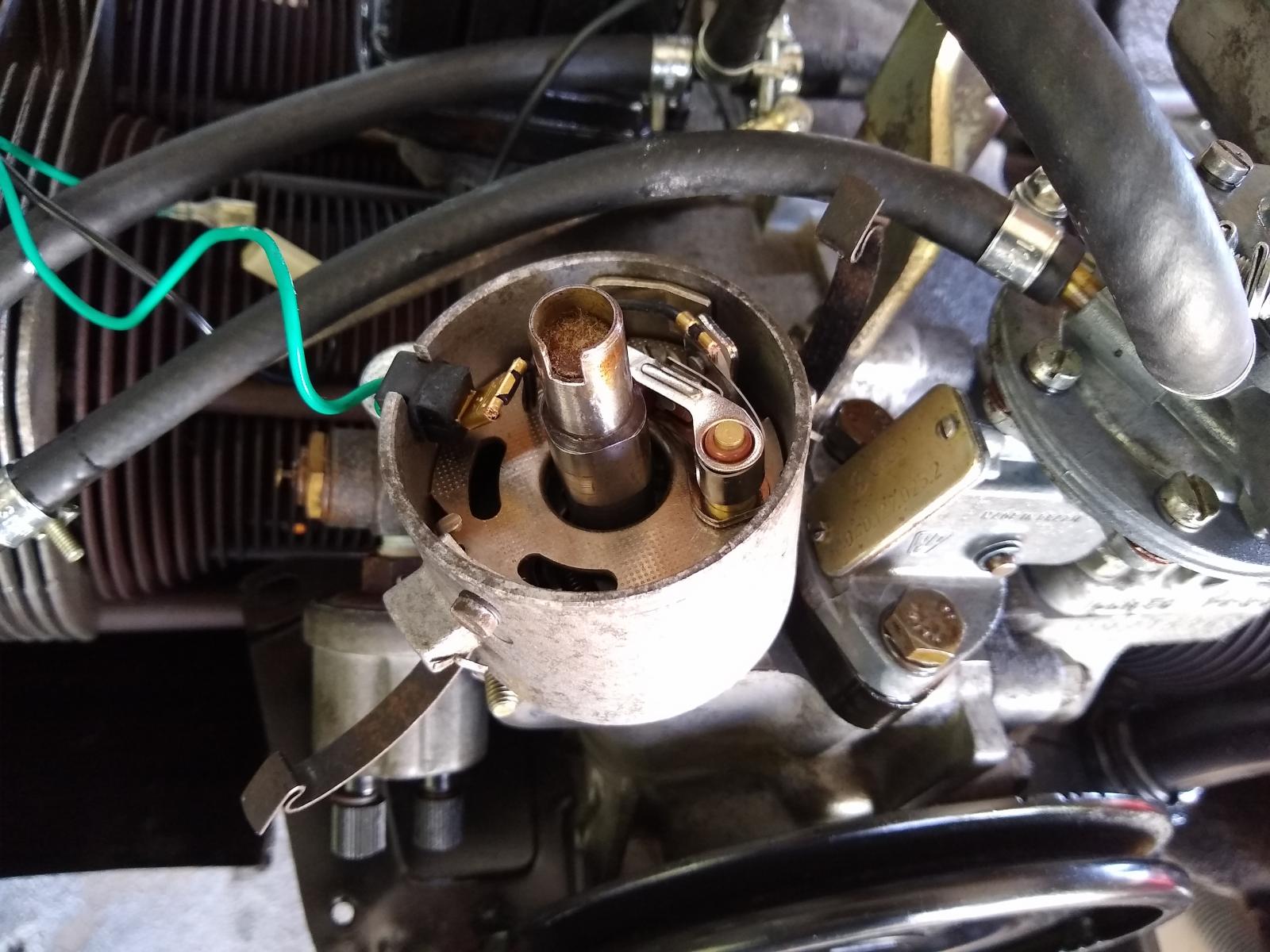

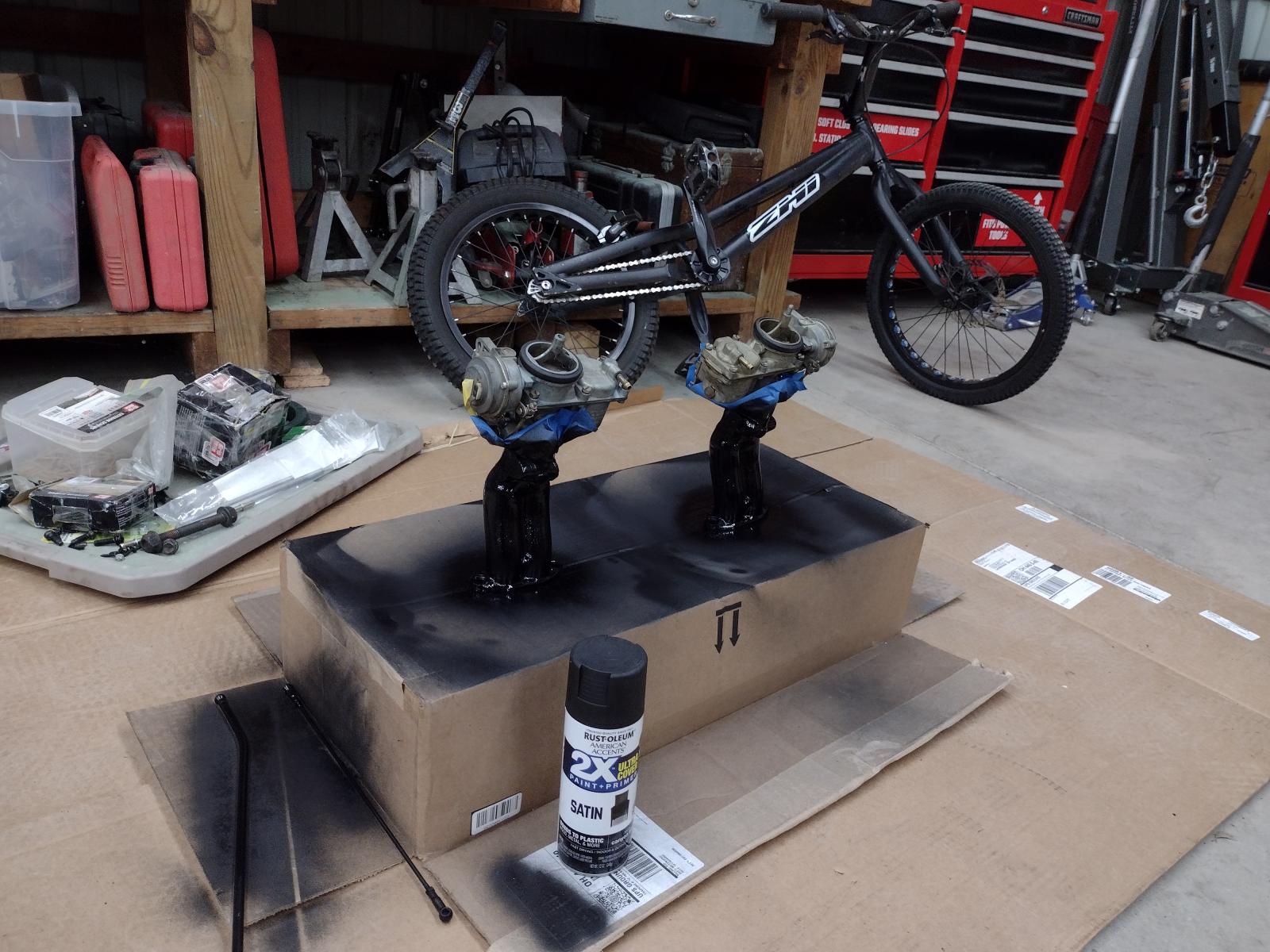

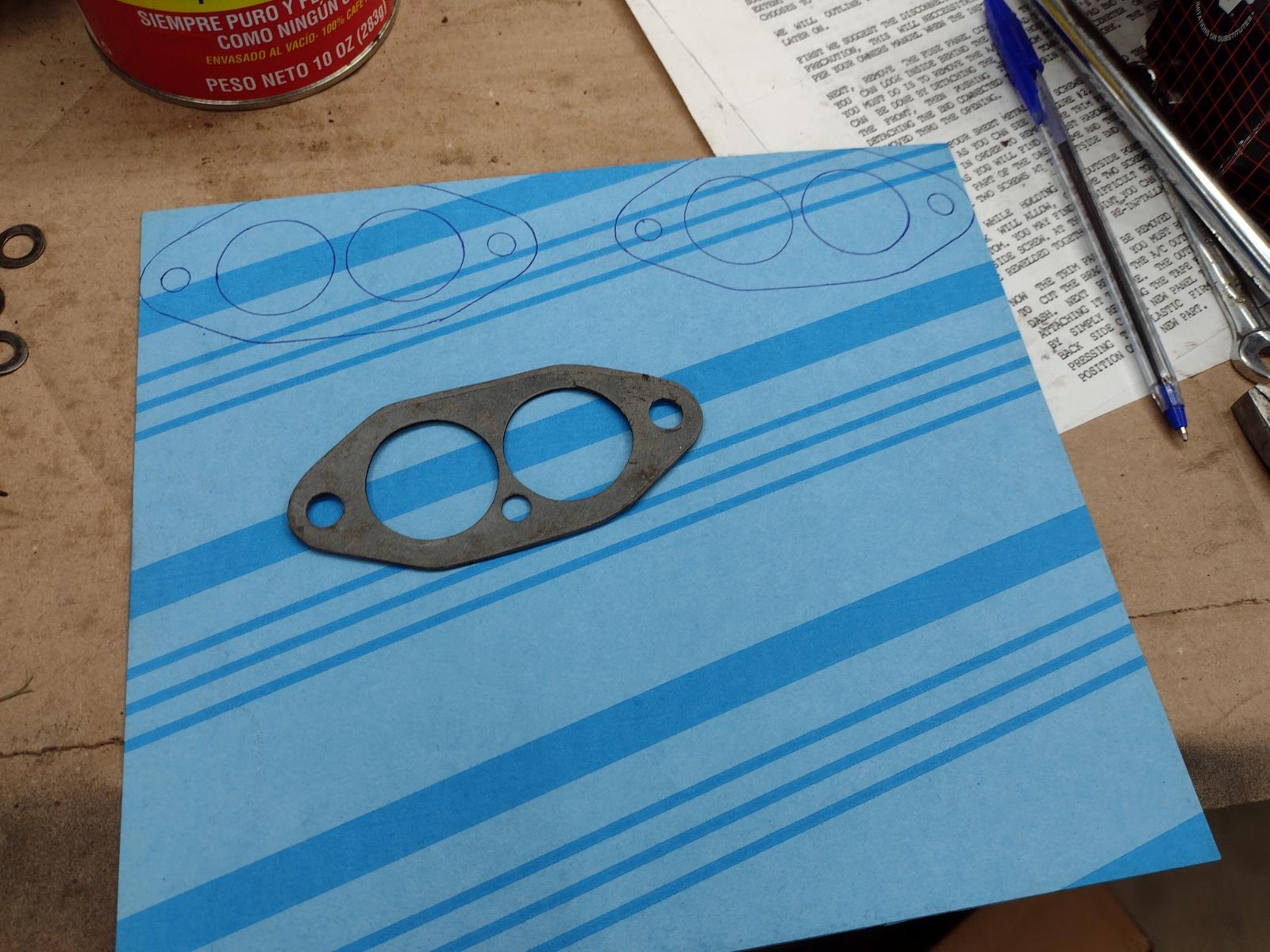

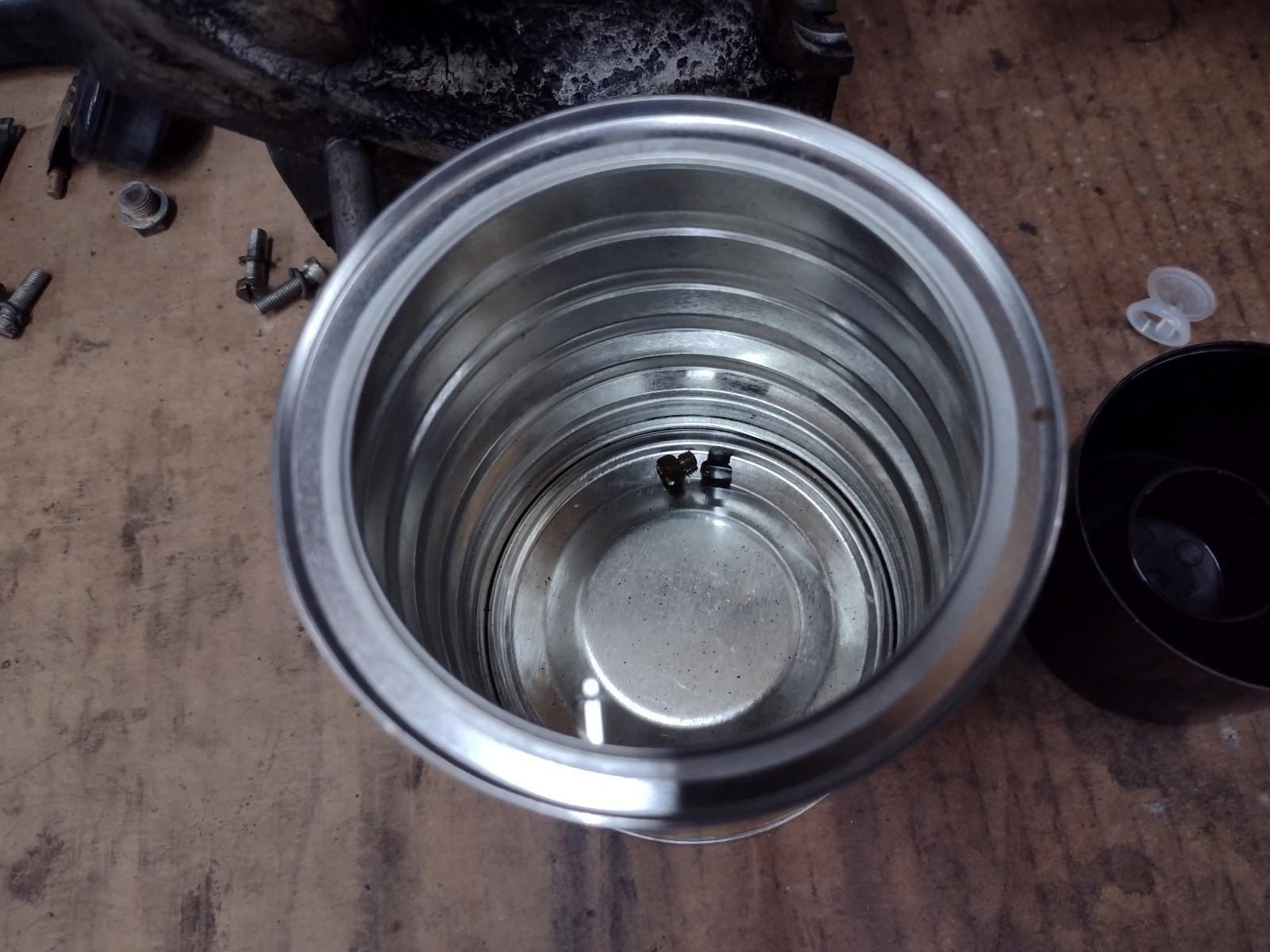

Joey had already cleaned the tank and freshened the fuel filter. Here I added to the regimen with some K&N air filters, and sand blasting all the tin. I found the original Bosch 050 distributor in pieces in a box, cleaned, lubed and assemble it and threw out the imposter 009 clone that had been scattering due to a loose drive gear. The engine starts right up and pulls hard into the 5k redline like a champ. No stumbles, no back firing. Runs cool and oil pressure stays up. A joy to drive. Took it to a quick local cruise and the dudes were like "what in tar nation is that?". I tell them "It's from Brazil... You'll never see another one!". Here is a pictorial.

Oh... And some axle boots while I had easy access. Then the fresh transaxle fluid stays in better.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
1966 Sportsmobile Camper https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0
72 Super Duper http://www.thesamba.com/vw/forum/viewtopic.php?t=672387
(adopted out) 61 Turkis Pile https://www.thesamba.com/vw/forum/viewtopic.php?t=728764
84 Puma GTS https://www.thesamba.com/vw/forum/viewtopic.php?t=760470&start=0
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Buggeee
Samba Member


Joined: December 22, 2016
Posts: 3596
Location: Stuck in Ohio
Buggeee is offline

PostPosted: Sun Oct 10, 2021 4:22 pm    Post subject: Re: Buggeee's 1984 Puma GTS Reply with quote

Drive 'em if you've got 'em Airheads!!!

Image may have been reduced in size. Click image to view fullscreen.

_________________
1966 Sportsmobile Camper https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0
72 Super Duper http://www.thesamba.com/vw/forum/viewtopic.php?t=672387
(adopted out) 61 Turkis Pile https://www.thesamba.com/vw/forum/viewtopic.php?t=728764
84 Puma GTS https://www.thesamba.com/vw/forum/viewtopic.php?t=760470&start=0
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Buggeee
Samba Member


Joined: December 22, 2016
Posts: 3596
Location: Stuck in Ohio
Buggeee is offline

PostPosted: Mon Oct 11, 2021 6:21 pm    Post subject: Re: Buggeee's 1984 Puma GTS Reply with quote

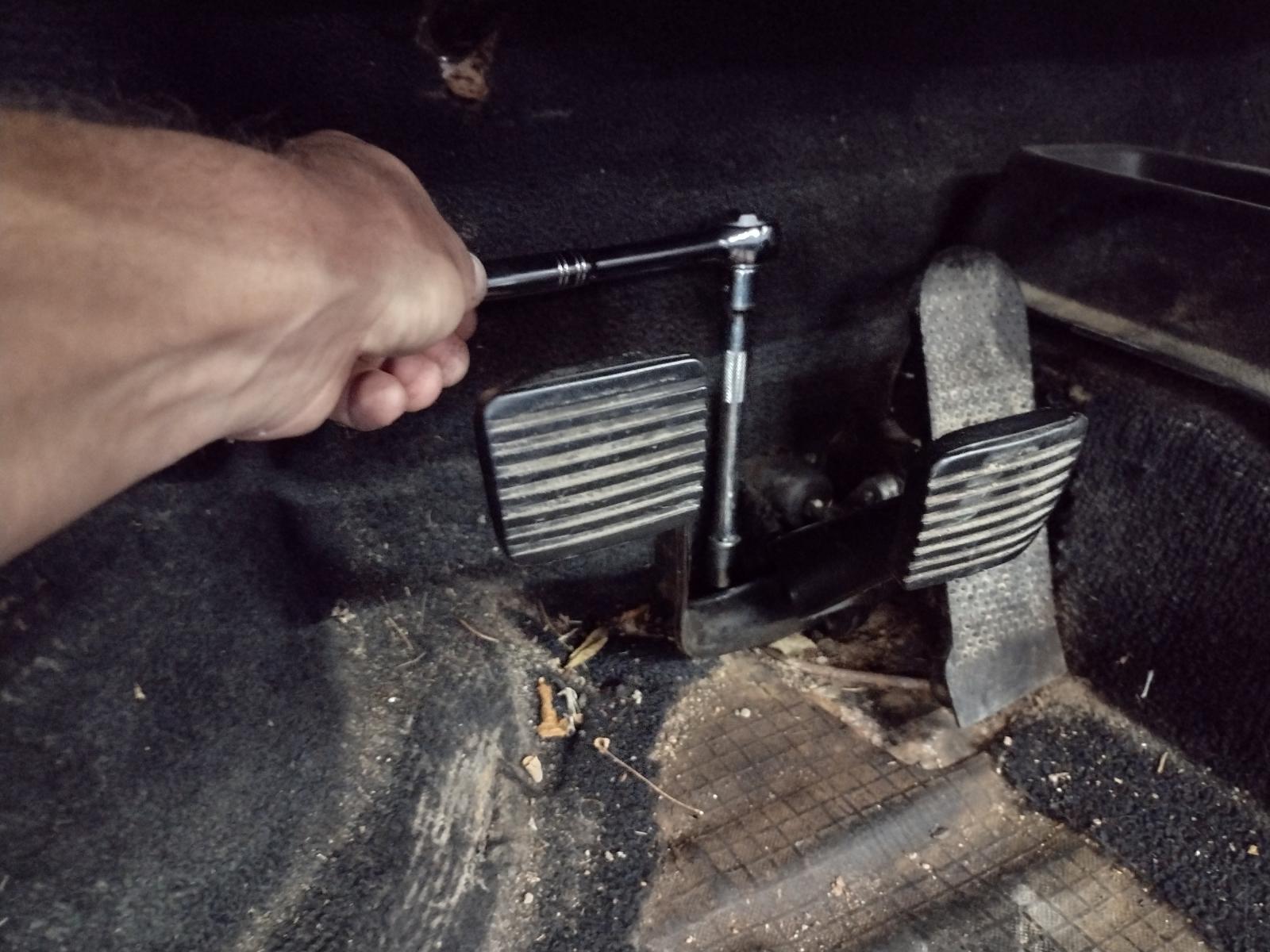

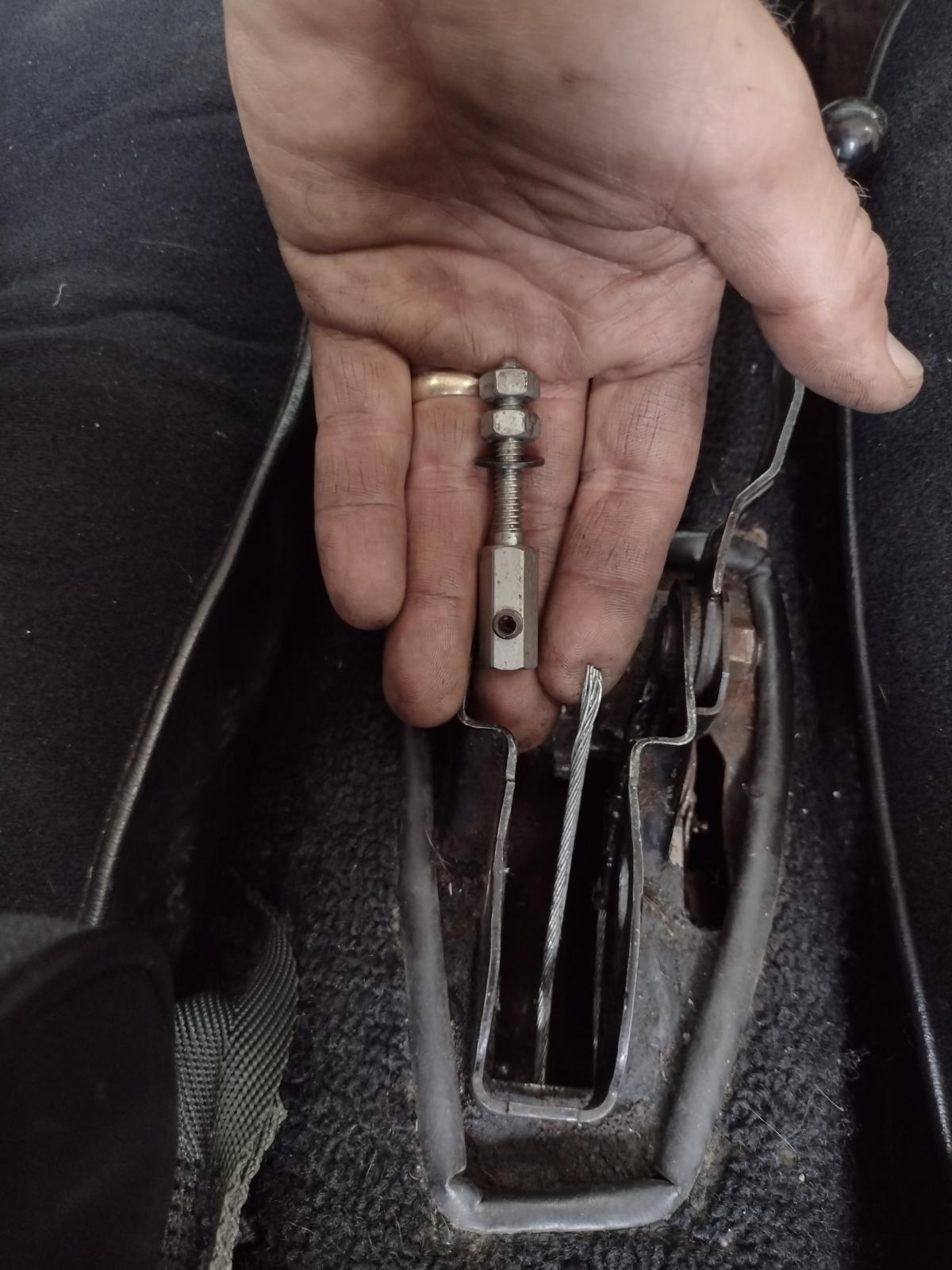

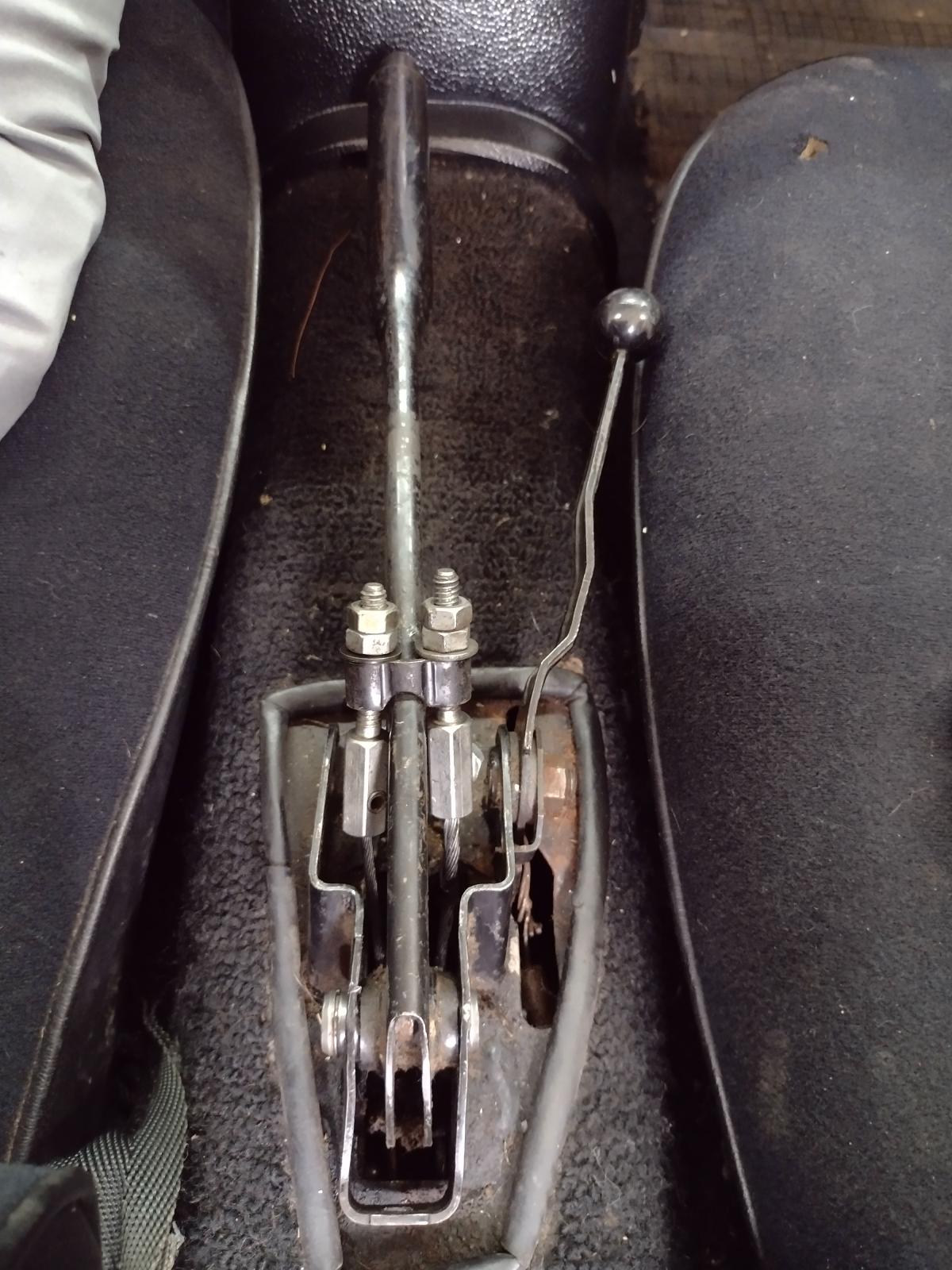

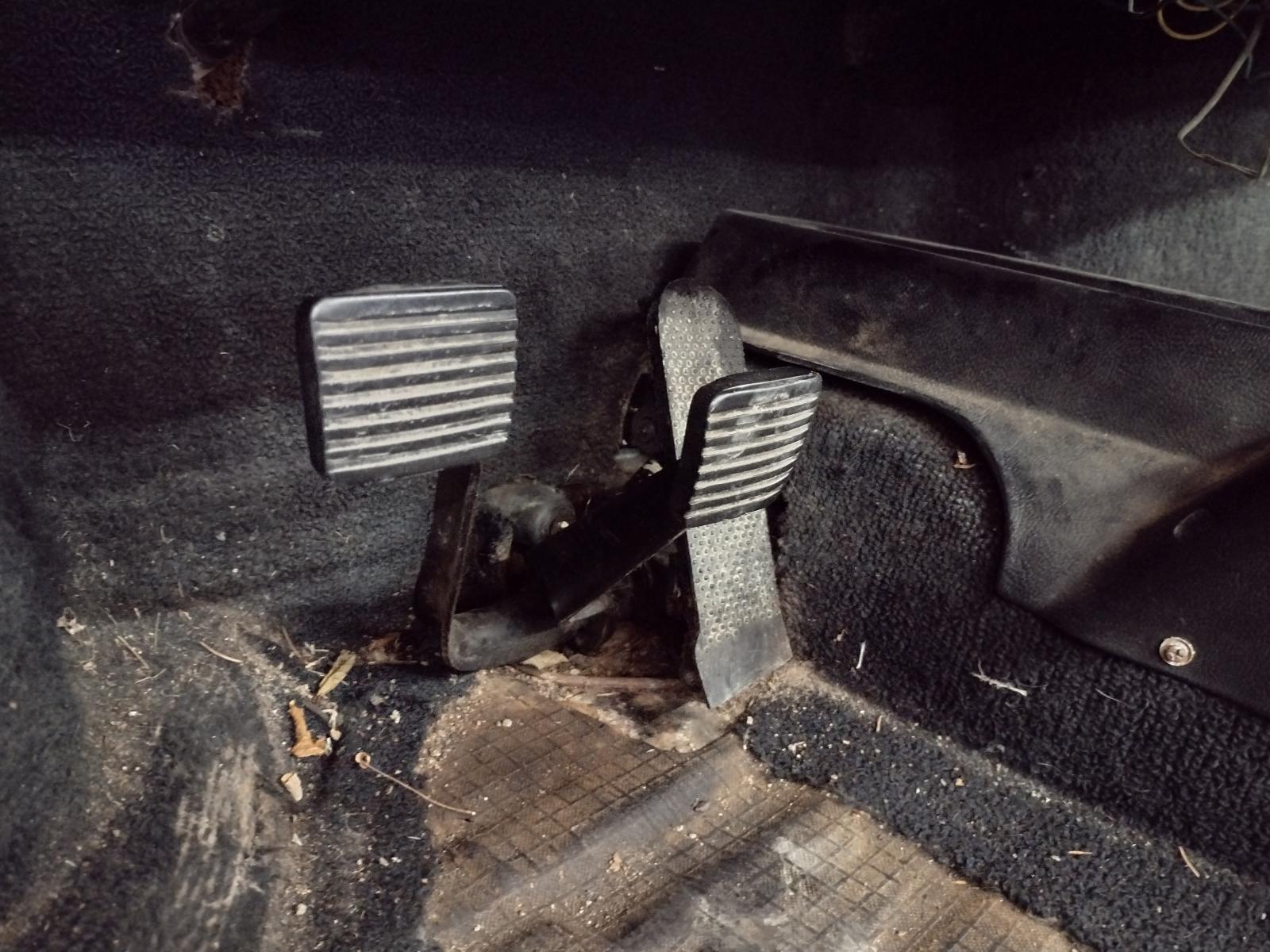

Heel toe driving was hampered by a way-out-of-adjustment pedal cluster so I adjusted the little plate in front of the brake pedal to bring it line.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


I've read this is, essentially, a shortened 411 pan so am not able to source brake cables. Luckily I found these bolt on tops in the car and fished out perfectly good cables from the tunnel. Hooked everything up and the parking brake works great.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Celebrate with an evening therapy session.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
1966 Sportsmobile Camper https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0
72 Super Duper http://www.thesamba.com/vw/forum/viewtopic.php?t=672387
(adopted out) 61 Turkis Pile https://www.thesamba.com/vw/forum/viewtopic.php?t=728764
84 Puma GTS https://www.thesamba.com/vw/forum/viewtopic.php?t=760470&start=0
Back to top
View user's profile Send private message Gallery Classifieds Feedback
GArBa
Samba Member


Joined: January 27, 2014
Posts: 2024
Location: Milano, Italy
GArBa is offline

PostPosted: Wed Oct 20, 2021 10:57 pm    Post subject: Re: Buggeee's 1984 Puma GTS Reply with quote

Buggeee wrote:
I've read this is, essentially, a shortened 411 pan


no, this car is still a type 1 frame, it's a VW Brasilia pan (in itself basically a widened Karmann-Ghia pan, with other minor changes) shortened by IIRC 25cm.
_________________
cars:
'97 type 1 1600i
'14 type AA Seat Mii
'22 type C1 T-Cross
-------------------------
moped:
'82 Benelli Magnum 3v
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Buggeee
Samba Member


Joined: December 22, 2016
Posts: 3596
Location: Stuck in Ohio
Buggeee is offline

PostPosted: Sat Oct 23, 2021 6:32 pm    Post subject: Re: Buggeee's 1984 Puma GTS Reply with quote

GArBa wrote:
Buggeee wrote:
I've read this is, essentially, a shortened 411 pan


no, this car is still a type 1 frame, it's a VW Brasilia pan (in itself basically a widened Karmann-Ghia pan, with other minor changes) shortened by IIRC 25cm.


Thank you for the information , this car is a mystery to me. I really enjoy driving it.
_________________
1966 Sportsmobile Camper https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0
72 Super Duper http://www.thesamba.com/vw/forum/viewtopic.php?t=672387
(adopted out) 61 Turkis Pile https://www.thesamba.com/vw/forum/viewtopic.php?t=728764
84 Puma GTS https://www.thesamba.com/vw/forum/viewtopic.php?t=760470&start=0
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Petfisheric
Samba Member


Joined: November 27, 2014
Posts: 121
Location: Knoxville, TN
Petfisheric is offline

PostPosted: Wed Nov 17, 2021 6:11 am    Post subject: Re: Buggeee's 1984 Puma GTS Reply with quote

Nice GTC (81-end of production)the GTS is the earlier steel bumper model (71-80). The air-cooled Puma's started out on Karman-Ghia pans but change to the Brasilia Pan in the mid 70's and both were shortened.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Buggeee
Samba Member


Joined: December 22, 2016
Posts: 3596
Location: Stuck in Ohio
Buggeee is offline

PostPosted: Wed Nov 17, 2021 5:04 pm    Post subject: Re: Buggeee's 1984 Puma GTS Reply with quote

Petfisheric wrote:
Nice GTC (81-end of production)the GTS is the earlier steel bumper model (71-80). The air-cooled Puma's started out on Karman-Ghia pans but change to the Brasilia Pan in the mid 70's and both were shortened.


Thank you for the information. These cars are sure funto drive!
_________________
1966 Sportsmobile Camper https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0
72 Super Duper http://www.thesamba.com/vw/forum/viewtopic.php?t=672387
(adopted out) 61 Turkis Pile https://www.thesamba.com/vw/forum/viewtopic.php?t=728764
84 Puma GTS https://www.thesamba.com/vw/forum/viewtopic.php?t=760470&start=0
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Buggeee
Samba Member


Joined: December 22, 2016
Posts: 3596
Location: Stuck in Ohio
Buggeee is offline

PostPosted: Fri Apr 15, 2022 5:12 pm    Post subject: Re: Buggeee's 1984 Puma GTS Reply with quote

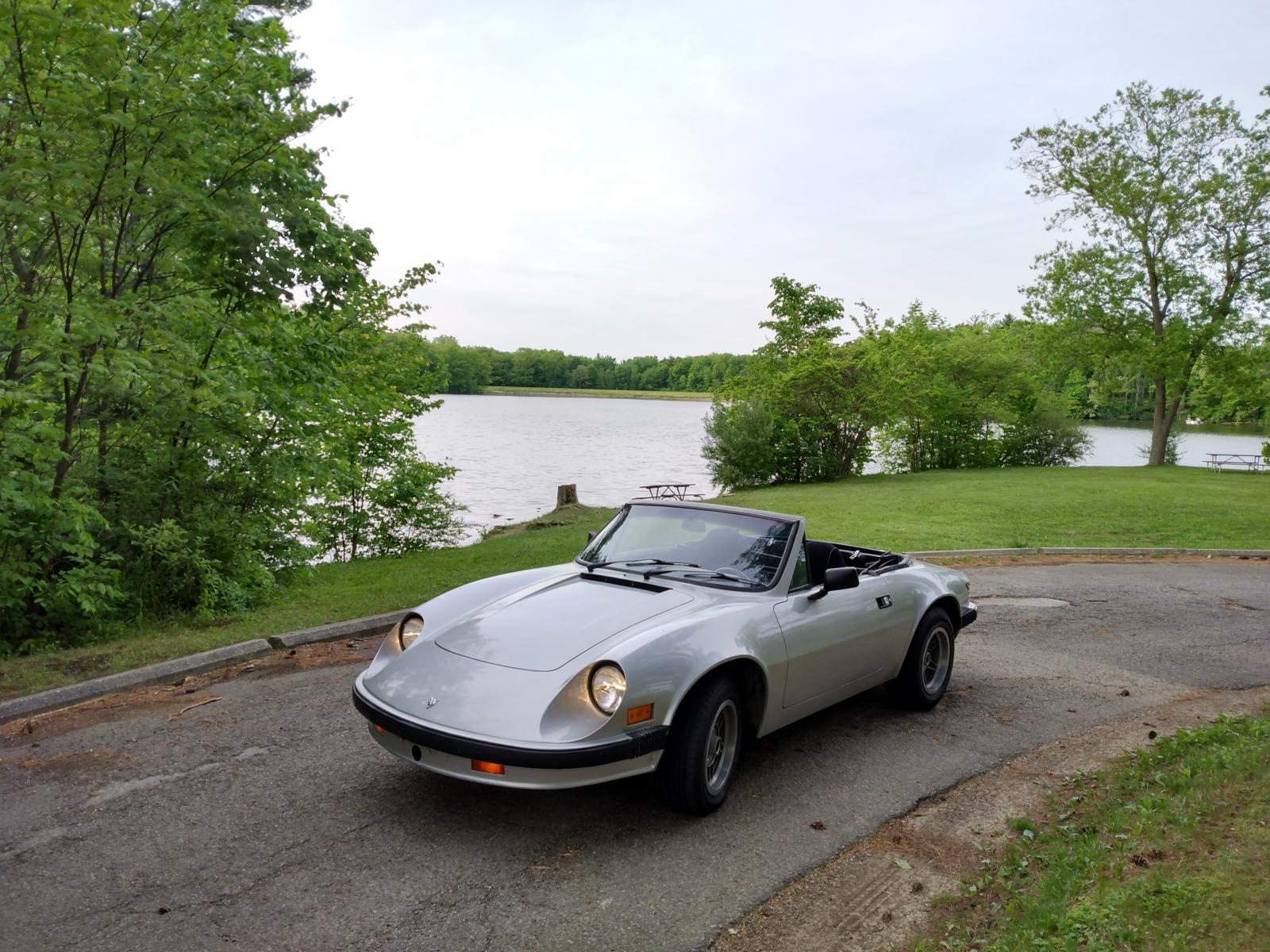

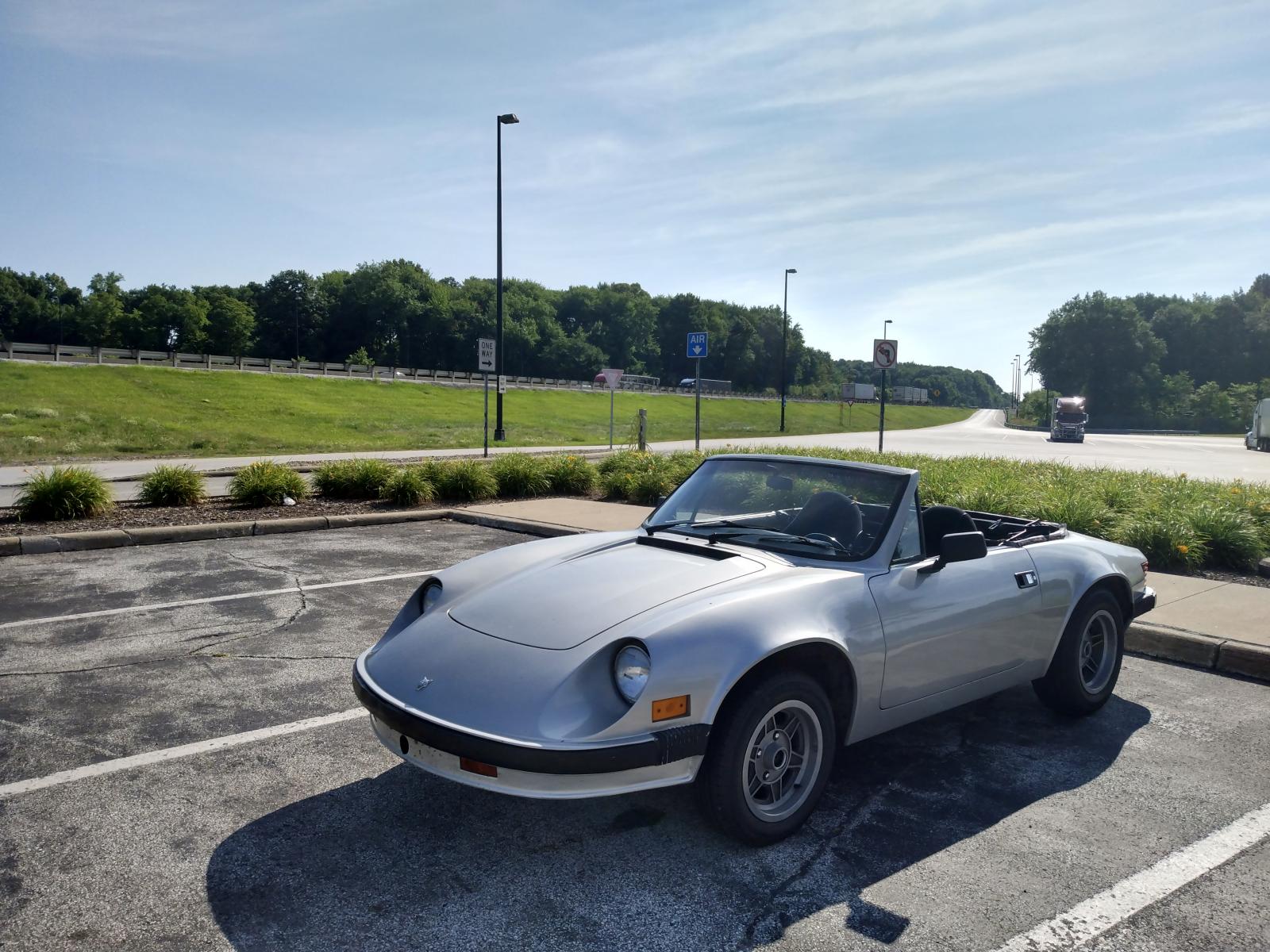

It is good to get outside again!


Image may have been reduced in size. Click image to view fullscreen.

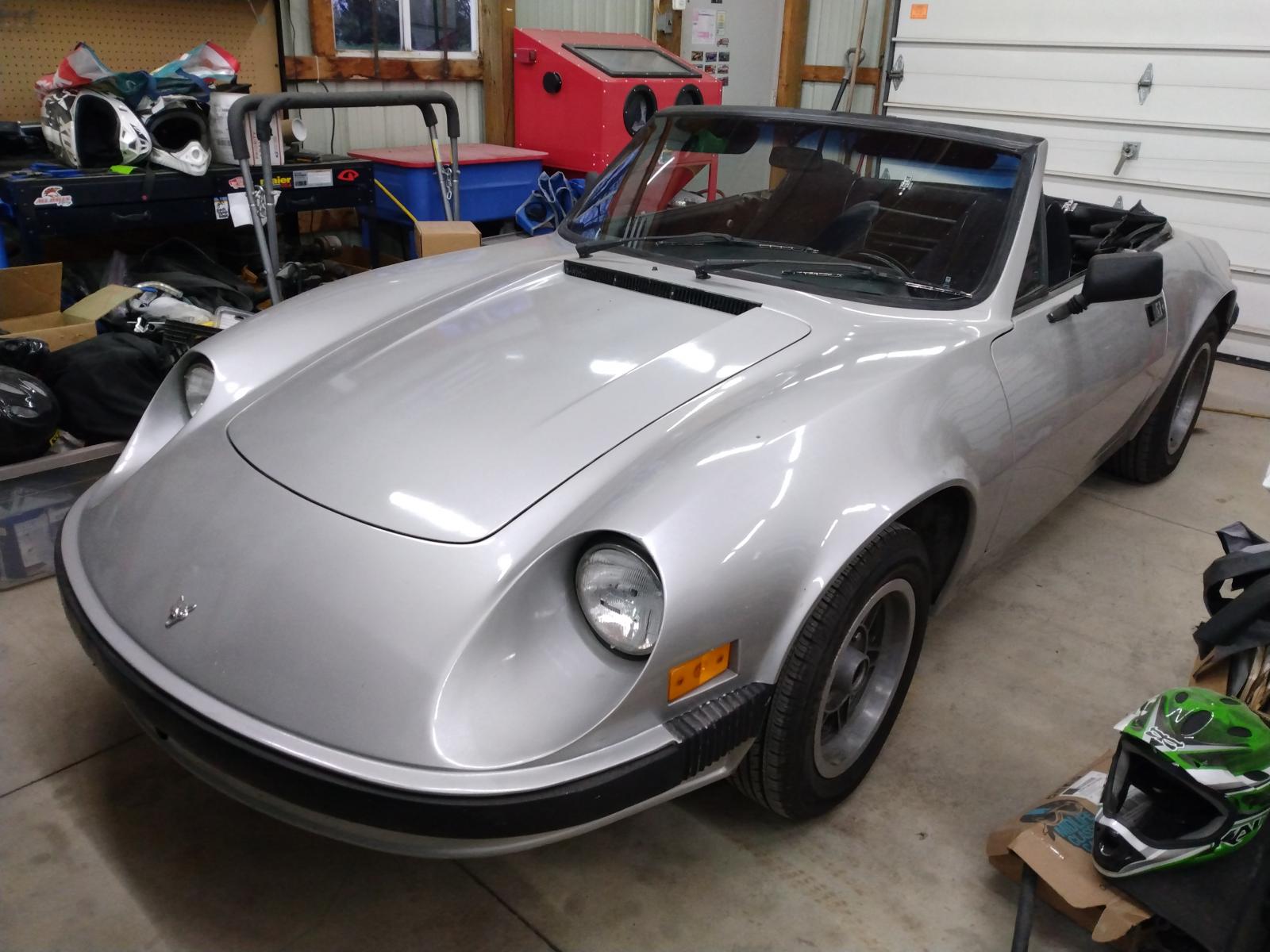

Sleep well.


Image may have been reduced in size. Click image to view fullscreen.

_________________
1966 Sportsmobile Camper https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0
72 Super Duper http://www.thesamba.com/vw/forum/viewtopic.php?t=672387
(adopted out) 61 Turkis Pile https://www.thesamba.com/vw/forum/viewtopic.php?t=728764
84 Puma GTS https://www.thesamba.com/vw/forum/viewtopic.php?t=760470&start=0
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Buggeee
Samba Member


Joined: December 22, 2016
Posts: 3596
Location: Stuck in Ohio
Buggeee is offline

PostPosted: Thu May 19, 2022 6:10 pm    Post subject: Re: Buggeee's 1984 Puma GTS Reply with quote

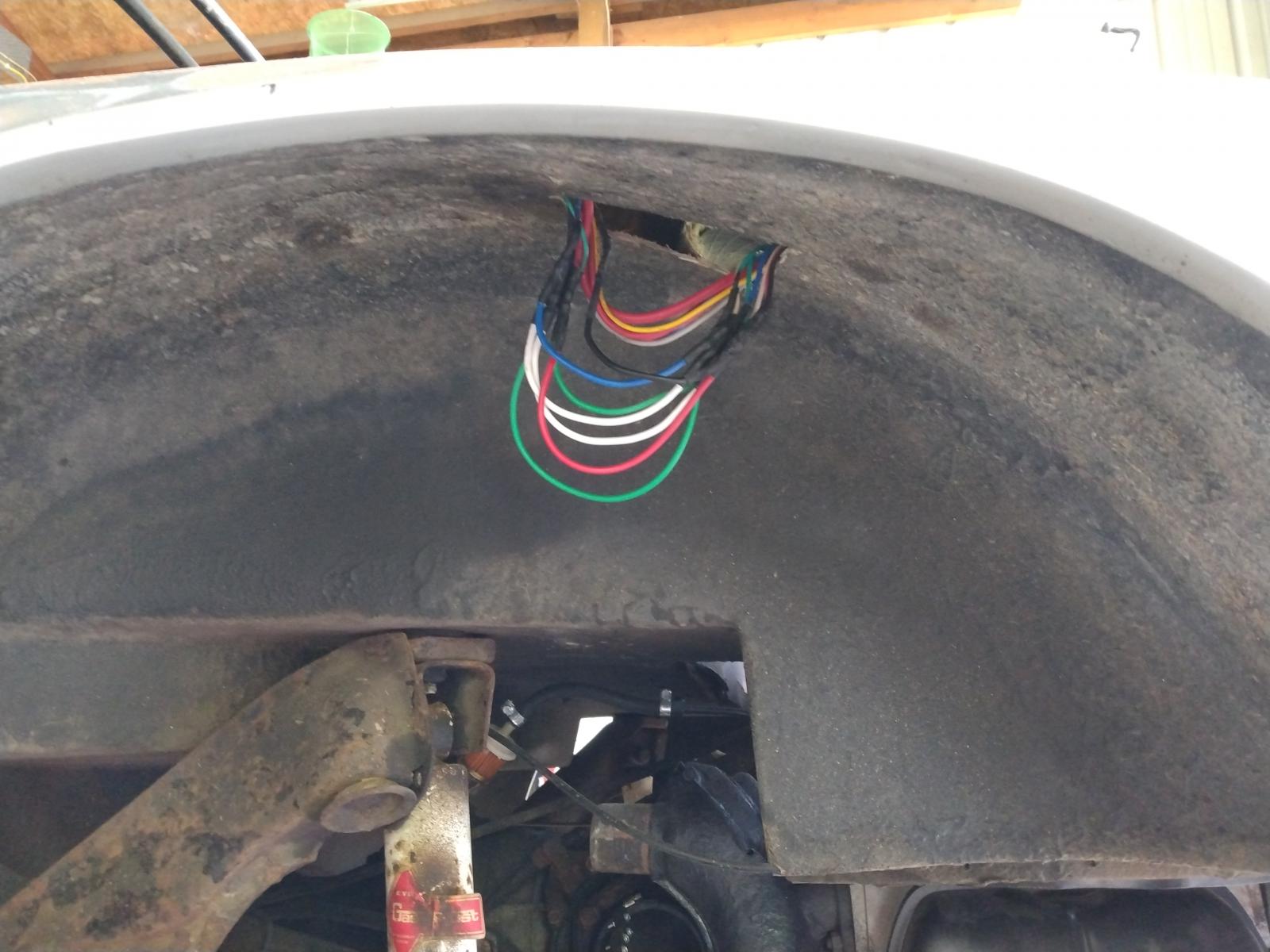

I haven't had various lights in the rear, ever, so decided to trace down the problem.

Using a 30 dollar scope from Amazon that sends color, lighted, real time video feed to an app on my phone wirelessly, I followed the wiring harness into the body cavity.

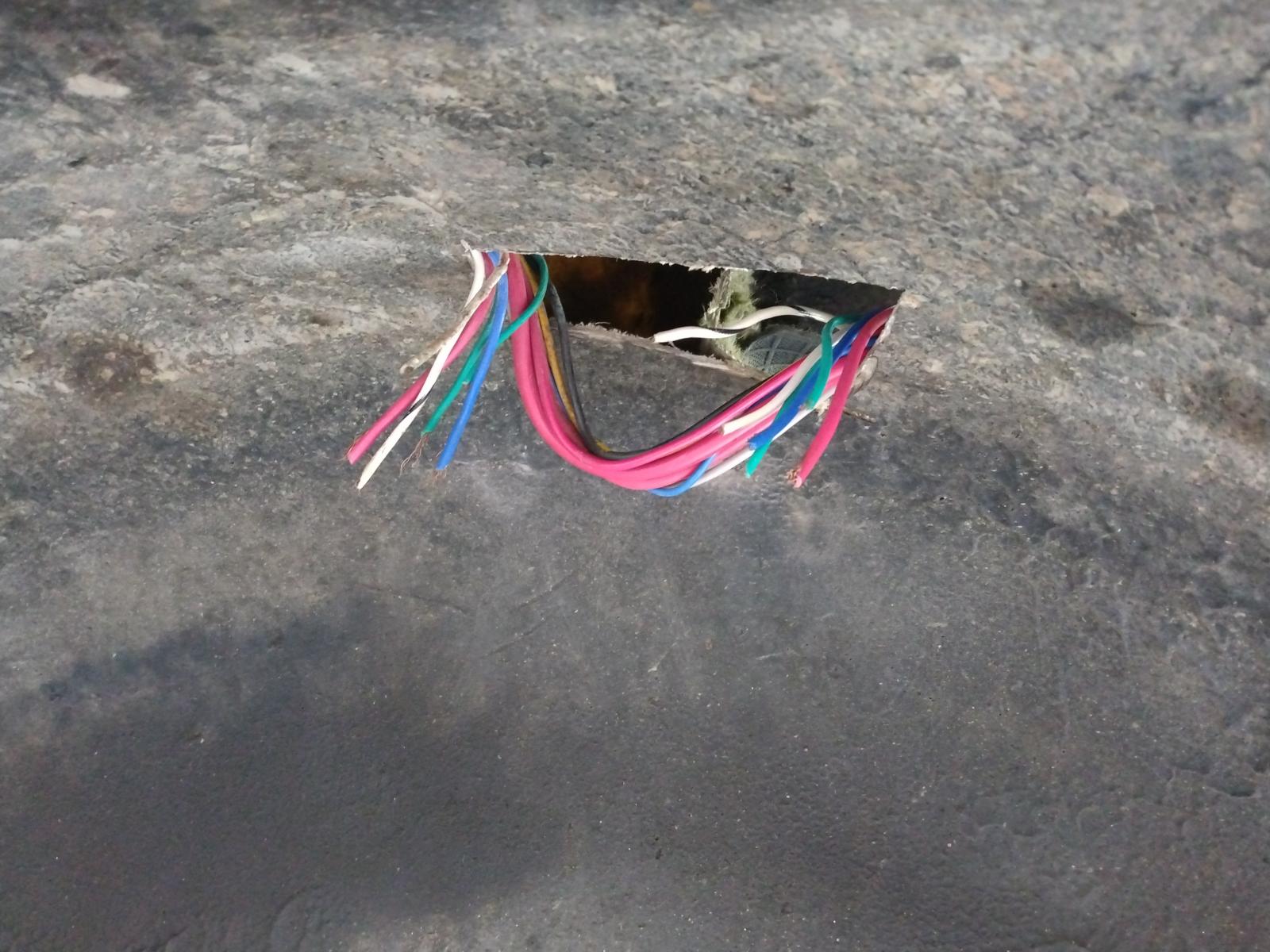

In there I found a mouse nest and a bunch of chewed through wires. Using a small cut-off wheel I gained access and repaired the harness.
I used lineman splice (Google it, you'll be glad you did -its an awesome splice), solder, marine shrink wrap (has melting glue) and shoved it all back in. Now I've got all lights in the rear and, as an added bonus, all idiot lights and engine gauges in the dash now work. Gas gauge is another issue.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

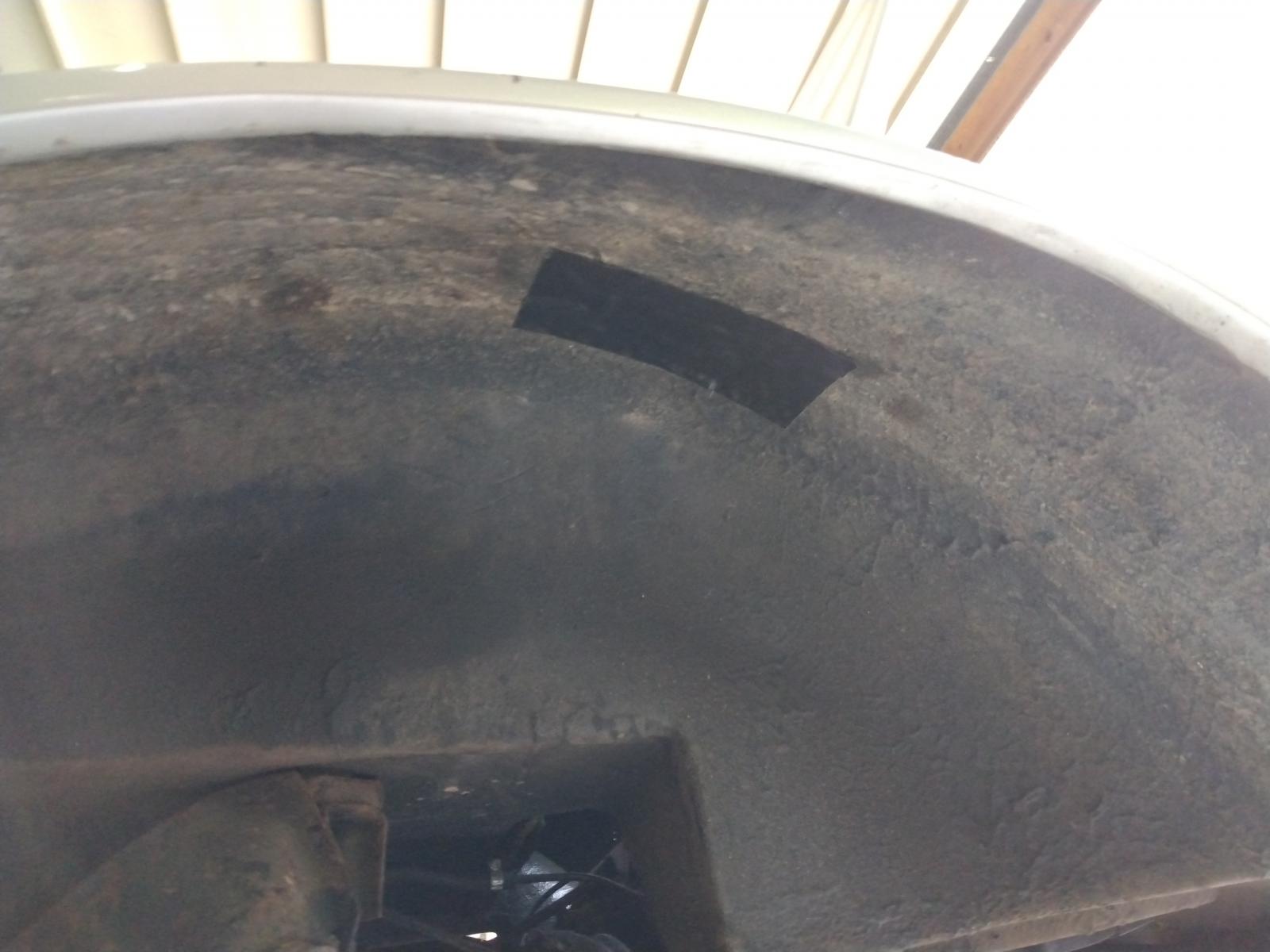

One day when I'm doing body work, I'll fiberglass the hole shut. For right now I threw a piece of Gorilla Tape over it because I have places to go and people to see.

Image may have been reduced in size. Click image to view fullscreen.

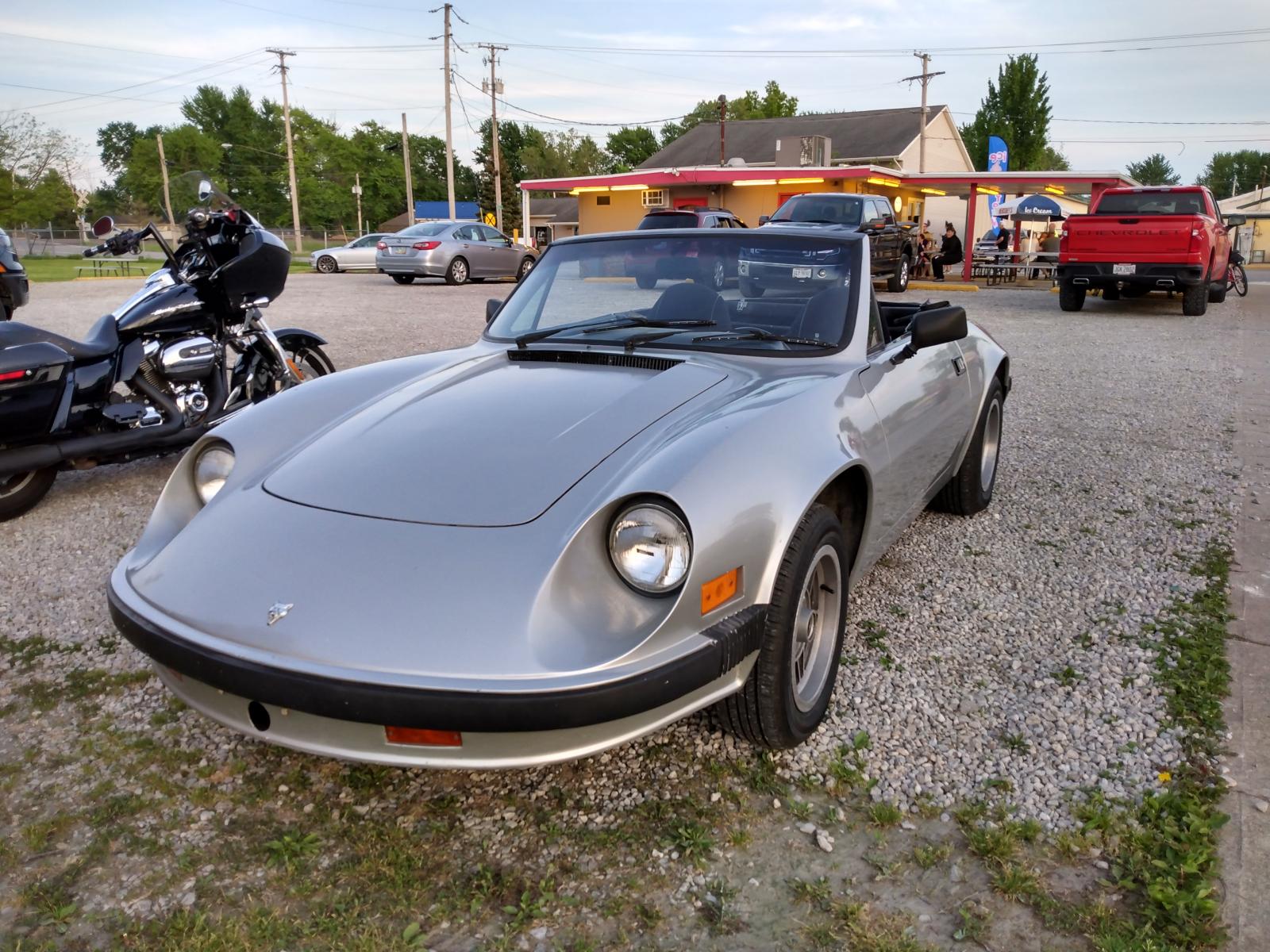

Ice cream time!!!

Image may have been reduced in size. Click image to view fullscreen.

_________________
1966 Sportsmobile Camper https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0
72 Super Duper http://www.thesamba.com/vw/forum/viewtopic.php?t=672387
(adopted out) 61 Turkis Pile https://www.thesamba.com/vw/forum/viewtopic.php?t=728764
84 Puma GTS https://www.thesamba.com/vw/forum/viewtopic.php?t=760470&start=0
Back to top
View user's profile Send private message Gallery Classifieds Feedback
NJ John
Samba Member


Joined: September 21, 2007
Posts: 1447
Location: HdG, MD & NJ
NJ John is offline

PostPosted: Fri May 20, 2022 5:42 am    Post subject: Re: Buggeee's 1984 Puma GTS Reply with quote

Cool investigation skills. Love the Puma.
_________________
1973 standard, yellow, lowered, 3 narrowed front, 1600 blo-thru turbo w/single dell
11.41 et buggy. Long gone
Lets go Os! Lets go Os!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Buggeee
Samba Member


Joined: December 22, 2016
Posts: 3596
Location: Stuck in Ohio
Buggeee is offline

PostPosted: Mon May 23, 2022 4:49 pm    Post subject: Re: Buggeee's 1984 Puma GTS Reply with quote

NJ John wrote:
Cool investigation skills. Love the Puma.


Dude the scope is awesome tech. Every took box should have one. Cool

Drive em if you've got em

Image may have been reduced in size. Click image to view fullscreen.

_________________
1966 Sportsmobile Camper https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0
72 Super Duper http://www.thesamba.com/vw/forum/viewtopic.php?t=672387
(adopted out) 61 Turkis Pile https://www.thesamba.com/vw/forum/viewtopic.php?t=728764
84 Puma GTS https://www.thesamba.com/vw/forum/viewtopic.php?t=760470&start=0
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Buggeee
Samba Member


Joined: December 22, 2016
Posts: 3596
Location: Stuck in Ohio
Buggeee is offline

PostPosted: Sun Jun 19, 2022 5:34 pm    Post subject: Re: Buggeee's 1984 Puma GTS Reply with quote

Time for some ice cream! Once again the Puma had some car folks scratching their heads. What is that?!


Image may have been reduced in size. Click image to view fullscreen.

_________________
1966 Sportsmobile Camper https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0
72 Super Duper http://www.thesamba.com/vw/forum/viewtopic.php?t=672387
(adopted out) 61 Turkis Pile https://www.thesamba.com/vw/forum/viewtopic.php?t=728764
84 Puma GTS https://www.thesamba.com/vw/forum/viewtopic.php?t=760470&start=0
Back to top
View user's profile Send private message Gallery Classifieds Feedback
NJ John
Samba Member


Joined: September 21, 2007
Posts: 1447
Location: HdG, MD & NJ
NJ John is offline

PostPosted: Mon Jun 20, 2022 5:39 am    Post subject: Re: Buggeee's 1984 Puma GTS Reply with quote

Hey, look at that Alfa parked over there!
_________________
1973 standard, yellow, lowered, 3 narrowed front, 1600 blo-thru turbo w/single dell
11.41 et buggy. Long gone
Lets go Os! Lets go Os!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Buggeee
Samba Member


Joined: December 22, 2016
Posts: 3596
Location: Stuck in Ohio
Buggeee is offline

PostPosted: Tue Jun 21, 2022 7:32 pm    Post subject: Re: Buggeee's 1984 Puma GTS Reply with quote

NJ John wrote:
Hey, look at that Alfa parked over there!


Exactly! I should start writing down a list of all the guesses, it's fascinating.

In the meantime... Drive em if you've got em!!!!


Image may have been reduced in size. Click image to view fullscreen.

_________________
1966 Sportsmobile Camper https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0
72 Super Duper http://www.thesamba.com/vw/forum/viewtopic.php?t=672387
(adopted out) 61 Turkis Pile https://www.thesamba.com/vw/forum/viewtopic.php?t=728764
84 Puma GTS https://www.thesamba.com/vw/forum/viewtopic.php?t=760470&start=0
Back to top
View user's profile Send private message Gallery Classifieds Feedback
oprn
Samba Member


Joined: November 13, 2016
Posts: 9738
Location: Western Canada
oprn is offline

PostPosted: Fri Jul 15, 2022 11:44 am    Post subject: Re: Buggeee's 1984 Puma GTS Reply with quote

I love it! Keep on driving, fixing and posting it here!
_________________
I never finish anything, I have a black belt in partial arts!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Buggeee
Samba Member


Joined: December 22, 2016
Posts: 3596
Location: Stuck in Ohio
Buggeee is offline

PostPosted: Mon Jul 18, 2022 12:15 pm    Post subject: Re: Buggeee's 1984 Puma GTS Reply with quote

Well, Jim's Custom VW has the big summer Jubilee in July, so I drove this puma for about 5 hours at 70 mph in one day, round trip, and it hummed along the whole time with steady oil pressure and steady temperature. It was a beautiful day with sunny skies and hot (for Ohio) temperatures.

Here I've stopped for gas at a rest stop on the Turnpike on the way out there in the morning.

Image may have been reduced in size. Click image to view fullscreen.


Took my spot right under the sign so you can all see where the action is.

Image may have been reduced in size. Click image to view fullscreen.


Here are a few random pics of the show. There were more than 150 air cooleds there, plus swap meet, food and music.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
1966 Sportsmobile Camper https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0
72 Super Duper http://www.thesamba.com/vw/forum/viewtopic.php?t=672387
(adopted out) 61 Turkis Pile https://www.thesamba.com/vw/forum/viewtopic.php?t=728764
84 Puma GTS https://www.thesamba.com/vw/forum/viewtopic.php?t=760470&start=0
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Other VW Vehicles/Volksrods All times are Mountain Standard Time/Pacific Daylight Savings Time
Page 1 of 1


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
