Brakes Failed... Parts Identification help needed please.

[SPLITV]

To cut a long story short, had the rear brakes done a few weeks ago at a garage. Anyway, they failed last night, luckily at home but for some reason it seems that it threw the retaining pins. They are all damaged, the springs have chewed up, it damaged one of the cylinders and there is some damage on the shoes.

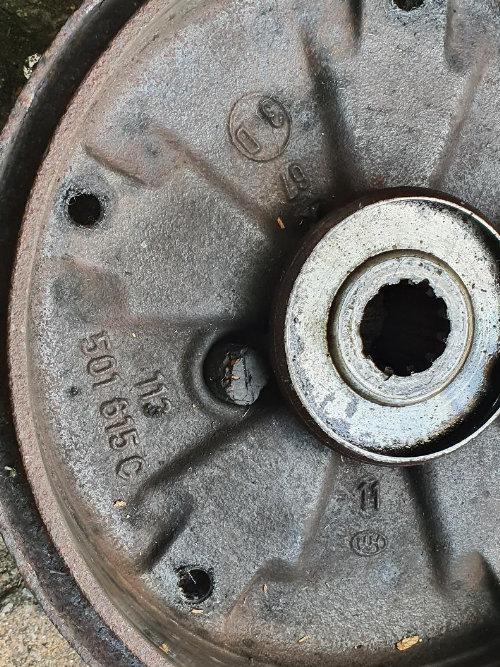

The HUB number appears to be 113501615C.

I can only find hubs with the D at the end.

Can some one please advise what the right parts are from the following pictures. Something doesn't appear to be right.

Many thanks,

[BonTonRoulet]

Other than saying that sure doesn't look like the rear brakes on a split bus with reduction box axles, it appears the entire brake assemblies are upside down because they are on the wrong side left-right. Must be all Bug Type 1 stuff involved in that setup.
_________________
Never argue with an Idiot. They'll only bring you down to their level and beat you with experience.

[MrPolak]

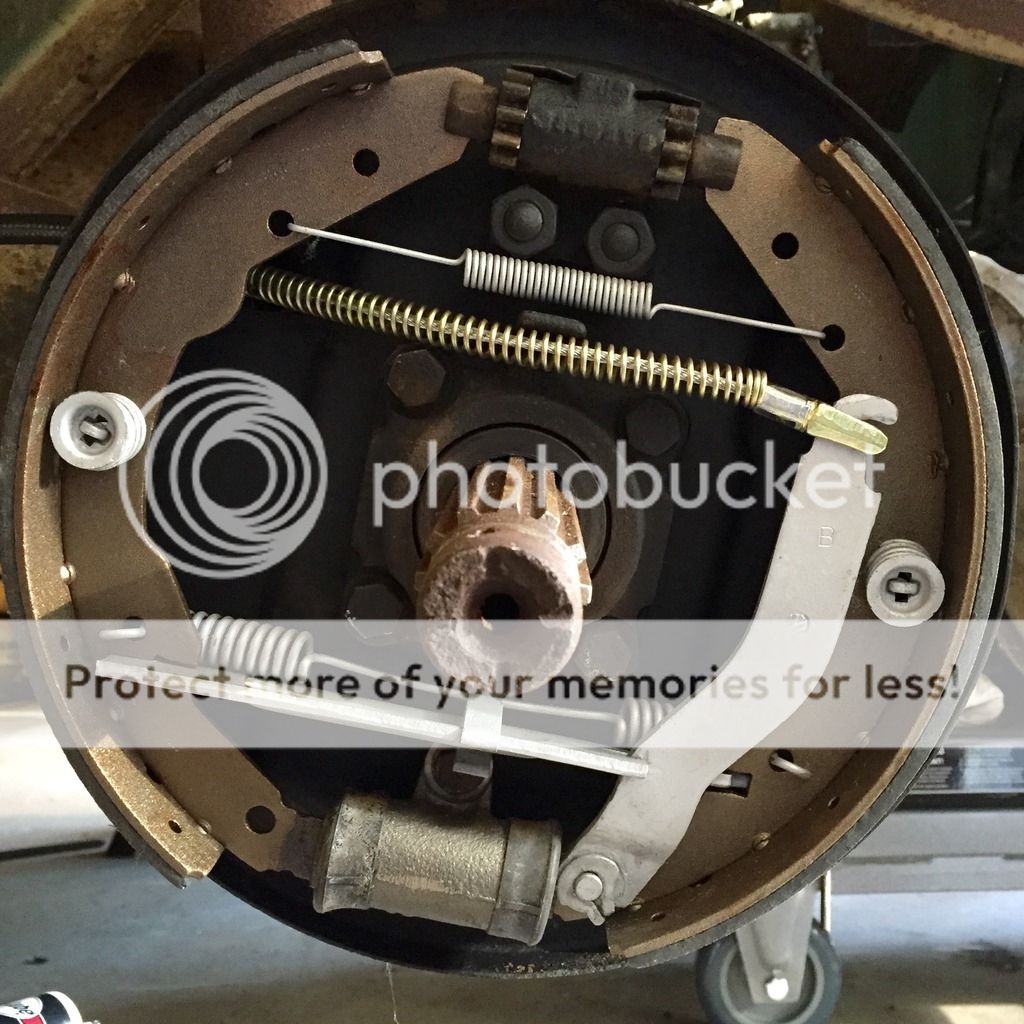

Here is my '64 for a comparison:

And this is yours:

[SPLITV]

This is the rear of the brakes...

[bobrk]

Looks like a bug to me based on that last picture.
_________________
1959 Single Cab “Otto”

1500 single port | 1963 small nut/big brake transaxle | CSP Disc Brakes | dual circuit m/c | Deutsch Polster seats

[SPLITV]

The set up is on the van.

[BonTonRoulet]

[SPLITV]

yeah I understand that, this is what I was originally getting at, sorry if I wasn't clear. So based on the parts above what exactly am I looking for which will fit?

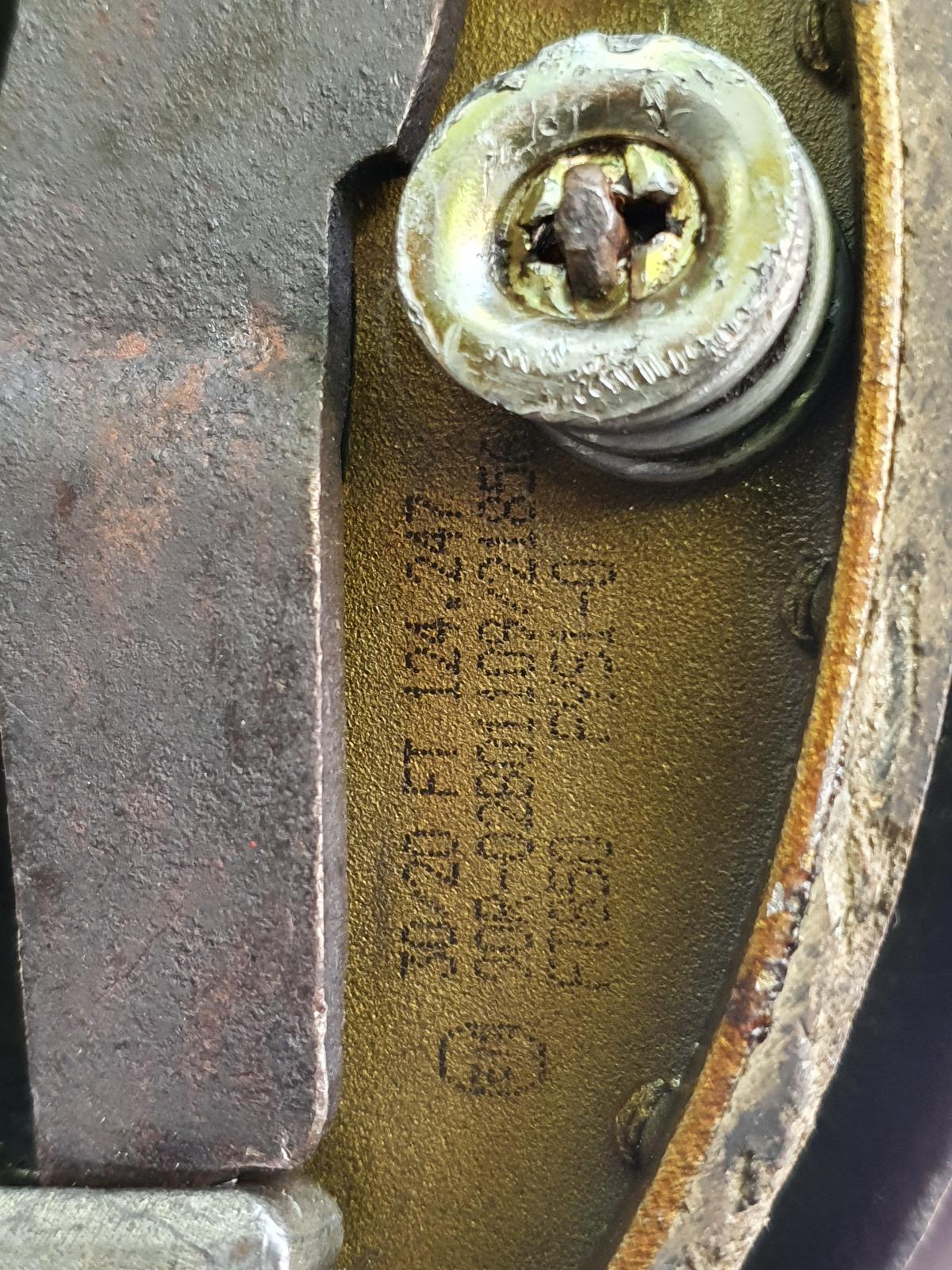

Cheers, for example the shoes part number appears to be for a VW POLO which is strange.

The HUB, I can only find similar but with a letter D at the end not the C.

I am looking for the UNIFORM setup which is correct for that HUB.

[EverettB]

I'm not sure what's wrong but it looks like you have the wrong retaining pics on the springs - they are too long and those parts are sticking out past the brake shoes.

Maybe they are catching on the drum and getting fouled?

Compare yours vs. the other Bus brakes pic where they sit below the edge of the brake shoes.
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery!

[Eric&Barb]

If your brakes completely failed it would be a good idea to upgrade to dual MC so you still have about half the brakes still working.

You should post those images in the 1958-67 beetle forum to get more info there. My guess is you need wider drums.

The original type 1 VW dealer parts manual can be accessed thru:

http://www.oacdp.org/queue.html

Left click on the "Upcoming" button at the top of that page.

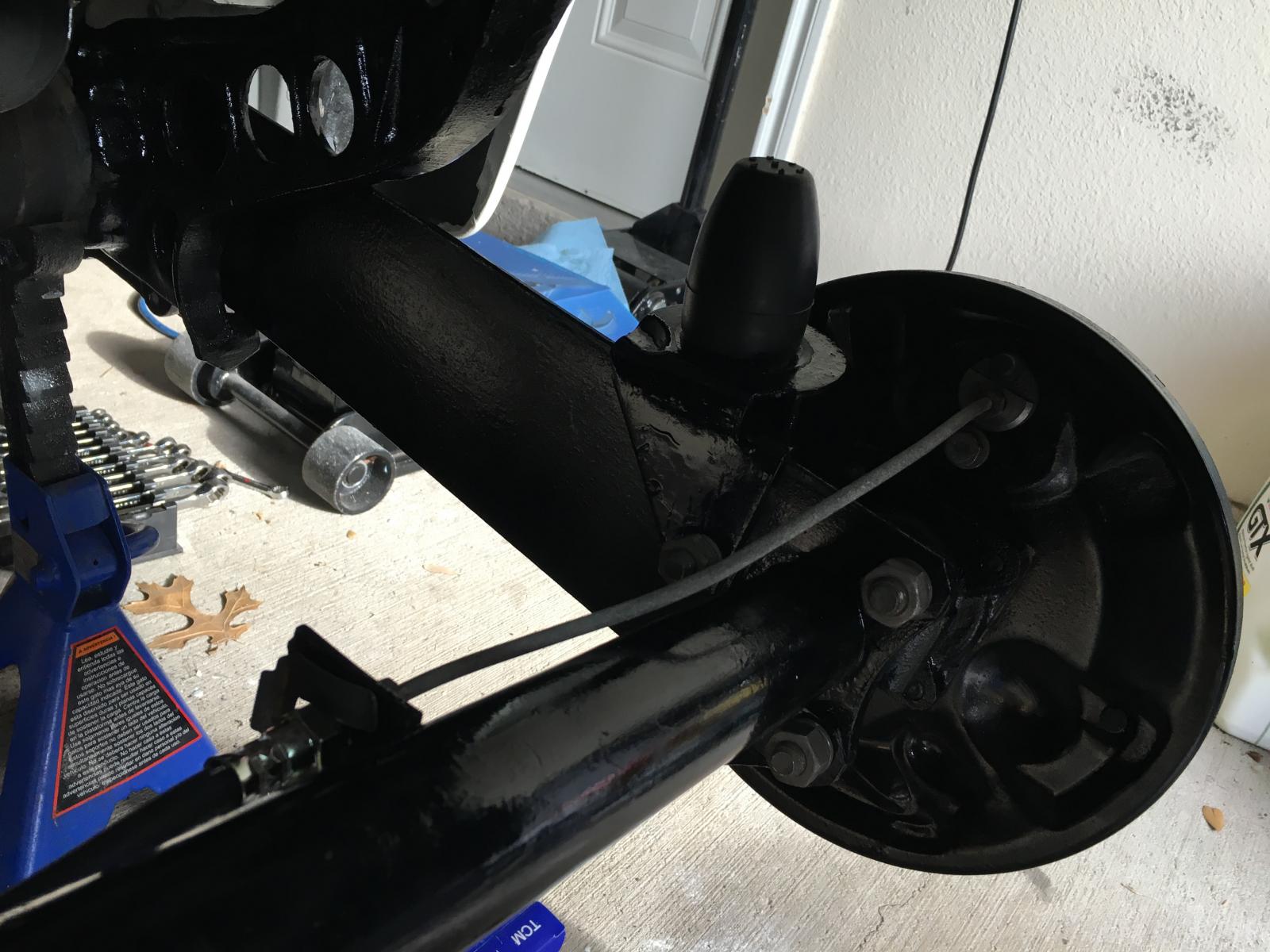

BTW having the metal brake line zip tied to the axle tube is a bad idea. Here is a 1966 brake line setup, note not touching the axle tube:

_________________
In Stereo, Where Available!

[SPLITV]

thanks for the advice everyone, getting a bit closer to finding out what may be needed.


I've just had a look through some old posts about some work that was done about 10 years ago. The old owner mentions something called wide 5 drums from an early beetle.

Do these look like those?

[Eric&Barb]

Well 113 of the part number is deluxe beetle.

Here is the post-1967 beetle drum:

Here is the post-1971 bus small five lug bolt pattern on the hub minus the drum:

_________________
In Stereo, Where Available!

[Eric&Barb]

How to read part numbers and how to use for searches:

Parts manuals are a real eye opener, invariably you will find parts you did not know your VW originally had. For a lot of the smaller parts you can use the part number from the parts manuals to find more info part or availability of the part you are looking for thru a search of the WWW.

When you do WWW searches with the nine digit part numbers, put VW and a space before the part number. Remove the two spaces in the part number, and leave off any letter suffix at the end of the part number. So you will get a "VW XXXXXXXXX" to search with. Also "VW XXX-XXX-XXX" will work for other websites.

Keep in mind about every nine digit VW part number:

A. That the very first digit is what model of VW the part was originally designed for. Lots of type 1 parts on the type 2s, some type 2 and 3 parts were used in the type 1. Other parts are only used on that type of VW and no other.

B. 2nd and 3rd digits are the model the part was originally designed for. Some parts are ONLY for that model. Others were later fitted to all VW models.

C. 4th digit tells you which section/chapter of the parts manual the part is found in.

D. The 5th thru 9th digits are the actual part number.

E. Letter suffix means it is an improved part over the last part without letter suffix, or as each letter ( A, B, C, D, etc.) is used the later letter means some change has been made. Sometimes each later part can be used directly in the same area, some can not without replacing other parts around it.

F. If you know a part is RH or LH ONLY, you can tell by the last digit of the part number which side it goes on. an even digit then the part is RH, odd digit and the part is LH. Easiest way to remember this is that a LH drive VW has to have at least the driver, so one person, which is an odd digit. A VW with one driver and one passenger is two people, so an even digit.
_________________
In Stereo, Where Available!

[SPLITV]

thanks Eric&Barb.

Not like any of those pictures...

mine are 5 stud, not lugs.

[Eric&Barb]

[SPLITV]

Cool,

so the hubs are all the same up to that year? The five stud?

I'm not sure what I've got here but it looks a mess from what I've seen tonight.

[SPLITV]

as in, to replace the drums...

Part no... 113501615D will be ok to replace mine which are 113501615C.

I've read and printed your guide.

[Eric&Barb]

[BarryL]

[Eric&Barb]
