Clutch cable tension/throwout assembly

[pdx6169]

Hi all,

I'm preparing my bug for reinstallation of her rebuilt engine. I ended up replacing the entire throwout assembly (fork, bushings, clutch cable arm) because the old bearing was way off-center, the bushings were thrashed, and the arm was seized to the fork. I also replaced the clutch cable and Bowden tube.

When reinstalling the cable to the arm, I had to push the arm forward quite a bit to catch the threads with the wingnut. With the wingnut on, the arm is now pitched forward about 10-15 degrees or so from where it was sans cable, and the throwout fork now has about a pinky finger of clearance from the back of the bell housing, whereas it was against the bell housing without the cable. Is this normal or is my cable too short? The cable is the exact same length as the old one, but the new Bowden tube, cable arm, and fork may be a bit out of spec and causing issues.

A few pics for reference:

New arm without clutch cable:

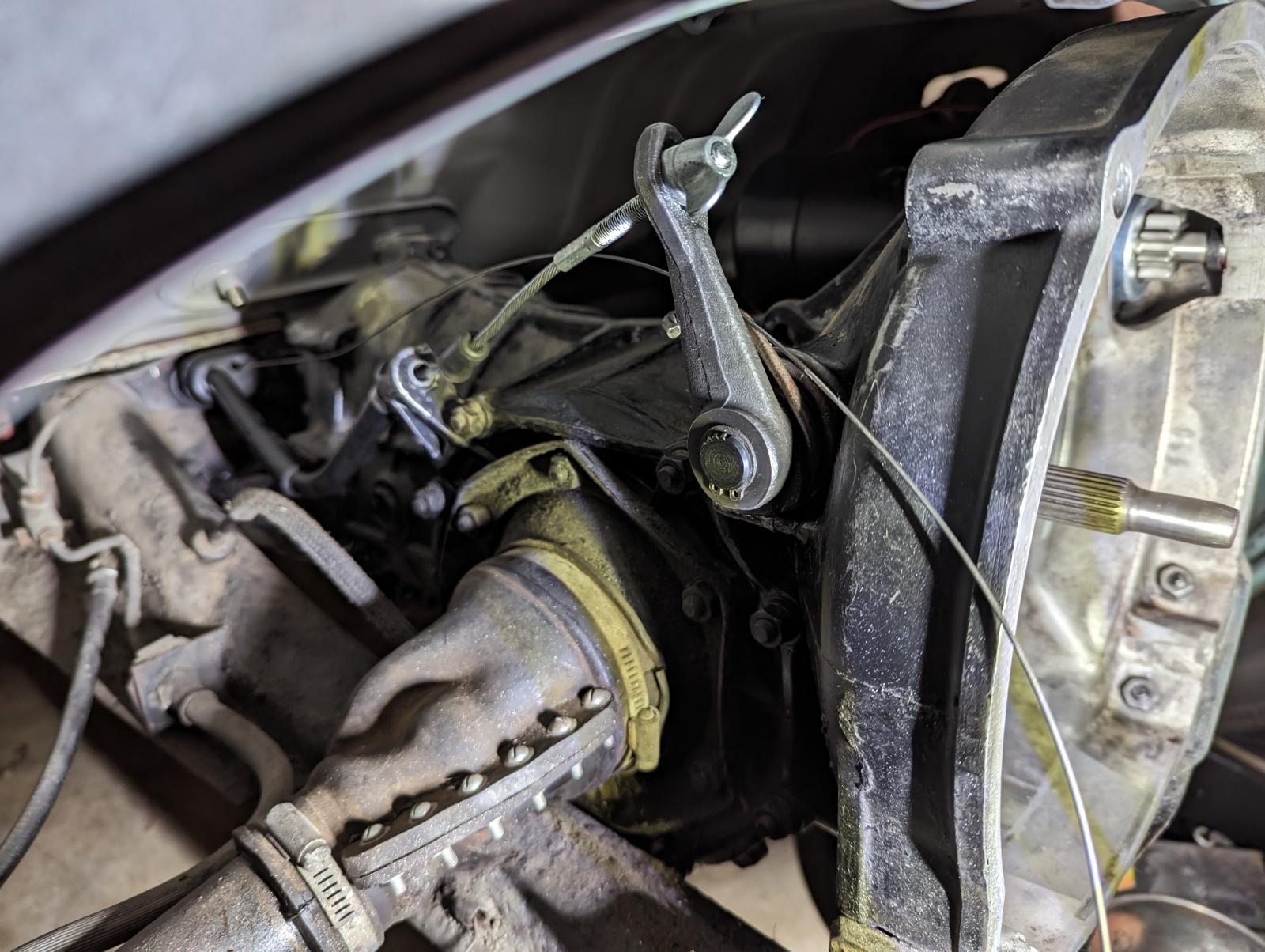

Arm with clutch cable installed (is pitched forward):

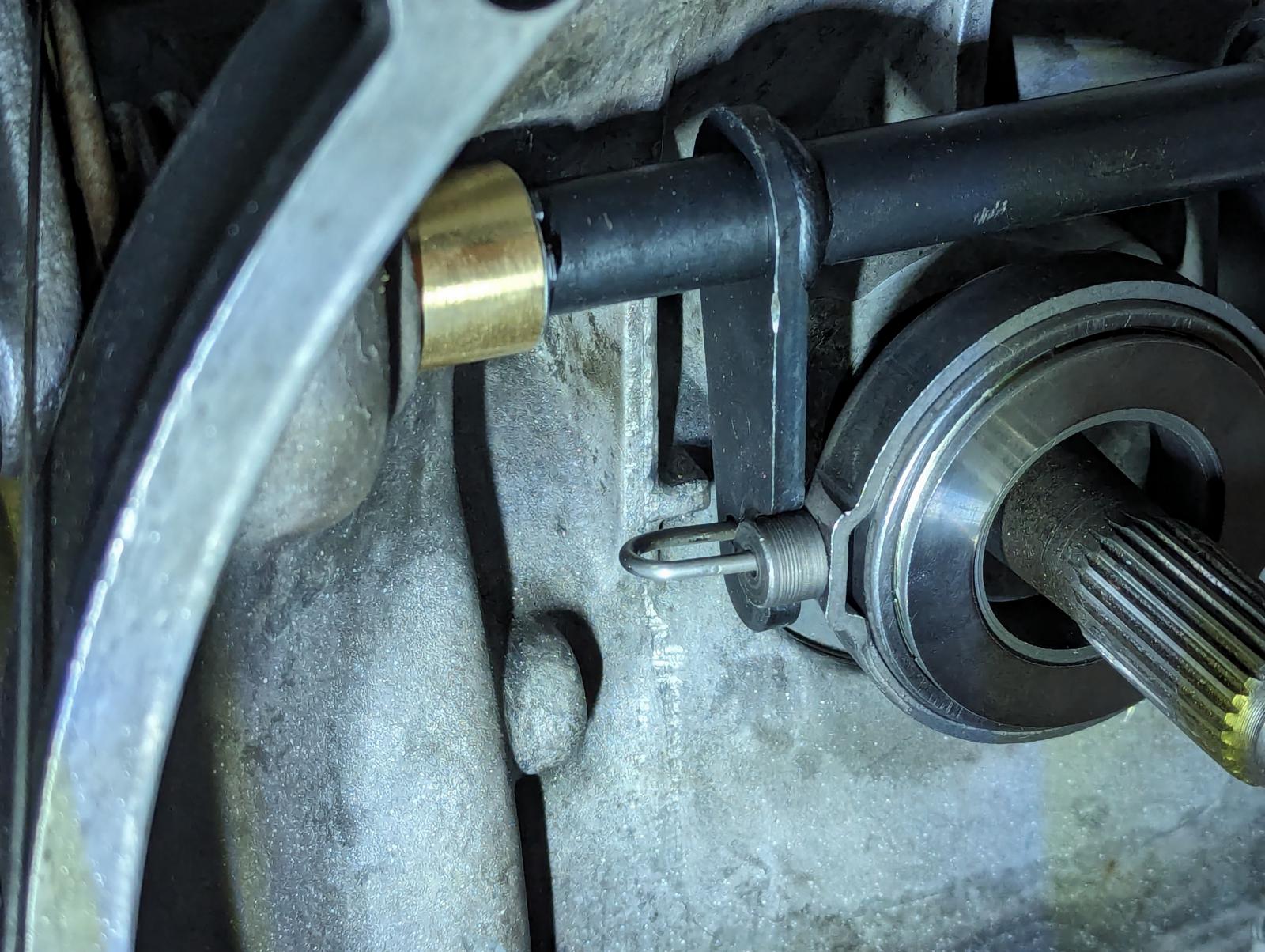

Clearance of throwout fork from bell housing:

Thanks in advance for any insight!
_________________
1961 Type 1 Convertible
1969 Type 1 Sedan

[bnam]

I think it's ok. You will need to adjust it further once you install the engine and clutch - in order to get the appropriate ~20mm of play at the pedal.
_________________
1971 1302LS Convertible (RHD) owned since '74
Click to view image
1965 Karmann Ghia Coupe - under restoration
1966 Fiat 1500 Cabrio (with 1600 Twin cam)
1952 Citroen TA 11BL

[bsairhead]

Without the motor plugged in, no way of telling.

[Cusser]

Might be too much bow in your bowden tube.
_________________
1970 VW (owned since 1972) and 1971 VW Convertible (owned since 1976), second owner of each. The '71 now has the 1835 engine, swapped from the '70. Second owner of each. 1988 Mazda B2200 truck, 1998 Frontier, 2014 Yukon, 2004 Frontier King Cab. All manual transmission except for the Yukon. http://www.thesamba.com/vw/forum/album_page.php?pic_id=335294 http://www.thesamba.com/vw/forum/album_page.php?pic_id=335297

[bsairhead]

You could put a straight edge across the bell housing and measure in to the throw out bearing. And measure the distance the clutch pack sits proud of the case, compare the measurements.

[busman78]

I agree with Cusser, that Boden tube does not look right

[pdx6169]

[busman78]

Use a string or visulize a straight line between the body and the trans bracket for the boden tube, when the bowden tube is installed there should be about 3/4" of bend in the tube, no more than an 1".

[gt1953]

The clips holdng the throw out bearing will fail as you need the other style.

here is a link with a photo
https://socalautoparts.com/product/throw-out-beari...gIX_vD_BwE
_________________
Volkswagen: We tune what we drive.
Numbers Matching VW's are getting harder to find. Source out the most Stock vehicle and keep that way. You will be glad you did.

72 type 1
72 Squareback
({59 Euro bug, 62, 63, 67, 68, 69, 73 type ones 68 & 69 type two, 68 Ghia all sold})

[Cusser]

[VW_Jimbo]

Seems like the wrong length clutch cable. The length varied through the years.

The T O bearing sits off center just a bit.
_________________
Jimbo

There is never enough time to do it right the first time, but all the time necessary the second time!
