Thought I would share another build on "saving" a van that was in rough condition.
My father purchased this vehicle so we can have a "project" to work on. He already owns an 86 Westy that I have helped him build. We are both very familiar with Vanagons as we have owned numerous between the both of us.

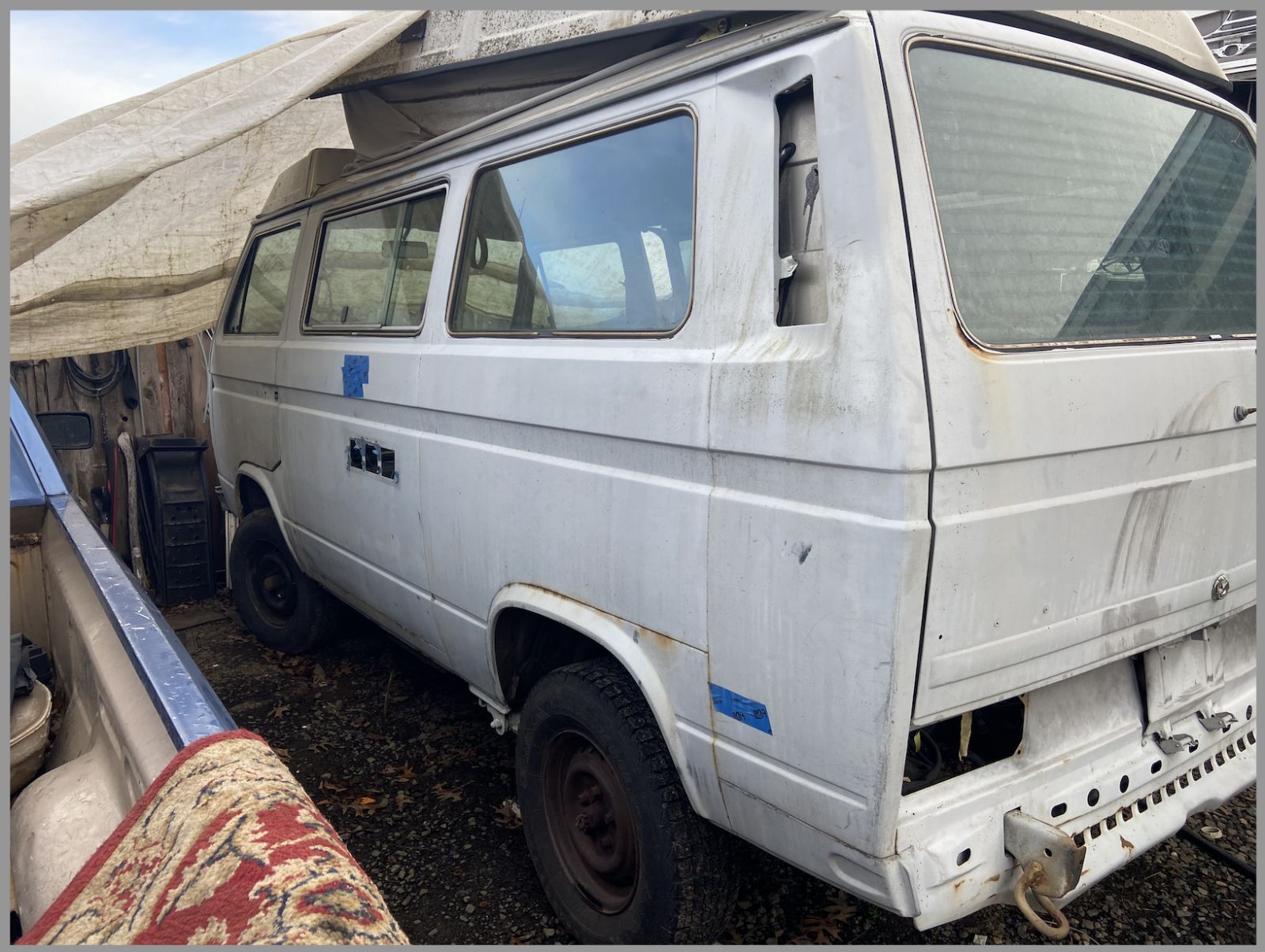

Van was purchased in the state of NY and shipped to Oregon. Shocked

Previous owner gutted the entire vehicle - interior and exterior. Project is near completion and will post pics/process as I go through some of the pictures.

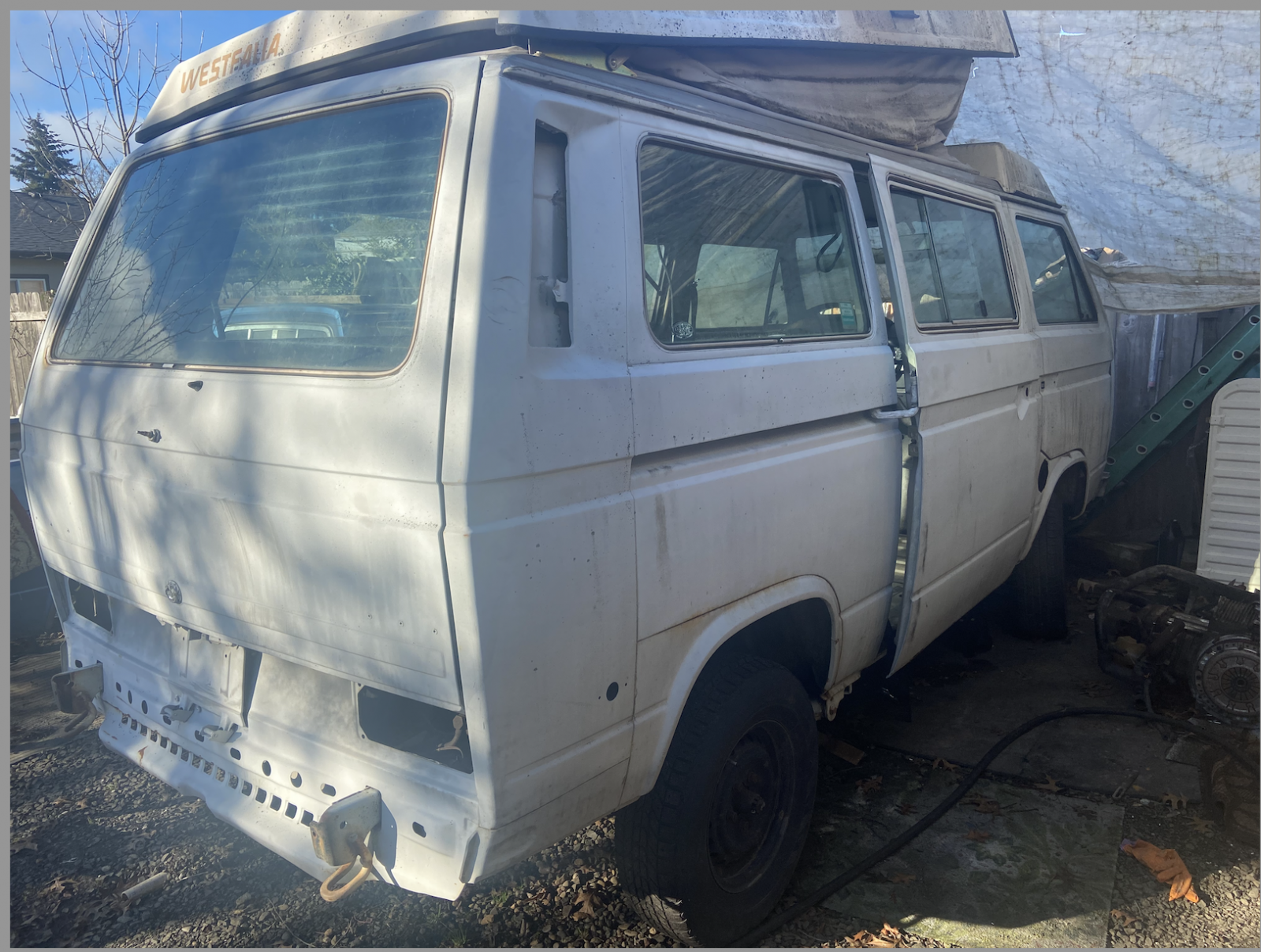

Here is how it started.


Image may have been reduced in size. Click image to view fullscreen.



Image may have been reduced in size. Click image to view fullscreen.

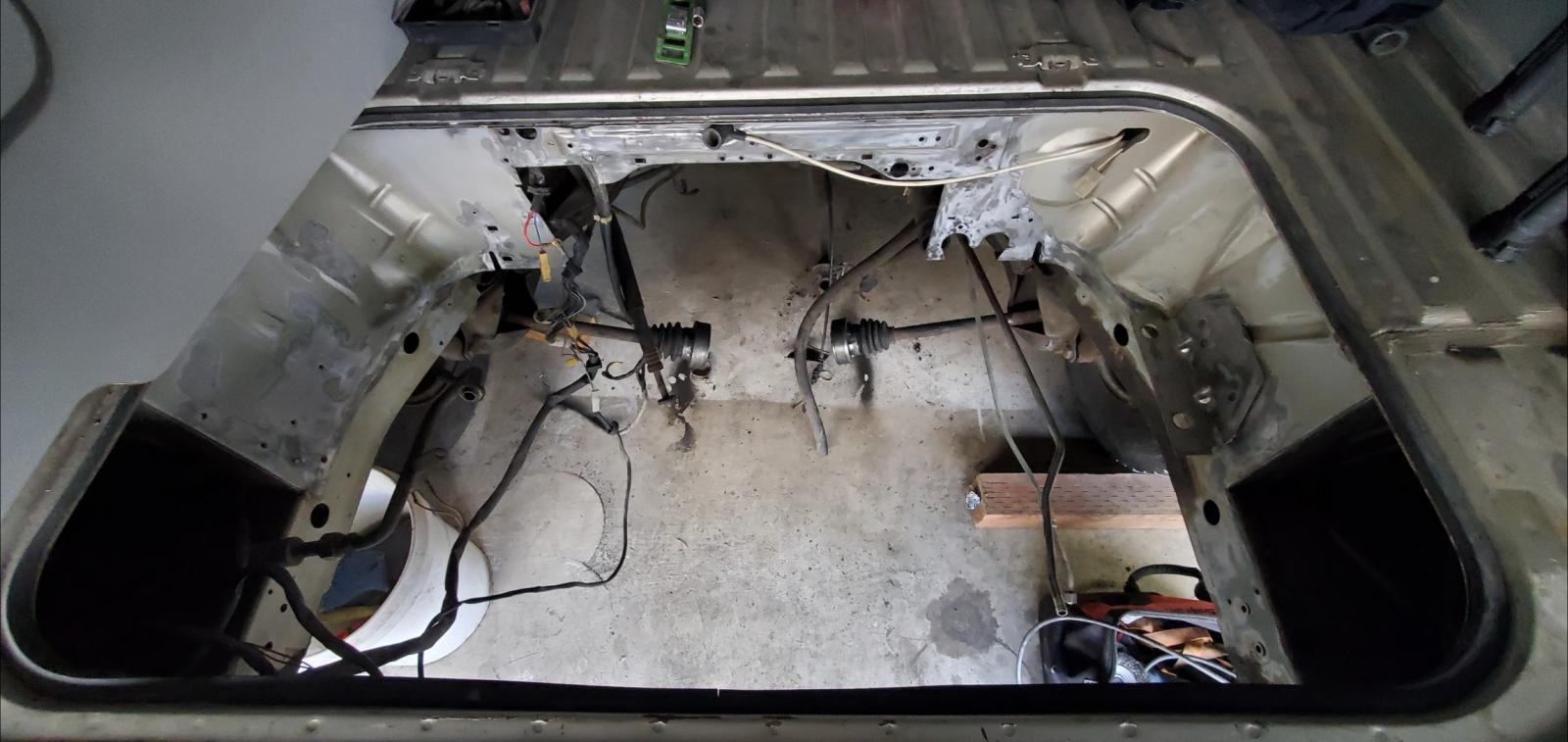

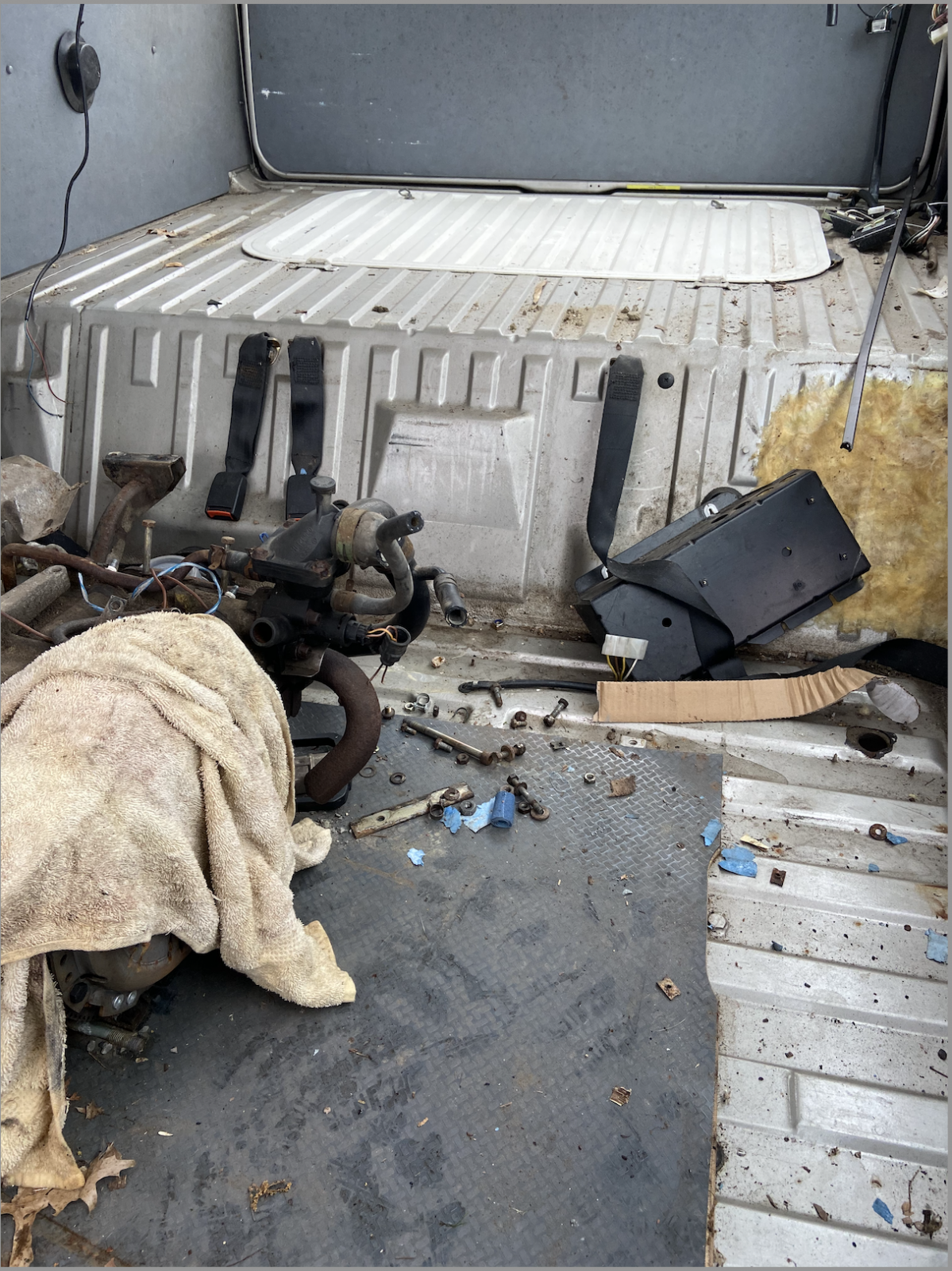

Gutted from the interior, but came with the complete interior. Original 2.1 engine taken out and sitting inside.

Image may have been reduced in size. Click image to view fullscreen.

_________________
87 VW Westfalia - EJ25
86 VW Westfalia - EJ22
85 VW Westfalia - WBX 2.1 project
Back to top
View user's profile Send private message Gallery Classifieds Feedback
campism
Samba Member


Joined: September 07, 2007
Posts: 4361
Location: Richmond VA
campism is offline

PostPosted: Wed Aug 17, 2022 4:32 am    Post subject: Re: Another build - 1987 Westy Reply with quote

Looks like a challenging project. Keep us posted and good luck!
_________________
'87 Westy in Wolfram Grey Metallic
Back to top
View user's profile Send private message Gallery Classifieds Feedback
DuncanS
Samba Member


Joined: October 17, 2013
Posts: 4003
Location: New Hampshire
DuncanS is offline

PostPosted: Wed Aug 17, 2022 5:54 am    Post subject: Re: Another build - 1987 Westy Reply with quote

It's a blank stretched and gessoed canvas. Go paint the next Mona Lisa.

Duncan
Back to top
View user's profile Send private message Gallery Classifieds Feedback
joetiger Premium Member
Samba Member


Joined: January 27, 2005
Posts: 4982
Location: denver
joetiger is offline

PostPosted: Wed Aug 17, 2022 5:57 am    Post subject: Re: Another build - 1987 Westy Reply with quote

Popcorn
_________________
Joe T.

'86 NAHT Vanagon GL Syncro/ supercharged ABA 2.0 "Pigpen"
'04 GTI 1.8T

"get metaphysical with it. if it's simply a means to get to and from places, it will let you down. if it becomes your zen, it can't fail you." -dabaron

"Still, it's good to be afield."--VWagabond

Available Now! Vanagon to Louisiana--A Two-Lane Reckoning Through Past and Present

www.josephtrussell.com
Back to top
View user's profile Send private message Visit poster's website Instagram Gallery Classifieds Feedback
skemems
Samba Member


Joined: February 23, 2017
Posts: 153
Location: Portland
skemems is offline

PostPosted: Wed Aug 17, 2022 6:33 pm    Post subject: Re: Another build - 1987 Westy Reply with quote

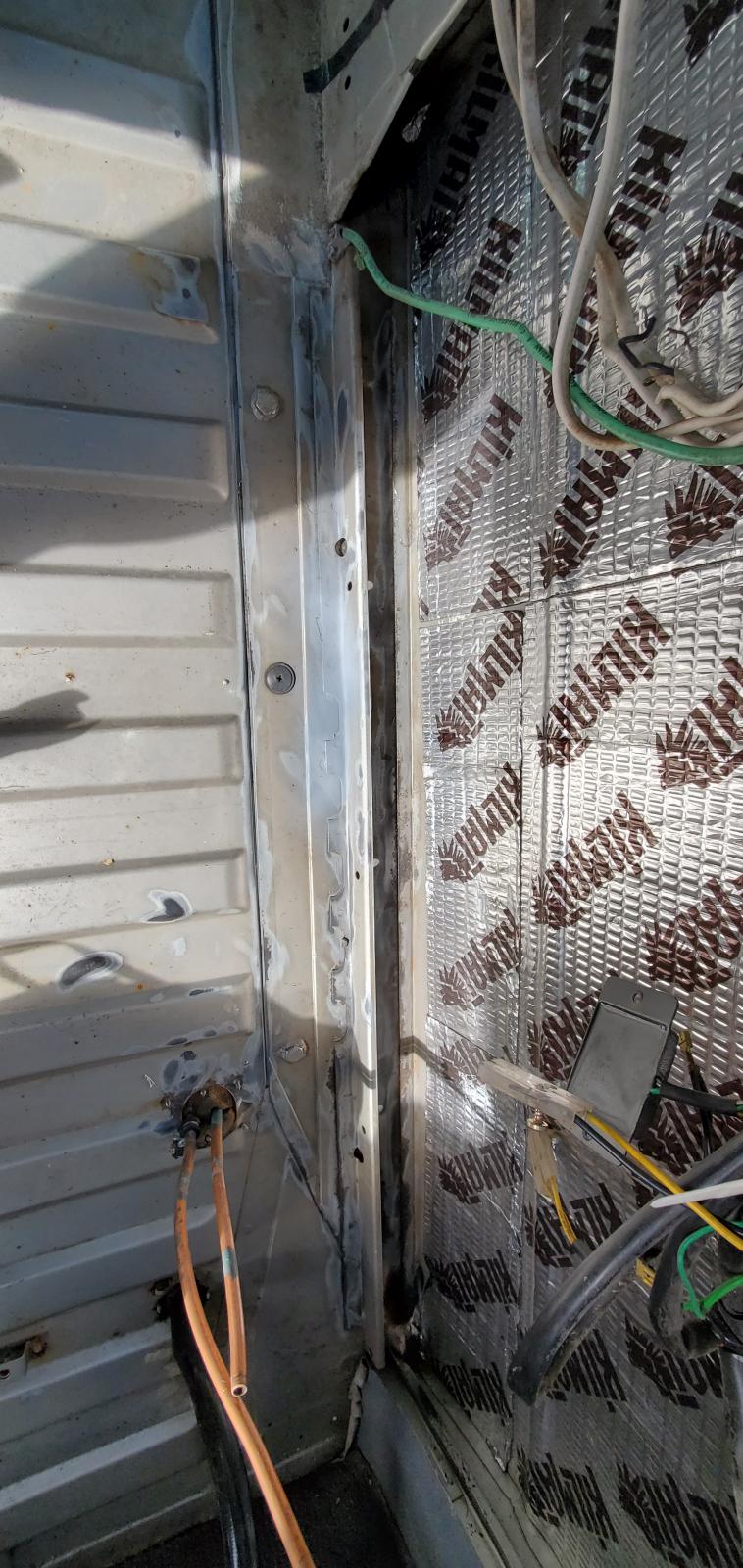

No surprise here, common rust spots. Several more were found later as windows were removed and body work started.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
87 VW Westfalia - EJ25
86 VW Westfalia - EJ22
85 VW Westfalia - WBX 2.1 project
Back to top
View user's profile Send private message Gallery Classifieds Feedback
skemems
Samba Member


Joined: February 23, 2017
Posts: 153
Location: Portland
skemems is offline

PostPosted: Sat Aug 20, 2022 8:16 am    Post subject: Re: Another build - 1987 Westy Reply with quote

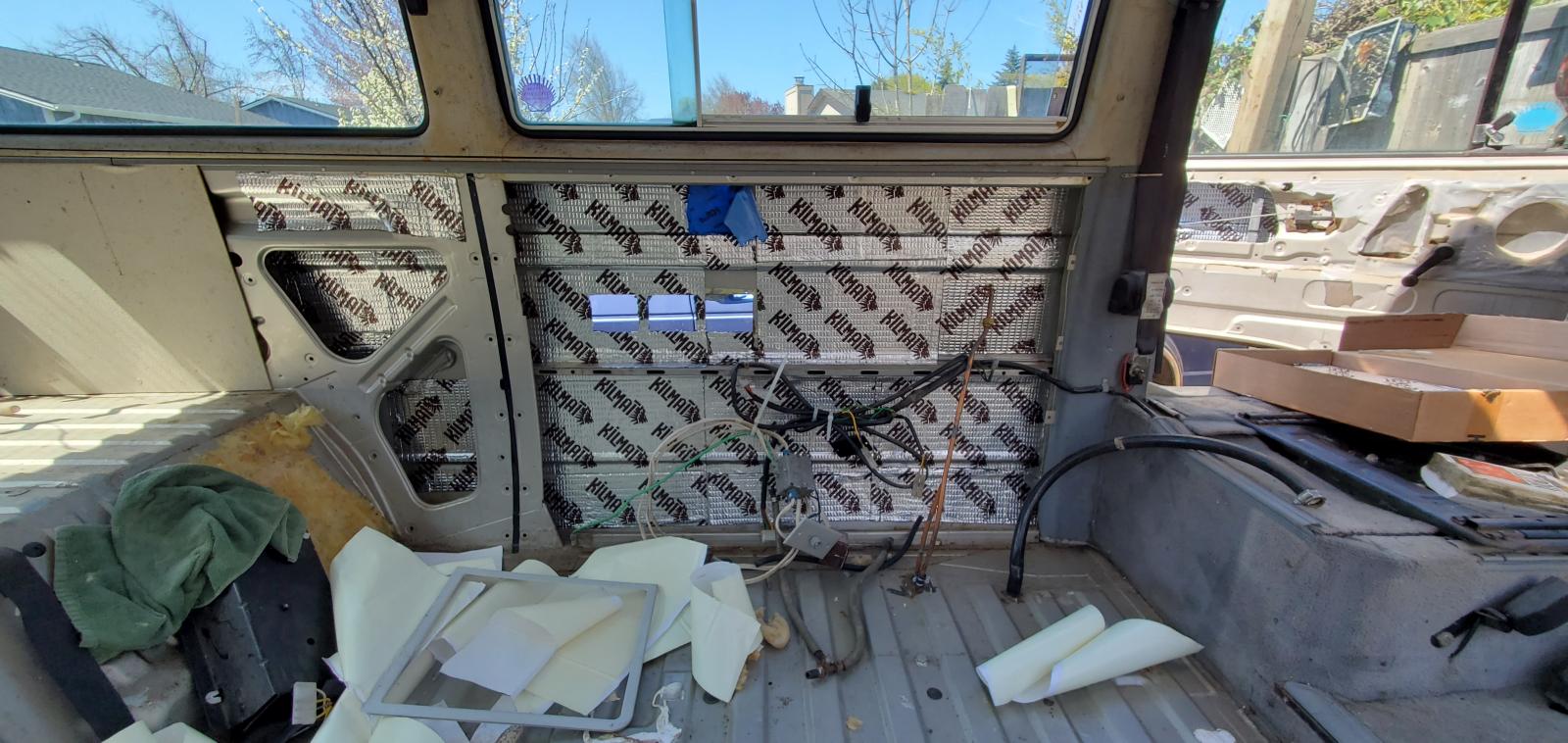

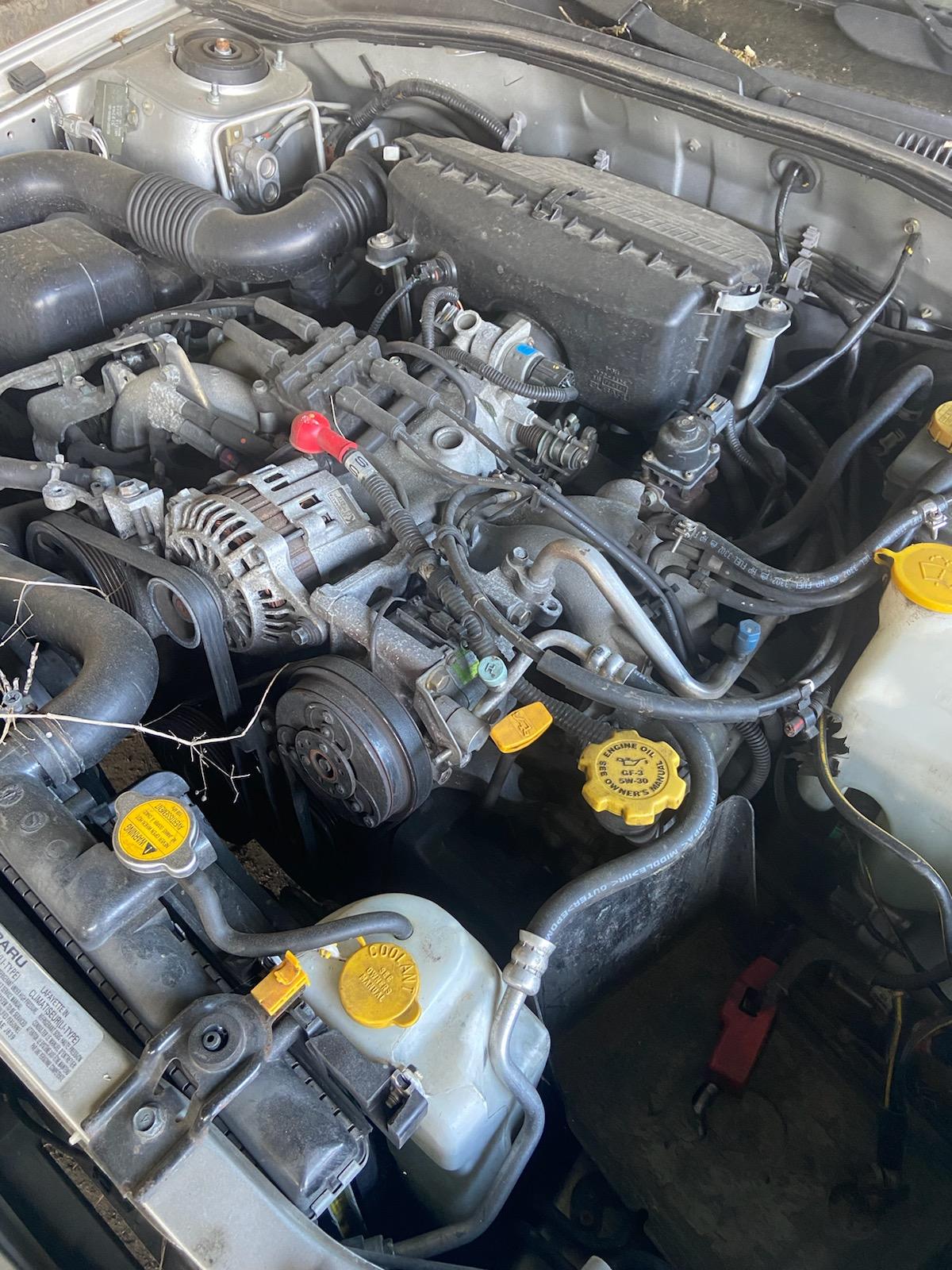

Since the interior was already gutted it was a good opportunity to add sound deadener to the interior panels and fix the some common rust behind the sink.


Image may have been reduced in size. Click image to view fullscreen.



Image may have been reduced in size. Click image to view fullscreen.



At the same time while debating if I should rebuild the original 2.1 that was sitting on the floor board or go with a conversion. I came up on a good donor vehicle (2003 Legacy) in a recent accident. Decided to go this route instead.
Besides the condition of the 2.1 was unknown.


Image may have been reduced in size. Click image to view fullscreen.



Image may have been reduced in size. Click image to view fullscreen.

_________________
87 VW Westfalia - EJ25
86 VW Westfalia - EJ22
85 VW Westfalia - WBX 2.1 project
Back to top
View user's profile Send private message Gallery Classifieds Feedback
skemems
Samba Member


Joined: February 23, 2017
Posts: 153
Location: Portland
skemems is offline

PostPosted: Sat Aug 20, 2022 9:46 am    Post subject: Re: Another build - 1987 Westy Reply with quote

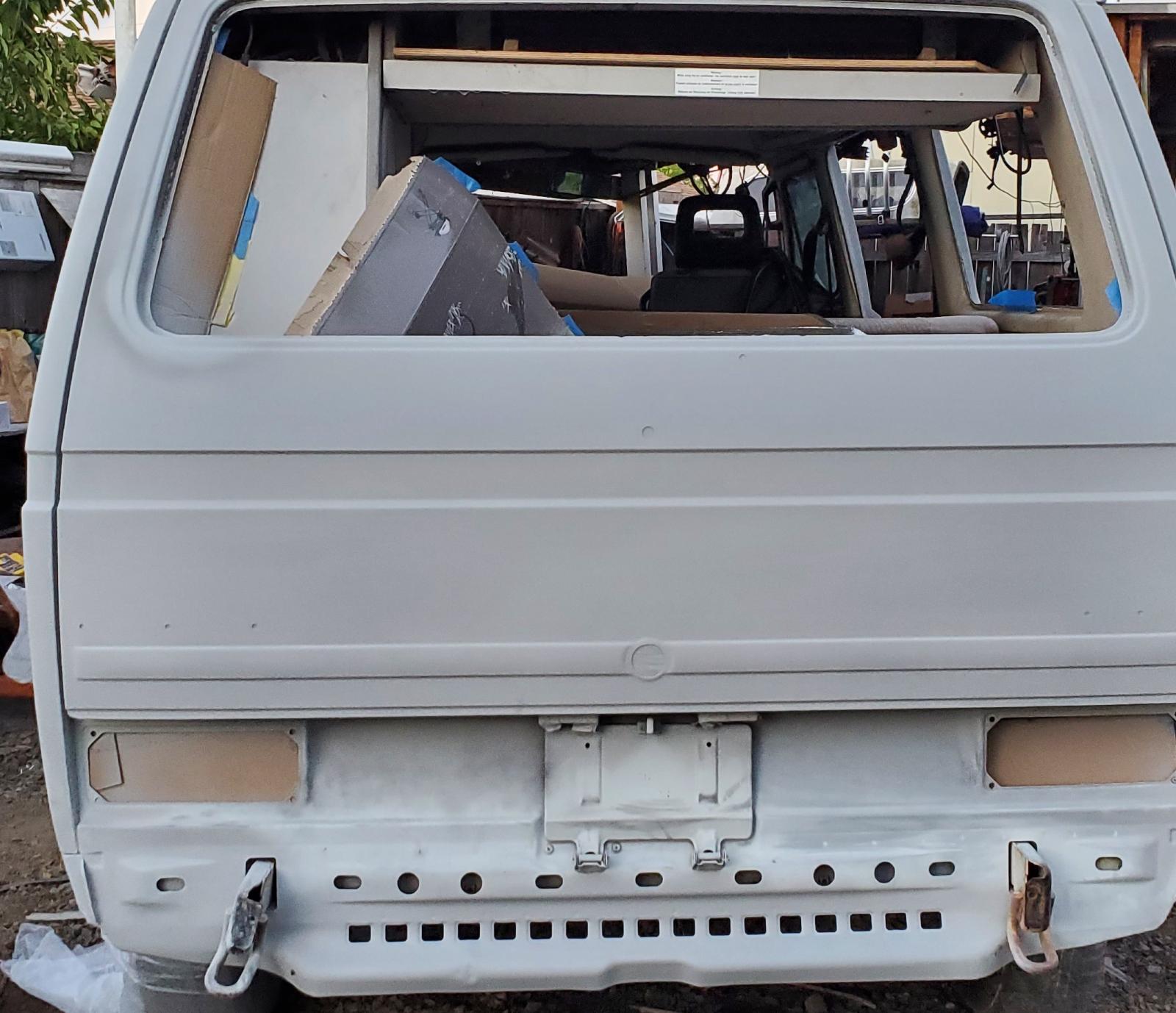

I dont know much about body work, but have a good friend who works at a body shop and for trade work he did all the prep work.

Image may have been reduced in size. Click image to view fullscreen.



Image may have been reduced in size. Click image to view fullscreen.



Image may have been reduced in size. Click image to view fullscreen.

_________________
87 VW Westfalia - EJ25
86 VW Westfalia - EJ22
85 VW Westfalia - WBX 2.1 project
Back to top
View user's profile Send private message Gallery Classifieds Feedback
skemems
Samba Member


Joined: February 23, 2017
Posts: 153
Location: Portland
skemems is offline

PostPosted: Wed Aug 24, 2022 9:23 am    Post subject: Re: Another build - 1987 Westy Reply with quote

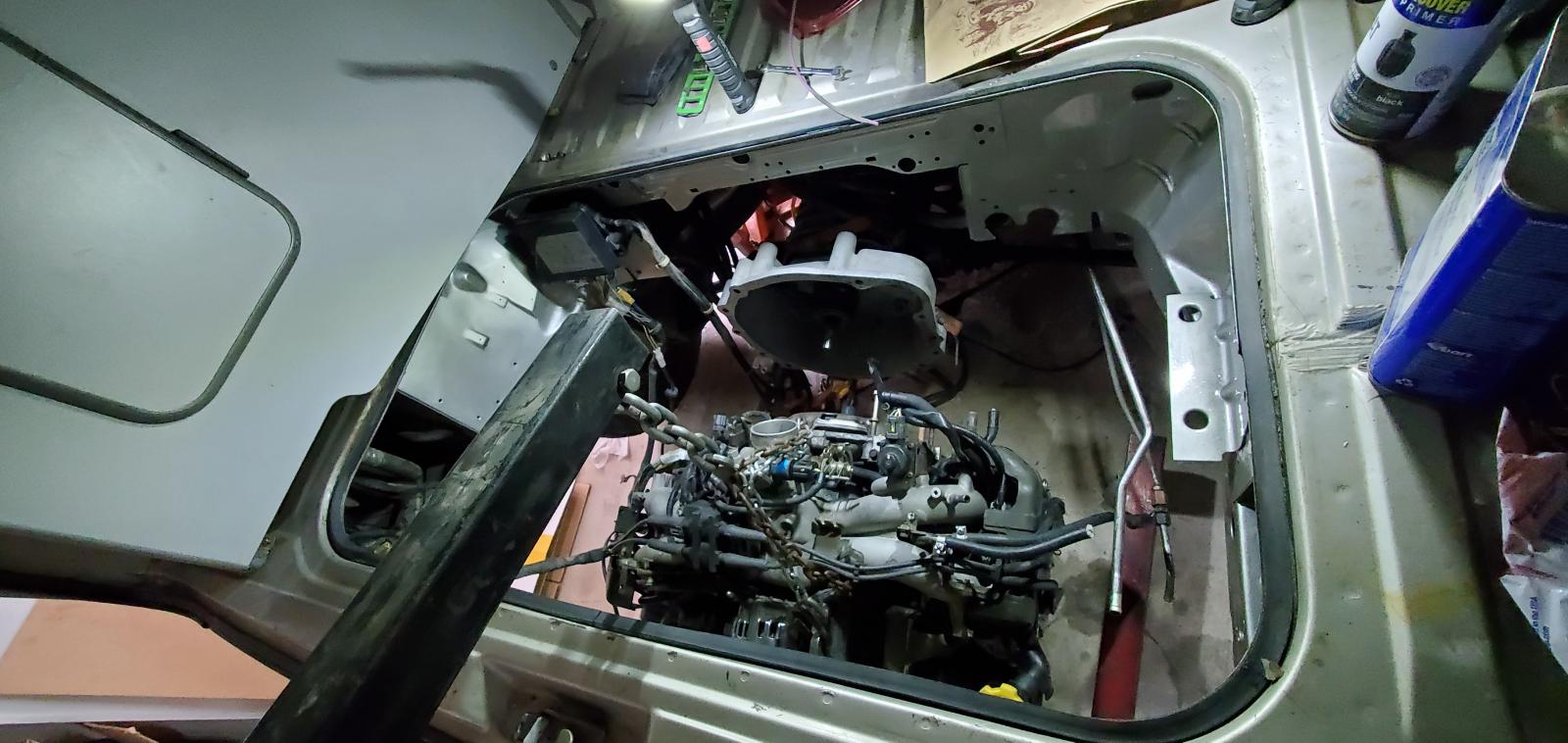

While body work is getting done. I started working on pulling motor and harness from donor subaru.

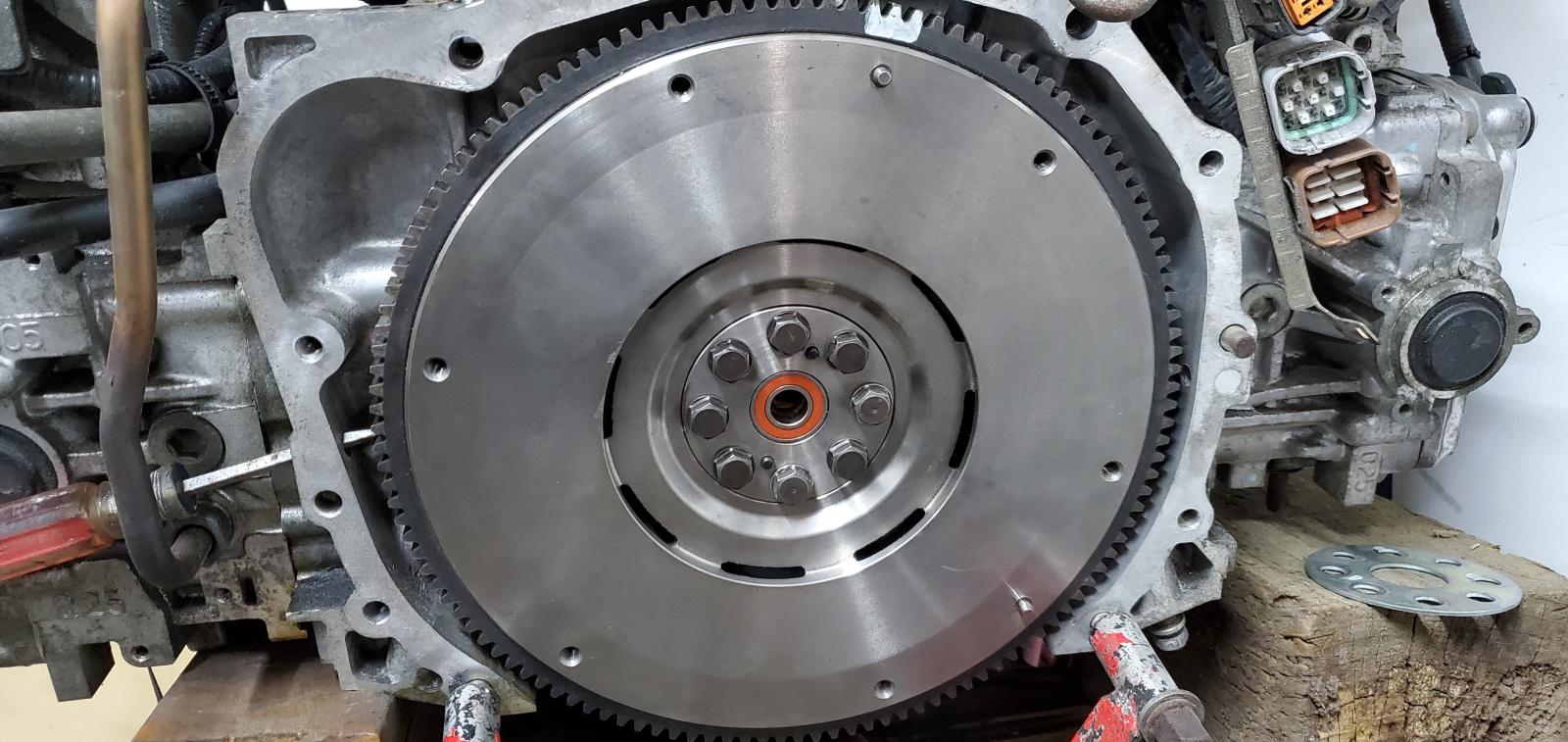

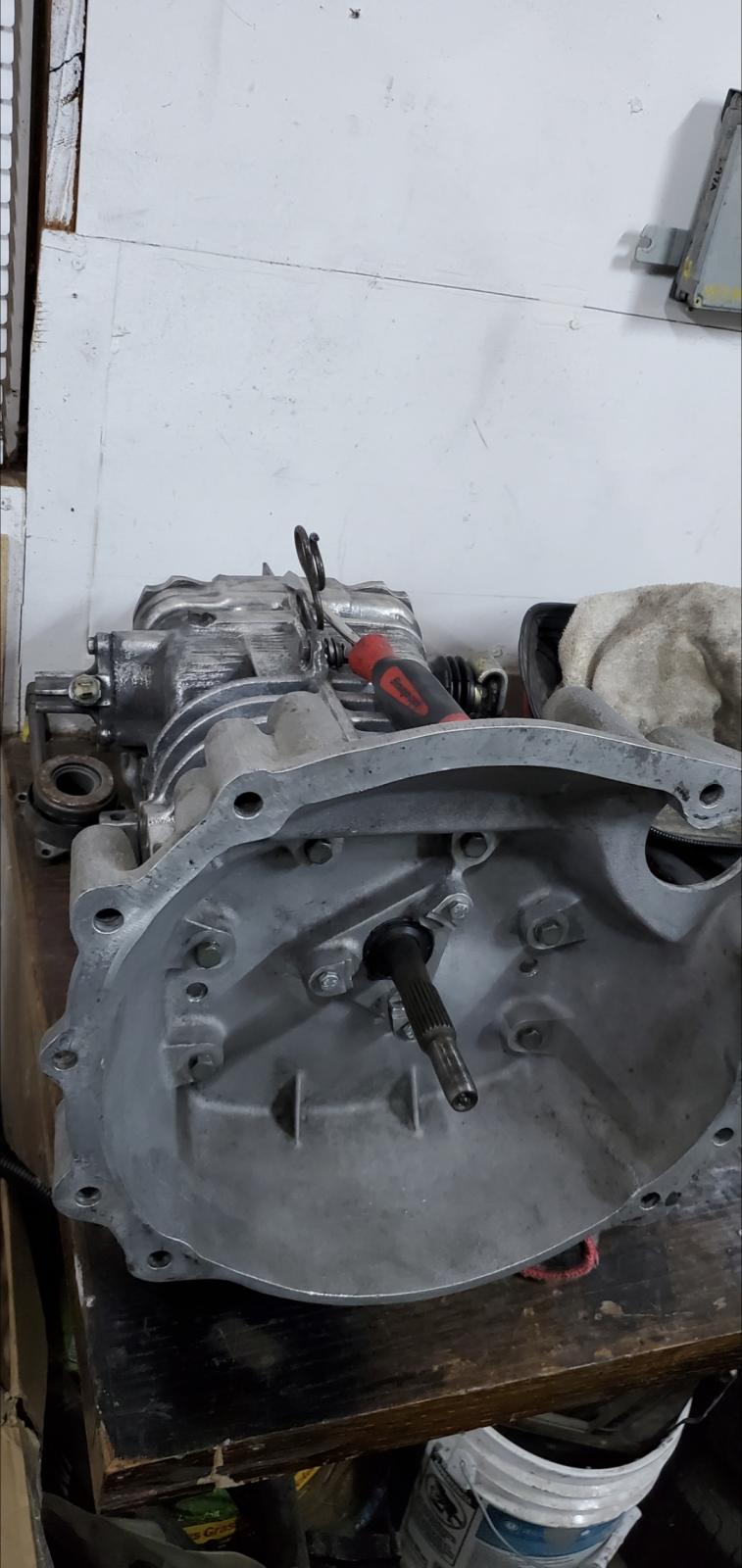

Also decided to go with small car bellhousing, headers and engine mount. I used the same setup on my dads conversion and has worked well (over 40k-50k on that conversion).

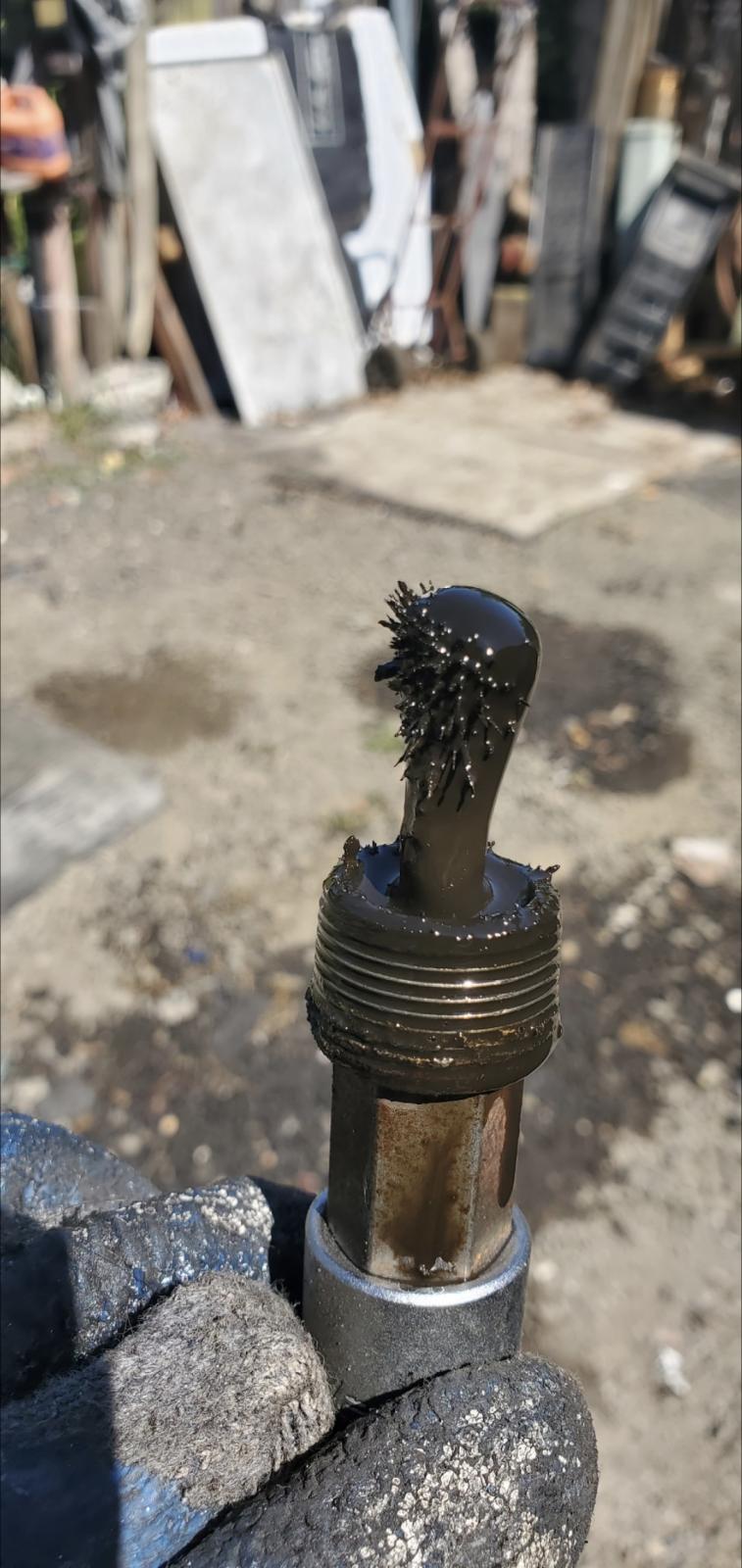

Body on this westy had 125k miles and tranny plug shows minimal wear.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Preping engine bay for paint as well.


Image may have been reduced in size. Click image to view fullscreen.

_________________
87 VW Westfalia - EJ25
86 VW Westfalia - EJ22
85 VW Westfalia - WBX 2.1 project
Back to top
View user's profile Send private message Gallery Classifieds Feedback
valvecovergasket
Samba Member


Joined: October 10, 2018
Posts: 1385
Location: pnw
valvecovergasket is offline

PostPosted: Wed Aug 24, 2022 10:52 am    Post subject: Re: Another build - 1987 Westy Reply with quote

next level west coast difficulty starting with an east coast van Laughing


in for more updates!
_________________
MegaSquirt resource - SpitfireEFI.com

'83 tdi westy - swap thread
Back to top
View user's profile Send private message Send e-mail Classifieds Feedback
skemems
Samba Member


Joined: February 23, 2017
Posts: 153
Location: Portland
skemems is offline

PostPosted: Wed Aug 24, 2022 11:19 am    Post subject: Re: Another build - 1987 Westy Reply with quote

valvecovergasket wrote:
next level west coast difficulty starting with an east coast van Laughing


It had factory underspray - so there was minimal rust on underside.

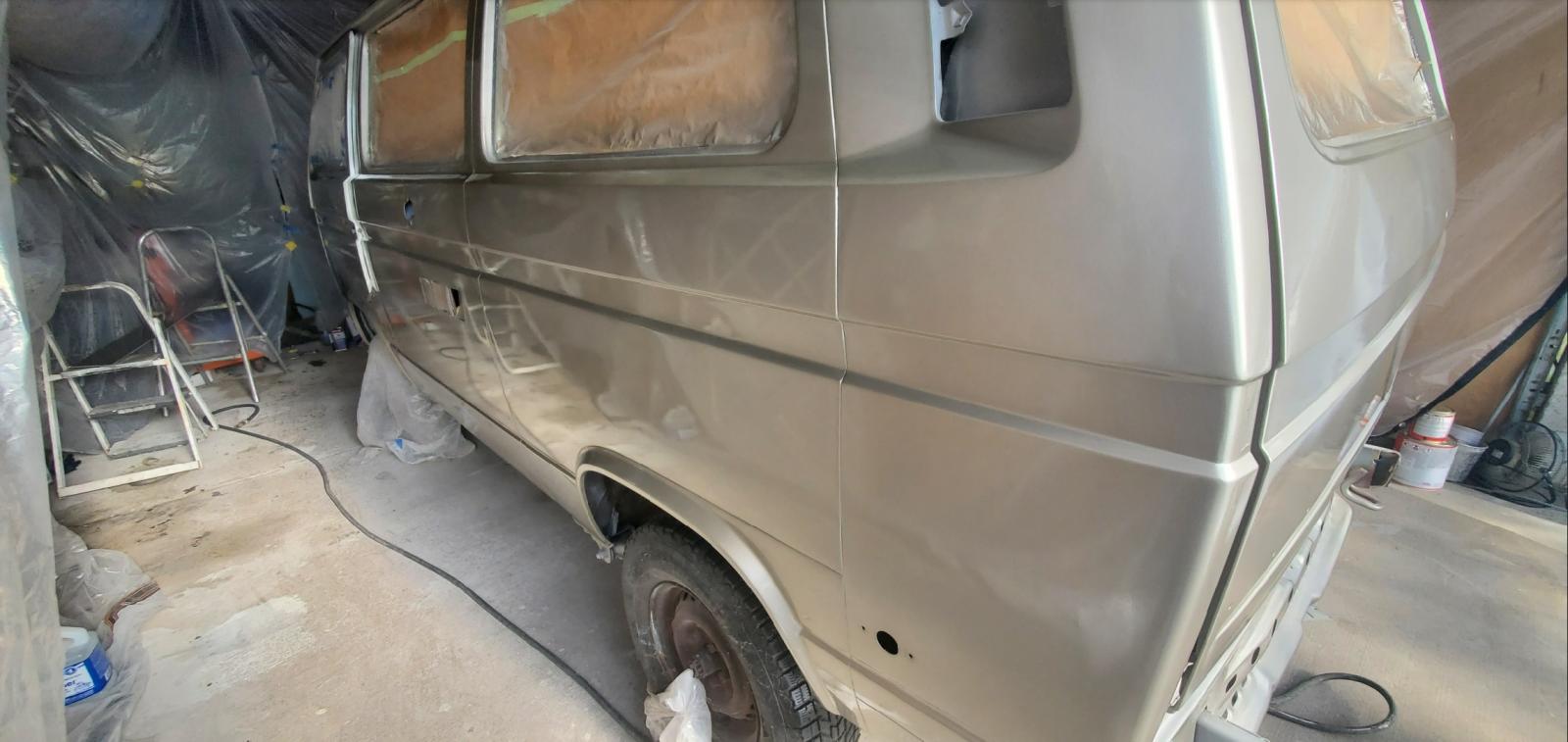

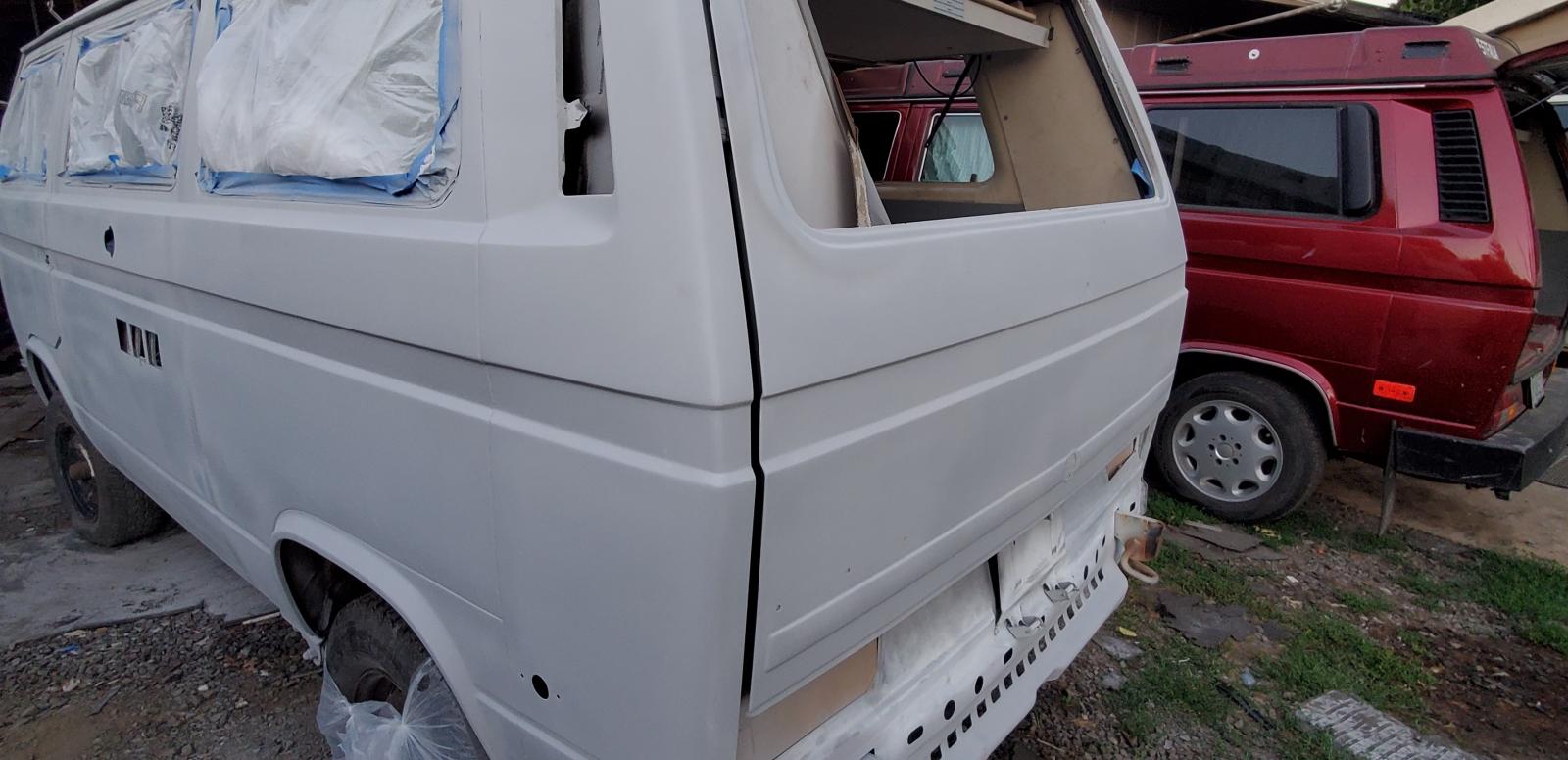

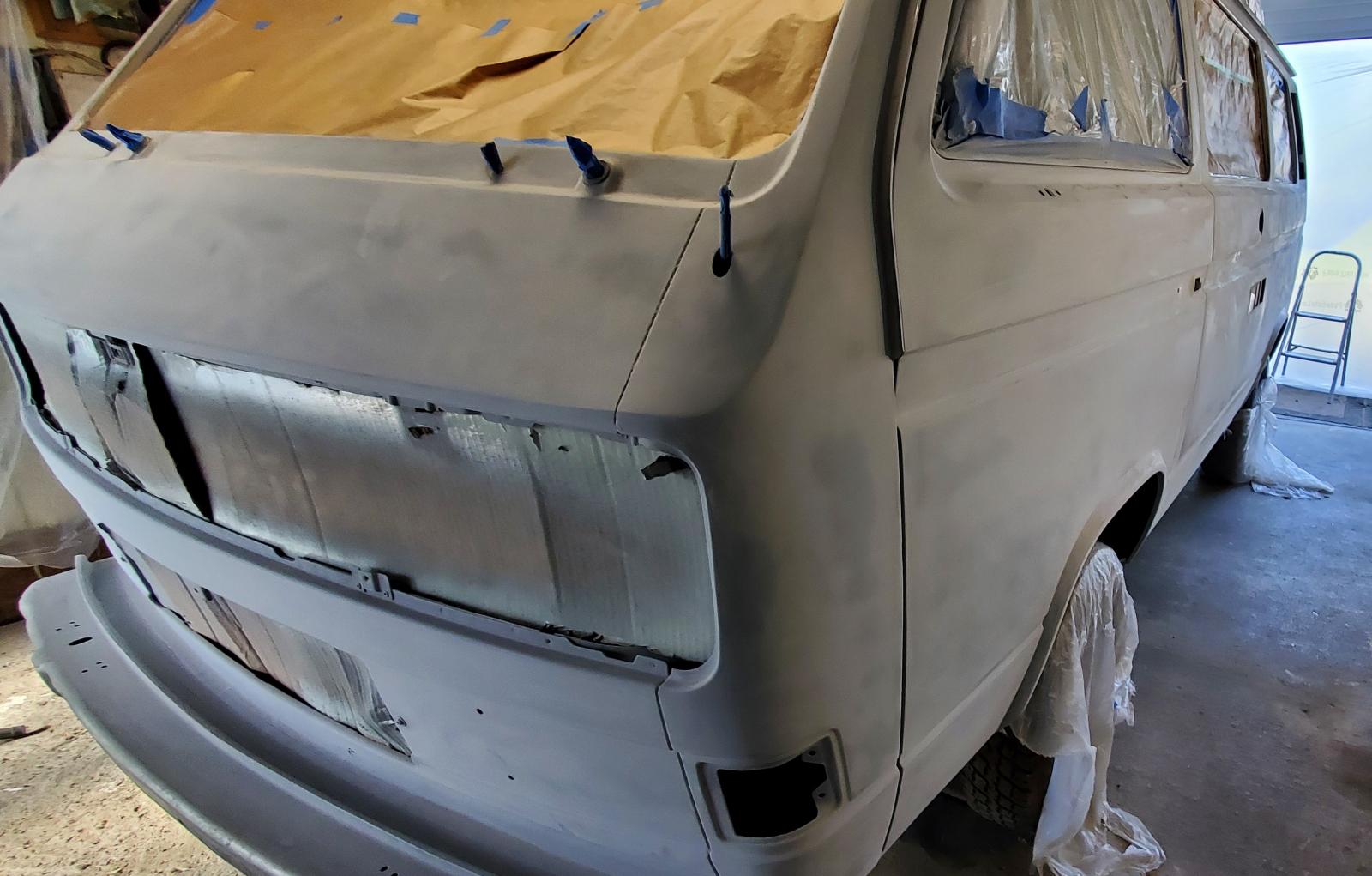

After several weeks, I brought back home from the paint booth (final cut and buff not done yet)


Image may have been reduced in size. Click image to view fullscreen.

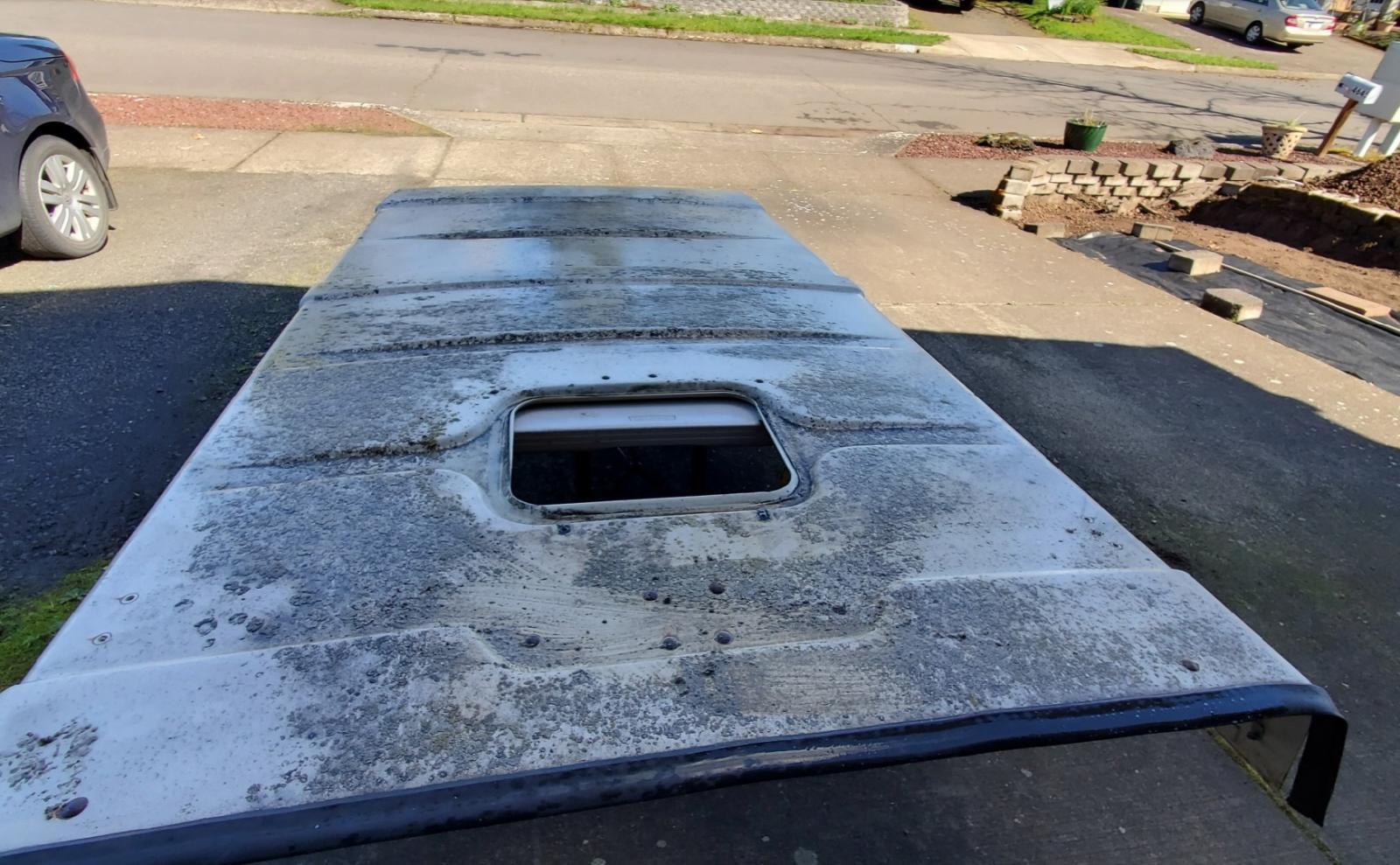

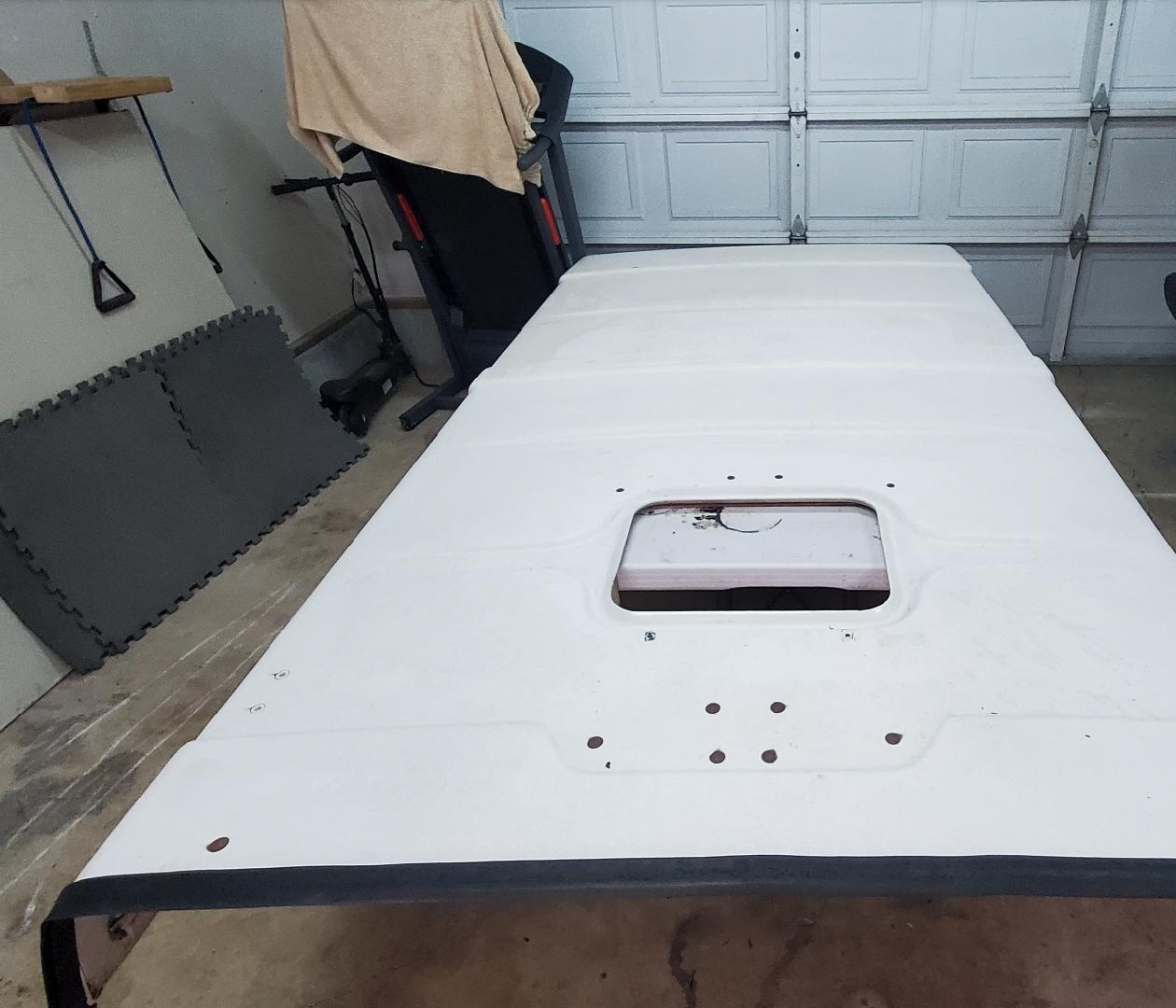

Also removed the top during body work prep and paint, and cleaned it while it was removed, a new tent was also installed.

Image may have been reduced in size. Click image to view fullscreen.



Image may have been reduced in size. Click image to view fullscreen.

_________________
87 VW Westfalia - EJ25
86 VW Westfalia - EJ22
85 VW Westfalia - WBX 2.1 project
Back to top
View user's profile Send private message Gallery Classifieds Feedback
skemems
Samba Member


Joined: February 23, 2017
Posts: 153
Location: Portland
skemems is offline

PostPosted: Wed Nov 30, 2022 11:03 am    Post subject: Re: Another build - 1987 Westy Reply with quote

I haven't updated this thread in a while. Thought I would continue to post some of the previous progress pics as I go through them.

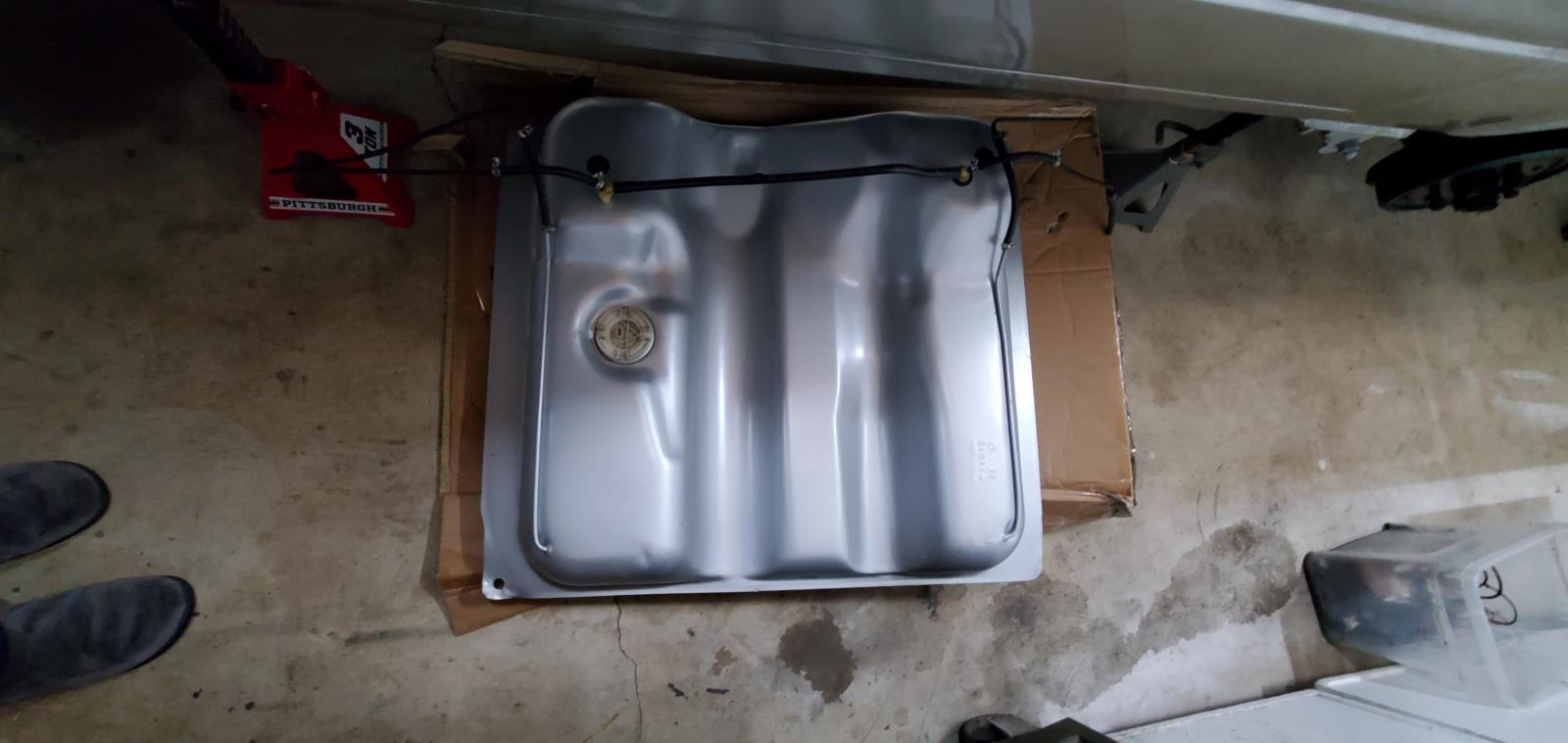

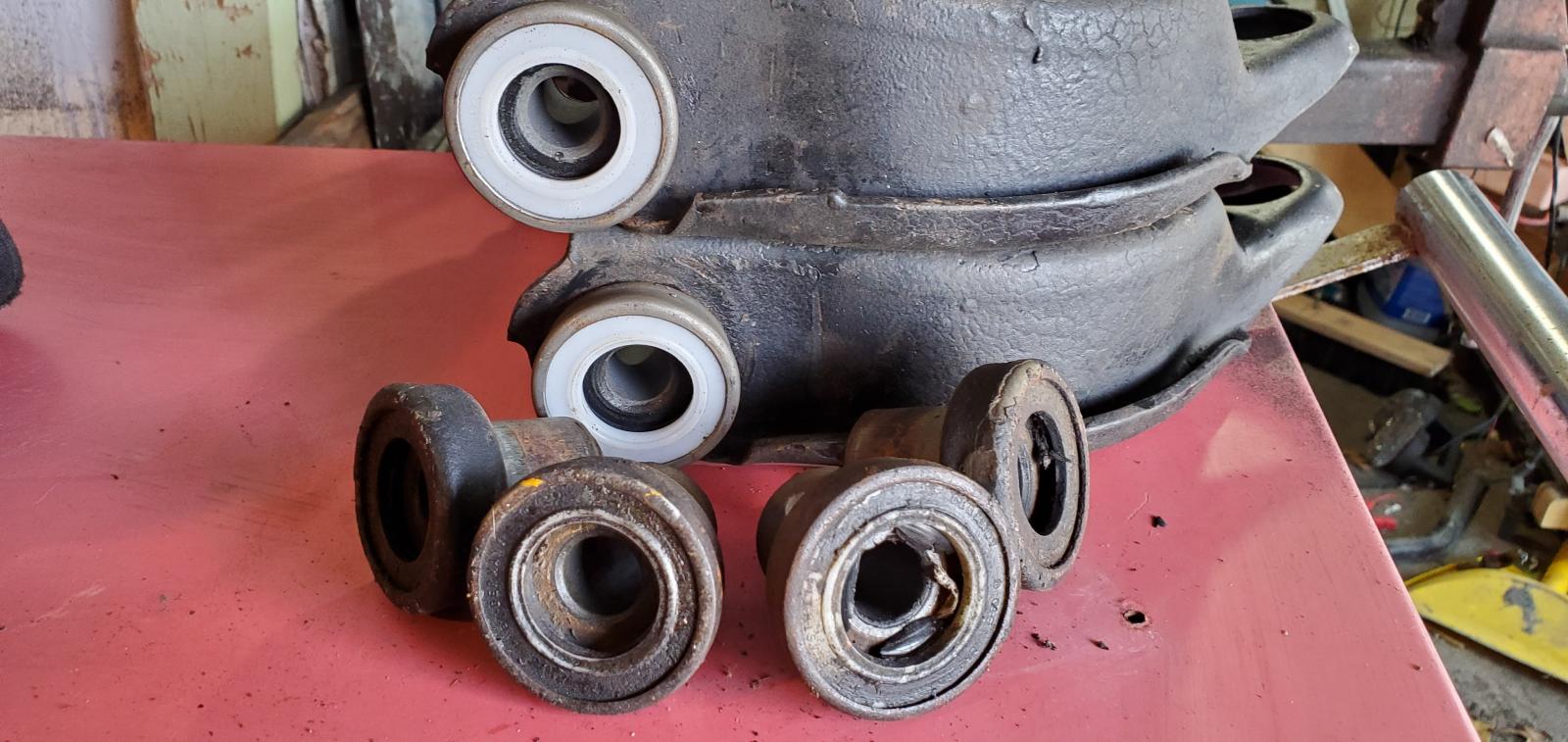

Installed new fuel tank, upper control arm bushings - LEMFOERDER brand- I had a set one hand from a previous build that I ended up using the GW kit on that one. And as I was purchasing parts for the subaru conversion, I came across and article on BurleyMotor sports website were they DONT recommend urethane bushing on upper control arms for some reason.

(https://burleymotorsports.net/technical-articles/the-making-of-burley-bushings/)

I personally have not had any issues with urethane bushings, but since I already had some lemfoerders on hand I just went with those.


Image may have been reduced in size. Click image to view fullscreen.



Image may have been reduced in size. Click image to view fullscreen.

_________________
87 VW Westfalia - EJ25
86 VW Westfalia - EJ22
85 VW Westfalia - WBX 2.1 project


Last edited by skemems on Wed Nov 30, 2022 11:08 am; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
skemems
Samba Member


Joined: February 23, 2017
Posts: 153
Location: Portland
skemems is offline

PostPosted: Wed Nov 30, 2022 11:05 am    Post subject: Re: Another build - 1987 Westy Reply with quote

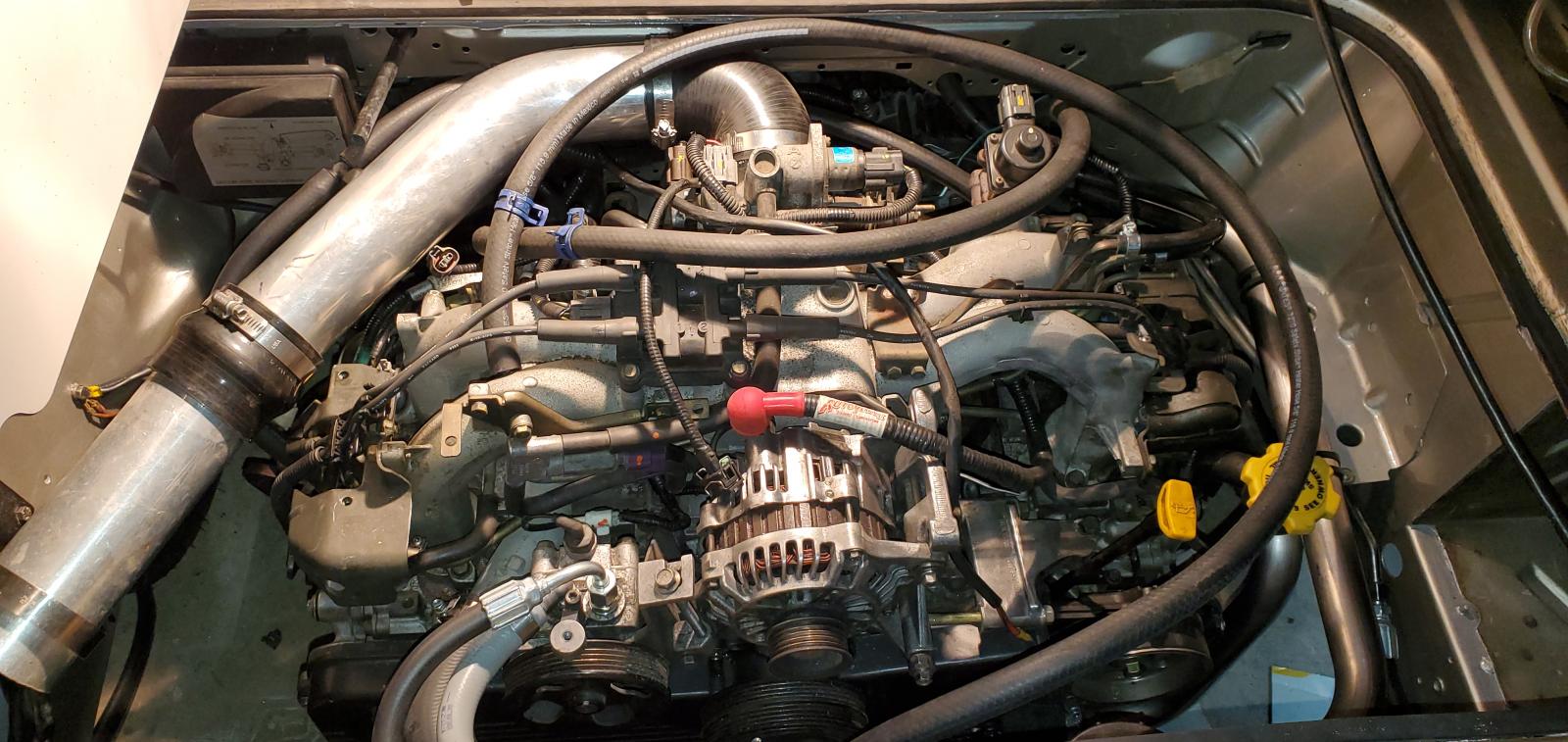

Next up was moving forward with suby 2.5 engine install.


Image may have been reduced in size. Click image to view fullscreen.



Image may have been reduced in size. Click image to view fullscreen.



Image may have been reduced in size. Click image to view fullscreen.

_________________
87 VW Westfalia - EJ25
86 VW Westfalia - EJ22
85 VW Westfalia - WBX 2.1 project
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vino de vano
Samba Member


Joined: September 10, 2016
Posts: 355
Location: columbia gorge
vino de vano is offline

PostPosted: Wed Nov 30, 2022 2:56 pm    Post subject: Re: Another build - 1987 Westy Reply with quote

Looking goooood
_________________
what a long strange trip it's been
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Sodo
Samba Member


Joined: July 06, 2007
Posts: 8494
Location: Western WA
Sodo is offline

PostPosted: Wed Nov 30, 2022 3:44 pm    Post subject: Re: Another build - 1987 Westy Reply with quote

How about the clutch pedal mod for that smallcar bellhousing?
_________________


two vans:'90 Westy with '07 EJ25 '12 longblock, 3-knobber, F&R Peloquin TDBs, pressure oiled transaxle mainshaft & pinion bearing, with cooler & filtration. 150Ah LiFePO
'87 Tintop with 47k, '12 SmallCar EJ25, Peloquin front
....KTMs, GasGas, and a Stumpjumper
Back to top
View user's profile Send private message Gallery Classifieds Feedback
skemems
Samba Member


Joined: February 23, 2017
Posts: 153
Location: Portland
skemems is offline

PostPosted: Wed Nov 30, 2022 5:46 pm    Post subject: Re: Another build - 1987 Westy Reply with quote

Sodo wrote:
How about the clutch pedal mod for that smallcar bellhousing?


I just used the clutch spacer smallcar provides, its been working fine and personally dont mind the clutch feel.

Did you ever get your issue resolved? I remember your post below that it still overextended the slave.

(https://www.thesamba.com/vw/forum/viewtopic.php?t=770212&postdays=0&postorder=asc&start=6)
_________________
87 VW Westfalia - EJ25
86 VW Westfalia - EJ22
85 VW Westfalia - WBX 2.1 project
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Sodo
Samba Member


Joined: July 06, 2007
Posts: 8494
Location: Western WA
Sodo is offline

PostPosted: Wed Nov 30, 2022 11:36 pm    Post subject: Re: Another build - 1987 Westy Reply with quote

skemems wrote:
Sodo wrote:
How about the clutch pedal mod for that smallcar bellhousing?


I just used the clutch spacer smallcar provides, its been working fine and personally dont mind the clutch feel.
Did you ever get your issue resolved? I remember your post below that it still overextended the slave.
(https://www.thesamba.com/vw/forum/viewtopic.php?t=770212&postdays=0&postorder=asc&start=6)


I think it overextended the slave because the clutch disc was new and the pressure-plate fingers start 'farther in' which means the slave 'start point' is 'farther out'. And then a proper 'amount' of fluid can over-extend the slave.

Whereas on my other van, the clutch disc was 40,000 miles old.
So the old clutch disc did not need the spacer.
But on the other van (new clutch) the new disc is thicker so it needs the spacer.
You can bet I'm putting the spacer on the old van now!

Does this make sense?

The spacer still limits the amount of fluid.
But the pedal modulates much better within that stroke.
If your clutch pedal clevis pin is worn, you have to address that someday and can drill a new hole at that time?

SOMEDAY I will measure the volumes and see if there is a pedal-pivot offset that truly eliminates the spacer.
And that would result in the softest, smoothest clutch action there is.👍🏽🙏🏽

Image may have been reduced in size. Click image to view fullscreen.

Here is a related problem I worked on with someone else, but I can't recall who it was or what forum.
I think the guy installed a disc that was too thick and it caused the slave to over-extend.
To make sense of this you have to 'read it in the sequence' of the circled numbers.
If the disc is too thick, it can set the diaphagm spring on the pressure plate too far 'down' which in turn causes the slave start position to be too far extended.
Where a normal amount of fluid drives the slave past its limit.

So the takeaway here is, for the concentric slave/bearing, do NOT use a disc that's too thick.

What we need is a "pressure plate finger depth measurement" that ensures the slave won't be over-extended.

I hope this is understood.
It's not easy to type this problem with clarity.

The key is --- the slave bearing riding on the pressure plate fingers is 'the start point' of the slave cylinder extension.
If it starts too far extended, it will be driven past the stops.
_________________


two vans:'90 Westy with '07 EJ25 '12 longblock, 3-knobber, F&R Peloquin TDBs, pressure oiled transaxle mainshaft & pinion bearing, with cooler & filtration. 150Ah LiFePO
'87 Tintop with 47k, '12 SmallCar EJ25, Peloquin front
....KTMs, GasGas, and a Stumpjumper
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jimf909 Premium Member
Samba Member


Joined: April 03, 2014
Posts: 6712
Location: WA/ID
jimf909 is offline

PostPosted: Thu Dec 01, 2022 6:19 am    Post subject: Re: Another build - 1987 Westy Reply with quote

skemems wrote:
I haven't updated this thread in a while.



Holy Toledo, this looks like a fun project. Am I seeing correctly that this is a total repaint from Pastel White to Flash Silver Metallic? Savannah Beige Metallic? Something else?

Image may have been reduced in size. Click image to view fullscreen.

_________________
- Jim

Abscate wrote:
Do not get killed, do not kill others.


Current: 1990 Westy Camper - Bostig RG4, 2wd, manual trans w/Peloquin, NAHT high-top, Flash Silver, seam rust, bondo, etc., etc.

Past: 1985 Westy Camper - 1.9 wbx, 2wd, manual trans, Merian Brown, (sold after 17 years to Northwesty who converted it to a Syncro).
Back to top
View user's profile Send private message Gallery Classifieds Feedback
skemems
Samba Member


Joined: February 23, 2017
Posts: 153
Location: Portland
skemems is offline

PostPosted: Thu Dec 01, 2022 3:34 pm    Post subject: Re: Another build - 1987 Westy Reply with quote

Sodo wrote:

Does this make sense?

Completely, thanks.

Sodo wrote:

If your clutch pedal clevis pin is worn, you have to address that someday and can drill a new hole at that time?

Yes thats the plan.

Sodo wrote:

SOMEDAY I will measure the volumes and see if there is a pedal-pivot offset that truly eliminates the spacer.
And that would result in the softest, smoothest clutch action there is.👍🏽🙏🏽


Yes, let us know when you do. This allow to test the redrill of the clevis to ensure correct fluid volume.
_________________
87 VW Westfalia - EJ25
86 VW Westfalia - EJ22
85 VW Westfalia - WBX 2.1 project
Back to top
View user's profile Send private message Gallery Classifieds Feedback
skemems
Samba Member


Joined: February 23, 2017
Posts: 153
Location: Portland
skemems is offline

PostPosted: Thu Dec 01, 2022 3:38 pm    Post subject: Re: Another build - 1987 Westy Reply with quote

jimf909 wrote:
skemems wrote:
I haven't updated this thread in a while.

Holy Toledo, this looks like a fun project. Am I seeing correctly that this is a total repaint from Pastel White to Flash Silver Metallic? Savannah Beige Metallic? Something else?


Respray of original Flash Silver Metallic. When purchased it had primer, so I kept original color. Didnít want to deal with respraying interior, plus I really like Flash Silver Metallic.


Image may have been reduced in size. Click image to view fullscreen.

_________________
87 VW Westfalia - EJ25
86 VW Westfalia - EJ22
85 VW Westfalia - WBX 2.1 project
Back to top
View user's profile Send private message Gallery Classifieds Feedback
DuncanS
Samba Member


Joined: October 17, 2013
Posts: 4003
Location: New Hampshire
DuncanS is offline

PostPosted: Thu Dec 01, 2022 4:02 pm    Post subject: Re: Another build - 1987 Westy Reply with quote

Had a Silver Flash. My favorite color.

Duncan
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
