85 Weekender AC overhaul
Page: 1, 2, 3  Next
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
AZ Landshaper
Samba Member


Joined: February 08, 2009
Posts: 1693
Location: The Old Pueblo
AZ Landshaper is offline

PostPosted: Sun May 03, 2020 5:27 pm    Post subject: 85 Weekender AC overhaul Reply with quote

Im disassembling my van in an effort to access all the AC components. This afternoon I brushed off a very resistant hangover and began removing the overhead cabinet, the evaporator and expansion valve.

1st thing I noticed as is par for the course with this van....The PO had already been in the cabinet and this guy was not a fan of tightening nuts and bolts or replacing all the parts. I removed the hand tight hardware and dropped the cabinet. The expansion valve appears to be a replacement and has an r134a sticker attached. It looks fairly new.
The hoses dont look that old either. Is there a way to determine if these are original hoses before I get too deep into the removal process. Would there be a diff in diameter or appearance? My hoses are labeled in standard measurements, not sure this matters. They also don't show a lot of wear or signs of being dried out as one might expect from an AZ vanagon.

Ill post pics. in a few mins.
_________________
Support Small Business.

-------------------------------------------------------
85 Weekender w/ EJ22
Previously
64, 71, 72, 73, 76, 81, 84, 85 & 87 Campmobiles and Westfalias
and a 67 bug.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev Premium Member
Samba Moderator


Joined: September 30, 2007
Posts: 31989
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Sun May 03, 2020 5:34 pm    Post subject: Re: 85 Weekender AC overhaul Reply with quote

Generally, the sidewalls of newer hoses are much thinner, hence the hoses are a smaller diameter.


Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
AZ Landshaper
Samba Member


Joined: February 08, 2009
Posts: 1693
Location: The Old Pueblo
AZ Landshaper is offline

PostPosted: Sun May 03, 2020 5:53 pm    Post subject: Re: 85 Weekender AC overhaul Reply with quote

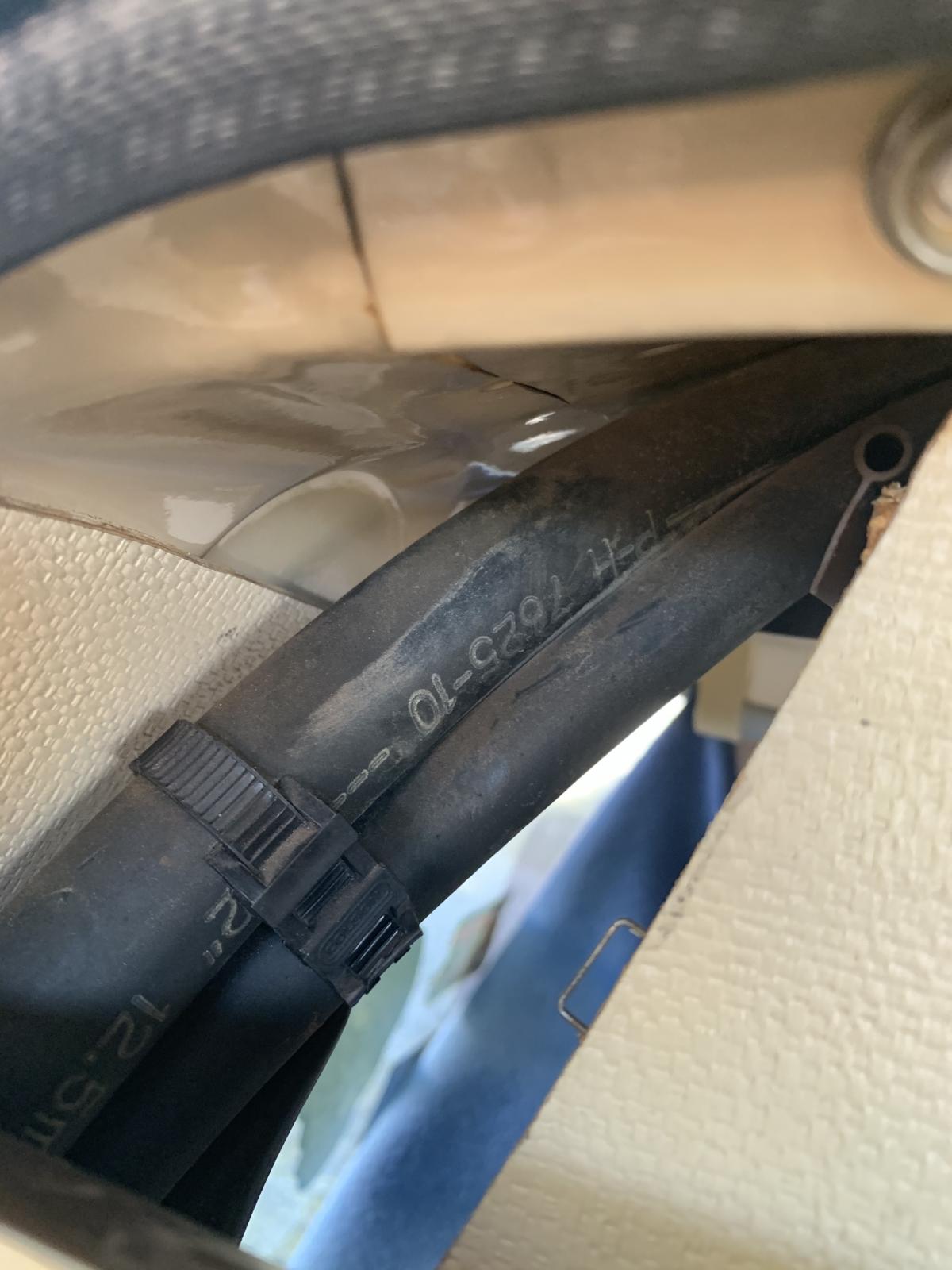

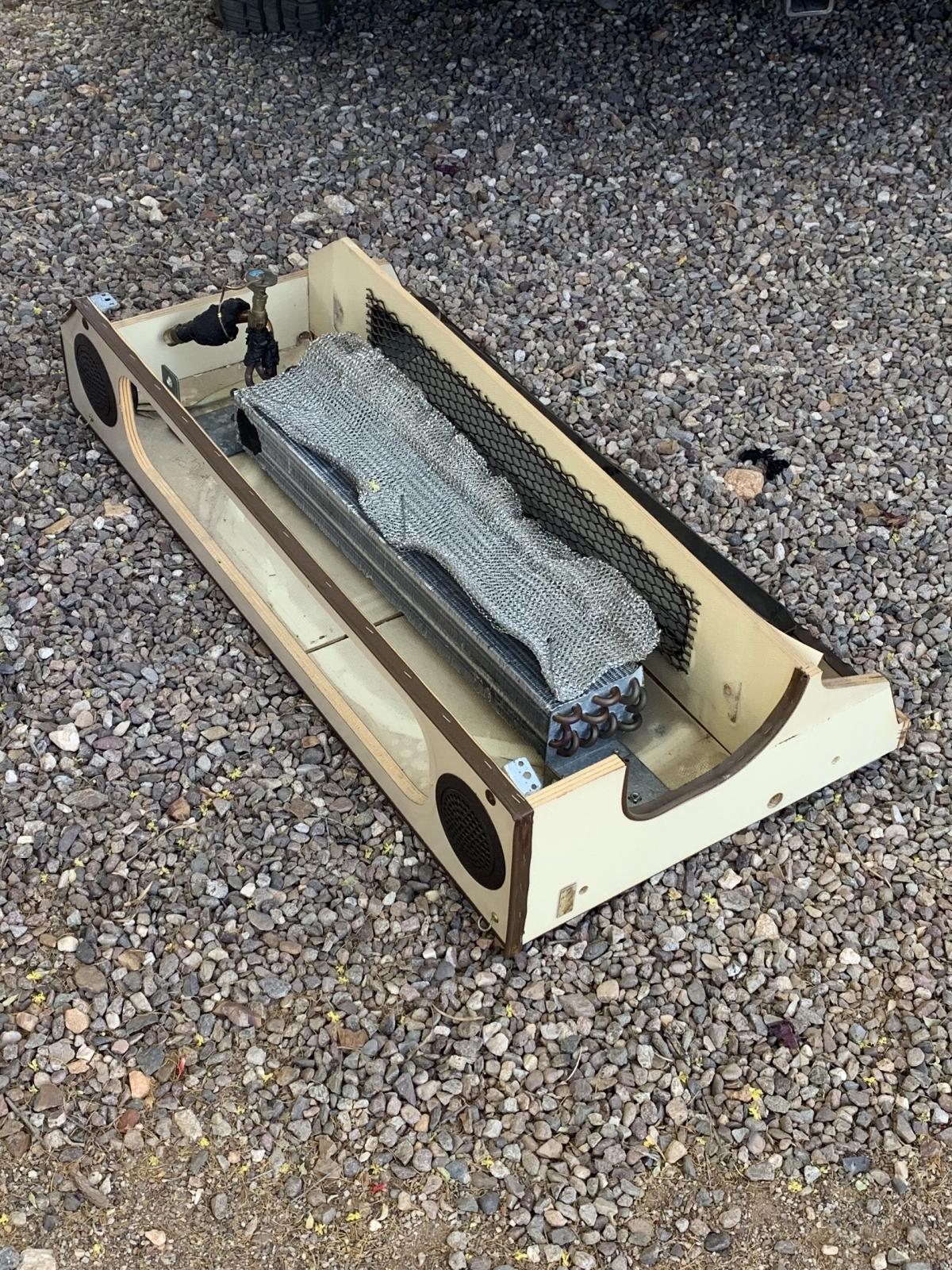

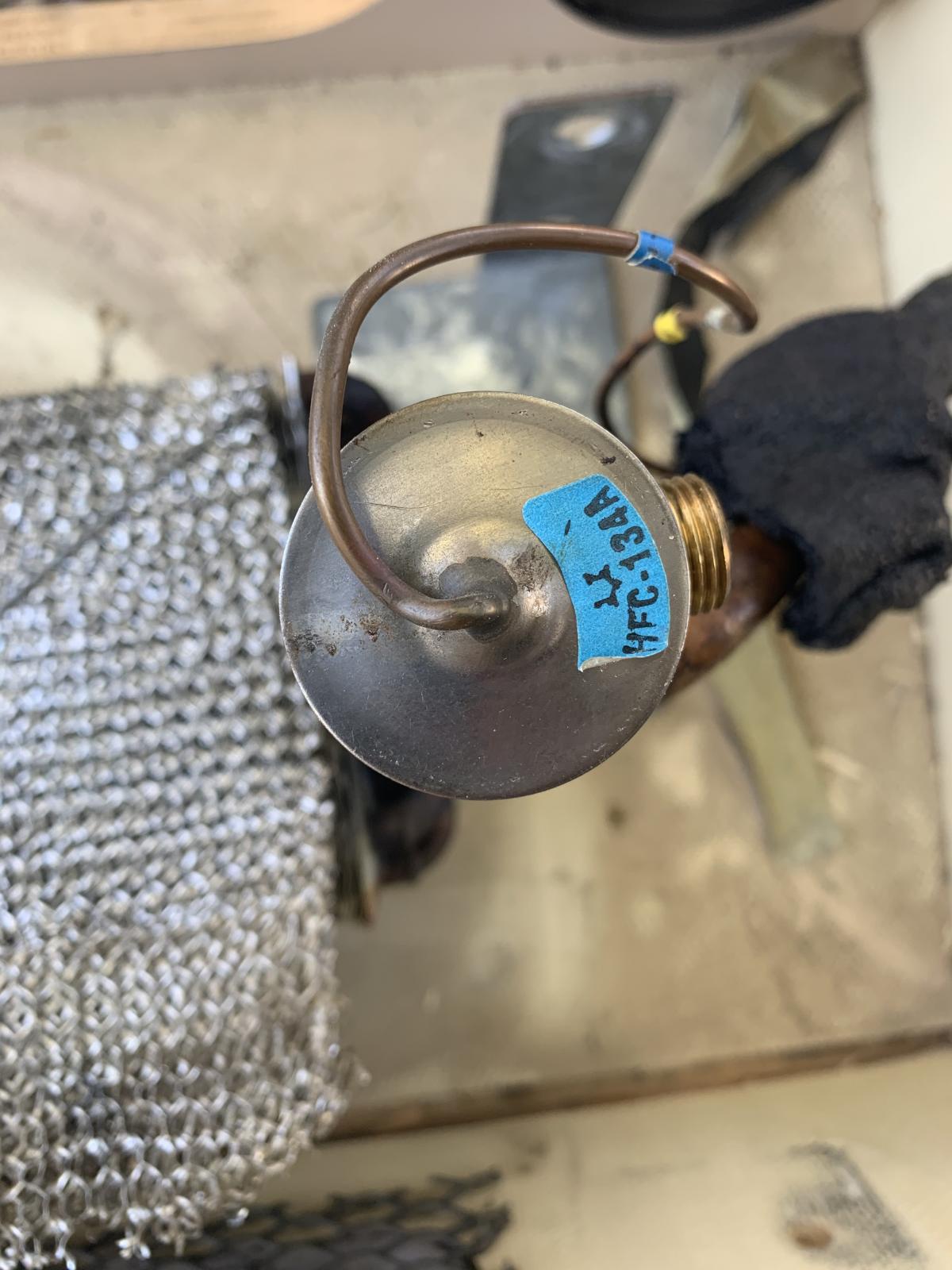

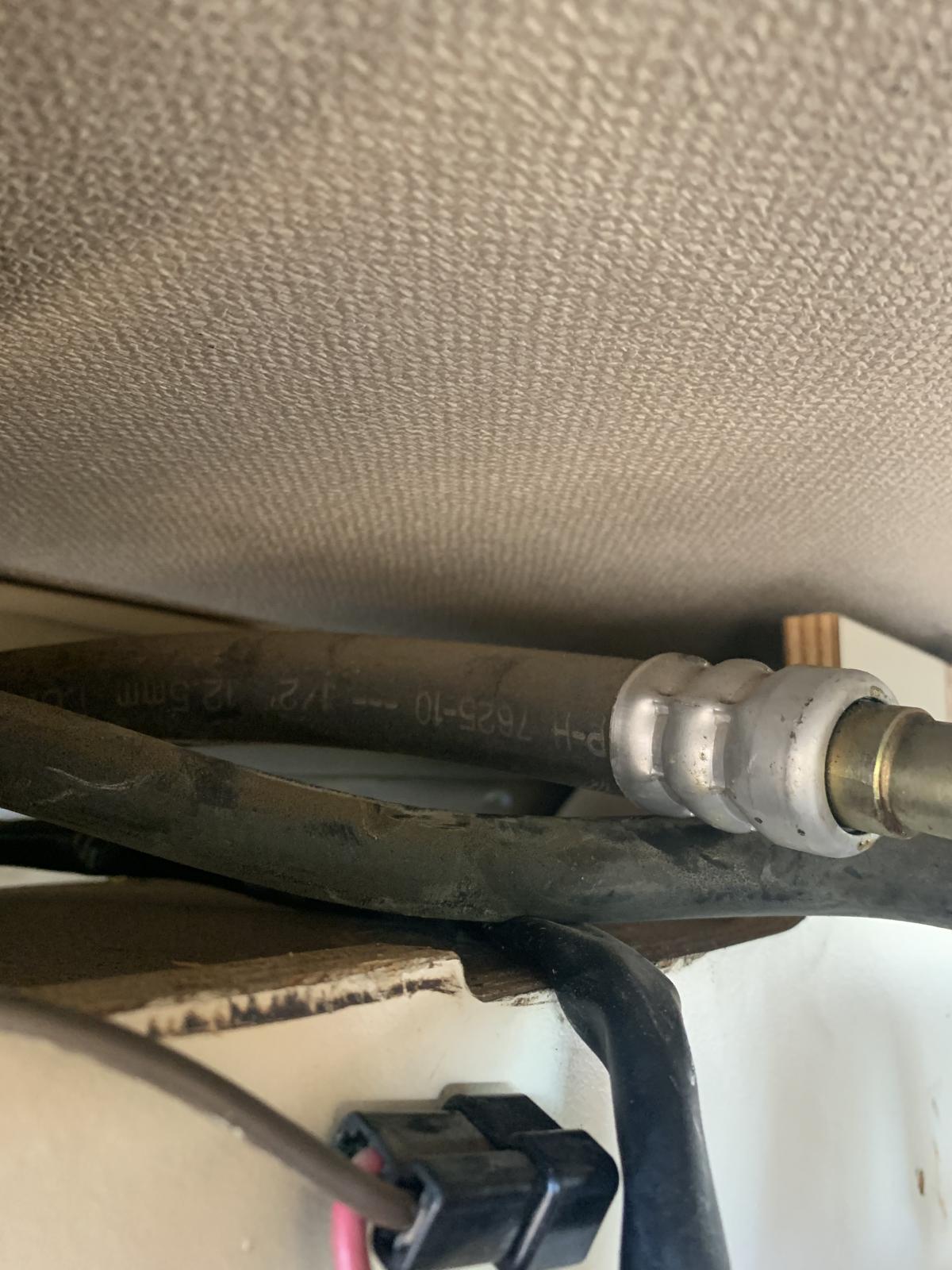

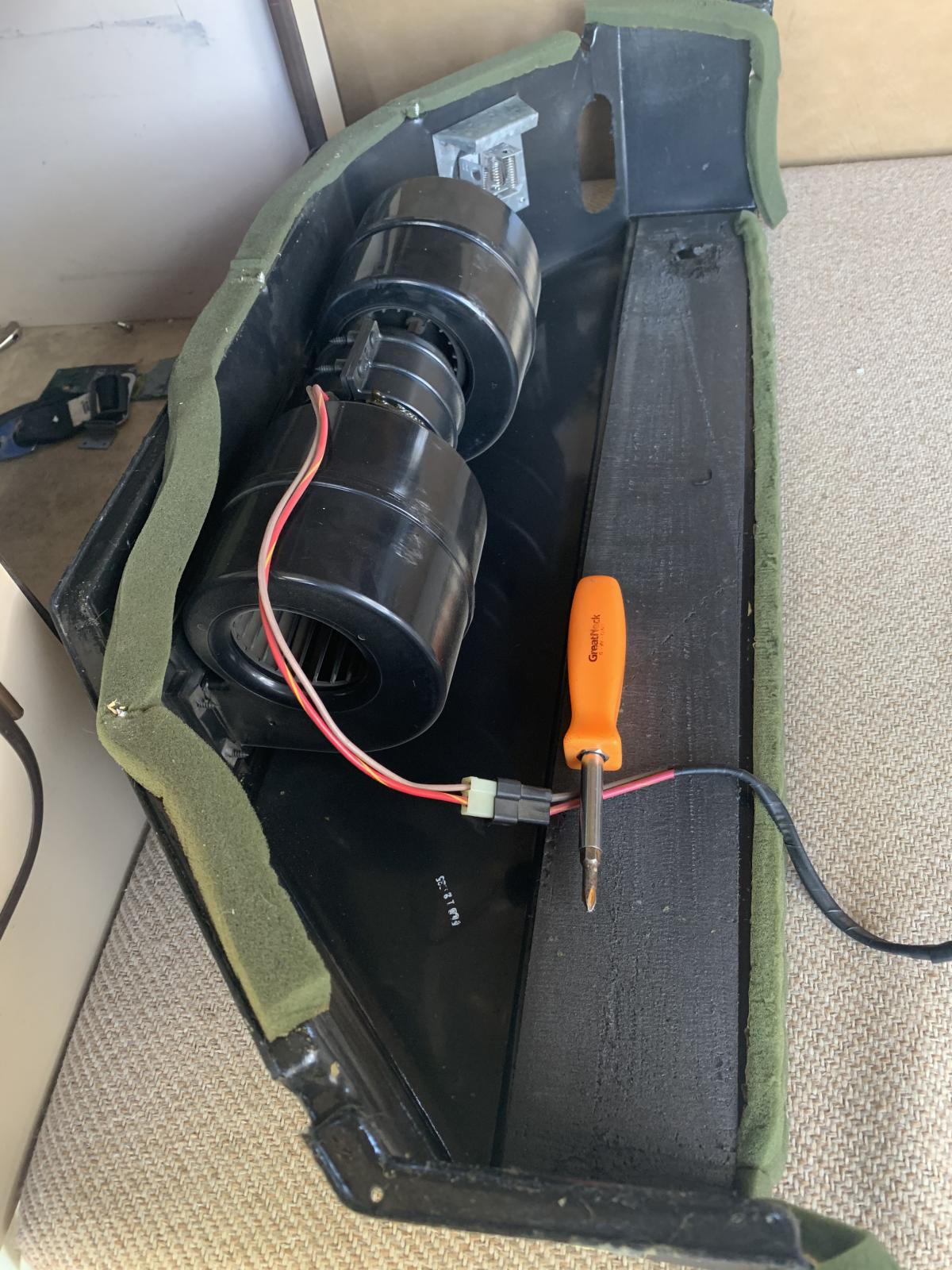

Smack! Iím no longer hopeful but hereís the pics. Just loaded them all. I realize a few wonít tell us much
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Support Small Business.

-------------------------------------------------------
85 Weekender w/ EJ22
Previously
64, 71, 72, 73, 76, 81, 84, 85 & 87 Campmobiles and Westfalias
and a 67 bug.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
AZ Landshaper
Samba Member


Joined: February 08, 2009
Posts: 1693
Location: The Old Pueblo
AZ Landshaper is offline

PostPosted: Sun May 17, 2020 11:09 am    Post subject: can wires in white engine connectors be removed and replaced?? Reply with quote

So it turns out that my AC guy thinks my AC hoses are not that old. We decided to leave the line from the receiver drier to the expansion valve and the line from the condenser to the drier. Ive flushed those hoses, the condenser, the evaporator and the expansion valve (by itself off the van). Ive replaced the drier and am in the process of pulling the compressor to drain and refill the PAG oil.



While dicking around under there I had a mishap Rolling Eyes

Accidentally toasted a ground coming from my 4 pin connector.

Anyone know if the wire can be removed and replaced. Its the ground between the two white connectors. If removable it could be a quick fix. Do these connectors come apart. I searched but didnt find anything in 30 mins.

Appreciate your thoughts.
Image may have been reduced in size. Click image to view fullscreen.

_________________
Support Small Business.

-------------------------------------------------------
85 Weekender w/ EJ22
Previously
64, 71, 72, 73, 76, 81, 84, 85 & 87 Campmobiles and Westfalias
and a 67 bug.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jlrftype7
Samba Member


Joined: July 24, 2018
Posts: 3457
Location: Chicago
jlrftype7 is offline

PostPosted: Sun May 17, 2020 11:55 am    Post subject: Re: can wires in white engine connectors be removed and replaced?? Reply with quote

AZ Landshaper wrote:
So it turns out that my AC guy thinks my AC hoses are not that old. We decided to leave the line from the receiver drier to the expansion valve and the line from the condenser to the drier. Ive flushed those hoses, the condenser, the evaporator and the expansion valve (by itself off the van). Ive replaced the drier and am in the process of pulling the compressor to drain and refill the PAG oil.



While dicking around under there I had a mishap Rolling Eyes

Accidentally toasted a ground coming from my 4 pin connector.

Anyone know if the wire can be removed and replaced. Its the ground between the two white connectors. If removable it could be a quick fix. Do these connectors come apart. I searched but didnt find anything in 30 mins.

Appreciate your thoughts.
Image may have been reduced in size. Click image to view fullscreen.
. Round Pin?
Usually a round pin removal tool make short work of depressing the little tabs that hold the pin into the connector body, then a plunger thatís inside the hollow portion of the round tab depressing part, pushes the pin out of the connector. You just need the right size removal tool , they are a bit pricier than flat pin removal tools since thereís more to them.
_________________
'68 Westy- my first VW and vehicle/Bus- long gone.- sold it to a traveling Swiss couple....
'67 Type 3 Fastback, my 2nd car- gone
'69 Semi-Auto Stick Shift Beetle-gone
2017 MINI Coopers, our current DDs
Ď84 Tin Top - Hilga....Auto
Back to top
View user's profile Send private message Gallery Classifieds Feedback
AZ Landshaper
Samba Member


Joined: February 08, 2009
Posts: 1693
Location: The Old Pueblo
AZ Landshaper is offline

PostPosted: Sun May 17, 2020 12:13 pm    Post subject: Re: 85 Weekender AC overhaul Reply with quote

Something u buy at Napa?
_________________
Support Small Business.

-------------------------------------------------------
85 Weekender w/ EJ22
Previously
64, 71, 72, 73, 76, 81, 84, 85 & 87 Campmobiles and Westfalias
and a 67 bug.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
AZ Landshaper
Samba Member


Joined: February 08, 2009
Posts: 1693
Location: The Old Pueblo
AZ Landshaper is offline

PostPosted: Sun May 17, 2020 4:50 pm    Post subject: where are the 85 AC relays. (Not behind closet). Reply with quote

Wiring repaired using a Macdonaldís straw to remove the old pin.

Anyone know where the relays and such are in the 85 AC system. Thereís nothing behind my closet but two hoses and a small wiring loom headed to the evap and blower. 1985 Relays location?
_________________
Support Small Business.

-------------------------------------------------------
85 Weekender w/ EJ22
Previously
64, 71, 72, 73, 76, 81, 84, 85 & 87 Campmobiles and Westfalias
and a 67 bug.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ahwahnee
Samba Member


Joined: June 05, 2010
Posts: 9697
Location: Mt Lemmon, AZ
Ahwahnee is offline

PostPosted: Sun May 17, 2020 6:25 pm    Post subject: Re: where are the 85 AC relays. (Not behind closet). Reply with quote

AZ Landshaper wrote:
...Anyone know where the relays and such are in the 85 AC system...


On my 84 they are behind the upper grille on the left hand (drivers) side.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
khughes
Samba Member


Joined: July 13, 2013
Posts: 696
Location: Phoenix AZ
khughes is offline

PostPosted: Mon May 18, 2020 6:46 am    Post subject: Re: where are the 85 AC relays. (Not behind closet). Reply with quote

AZ Landshaper wrote:
Wiring repaired using a Macdonaldís straw to remove the old pin.

Anyone know where the relays and such are in the 85 AC system. Thereís nothing behind my closet but two hoses and a small wiring loom headed to the evap and blower. 1985 Relays location?


If it's dealer installed (single AC control on left side of steering column) all the relays should be under the dash. If you have the 3-speed fan the relays are likely attached to the fuse panel.
_________________
'86 Westy FAS GenV Turbo (Marvin)
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Westified
Samba Member


Joined: May 01, 2012
Posts: 398
Location: Miami, FL
Westified is offline

PostPosted: Mon May 18, 2020 8:19 am    Post subject: Re: 85 Weekender AC overhaul Reply with quote

On my 1984 wolfsburg they are above the fuse panel on drivers side A pillar. Here is a diagram of my AC.

Image may have been reduced in size. Click image to view fullscreen.

_________________
1984 Westy Wolfsburg, owned since 1987. FAS 2.0 NA engine conversion in 2022.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
khughes
Samba Member


Joined: July 13, 2013
Posts: 696
Location: Phoenix AZ
khughes is offline

PostPosted: Mon May 18, 2020 8:44 am    Post subject: Re: 85 Weekender AC overhaul Reply with quote

Westified wrote:
On my 1984 wolfsburg they are above the fuse panel on drivers side A pillar. Here is a diagram of my AC.

Image may have been reduced in size. Click image to view fullscreen.


My '86 is basically the same, except with a 3-speed fan, so I have low, 2nd stage, and 3rd stage (12VDC direct to fan, no dropping resistor) relays. Fan relays on mine are attached to the fuse panel, with the rest shown as in your diagram. I also added relays for the evaporator fan (now fans since I modified the headbanger to accept the later evap with the dual fans) since the fan switch wasn't really rated for the load. Smoked a couple.
_________________
'86 Westy FAS GenV Turbo (Marvin)
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
AZ Landshaper
Samba Member


Joined: February 08, 2009
Posts: 1693
Location: The Old Pueblo
AZ Landshaper is offline

PostPosted: Wed May 20, 2020 6:35 am    Post subject: Re: 85 Weekender AC overhaul Reply with quote

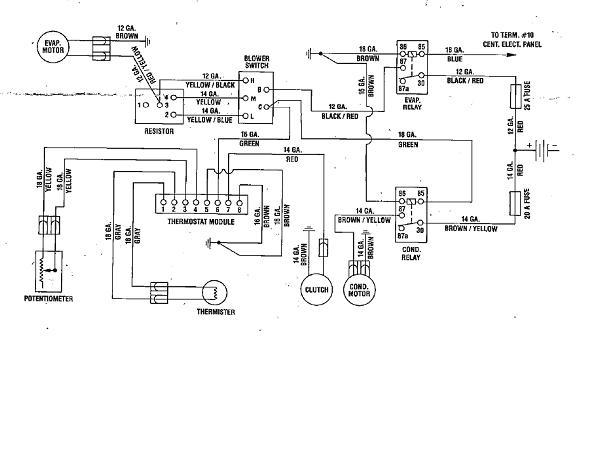

Thanks for the diagram. Seems these aftermarket 85 AC systems are a bit diff than the later model factory stuff.

Anyone know if itís possible to use the ez clip stuff w standard barrier hose? I need to decrease hose lengths and add a trinity switch port. Iíll look for an o-ring style to attach to the drier but in leu thought it might be possible to splice something in w ez clip system, but not if it requires all new hose

As some old koot told me a couple weeks back. There are some great posts on this site re the AC refurb. Just takes a few mins to understand what your reading. Iíve finally had an ahh haa moment and am comprehending the literature. Lol.

Thanks a lot to those who have posted info on these systems.

As I slowly move forward on the backs of those who went before me.
_________________
Support Small Business.

-------------------------------------------------------
85 Weekender w/ EJ22
Previously
64, 71, 72, 73, 76, 81, 84, 85 & 87 Campmobiles and Westfalias
and a 67 bug.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dhaavers
Samba Member


Joined: March 19, 2010
Posts: 7599
Location: NE MN (tinyurl.com/dhaaverslocation)
dhaavers is offline

PostPosted: Wed May 20, 2020 7:29 am    Post subject: Re: 85 Weekender AC overhaul Reply with quote

djkeev did a complete AC resurrection with EZclip fittings, although also all new hoses.

I'm sure it was easier than my project (all new crimped fittings on new hose).

It's definitely a b!tch trying to snake the fittings through the existing holes, nooks &
crannies. But then I'm cheap, plus now I know how much smarter he is than me... Rolling Eyes Wink

- Dave
_________________
86 White Westy Weekender
"The WonderVan"

<EDITED TO PROTECT INNOCENT PIXELS>
Back to top
View user's profile Send private message Gallery Classifieds Feedback
AZ Landshaper
Samba Member


Joined: February 08, 2009
Posts: 1693
Location: The Old Pueblo
AZ Landshaper is offline

PostPosted: Wed May 20, 2020 8:04 am    Post subject: Re: 85 Weekender AC overhaul Reply with quote

From the $ I see online the ez clip system may not be very expensive. The savings from doing the job yourself is pretty substantial. The pinchers and clamps are fairly cheap. I would do myself some good by being more cheap. Wife has me beat there.
_________________
Support Small Business.

-------------------------------------------------------
85 Weekender w/ EJ22
Previously
64, 71, 72, 73, 76, 81, 84, 85 & 87 Campmobiles and Westfalias
and a 67 bug.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
AZ Landshaper
Samba Member


Joined: February 08, 2009
Posts: 1693
Location: The Old Pueblo
AZ Landshaper is offline

PostPosted: Wed May 20, 2020 8:14 am    Post subject: Re: 85 Weekender AC overhaul Reply with quote

Turns out ez clip requires ez clip hose. Not applicable to other hoses due to variety of hose Outside diameters.
_________________
Support Small Business.

-------------------------------------------------------
85 Weekender w/ EJ22
Previously
64, 71, 72, 73, 76, 81, 84, 85 & 87 Campmobiles and Westfalias
and a 67 bug.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ledogboy Premium Member
Samba Member


Joined: September 19, 2005
Posts: 567
Location: Scappoose, OR / Oakland, CA
ledogboy is offline

PostPosted: Wed May 20, 2020 8:36 am    Post subject: Re: 85 Weekender AC overhaul Reply with quote

Sorry if I missed it- but why are you trying to avoid the Eaton hose? It is thinner, so easier to maneuver, and far stronger than the original hose- sounds like a win/win?
_________________
1986 Westy Weekender
Now a full camper
1.8t Syncro conversion
Some people call him Maurice...
Back to top
View user's profile Send private message Gallery Classifieds Feedback
AZ Landshaper
Samba Member


Joined: February 08, 2009
Posts: 1693
Location: The Old Pueblo
AZ Landshaper is offline

PostPosted: Wed May 20, 2020 5:35 pm    Post subject: Re: 85 Weekender AC overhaul Reply with quote

AC guy in town says my hoses are relatively new. Installed just a few years back. Why spend the money if the AC pro thinks its not necessary?

Its all barrier hose.
_________________
Support Small Business.

-------------------------------------------------------
85 Weekender w/ EJ22
Previously
64, 71, 72, 73, 76, 81, 84, 85 & 87 Campmobiles and Westfalias
and a 67 bug.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ledogboy Premium Member
Samba Member


Joined: September 19, 2005
Posts: 567
Location: Scappoose, OR / Oakland, CA
ledogboy is offline

PostPosted: Wed May 20, 2020 5:40 pm    Post subject: Re: 85 Weekender AC overhaul Reply with quote

AZ Landshaper wrote:
AC guy in town says my hoses are relatively new. Installed just a few years back. Why spend the money if the AC pro thinks its not necessary?

Its all barrier hose.


Ah, gotcha. Carry on!
_________________
1986 Westy Weekender
Now a full camper
1.8t Syncro conversion
Some people call him Maurice...
Back to top
View user's profile Send private message Gallery Classifieds Feedback
AZ Landshaper
Samba Member


Joined: February 08, 2009
Posts: 1693
Location: The Old Pueblo
AZ Landshaper is offline

PostPosted: Sat May 30, 2020 5:39 pm    Post subject: Re: 85 Weekender AC overhaul Reply with quote

Ok got the system back together after replacing some hose, adding oil, pulling a vac for four hours charging with red tek. I also replaced the drier and installed an updated condenser.

Ive got 30/200 for pressures and still have 77 degree air coming through the vents. The compressor runs as it should and the rad fan is on as soon as the switch goes on.

Any suggestions?
_________________
Support Small Business.

-------------------------------------------------------
85 Weekender w/ EJ22
Previously
64, 71, 72, 73, 76, 81, 84, 85 & 87 Campmobiles and Westfalias
and a 67 bug.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Farf
Samba Member


Joined: July 12, 2009
Posts: 463
Location: Colorado
Farf is offline

PostPosted: Sat May 30, 2020 7:16 pm    Post subject: Re: 85 Weekender AC overhaul Reply with quote

What was the ambient temperature when you recorded those pressures? Seem a bit low if your in the 90's +.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3  Next
Page 1 of 3


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
