 Posted: Tue Nov 19, 2024 4:14 pm Post subject: Re: 52 panel repair from Austria |
 |
|
Great to see how much crown you put in the lower engine lid panels.
It's easy to think of a Transporter being a tin shoebox on wheels, when it is just the extreme opposite of that. hardly a straight line or flat spot on a bus, except the glass. It is what makes an early VW stand out from many other vehicles, there is a crown shape, curves and finesse to most all of the bus body panels. That is exactly why they are so beautiful !
i

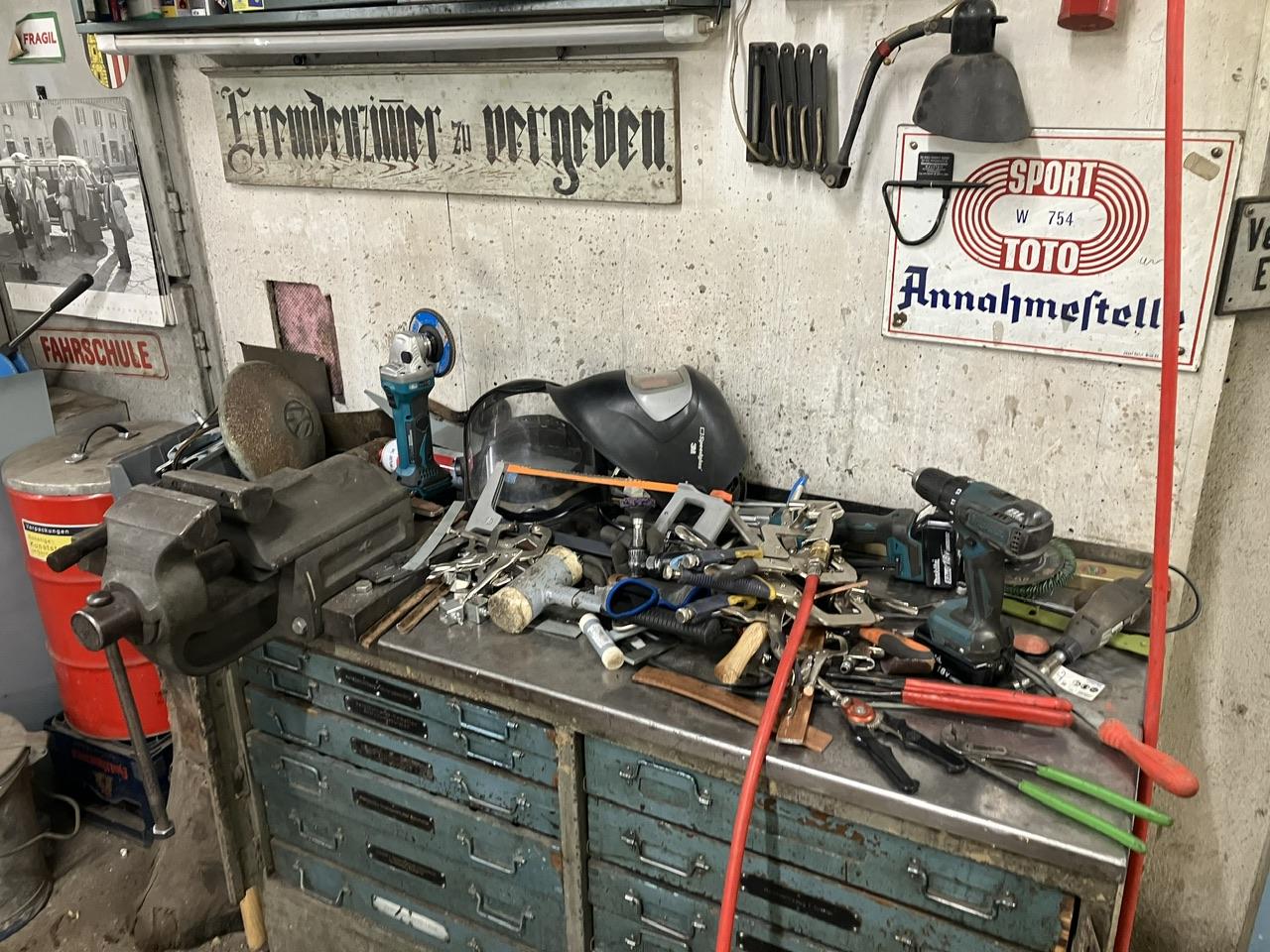

btw I wonder if you are renting out parking lots in front of your shop, Christian.
I guess you could. Most perfect Fremdenzimmer in the area, for VW guys...hahaha
_________________
Hotrods, Fords, Veedubs and Triumph Twins !
52 Barndoor DLX Coachbuild project
55 Wolfsburg panel project, og paint Taubenblau L31
62 Dickholmer, custom color Seeblau L360
63 1500 Notch, og paint Rubin Rot L456
67 1500 Käfer, og paint Lotus weiß L282 w/red interior |
|
| Back to top |
|
|
Huetti_1989
Samba Member
Joined: February 13, 2011
Posts: 1324
Location: Austria
|
| Posted: Wed Nov 20, 2024 2:29 pm Post subject: Re: 52 panel repair from Austria |
|
|
| djfordmanjack wrote: |

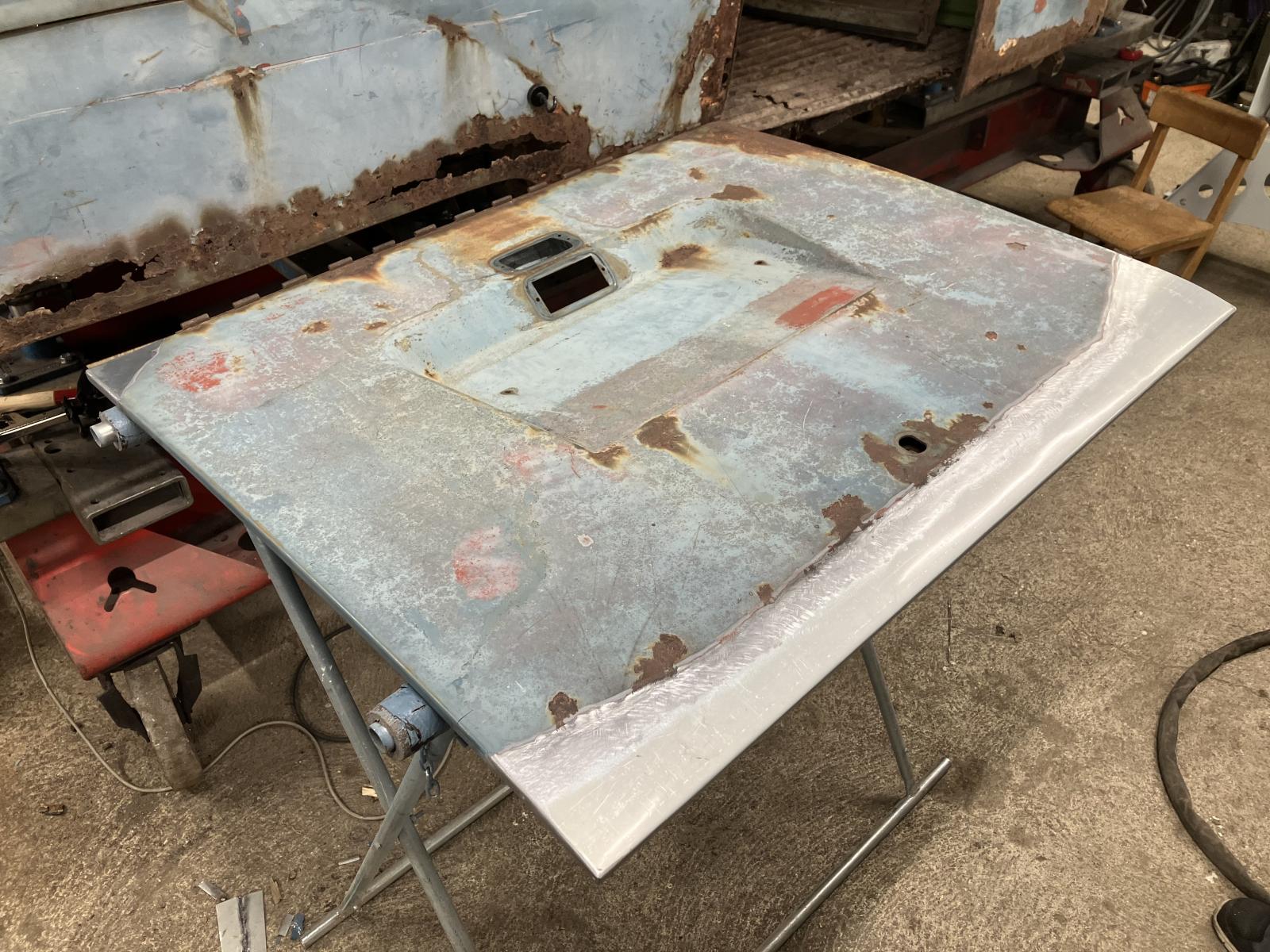

Great to see how much crown you put in the lower engine lid panels.
It's easy to think of a Transporter being a tin shoebox on wheels, when it is just the extreme opposite of that. hardly a straight line or flat spot on a bus, except the glass. It is what makes an early VW stand out from many other vehicles, there is a crown shape, curves and finesse to most all of the bus body panels. That is exactly why they are so beautiful !
i
btw I wonder if you are renting out parking lots in front of your shop, Christian.
I guess you could. Most perfect Fremdenzimmer in the area, for VW guys...hahaha |
Yes, you are right, but at this one every part is bent, it's difficult for me to weld a straight panel to that bent decklid, but anyway i try to keep as much as possible, and as old as possible.... maybe.
And yes, we plan to open a camping place here, the natural authority is against it but we will see!

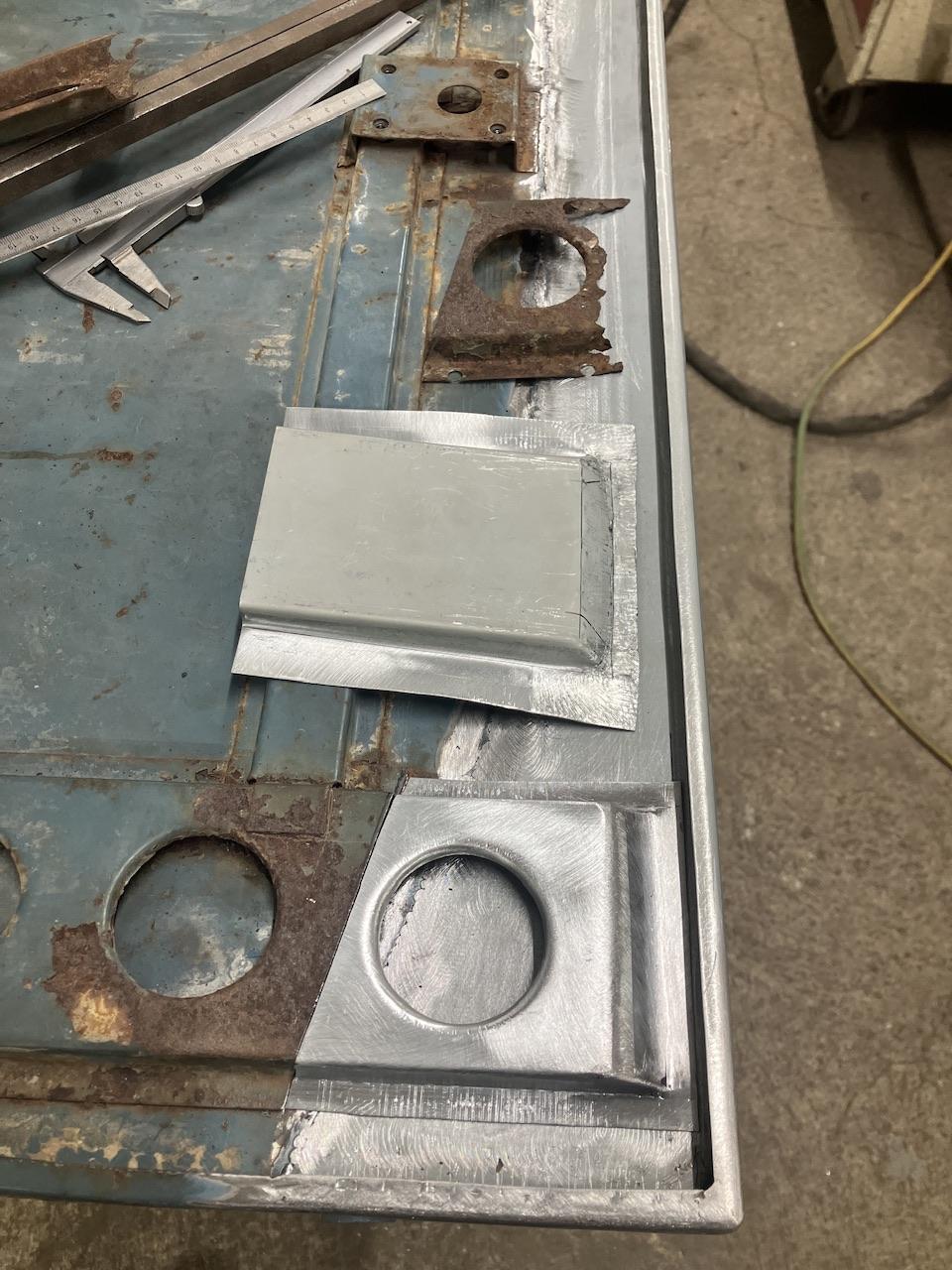

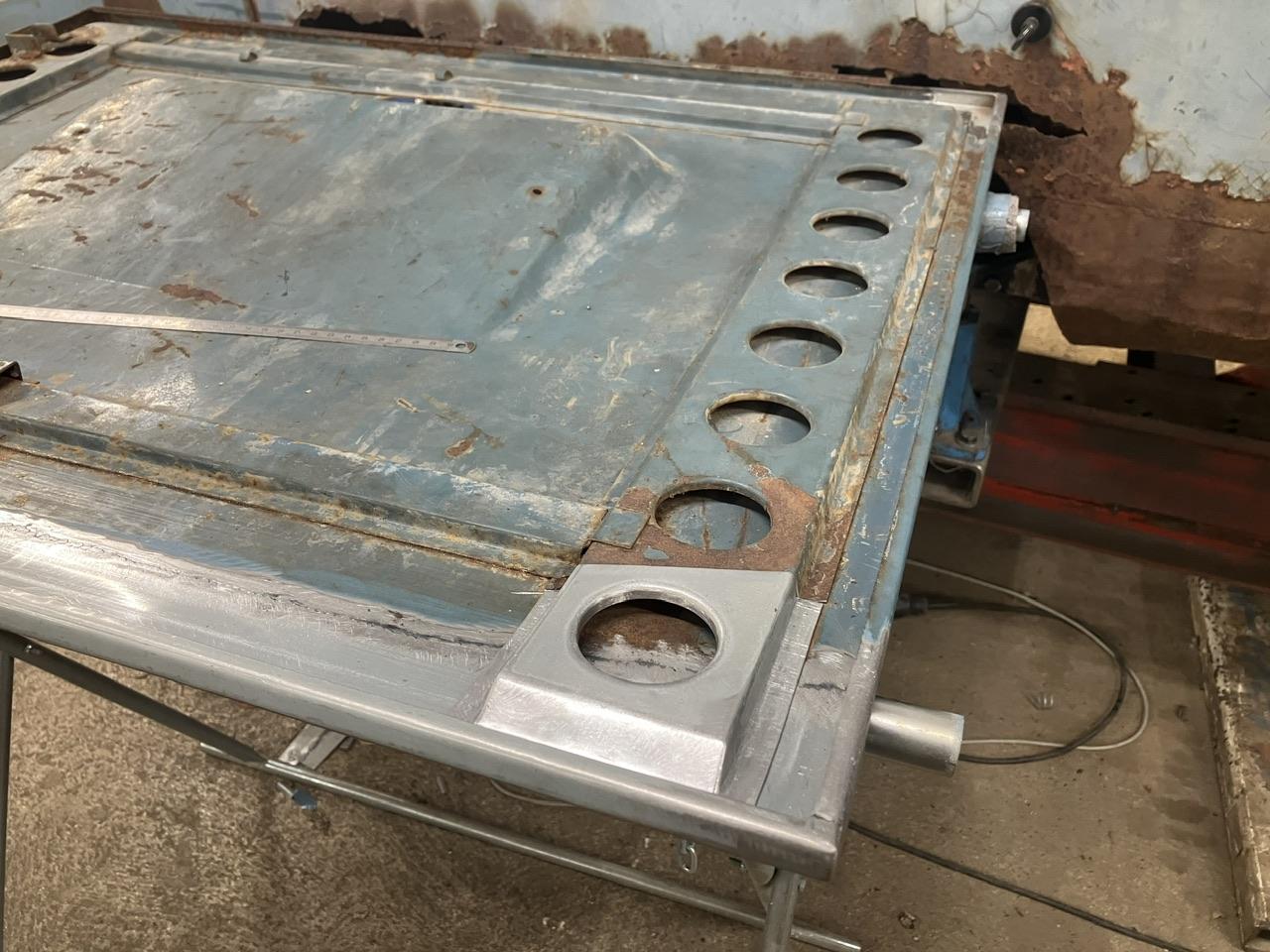

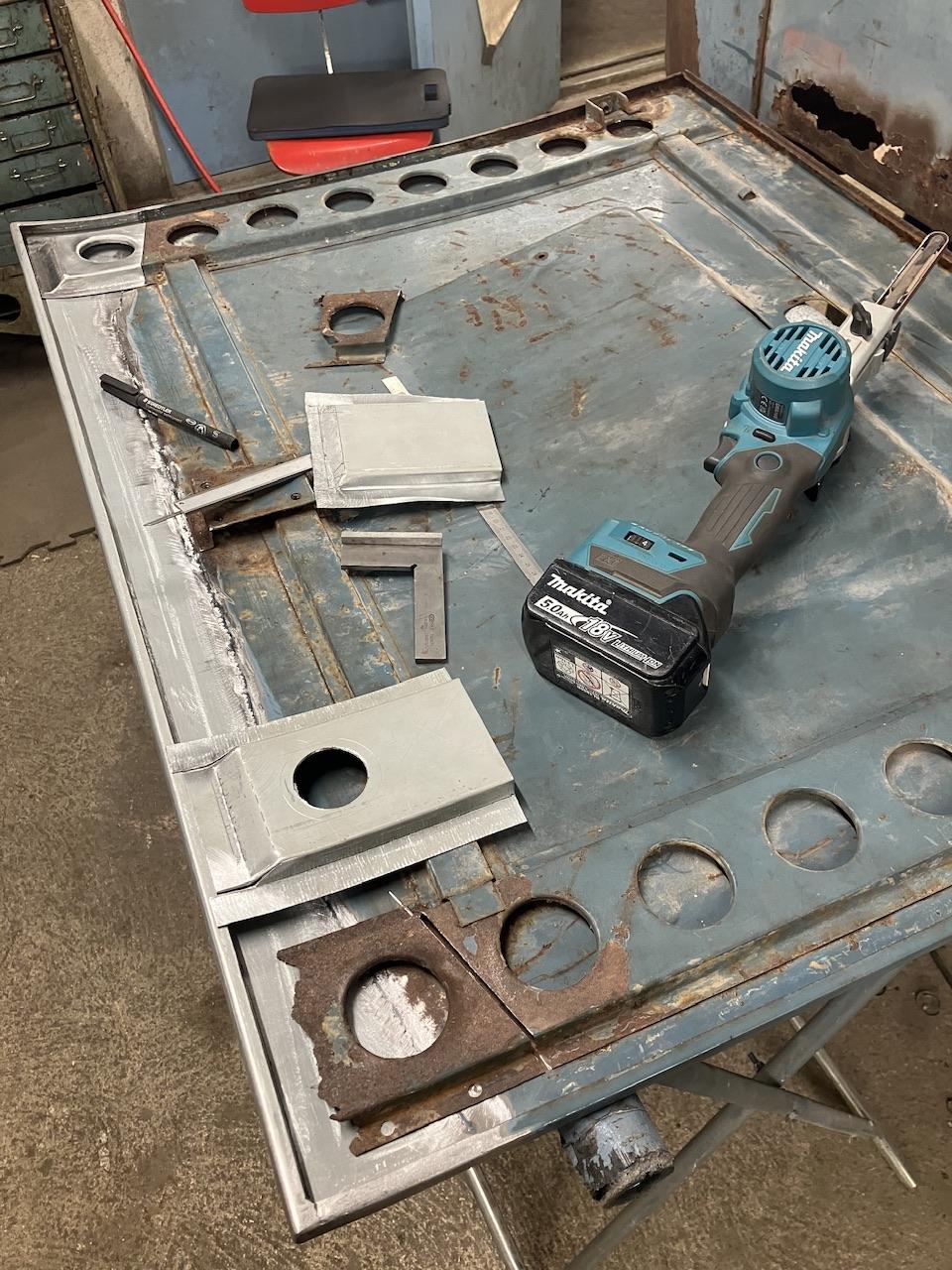

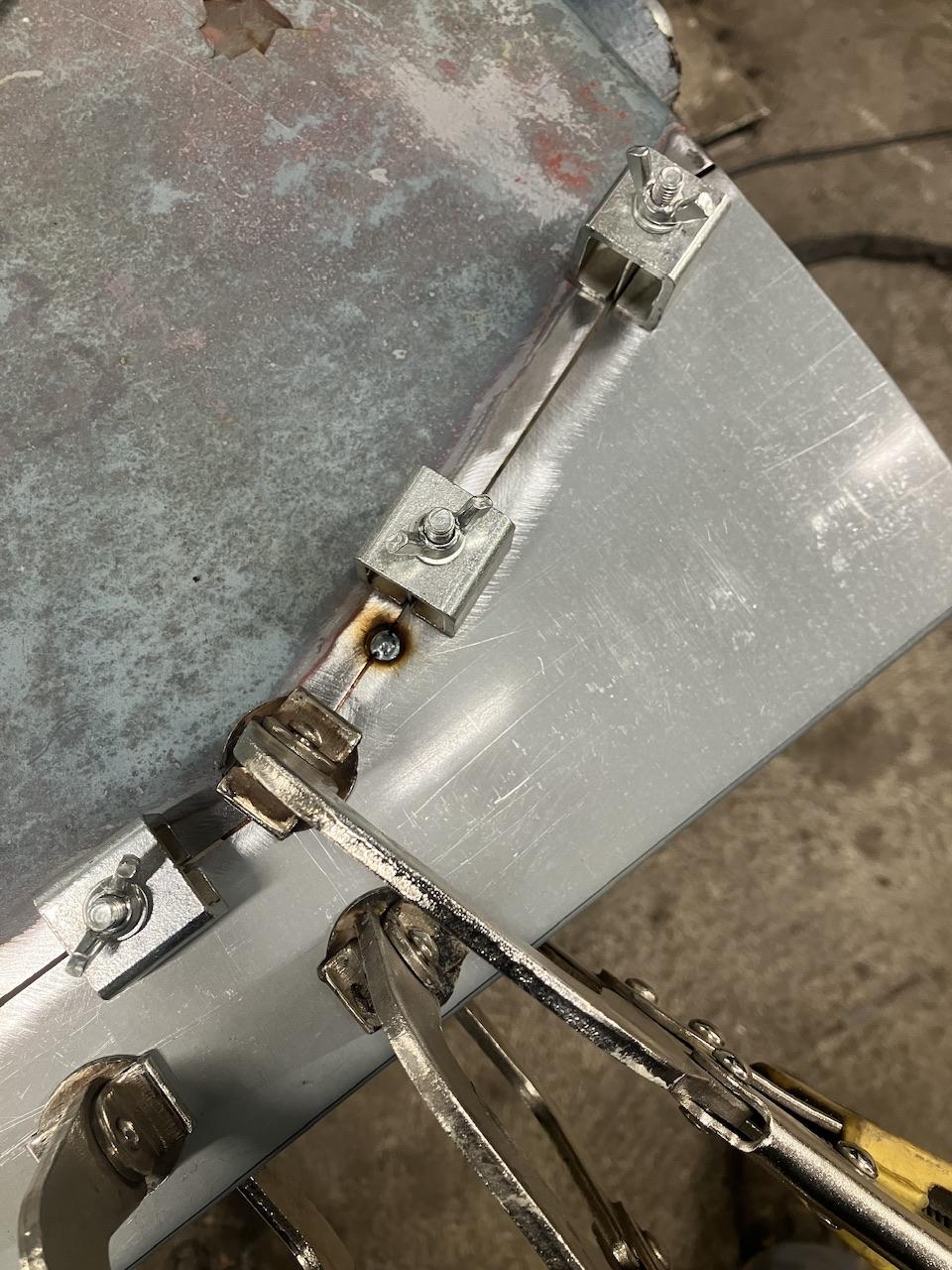

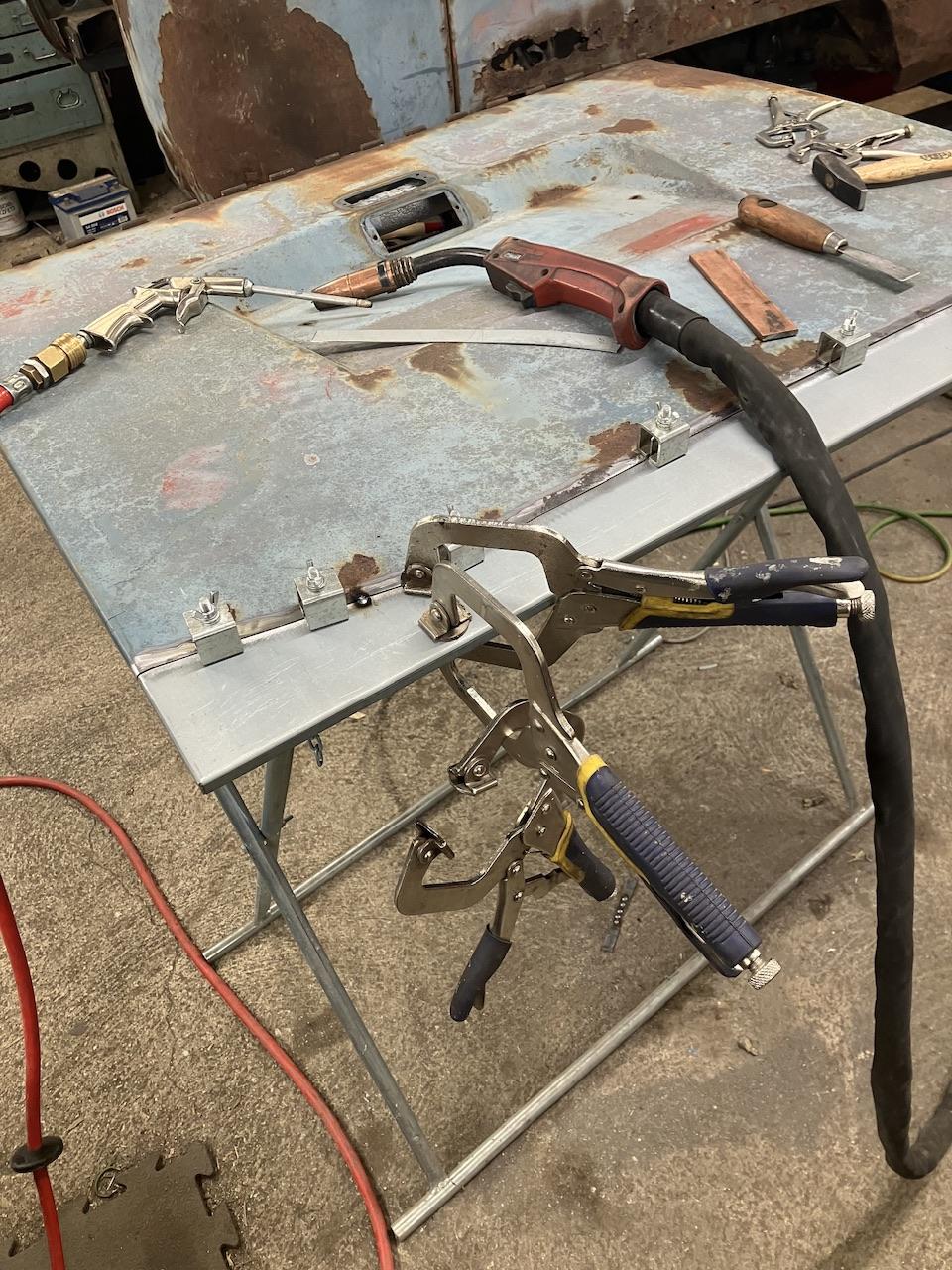

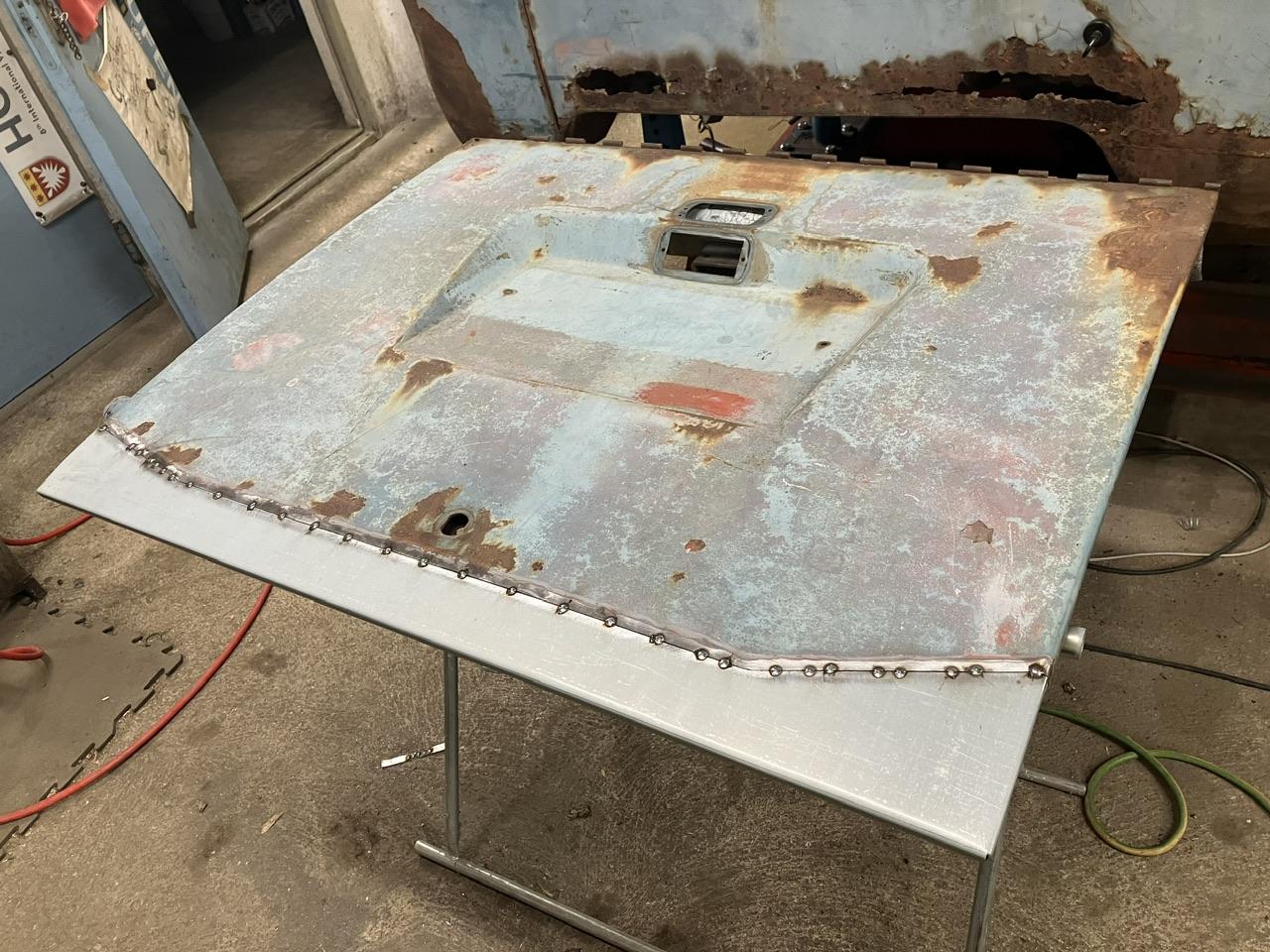

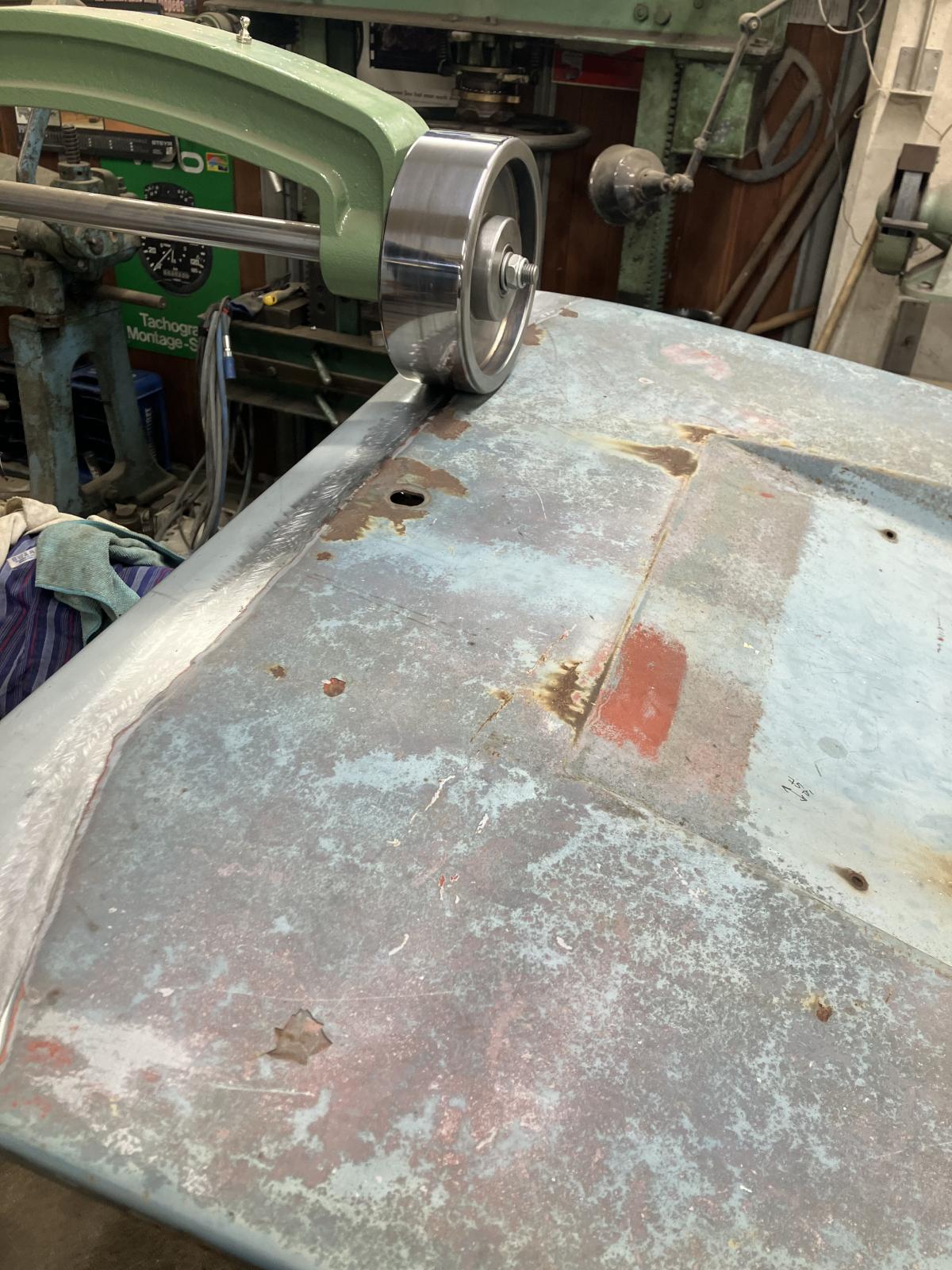

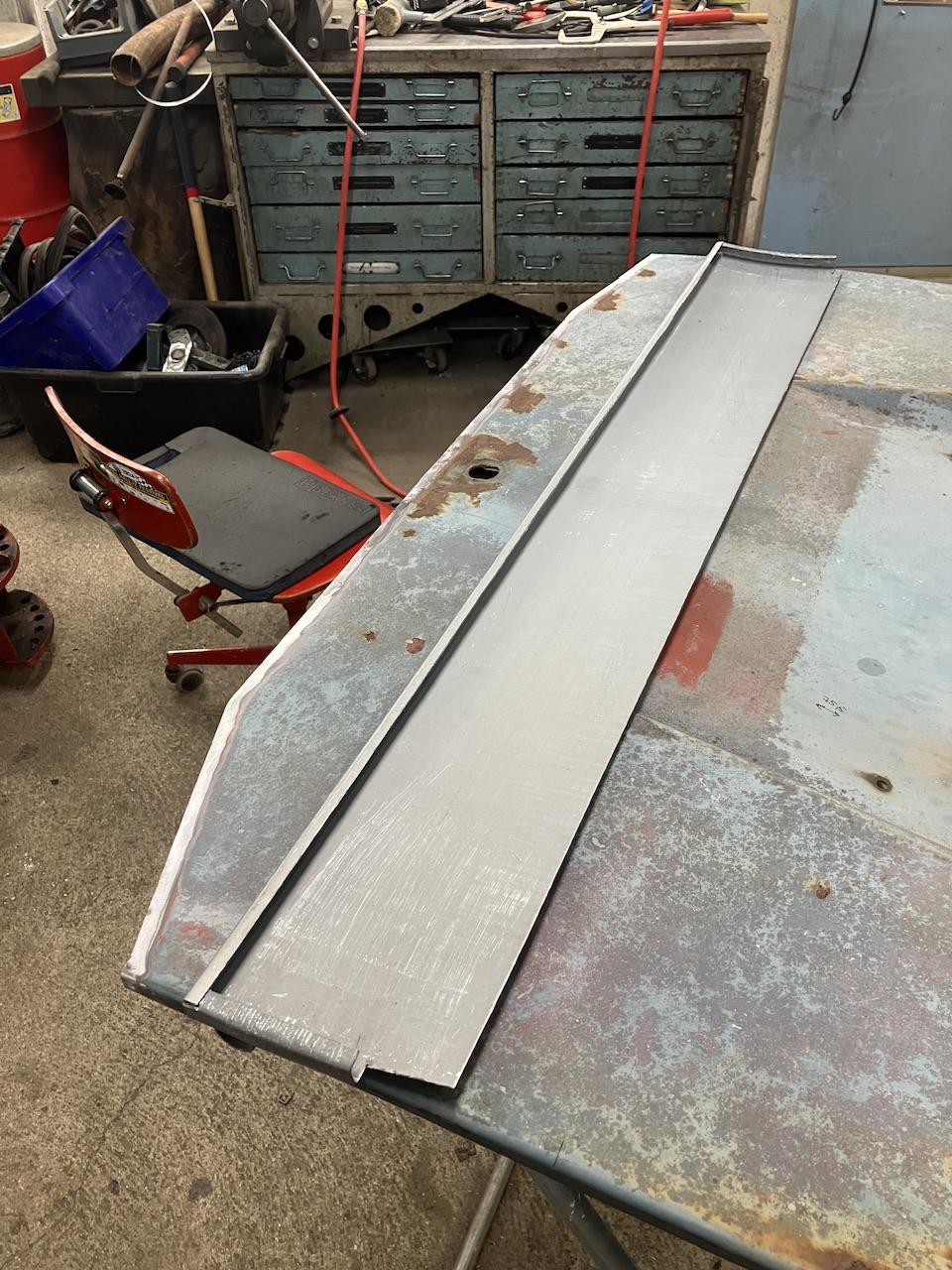

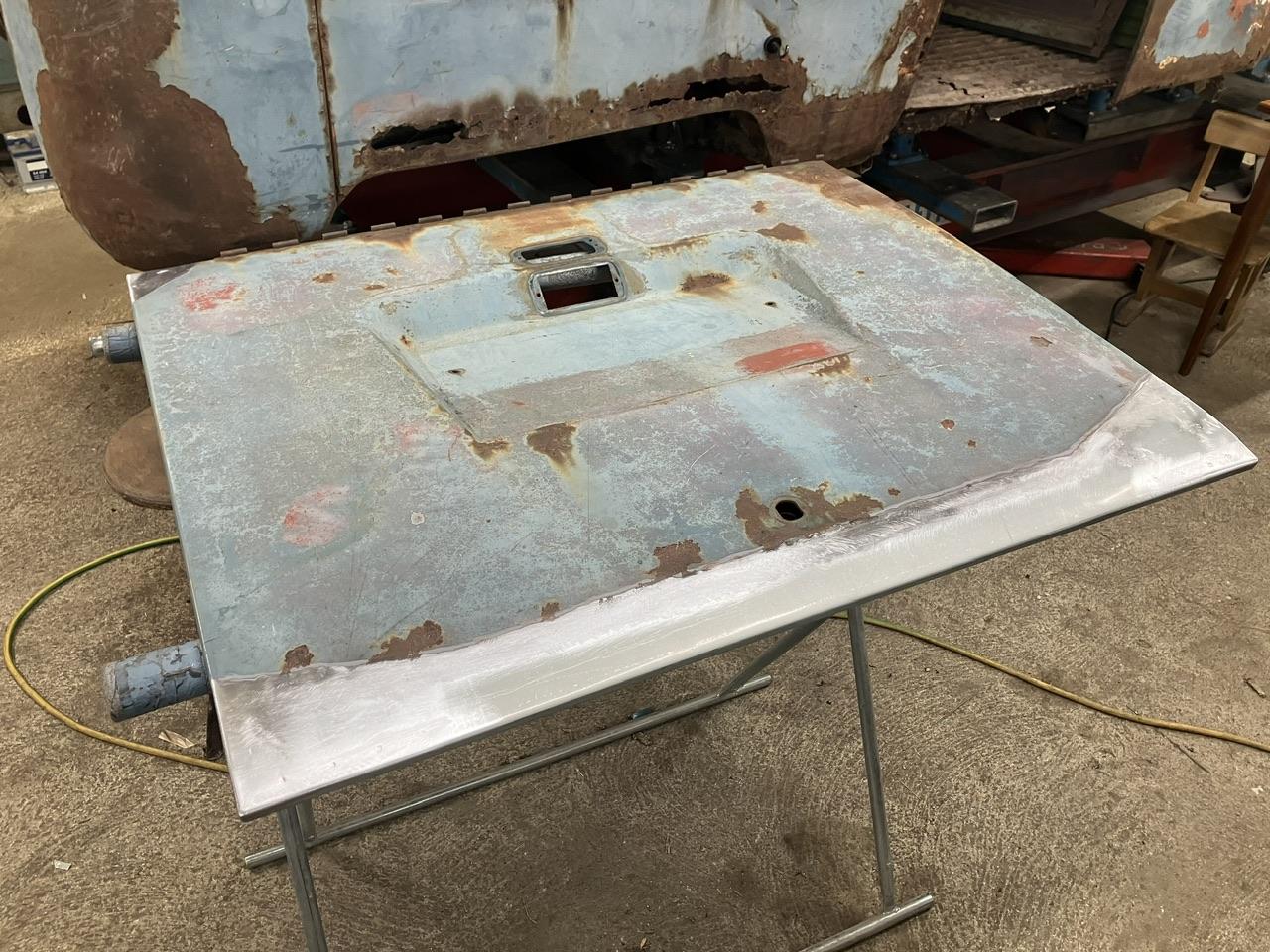

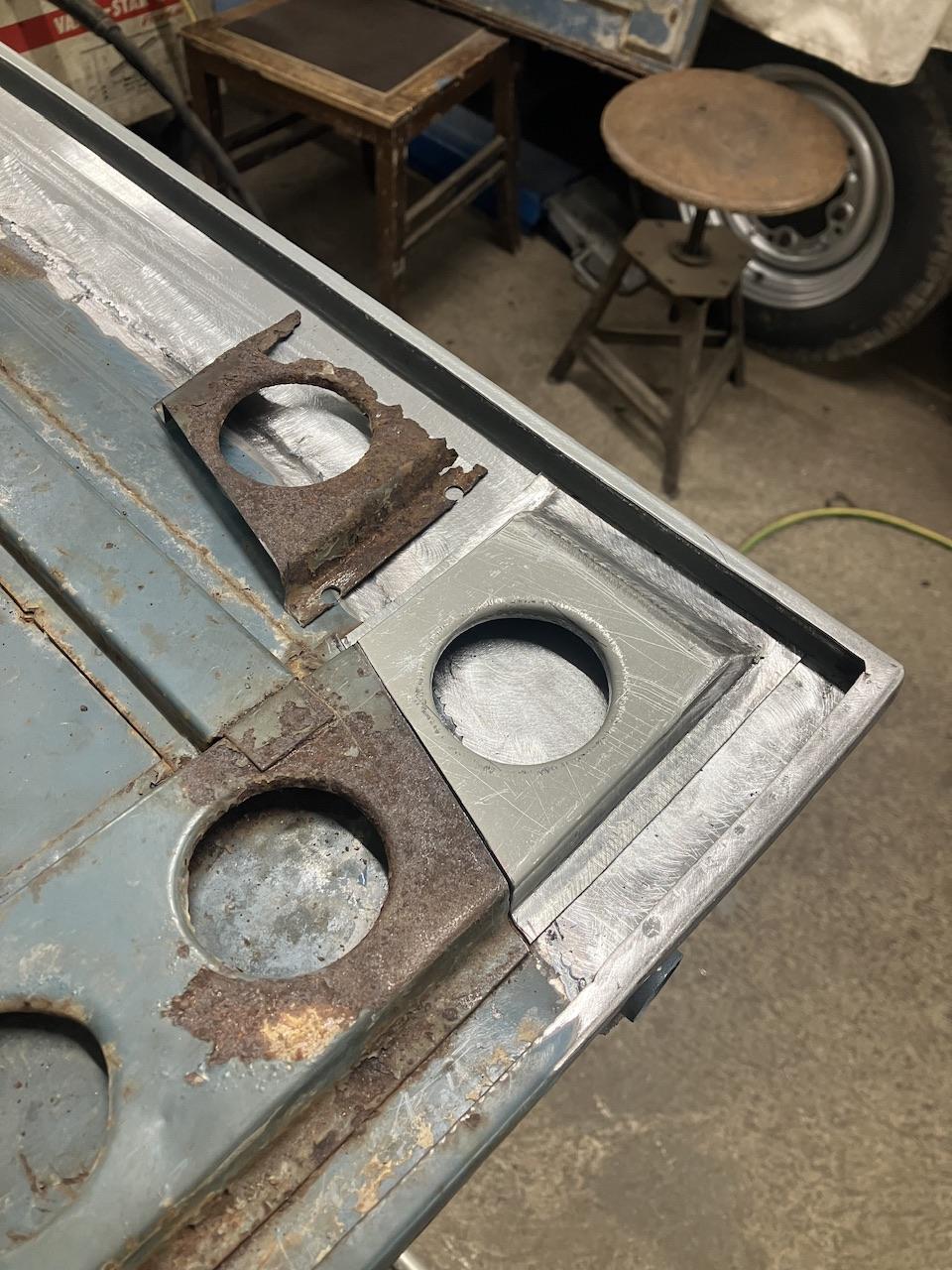

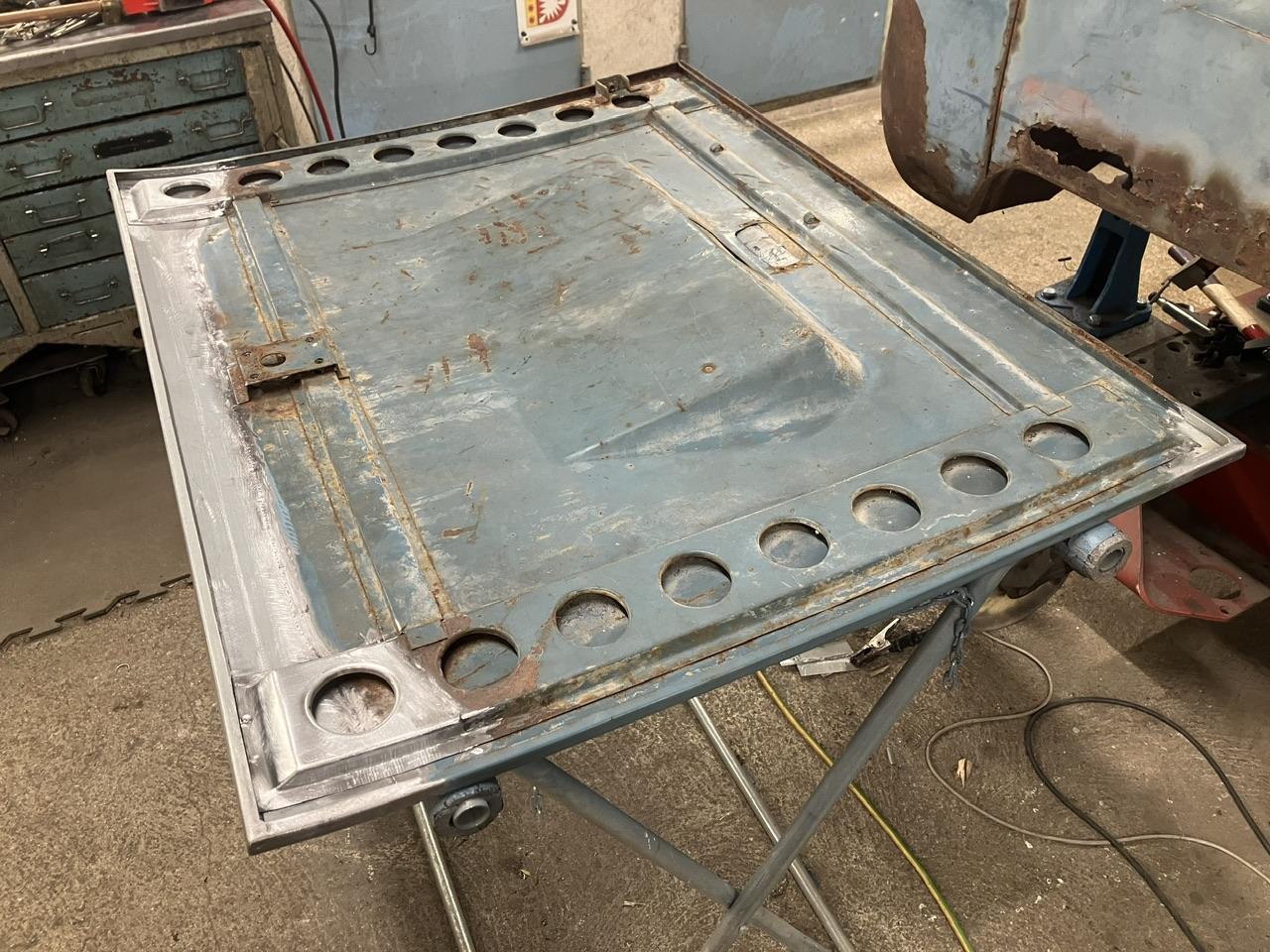

Today I worked ~8hours on the decklid again.:
-Christian
_________________
My 1957 SC
http://www.thesamba.com/vw/forum/viewtopic.php?t=605363&postdays=0&postorder=asc&start=0
MY 1967 Sparsamba:
https://www.thesamba.com/vw/forum/viewtopic.php?t=757182
My 1952 Panel:
https://www.thesamba.com/vw/forum/viewtopic.php?t=797388
My 1954 Deutsche Bundespost:
http://www.thesamba.com/vw/forum/viewtopic.php?t=621802
My 1961 SO34:
https://www.thesamba.com/vw/forum/viewtopic.php?t=716285
My 1991 Westfalia California:
http://www.thesamba.com/vw/forum/viewtopic.php?t=650751 |
|
| Back to top |
|
|
djfordmanjack
Samba Member
Joined: June 15, 2009
Posts: 2358
Location: Graz, Austria, Europe
|
| Posted: Wed Nov 20, 2024 2:39 pm Post subject: Re: 52 panel repair from Austria |
|
|
I'll be the first to rent a spot  I hope to find some time again to visit you, when you have time. I'll be driving to Bavaria in Dec. but days are so short and nights cold now and sleeping in the car is out of question.
I'll bring your favorite cold beverages. It seems, I should visit AFTER my trip to Bavaria....
Your 52 is a great project. I don't know why, but of all the buses you have stashed away at the barn, this one was the most interesting to me. Well maybe the other BD that's only panels in the old farm house... haha
_________________
Hotrods, Fords, Veedubs and Triumph Twins !
52 Barndoor DLX Coachbuild project
55 Wolfsburg panel project, og paint Taubenblau L31
62 Dickholmer, custom color Seeblau L360
63 1500 Notch, og paint Rubin Rot L456
67 1500 Käfer, og paint Lotus weiß L282 w/red interior |
|
| Back to top |
|
|
Huetti_1989
Samba Member
Joined: February 13, 2011
Posts: 1324
Location: Austria
|
|
| Back to top |
|
|
djfordmanjack
Samba Member
Joined: June 15, 2009
Posts: 2358
Location: Graz, Austria, Europe
|
|
| Back to top |
|
|
TRS63
Samba Member
Joined: December 17, 2017
Posts: 1115
Location: Stuttgart - Germany
|
|
| Back to top |
|
|
Scotty
Samba Member
Joined: July 02, 2003
Posts: 1550
Location: Northampton - Uk
|
| Posted: Thu Nov 21, 2024 6:02 am Post subject: Re: 52 panel repair from Austria |
|
|
Nicely done
_________________
| EverettB wrote: |
I'd be curious to know the length of his tip.
|
http://scottys-stuff.blogspot.com/ |
|
| Back to top |
|
|
Huetti_1989
Samba Member
Joined: February 13, 2011
Posts: 1324
Location: Austria
|
|
| Back to top |
|
|
Huetti_1989
Samba Member
Joined: February 13, 2011
Posts: 1324
Location: Austria
|
|
| Back to top |
|
|
Ring-Free
Samba Member
Joined: April 22, 2023
Posts: 142
Location: Belgium / Germany
|
|
| Back to top |
|
|
Huetti_1989
Samba Member
Joined: February 13, 2011
Posts: 1324
Location: Austria
|
|
| Back to top |
|
|
Huetti_1989
Samba Member
Joined: February 13, 2011
Posts: 1324
Location: Austria
|
|
| Back to top |
|
|
Huetti_1989
Samba Member
Joined: February 13, 2011
Posts: 1324
Location: Austria
|
|
| Back to top |
|
|
Kasten68
Samba Member
Joined: March 26, 2005
Posts: 138
Location: Switzerland
|
| Posted: Wed Nov 27, 2024 3:59 am Post subject: Re: 52 panel repair from Austria |
|
|

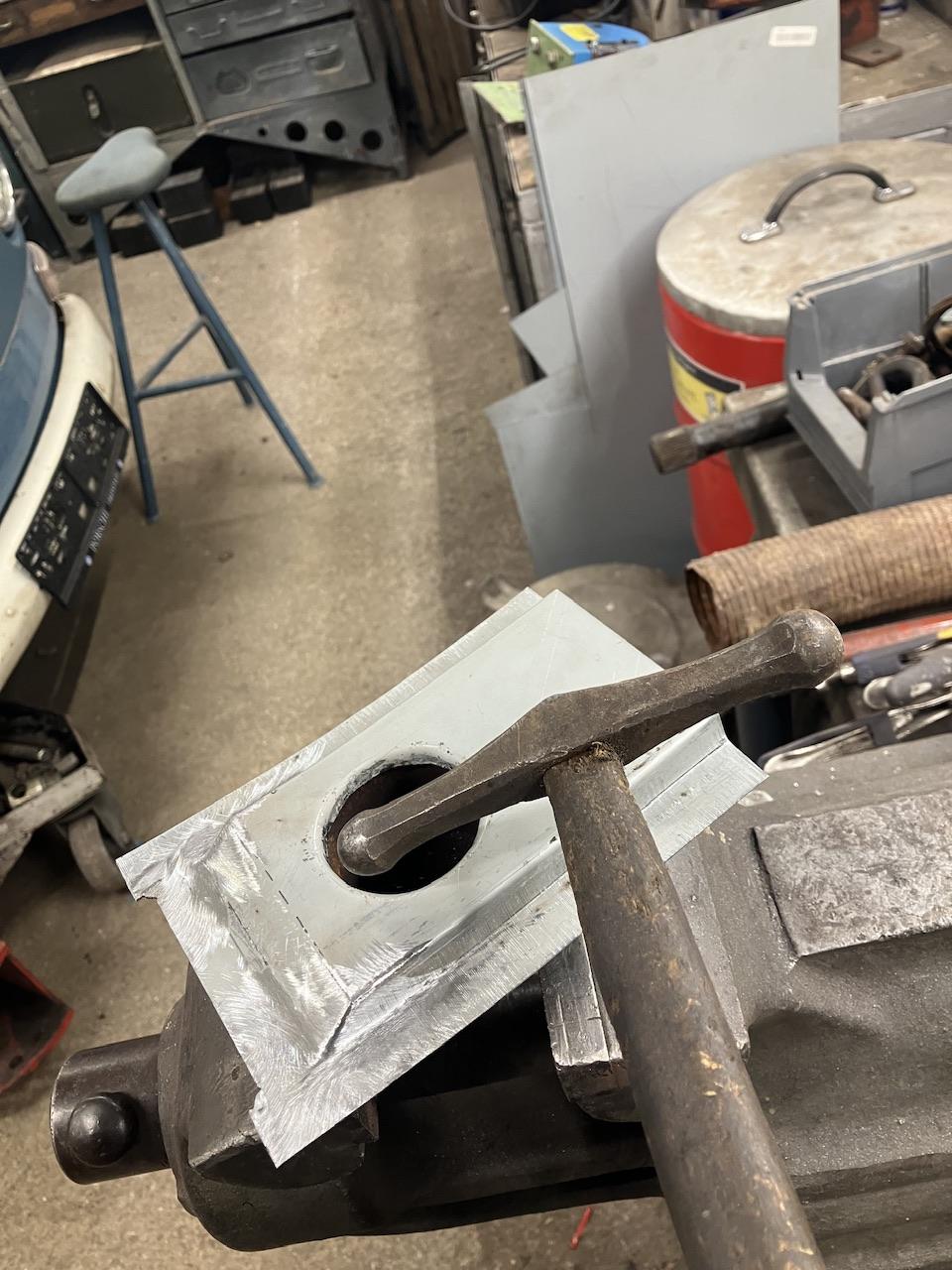

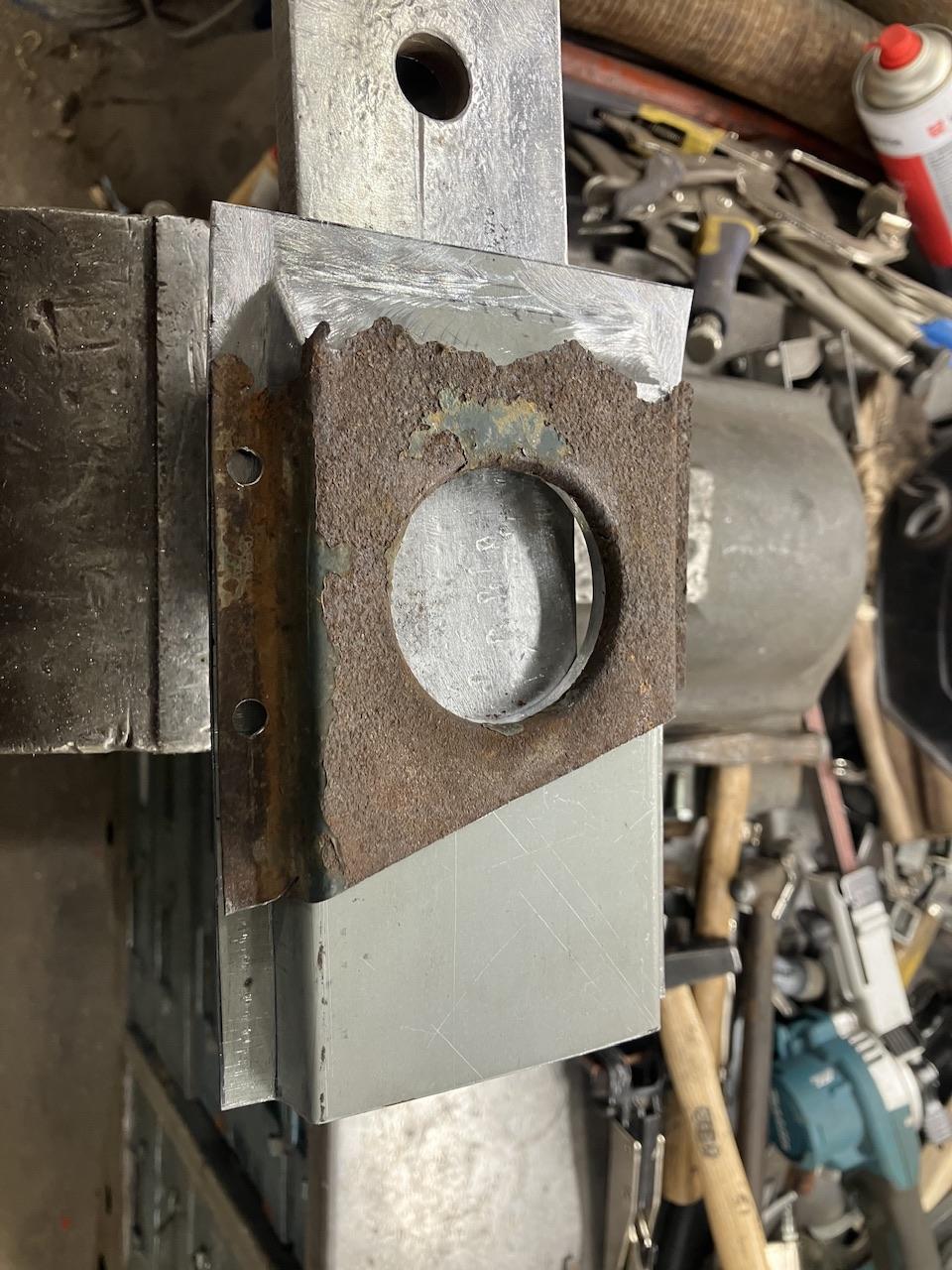

This section is normally in two pieces of metal, like these I've reproduced from orignal ones.
Here you can see them,hope it's help.
_________________
VW über alles ! |
|
| Back to top |
|
|
splitface
Samba Member
Joined: March 01, 2004
Posts: 120
Location: Czech republic
|
| Posted: Wed Nov 27, 2024 5:24 am Post subject: Re: 52 panel repair from Austria |
|
|
I like to watch this excellent work

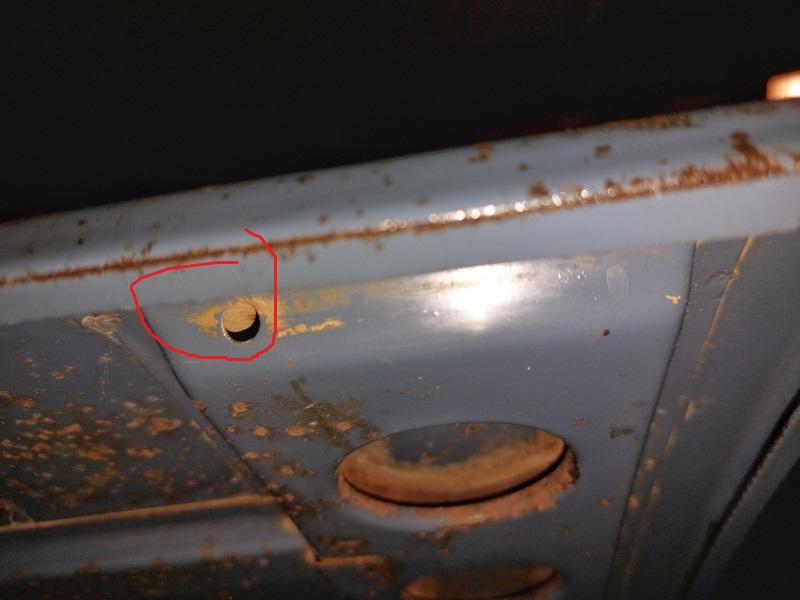

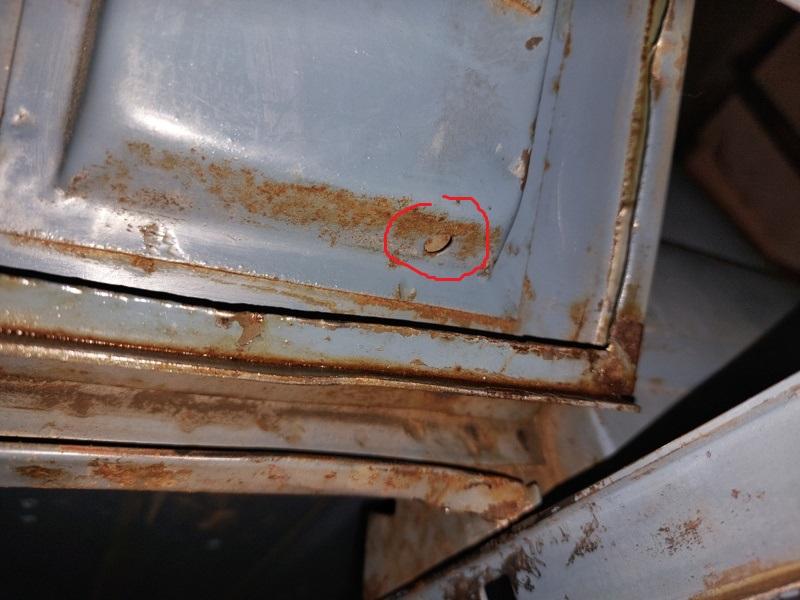

I have drain holes on lower and upper part of my engine lid but mine is 54 model
they look like original holes and only one hole on driver side of outer skin
NOT sure if this was on 52 , when it was changed - added

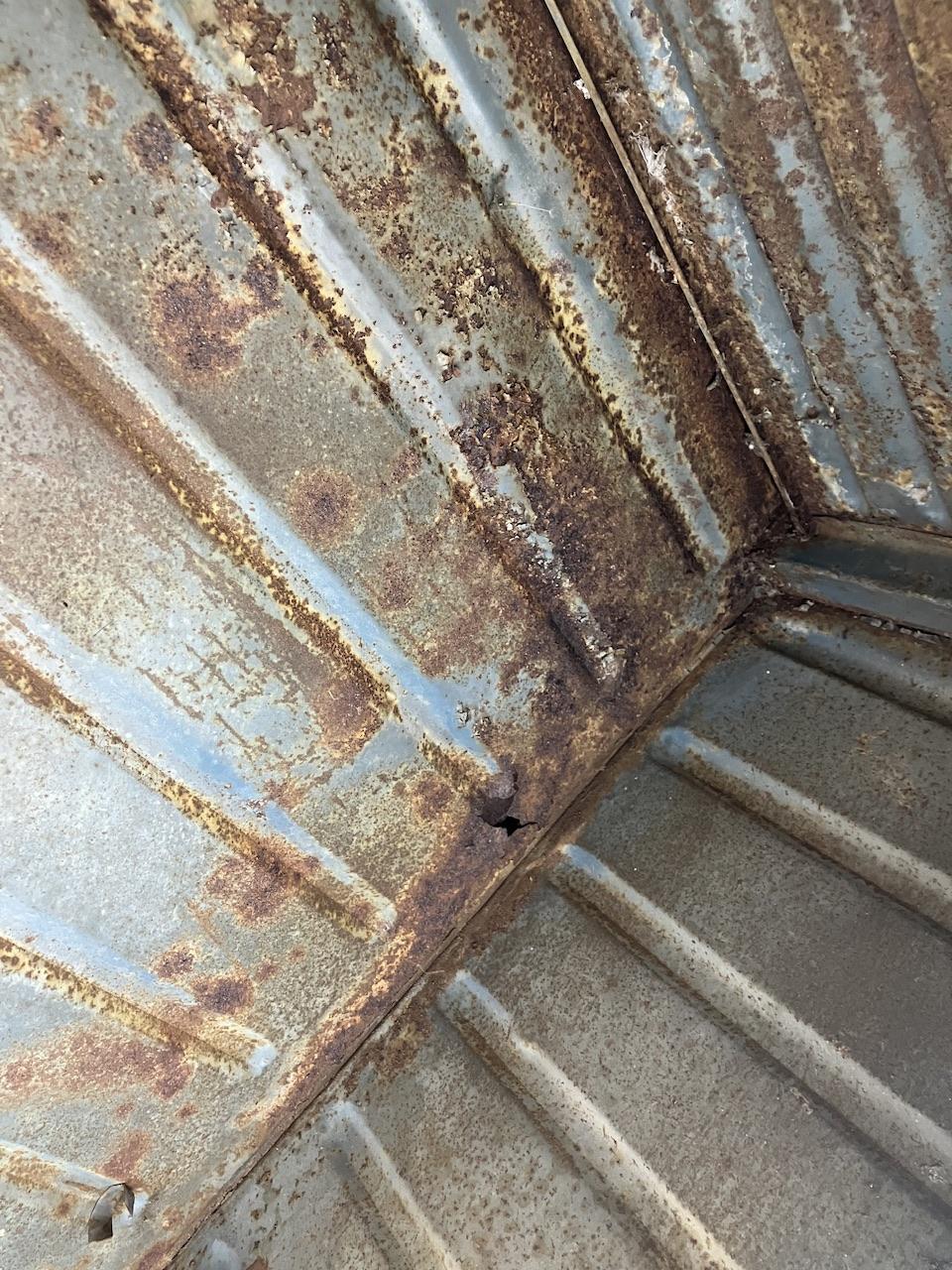

took pics of all 4 corners on my 54 lid for your reference
|
|
| Back to top |
|
|
djfordmanjack
Samba Member
Joined: June 15, 2009
Posts: 2358
Location: Graz, Austria, Europe
|
| Posted: Thu Nov 28, 2024 5:52 am Post subject: Re: 52 panel repair from Austria |
|
|
^wow, nice detail pics. pretty sure that early lids do not have the drain holes.
Christian, is it possible to repair the original package tray and put it back in the bus? Personally I would try to do it. Reproduction panels have limited originality.
Interesting fact about the completely different design of the repro rear lid hinge channel !
Can we talk about the 55/6/7 lid ? is it og paint and would you be willing to sell/swap? I have a very good 55 lid, but it has one repaint ( I may be able to strip back, but not sure yet).
_________________
Hotrods, Fords, Veedubs and Triumph Twins !
52 Barndoor DLX Coachbuild project
55 Wolfsburg panel project, og paint Taubenblau L31
62 Dickholmer, custom color Seeblau L360
63 1500 Notch, og paint Rubin Rot L456
67 1500 Käfer, og paint Lotus weiß L282 w/red interior |
|
| Back to top |
|
|
Huetti_1989
Samba Member
Joined: February 13, 2011
Posts: 1324
Location: Austria
|
|
| Back to top |
|
|
Huetti_1989
Samba Member
Joined: February 13, 2011
Posts: 1324
Location: Austria
|
| Posted: Fri Nov 29, 2024 9:07 am Post subject: Re: 52 panel repair from Austria |
|
|
| djfordmanjack wrote: |
^wow, nice detail pics. pretty sure that early lids do not have the drain holes.
Christian, is it possible to repair the original package tray and put it back in the bus? Personally I would try to do it. Reproduction panels have limited originality.
Interesting fact about the completely different design of the repro rear lid hinge channel !
Can we talk about the 55/6/7 lid ? is it og paint and would you be willing to sell/swap? I have a very good 55 lid, but it has one repaint ( I may be able to strip back, but not sure yet). |

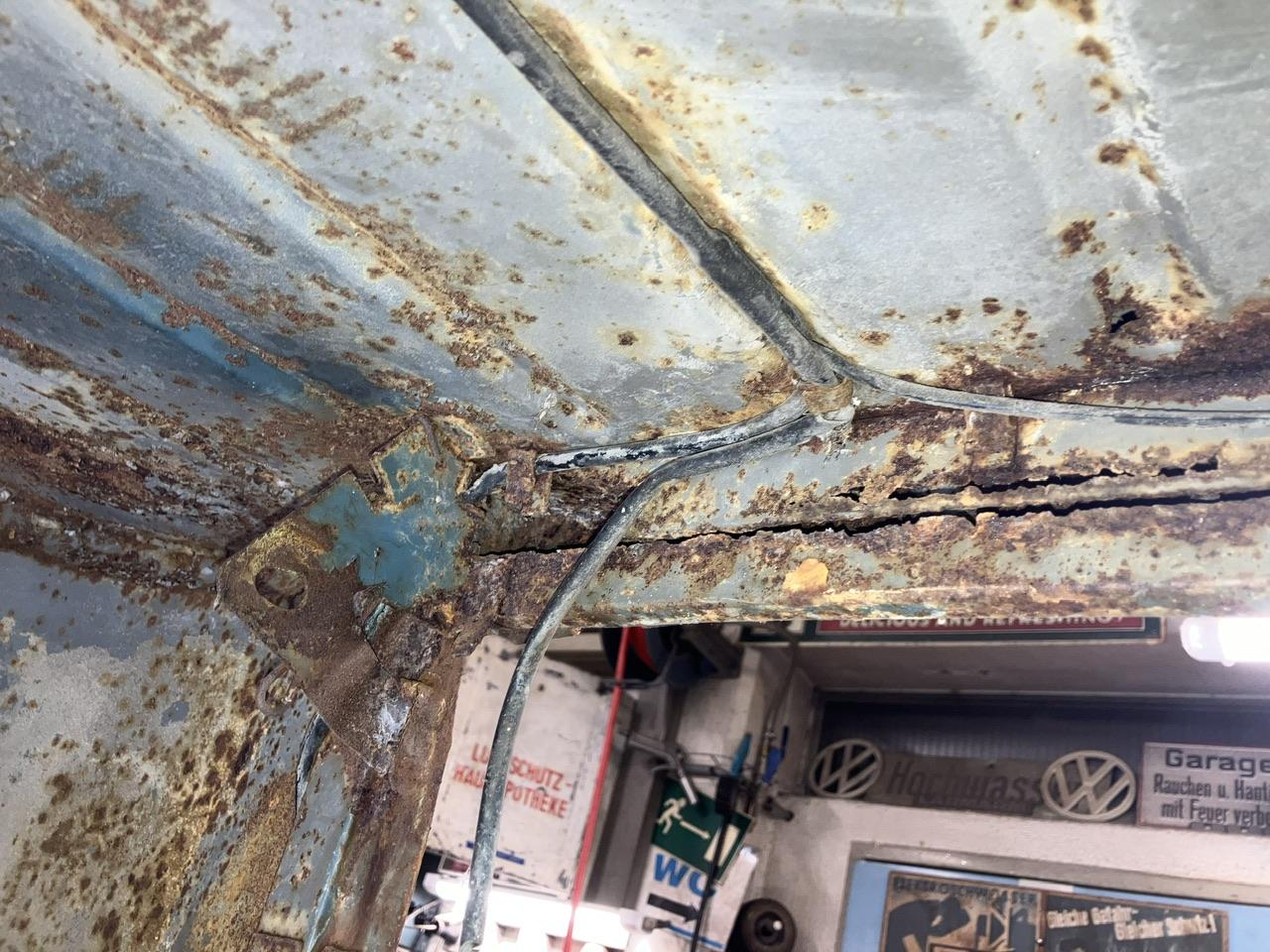

Yes very good engine lid picture ms, that holes make total sense to me, maybe a later change? The other early and late hatches i have here don't have that holes...

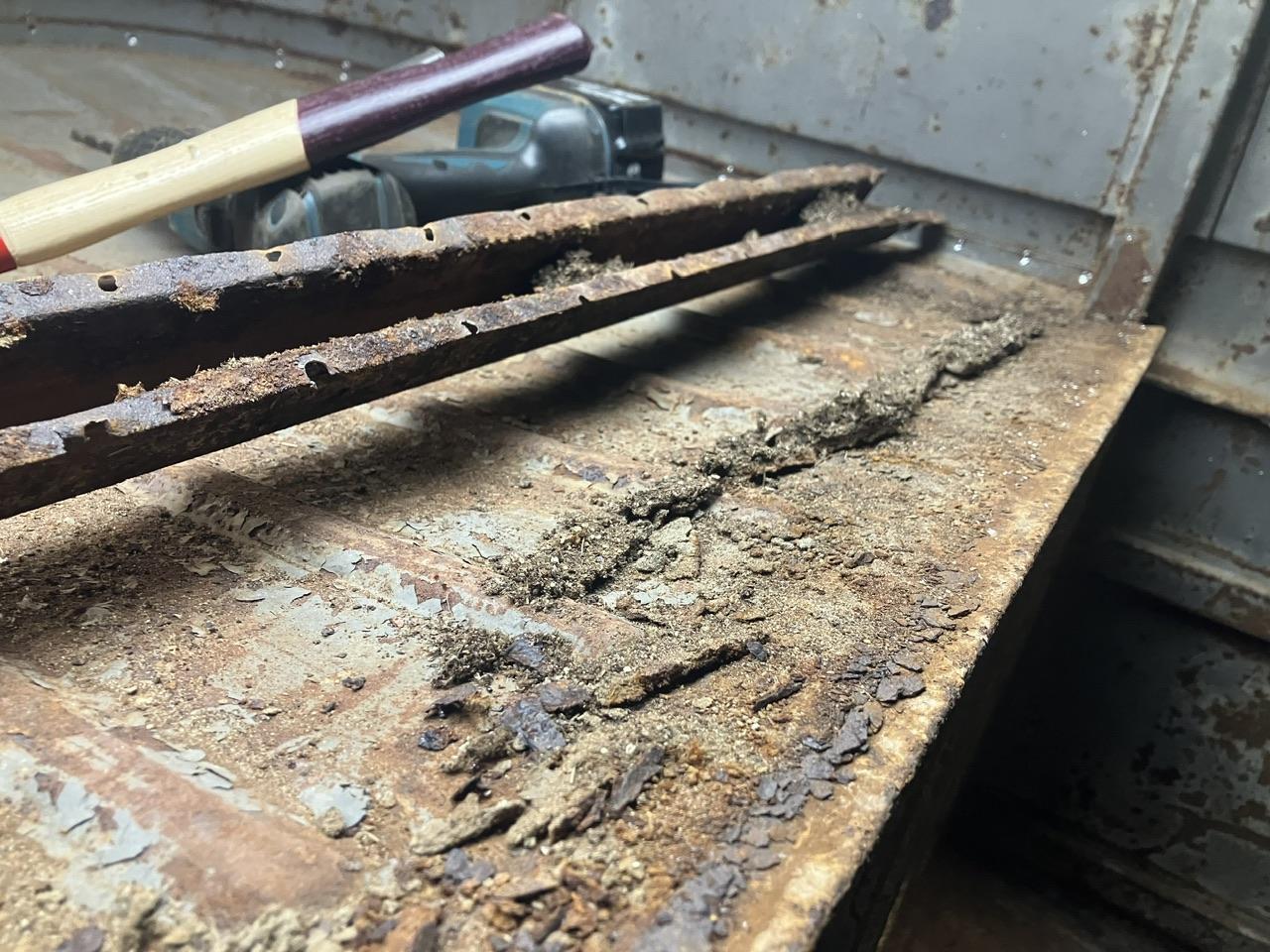

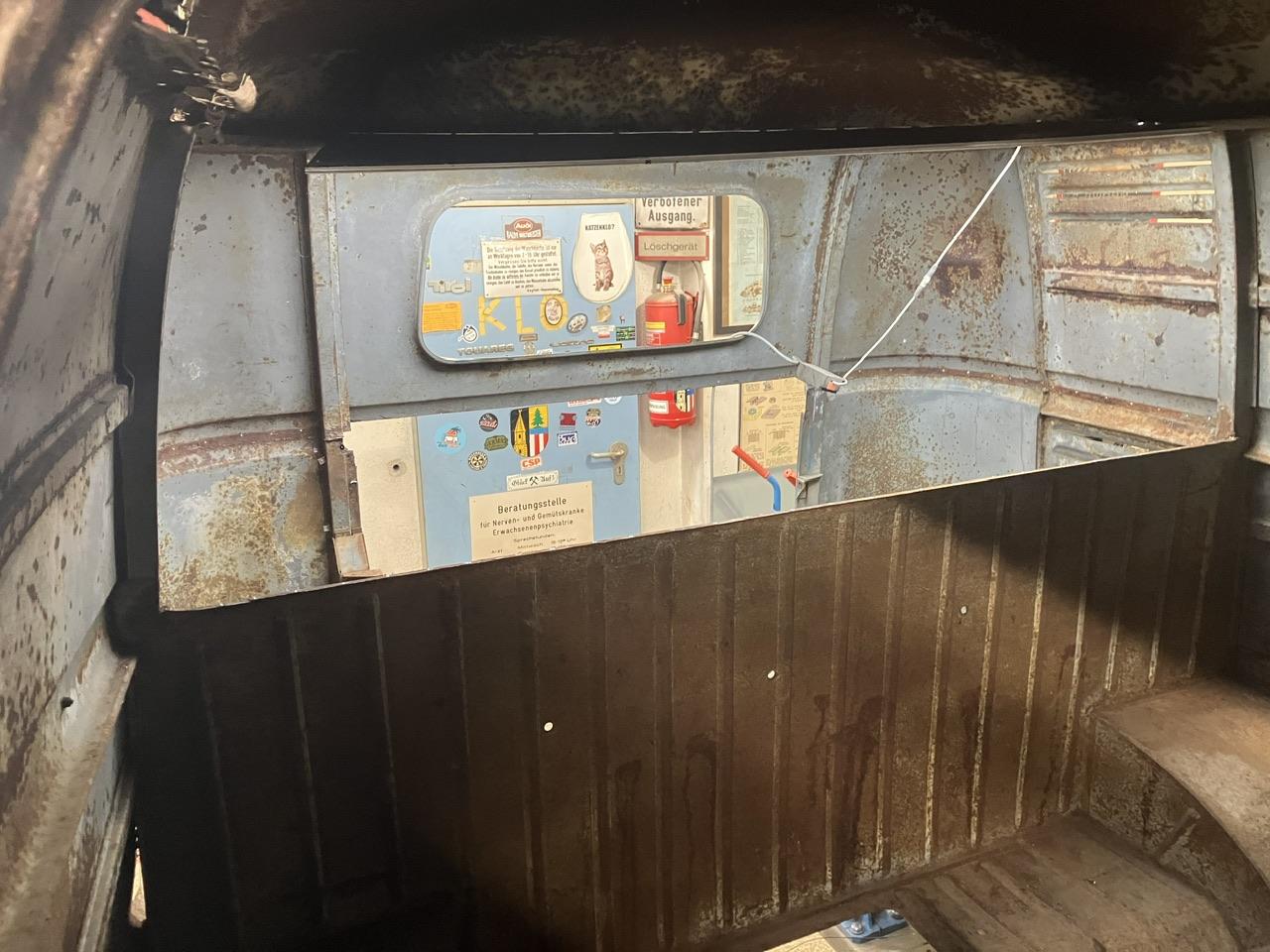

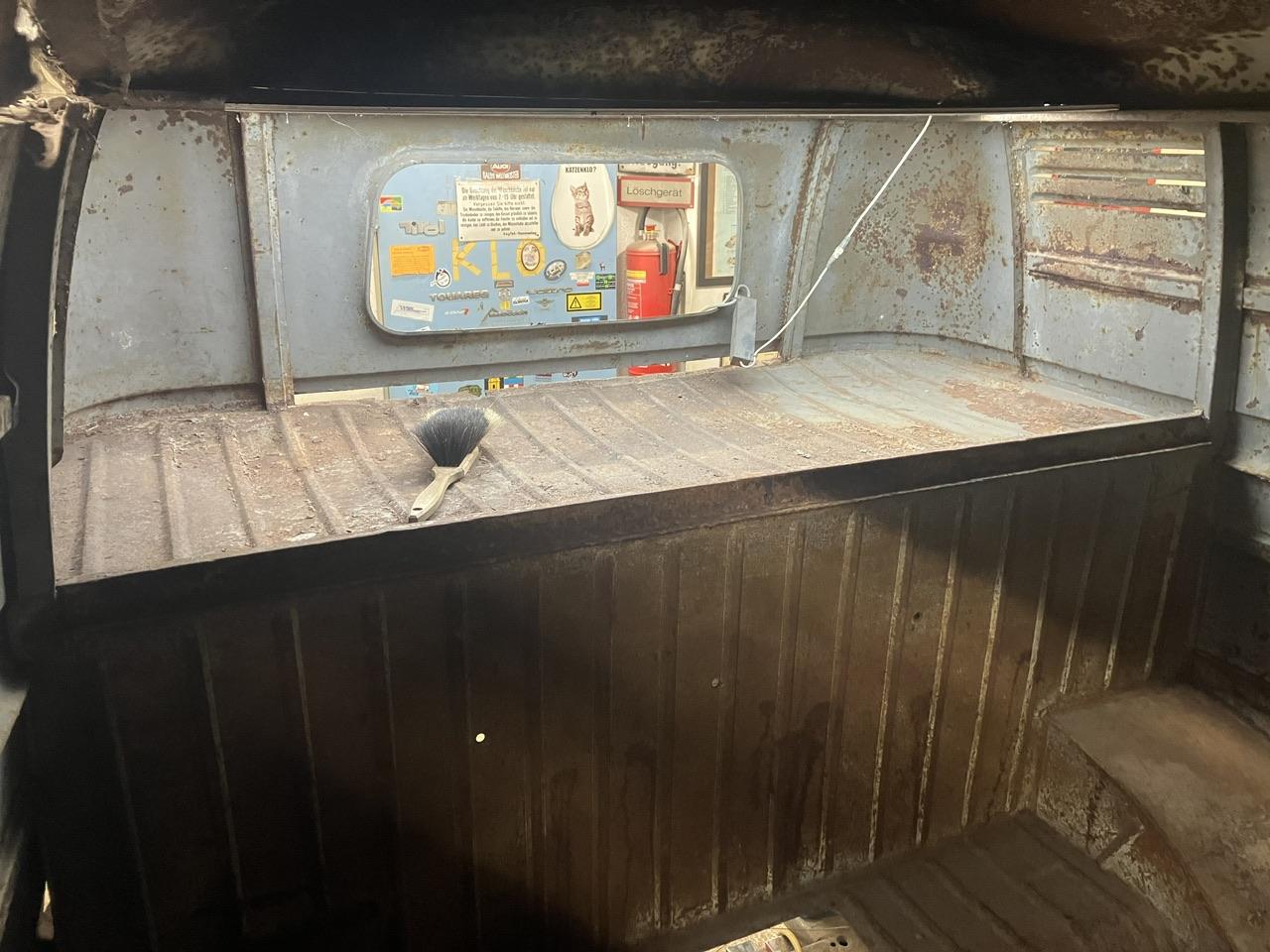

The package tray is dead, it is rusted thin like paper and have holes everywhere, i hope gerson is still making parts!
I an still confused how the tray is installed, i had to cut and bend it to get it out.
Some more work from the last hours:

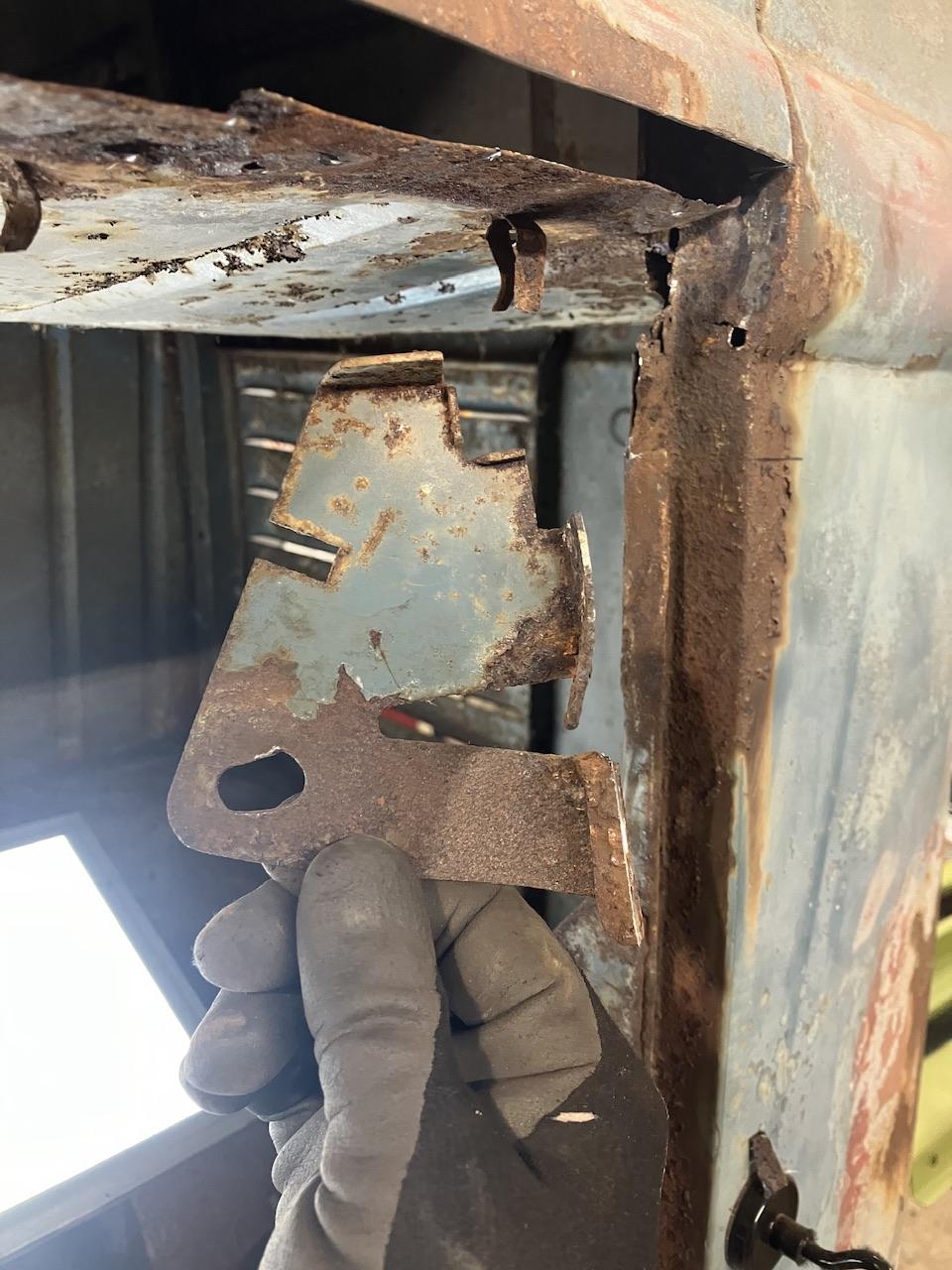

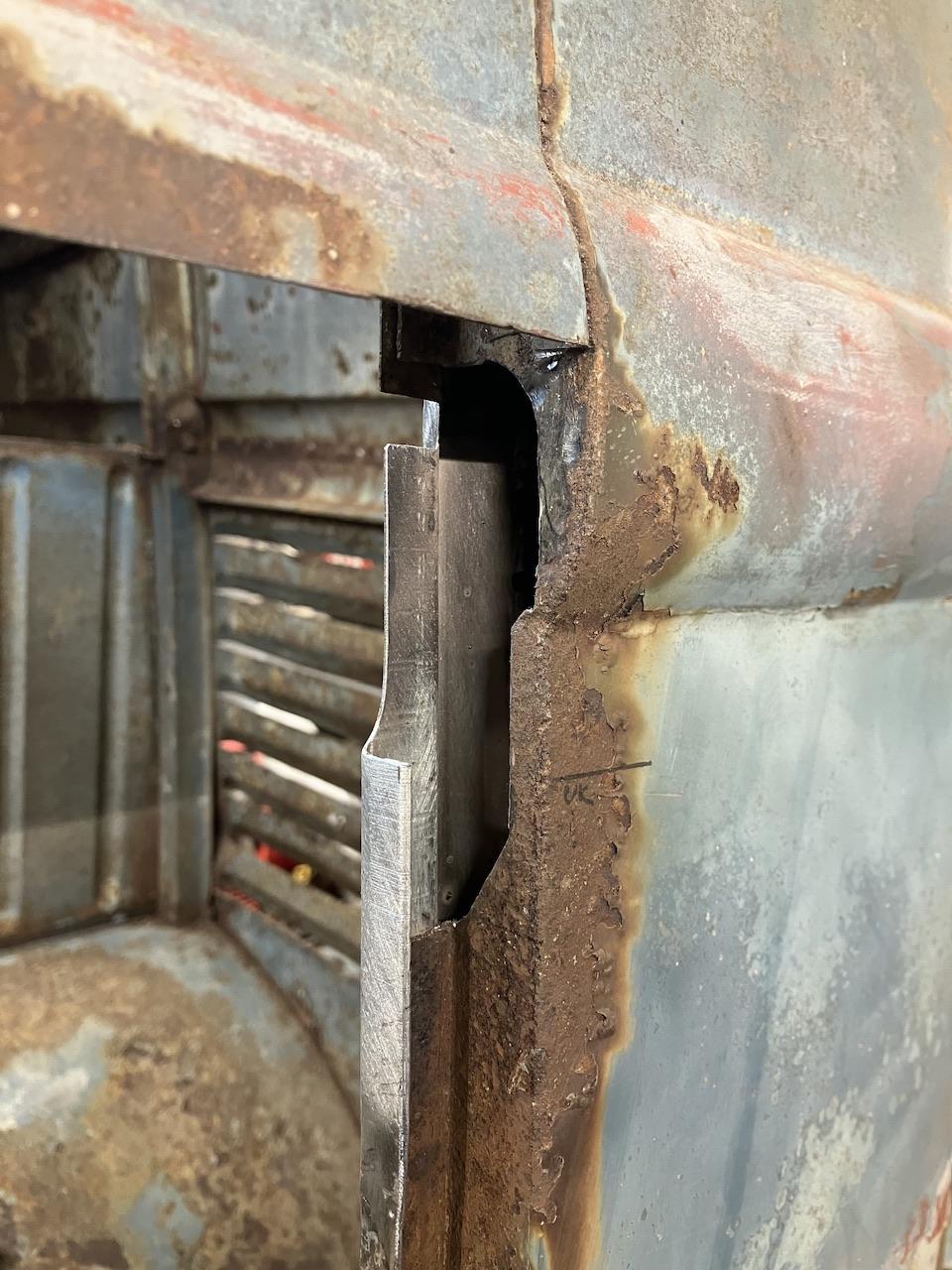

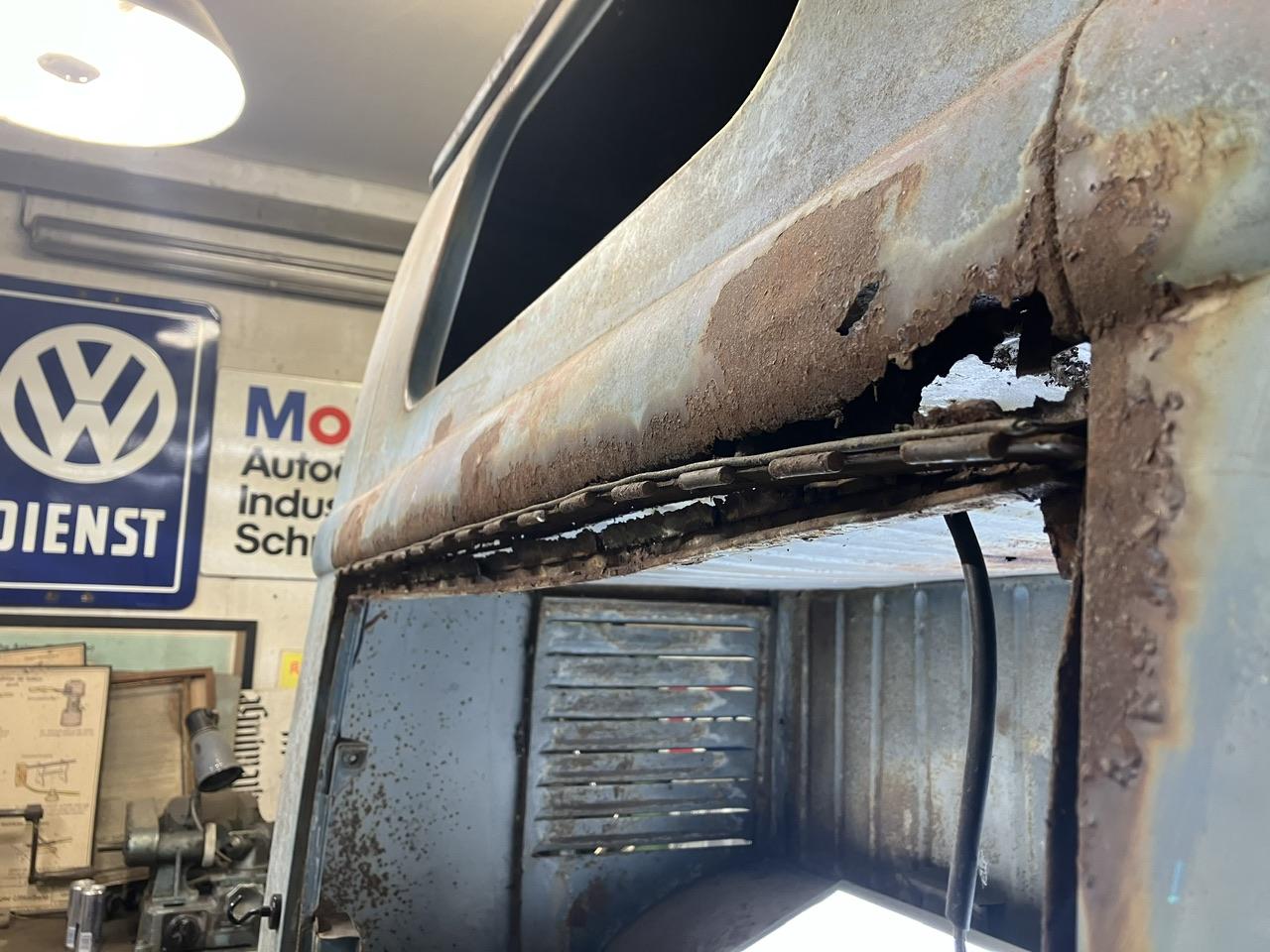

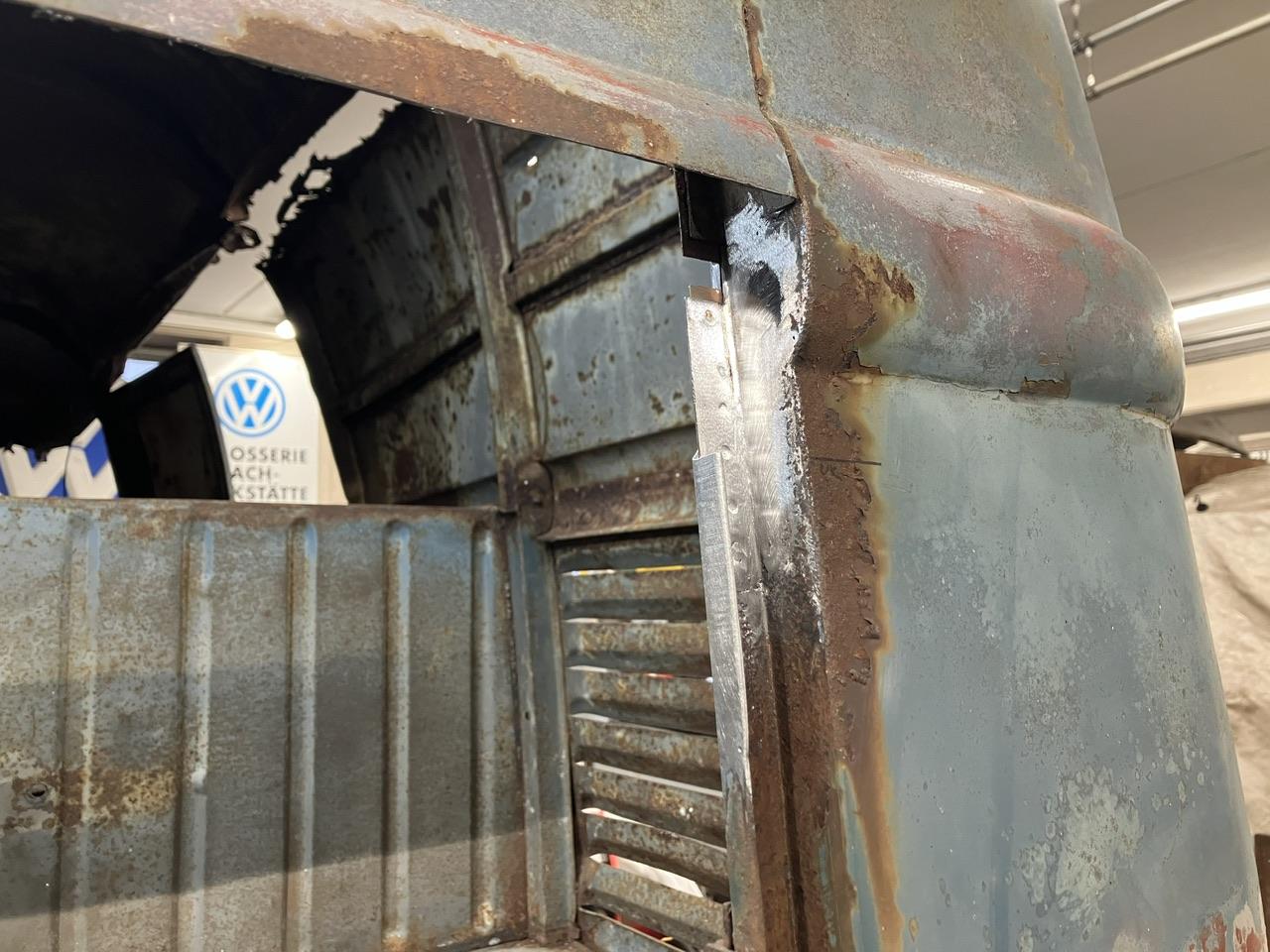

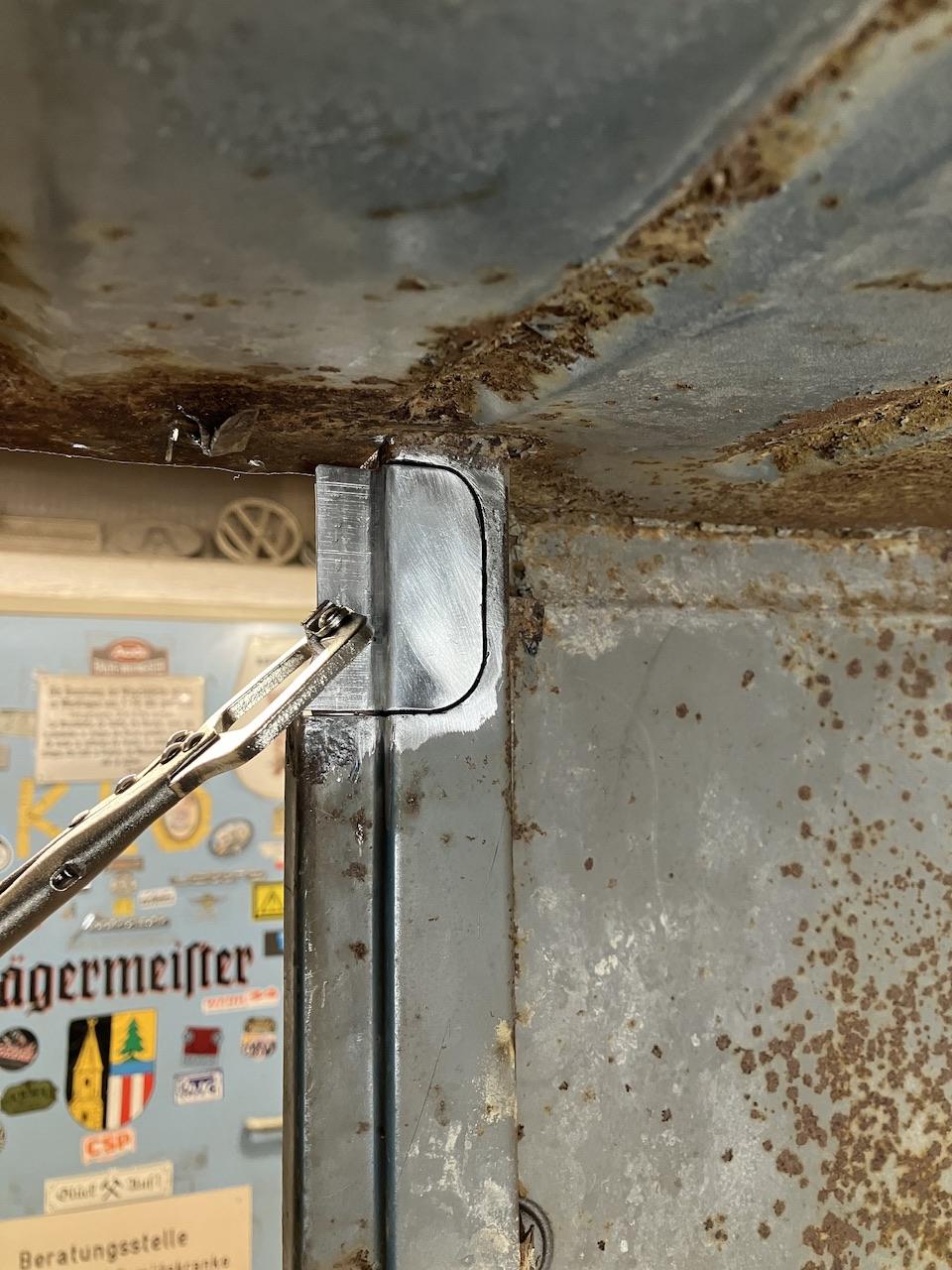

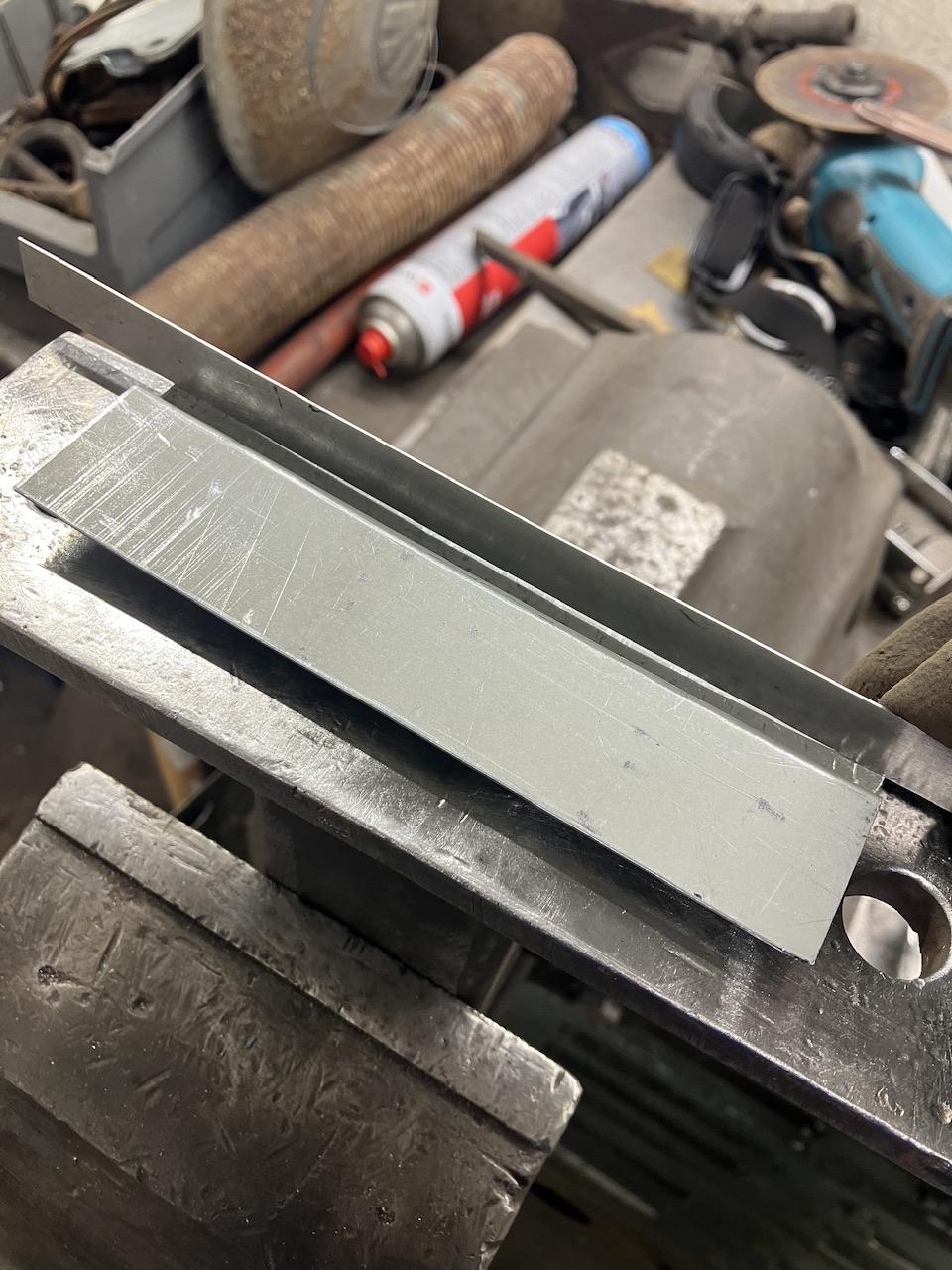

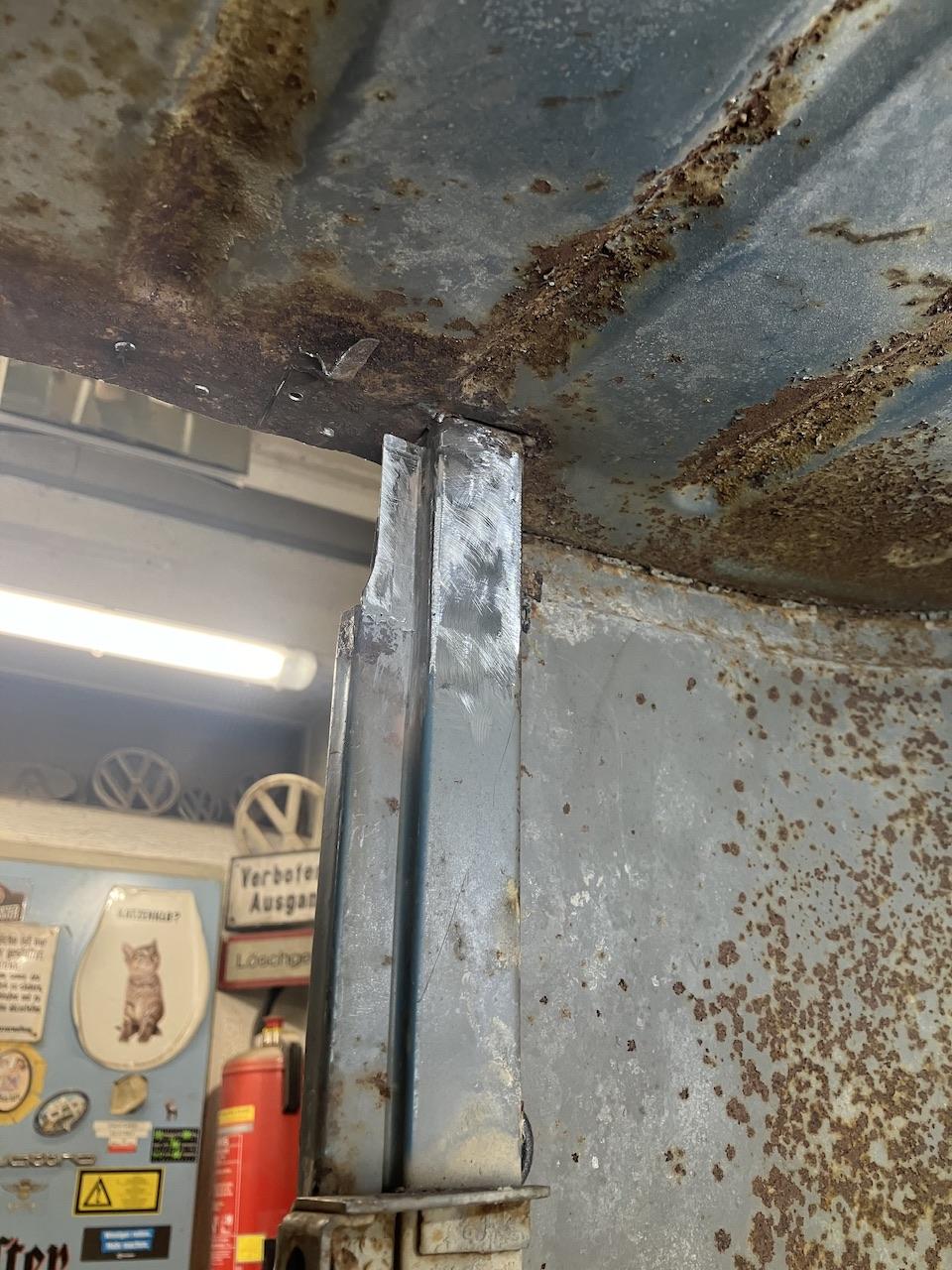

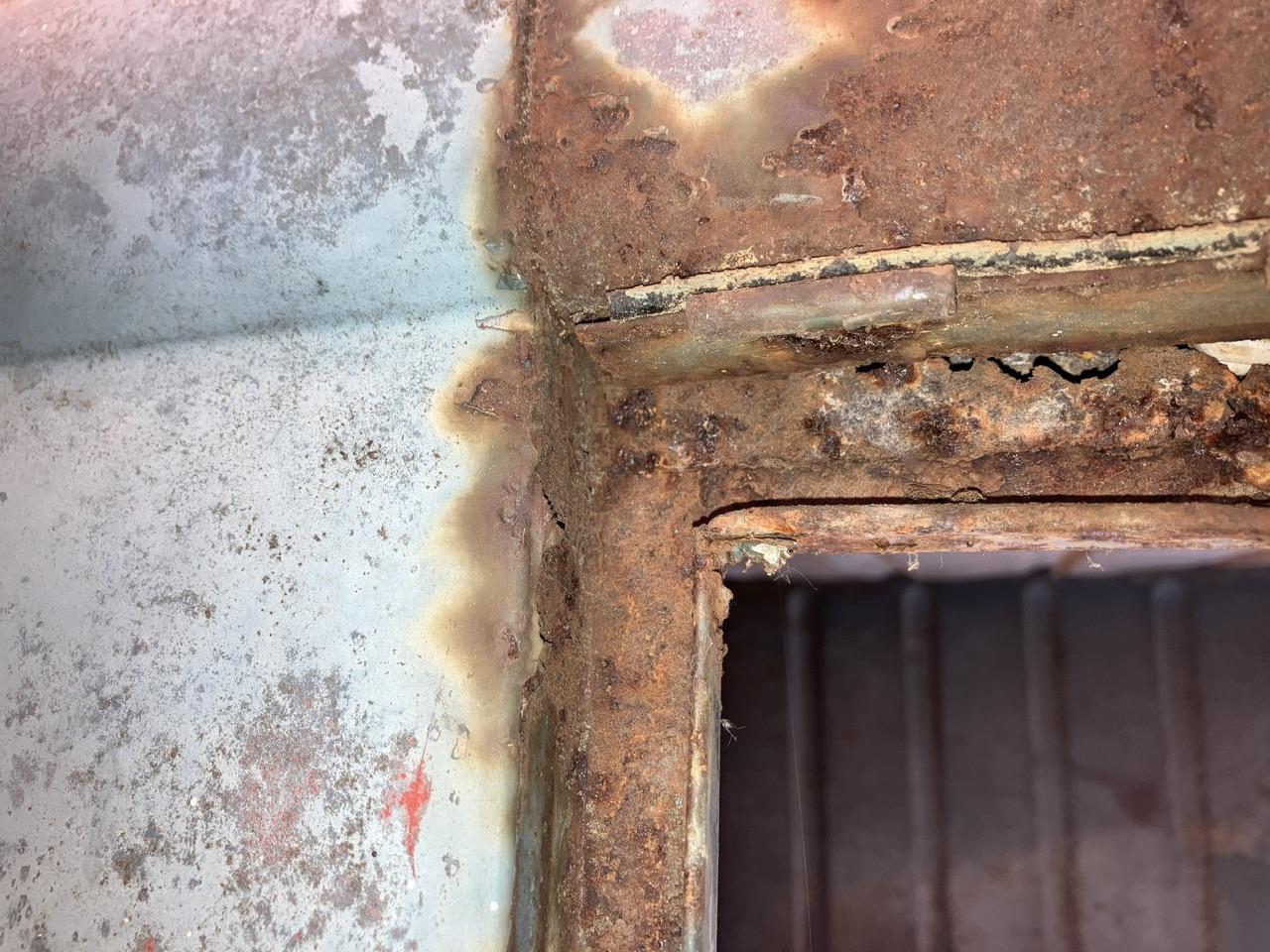

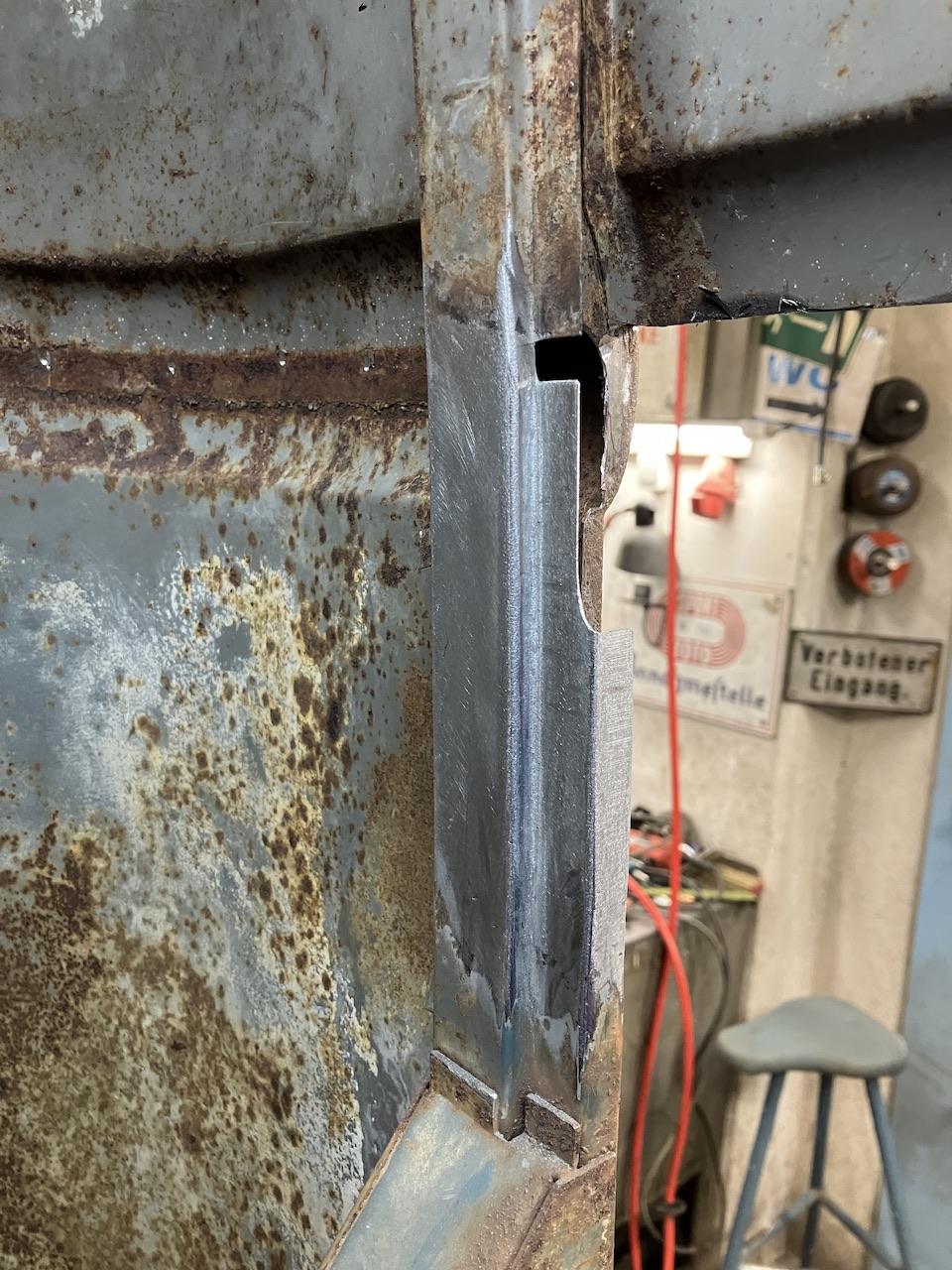

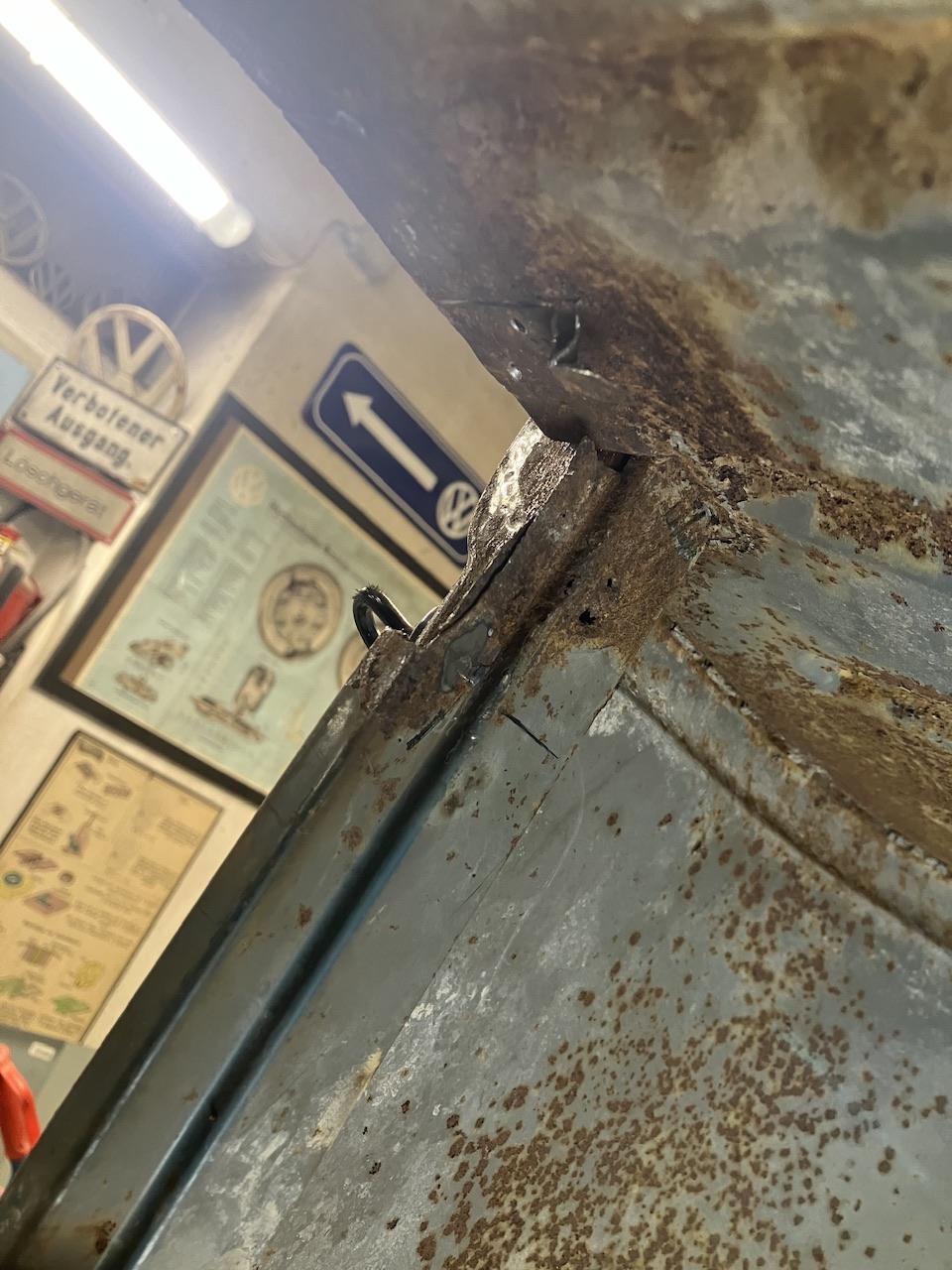

Where the hinge channel meets the pillar the metal is very thin so i had to change that for strong welds there:

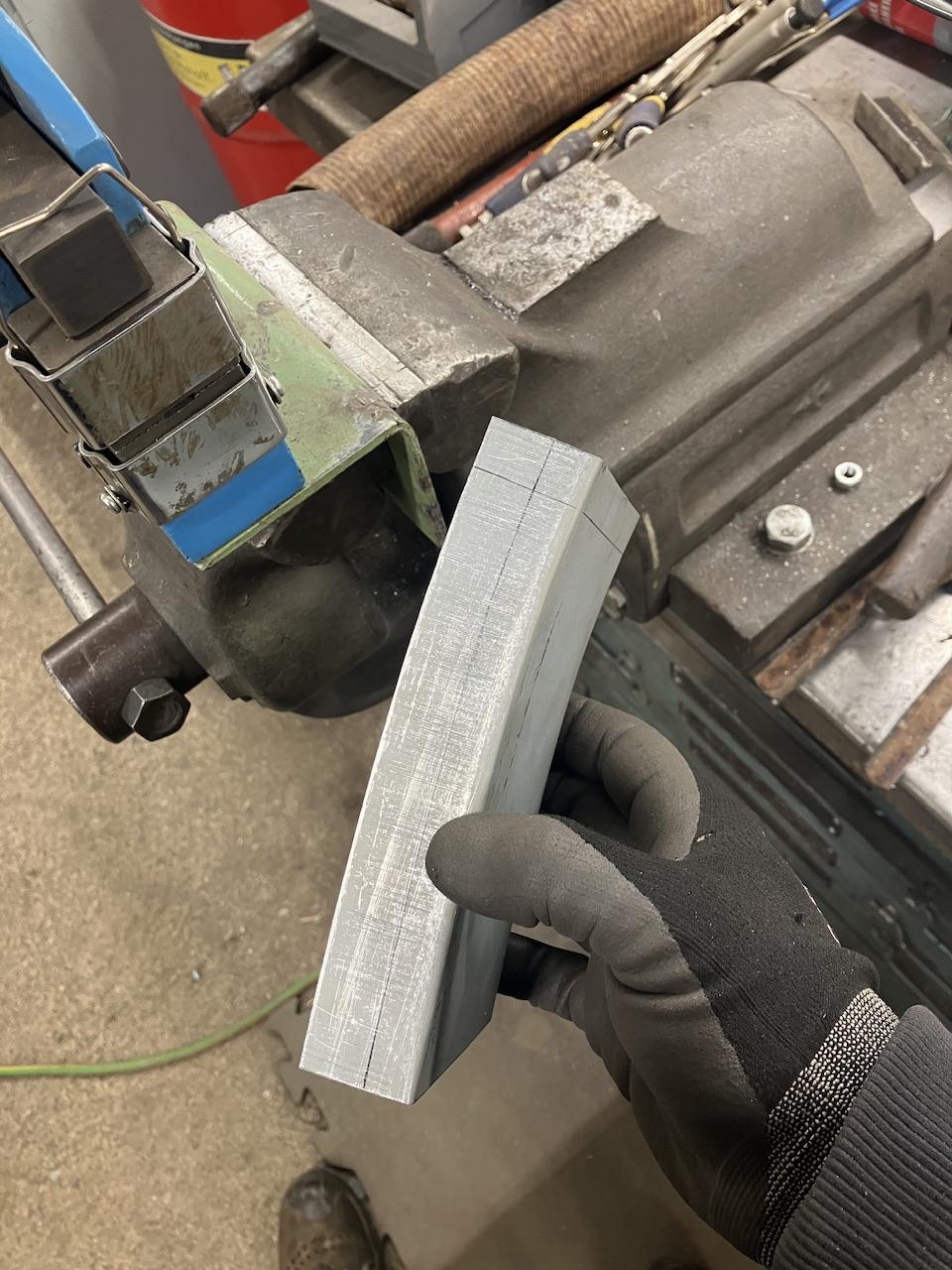

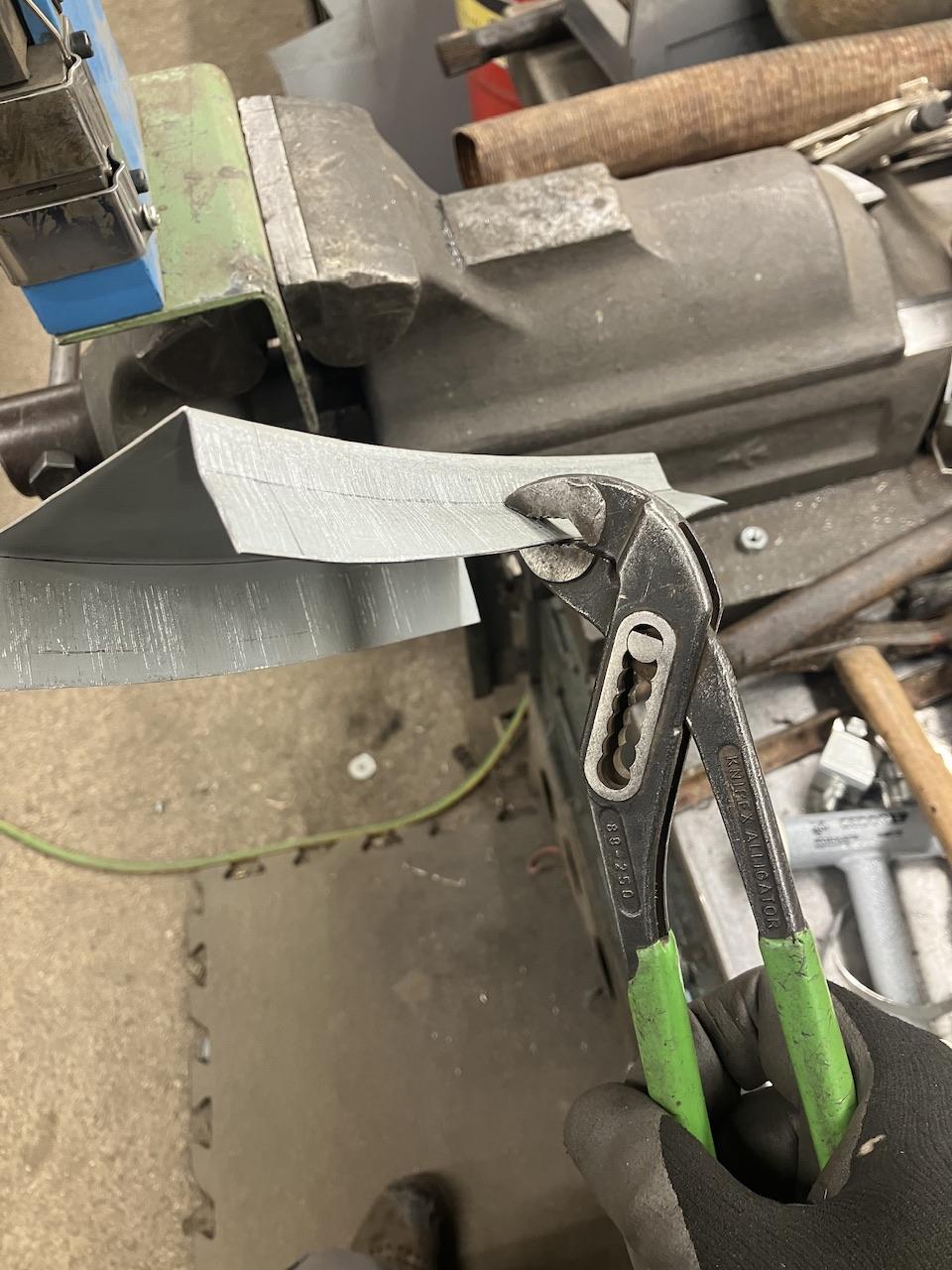

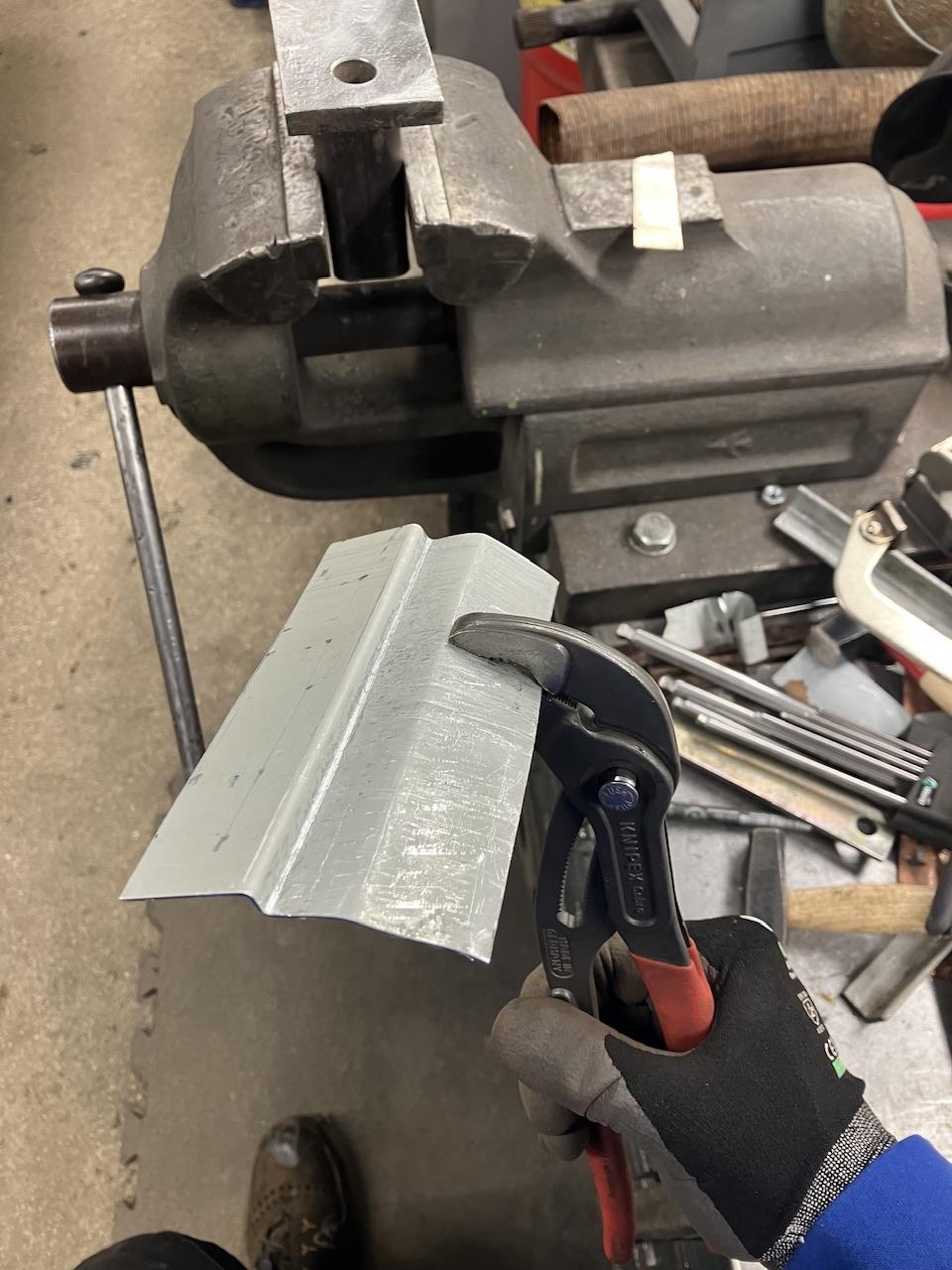

That part have a light curve to follow the pilar, not easy to bend this:
Also the outside need a patch.... reminds me to all that little patches from tha Sparsamba...

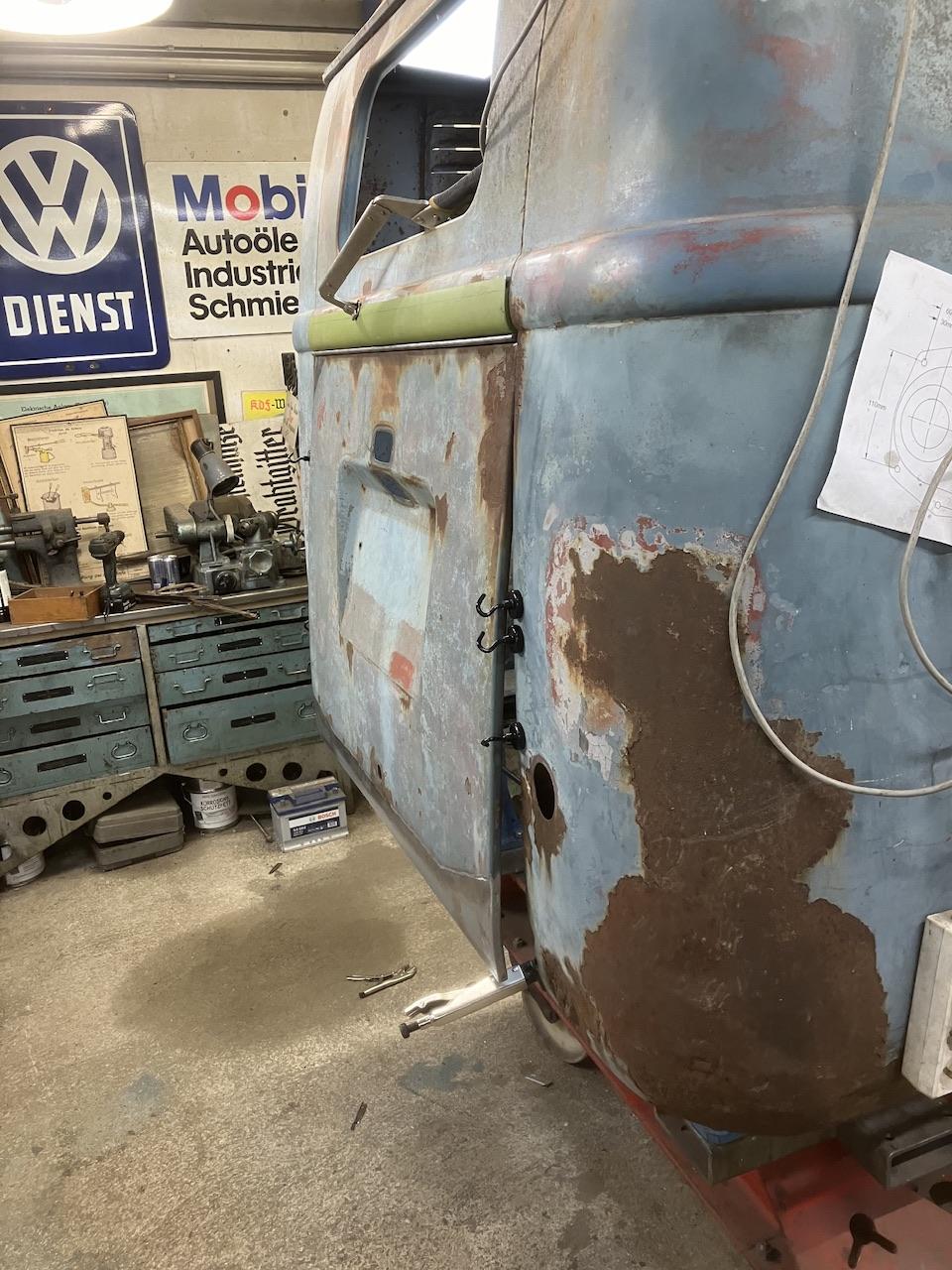

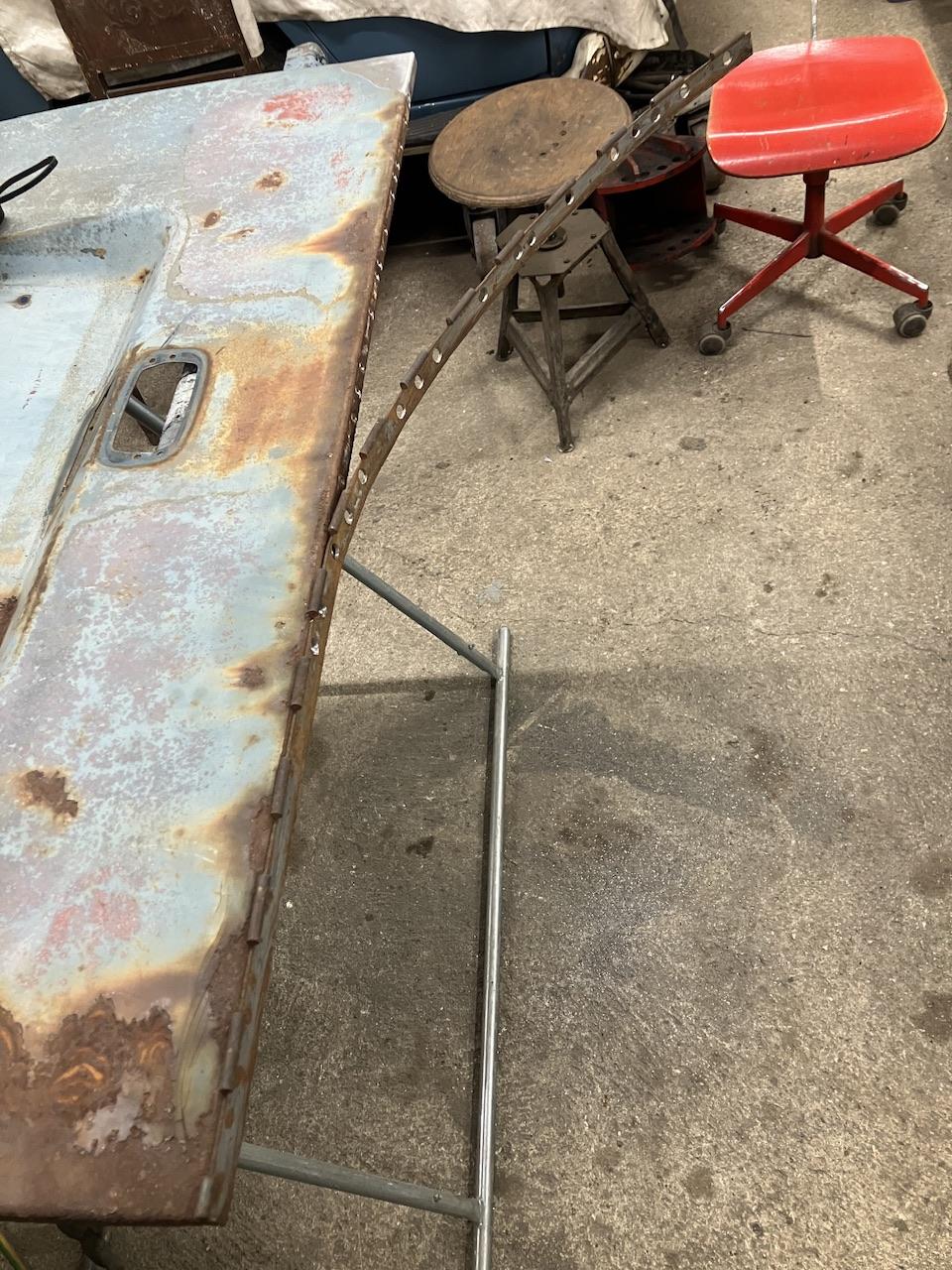

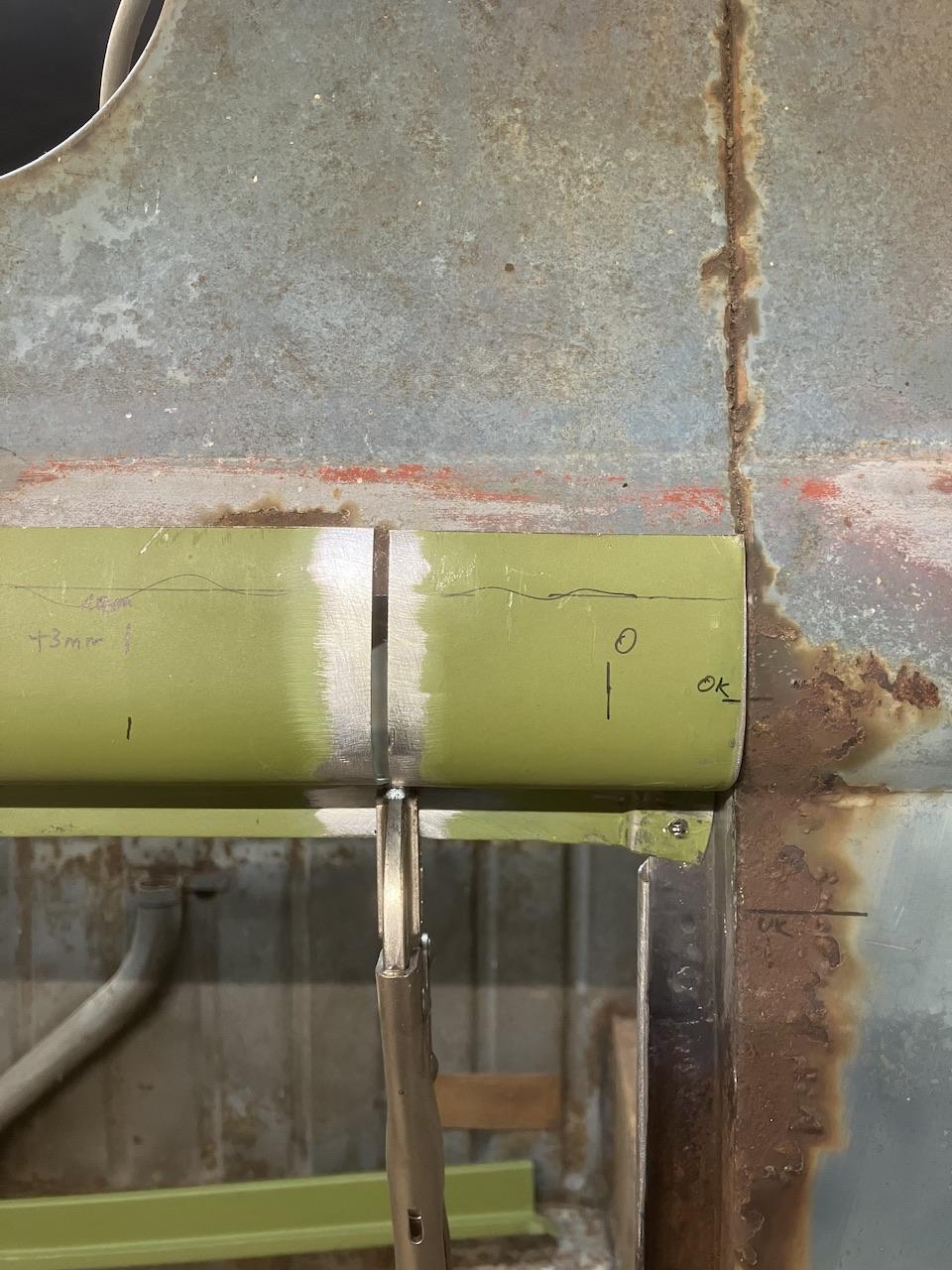

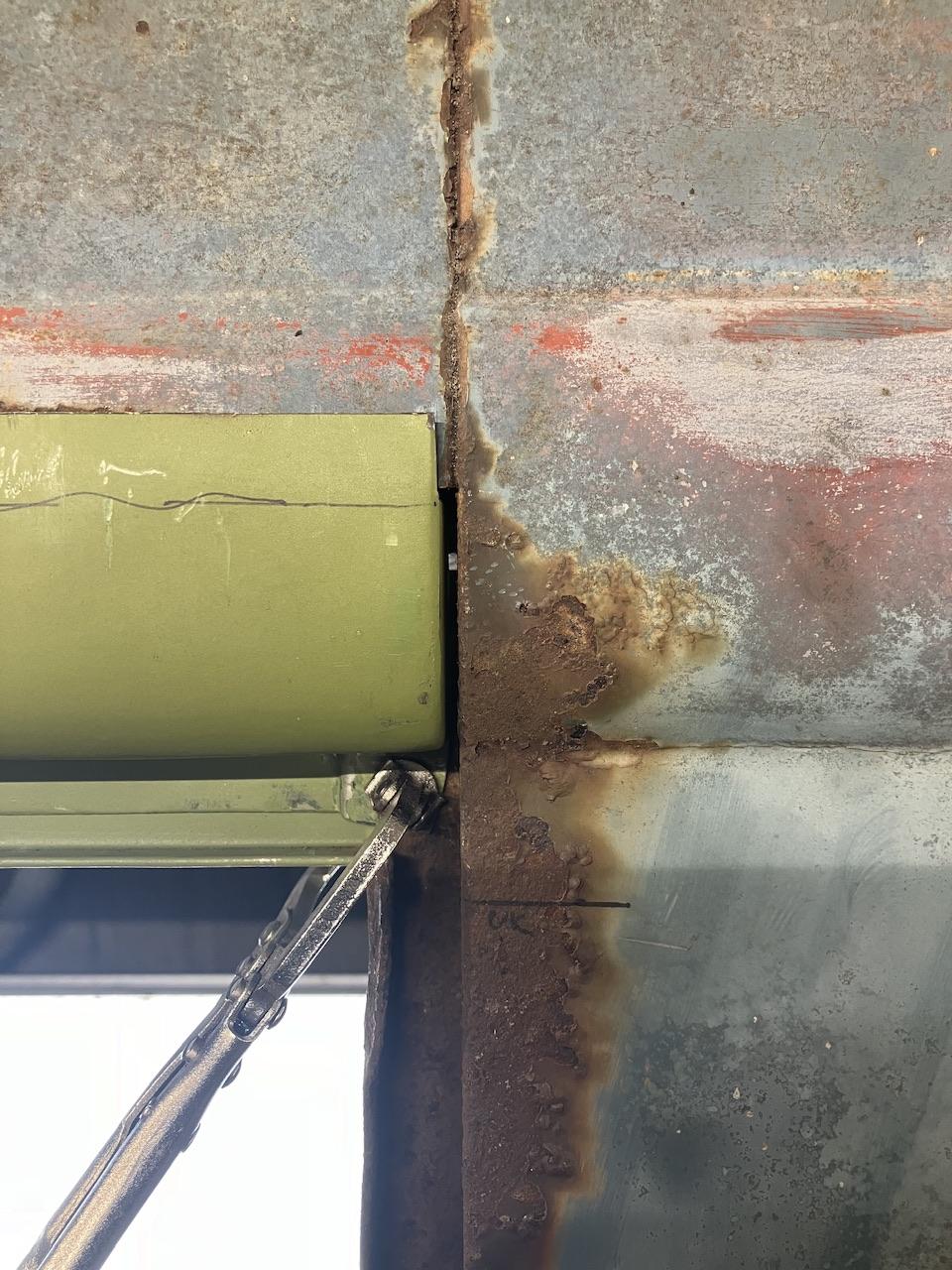

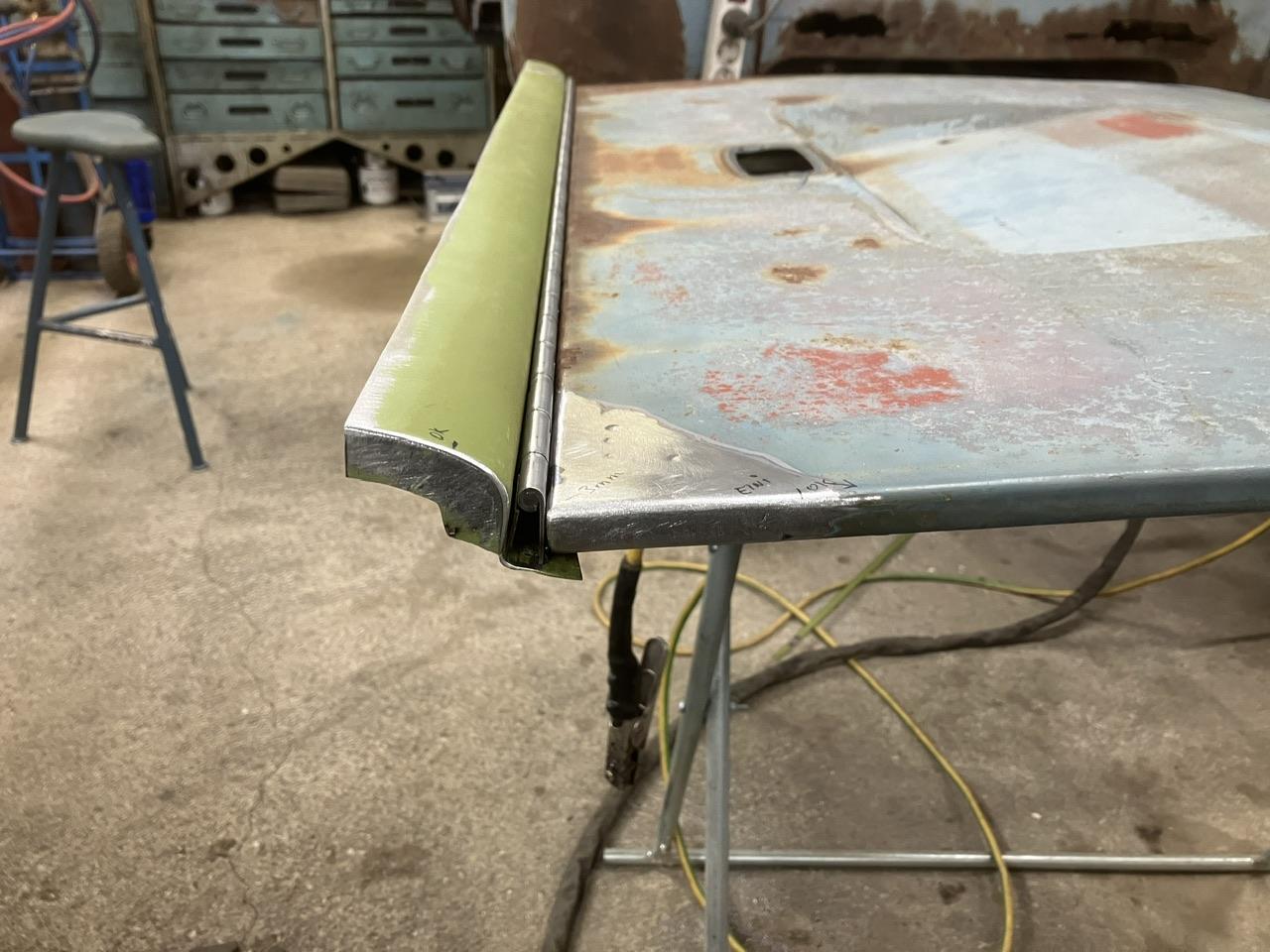

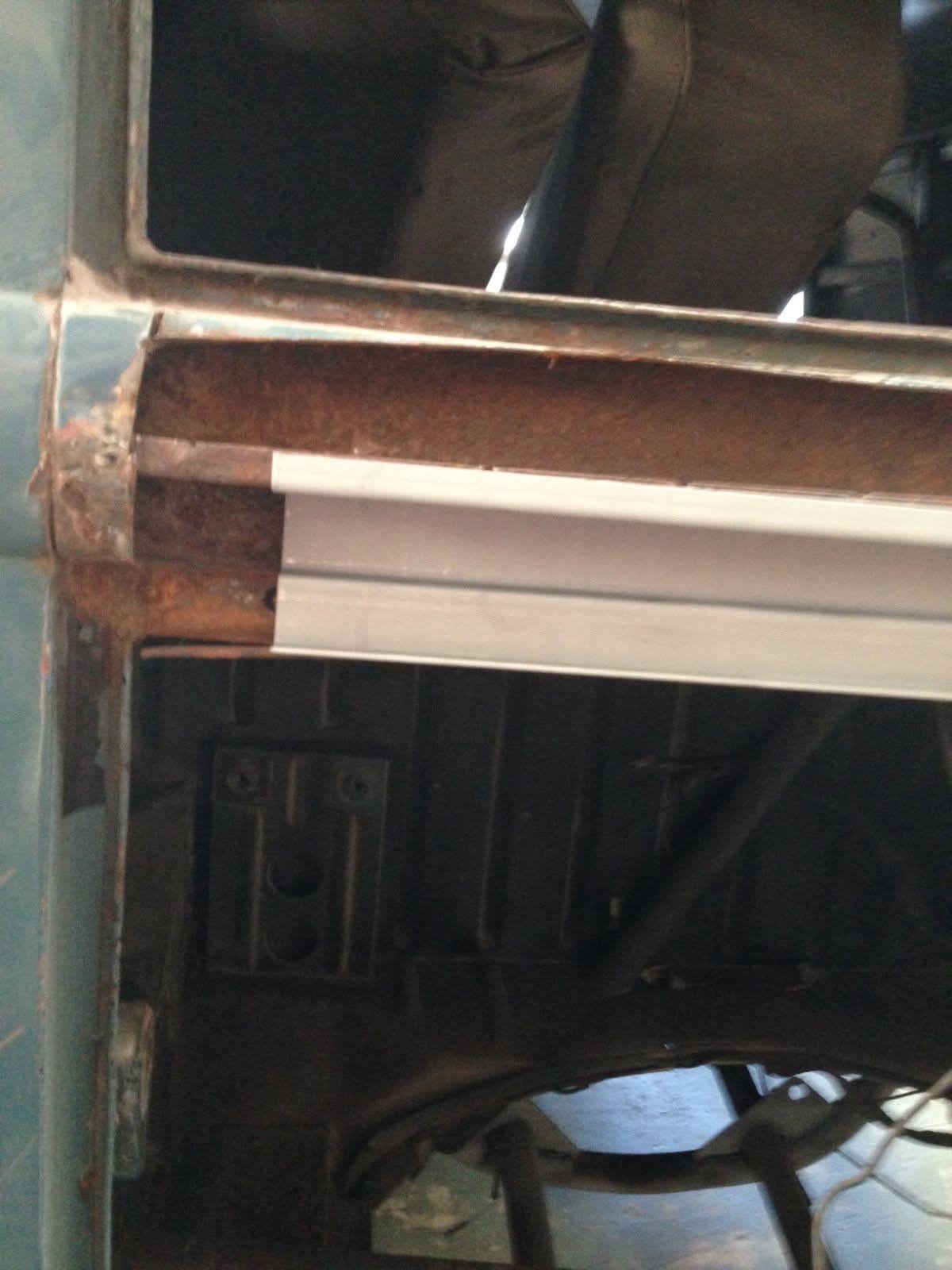

Then i started ti make the hatch fit, new hinge and new part over the hatch, i had to cut it in the wide and have to drill out the nuts.
It's also to deep, we will see if i can get that fit, but there is only this way forward!
I want that this one close smooth.
-Christian
-Christian
_________________
My 1957 SC
http://www.thesamba.com/vw/forum/viewtopic.php?t=605363&postdays=0&postorder=asc&start=0
MY 1967 Sparsamba:
https://www.thesamba.com/vw/forum/viewtopic.php?t=757182
My 1952 Panel:
https://www.thesamba.com/vw/forum/viewtopic.php?t=797388
My 1954 Deutsche Bundespost:
http://www.thesamba.com/vw/forum/viewtopic.php?t=621802
My 1961 SO34:
https://www.thesamba.com/vw/forum/viewtopic.php?t=716285
My 1991 Westfalia California:
http://www.thesamba.com/vw/forum/viewtopic.php?t=650751 |
|
| Back to top |
|
|
sgellis
Samba Member
Joined: July 06, 2016
Posts: 2147
Location: SW Nova Scotia, Canada
|
| Posted: Fri Nov 29, 2024 10:19 am Post subject: Re: 52 panel repair from Austria |
|
|
| Huetti_1989 wrote: |
The package tray is dead, it is rusted thin like paper and have holes everywhere, i hope gerson is still making parts!
I an still confused how the tray is installed, |
There is a post somewhere that shows rolling up the rear of the tray to put it in. It definitely did not look easy. I also remember someone having a replacement panel that was a little wide that caused some issues. Another cut it in half but I think it would be easier to bend and fix any damage after it is in there.
EDIT: Actually I think it was the forward edge they bent up to install. Maybe put you original back together and experiment.
Have browsed every BD thread I could find but only retain about 5%.
I will build a new panel for mine. Should be relatively easy to press in the ribs with my widened hydraulic press. I get satisfaction from building my own parts. Much better than getting annoyed by incorrect replacement parts.
