Heres some pics of an on going project I started a year or so ago...
I thought I'd share here on Samba... This was My first project Vw in High

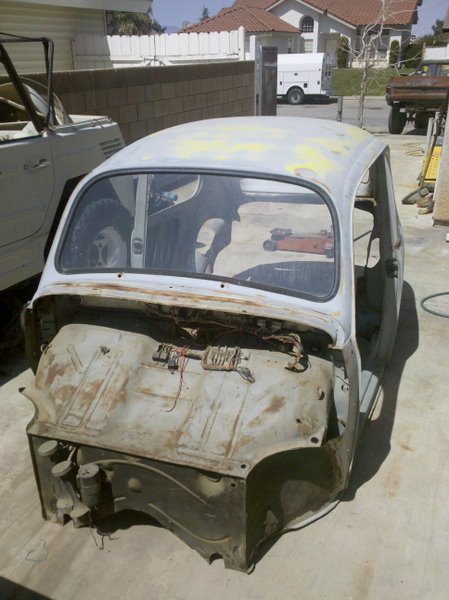

School . Now its under going a reserection sort of speak. It went from bein
a sort of stock baja to haven a full rollcage bus trans thing frnt end and 2180cc motor... It was fun for being what it was.. Story short sold of alot of the parts. and all that i was left with was a body and pan and few suspention parts as it sat for ten years on the side of my house..Finally got the Vw bug again and decided to put it back together... The goal was to have 105"wheelbase and 18"of wheel travel ...

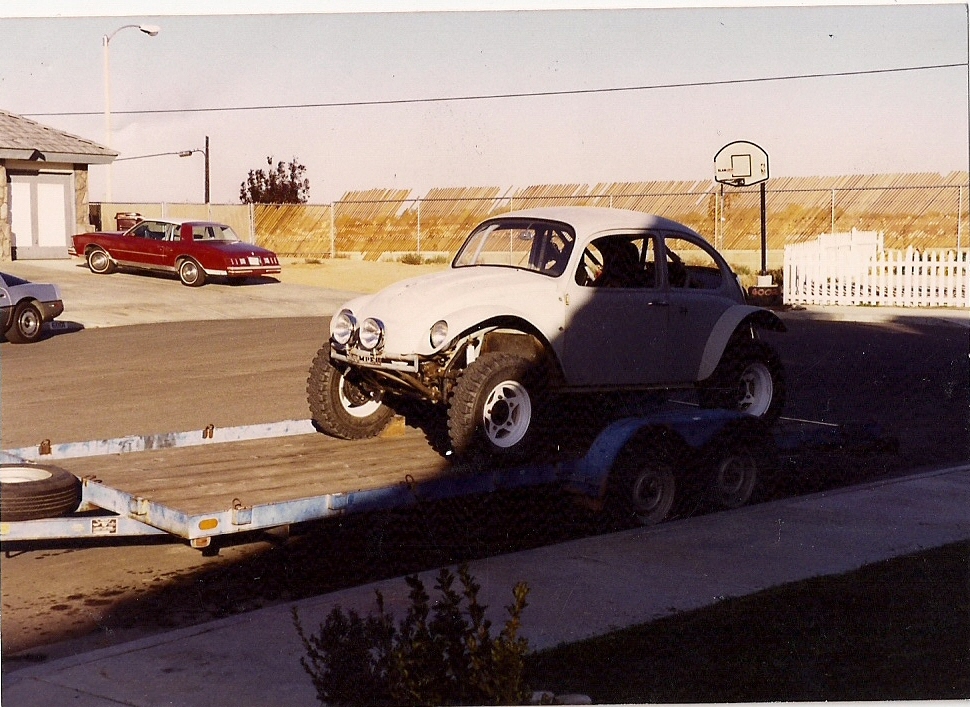

This what it looked like when it was together..
Last edited by JKZ Racer on Sat Nov 05, 2011 3:33 pm; edited 1 time in total |
|
| Back to top |
|
 |
poomwah
Samba Member
Joined: February 02, 2011
Posts: 1124
Location: NW ohio
|
|
| Back to top |
|
|
JKZ Racer
Samba Member
Joined: August 29, 2011
Posts: 81
Location: High Desert CA
|
| Posted: Mon Sep 05, 2011 2:02 pm Post subject: 67' Baja Project |
|
|

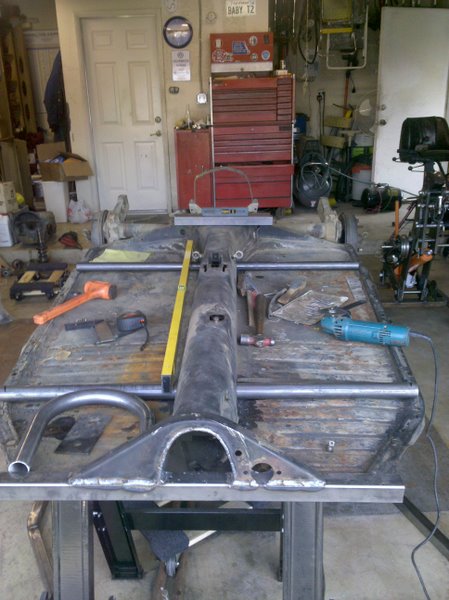

getting ready to cutt off the Frame Head.
cut of the frame head and installed and 1 1/2 120.wall square tube
and installed the 1 1/2 120.wall tube through the tunnel for the square tube
supports the will run down the side of the pan. |
|
| Back to top |
|
|
poomwah
Samba Member
Joined: February 02, 2011
Posts: 1124
Location: NW ohio
|
| Posted: Mon Sep 05, 2011 2:13 pm Post subject: Re: 67' Baja Project |
|
|
| JKZ Racer wrote: |
getting ready to cutt off the Frame Head.
cut of the frame head and installed and 1 1/2 120.wall square tube
and installed the 1 1/2 120.wall tube through the tunnel for the square tube
supports the will run down the side of the pan. |
hey, that first pic helps me out a lot... I'm going to be getting a one piece toward the end of this month, now I see where to cut :]
_________________
Rocco- my build thread
http://www.thesamba.com/vw/forum/viewtopic.php?t=479675 |
|
| Back to top |
|
|
JKZ Racer
Samba Member
Joined: August 29, 2011
Posts: 81
Location: High Desert CA
|
| Posted: Mon Sep 05, 2011 2:20 pm Post subject: 67' Baja Build |
|
|

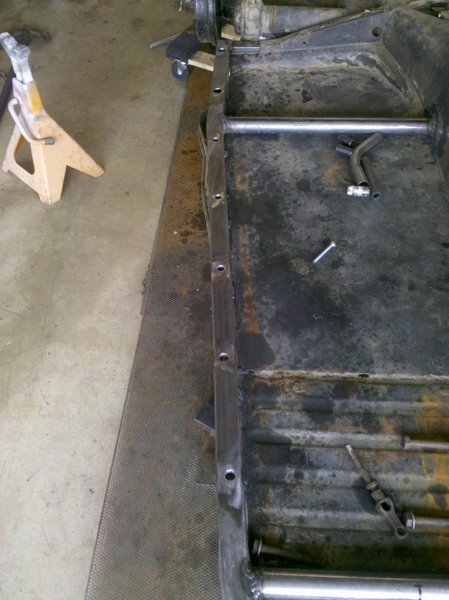

Here Im Installing the squaretube sides
|
|
| Back to top |
|
|
JKZ Racer
Samba Member
Joined: August 29, 2011
Posts: 81
Location: High Desert CA
|
| Posted: Mon Sep 05, 2011 2:25 pm Post subject: 67' Baja Build |
|
|

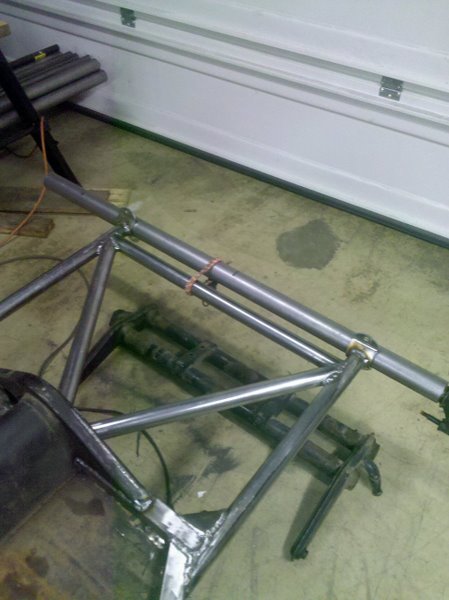

Installed the beam supports that will extend the front end 7" foward |
|
| Back to top |
|
|
dixon_cass
Samba Member
Joined: December 14, 2010
Posts: 930
Location: Axtell Kansas
|
|
| Back to top |
|
|
JKZ Racer
Samba Member
Joined: August 29, 2011
Posts: 81
Location: High Desert CA
|
| Posted: Mon Sep 05, 2011 2:29 pm Post subject: 67' Baja build |
|
|
| Im new to posting ..I will be back later to post more pics.. I have to go through my pic and resize them all to fit here on samba ... and thanks for your replys... |
|
| Back to top |
|
|
JKZ Racer
Samba Member
Joined: August 29, 2011
Posts: 81
Location: High Desert CA
|
| Posted: Mon Sep 05, 2011 11:57 pm Post subject: 67' Baja Build |
|
|

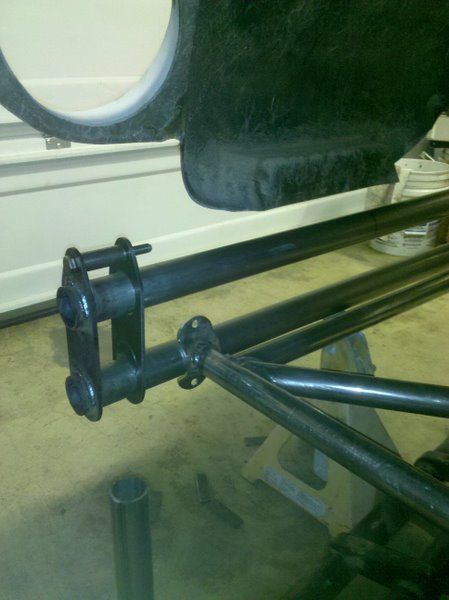

moking up my front link pin beam
|
|
| Back to top |
|
|
JKZ Racer
Samba Member
Joined: August 29, 2011
Posts: 81
Location: High Desert CA
|
| Posted: Tue Sep 06, 2011 12:01 am Post subject: 67'baja Build |
|
|

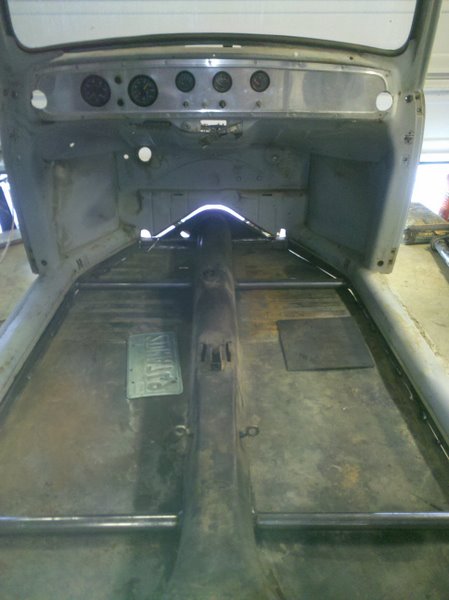

Put the body on the pan .It now has A 1"body lift .
|
|
| Back to top |
|
|
JKZ Racer
Samba Member
Joined: August 29, 2011
Posts: 81
Location: High Desert CA
|
| Posted: Tue Sep 06, 2011 12:04 am Post subject: 67' Baja Build |
|
|

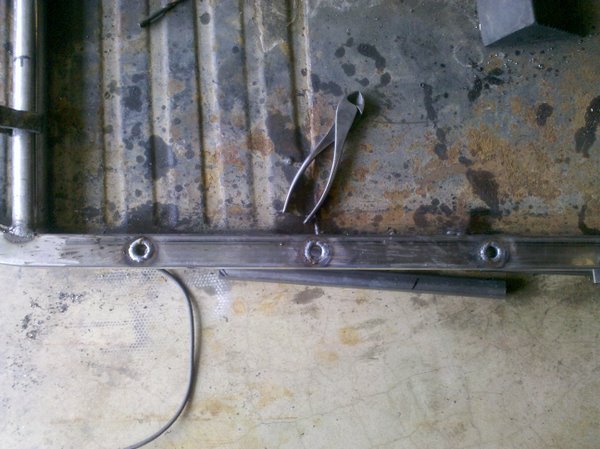

Here I welded in some tubes through the square tube for the body bolts
|
|
| Back to top |
|
|
bajacole
Samba Member
Joined: October 31, 2010
Posts: 72
Location: Laguna Beach, CA
|
| Posted: Tue Sep 06, 2011 9:27 am Post subject: |
|
|
| This thing is lookin' badass! Keep at it!! Oh and nice job on the wiring. I dream of a tuck like that |
|
| Back to top |
|
|
JKZ Racer
Samba Member
Joined: August 29, 2011
Posts: 81
Location: High Desert CA
|
| Posted: Wed Sep 07, 2011 6:12 pm Post subject: 67' Baja Build |
|
|
Just to give some more info about the build..
This is based on an old Class 5 unlimeted Baja .
They had to stick to vw base suspention and could go wider than stock
and were limeted to 105" WB. motors were unlimited but had to be Vw's
I chose to go 12" wider in front 10" in rear.. Transmission wise going with A bus 002 or 091 . Motor still tryin to decide , would like to run a 2800cc type 4 motor if money allows...But I just end up rebuilding my 1914 that is being use in my brothers rail..
I was tryn to make this as inexpensive as possible...
Thanks again for the remarks ..
Last edited by JKZ Racer on Sun Nov 13, 2011 12:47 pm; edited 1 time in total |
|
| Back to top |
|
|
JKZ Racer
Samba Member
Joined: August 29, 2011
Posts: 81
Location: High Desert CA
|
| Posted: Wed Sep 07, 2011 6:37 pm Post subject: 67' Baja Build (My Baja Reserection Project) |
|
|
In these pics ..I had the body bolted down. and started to fab the main hoop of the cage and the (A)piller bars.. The 8' over beam was welded up some .
The goal here was to tuck the cage close to the body. For the most
interior and head room.. Cage is being made of 1 1/2 .120 wall around the driver and pass.. |
|
| Back to top |
|
|
JKZ Racer
Samba Member
Joined: August 29, 2011
Posts: 81
Location: High Desert CA
|
| Posted: Wed Sep 07, 2011 6:52 pm Post subject: 67' Baja Build (My Baja Reserection Project) |
|
|

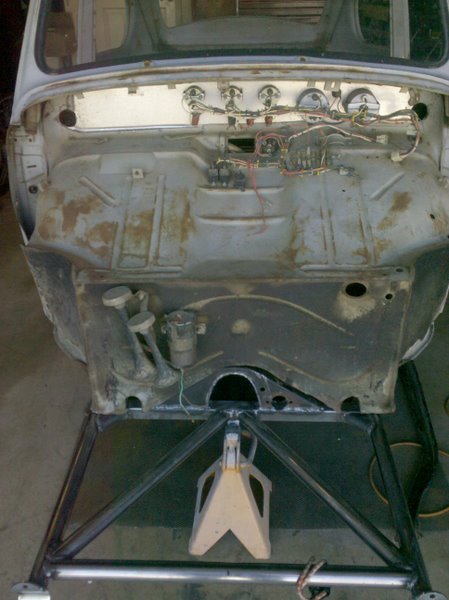

I cutt the front foot well out to fab the upper beam &bumper supports.
Alot of this part was just being tag in... |
|
| Back to top |
|
|
JKZ Racer
Samba Member
Joined: August 29, 2011
Posts: 81
Location: High Desert CA
|
| Posted: Wed Sep 07, 2011 7:06 pm Post subject: 67' Baja Build (My Baja Reserection Project) |
|
|
The bumper got its shape.
The front cross bar

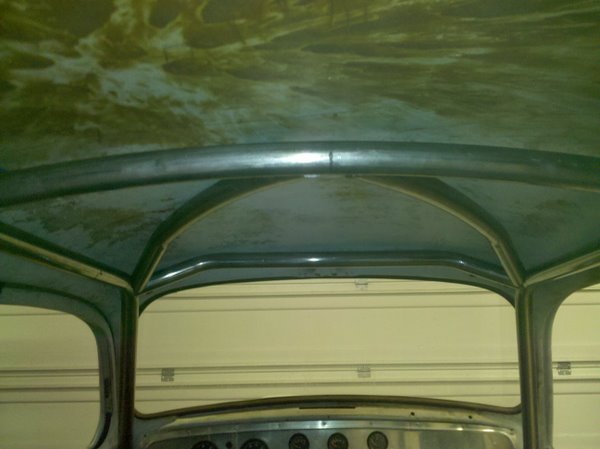

and then the roof bar.
|
|
| Back to top |
|
|
JKZ Racer
Samba Member
Joined: August 29, 2011
Posts: 81
Location: High Desert CA
|
| Posted: Wed Sep 07, 2011 7:18 pm Post subject: 67' Baja Build (My Baja Reserection Project) |
|
|
I'm done posting for today ..But I'll leave with a little teeser for you guyzzz....
It went from looking like this..
to looking like this...
Don't worry I still have a lot of pics to post... So you guyzz can see
how the rest of th build went... |
|
| Back to top |
|
|
enjoyther1de
Samba Member
Joined: December 19, 2010
Posts: 1279
Location: chino,ca
|
| Posted: Wed Sep 07, 2011 7:20 pm Post subject: |
|
|
very clean looking! exellent work!
_________________
HBB took me to BBV. |
|
| Back to top |
|
|
pafree
Samba Member
Joined: August 16, 2005
Posts: 2298
Location: dayton, the one in texas
|
| Posted: Wed Sep 07, 2011 7:49 pm Post subject: Re: 67' Baja Build (My Baja Reserection Project) |
|
|
did you fab the brackets that hold the beam or they store bought? only ones i can find are chrome. keep up the good work. |
|
| Back to top |
|
|
JKZ Racer
Samba Member
Joined: August 29, 2011
Posts: 81
Location: High Desert CA
|
| Posted: Wed Sep 07, 2011 8:17 pm Post subject: Re: 67' Baja Build (My Baja Reserection Project) |
|
|
| pafree wrote: |
did you fab the brackets that hold the beam or they store bought? only ones i can find are chrome. keep up the good work. |
The beam clamps you see their are chrome too..They were the only ones i could get at that time..I ended up buying a bag of 24pcs from
Pacific Customs for like 50 bucks...They do sell them indavidually for like 3 bucks.. |
|
