Oil plate leak

[zoti]

I did an oil change on my 62 and replaced the oil plate seals with new ones. One between the case and the screen and another between the screen and the plate.

Torqued the acorn nuts to exact specs with new washers and it’s annoyingly leaking from the cardboard seals.

I don’t want to over torque but the leak is annoying.

What’s the trick to make it stop?
_________________
1962 Beetle
1979 Super Beetle Convertible
1988 Vanagon Westfalia

[rcooled]

[zerotofifty]

Often the plate gets warped, dimpled at the stud holes. Remove the plate and set a straight edge across the holes (the top side) to check for this un flatness. If the area around the holes are dimpled, pushed upwards, then file them flat or with a supporting anvil and hammer, pound out the dimples till flat as you can get them, then follow up with a file.

The plates wont seal well with those dimples around the holes, has to be flat.

As for the washers, assure you got real copper washers, soft copper forms a nice sealing gasket over the acorn nuts. BEWARE some vendors sell copper plated steel washers steel washers are not soft, and thus will not seal well above the acorn nuts. A magnet will rat out the fake copper washers.

If the real copper washers were quenched (rapidly cooled) they will be hard and not seal well. If this is the case, heat the real coper washers to a dull red hot on your stove top, then allow to SLOW air cool. this slow cool will anneal the copper, making the washers soft for a perfect seal. I do this operation, as many times the real copper was cooled too fast when manufactured, and thus is too hard to seal well. you can NOT anneal the fake copper plated steel washers If you fast cool the real copper washer in cold water from a dull red heat, the copper will be hard. A hard copper washer will bounce and make a ring sound when dropped on a concrete floor, but if the real copper washer is annealed, it wont ring, rather it will make a dull thud sound and not bounce much at all. That is what you want for the washer, nice fully annealed soft washers, a nice flat plate with no dimples around the stud holes, then your paper gaskets will seal well Remember two paper gaskets, one on each side of the screen flange. do not over tighten the acorn nuts as over tightening these acorn nuts is what causes the plate to become dimpled. A nice flat dimple free plate will seal well even on used paper gaskets. I usually reuse the paper gaskets several times, leak free!!! BUT the plate MUST be flat.

Pro tip.. Get some small high powered magnets and stick them on the plate, under the screen assembly. I fit about four of them on the plate, maybe 3/16 inch thick magnets or so will fit under the screen assembly they wont move, Been doing this for years on all my VW sump plates and it works, they do pick up little bits of iron or steel hairs. A magnetic filter!!!!!
This is a great magnetic filter.
_________________
Sorry About That Chief.

Give Peace a Chance.

Words to live by.

[zoti]

[Ovally]

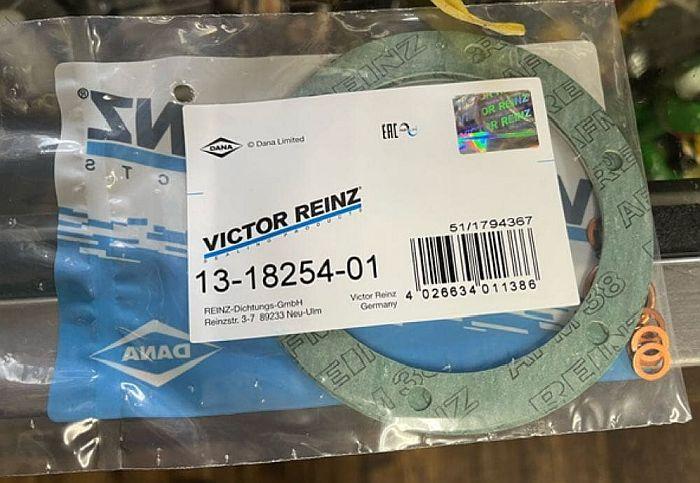

Or use the better VICTOR REINZ gasket set, part number 13-18254-01, very good German quality, no leaks.
