Next on my project was the gas tank/fuel sender.

Did a test on my fuel sender but it was heavily corroded.
So gave it a shot and tried to repair.

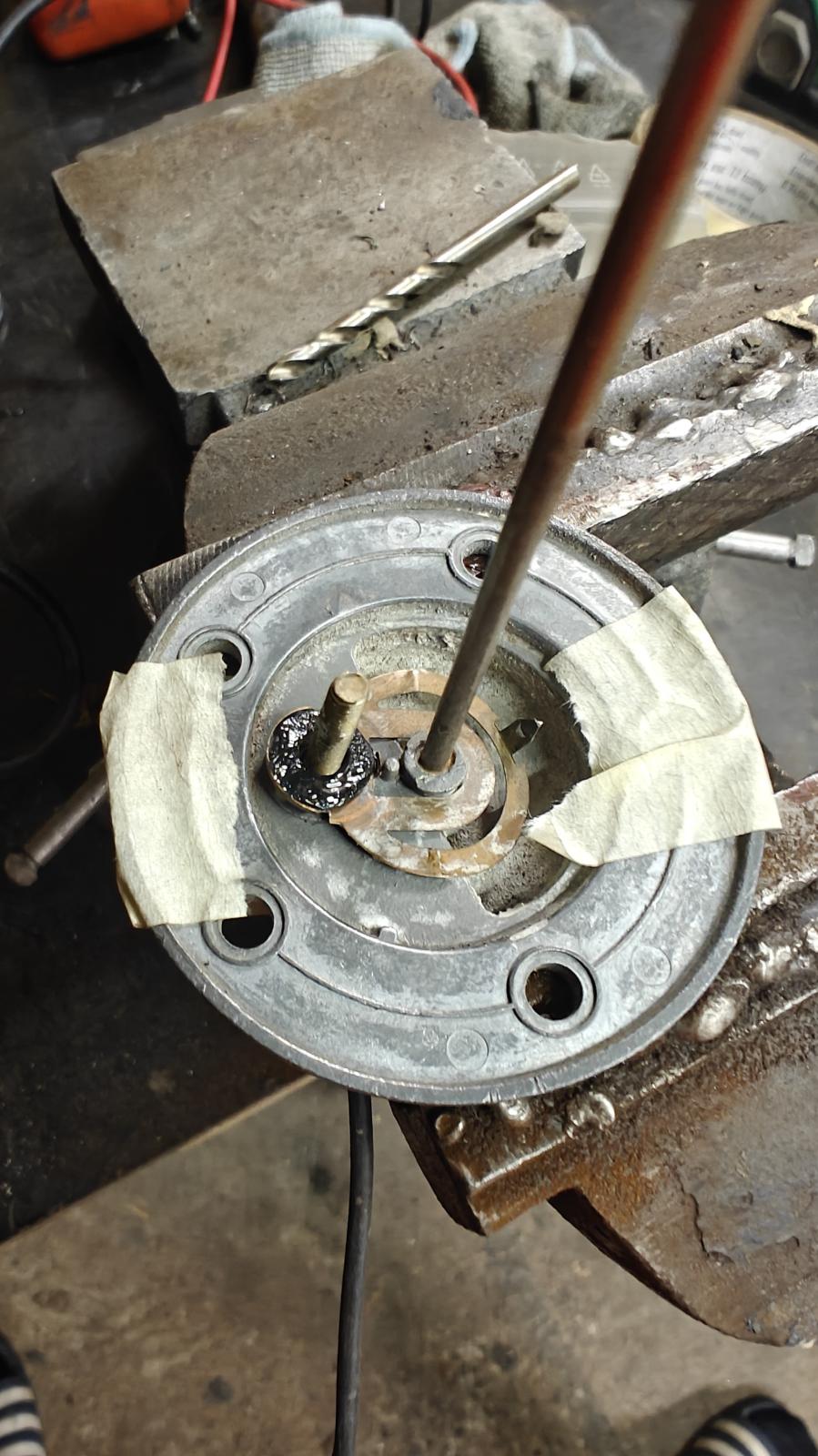

Started to take it apart and clean al the components!

Originally it was riveted but i took a copper bolt and gave it a try

Made a gasket so no fuel would leak at the connector.

Then started building it up:

A bakelite washer to avoid contact from positive to ground:

Metal washer on top:

I soldered the cable back (hard to see in the pic)

Put everything back together and give it a test!

Empty tank:

3/4 tank:

I need to order a fuel gauge so i can test it on a gauge itself but i think i did a good job!
_________________
'66 vw splitbus project:

https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0

Instagram page:

yannicks_splitbus_project

Always there to help!

[BarryL]

I especially commend you for the nichrome wire part.

[@Buswerx]

Wow
Lots of work and patience

Good work

[matthew henricks]

Very nice. Something many would never even consider. Love it!
_________________
1964 Original Owner build Thread. https://www.thesamba.com/vw/forum/viewtopic.php?t=702135&highlight=

Ambulance Fan's. https://www.thesamba.com/vw/forum/viewtopic.php?t=627707&highlight=

Parts i am looking for:
64 bug nice used front/rear Black LHD floor mat.

[Douglas Denlinger]

I knew there was a reason I have held on to all the originals that were removed from customers buses that were not working over the years.....something to do during retirement! Nice work!
