 Posted: Thu Jan 04, 2007 4:44 pm Post subject: 25 HP engine? |
 |
|
Greetings!

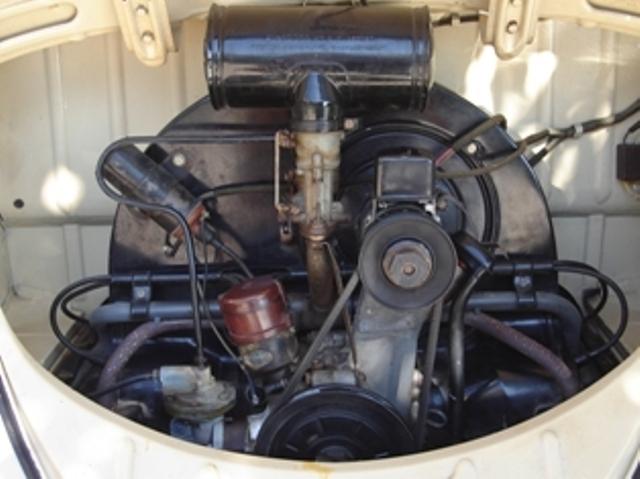

This is a pic of the engine in my '51. The ID numbers are really faint and hard to read.
Is this a 25HP? If so, does it look somewhat correct?
Thanks for your help!
Last edited by Brad Lee on Thu Jan 04, 2007 4:52 pm; edited 1 time in total |
|
| Back to top |
|
 |
53 0val
Samba Professor
Joined: July 03, 2003
Posts: 11396
Location: Irvine, CA
|
| Posted: Thu Jan 04, 2007 4:53 pm Post subject: |
|
|
| jmillers55 wrote: |
Here you go:
|
Look like a correct 25hp.
_________________
"What a fool believes he sees, no wise man has the power to reason away." Dobee, Dobee, Do |
|
| Back to top |
|
|
Brad Lee
Samba Member
Joined: February 20, 2004
Posts: 39
Location: HB, CA
|
| Posted: Thu Jan 04, 2007 4:57 pm Post subject: |
|
|
Thanks for the posting the pic and the reply
I think the ID says 1-6282275. That doesn't match with the charts on the site. Am I missing something?
Thanks |
|
| Back to top |
|
|
kafer53
Samba Member
Joined: July 24, 2004
Posts: 904
Location: Ontario, Canada
|
| Posted: Thu Jan 04, 2007 8:43 pm Post subject: |
|
|
| 13SPanel wrote: |
Thanks for the posting the pic and the reply
I think the ID says 1-6282275. That doesn't match with the charts on the site. Am I missing something?
Thanks |
It must be a "0" like 1-0282275. That would be more correct for your 51 engine.
What month was your vin # from according to the production charts?
It looks like you might have the correct engine for your car and maybe even the matching one.
_________________
1953 Zwitter 11C (L73) |
|
| Back to top |
|
|
Towel Rail
Horizontally Opposed
Joined: April 15, 2005
Posts: 4622
Location: SE CR IA US NA PE
|
| Posted: Thu Jan 04, 2007 10:47 pm Post subject: |
|
|
| 53 0val wrote: |
| jmillers55 wrote: |
| Here you go: |
Look like a correct 25hp. |
Wow, you don't see Bob saying this everyday!
_________________
1974 Thing -- under the knife
1967 Beetle -- spring/summer/fall driver
1996 Subaru OBW (EJ22, 5-speed, AWD) -- winter car, 3-seasons "don't feel like biking today" car
049 > 070 > 053 > 009 |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71234
Location: Phoenix 602
|
|
| Back to top |
|
|
lurkinstock
Samba Member
Joined: September 04, 2006
Posts: 416
Location: n. ga.
|
| Posted: Fri Jan 05, 2007 5:32 am Post subject: |
|
|
| Hold down clip is on 25 hp , I want to say that 36 hp is when VW went to a screw cap. I am just going off what I have seen. |
|
| Back to top |
|
|
kafer53
Samba Member
Joined: July 24, 2004
Posts: 904
Location: Ontario, Canada
|
| Posted: Fri Jan 05, 2007 7:35 am Post subject: |
|
|
| EverettB wrote: |
Does the 25hp acorn oil filler use the hold-down clip?
I thought that began with the 36hp style oil filler. |
Yes, only the single strap one. The 36hp ones used either two snap clips or a screw top style
_________________
1953 Zwitter 11C (L73) |
|
| Back to top |
|
|
53 0val
Samba Professor
Joined: July 03, 2003
Posts: 11396
Location: Irvine, CA
|
| Posted: Fri Jan 05, 2007 8:45 am Post subject: |
|
|
Yes, that motor is correct as it is.
_________________
"What a fool believes he sees, no wise man has the power to reason away." Dobee, Dobee, Do |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71234
Location: Phoenix 602
|
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71234
Location: Phoenix 602
|
|
| Back to top |
|
|
53 0val
Samba Professor
Joined: July 03, 2003
Posts: 11396
Location: Irvine, CA
|
| Posted: Fri Jan 05, 2007 8:54 am Post subject: |
|
|
| EverettB wrote: |
| 53 0val wrote: |
| Yes, that motor is correct as it is. |
Is the clip exactly the same for all years that it was used? |
That's a good question. I'll check out some sorces.
_________________
"What a fool believes he sees, no wise man has the power to reason away." Dobee, Dobee, Do |
|
| Back to top |
|
|
Joshua B
Samba Member
Joined: January 03, 2004
Posts: 274
Location: Colorado
|
| Posted: Fri Jan 05, 2007 9:25 am Post subject: |
|
|
It looks pretty correct, with most of the hard to find parts? But correct me if I am wrong. Shouldn't it have the round carb support and not the flat later style, and a Jacketed K manifold since it is a '51? (I don't even have the later on my car, or the no lip pulley ). About the crank pully? So are all split dash splits suppose to have the ones without the puller cutouts and no lip on them, and are the diameters different from the later in these as well? Also which you can't tell from these pictures, it should have the two piece cylinder head tin without the spark plug indention and seamed fan shrould, being a '51?
Just tryin to stay updated on my external engine year changes. Let me know if I am wrong.
Later
Josh |
|
| Back to top |
|
|
Heb623
Samba Member
Joined: October 01, 2005
Posts: 83
Location: Belgium
|
| Posted: Fri Jan 05, 2007 10:02 am Post subject: |
|
|
ET says that on an early 1951 25hp was no hold on clip!!!
My technical English is not good enough to explain but believe it or not there is no clip!!!
 ET |
|
| Back to top |
|
|
johnshenry
Samba Member
Joined: September 21, 2001
Posts: 9405
Location: Northwood, NH USA
|
| Posted: Fri Jan 05, 2007 10:29 am Post subject: |
|
|
| Joshua B wrote: |
It looks pretty correct, with most of the hard to find parts? But correct me if I am wrong. Shouldn't it have the round carb support and not the flat later style, and a Jacketed K manifold since it is a '51? (I don't even have the later on my car, or the no lip pulley ). About the crank pully? So are all split dash splits suppose to have the ones without the puller cutouts and no lip on them, and are the diameters different from the later in these as well? Also which you can't tell from these pictures, it should have the two piece cylinder head tin without the spark plug indention and seamed fan shrould, being a '51?
Just tryin to stay updated on my external engine year changes. Let me know if I am wrong.
Later
Josh |
Carb support, yes, should be round. Good call.
Intake: Indeterminate. The end date of the jacketed K is unknown. Indications by original cars that still had them, and/or pictures are that it ended in late '51 or early '52. The pictured intake could be corret if it is the 25 "701" intake (not the 701E which has 36 hp endcastings). Interestingly, I just bought one of those and was examining it last night. If it is an early '51 engine, than it most probably had the jacketed K.
I can't tell from the pic, but it looks like it has a rolled lip 36hp crank pulley. It should have an edge lipped crank pulley, but it would have the puller holes (Sept '50 service manual shows this). Non pull hole pulleys ended sometime in the mid-late 40s. There is no difference in the diameters (some 356 pulleys look the same, fit the crank, but are slightly larger in dia.)
Not sure when the 2 piece cylinder head tin ended, but I am pretty sure it was before '51.
Yes, it should have the seamed fan shroud....
Also, can't tell by the pic, the ignition wire tube clamps should have welded M6 bores on the back sides and M6 (probably Kamax) bolts, not scres like the leter kind.
_________________
John Henry
'57 Deluxe
'56 Single Cab |
|
| Back to top |
|
|
Heb623
Samba Member
Joined: October 01, 2005
Posts: 83
Location: Belgium
|
| Posted: Fri Jan 05, 2007 10:42 am Post subject: |
|
|
And no comment about the hold on clip ???
ET |
|
| Back to top |
|
|
johnshenry
Samba Member
Joined: September 21, 2001
Posts: 9405
Location: Northwood, NH USA
|
| Posted: Fri Jan 05, 2007 10:46 am Post subject: |
|
|
| Heb623 wrote: |
ET says that on an early 1951 25hp was no hold on clip!!!
My technical English is not good enough to explain but believe it or not there is no clip!!!
ET |
Then how did the breather stay on? I think '51 did have the breather cap hold clip... I wil have to check some references on that.
_________________
John Henry
'57 Deluxe
'56 Single Cab |
|
| Back to top |
|
|
Heb623
Samba Member
Joined: October 01, 2005
Posts: 83
Location: Belgium
|
| Posted: Fri Jan 05, 2007 11:11 am Post subject: |
|
|
My 1951 shows me that "pipe" (sorry dont know the exact word for it) that goes into the engine is cone shaped!
The top of my 1951 oil filling tube is completely flat!
A 1952 pipe isn't cone shaped so the top of later (1952) has a dimple in it.
In the hold on clip is also a opposite dimple and this secures holds the tube!
Tell me if I am wrong, OK?
ET |
|
| Back to top |
|
|
53 0val
Samba Professor
Joined: July 03, 2003
Posts: 11396
Location: Irvine, CA
|
| Posted: Fri Jan 05, 2007 11:25 am Post subject: |
|
|
| Joshua B wrote: |
It looks pretty correct, with most of the hard to find parts? But correct me if I am wrong. Shouldn't it have the round carb support and not the flat later style, and a Jacketed K manifold since it is a '51? (I don't even have the later on my car, or the no lip pulley ). About the crank pully? So are all split dash splits suppose to have the ones without the puller cutouts and no lip on them, and are the diameters different from the later in these as well? Also which you can't tell from these pictures, it should have the two piece cylinder head tin without the spark plug indention and seamed fan shrould, being a '51?
Just tryin to stay updated on my external engine year changes. Let me know if I am wrong.
Later
Josh |
Good eyes on the carb support......It should be round.
_________________
"What a fool believes he sees, no wise man has the power to reason away." Dobee, Dobee, Do |
|
| Back to top |
|
|
Heb623
Samba Member
Joined: October 01, 2005
Posts: 83
Location: Belgium
|
| Posted: Fri Jan 05, 2007 11:33 am Post subject: |
|
|
OK, OK but how about the hold on clip now???
No news yet?
ET
Last edited by Heb623 on Fri Jan 05, 2007 11:39 am; edited 5 times in total |
|
