Measuring and adjusting front camber
Forum Index -> Beetle - 1958-1967 Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
jmarshall024
Samba Member


Joined: April 16, 2008
Posts: 135
Location: Hopedale, MA
jmarshall024 is offline

PostPosted: Wed Aug 19, 2009 5:53 pm    Post subject: Measuring and adjusting front camber Reply with quote

I did a search and found some great info posted by Drscope on adjusting toe in and toe out. He also provided info on camber, but not much about measuring and adjusting it.

I have a 67 beetle and I completely rebuilt the front end, but judging by how the car handles I think my front alignment is way off (both camber and toe in/out). Do I need special tools or measuring devices to work on the camber or does someone have a DIY method?
Thanks
Back to top
View user's profile Send private message Gallery Classifieds Feedback
KTPhil Premium Member
Samba Member


Joined: April 06, 2006
Posts: 35770
Location: Conejo Valley, CA
KTPhil is offline

PostPosted: Wed Aug 19, 2009 7:05 pm    Post subject: Reply with quote

Image may have been reduced in size. Click image to view fullscreen.


You can get fairly close with a cheaper "protractor level" if it can read 1 degree or finer with consistency.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
glutamodo Premium Member
The Android


Joined: July 13, 2004
Posts: 26515
Location: Douglas, WY
glutamodo is offline

PostPosted: Wed Aug 19, 2009 7:08 pm    Post subject: Reply with quote

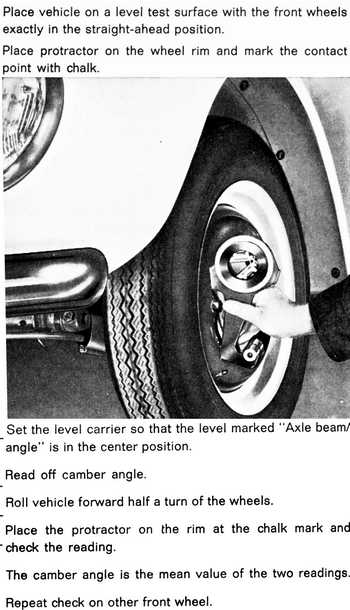

The factory/dealer used a gravity protractor for measuring camber on the car, that you held up to the wheel. You can buy a magnetic gravity protractor at a hardware store that will allow similar (if harder to read) measurements.

Image may have been reduced in size. Click image to view fullscreen.



This shows one style of factory protractor:

Image may have been reduced in size. Click image to view fullscreen.


And this is another type: (this is the one I have)


Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
KTPhil Premium Member
Samba Member


Joined: April 06, 2006
Posts: 35770
Location: Conejo Valley, CA
KTPhil is offline

PostPosted: Wed Aug 19, 2009 7:11 pm    Post subject: Reply with quote

Notice that both VW gauges not only have gradations at 1 degree intervals, they also have vernier scales, so that you can read down to 10 minutes of arc (one sixth of a degree).

The spec is usually about 1 degree of positive camber, so if you can't read with better than 1 degree accuracy, you will not get them set correctly. Unequal camber can cause the car to pull to one side or the other.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
