Arthur's street buggy build

streetbuggy8804 · Posted: Tue Nov 10, 2009 10:18 am Post subject: Arthur's street buggy build

Instead of just starting threads with my progress, I decided to start a thread of my own that I can continue to add too as the progress advances.

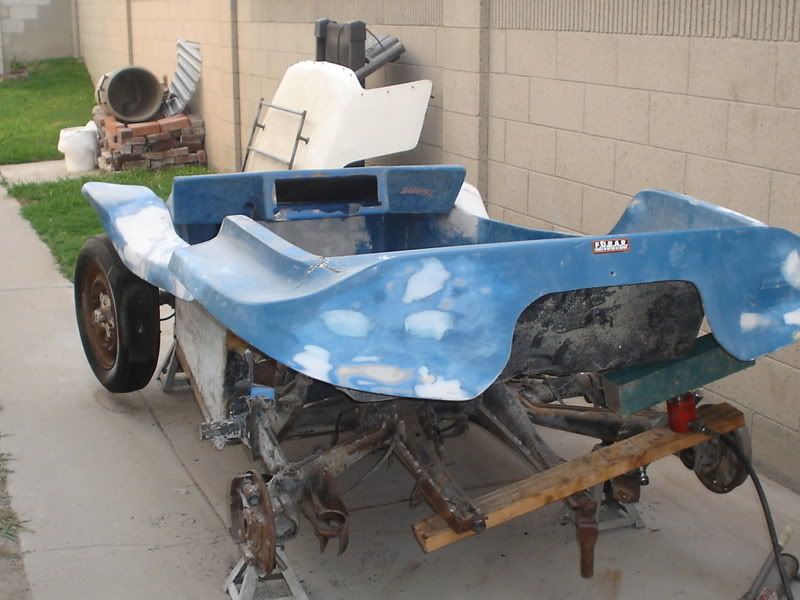

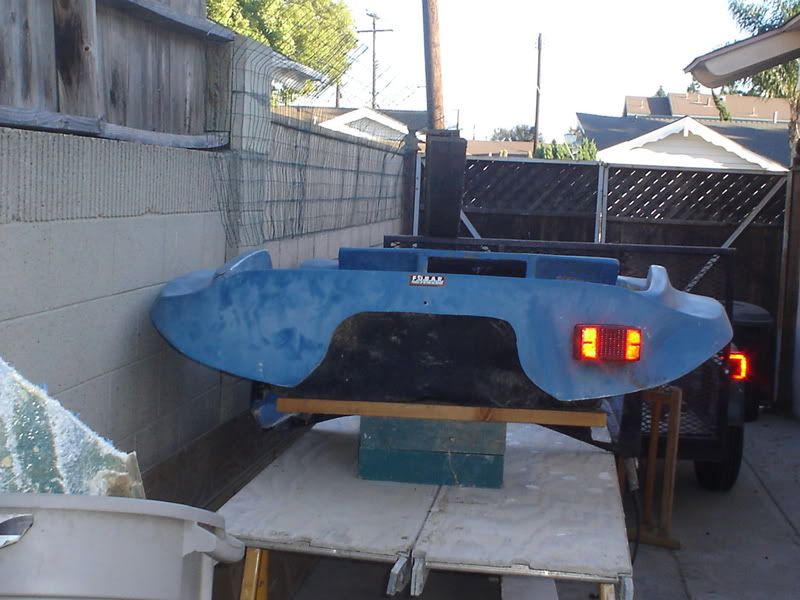

The buggy when I first got it.

Image may have been reduced in size. Click image to view fullscreen.

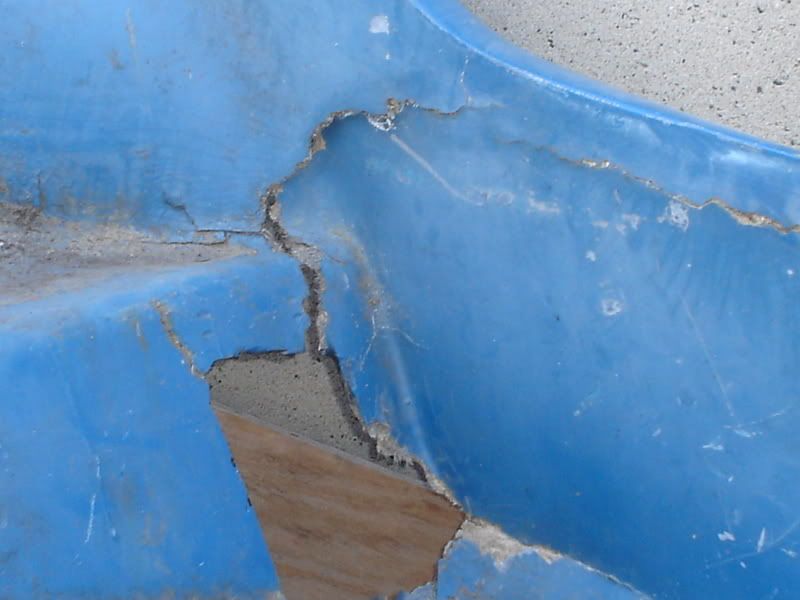

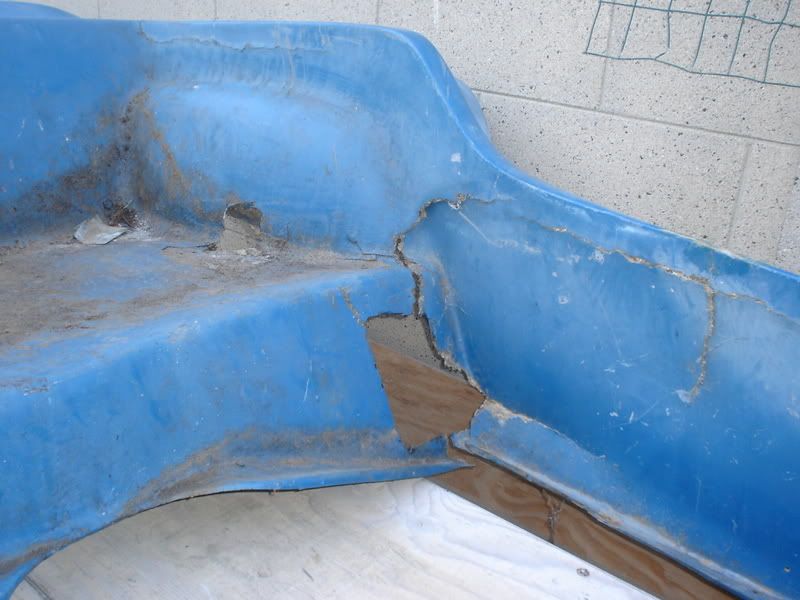

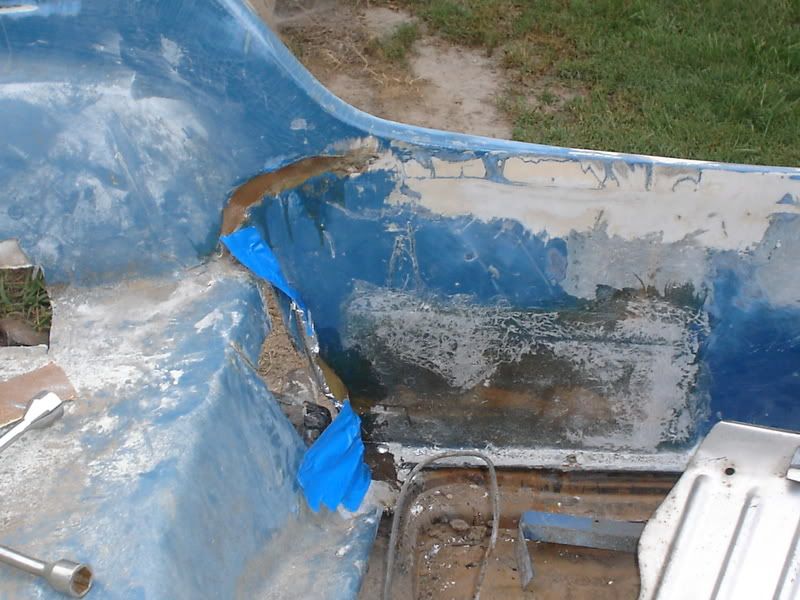

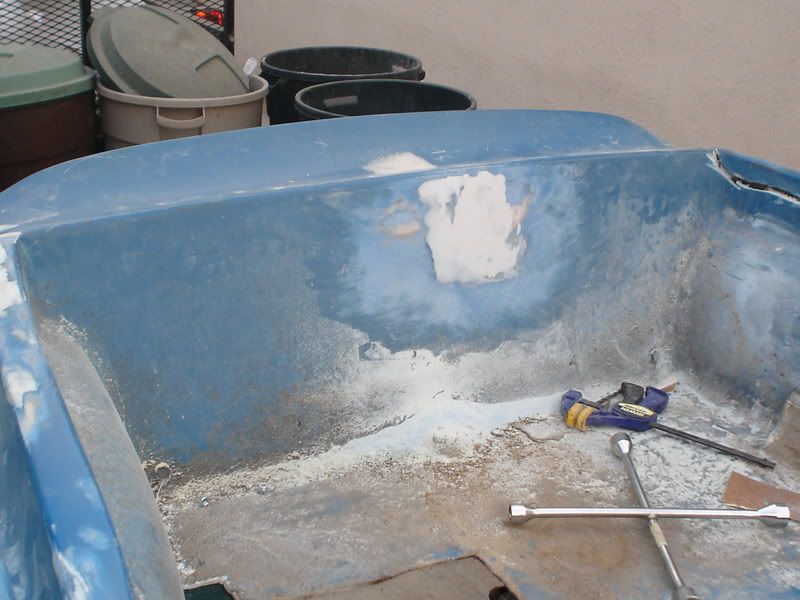

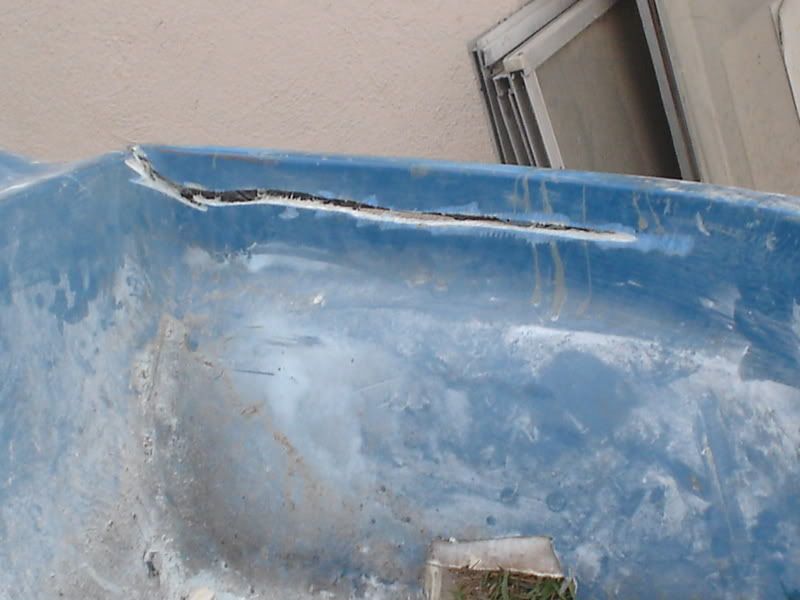

This buggy had been rolled without a cage so the damage was significant as you can see.

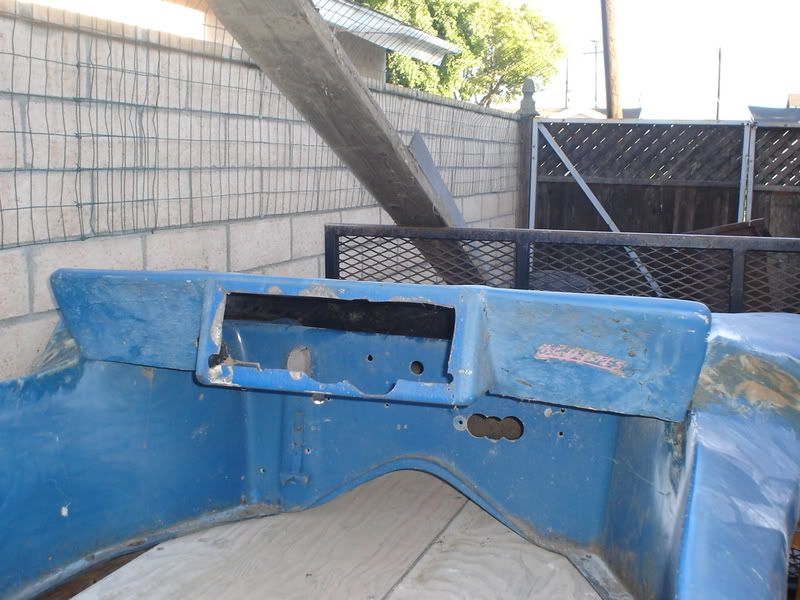

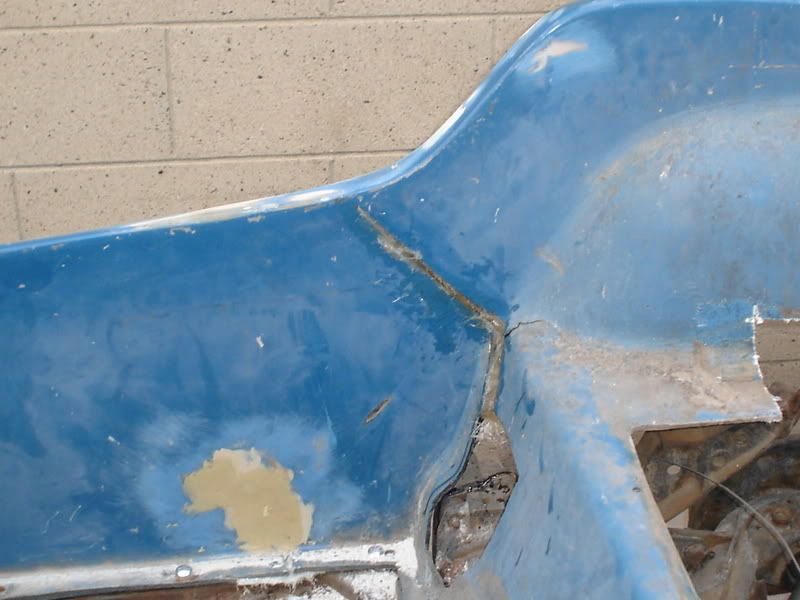

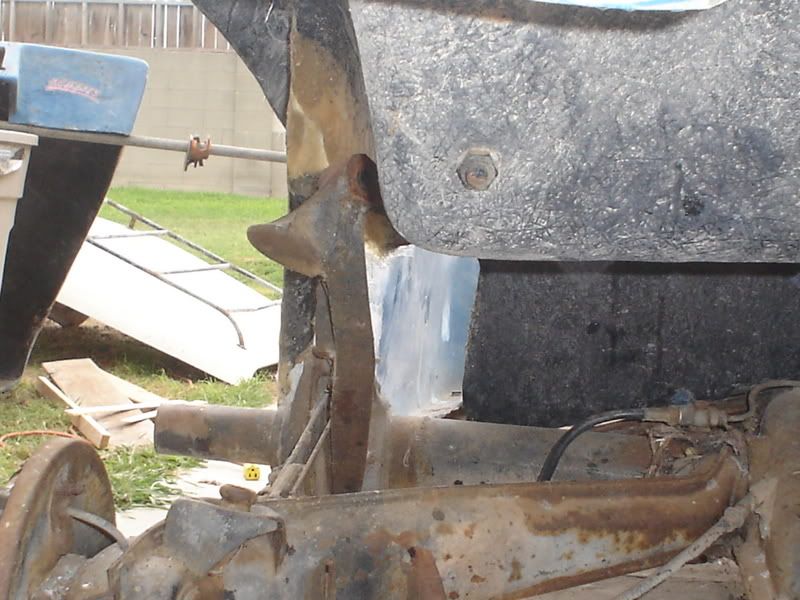

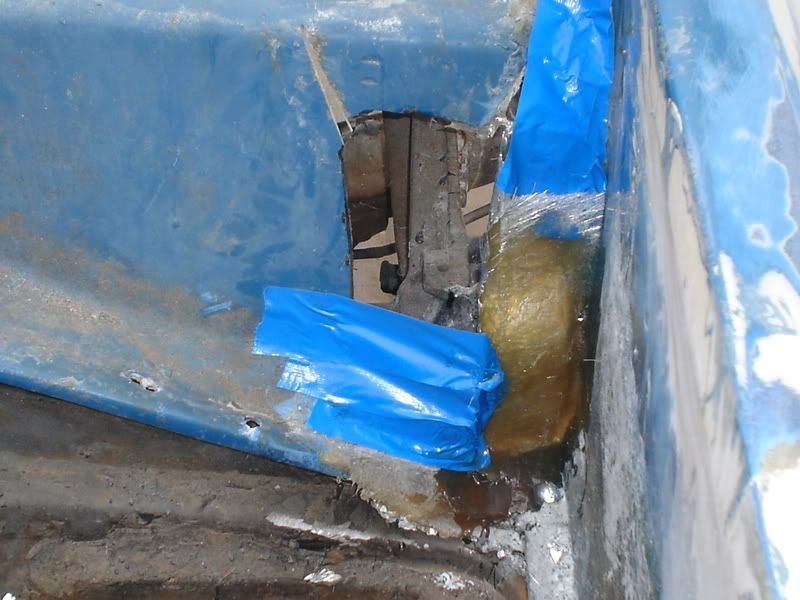

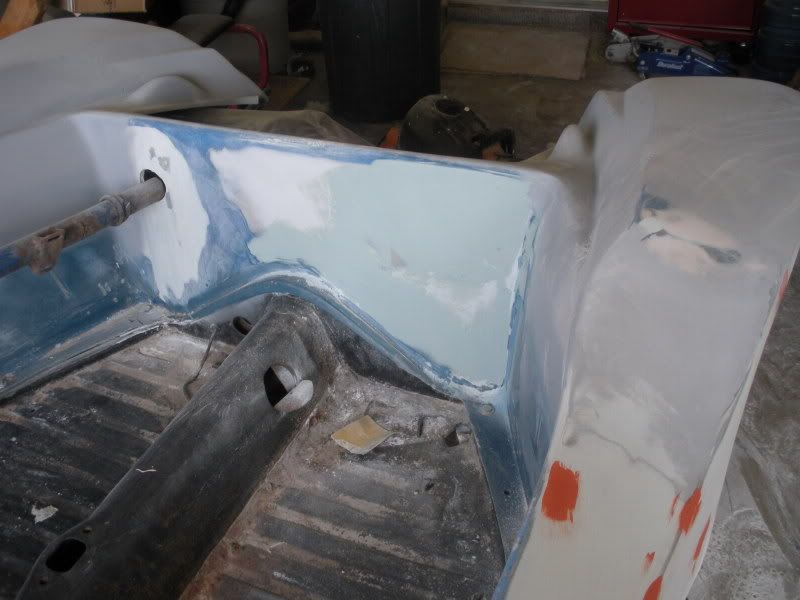

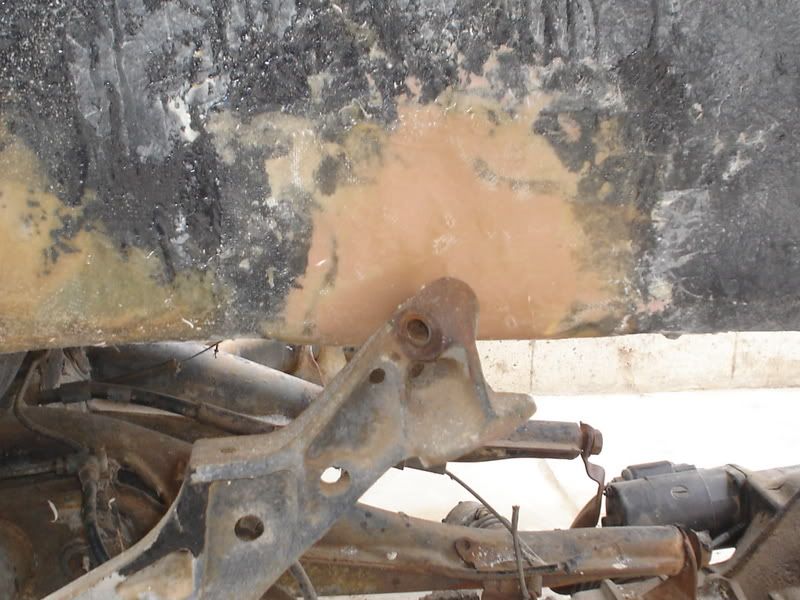

As a result of the damage the rear seat area has sagged significantly. The body sagged below the shock tower so I had to use some hydrolic tools to lift the body and constructed a cross bar to hold the body up.

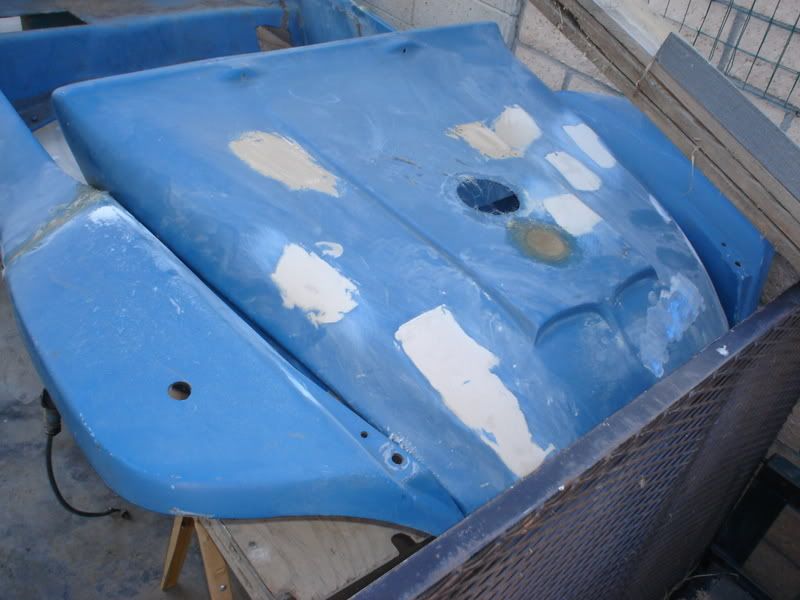

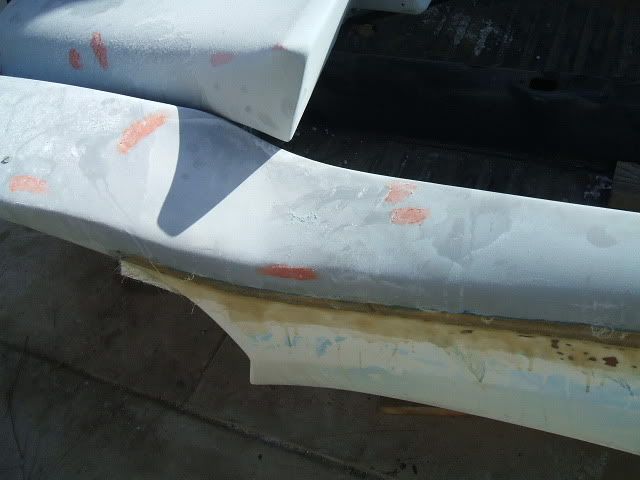

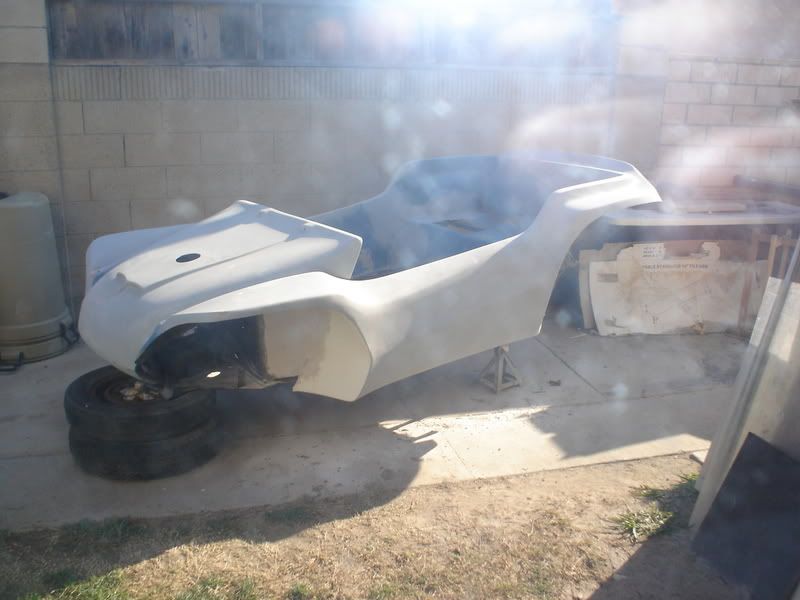

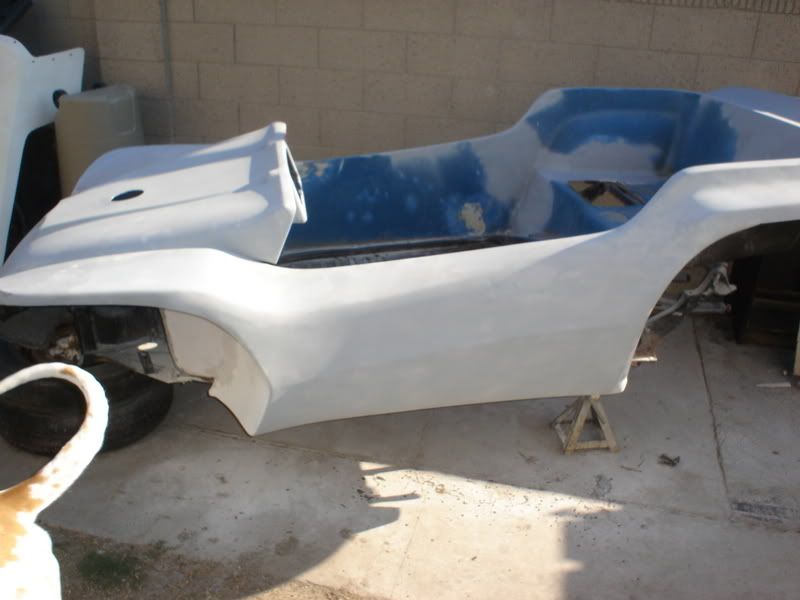

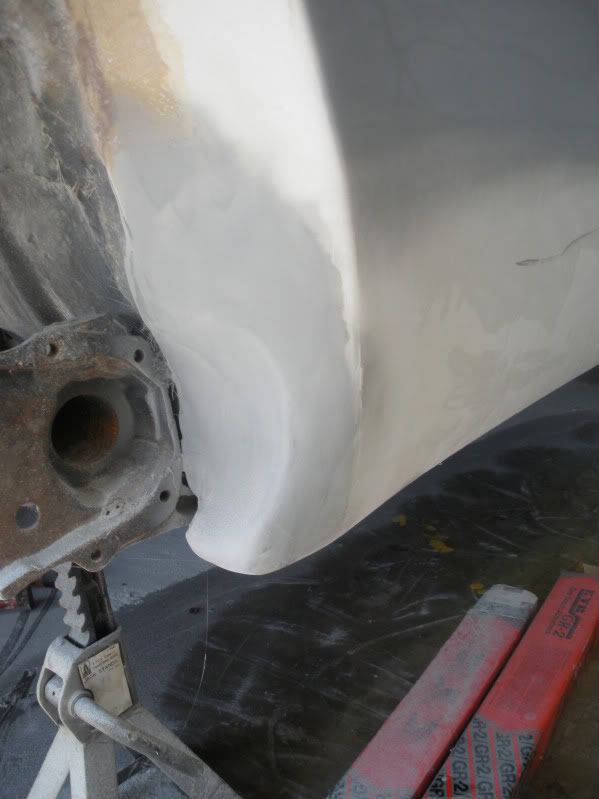

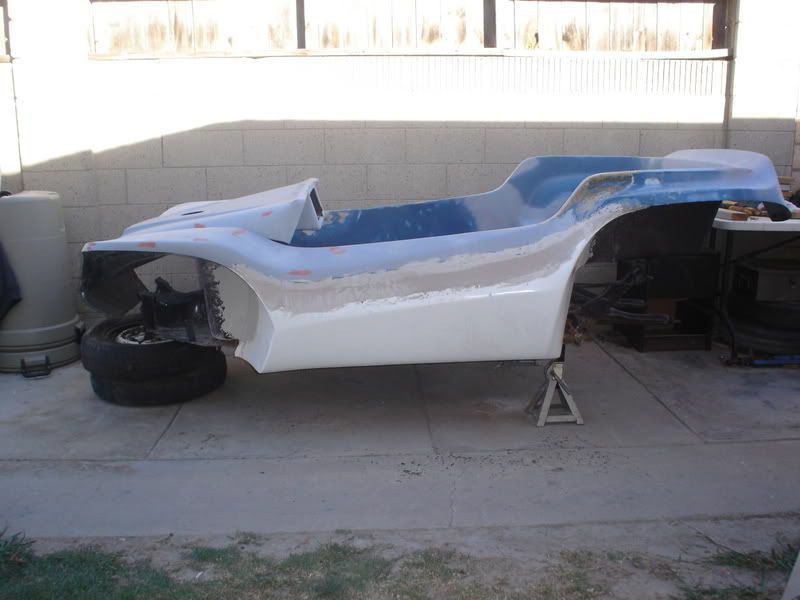

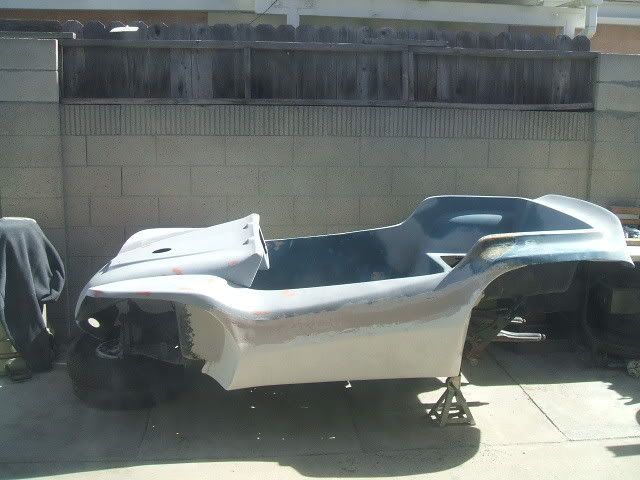

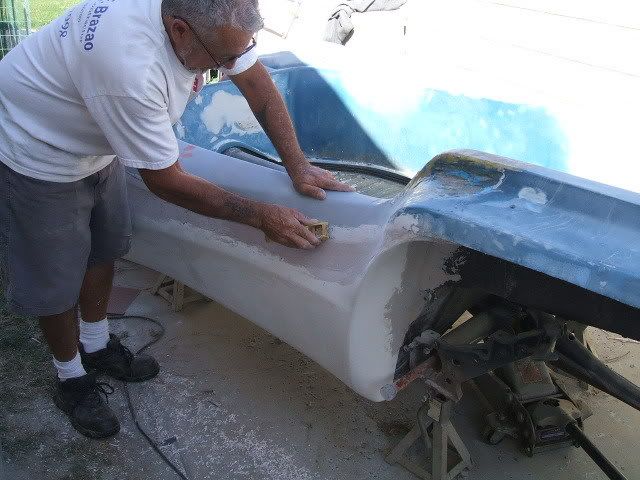

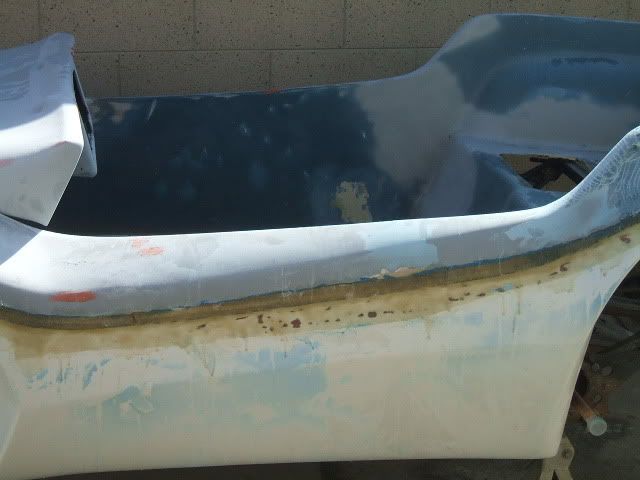

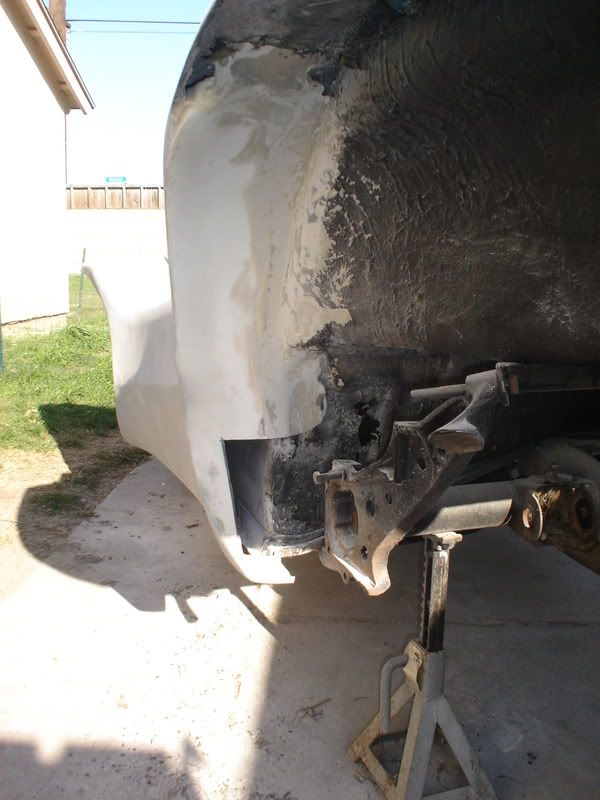

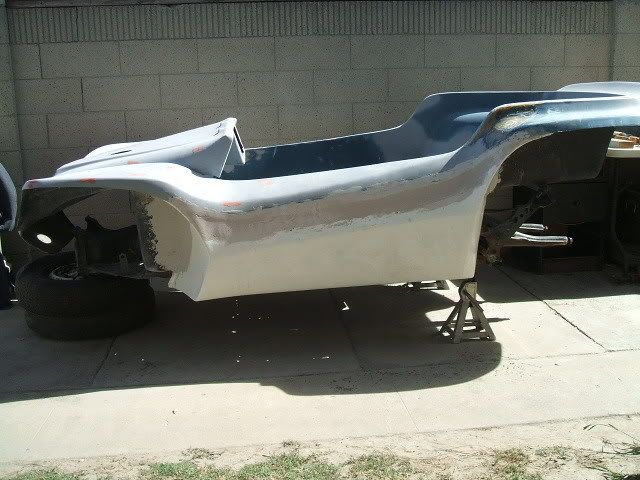

After everything was straight, it was time to start the daunting task of getting the body perfect. This also meant moulding the side pods.

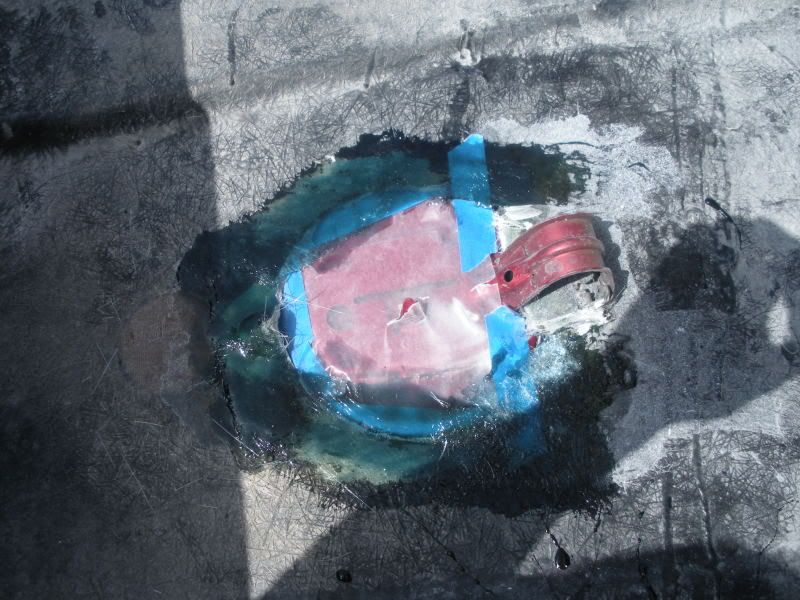

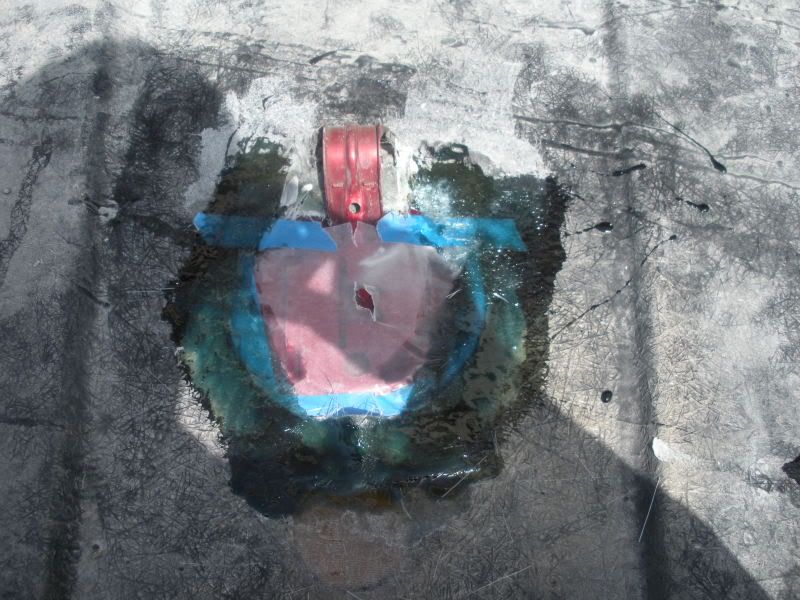

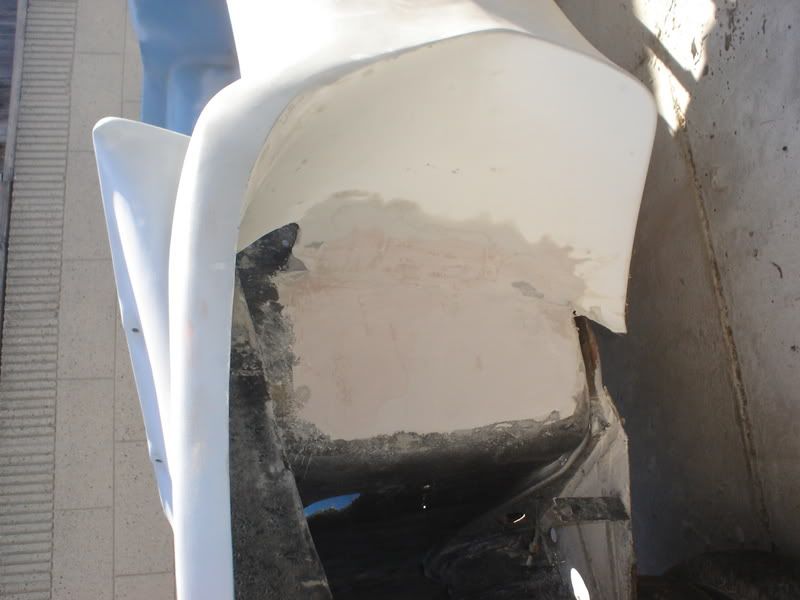

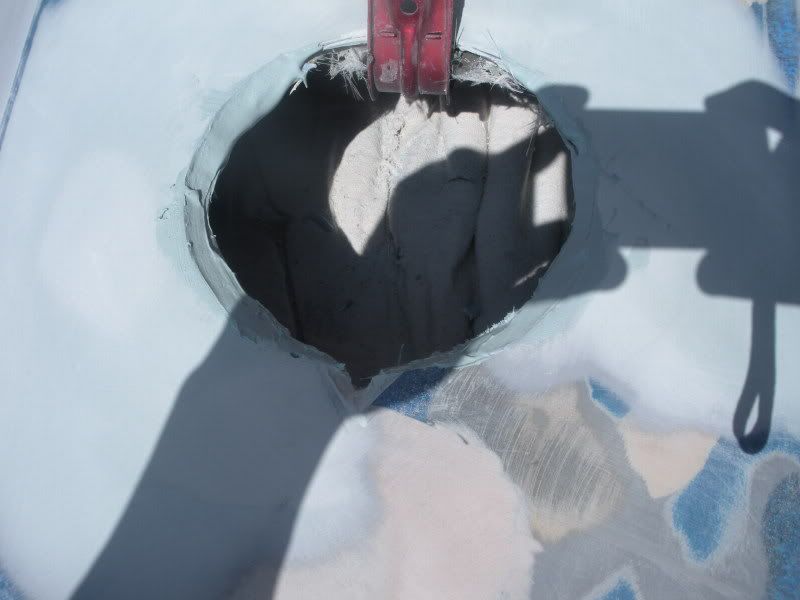

Then I decided to mould in a gas fuel door. Got this one at the junk yard off of a GMC Jimmy.

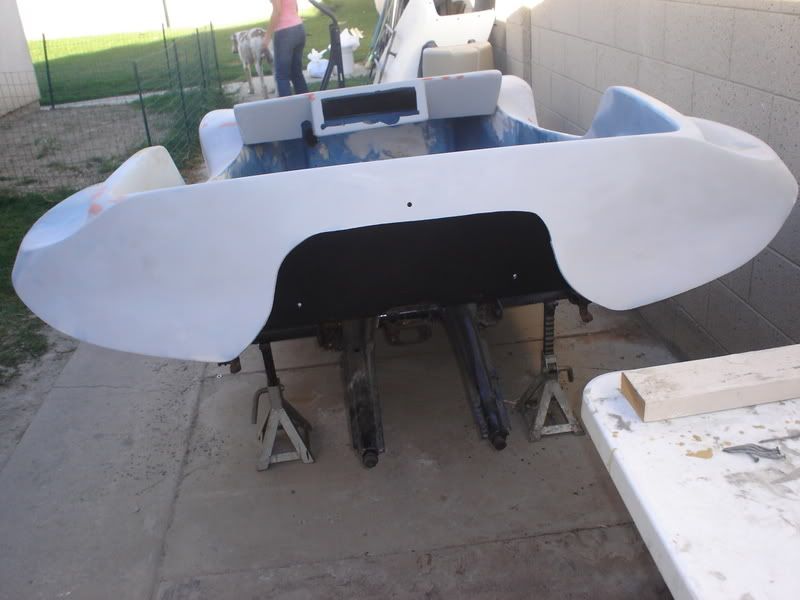

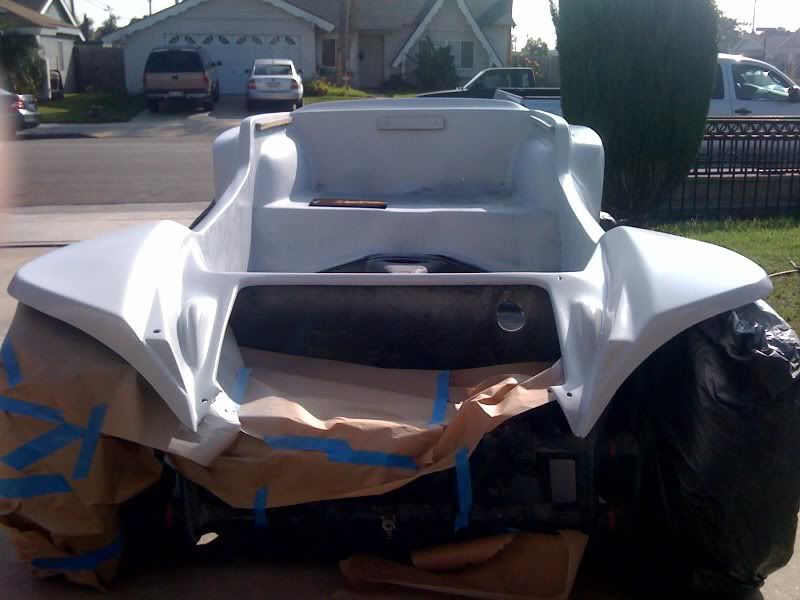

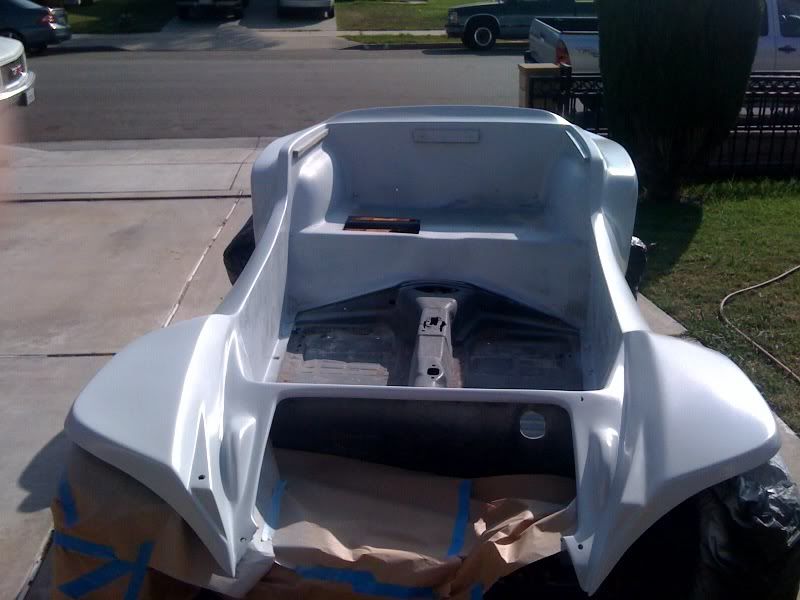

Decided that I wanted to paint the inside instead of covering it, so it was time to get the inside 100% straight.

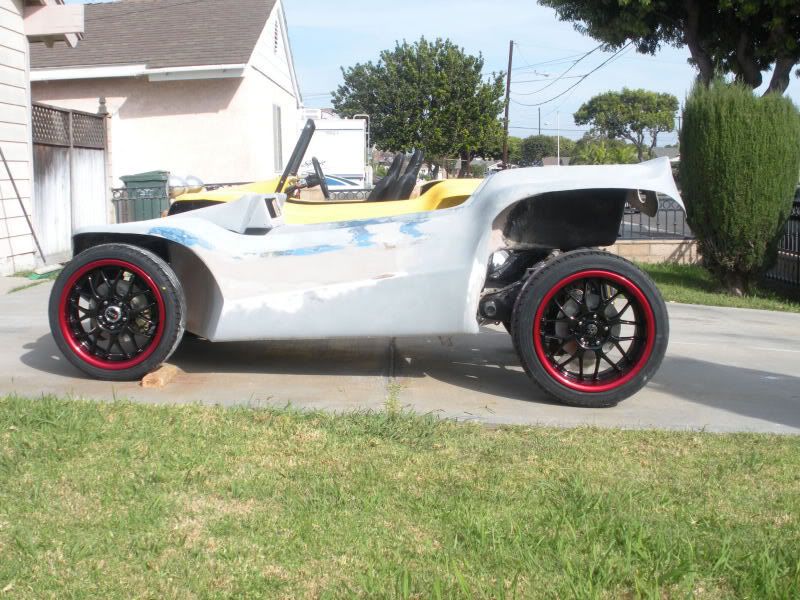

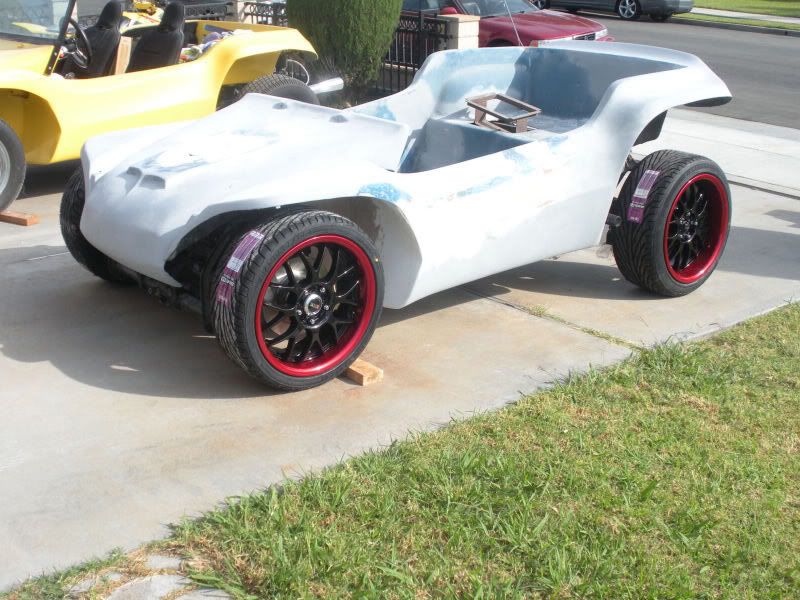

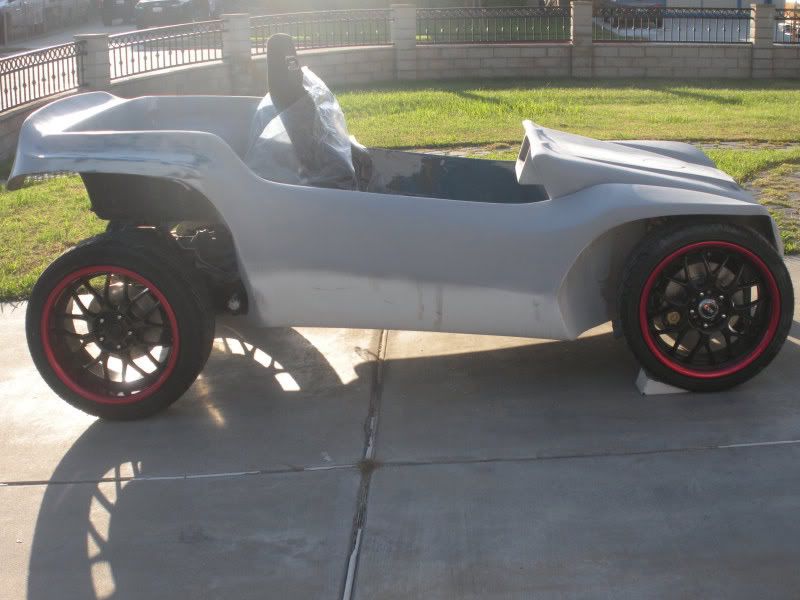

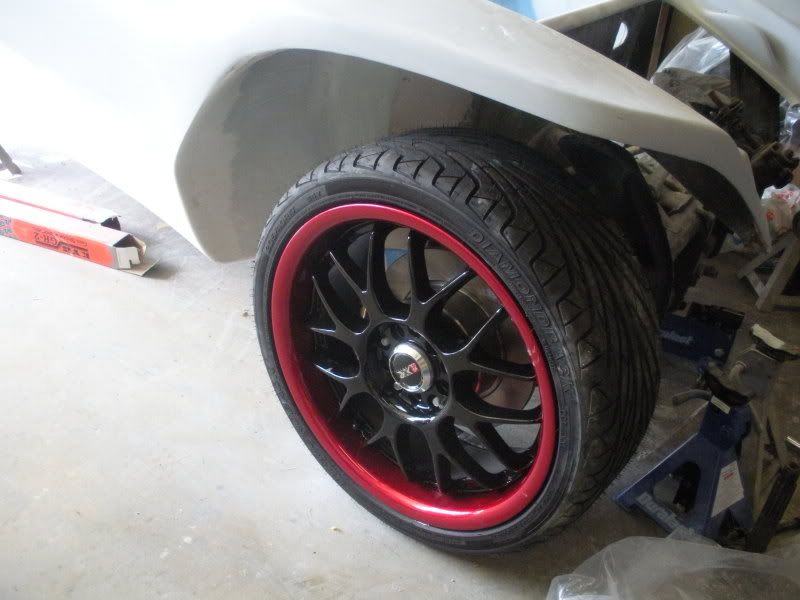

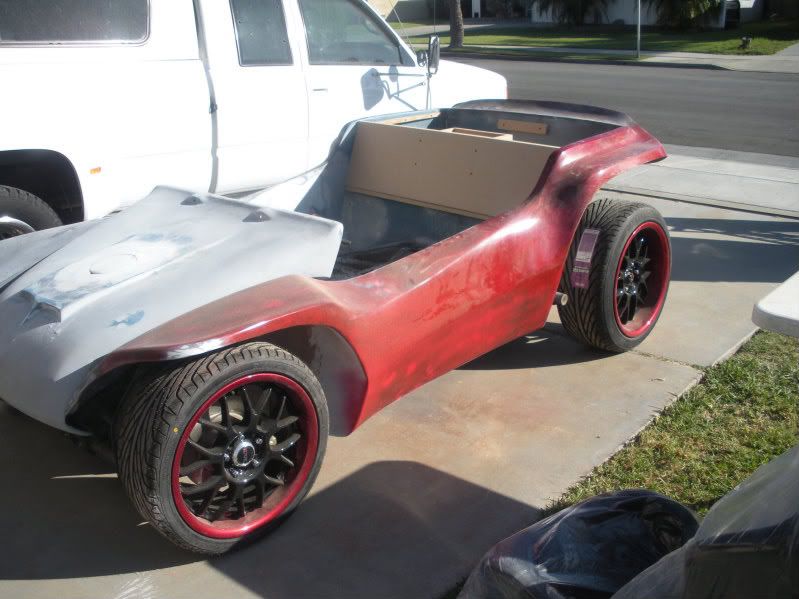

Finally got some wheels for it. 17x7's in the front and 18x9.5's in the back. Rear wheel has a 3.5" lip.

streetbuggy8804 · Posted: Tue Nov 10, 2009 10:29 am Post subject:

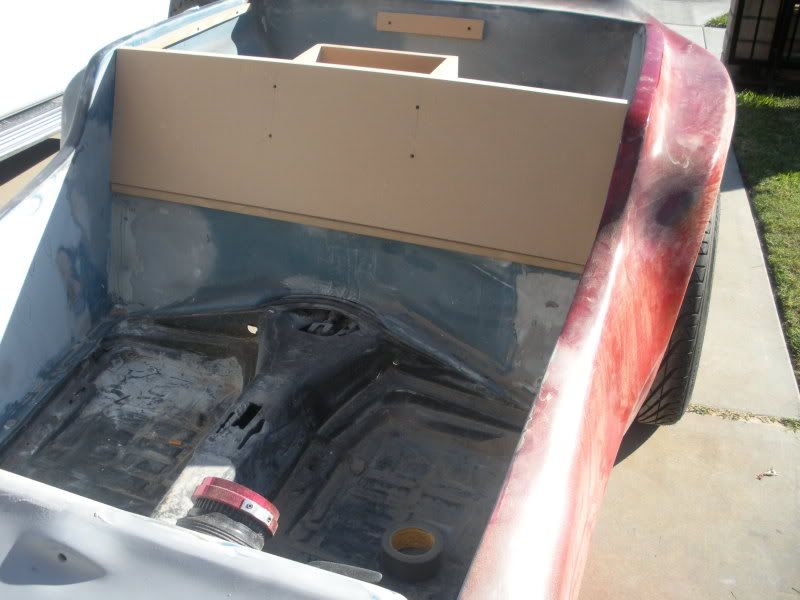

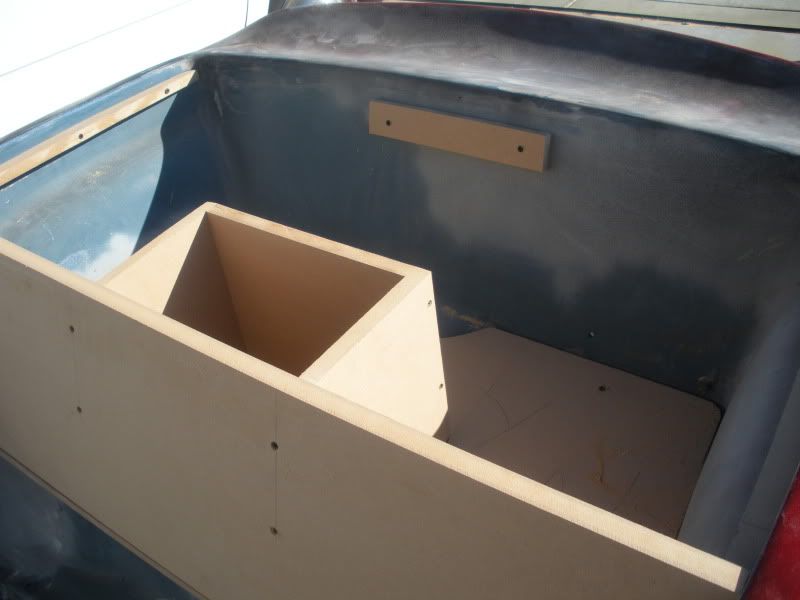

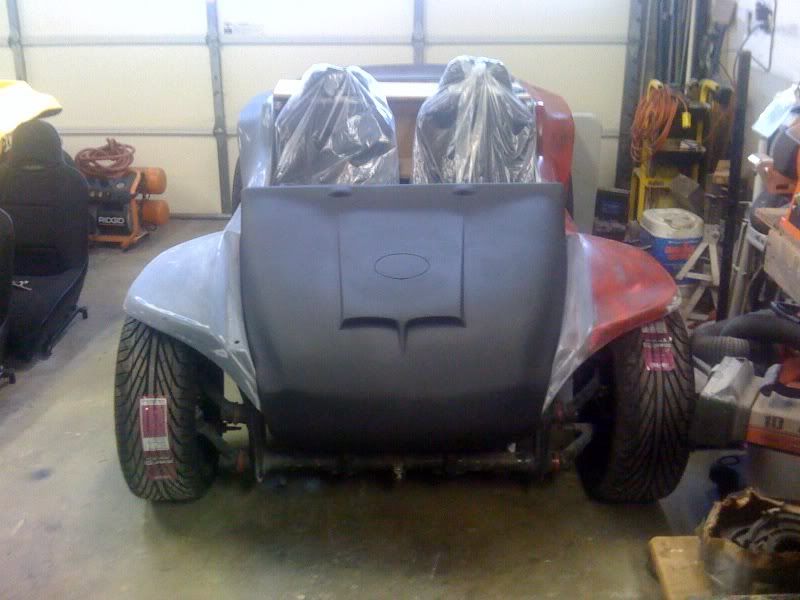

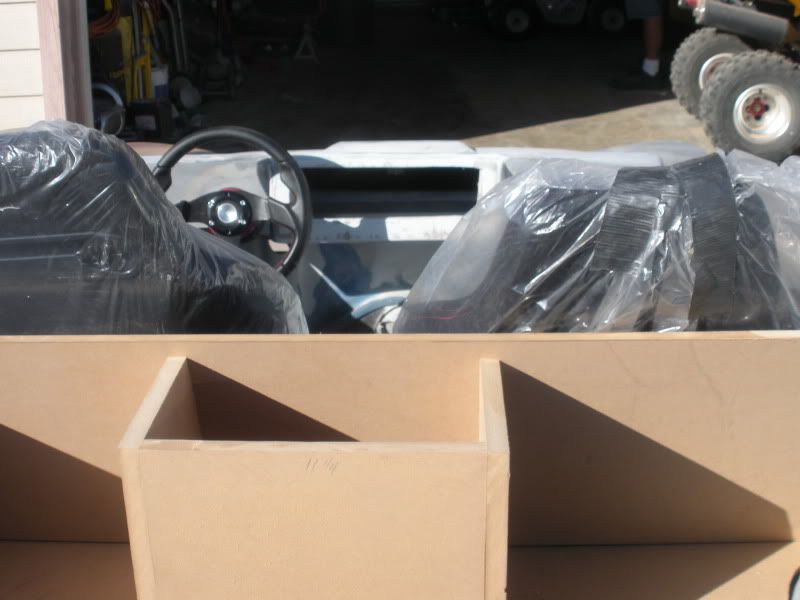

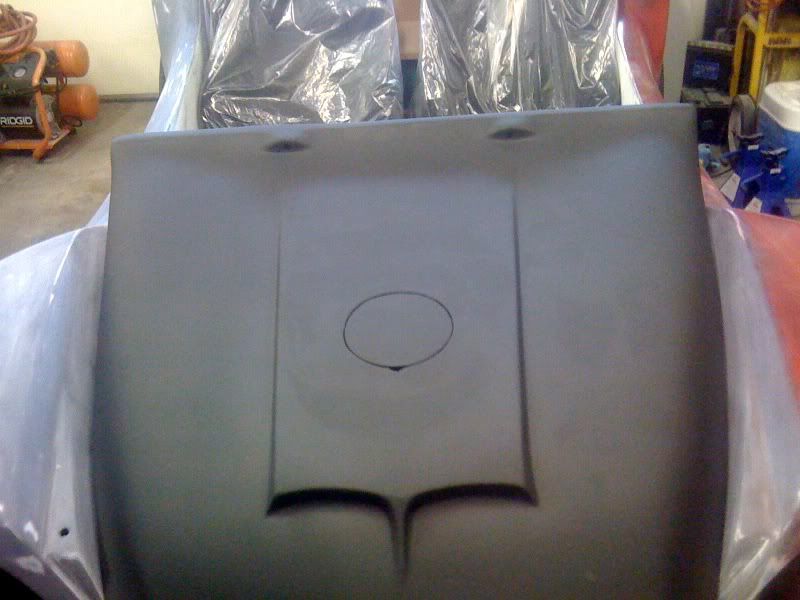

Built an enclosure for the rear that will provide storage and a place for my sub woofer.

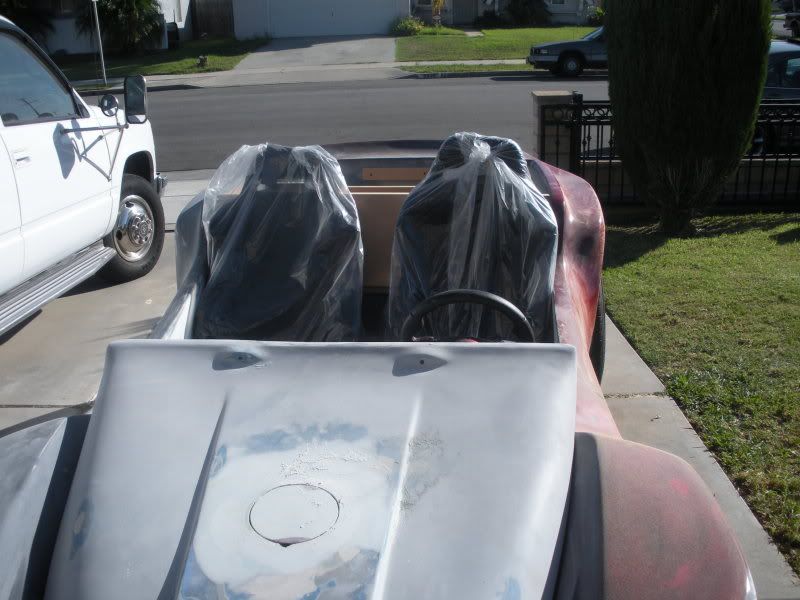

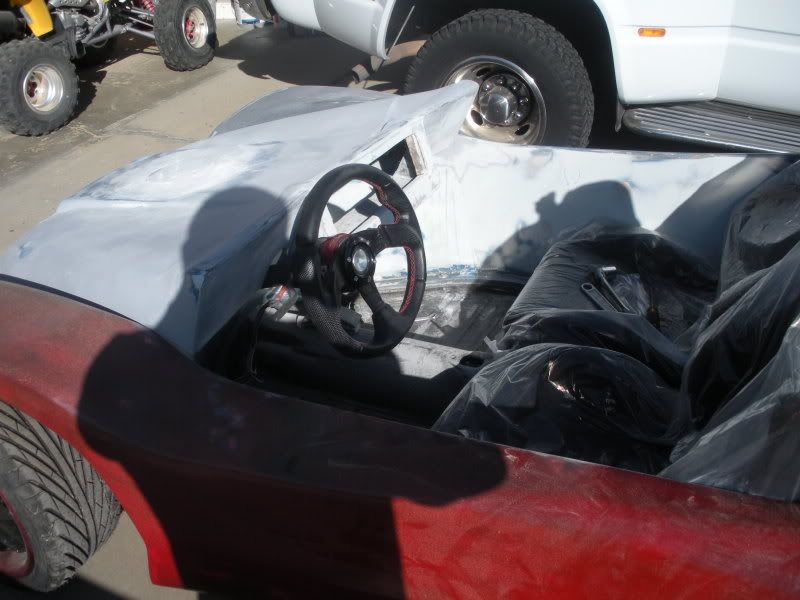

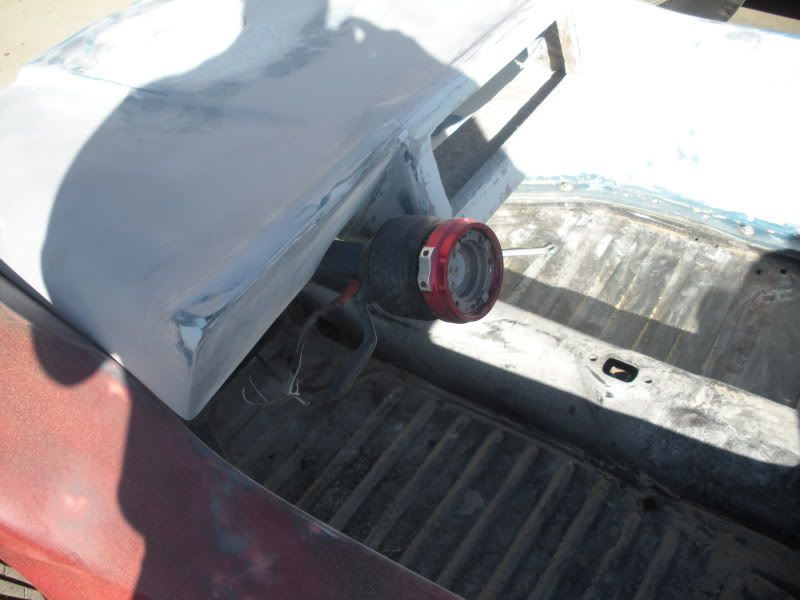

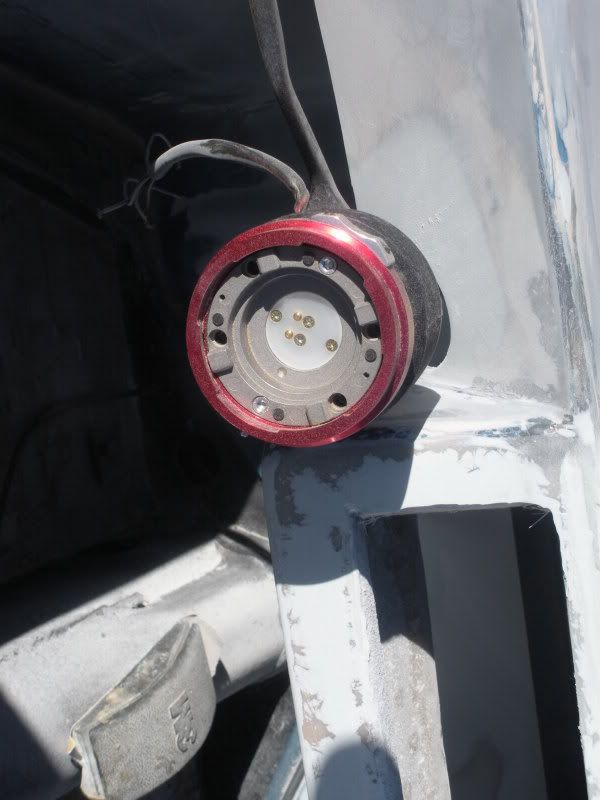

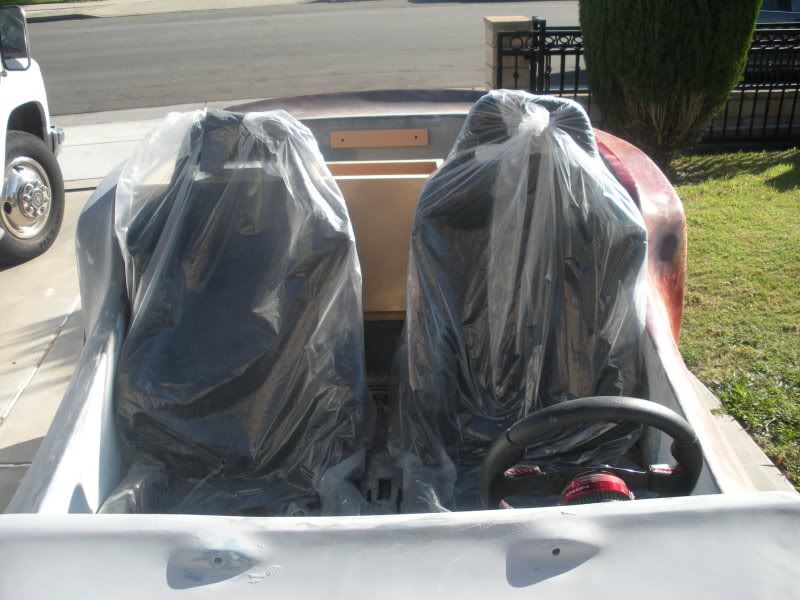

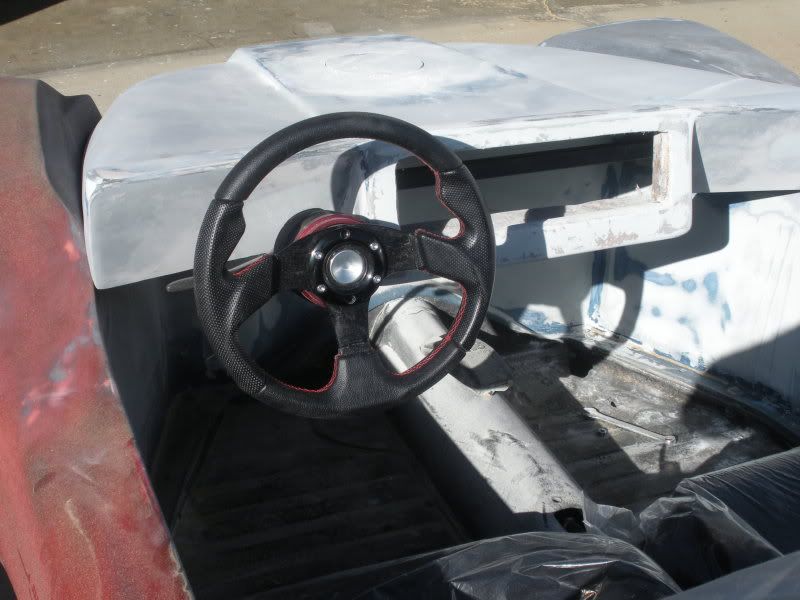

mocked up the steering wheel. Has a NRG quick release hub

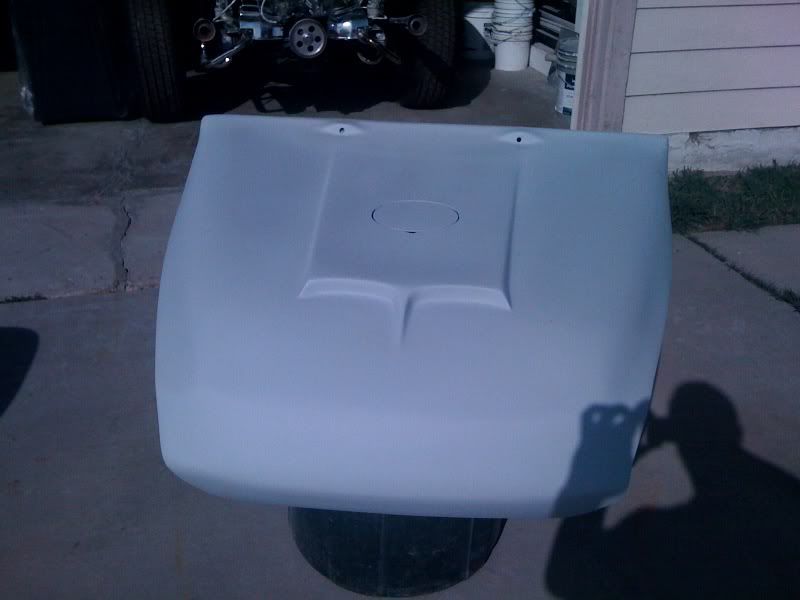

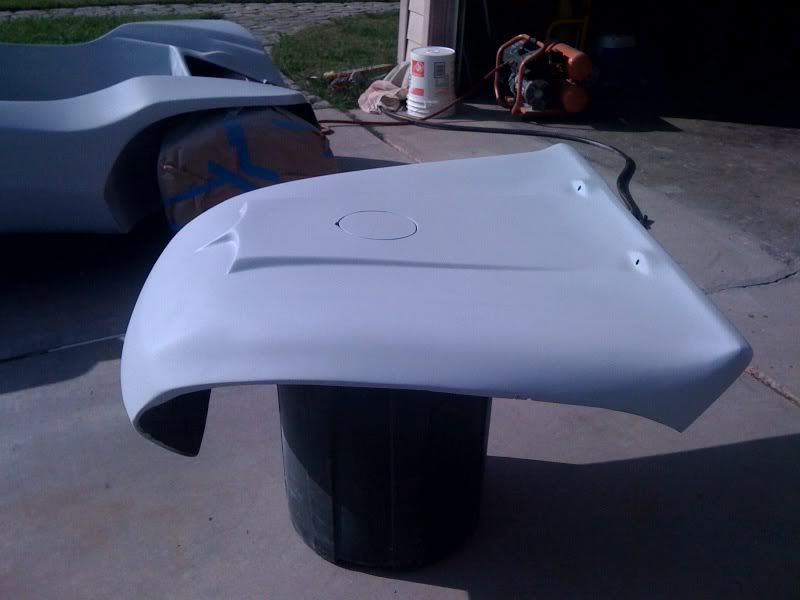

Differnet primer coats

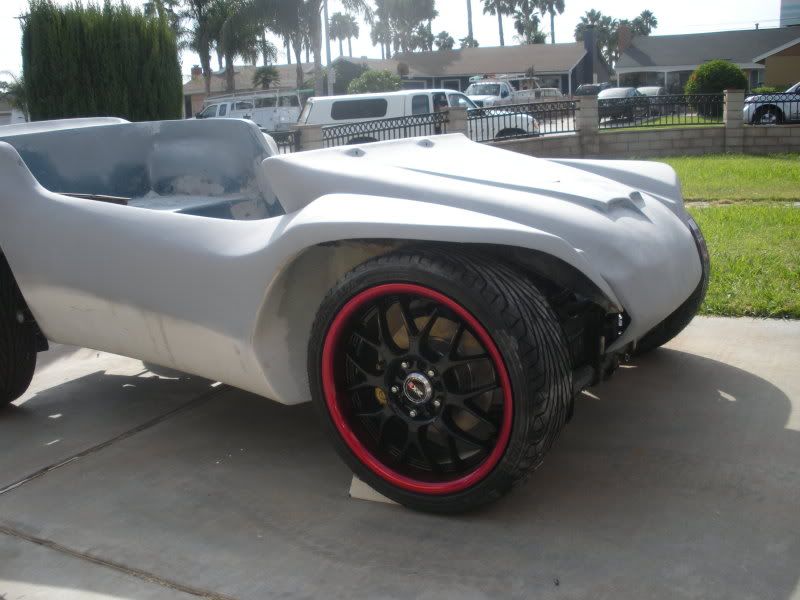

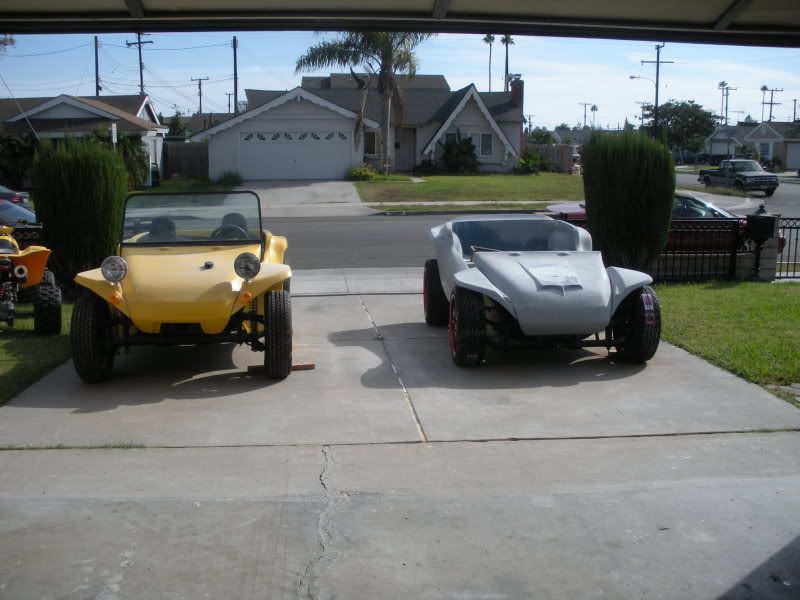

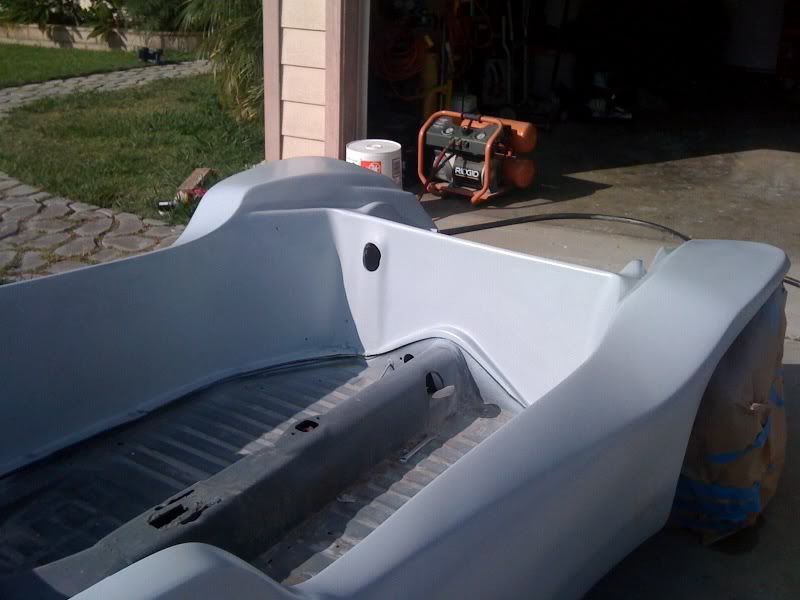

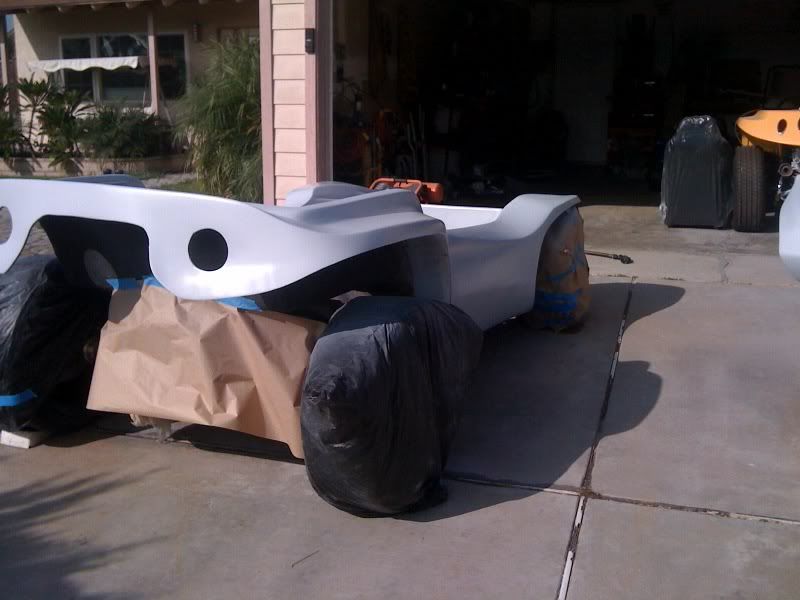

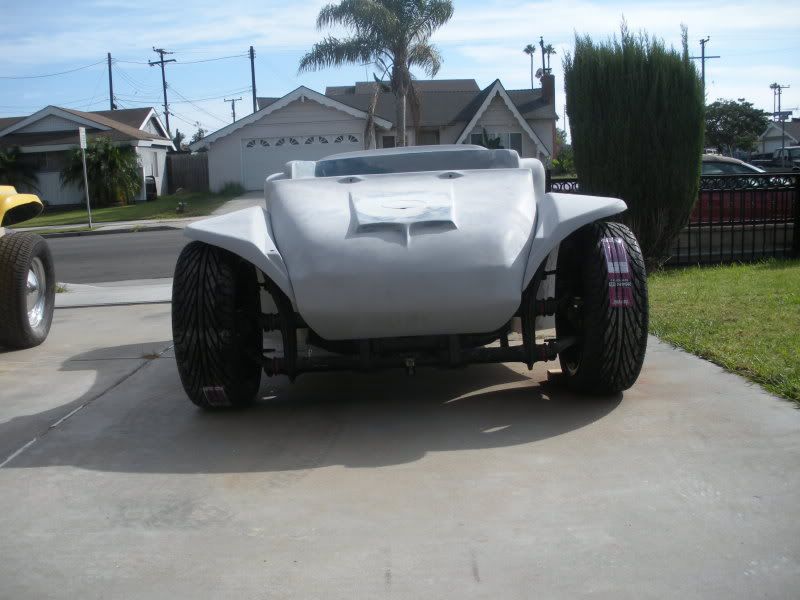

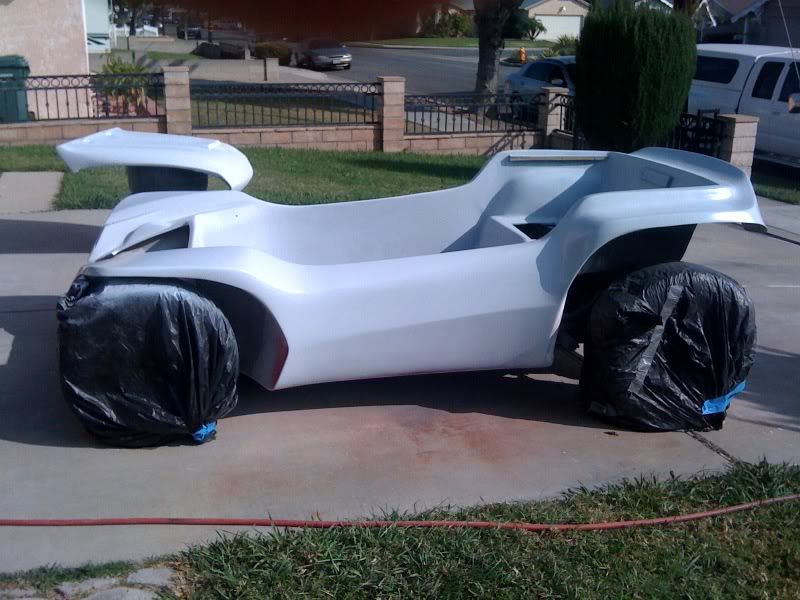

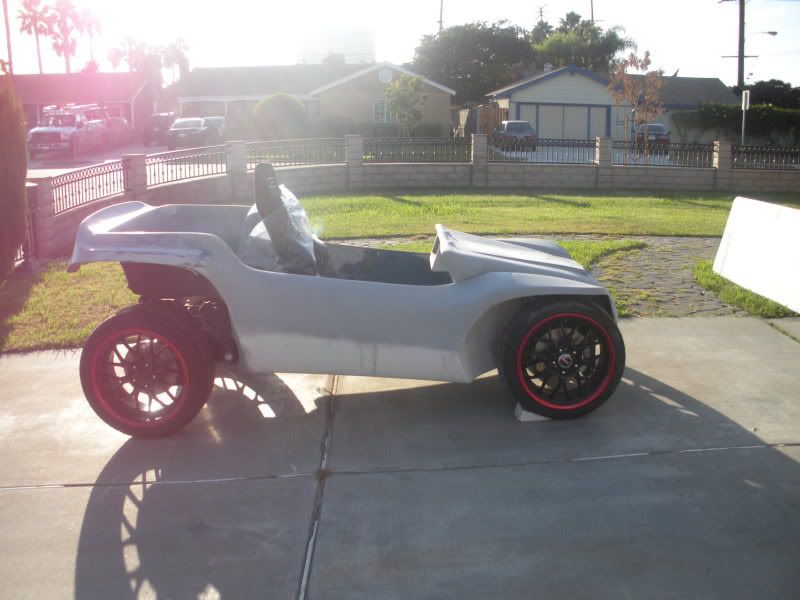

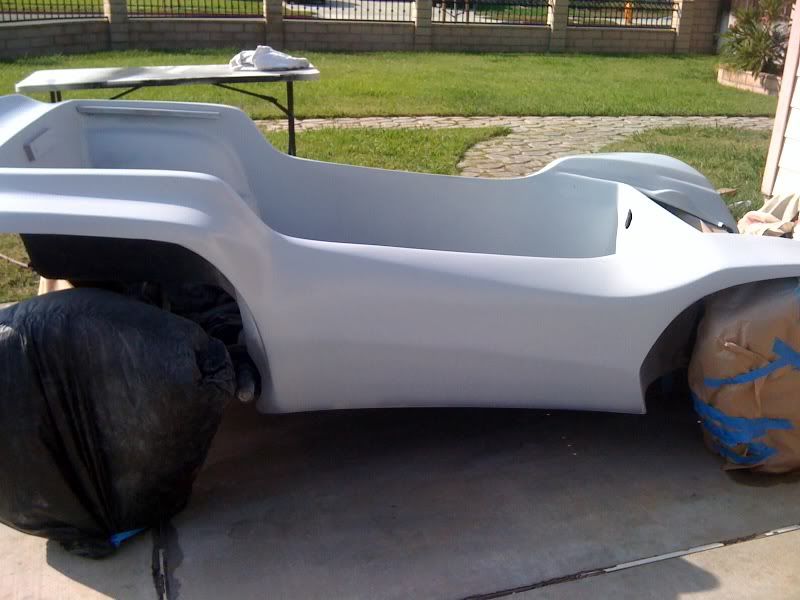

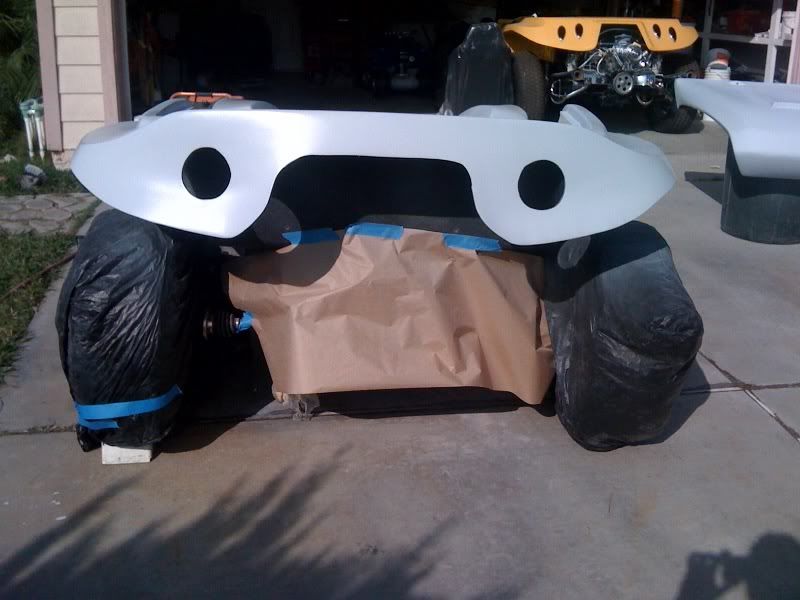

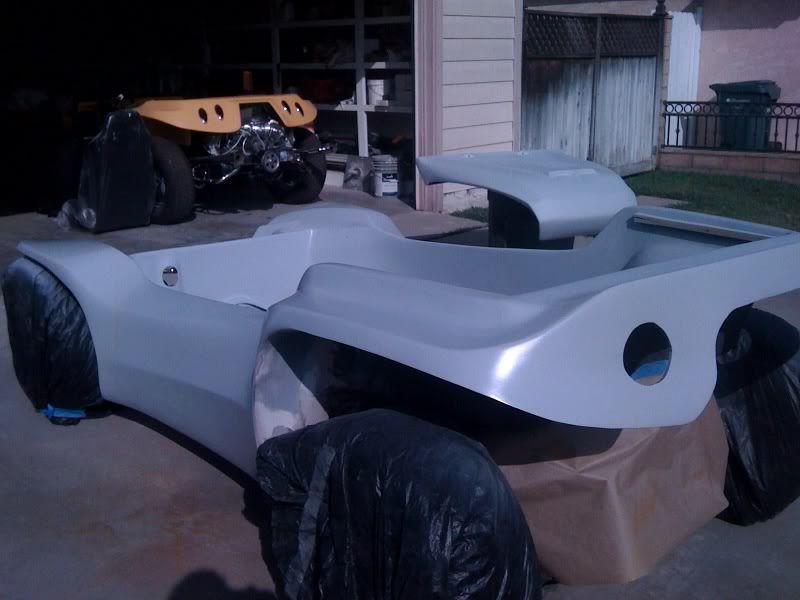

Most recent pictures. Fisrt time that it has been all one color since I got it on 7-7-07. Almost ready for paint.

LouisB · Posted: Tue Nov 10, 2009 10:32 am Post subject:

Wow, that is coming out really nice.

--louis
_________________
Louis Brooks
'67 Manx II

Old people at weddings always poke me and say "Your next." So, I started doing the same to them at funerals.

tinnocker · Posted: Tue Nov 10, 2009 1:07 pm Post subject:

You really brought that buggy back from the dead. Extensive body repair. Looks good.

GS guy · Posted: Tue Nov 10, 2009 2:59 pm Post subject:

Nice job - I think it looks great! What's the final color going to be? I guess something that works with the red stripe on the wheels?

Molded in side pods look terrific.

Jeff
_________________
70's vintage Deserter GS buggy - undergoing transformation to Super GS!

streetbuggy8804 · Posted: Tue Nov 10, 2009 3:48 pm Post subject:

Thanks guys. I ma going to try and match the color on the wheels (red). The interior will be black. I have a lready made a carbon fiber piece that will house the gages. Wasn't near as hard to work with as everyone made it out to be. I'm also going to construct a center council that will have carbonfiber inserts, and of course cup holders.

Dinubadave · Posted: Tue Nov 10, 2009 4:04 pm Post subject:

gr8cobbler · Posted: Tue Nov 10, 2009 6:40 pm Post subject:

That is the only body I have ever seen that is worse than mine, Shocked

I also have the dubious honor of having paid too much for mine. You give me just a little hope that mine might look half as good as that one does. Well done.
_________________
Gary

Being a cheap old fart is just a front for my actual lack of money. Smile

madarcher · Posted: Tue Nov 10, 2009 7:01 pm Post subject:

man i wish i had your talent

Chadwa · Posted: Tue Nov 10, 2009 8:23 pm Post subject:

Looking really good. I like the rims alot.
Chadwa

66 Shorty · Posted: Wed Nov 11, 2009 6:41 am Post subject:

Great Job Man! I thought I had my work cut out for me... Holy Cow, it rolled & you basically had to rebuild the entire body, & it looks SWEET!

I hope mine looks 1/2 as nice. I've been working on the Chassis still & putting off all the bodywork (fixing, filling, & sanding)... Rolling Eyes

_________________
~X-Man~

'60's Spatz Buggy body on '74 Chassis (Budget Build)
'69 Bug (Baja-to-be partial daily)
'10 Silverado (My daily)

streetbuggy8804 · Posted: Wed Nov 11, 2009 10:01 am Post subject:

I was going to buy another buggy for 1200 dollars and before I left to go and pick it up, I decided to jump on craigslist. I found this one in San Diego for 150 dollars. I decided to take the 2 hour drive to check it out, trailer intact just incase. When I got there there was another guy looking at it and he decided that it was beyond repair. I seen a treasure and gladly took it off of his hands. I also knew that I wanted to do a street style build and the body style (with the wing and the scoop) was a perfect fit.

Dinubadave · Posted: Wed Nov 11, 2009 10:43 am Post subject:

It is a nice looking body, I like the way the headlights are supported; I used a recommendation here on mine, body washers sandwished between layers of fiberglass/fiber to beef up the supports, I would think your style would be stronger and easier to beef up if desired.

Butch F20 · Posted: Mon Nov 30, 2009 1:27 pm Post subject:

Arthur,

Great jop, coming along nicely. I have a question about your side pods though. At the top of the pod where it meets the body, what did you use to make the surfaces flush ? My pod fits behind the body as your appears to do, and after glassing the pod to the body, I will have approx 1/4 - 3/8" to bring the surface of the pod even with the body.

I was going to try building up that area with cloth and then body filler with the milled fiber in it to help prevent cracking, just wanted to see of that is what you did. Any other suggestions would be appreciated. Looks great though.
Thanks,
Butch

hstrecht65 · Posted: Thu Dec 03, 2009 9:33 pm Post subject:

I think the seats are a bit over powering.. hopefully your small enough to fit. Regardless great build Smile

streetbuggy8804 · Posted: Fri Dec 04, 2009 6:49 pm Post subject:

Butch. I glassed it in initiallt and then filled it with body filler ( fiberglass reinforced). Once it got close to being right, I then glassed over it agian. Little more filler to make it perfect then high build poly primer.

streetbuggy8804 · Posted: Fri Dec 04, 2009 6:58 pm Post subject:

hstretch. I think the seats will fit fine. As far as if I'm small enough..... well you decide.

Hot Air · Posted: Sat Dec 05, 2009 8:14 am Post subject:

Nice wife beater. Rolling Eyes

Dude nobody wants to see what you look like. Takeing a pic of yourself to prove something must mean you lack in other areas. Laughing

Stick to the build , the buggy looks great. Keep us posted on the progress I am watching this one I have the same body (buggy that is).

streetbuggy8804 · Posted: Sat Dec 05, 2009 10:50 am Post subject:

There are a lot of smart asses on here. Guess you can say a lot of people that are full of "hot air." I'm just being a smart ass too

Rbake · Posted: Sun Dec 06, 2009 5:36 pm Post subject:

your's looks like mine (the buggy anyway) Laughing

nice job, what are you doing for a roll bar?? I was thinking of Miata style for mine.

Also, I custome made my dash because I'm 6'2 and my knee would hit the dash
