Barrett bus-into bug

subybaja · Posted: Tue Jan 03, 2006 8:09 pm Post subject: Barrett bus-into bug

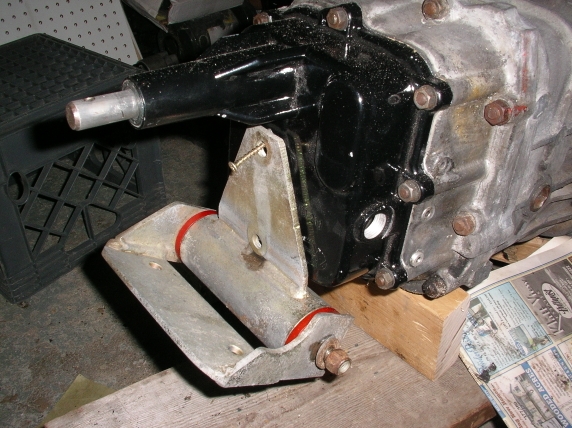

I've got an old 10deg. tranny mount that was sold by barrett Enterprises. It's just like the McKenzies one, only the front mount bolts in rather than welding.
Anyone used one of these? Any strength or shifting problems?

Image may have been reduced in size. Click image to view fullscreen.

Also, this thing's made of some pretty heavy plate- does anyone make longer bolts for the end of the horns? I don't like having them only partly engaged, but the local specialty fastner shop looked at me blankly.

vwclass11 · Posted: Wed Jan 04, 2006 3:18 pm Post subject:

Well if you want to get rid of it, I have been looking for one of those for a couple of years now. I have always wondered what happened to their old inventory. Later, Mitch.
_________________
www.lowlifeaz.com

Vanhag wrote:
On a scale from 1-10 I see a class 11.

subybaja · Posted: Wed Jan 04, 2006 11:45 pm Post subject:

Funny you mention that...
I don't, but I have been thinking about duplicating it. Anyone think it would be worth the trouble, or are Class11 and I the only ones who would use it?
(also been trying to find Barrett- there have got to be dies for this thing sitting around somewhere, and I've got a 100 ton press at work)

bajaherbie · Posted: Thu Jan 05, 2006 6:31 am Post subject: Re: Barrett bus-into bug

i would replace the small silver screw on the front mount, it looks like the weak link....

watch out for class 11, he will want to trade some hot wheels for it!! Wink

_________________
blank

dcamomanx · Posted: Fri Jan 06, 2006 12:24 am Post subject:

I also have been looking for that kit. I would be interested in a copy.

Doran

DesertBob · Posted: Fri Jan 06, 2006 7:33 am Post subject:

I would purchase one. Been thinking a lot lately about upgrading from my trusty swing axle to one of those new fangled IRS transmission I keep hearing about. If I do a bus tranny would be the only way I would go.
_________________
All it takes is a little imagination, some mechanical ability, and neighbors who mind their own business

74 Super Beetle (German Look Project)
Full Flow 1776 with 36 Dells, 4 wheel drilled and slotted disc brakes, Porsche 7x17 Turbo Twists, Topline Maxx Struts, Camber kit, 7/8" Front Sway bar, Rear Sway bar, Urethane bushings all around.

USMCord1 · Razorback Joined: July 22, 2005 Posts: 1538 Location: Az

bajaherbie · Posted: Fri Jan 06, 2006 11:09 am Post subject:

DeMinimis · Posted: Fri Jan 06, 2006 1:00 pm Post subject:

I've got the McKenzie's one. Frankly its onf of the best/strongest parts out there. I'm sure many would purchase them if you started fabbing your own.
_________________
Yes Virginia, beer can make you smarter.

'78 SB CEII In Progress.

rooster · Posted: Sat Jan 07, 2006 7:02 pm Post subject:

subybaja,

My friend just gave me one of these mounts the other day. It is new but someone used the plate that bolts to the tranny [behind the W shaped piece] for a dunebuggy mount. If you take yours apart, could you post a picture of it? I have to make one and would like to see the bottom edge before I start. Thanks!

subybaja · Posted: Sat Jan 07, 2006 7:22 pm Post subject:

There you go... Good luck!

rooster · Posted: Sat Jan 07, 2006 7:47 pm Post subject:

Thanks a bunch! [even with measurements!]

That will be an easy make. I have been looking for info on this for a few days and you happened to post about it. Crazy! I won't be using mine for quite a while so I won't be able to comment on them till summer. I hope they work well for the both of us.

Bajadude · Posted: Tue Mar 21, 2006 12:53 pm Post subject: bus tranny mount

Hello Subybaja , would you be so kind to tell me how thick the plate is, I have to manufacture one myself but it is hard to find a "bus to bug"mount here in the Netherlands.

Is it posible to give some more measurements.

Thank you very much in advance.

Greetings from Bajadude , from the Netherlands Cool

Nicksan · Samba Member Joined: April 13, 2004 Posts: 2777

subybaja · Posted: Tue Mar 21, 2006 7:11 pm Post subject:

I finally tracked down Ron Barrett a few months ago. He's totally out of the business, working for some wholesale parts supplier, so there is no old stock. He did say that he was OK with people copying that mount, though.
I plan to do just that as soon as I get done with CAD drawings of it. Plasma cut, jig welded...
I seem to recall that the plate it's made of is .2 inches...
I'll let you guys know when I've got a few ready.
In the meantime, BD, you might check out McKenzies weld-in mount. It's the one that's shown installed in "Transmissions For Dummies", pg 3:
http://www.thesamba.com/vw/forum/viewtopic.php?t=143138&highlight=transmissions+dummies
The Barrett one is shown there uninstalled.

dirtydeedss · Posted: Tue Mar 21, 2006 8:31 pm Post subject:

whats the advantage to a 10 deg mount?

takotruckin · Posted: Tue Mar 21, 2006 8:35 pm Post subject:

drops the shift rod into the tunnel, gets the motor a little higher, i think it might get the trans lower in the forks, resulting in less cv angle at full droop
_________________
Member of the baja's that don't run club, for now!!

USMCord1 · Razorback Joined: July 22, 2005 Posts: 1538 Location: Az

Here's a nice set-up

_________________
For a Good time

Skidmark · Posted: Tue Mar 21, 2006 8:57 pm Post subject:

takotruckin · Posted: Tue Mar 21, 2006 9:04 pm Post subject:

that is a cool setup. would take a rather large hole in a stock tunnel though
_________________
Member of the baja's that don't run club, for now!!
