| Author |
Message |
oldskoolbug
Samba Member
Joined: December 07, 2008
Posts: 434
Location: Toronto, Canada
|
 Posted: Thu Oct 21, 2010 11:48 pm Post subject: Hayabusa Heads |
 |
|

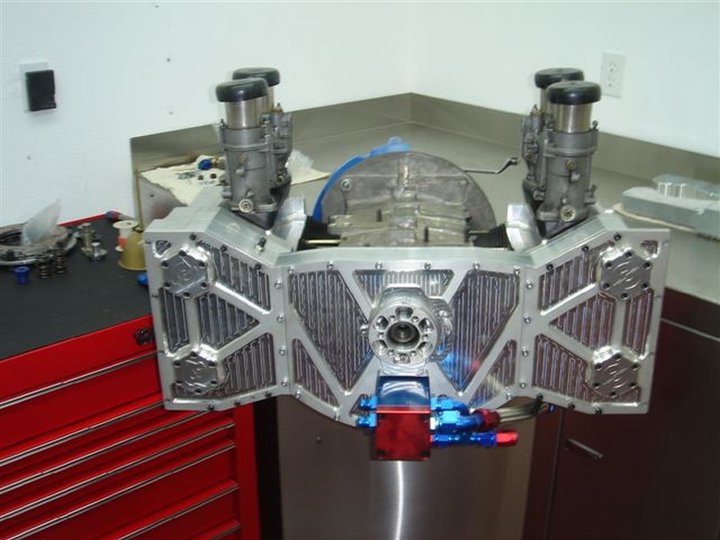

A co-worker emailed me some very interesting photos of a type 1 engine setup. Apparently these are Hayabusa heads modified to work on a type 1 engine. This modification surpases my limited knowledge on this subject, so I'll let you fine folks take a peak, and make comments on what you see!
|
|
| Back to top |
|
 |
spyvsspy
Samba Member
Joined: August 22, 2006
Posts: 1022
Location: inside the barrel...
|
| Posted: Fri Oct 22, 2010 12:09 am Post subject: |
|
|
Looks more subaru-ish than hayamagaya. to me
_________________
It is what it is. |
|
| Back to top |
|
|
jesus_chrysler
Samba Member
Joined: March 04, 2009
Posts: 425
Location: Wisconsin
|
| Posted: Fri Oct 22, 2010 3:08 am Post subject: |
|
|
I respect the creativity involved but it seem to me like alot of time and effort wasted to make a sloppy version of a subaru.
With all that technology and inovation it still has a set of crappy carbs on it...
If I was going to go through all that work with hayabusa heads I would just run a 2.8L V8 with 450 HP.
|
|
| Back to top |
|
|
LeviMan2001
Samba Post Whore
Joined: April 11, 2009
Posts: 3855
Location: Alaska
|
| Posted: Fri Oct 22, 2010 3:13 am Post subject: |
|
|
| jesus_chrysler wrote: |
I respect the creativity involved but it seem to me like alot of time and effort wasted to make a sloppy version of a subaru.
|
You call that sloppy?! I'd like to see you're completely custom head swap. I always wondered why no one makes heads that have a completely different port design. Say a GM LS series intake and exhaust port design fitted around VW geometry in an air cooled head. Now that would make some power.
_________________
http://www.thesamba.com/vw/forum/viewtopic.php?t=366056 - My '73 Super Build. 2332cc, 16" Fuchs |
|
| Back to top |
|
|
vaughn bros.
Samba Member
Joined: October 13, 2003
Posts: 2398
Location: Hickory, NC
|
| Posted: Fri Oct 22, 2010 4:20 am Post subject: |
|
|
| I would be happy just to have valve covers that LOOK like I have overhead cams. I would love to see how much of this engine shows from the back of the car. If I pulled up to this in traffic, and saw that much hanging down below the body, I would run back home to mommy. |
|
| Back to top |
|
|
vaughn bros.
Samba Member
Joined: October 13, 2003
Posts: 2398
Location: Hickory, NC
|
| Posted: Fri Oct 22, 2010 4:51 am Post subject: |
|
|

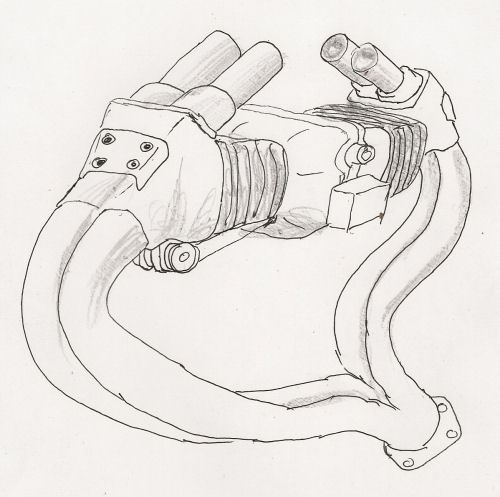

I love when the game changes a bit. I drew these up (quickies) of some of the perversions I would like to experiment with. All I need is a milling machine and a million dollars. Yes there will be some injuries in the process.
|
|
| Back to top |
|
|
Stripped66
Samba Member
Joined: May 31, 2005
Posts: 3508
Location: Charleston, SC
|
| Posted: Fri Oct 22, 2010 5:48 am Post subject: |
|
|
That engine belongs to Brian Hyerstay. The heads are 100% custom, not modified Hyabusa heads. As far as a "sloppy" Subaru goes, Brian has made more HP in 1679cc's than most of you will ever pull out of a VW. It's good to know the standard is judged by those who do so little
Oh, and considering those heads are going on a 1679, some of you folks will be even further away from ever making the HP Brian puts down.
_________________
| 66brm wrote: |
| Bodacious wrote: |
| Why not just make a custom set of wires with a Y splice in them. Then you could just run one distributor. |
I don't think electrickery works that way |
|
|
| Back to top |
|
|
mharney
Samba Member
Joined: June 01, 2002
Posts: 8353
|
| Posted: Fri Oct 22, 2010 6:29 am Post subject: |
|
|
| There are innovators, and there are critics. Very few times do they settle in the same arena. Those look badass. |
|
| Back to top |
|
|
vaughn bros.
Samba Member
Joined: October 13, 2003
Posts: 2398
Location: Hickory, NC
|
| Posted: Fri Oct 22, 2010 6:45 am Post subject: |
|
|
damn  |
|
| Back to top |
|
|
Eaallred
Samba Member
Joined: May 18, 2003
Posts: 5756
Location: West Valley City, Utah
|
| Posted: Fri Oct 22, 2010 6:57 am Post subject: |
|
|
That's some of the nicest "slop" i've ever seen.
I love to see people go outside the box and do something different, and this definitly is. I love it!
The irritating part is, i've seen people get more praise for a cookie-cutter build than this wicked setup.
_________________
Eric Allred
You have to remember something: Everybody pities the weak; Jealousy you have to earn. |
|
| Back to top |
|
|
MikeGatch
Samba Member
Joined: April 01, 2009
Posts: 445
Location: Valparaiso IN
|
| Posted: Fri Oct 22, 2010 6:57 am Post subject: |
|
|
So...are they oil cooled?
_________________
Daily Driver: 73 STD Beetle.
Road tripper: 82 diesel westy vanagon. (Won't idle work in progress)
Adequately powered road tripper: 73 campmobile.
Bugs with no legs. 1 72 standard and 2 super verts. |
|
| Back to top |
|
|
Stripped66
Samba Member
Joined: May 31, 2005
Posts: 3508
Location: Charleston, SC
|
| Posted: Fri Oct 22, 2010 7:29 am Post subject: |
|
|
Cooling isn't too much of an issue for a quarter-mile drive.
_________________
| 66brm wrote: |
| Bodacious wrote: |
| Why not just make a custom set of wires with a Y splice in them. Then you could just run one distributor. |
I don't think electrickery works that way |
|
|
| Back to top |
|
|
MikeGatch
Samba Member
Joined: April 01, 2009
Posts: 445
Location: Valparaiso IN
|
| Posted: Fri Oct 22, 2010 7:37 am Post subject: |
|
|
spose not, just wondering about the line setup. It's a wow setup for sure. Some people can't appreciate innovation. If it's not broke don't fix it, but by all means, make something better.
_________________
Daily Driver: 73 STD Beetle.
Road tripper: 82 diesel westy vanagon. (Won't idle work in progress)
Adequately powered road tripper: 73 campmobile.
Bugs with no legs. 1 72 standard and 2 super verts. |
|
| Back to top |
|
|
Stripped66
Samba Member
Joined: May 31, 2005
Posts: 3508
Location: Charleston, SC
|
| Posted: Fri Oct 22, 2010 7:40 am Post subject: |
|
|
| MikeGatch wrote: |
| spose not, just wondering about the line setup. |
Dry-sump oil pump; he's probably supplying the cam bearings with the oil they need and scavenging the oil from the heads.
_________________
| 66brm wrote: |
| Bodacious wrote: |
| Why not just make a custom set of wires with a Y splice in them. Then you could just run one distributor. |
I don't think electrickery works that way |
|
|
| Back to top |
|
|
MikeGatch
Samba Member
Joined: April 01, 2009
Posts: 445
Location: Valparaiso IN
|
| Posted: Fri Oct 22, 2010 7:46 am Post subject: |
|
|
Really interesting creation. Very shiny =P
_________________
Daily Driver: 73 STD Beetle.
Road tripper: 82 diesel westy vanagon. (Won't idle work in progress)
Adequately powered road tripper: 73 campmobile.
Bugs with no legs. 1 72 standard and 2 super verts. |
|
| Back to top |
|
|
vaughn bros.
Samba Member
Joined: October 13, 2003
Posts: 2398
Location: Hickory, NC
|
| Posted: Fri Oct 22, 2010 7:51 am Post subject: |
|
|
I just dreamed that I walked out in the shop and saw it in my bug.
Last edited by vaughn bros. on Fri Oct 22, 2010 1:20 pm; edited 1 time in total |
|
| Back to top |
|
|
Cousin of a Porsche
Samba Member
Joined: May 17, 2007
Posts: 813
Location: Royal Palm Beach
|
| Posted: Fri Oct 22, 2010 7:51 am Post subject: |
|
|
[quote="jesus_chrysler"]I respect the creativity involved but it seem to me like alot of time and effort wasted to make a sloppy version of a subaru.
With all that technology and inovation it still has a set of crappy carbs on it...
If that's slop I want some and crappy carbs? I never herd 48's discribed as "crappy" before.
_________________
67 Bug w/2110
1980 911sc looks faster than it is!
I can't help it I am what I am.
Alte Schule Vintage and Performance VW club
BKC #022 (Well at least that is what the jacket says) |
|
| Back to top |
|
|
Stripped66
Samba Member
Joined: May 31, 2005
Posts: 3508
Location: Charleston, SC
|
| Posted: Fri Oct 22, 2010 7:58 am Post subject: |
|
|
| Cousin of a Porsche wrote: |
| I never herd 48's discribed as "crappy" before. |
Brian may be bound to running carburettors in the class he races...FWIW.
_________________
| 66brm wrote: |
| Bodacious wrote: |
| Why not just make a custom set of wires with a Y splice in them. Then you could just run one distributor. |
I don't think electrickery works that way |
|
|
| Back to top |
|
|
oldskoolbug
Samba Member
Joined: December 07, 2008
Posts: 434
Location: Toronto, Canada
|
| Posted: Fri Oct 22, 2010 8:02 am Post subject: |
|
|
| Stripped66 wrote: |
| That engine belongs to Brian Hyerstay. The heads are 100% custom, not modified Hyabusa heads. As far as a "sloppy" Subaru goes, Brian has made more HP in 1679cc's than most of you will ever pull out of a VW.. |
Fantastic! I knew someone eventually would enlighten us!  Is there anymore information on these heads? I'm curious to see their design, and how much hp that setup can achieve! Its quite genius actually! |
|
| Back to top |
|
|
oldskoolbug
Samba Member
Joined: December 07, 2008
Posts: 434
Location: Toronto, Canada
|
| Posted: Fri Oct 22, 2010 8:17 am Post subject: |
|
|
Actually, I just did a little digging up online. There is quite a bit of information posted by Brian himself on the Cal-Look.com forums, where he goes by the username of 1649vw.
Its a 1679cc motor, putting out about 220hp. His car runs in the low 9s and can achieve 11,000rpm. There was also mention that he uses 5" Carrillo rods with a ratio of 1.84:1. Those heads are 2-valve, 2 spark plug heads. Very impressive!

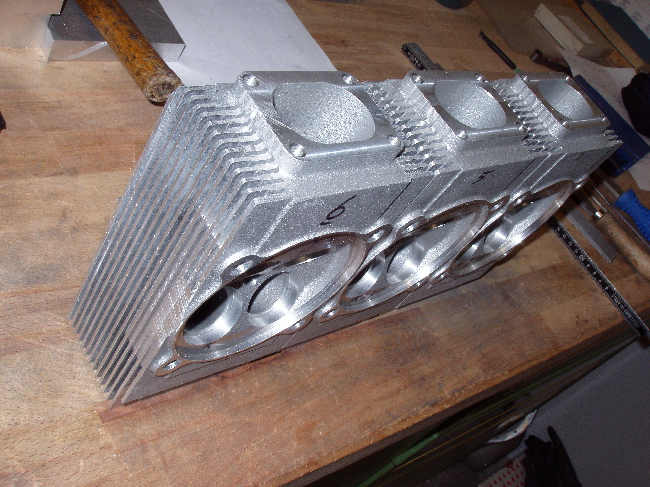

There another user on that forum that was/is working on a 4 valve DOHC setup. Here are some shots.
Here is some data he posted in regards to the first flowbench tests on the 4 valve dohc heads.
Flow at 25" is:
1mm - 38,2
2mm - 70,9
3mm - 107,9
4mm - 144,1
5mm - 183,3
6mm - 210,7
7mm - 230,7
8mm - 245,8
9mm - 256,0
10mm - 263,7
11mm - 267,6
12mm - 272,2
All measurements above without manifold.
12 mm with a primitive manifold 285,4
13 mm with this manifold 289,1.
! |
|
| Back to top |
|
|
|
