Otto Mathe and his "Fetzenflieger" race car
Page: 1, 2, 3, 4  Next
Forum Index -> Beetle - Split-Window/1938-53 VWs Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
sled
Samba Member


Joined: February 16, 2005
Posts: 6247

sled is offline

PostPosted: Fri Feb 20, 2009 9:45 am    Post subject: Otto Mathe and his "Fetzenflieger" race car Reply with quote

Hello,

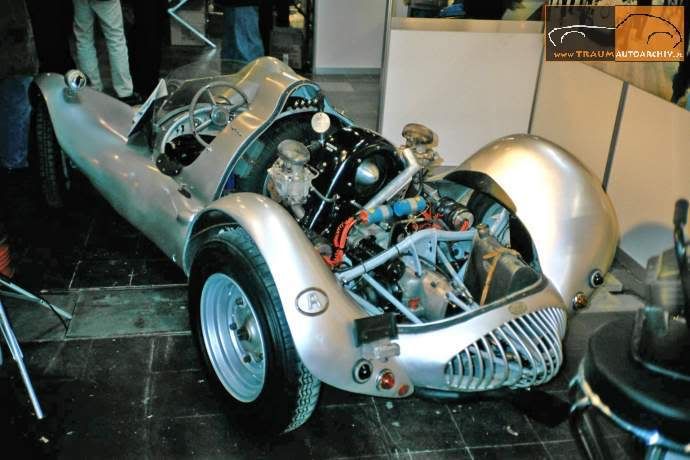

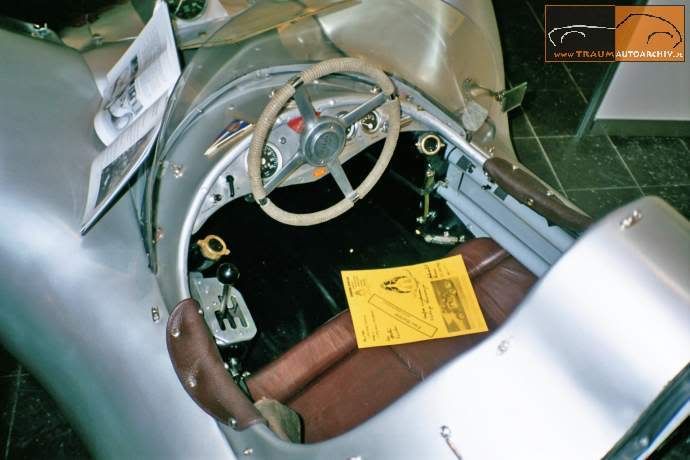

I am looking for any and all information about this little race car built and raced by Otto Mathe.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.



I am looking for any and all information. Things like wheel base, track width, frame construction photos, etc.

I know it was built with kubelwagen suspension components and a 4 cam porsche engine. How wide is a kubelwagen beam and torsion housing? Is it the same as later production beetles?

Thanks for any help!

Jake
_________________
drive your split.


Last edited by sled on Thu Mar 19, 2009 8:26 am; edited 1 time in total
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
sled
Samba Member


Joined: February 16, 2005
Posts: 6247

sled is offline

PostPosted: Fri Feb 20, 2009 9:56 am    Post subject: Reply with quote

some more photos


Image may have been reduced in size. Click image to view fullscreen.



Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.



Image may have been reduced in size. Click image to view fullscreen.



These photos courtesy Björn Schewe

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.
[/img]
_________________
drive your split.
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
loenicz
Samba Member


Joined: February 06, 2008
Posts: 24
Location: Germany
loenicz is offline

PostPosted: Fri Feb 20, 2009 11:20 am    Post subject: Re: Otto Mathe Fetzen Flieger race car info needed. Reply with quote

Hello ,

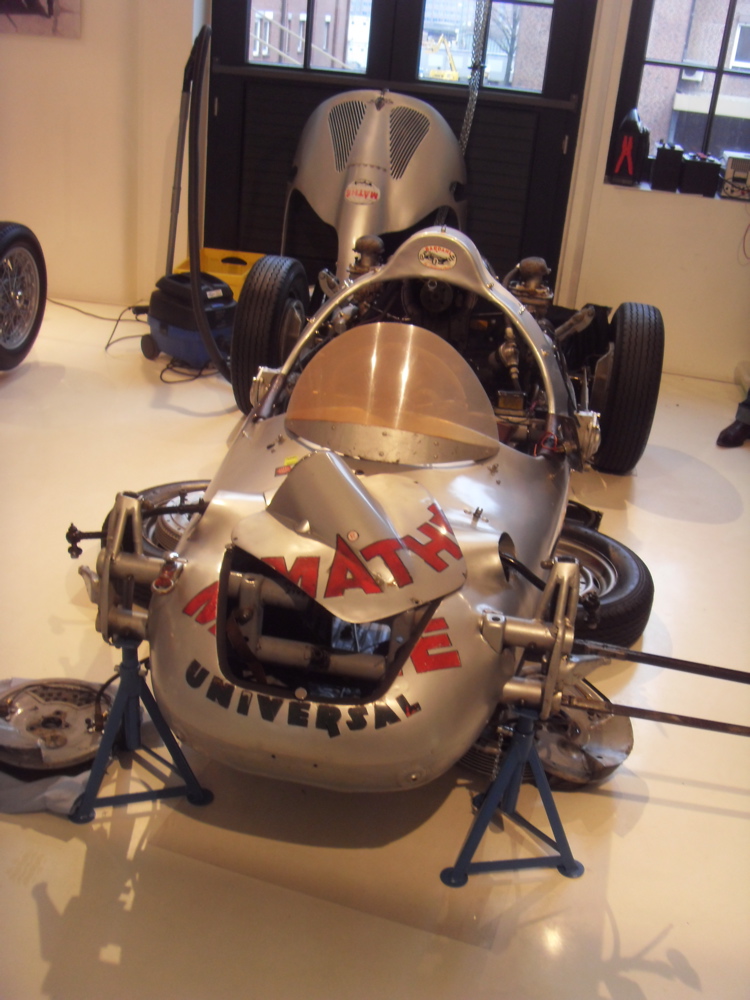

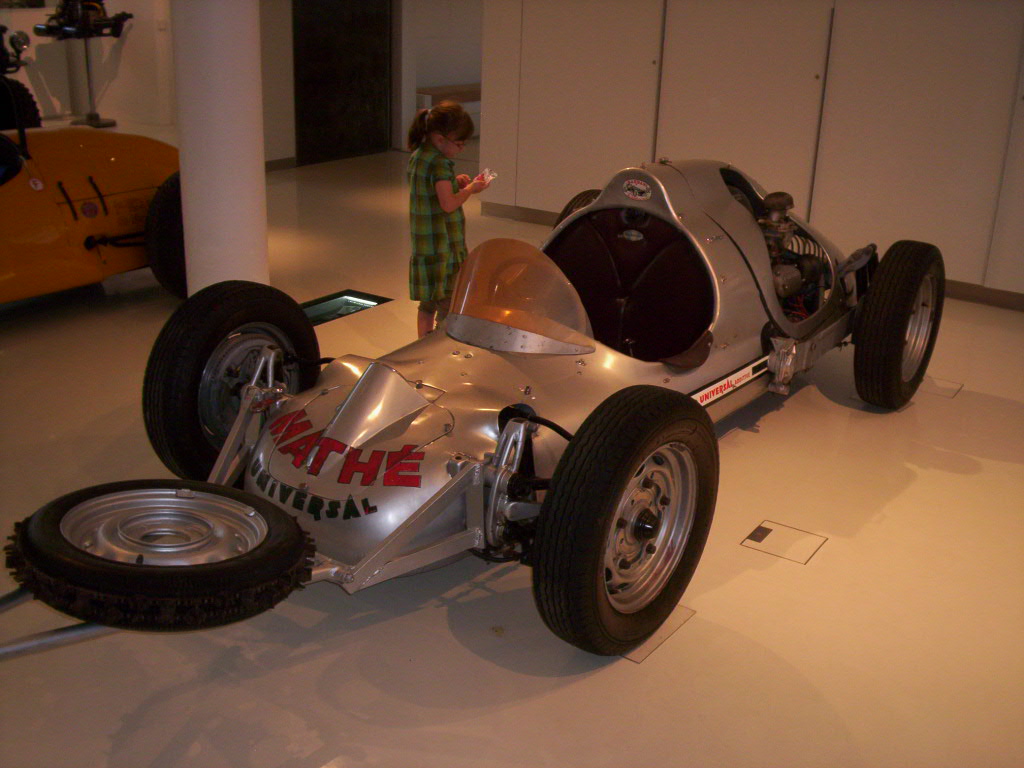

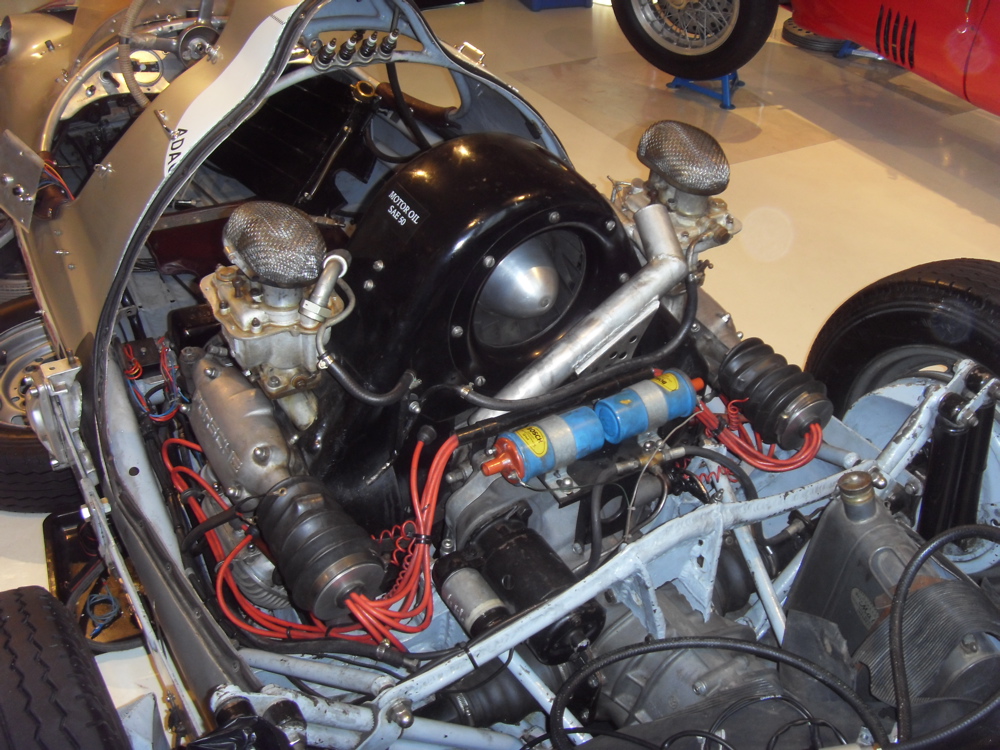

here are some pics from my visit in Hamburg 2008...

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Bye Jörg
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
73 KAFER
Samba Member


Joined: September 02, 2007
Posts: 1385
Location: St. Marys, Pa.
73 KAFER is offline

PostPosted: Fri Feb 20, 2009 11:26 am    Post subject: Reply with quote

Sorry I can't offer any info...but am 'diggin' the fender version. Great pics!!



Mark
_________________
1973 Beetle
#3 http://www.thesamba.com/vw/forum/album_page.php?pic_id=775620Kafer-Cup vintage road racer
Back to top
View user's profile Send private message Gallery Classifieds Feedback
sled
Samba Member


Joined: February 16, 2005
Posts: 6247

sled is offline

PostPosted: Fri Feb 20, 2009 11:50 am    Post subject: Reply with quote

WOW thank you so much Jörg, those pictures show a few more details than Ive seen yet.

Are we looking at some sort of an anti-sway bar in this picture? The red bar underneath the body looks like it is attatched to the torsion arms

Image may have been reduced in size. Click image to view fullscreen.

_________________
drive your split.
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
jooles
Samba Member


Joined: August 29, 2008
Posts: 235
Location: Bulgaria / France
jooles is offline

PostPosted: Fri Feb 20, 2009 12:45 pm    Post subject: Reply with quote

What are those spiky things on the spare wheel on the trailer? It looks like the car itself has it on the pic with the beetle and the Berlin Rome car (not sure it's the Berlin-Rome one :p)

Ju
Back to top
View user's profile Send private message Classifieds Feedback
sled
Samba Member


Joined: February 16, 2005
Posts: 6247

sled is offline

PostPosted: Fri Feb 20, 2009 12:59 pm    Post subject: Reply with quote

I have read that the car was raced on the sand. I dont know if that meant on beaches, or inland sand dunes, or what..
_________________
drive your split.
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
usariemen
Samba Member


Joined: August 28, 2004
Posts: 1745
Location: Germany
usariemen is offline

PostPosted: Fri Feb 20, 2009 5:21 pm    Post subject: Reply with quote

sled wrote:
I have read that the car was raced on the sand. I dont know if that meant on beaches, or inland sand dunes, or what..


No dunes or beaches. They had racing grounds back then wich had a sandy, earthy ground. And there where so called sandtrack races held.
Also on ice races on frozen lakes the guy was very successful. For those
he had tires with long metal spikes.

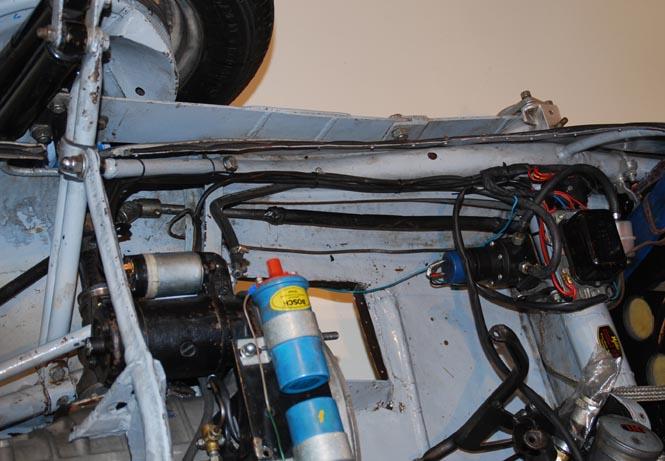

By the way. I have been today at the exibition in Hamburg where the car is on display. Actually they took the engine out for some service.
The frame might have been basically from a Kübel but was modified a lot.
Just like everything on that car is very stragely selfconstructed. Sometimes in a genial way and sometimes very weird.

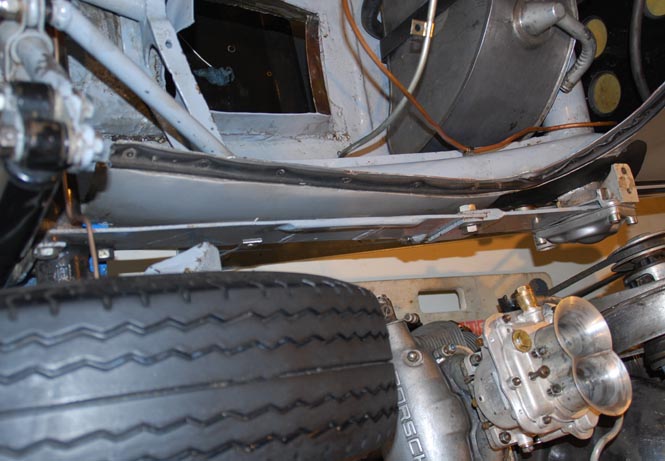

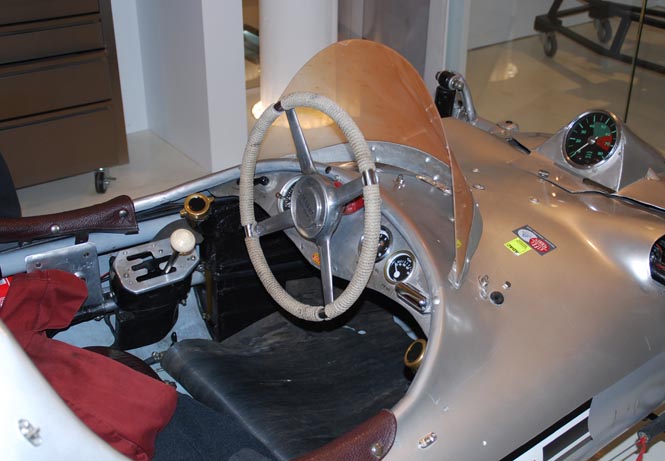

For example the way the shifting rods go to the far rear end to reach the gearbox is amazing. The rest of the exibition is very worth to be visited also.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
Master of my domain!
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
sled
Samba Member


Joined: February 16, 2005
Posts: 6247

sled is offline

PostPosted: Fri Feb 20, 2009 5:26 pm    Post subject: Reply with quote

WOW, thank you so much usariemen. These pictures are wonderful.

I dont suppose you happened to take any measurments? Laughing
_________________
drive your split.
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
57Drag
Samba Member


Joined: July 27, 2003
Posts: 994
Location: Lawtey,Florida
57Drag is offline

PostPosted: Fri Feb 20, 2009 5:34 pm    Post subject: Reply with quote

Looks like they used old school pull the leaves to change the spring weight?
_________________
http://smg.photobucket.com/home/57Drag/index
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
sled
Samba Member


Joined: February 16, 2005
Posts: 6247

sled is offline

PostPosted: Fri Feb 20, 2009 10:15 pm    Post subject: Reply with quote

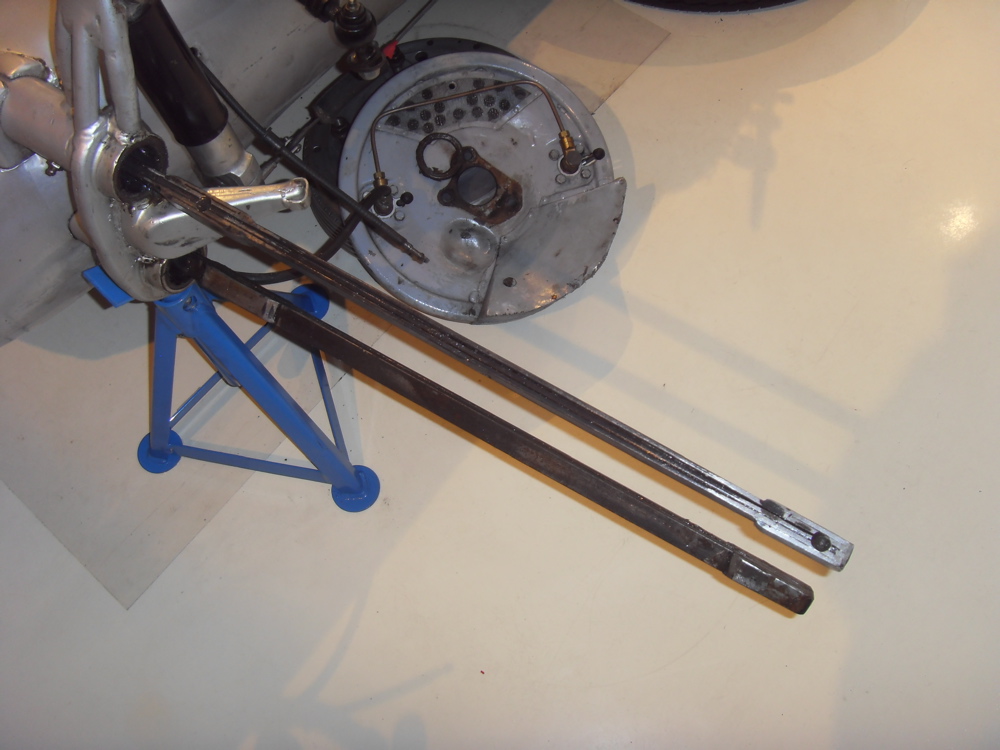

Im sure the stock spring rate was too stiff with the vehicle being as light as it was (around 960 lbs dry without the wings)

The rear spring rate seems to be handled by the much longer spring plates, which have much more leverage on the torsion bars. Im sure it rides halfway decent for a race car.
_________________
drive your split.
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
mightymouse
Samba Member


Joined: May 26, 2004
Posts: 4220
Location: las vegas
mightymouse is offline

PostPosted: Fri Feb 20, 2009 10:19 pm    Post subject: Reply with quote

57Drag wrote:
Looks like they used old school pull the leaves to change the spring weight?



Sorta. They welded them together then spaded them. To change spring rate no doubt, but interesting how they must have connected to the control arm. That id like to see.
Notice how The stack changes width in places, and looks like a different material than factory all together. Smile


Looking at it closer, looks like the stack is factory size at the ends.. now i see Embarassed



.
_________________
Nothing can stop the man with the right mental attitude from achieving his goal; nothing on earth can help the man with the wrong mental attitude.
Thomas Jefferson


Note to EVERYONE.
Know your ZDDP levels or you WILL lose a cam and lifters.
Back to top
View user's profile Send private message Send e-mail AIM Address Yahoo Messenger Gallery Classifieds Feedback
57Drag
Samba Member


Joined: July 27, 2003
Posts: 994
Location: Lawtey,Florida
57Drag is offline

PostPosted: Sat Feb 21, 2009 12:11 am    Post subject: Reply with quote

And the middle.I did that a long time ago on a 66 and it rode like crap.
_________________
http://smg.photobucket.com/home/57Drag/index
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
jooles
Samba Member


Joined: August 29, 2008
Posts: 235
Location: Bulgaria / France
jooles is offline

PostPosted: Sun Feb 22, 2009 3:18 pm    Post subject: Reply with quote

Ok, thanks for the infos and for the pics!!! Very instructive!

Julien
Back to top
View user's profile Send private message Classifieds Feedback
sled
Samba Member


Joined: February 16, 2005
Posts: 6247

sled is offline

PostPosted: Tue Feb 24, 2009 12:16 pm    Post subject: Reply with quote

bump


anyone happen to know anything else about this race car?

wheelbase measurement?
_________________
drive your split.
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
Björn Schewe
Samba Member


Joined: April 21, 2004
Posts: 633

Björn Schewe is offline

PostPosted: Thu Feb 26, 2009 1:31 am    Post subject: Reply with quote

Image may have been reduced in size. Click image to view fullscreen.


There is a very nice book of Otto Mathé on the marked with a lot of informations about the Fetzenflieger, the Berlin-Rome-Car and other interesting things of his life. Gabriele Geutebrück / Johann Kofler “Sein Herz schlug für Porsche” ISBN 3-85093-134-X
Back to top
View user's profile Send private message Gallery Classifieds Feedback
sled
Samba Member


Joined: February 16, 2005
Posts: 6247

sled is offline

PostPosted: Thu Feb 26, 2009 11:00 am    Post subject: Reply with quote

Thanks Björn, I dont know how I didnt find that book in some of my searching. Oh well, Ive got a copy on order! Now I just need to remember the three years of German I took in highschool Shocked
_________________
drive your split.
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
Kilroy
Samba Member


Joined: August 29, 2007
Posts: 311
Location: San Diego, CA
Kilroy is offline

PostPosted: Thu Feb 26, 2009 11:34 am    Post subject: Reply with quote

Man, it would be a real kick to drive that little car! Very Happy
_________________
Ruby Red '66 Sedan with Puebla built 1600DP.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
TangoCharly
Samba Member


Joined: March 02, 2009
Posts: 10

TangoCharly is offline

PostPosted: Mon Mar 02, 2009 5:59 am    Post subject: Reply with quote

sled wrote:
Im sure the stock spring rate was too stiff with the vehicle being as light as it was (around 960 lbs dry without the wings)

The rear spring rate seems to be handled by the much longer spring plates, which have much more leverage on the torsion bars. Im sure it rides halfway decent for a race car.


Image may have been reduced in size. Click image to view fullscreen.


this car was and is very fast and good on the ground. it won the austrian championship in 1953, 54 , 55 and 1956. it was also unbeatable on sand and on ice!!!
I have seen the car on the Nurburgring 2 years ago overtaking a porsche 911 RSR.
Back to top
View user's profile Send private message Classifieds Feedback
sled
Samba Member


Joined: February 16, 2005
Posts: 6247

sled is offline

PostPosted: Mon Mar 02, 2009 8:53 am    Post subject: Reply with quote

wow! another picture in use. Thank you.

do you have any more photos or informatio you can share Charly?
_________________
drive your split.
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Beetle - Split-Window/1938-53 VWs All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3, 4  Next
Page 1 of 4


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2024, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
